BRUGSANVISNING American Vintage II 1951 Telecaster Left-Hand FENDER
AMERICAN VINTAGE II 51 BLACKGUARD TELECASTER® LH
(0110322850)

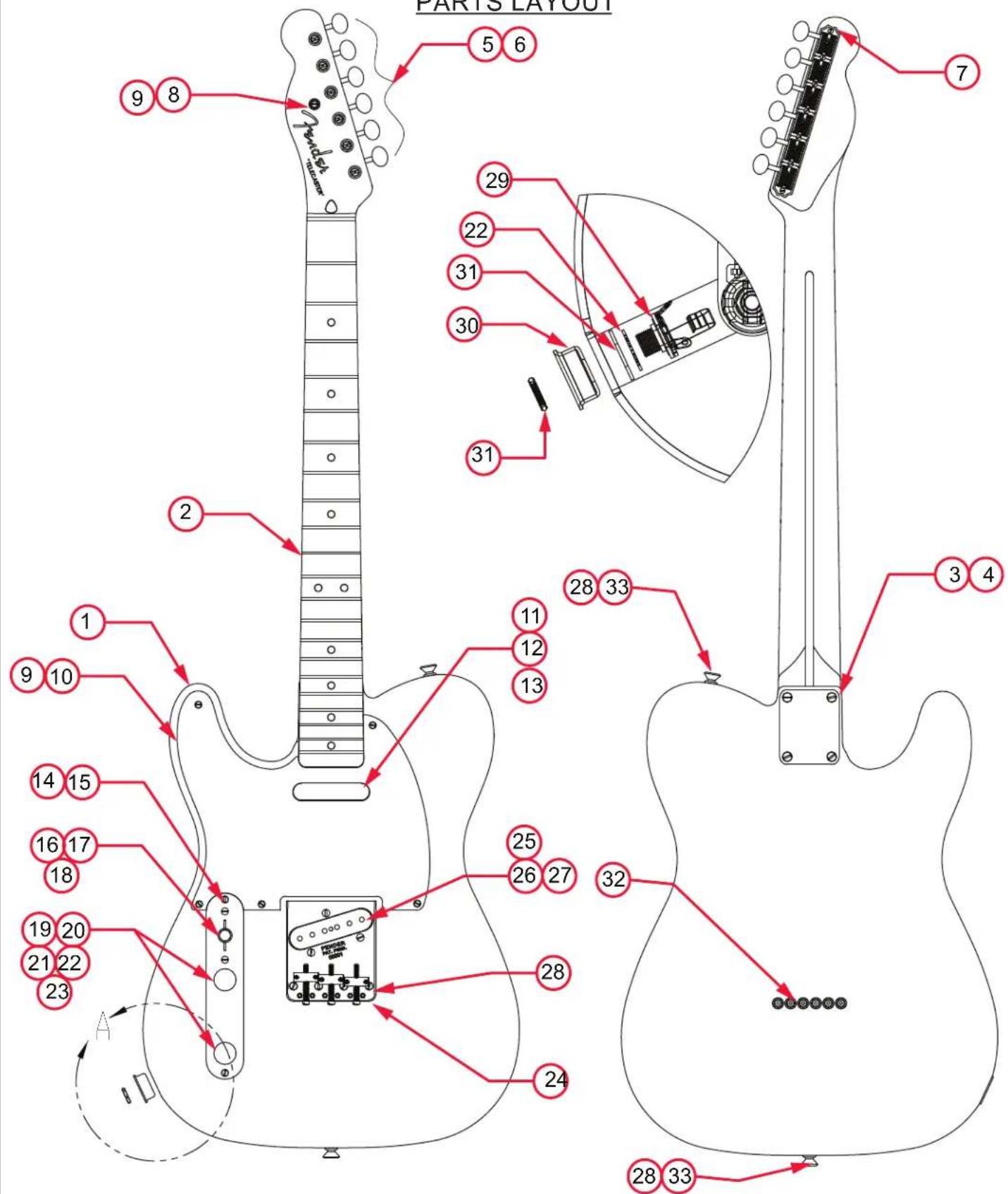

PARTS LAYOUT
AMERICAN VINTAGE II 51 BLACKGUARD TELECASTER® LH
(0110322850)
PARTS LIST
| REF# | DESCRIPTION PART | NUMBER |
| 1 | BODY AM VINT II 51 BLACKGUARD TELE BTB 7721749550 | |
| 2 | NECK ASSY AM VINT II 51 BLACKGUARD TELE MPL LH 7721755000 | |
| 3 | NECK PLATE VINT 52 TELE 0018353000 | |
| 4 | SCREW SMA 8 X 1-3/4 OHS NI 0018369049 | |
| 5 | KEY GUITAR NI FENDER LOGO SET W/HDWR 0992074002 | |
| 6 | USHING STRING POST VINT SET 0994946000 | |
| 7 | SCREW SMAB 3 X 3/8 RHS NI 0018370049 | |
| 8 | STRING GUIDE VINT TELE NI W/HDWR 0994912000 | |
| 9 | SCREW SMA 4 X 1/2 OHS NI 0018368049 | |
| 10 | PICKGUARD TELE VINT BLACK PHEN | 0053821000 |
| 11 | PICKUP ASSY AM VINT II 51 TELE NECK | 7721868000 |
| 12 | TUBING LATEX CUT .250 OD X .125 ID X .550 L 0039410000 | |
| 13 | SCREW WOOD 3 X 1 RHS NI | 0018373049 |
| 14 | PLATE CONTROL TELE VINT CHR | 0093607000 |
| 15 | SCREW WOOD 5 X .625 OHS NI | 0095368049 |
| 16 | SWITCH 3-WAY LEVER | 0038993049 |
| 17 | KNOB SWITCH VINT TELE BAKELITE | 0093602049 |
| 18 | SCREW MACH 6-32 X 3/8 RHS NI | 0018375049 |
| 19 | KNOB 52 TELE KNURLED UPG CHR | 0094040049 |
| 20 | CONTROL 250K 10% AUDIO METAL | 0990831000 |
| 21 | NUT HEX 3/8-32 X 3/32 TK NI | 0016352049 |
| 22 | WASHER LOCK INTL 3/8 X .687 | 0016436049 |
| 23 | CAPACITOR WAX PAPER .05μF | 0096454049 |
| 24 | BRIDGE ASSY AM VINT II 51 BLACKGUARD TELE LH S/N & PAT# | N/A |
| 24A | BRIDGE SECTION VINT TELE | 0990843000 |
| 24B | SCREW MACH 6-32 X 1-1/4 FLHS NI | 0018377049 |
| 24C | SPRING COMPRESSION 1-1/16 #144 | 0018689049 |
| 24D | SET SCREW 6-32 X 7/16 OVPT NI | 0016105049 |
| 24E | SET SCREW 6-32 X 3/8 OVPT NI | 0094038000 |
| 25 | PICKUP ASSY AM VINT II 51 TELE BRDG | 7721872000 |
| 26 | TUBING LATEX CUT .425 X 1/8 | 0039409000 |
| 27 | SCREW MACH 6-32 X 5/8 RHS NI | 0018376049 |
| 28 | SCREW WOOD 6 X 1 OHS NI | 0018371049 |
| 29 | JACK PHONE OPEN CIRCUIT 11 | 0021956049 |
| 30 | FERRULE JACK NI TELE W/RETAINER | 0991941000 |
| 31 | RETAINER JACK NI | 0010355069 |
*= NOT PICTURED IN DIAGRAM
AMERICAN VINTAGE II 51 BLACKGUARD TELECASTER® LH (0110322850)
| REF# | DESCRIPTION PART | NUMBER |
| 32 FE | RRULE STRING RETAINERS NI 0994918000 | |
| 33 STRAP BUTTONS NI W/HDWR 0994915000 | ||
| * BR | DGE COVER TELE CHR 0992271100 | |
| * CASE GUITAR AM VINT TWEED 0094758000 | ||
*= NOT PICTURED IN DIAGRAM
AMERICAN VINTAGE II 51 BLACKGUARD TELECASTER® LH
(0110322850)

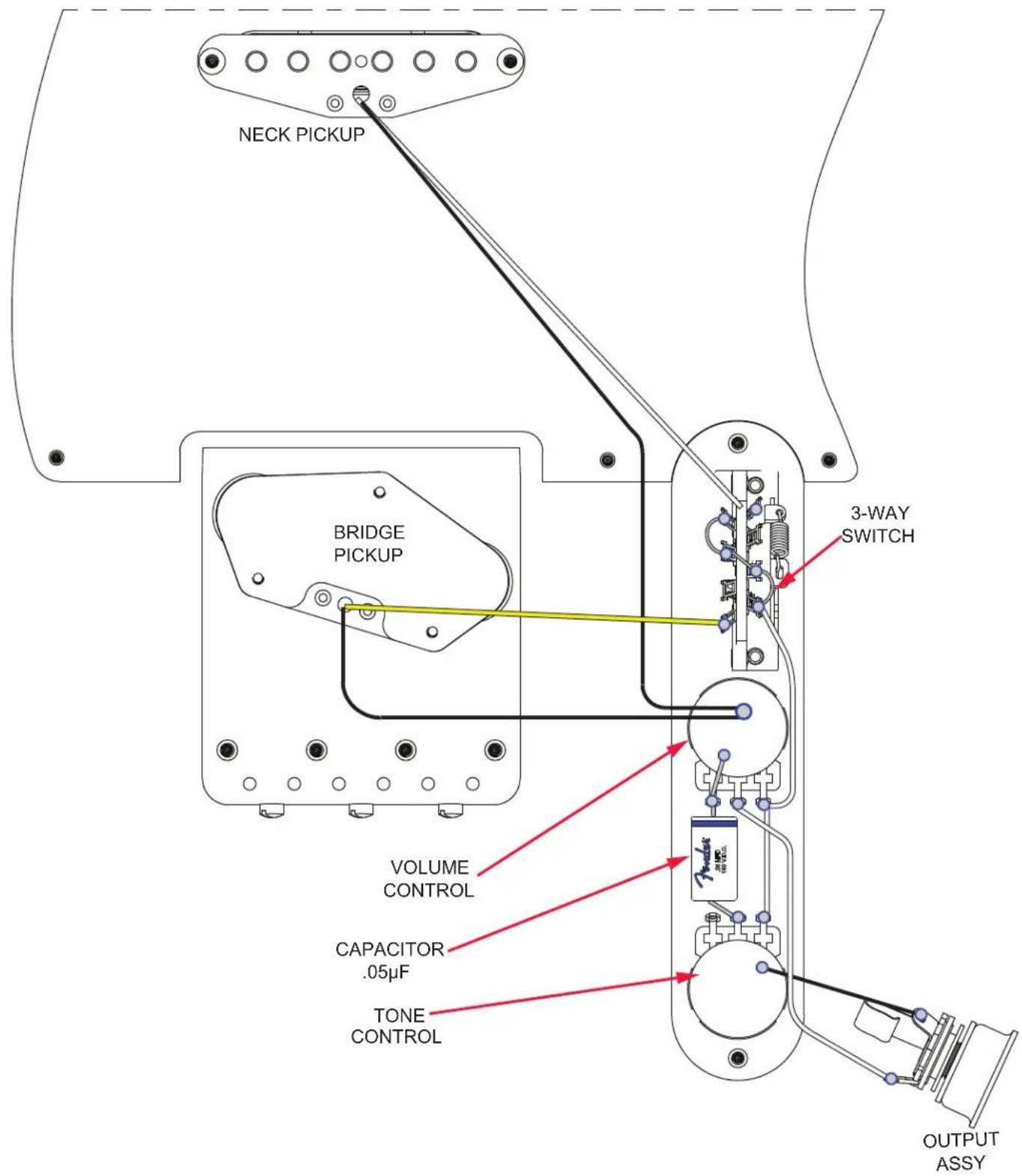

WIRING ASSEMBLY
AMERICAN VINTAGE II 51 BLACKGUARD TELECASTER® LH
(0110322850)

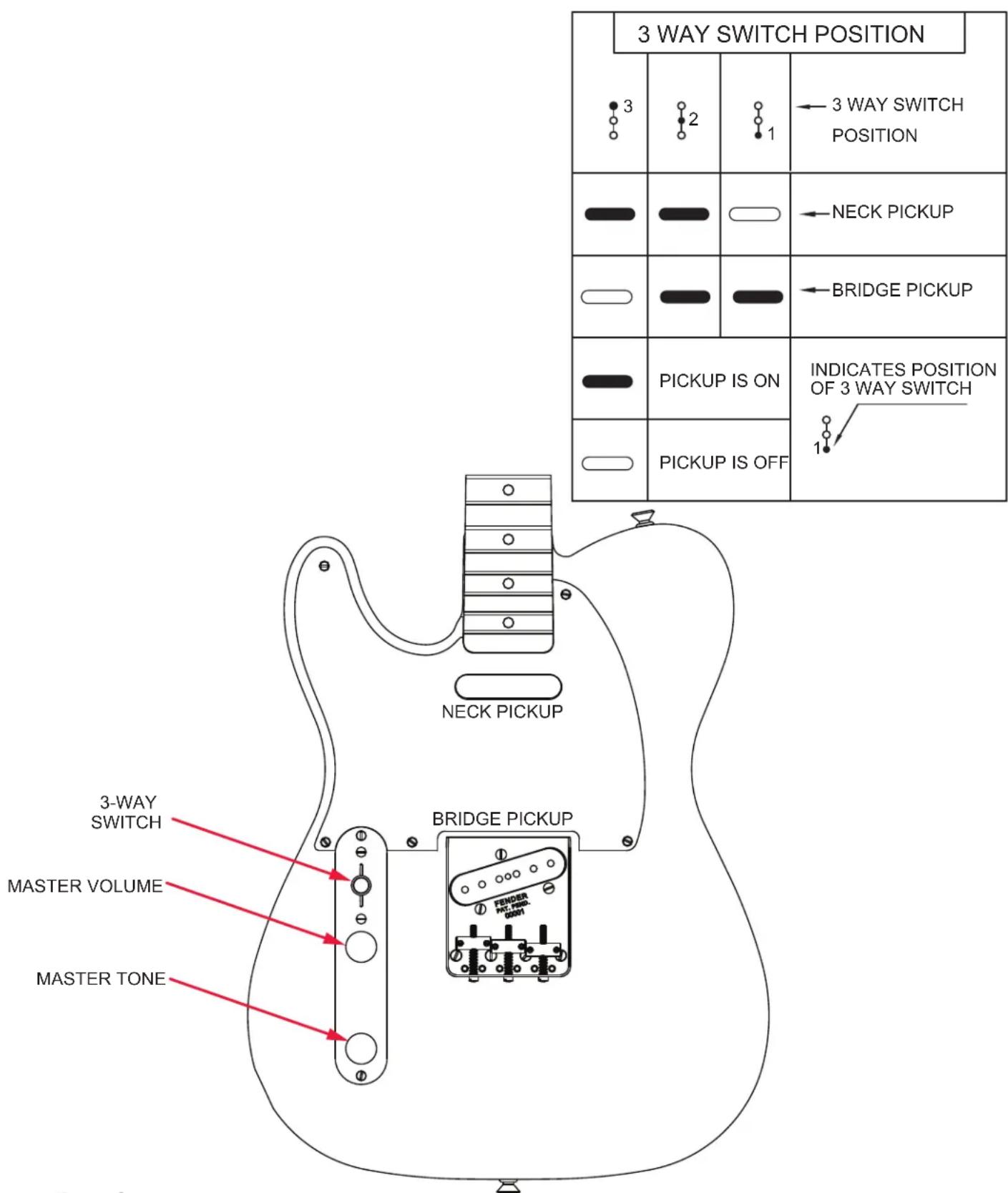

SWITCH AND CONTROL FUNCTION
AMERICAN VINTAGE II 51 BLACKGUARD TELECASTER® LH
(0110322850)
ADDITIONAL SPECIFICATION DETAIL

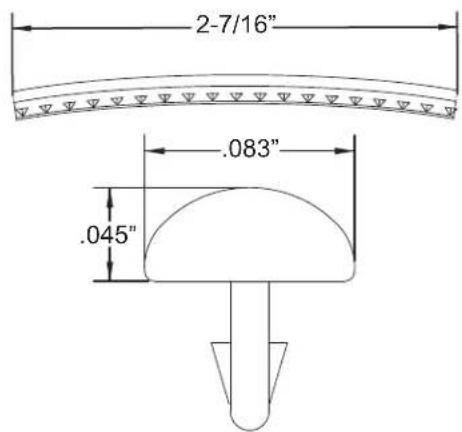

FRET SIZE: VINTAGE
(FRET DIMENSIONS ARE BEFORE INSTALLATION)
PLEASE NOTE: AS EACH NECK IS SANDED & FINISHED BY HAND, THICKNESS DIMENSIONS MAY VARY SLIGHTLY FROM THOSE SHOWN.
NECK PROFILE: THICK "U"

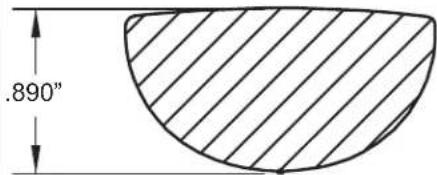

1ST FRET PROFILE

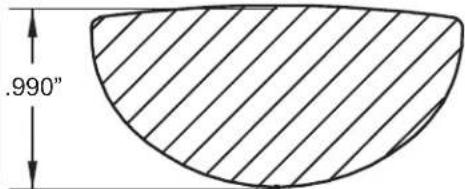

12TH FRET PROFILE
TUNING MACHINES : P/N 0992074002
OUTER SHAFT DIAMETER .250"
TUNING MACHINE THRU-HOLE
INNER DIAMETER .261"

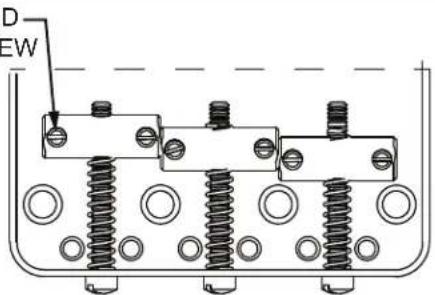

SLOTTED—SET SCREW
SADDLE HEIGHT SET SCREWS SLOTTED
TALL: P/N 0016105049
SHORT: P/N 0094038000
TRUSS ROD NUT P/N 0994944000
THREAD
LOGO: AM VINT II 51 BLACKGUARD TELE
APPLIED OVER THE FINISH
Fender "TELECA
"TELECASTER"
PICKUP SPECIFICATIONS
| POSITION | MAGNETS | DC RESISTANCE | POLARITY |
| NECK | ALNICO 3 UNBEVELED | 7.65 - 7.95KΩ | NORTH |
| BRIDGE | ALNICO 3 UNBEVELED | 7.0 - 7.3KΩ | NORTH |
