BRUGSANVISNING American Vintage II 1977 Telecaster Custom FENDER
AMERICAN VINTAGE II 77 TELECASTER® CUSTOM (011044XXXX)
AMERICAN VINTAGE II 77 TELECASTER® CUSTOM (011044XXXX)

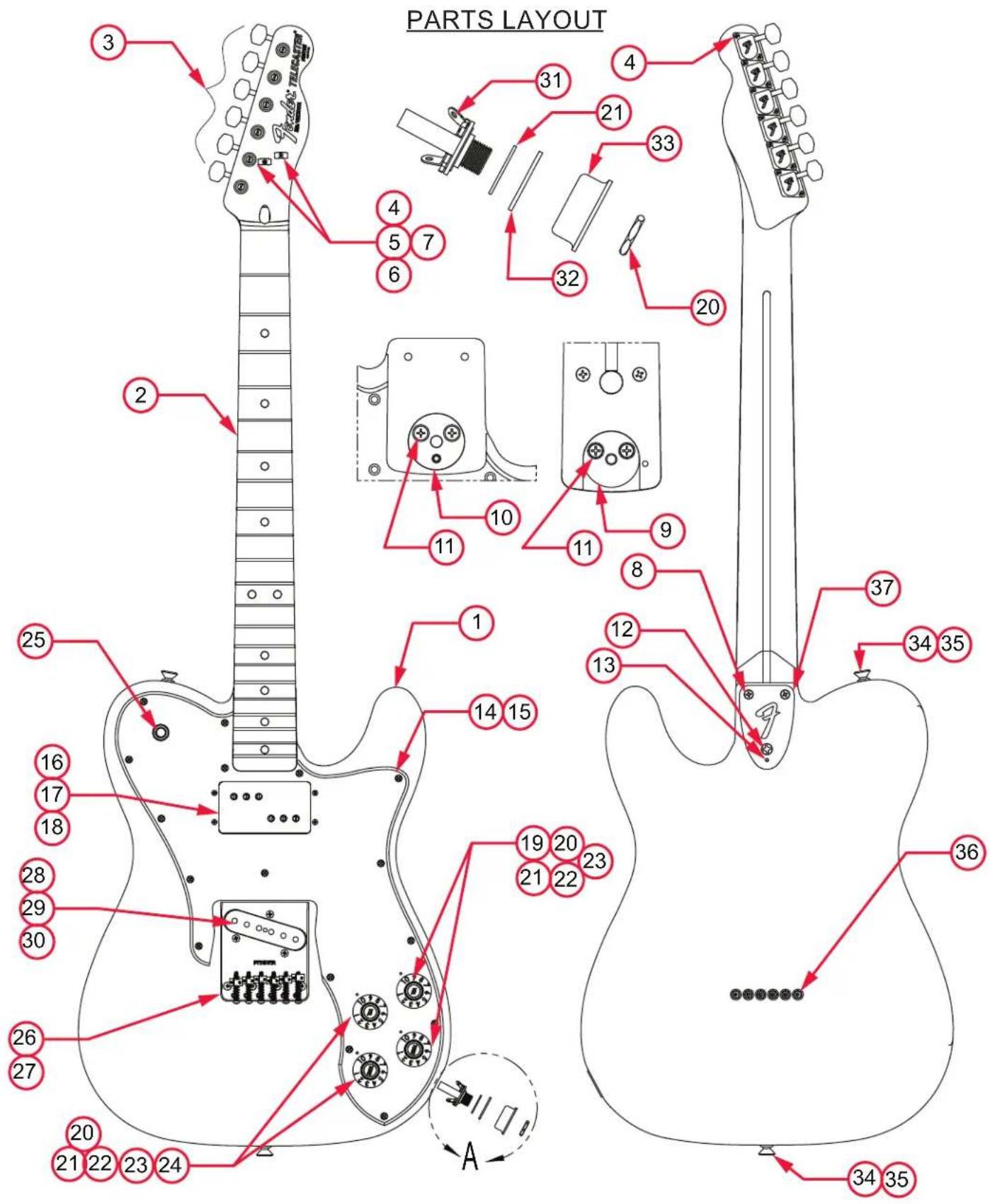

PARTS LIST
| REF# | DESCRIPTION PART | NUMBER |
| 1 BODY AM VINT II 77 TELE CUSTOM OWT 7726836505 | ||
| 1 BODY AM VINT II 77 TELE CUSTOM BLK 7726836506 | ||
| 1 BODY AM VINT II 77 TELE CUSTOM WINE 7726835515 | ||
| 2 NECK ASSY AM VINT II 77 TELE CUSTOM RW 7721797000 | ||
| 2 NECK ASSY AM VINT II 77 TELE CUSTOM MPL 7721798000 | ||
| 3 KEY GTR 70'S F SHORT RH SET W/HDWR 0990822100 | ||
| 4 SCREW SMAB 3 X 3/8 RHP STL NI | 0011357049 | |
| 5 STRING TREE VINTAGE W/HDWR | 0992083000 | |
| 6 SCREW SMA #3 X 5/8 RHP STL NI | 0011358049 | |
| 7 SPACER NYLON STRING TREE | 0093999000 | |
| 8 SCREW SMA 8 X 1-3/4 OHP NI | 0015636049 | |
| 9 TILT DISK UPPER NECK | 0020220049 | |
| 10 TILT DISK LOWER BODY | 0020212049 | |
| 11 SCREW SMA 8 X 3/4 FHP NI | 0084699049 | |
| 12 BOLT ADJ 1/4-28 X 1-9/16 | 0012156049 | |
| 13 SET SCREW HEX OVPT 10-32 X 1/2 | 0020972049 | |
| 14 PICKGUARD 72 TELE CUST B/W/B 55 DEG BEV | 7721801000 | |
| 15 SCREW SMAB 4 X 1/2 OHP NI | 0015578049 | |
| 16 PICKUP ASSY WIDE RANGE REISSUE NECK | 7724697000 | |
| 17 SCREW MACH #3-48 X 7/8 RHP NI | 0058404000 | |
| 18 SPRING HUM MTG 3/4" | 0050167049 | |
| 19 CONTROL 250K 10% AUDIO METAL | 0990831000 | |
| 20 NUT HEX 3/8-32 X 3/32 TK NI | 0016352049 | |
| 21 WASHER LOCK INTL 3/8 X .687 | 0016436049 | |
| 22 KNOB VOLUME(2) TONE(2) 72 TELE CUSTOM SET | 0054521049 | |
| 23 CAPACITOR CERAMIC DISC .02μF | 0069010000 | |
| 24 CONTROL 1-MEG 10% AUDIO METAL | 0019066049 | |
| 25 SWITCH 3-POS TOGGLE AGED WHT KNOB W/HDWR | 0053694049 | |
| 26 BRIDGE ASSY TELE W/O PICKUP | 0990810000 | |
| 26A BRIDGE PLATE TELE CUSTOM | 0012296000 | |
| 26B BRIDGE SECTION TELE CUSTOM | 0012297049 | |
| 26C SCREW MACH 4-40 X 1 RHP NI | 0012319049 | |
| 26D SPRING BRIDGE TELE CUSTOM | 0019242049 | |
| 26E SET SCREW 4-40 X 5/16 HEX CUP NI | 0040807049 | |
| 26F SET SCREW 4-40 X 3/8 HEX CUP NI | 0040806049 | |
*= NOT PICTURED IN DIAGRAM
AMERICAN VINTAGE II 77 TELECASTER® CUSTOM (011044XXXX)
| REF# | DESCRIPTION PART | NUMBER |
| 27 | SCREW WOOD 6 X 1 OHP NI 0016188049 | |
| 28 | PICKUP ASSY 70S TELE BRIDGE 7717036000 | |
| 29 | SCREW MACH 6-32 X 5/8 RHP NI 0015800049 | |
| 30 | TUBING LATEX CUT .375 X 1/8ID X 1/4OD 0036878000 | |
| 31 | JACK PHONE OPEN CIRCUIT 11 0021956049 | |
| 32 | RETAINER JACK NI PLT 0010355069 | |
| 33 | FERRULE JACK NI 0991941000 | |
| 34 | SCREW SMA #5 X 1 OHP NI | 0015610049 |
| 35 | STRAP BUTTONS NI W/HDWR | 0994915000 |
| 36 | STRING FERRULE RETAINER | 0994918000 |
| 37 | NECK PLATE 3-BOLT TILT CHR | 0054525000 |
| * | CASE GUITAR 2012 AM VINT BLACK | 0094760000 |
| * | WRENCH .050 HEX KEY | 0018531049 |
| * | WRENCH 1/8 HEX KEY | 0023811049 |
| * | BRIDGE COVER CHROME TELE | 9922711000 |
*= NOT PICTURED IN DIAGRAM
AMERICAN VINTAGE II 77 TELECASTER® CUSTOM (011044XXXX)

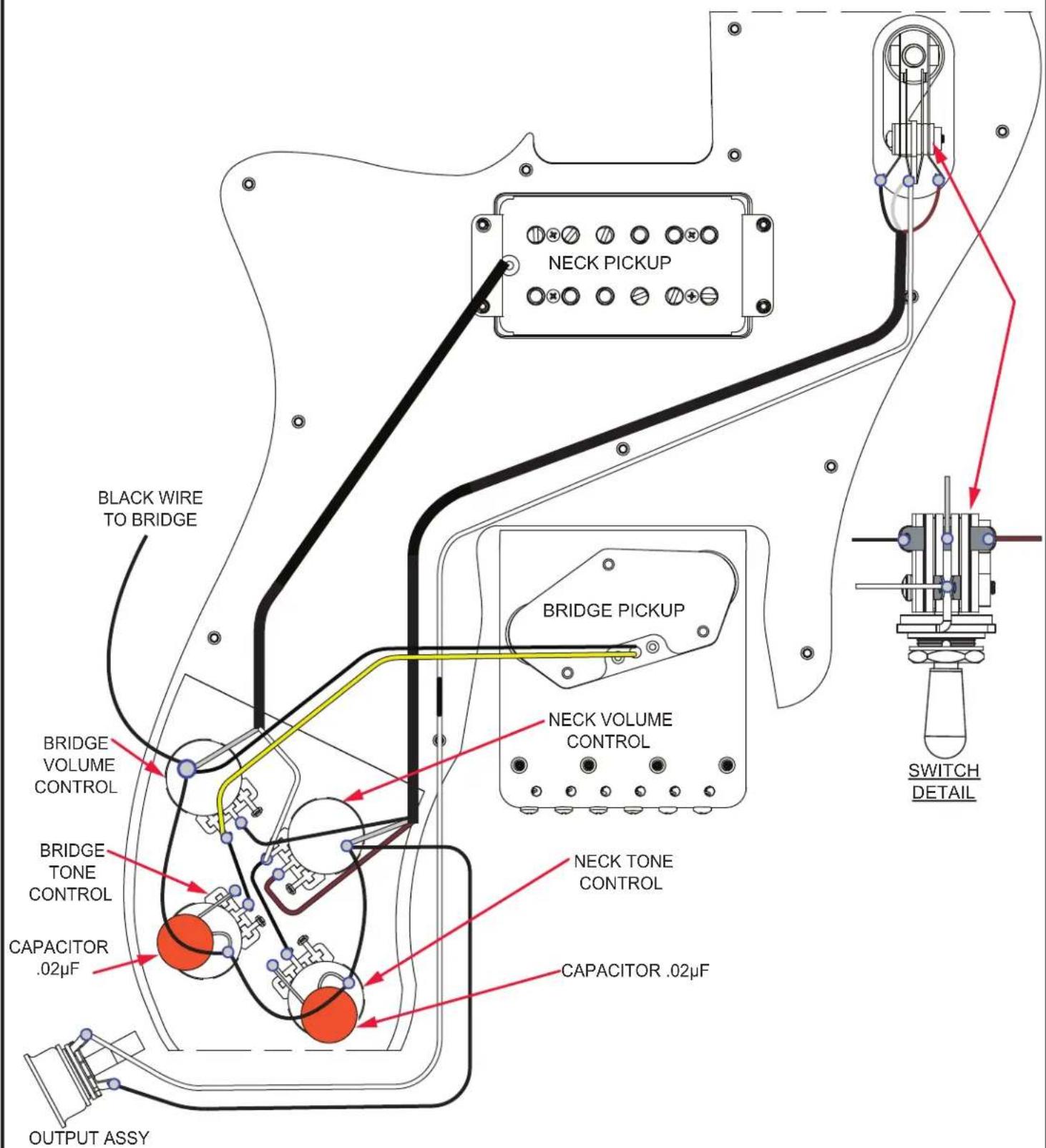

WIRING ASSEMBLY
AMERICAN VINTAGE II 77 TELECASTER® CUSTOM (011044XXXX)

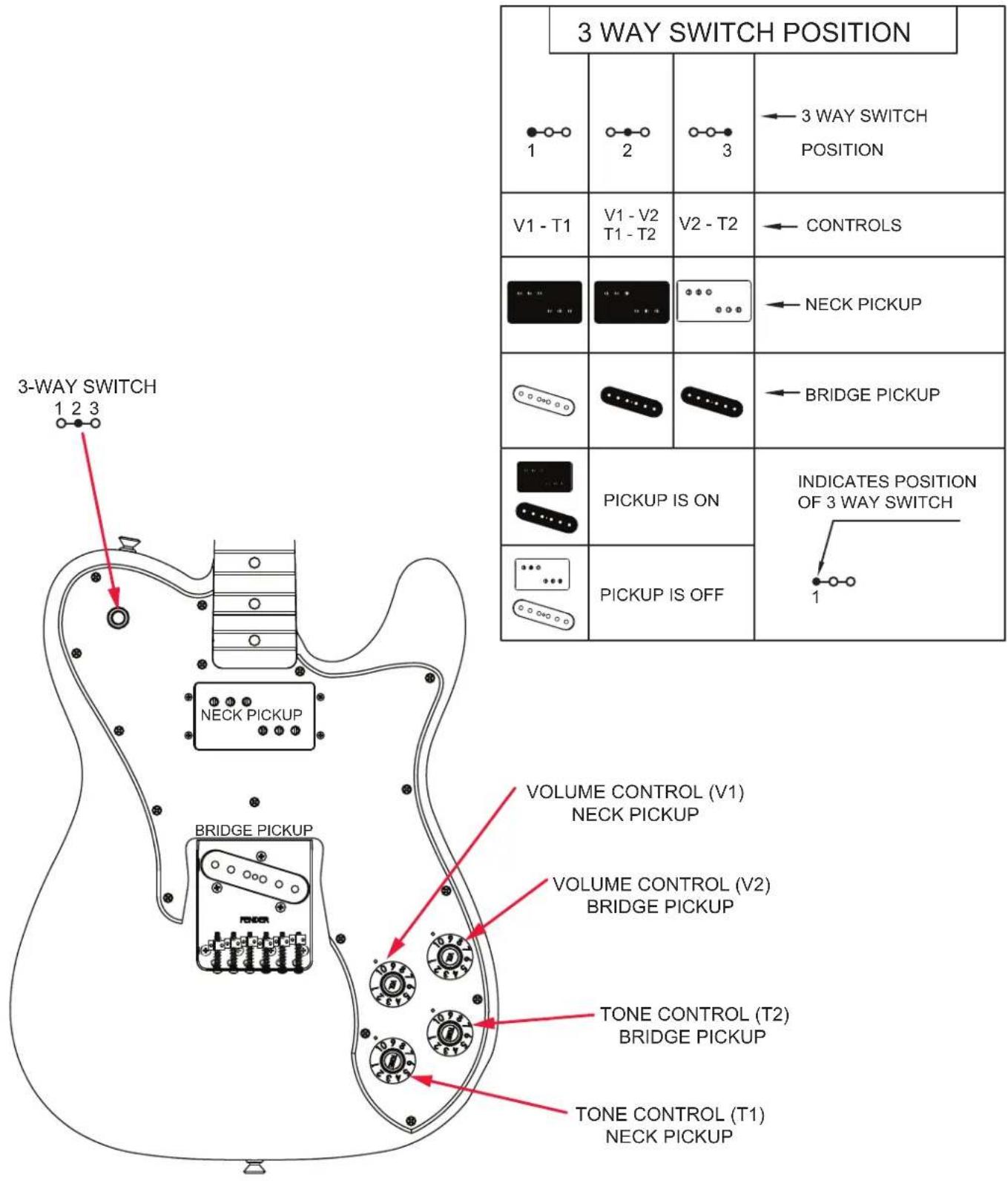

SWITCH AND CONTROL FUNCTION
AMERICAN VINTAGE II 77 TELECASTER® CUSTOM (011044XXXX)
ADDITIONAL SPECIFICATION DETAIL
(FRET DIMENSIONS ARE BEFORE INSTALLATION)
PLEASE NOTE: AS EACH NECK IS SANDED & FINISHED BY HAND, THICKNESS DIMENSIONS MAY VARY SLIGHTLY FROM THOSE SHOWN.

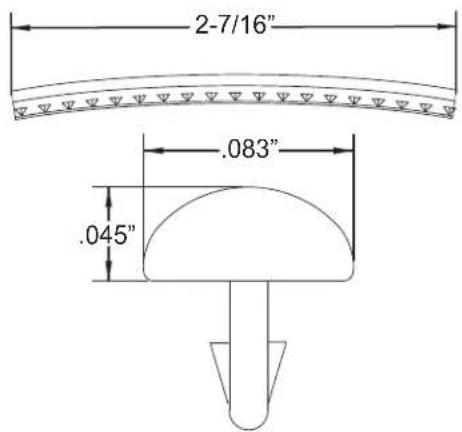

NECK PROFILE: "C" FRET SIZE:

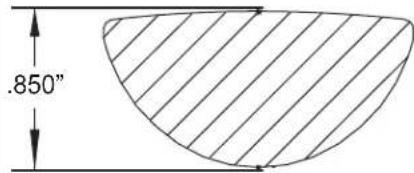

1ST FRET PROFILE

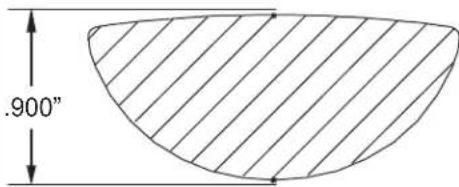

12TH FRET PROFILE
TUNING MACHINE SET W/HDWR : P/N 0990822100
OUTER SHAFT DIAMETER .234"
TUNING MACHINE THRU-HOLE INNER DIAMETER .397"

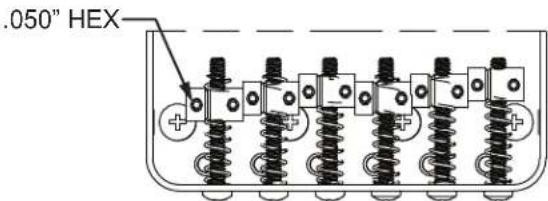

SADDLE HEIGHT ADJUSMENT WRENCH: .050" HEX KEY P/N 0018531049
SADDLE HEIGHT ADJUSTMENT SCREWS:
TALL: P/N 0040807049 SHORT: P/N 0040806049

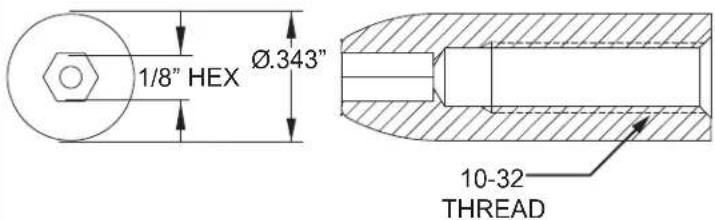

TRUSS ROD NUT P/N 0994945000
TRUSS ROD ADJUSTMENT WRENCH:
1/8" HEX KEY P/N 0023811049

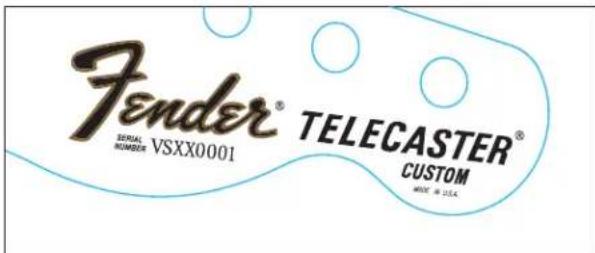

LOGO: AM VINT II 77 TELE CUSTOM
APPLIED UNDER THE FINISH
PICKUP SPECIFICATIONS
| POSITION | MAGNETS | DC RESISTANCE | POLARITY |
| NECK | CuNiFe | 9.9 - 10.6KΩ | SOUTH NORTH |
| BRIDGE | ALNICO 5 UNBEVELED | 7.0 - 7.6KΩ | NORTH |
