BRUGSANVISNING VD110PT HAGER

GB Mounting instructions
IC^2

Technical line drawing of a mechanical assembly with rollers and a rotating component (no text or symbols)

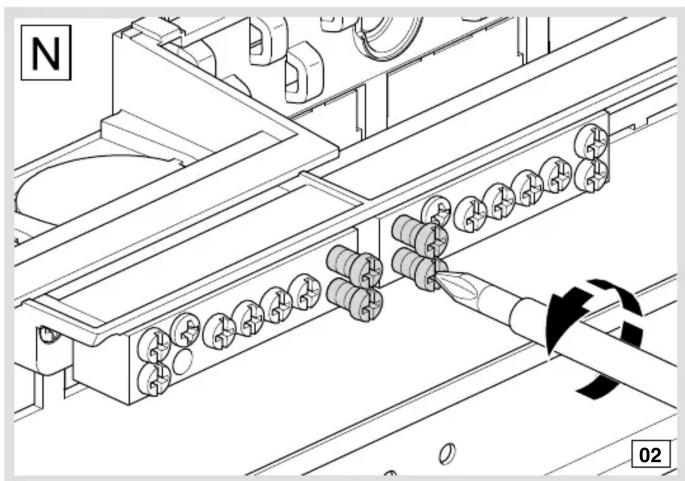

Tunnel Terminal	Solid Conductors	Stranded Conductors		Flexible Conductors
= 5,7mm	1,5mm^2 - 16mm^2	1,5mm^2 - 2,5mm^2 Copper strands must be twisted (note 1)	4mm^2 - 16mm^2	1,5mm^2 - 10mm^2 with bootlace ferrules
= 7,2mm	4mm^2 - 25mm^2	2,5mm^2 - 6mm^2 Copper strands must be twisted (note 1)	10mm^2 - 25mm^2	1,5mm^2 - 16mm^2 with bootlace ferrules
Note 1: Copper strands must be firmly twisted together using a tool i.e. plyers

Thermal dissipation loss in W; P = f( T)^*

Attention!It is critical that any loadcentre is sized and selected to accommodate and dissipate heat rise generated from all installed devices.The table (right) provides maximum permissible heat dissipation for each IC2 loadcentre size. Please ensure that you calculate internal heat generated from your installation and select the correct loadcentre accordingly.		Admissible thermal dissipation loss for wall mount loadcentres in W at temperature rise ΔT
	Reference	10K	15K	20K	25K	30K
	VD106..	2,6	4,4	6,1	8,1	10,2
	VD108..	2,8	4,8	6,8	9,0	11,3
	VD110..	3,3	5,6	7,9	11,1	13,2
	VD112..	3,9	6,5	9,2	12,2	15,3
	VD118..	4,7	7,9	11,2	14,8	18,6
	VD212..	4,8	8,1	11,3	15,0	18,7

*) T is the temperature difference between the upper limiting temperature of the installed equipment and the ambient air temperature of the loadcentre.
