BRUGSANVISNING 14501.AB Vimar
14501.AB
Call button with red reassurance light - 2 modules.
CHARACTERISTICS.
• Supply voltage: 24 V d.c. ± 20% SELV
• Absorption: 30 mA max
- Recommended installation height: from 0.7 m to 1.5 m
OPERATION.
The device performs the function of calling nursing personnel and patient reassurance by means of a specific pilot lamp.
CONNECTIONS.
It is connected by traditional wiring to the display module or to the communication terminal for the room which acts as an interface with the bus line and the landing light (see the diagram "Connections").
14503.AB
Cord-operated call button with red reassurance light - 2 modules.
CHARACTERISTICS.
• Supply voltage: 24 V d.c. ± 20% SELV
• Absorption: 30 mA max
OPERATION.
The device is equipped with 1.5 m of cord together with a red disc and it is usually installed in bathrooms and showers at least 20 cm above the shower.
CONNECTIONS.
It is connected by traditional wiring to the display module or to the communication terminal for the room which acts as an interface with the bus line and the landing light (see the diagram "Connections").
14504.AB
Cancel button with acoustic signal for receiving other calls and green indicator light - 2 modules.
CHARACTERISTICS.
• Supply voltage: 24 V d.c. ± 20% SELV
• Absorption: 125 mA max
- Recommended installation height: from 0.7 m to 1.5 m
OPERATION.
The device performs the function of cancelling the call and signalling the presence of personal to the system; it is equipped with a buzzer for the acoustic signal if calls come from other rooms when the health personnel are not in the control room (calls are forwarded to the room where the personnel are providing assistance).
CONNECTIONS.
- It is connected by traditional wiring to the display module or to the communication terminal for the room which acts as an interface with the bus line and the landing light (see the diagram "Connections").
- Installare l'apparecchio in una posizione ben accessibile.
The antibacterial treatment ensures full hygiene thanks to the action of the silver ions (AG+), which prevent the formation and spread of germs, bacteria, viruses and fungi. To maintain the hygiene and effectiveness of its antibacterial action, clean the product regularly.
INSTALLATION RULES.
Installation must be carried out by qualified persons in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed.
STANDARD COMPLIANCE.
EMC directive. EN 60950-1, EN 61000-6-3, EN 61000-6-1 standard. REACH (EU) Regulation no. 1907/2006 – Art.33. The product may contain traces of lead.

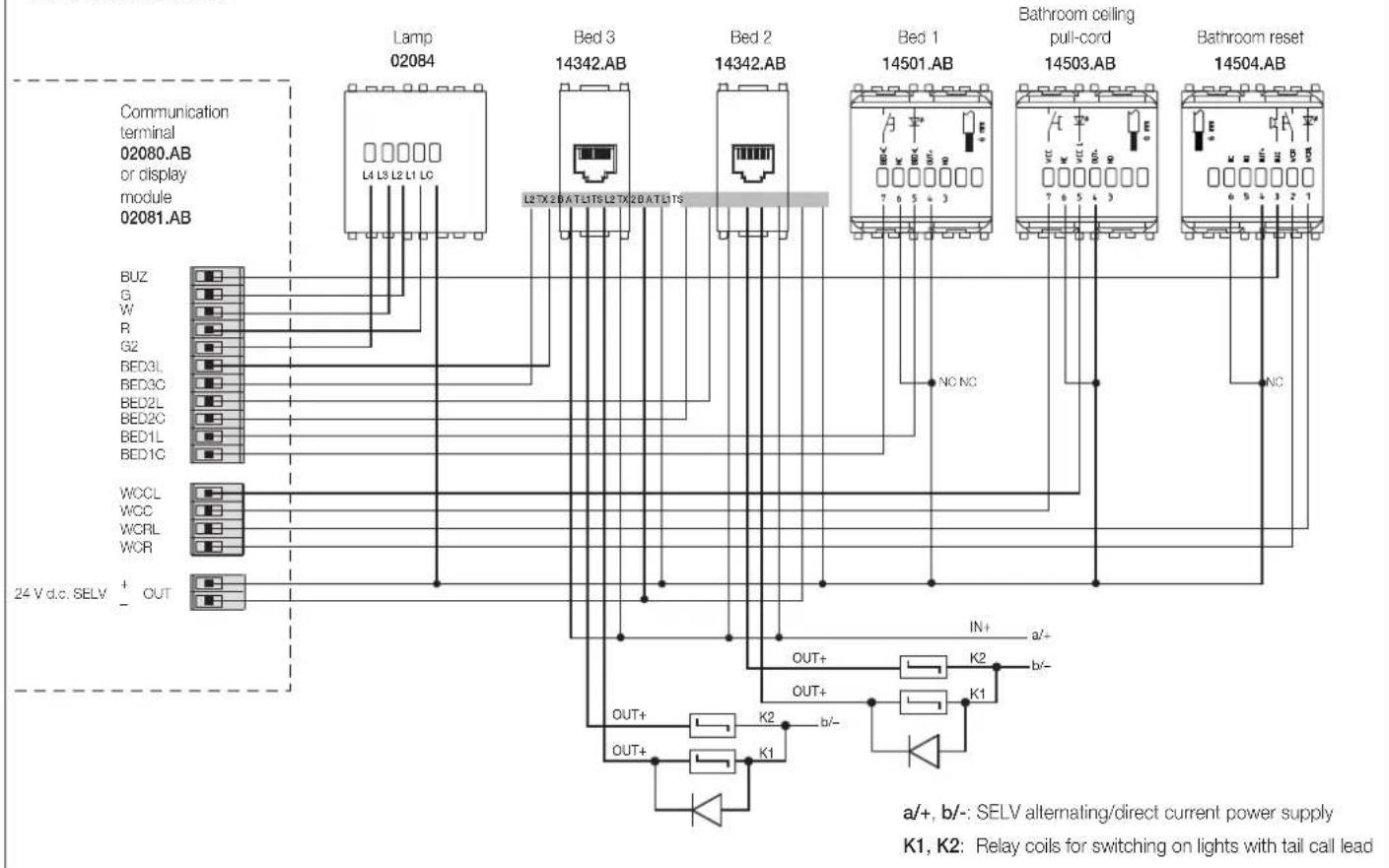

VDE CONNECTIONS.
A["02084 Lamp"]
B["14342.AB Bed 3"]
C["14342.AB Bed 2"]
D["14501.AB Bed 1"]
E["14503.AB Bathroom ceiling pull-cord"]
F["14504.AB Bathroom reset"]
end
subgraph Bed_3
G["14342.AB Bed 3"]
H["14342.AB Bed 2"]
I["14501.AB Bed 1"]
J["14503.AB Bathroom ceiling pull-cord"]
end
subgraph Bed_2
K["14342.AB Bed 2"]
L["14342.AB Bed 1"]
M["14501.AB Bathroom ceiling pull-cord"]
N["14503.AB Bathroom reset"]
end
subgraph Bed_1
O["14501.AB Bathroom ceiling pull-cord"]
P["14503.AB Bathroom reset"]
end
subgraph Bed_1
Q["14501.AB Bathroom ceiling pull-cord"]
R["14503.AB Bathroom reset"]
end
subgraph Bed_1
S["14501.AB Bathroom ceiling pull-cord"]
T["14503.AB Bathroom reset"]
end
subgraph Bed_1
U["14501.AB Bathroom ceiling pull-cord"]
V["14503.AB Bathroom reset"]
end
subgraph Bed_1
W["14501.AB Bathroom ceiling pull-cord"]
X["14503.AB Bathroom reset"]
end
subgraph Bed_1
Y["14501.AB Bathroom ceiling pull-cord"]
Z["14503.AB Bathroom reset"]
end
subgraph Bed_1
AA["14501.AB Bathroom ceiling pull-cord"]
AB["14503.AB Bathroom reset"]
end
subgraph Bed_2
AC["14342.AB Bed 2"]
AD["14342.AB Bed 1"]
AE["14342.AB Bed 3"]
AF["14342.AB Bed 2"]
AG["14342.AB Bed 1"]
end
subgraph Bed_2
AH["14342.AB Bed 2"]
AI["14342.AB Bed 1"]
AJ["14342.AB Bed 3"]
AK["14342.AB Bed 2"]
AL["14342.AB Bed 1"]
end
subgraph Bed_2
AM["14342.AB Bed 2"]
AN["14342.AB Bed 1"]
AO["14342.AB Bed 3"]
AP["14342.AB Bed 2"]
AQ["14342.AB Bed 1"]
end
subgraph Bed_2
AR["14342.AB Bed 2"]
AS["14342.AB Bed 1"]
AT["14342.AB Bed 3"]
AU["14342.AB Bed 2"]
AV["14342.AB Bed 1"]
end
subgraph Bed_2
AW["14342.AB Bed 2"]
AX["14342.AB Bed 1"]
AY["14342.AB Bed 3"]
AZ["14342.AB Bed 2"]
BA["14342.AB Bed 1"]
end
subgraph Bed_2
BB["14342.AB Bed 2"]
BC["14342.AB Bed 1"]
DA["14342.AB Bed 3"]
DB["14342.AB Bed 2"]
DC["14342.AB Bed 1"]
end
subgraph Bed_2
DD["14342.AB Bed 2"]
DJ["14342.AB Bed 1"]
DE["14342.AB Bed 3"]
FD["14342.AB Bed 2"]
DG["14342.AB Bed 1"]
end
subgraph Bed_2
DH["14342.AB Bed 2"]
DI["14342.AB Bed 1"]
DJ["14342.AB Bed 3"]
DK["14342.AB Bed 2"]
DL["14342.AB Bed 1"]
end
subgraph Bed_2
DJA["14342.AB Bed 2"]
BEA["14342.AB Bed 1"]
BF["A"] --> DC
end
subgraph Bus_Low
BG["BUZ"] --> BH["G"] --> BI["W"] --> BJ["R"] --> BK["G2"] --> BL["BED3L"] --> BM["BED3C"] --> BN["BED2L"] --> BO["BED2C"] --> BP["BED1L"] --> BQ["BED1C"] --> BR["WCC"] --> BS["WCR"] --> BT["WOR"]
end
subgraph Bus_Out
BUOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUTOUAT+ IN+ a- IN- b- IN- c- IN- d- IN- e- IN- f- IN- g- IN- h- IN- i- IN- j- IN- k- IN- l- IN- m- IN- n- IN- o- IN- p- IN- q- IN- r- IN- s- IN- t- IN- u- IN- v- IN- u- IN- v- IN- u- IN- v- IN- u- IN- v- IN- v- IN- v- IN- v- IN- v- IN- v- IN- v- IN- v- IN- v- IN- v- IN- v- IN- v- IN- v- IN- v- IN- v- IN- v- IN- v-
end
subgraph Power Supply
W["CWCL"] --> X["CWCL"] --> Y["CWCL"] --> Z["CWCL"] --> AA["CWCL"] --> AB["CWCL"] --> AC["CWCL"] --> AD["CWCL"] --> AE["CWCL"] --> AF["CWCL"] --> AG["CWCL"] --> AH["CWCL"] --> AI["CWCL"] --> AJ["CWCL"] --> AK["CWCL"] --> AL["CWCL"] --> AM["CWCL"] --> AN["CWCL"] --> AO["CWCL"] --> AP["CWCL"] --> AQ["CWCL"] --> AR["CWCL"] --> AS["CWCL"] --> AT["CWCL"] --> AU["CWCL"] --> AV["CWCL"] --> AW["CWCL"] --> AX["CWCL"] --> AY["CWCL"] --> AZ["CWCL"] --> BA["CWCL"] --> BB["CWCL"] --> BC["CWCL"] --> BD["CWCL"] --> BE["CWCL"] --> BF["CWCL"] --> BG["CWCL"] --> BH["CWCL"] --> BI["CWCL"] --> BJ["CWCL"] --> BK["CWCL"] --> BL["CWCL"] --> BM["CWCL"] --> BN["CWCL"] --> BO["CWCL"] --> BP["CWCL"] --> BQ["CWCL"] --> BR["CWCL"] --> BS["CWCL"] --> BT["CWCL"] --> BU["CWCL"] --> BV["CWCL"] --> BW["CWCL"] --> BX["CWCL"] --> BY["CWCL"] --> BZ["CWCL"] --> CA["CWCL"] --> CB["CWCL"] --> CC["CWCL"] --> DC["CWCL"] --> DV["CWCL"] --> DW["CWCL"] --> BX
end
subgraph Relay_Collals for Switching on Lights with Tail Call Lead
X
Y
Z
AA
AB
AC
AD
AE
AF
BG
BH
BI
BJ
BK
BL
BM
BN
BW
BX
BY
BZ
end

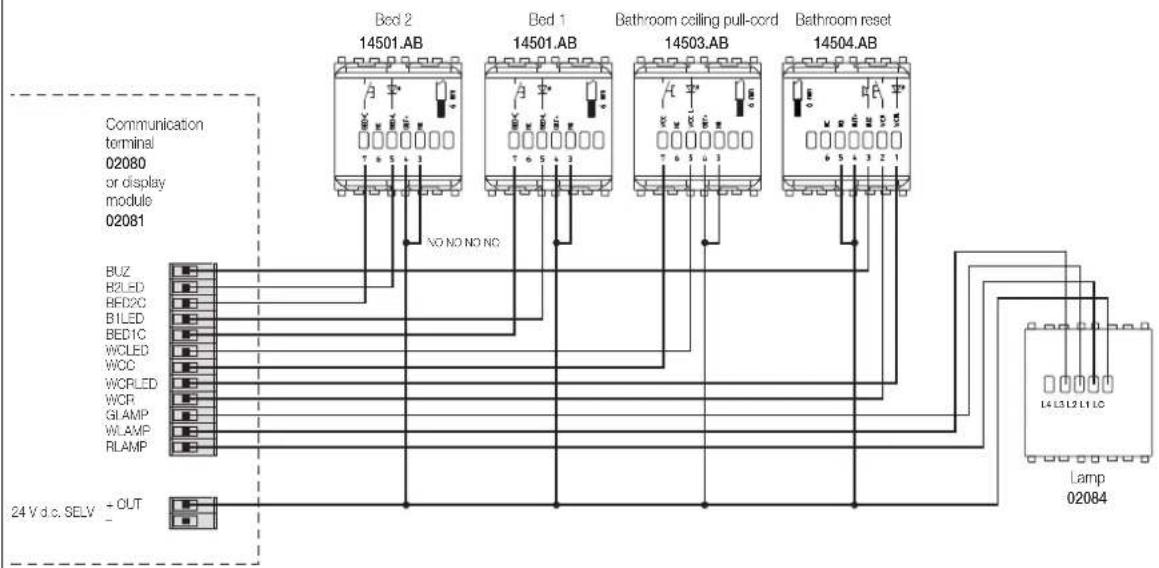

BACKWARD COMPATIBLE CONNECTIONS 1 (OBSOLETE DISPLAY MODULE AND NEW CALL DEVICES AND LAMPS).
subgraph_Bed_2["14501.AB"]
A1["BUZ"] --> B1["BED2C"]
A1 --> B2["BED1C"]
A1 --> B3["WCLCD"]
A1 --> B4["WCC"]
A1 --> B5["WOLED"]
A1 --> B6["WCP"]
A1 --> B7["GLAMP"]
A1 --> B8["WLAMP"]
A1 --> B9["RLAMP"]
end
subgraph_Bed_1["14501.AB"]
C1["NO NO NO NC"] --> D1["BED1C"]
C1 --> D2["BED2C"]
C1 --> D3["BED2C"]
C1 --> D4["BED2C"]
C1 --> D5["WOLED"]
C1 --> D6["WCP"]
C1 --> D7["GLAMP"]
C1 --> D8["WLAMP"]
C1 --> D9["RLAMP"]
end
subgraph_Bathroom_celling_pull_cord["14503.AB"]
E1["BED1C"] --> F1["WCLCD"]
E1 --> F2["WCP"]
E1 --> F3["GLAMP"]
E1 --> F4["WLAMP"]
E1 --> F5["RLAMP"]
end
subgraph_Bathroom_reset["14504.AB"]
G1["BED2C"] --> H1["WCLCD"]
G1 --> H2["WCP"]
G1 --> H3["GLAMP"]
G1 --> H4["WLAMP"]
G1 --> H5["RLAMP"]
end
subgraph_Lamp["02084"]
I1["Lamp 02084"] --> J1["OUT"]
end
style Bed_2 fill:#f9f,stroke:#333
style Bed_1 fill:#f9f,stroke:#333
style Bathroom_celling_pull_cord fill:#f9f,stroke:#333
style Bathroom_reset fill:#f9f,stroke:#333
note right of B1: "NO NO NO NC"
note right of G1: "L4 L3 L2 L1 L0"

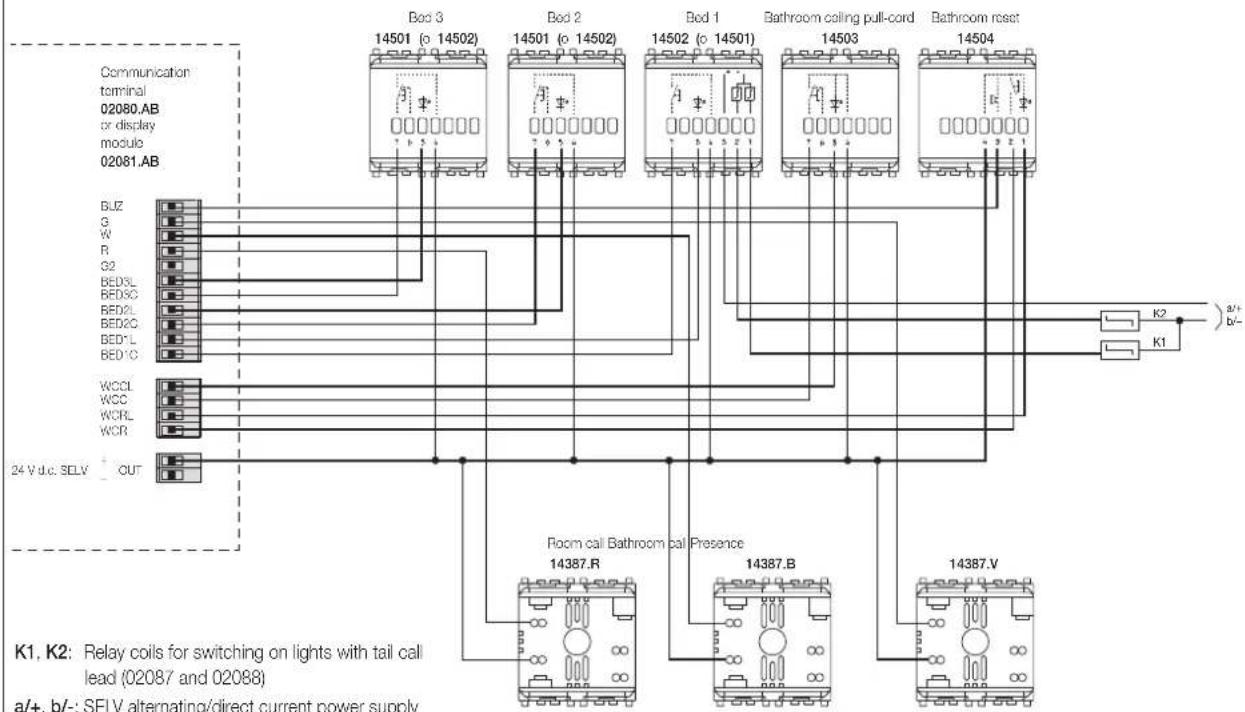

BACKWARD COMPATIBLE CONNECTIONS 2 (NEW DISPLAY MODULE AND OBSOLETE CALL DEVICES AND LAMPS).
