BRUKSANVISNING Zanzibar ZAN-9014-SG_CEILING Crystorama

ASSEMBLY INSTRUCTION MODEL #ZAN-9014-SG\_CEILING

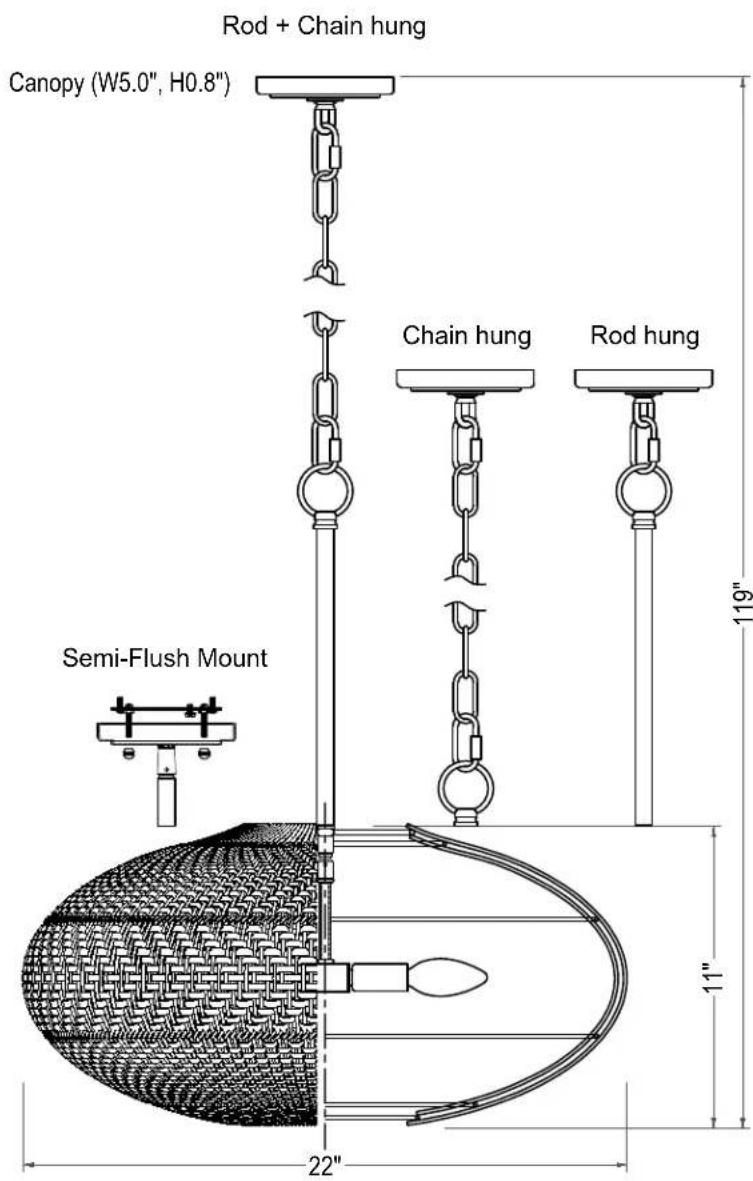

Rod + Chain hung Canopy (W5.0", H0.8") Chain hung Rod hung Semi-Flush Mount 119" 22"

How to Install
For Semi-Flush
1. Feed the wire through the rod and swivel. Screw the rod onto the top of the fixture. Screw the swivel onto the canopy.

WARNING: Electrical Danger Turn Power Off All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate Local electrical codes. C UL

You will need 4 -Candelabra Base Bulb
40 Watts recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE
THIS FIXTURE IS DAMP RATED

How to Install

For rod hung

  1. Decide the preferred hanging height and choose the correct rod length needed.
  2. Feed the wire through the rods and connect them together. Screw one end of the rod assembly onto the top of the fixture. Screw the loop onto the other end of the rod assembly and connect it to the collar loop using the quick link.
  3. Decide the preferred hanging height and choose the correct rod and chain length needed.
  4. Feed the wire through the rods and connect them together. Screw one end of the rod assembly onto the top of the fixture and screw the loop onto the other end. Using the quick links, attach one end of the chain to the collar loop and the other to the loop on the rod assembly.

For rod + chain hung

For chain hung

  1. Decide the preferred hanging height and choose the correct chain length needed.

  2. Screw the loop onto the top of the fixture.

  3. Feed the wire through the chain links. Using the quick links, attach one end of the chain link to the collar loop and the other end to the loop.

WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov.

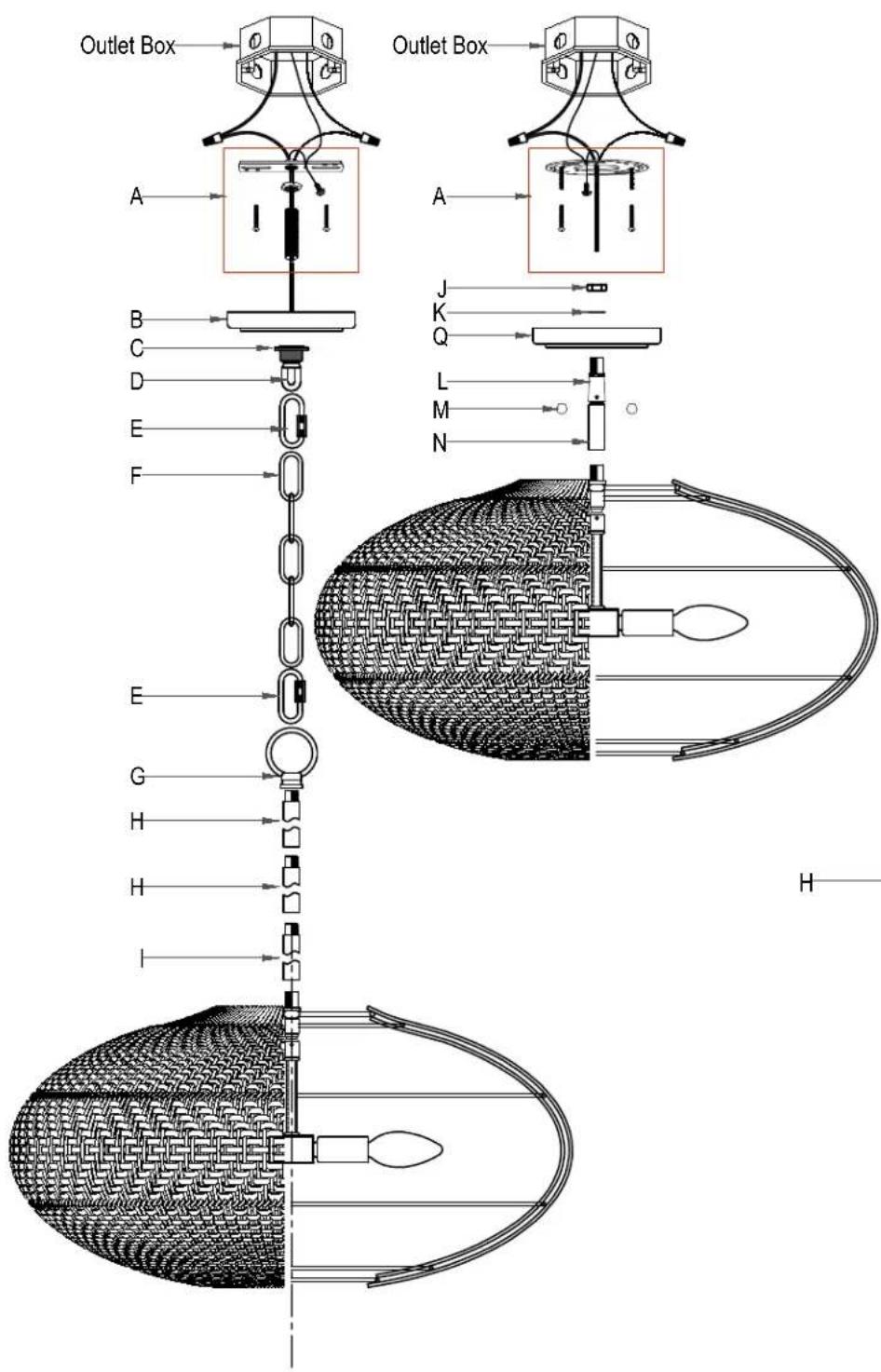

Outlet Box A B C D E F E G H H I Outlet Box A J K Q L M N H

Part Number - Pendant

A. (1) - Mounting Hardware
B. (1) - Canopy(W5.0",H0.8") #XLF9003SGCAN5IN
C. (1) - Collar Ring
D. (1) - Collar Loop
E. (2) - Quick Link(5mm)
F. (1) - Hanging Chain(72",4.5mm)

XLF9003SGCHA4.5MM

G. (1) - Loop - #XLF9014SGLOOP
H. (2) - Rod(D0.625",L12") #XLF9014SGROD12IN
I. (1) - Rod(D0.625",L6") #XLF9014SGROD6IN

Part Number - Semi-Flush

A. (1) - Mounting Hardware
J. (1) - Nut(D0.75") #XLF9014SGNUT
K. (1) - Washer(D0.625") #XLF9014SGWASHER
L. (1) - Swivel(D0.625", L1.75") #XLF9014SGSWIVEL
M. (1) - Nut(D0.375") #XLF9014SGNUT
N. (1) - Rod(D0.625",L1.75") #XLF9014SGROD1.75IN
Q. (1) - CanopyA(W5.0",H0.8",10mm∅ center hole)

XLF9014SGCAN5IN_2

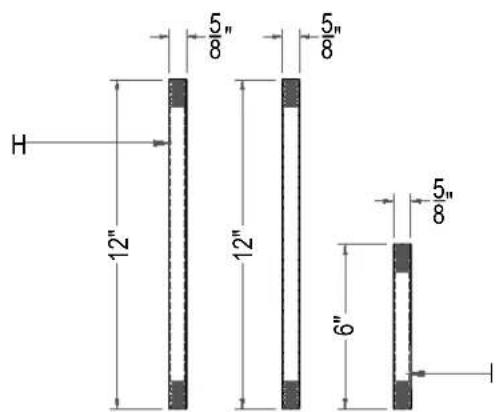

H 12" 12" 6" 5" 8" 5" 8"
