BRUKSANVISNING NORDLI 304.150.36 IKEA

NORDLI

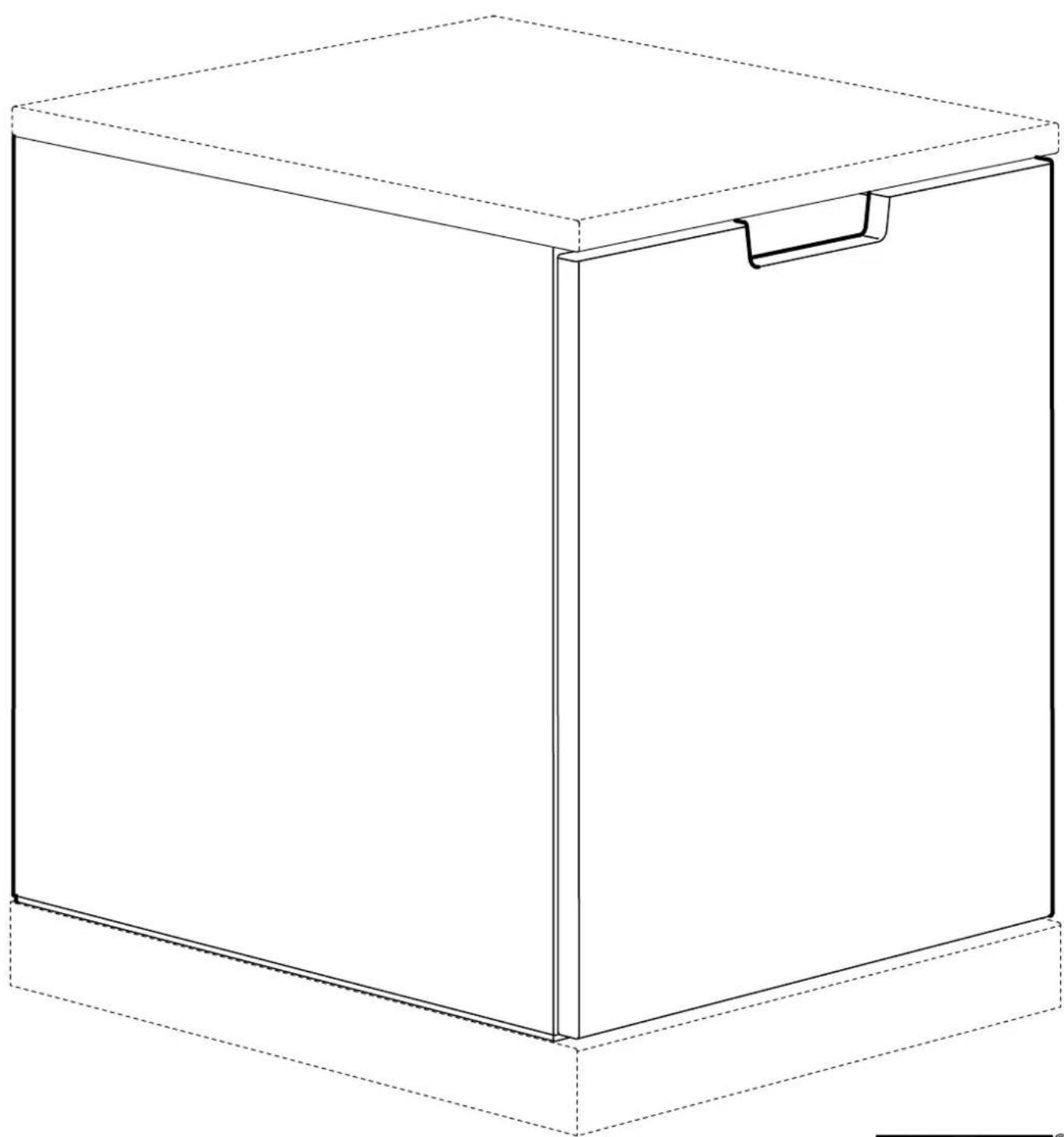

Line drawing of a 3D rectangular box with a handle, shown in isometric view (no text or symbols)

Illustration showing a person pointing to three different tools: screwdriver, hammer, and screwdriver with selection symbols.

Two line drawings of birds on different platforms: one with a crosshair and the other with a bird (no text or symbols)

Illustration comparing two scenes: one showing a person examining documents with a question mark, the other showing a person holding a device labeled 'IKEA' connected to a house.

| Component | Value | |---|---| | 8x4x | 102509 | | 4x | 100349 | | 101345 | | | 4x | 118331 | | 4x | 112996 |

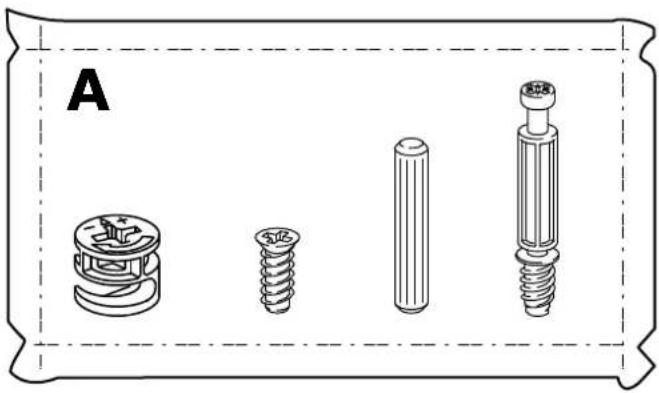

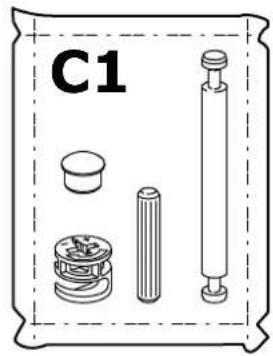

C1 049601049601 1x 122972 122973 2x2x 101345 102509 4x

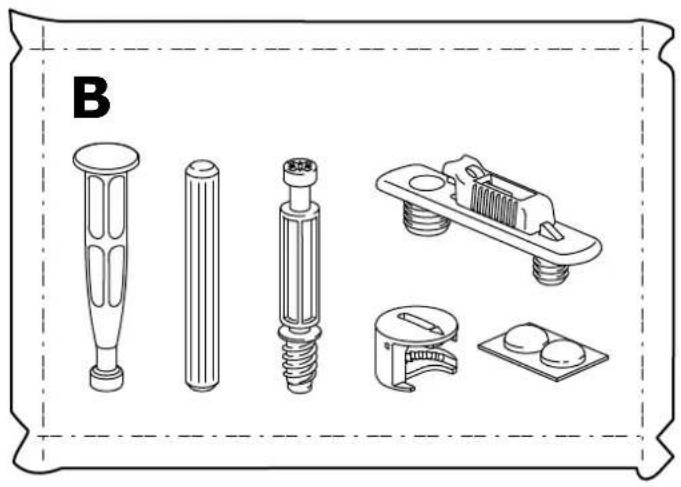

B 6x 145718 4x 101372 6x 118331 12x 119030 2x 104663 147191 2x

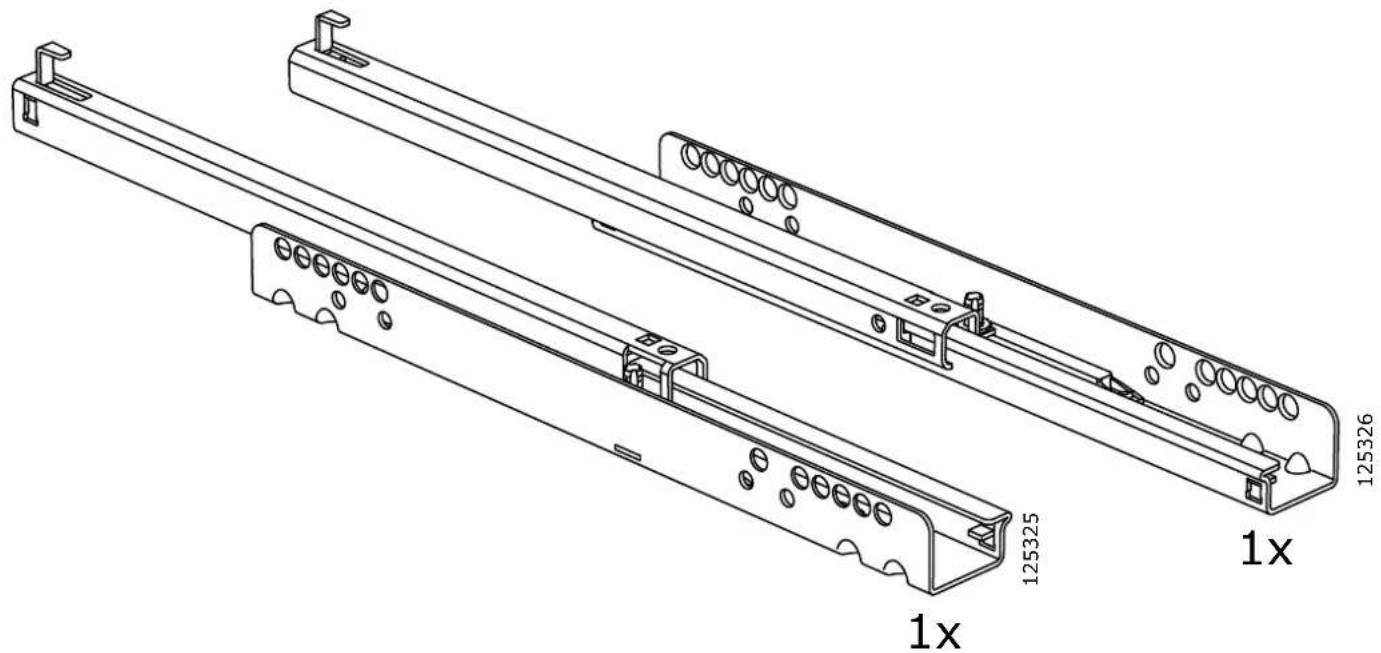

1x 125326 125325 1x 125326

Technical line drawing of four mechanical components labeled A, showing different assembly or assembly states (no text or symbols beyond label)

1

4x 102509

IKEA NORDLI 304.150.36 - NORDLI - 11

IKEA NORDLI 304.150.36 - NORDLI - 12

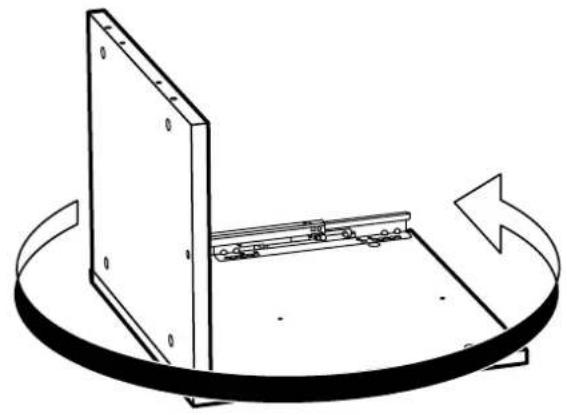

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

6

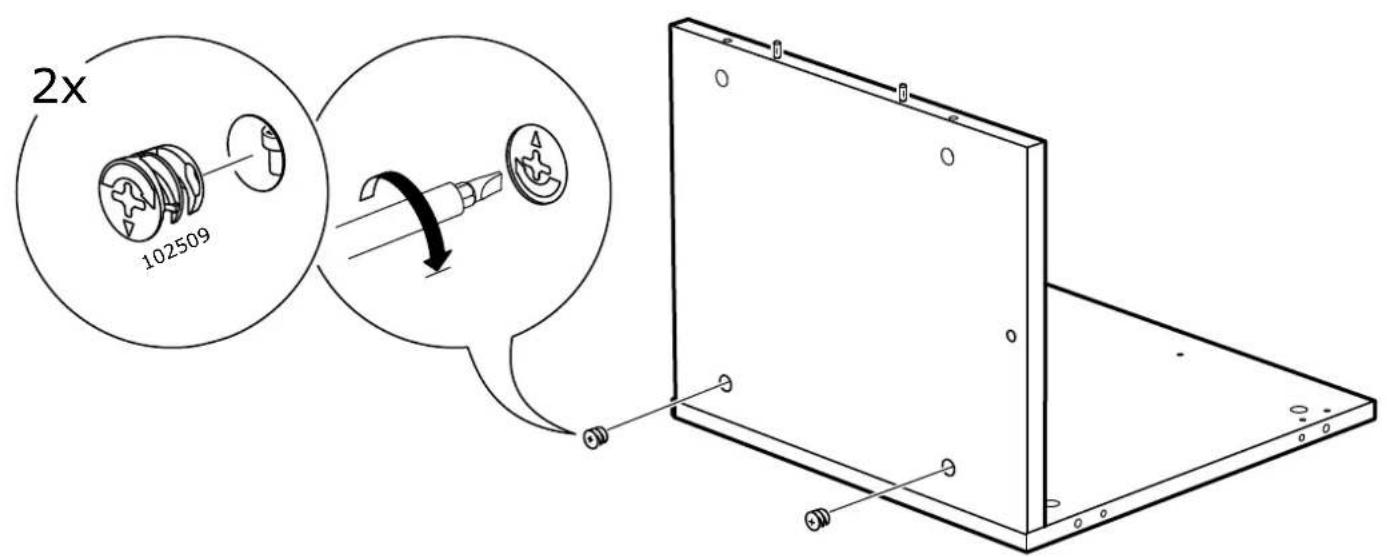

2x 102509

Pure technical line drawing of a 3D mechanical part with no text, numbers, or symbols

7
Technical line drawing of a two-panel cabinet with an arrow indicating assembly or movement (no text or symbols present)

8
2x 102509

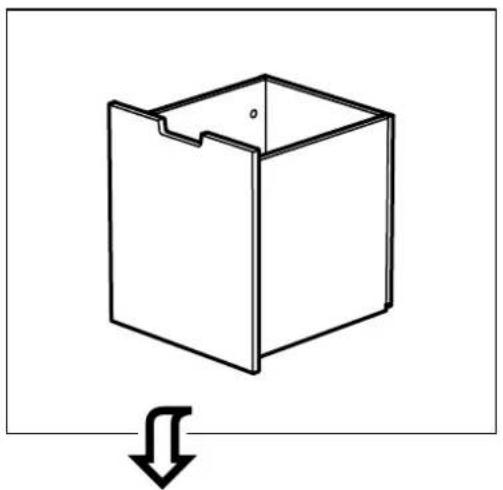

Simple line drawing of a 3D box with a cutout and downward arrow indicating compression (no text or symbols)

Technical line drawing of mechanical components including screw, spring, and housing (no text or symbols)

9

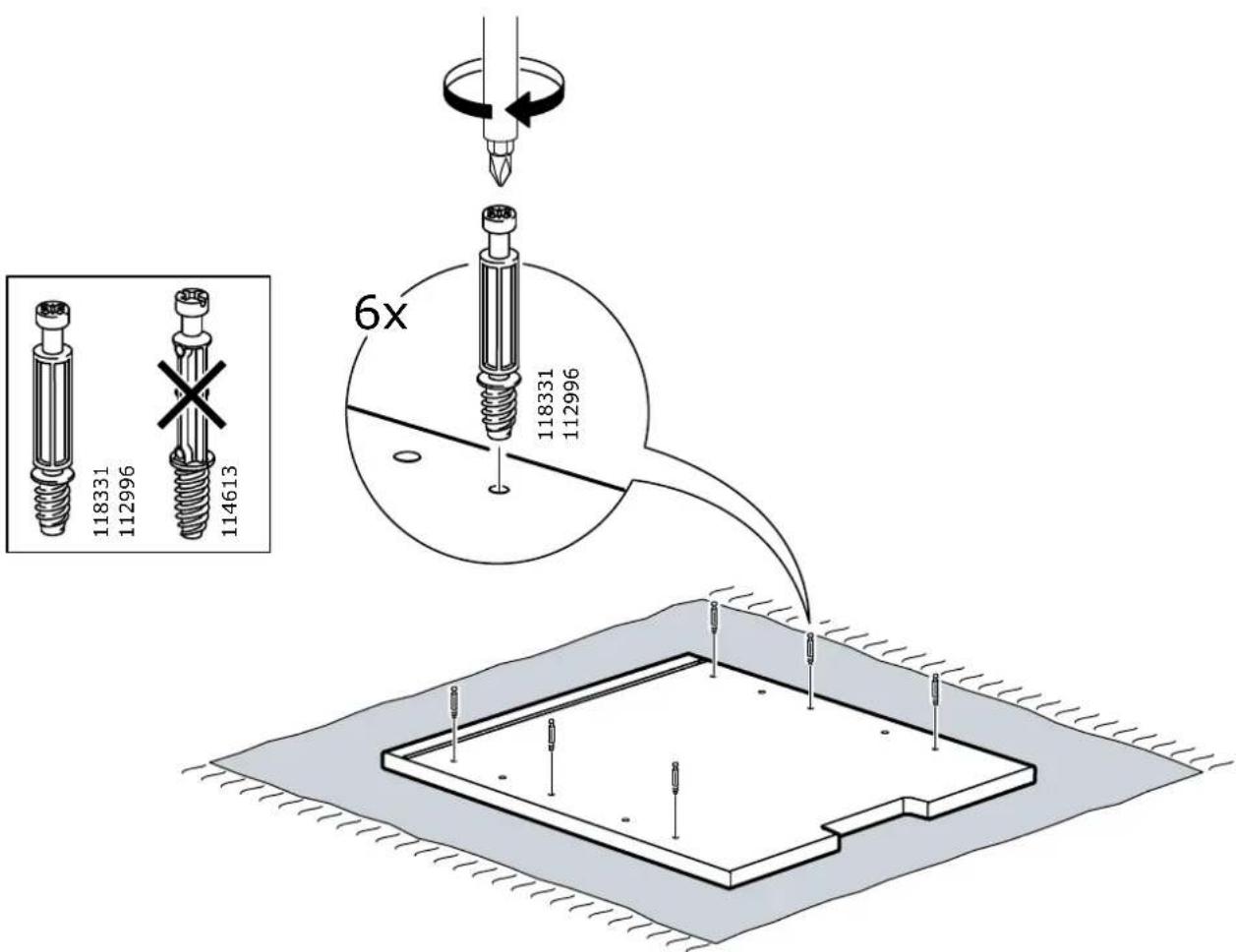

118331 112996 114613 6x 118331 112996

10

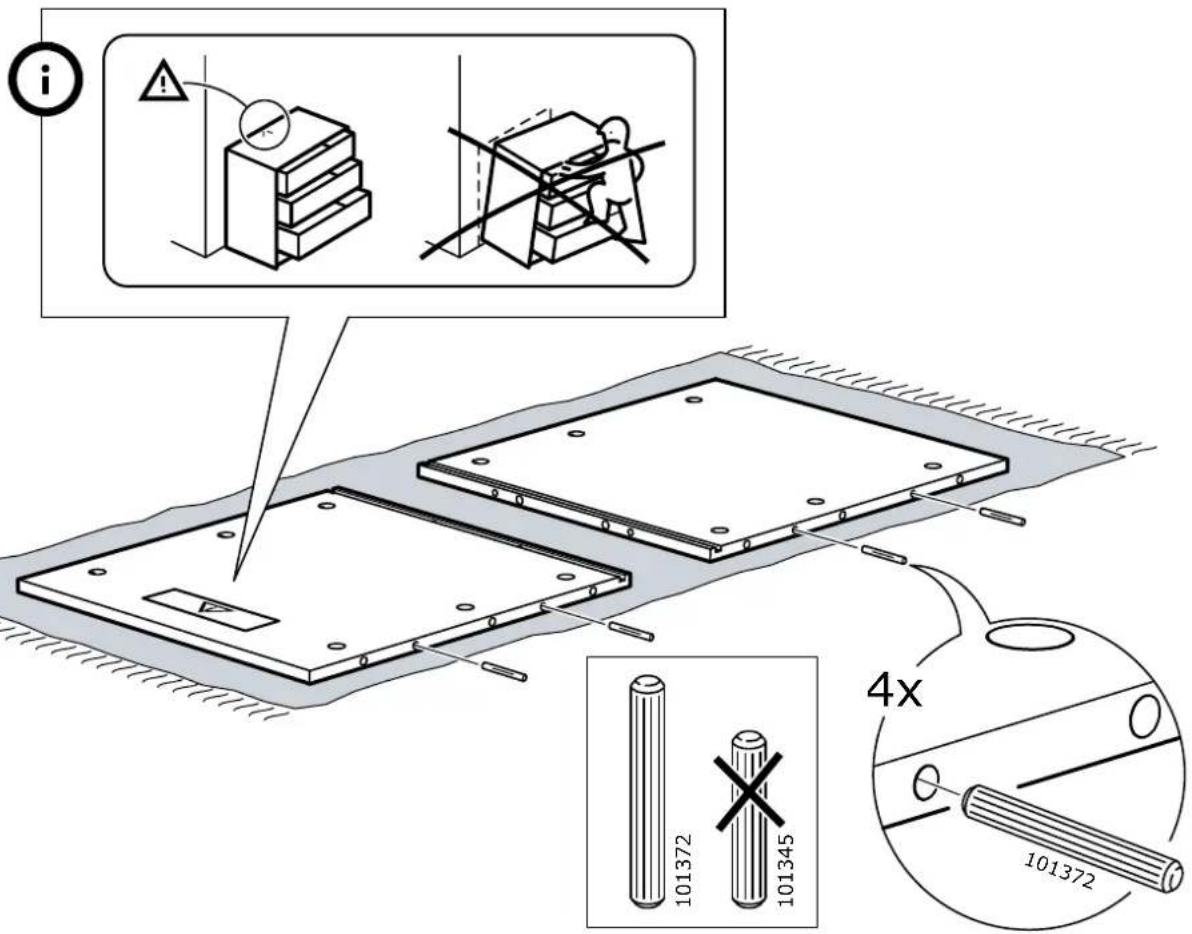

i 101372 101345 4x 101372

11

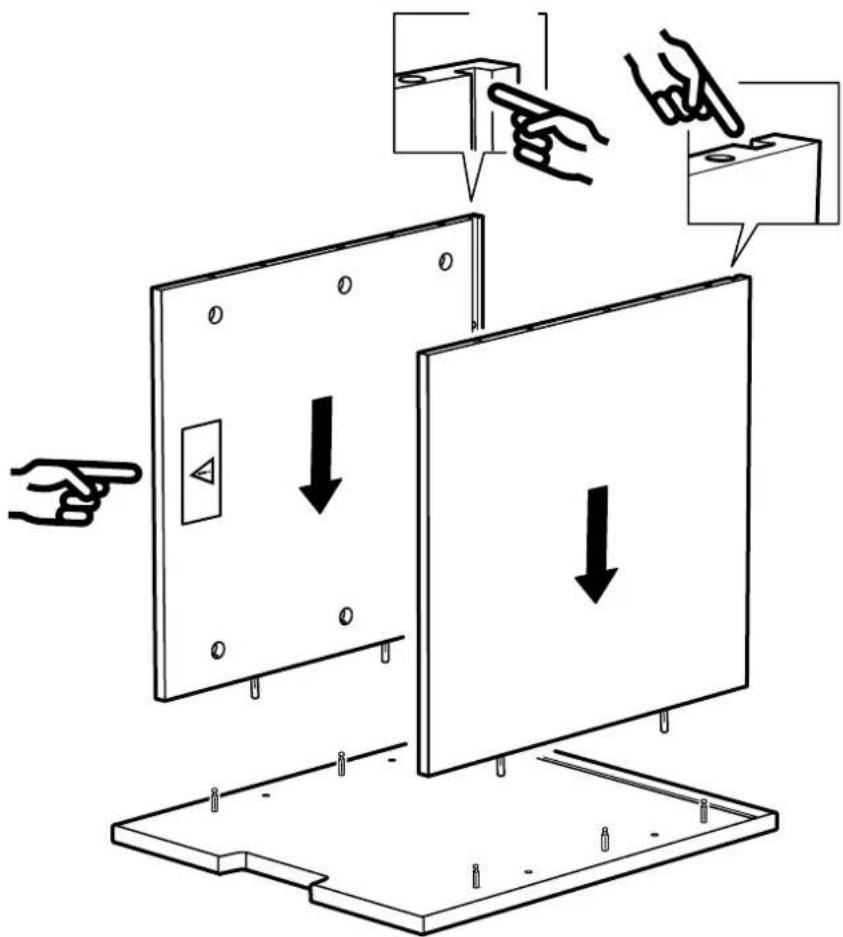

Diagram illustrating a door panel installation procedure with labeled components and directional arrows indicating movement.

12

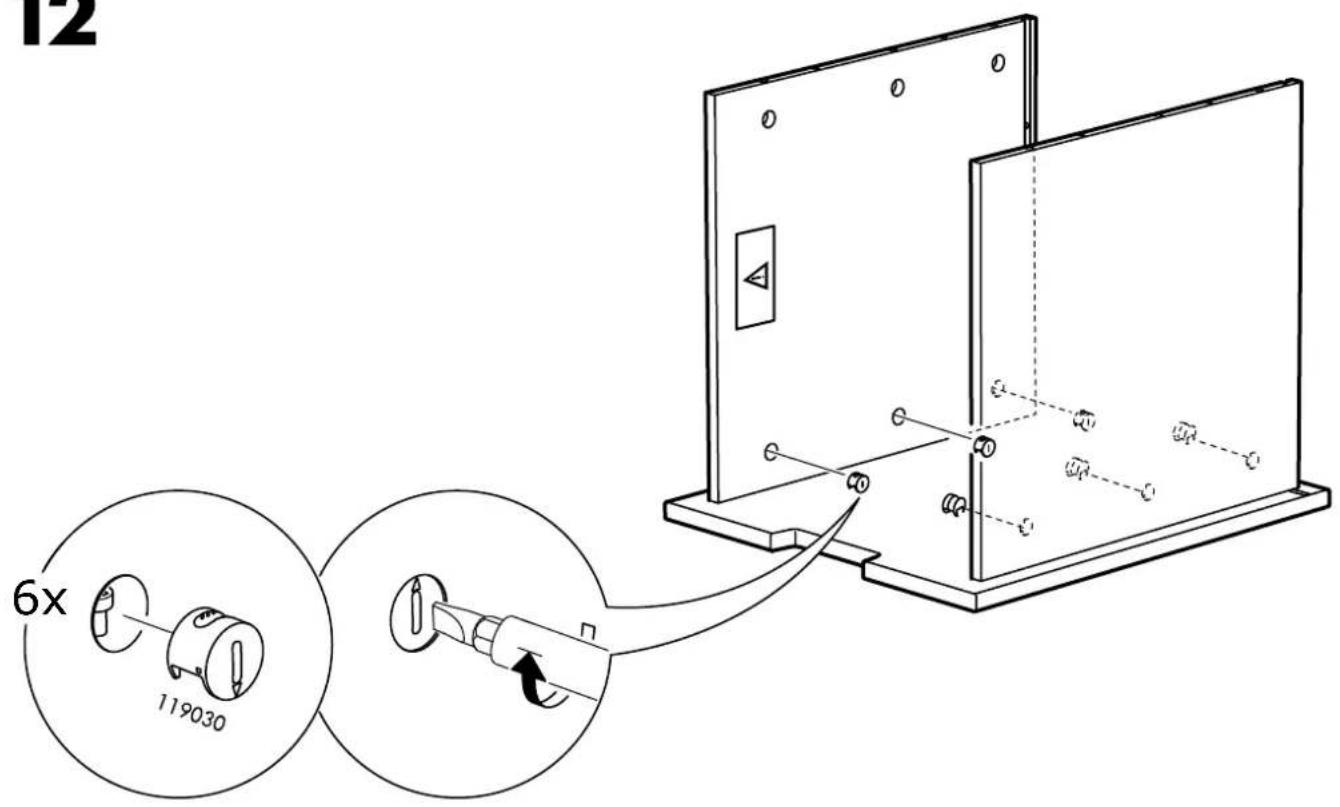

12 6x 119030

13
Technical line drawing of a mechanical assembly with mounting plate and internal components (no text or symbols)

14
Line drawing of a box with an open lid and internal components, showing a black arrow indicating rotation (no text or symbols)

15

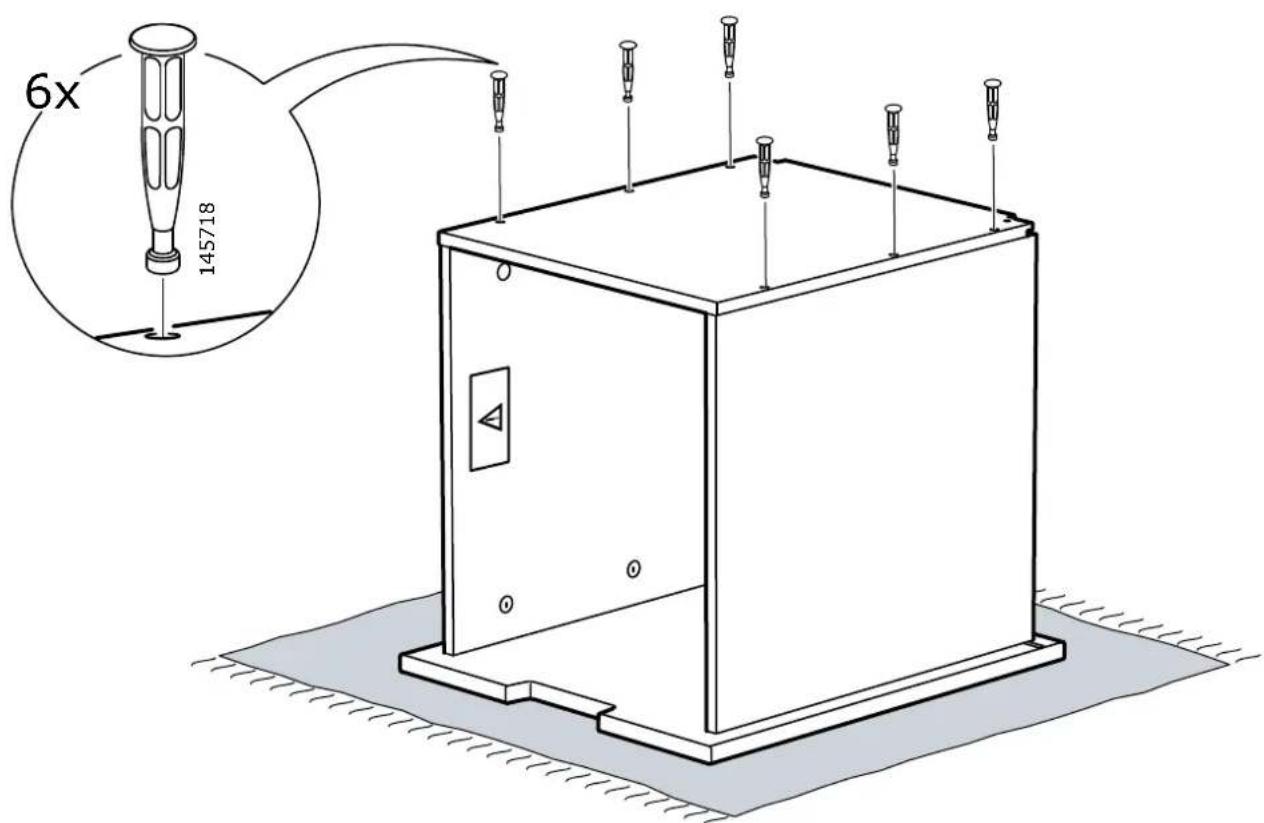

6x 145718

16
IKEA NORDLI 304.150.36 - NORDLI - 27

17
2x 147191

18
4x 104663

i
C1

Line drawing of a four-tiered cabinet or filing cabinet with drawers on the side (no text or symbols)

NORDLI

Line drawing of a three-tiered cabinet or filing cabinet with drawers and drawers (no text or symbols)

Line drawing of a three-tier office cabinet with drawers and drawers (no text or symbols)

NORDLI

Line drawing of a multi-level cabinet or drawer system with drawers and drawers (no text or symbols)

NORDLI

Line drawing of a multi-level cabinet or storage unit with drawers and drawers (no text or symbols)

Line drawing of a multi-level office cabinet with drawers and drawers (no text or symbols)

NORDLI

Technical line drawing of a cabinet with internal components and directional arrows indicating movement (no text or symbols)

19
Technical diagram illustrating a mechanical assembly with labeled components and directional arrows, including warning indicators and 2x scaling.

20
2x CLICK!

i
Simple line drawing of a rectangular frame with a small circular indentation on top (no text or symbols)

Simple line drawing of a clipboard with an 'X' mark symbol in the center

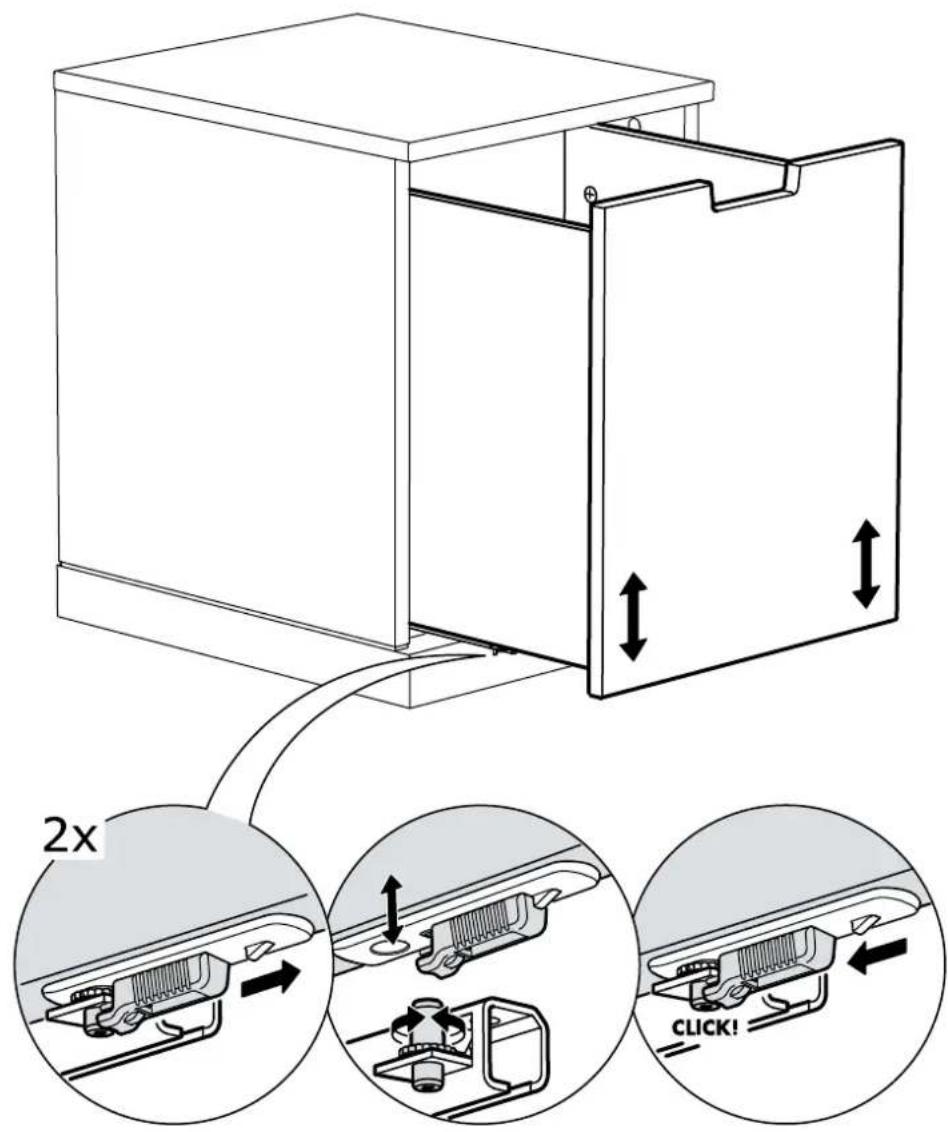

2x CLICK!
