BRUKSANVISNING UPW877X Pyramid
PYRAMID
SPECIFICATIONS
PW577X · PW677X
PW877X · PW1077X
PW1277X · PW1577X


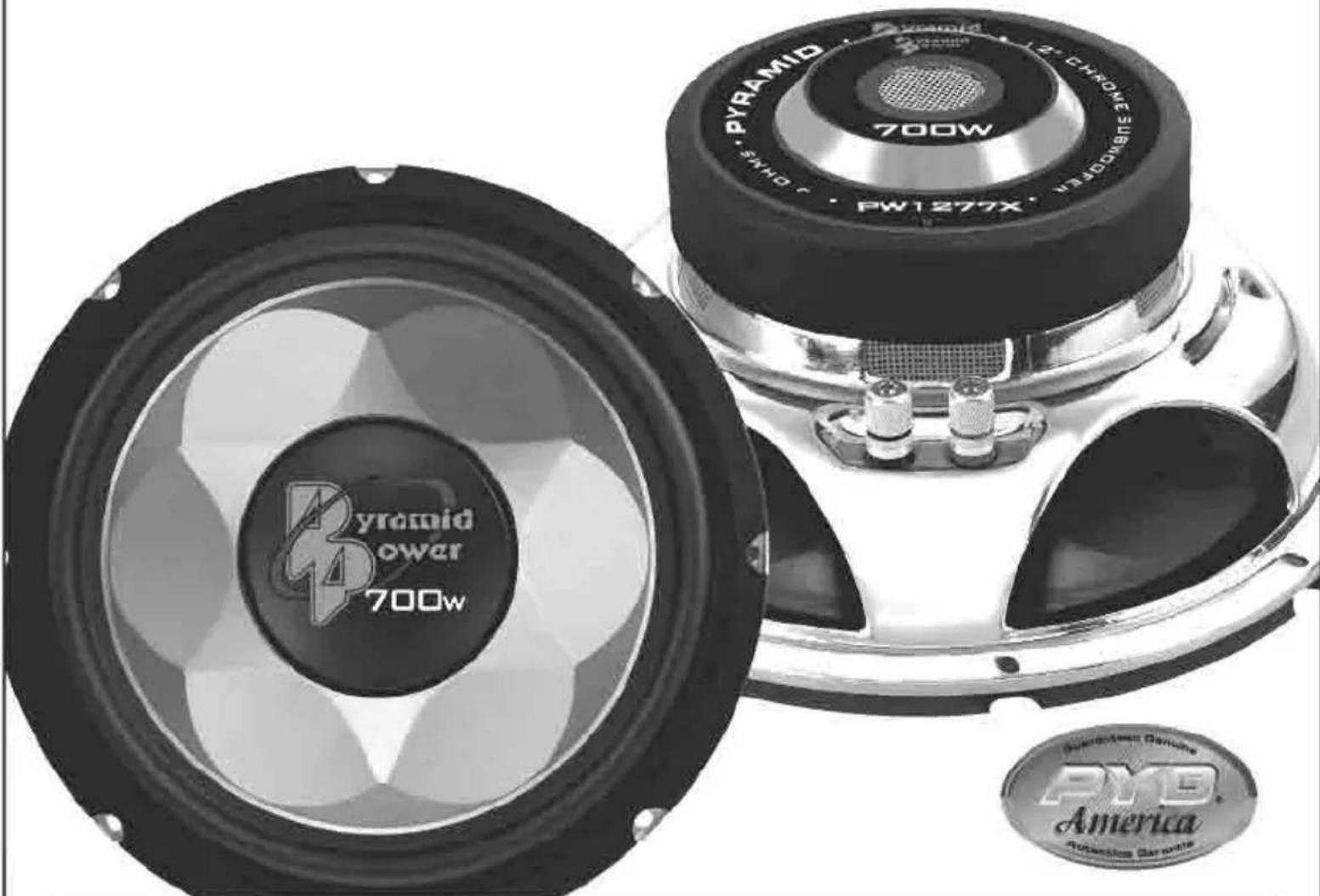

Close-up of two modern speakers with visible brand logos and specifications (no readable text beyond branding)www.pyramidcaraudio.com
About Pyramid Power Series Woofer
Congratulations!
You have just purchased one of our high quality Pyramid woofer.
Pyramid Power Series Woofer is carefully designed & manufactured for vehicle use. They could deliver consistent and high performance over the years.
The General Features of Pyramid Power Series Woofers:
- New Design Injection-Molded P.P. Cone
- Specially Treated Black Rubber Edge Suspension
- Chrome Finished Basket
- Bumped & Vented Yoke Plate for Extended Excursion
- Silver Plated Terminal
- Rubber Magnet Boot for Better Protection
- High Temperature Kapton Polyamide Voice Coils
- 4 Ohm Impedance
PW577X · PW677X
PW877X · PW1077X
PW1277X · PW1577X
| Specification | PW577X | PW677X | PW877X | PW1077X | PW1277X | PW1577X |
| Power (Watts Peak) | 200 | 300 | 400 | 500 | 700 | 800 |
| Nom. Impedance (Ohm) | 4 | 4 | 4 | 4 | 4 | 4 |
| Voice Coil | 1" KSV | 1" KSV | 1.5" KSV | 2" KSV | 2" KSV | 2.5" KSV |
| Motor Structure | Vented | Bumped & Vented | Bumped & Vented | Bumped & Vented | Bumped & Vented | Bumped & Vented |
| Magnet Structure | 20 oz | 40 oz | 60 oz | 80 oz | 80 oz | 100 oz |
| Fs (Hz) | 65 | 55 | 38 | 39 | 34 | 32 |
| Qms | 5.00 | 5.01 | 2.05 | 2.09 | 2.68 | 5.08 |
| Qes | 0.85 | 0.84 | 0.63 | 0.91 | 0.90 | 0.89 |
| Qts | 0.71 | 0.72 | 0.48 | 0.63 | 0.68 | 0.66 |
| SPL (dB) | 87 | 86 | 89 | 88 | 88 | 89 |
| Vas (cuft) | 0.173 | 0.448 | 1.794 | 1.787 | 2.730 | 8.689 |

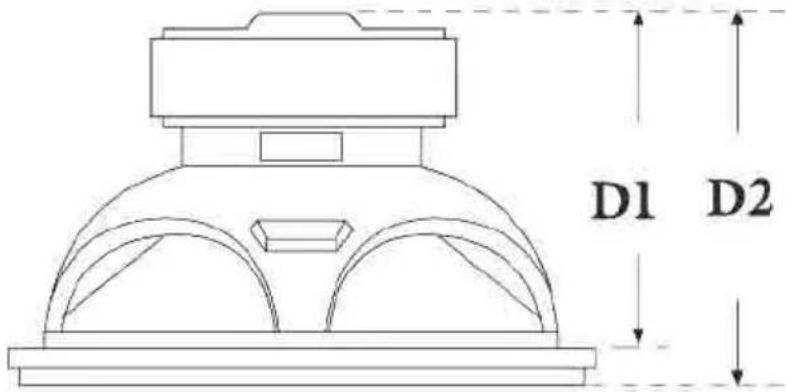

| Mounting Depth , D1 | 2.17" | 2.89" | 3.54" | 4.33" | 4.96" | 5.87" |
| Overall Depth, D2 | 2.51" | 3.24" | 3.94" | 4.75" | 5.37" | 6.28" |

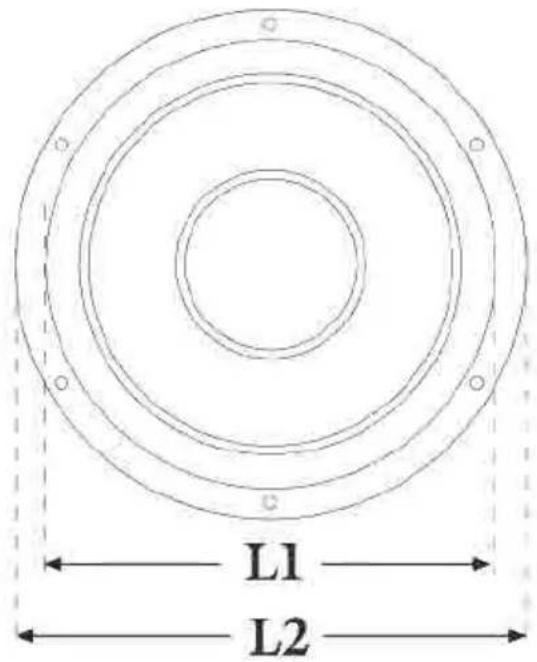

| Mounting Diameter, L1 | 4.75" | 6.18" | 7.76" | 9.61" | 11.57" | 14.57" |
| Overall Diameter, L2 | 5.17" | 6.50" | 8.27" | 10.08" | 12.17" | 15.16" |
Pyramid Power Series Woofer continually strives to improve the performance and value of its products - all specifications are subject to change.
MANUFACTURER'S LIMITED TWO YEAR WARRANTY
PYRAMID AUDIO CORP. warrants this unit to be free from defective material or workmanship and will repair or replace this unit or any part thereof if it proves defective in normal use or service within Two (2) years from the date of original purchase.
Our obligation under this warranty is limited to the repairing or replacing, at our discretion, the defective instrument or any part thereof when it is returned, transportation prepaid to the Pyramid Service Center at the address below. This warranty will be considered void if the unit has been tampered with, improperly serviced, subjected to abuse or misuse or if installed in a commercial vehicle. This warranty does not cover accidental damage. When returning this unit for service, please include \$10.00 for return postage and handling. Send your unit to:
PYRAMID SERVICE CENTER
1600-63rd Street
Brooklyn, New York 11204 USA
IMPORTANT: Pack carefully in original carton if possible. We are not responsible for damage incurred in returning items for repair. A letter stating your exact street address, daytime phone number and the problem you are experiencing should be included. You must also enclose a copy of the original receipt as proof of date of purchase.
