BRUKSANVISNING 2004 Sani-Lav

SANI-LAV® COLUMBIA PRODUCTS

Operating Manual for Faucets

Models 2004 and 2004-0.5

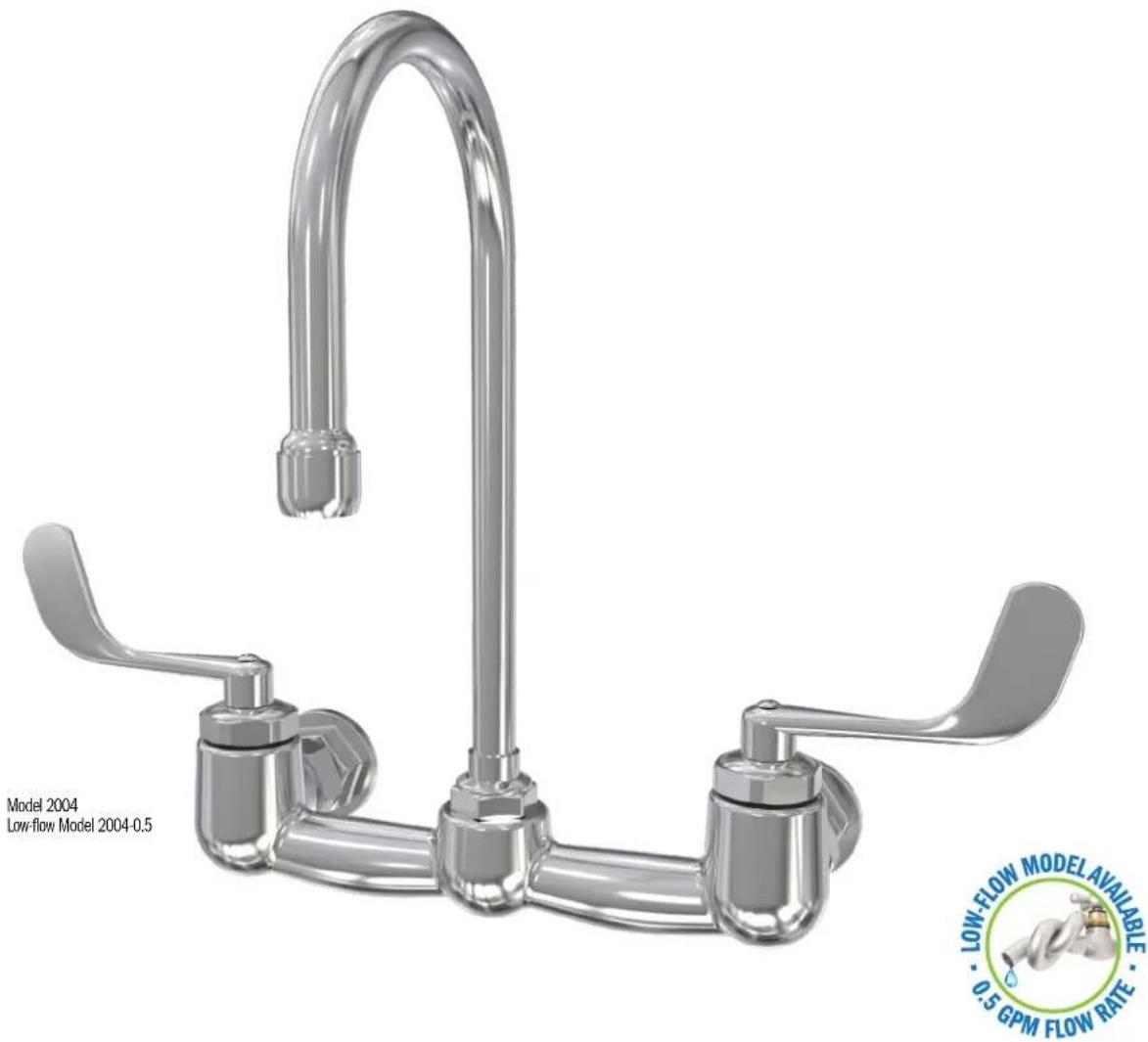

Model 2004 Low-flow Model 2004-0.5 LOW-FLOW MODEL AVAILABLE • 0.5 GPM FLOW RATE

Product Compliance

Certified to NSF/ANSI 61, Section 9 by CSA, ASME A112.18.1/CSA B125.1

Standard flow rate: 2 GPM, low-flow model: 0.5 GPM

COLUMBIA SPECIFICATIONS

FAUCETS

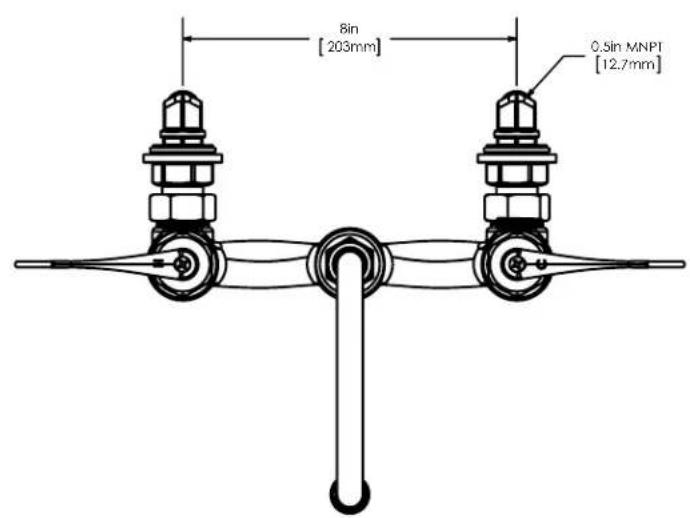

8in [203mm] 0.5in MNPI [12.7mm]

Sani-Lav 2004 - COLUMBIA SPECIFICATIONS - 2

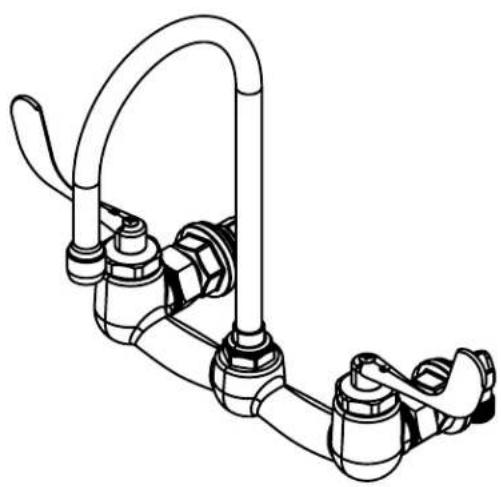

natural_image Line drawing of a kitchen faucet with handle and valve (no text or symbols)

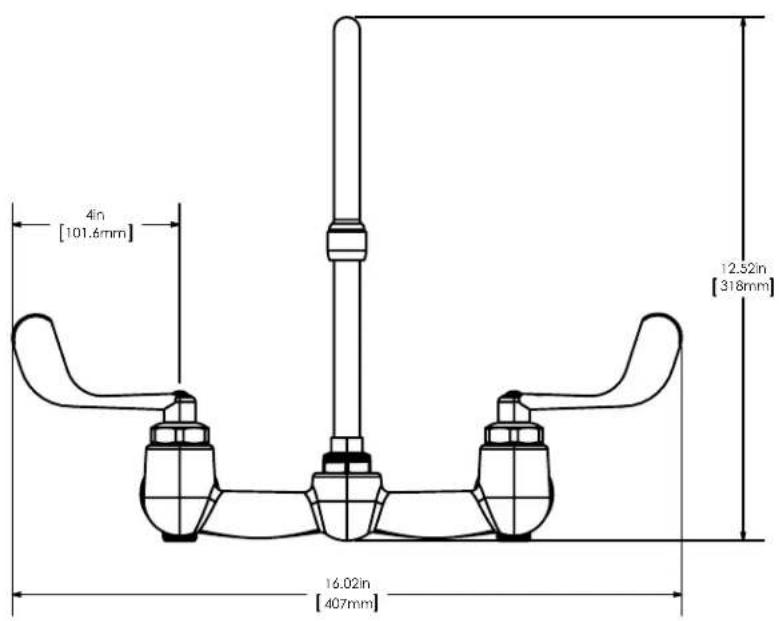

4in [101.6mm] 12.52in [318mm] 16.02in [407mm]

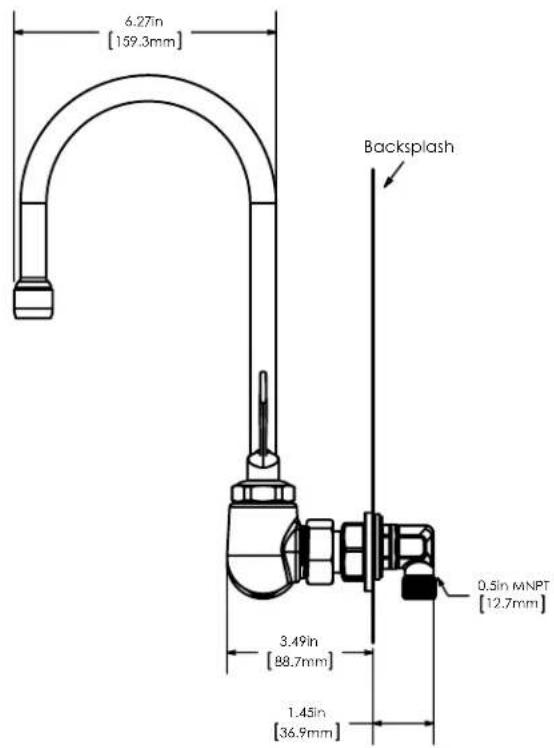

6.27in [159.3mm] Backsplash 3.49in [88.7mm] 1.45in [36.9mm] 0.5in MNPT [12.7mm]

Go to columbiasinks.com for more information on replacement parts and installation videos.

Sani-Lav 2004 - COLUMBIA SPECIFICATIONS - 5

Notice for California Consumers

WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds),

Lead, and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects

or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

NOTE: Lead content originates from Brass components in valves and faucets and is certified under

NSF/ANSI 372 as containing less than 0.25% lead in wetted surfaces.

COLUMBIA PRODUCTS

800.626.2117 • columbiasinks.com • info@columbiasinks.com

Replacement Parts
Part No. Description Quantity Universal Part

12003-1 Swivel Spout 1 YesStandard 2.0 GPM Flow Rate
22003-1-0.5 Swivel Spout 1 YesStandard 0.5 GPM Flow Rate
31002 Aerator 55/64 - 27 Thread Size 1 Standard 2.0 GPM Flow RateYes
41003 Aerator 55/64 - 27 Thread Size 1 Low-flow 0.5 GPM Flow RateYes
52004-5 10-24 Oval Countersunk Screw x .5"2Yes
62011-2 Handle 4" inch - Hot1No
72011-1 Handle 4" inch - Cold1No
82004-4A Bonnet Nut - Hot1No
92004-3A Bonnet Nut - Cold1No
101062-HL Faucet Valve Repair KitHot Side Valve Cartridge Assembly1No
111062-CL Faucet Valve Repair KitCold Side Valve Cartridge Assembly1No
122004-2 Female Wall Flange Assembly2Yes
132004-1 Faucet Body Assembly1Yes
141009 Faucet Mounting Kit Brass Elbow, Nipple, Nut and Washer1Yes

cement Parts Description Quantity Universal Part 1 Swivel Spout 1 Yes Standard 2.0 GPM Flow Rate 1-0.5 Swivel Spout 1 Yes Standard 0.5 GPM Flow Rate Aerator 55/64 - 27 Thread Size 1 Yes Standard 2.0 GPM Flow Rate Aerator 55/64 - 27 Thread Size 1 Yes Low-flow 0.5 GPM Flow Rate 5 10-24 Oval Countersunk Screw x .5" 2 Yes 2 Handle 4" inch - Hot 1 No 1 Handle 4" inch - Cold 1 No 4A Bonnet Nut - Hot 1 No 3A Bonnet Nut - Cold 1 No HL Faucet Valve Repair Kit 1 No Side Valve Cartridge Assembly CL Faucet Valve Repair Kit 1 No Side Valve Cartridge Assembly 2 Female Wall Flange Assembly 2 Yes 1 Faucet Body Assembly 1 Yes Faucet Mounting Kit 1 Yes Brass Elbow, Nipple, Nut and Washer 14 12 10 8 6 5 7 9 13 14
