Instruction Sheet
Subject: K00470 K00472 K00473 Bin Adapter
BIN ADAPTER
K00470 - 30" ICE MACHINE ON 48" BIN
K00472 - 22" ICE MACHINE ON A 30" BIN
K00473 - 22" ICE MACHINE ON A 48" BIN
Warning
Authorized Service Representatives are obligated to follow industry standard safety procedures, including, but not limited to, local/national regulations for disconnection / lock out / tag out procedures for all utilities including electric, gas, water and steam.
These instructions are used for installing the following:
- 22" ice machines on 30" B, K or D model bins
- 22" ice machines on 48" B, K or D model bins
-
30" ice machines on 48" B, K or D model bins
-
Remove protective coating from support rail and bin adapter prior to assembly.
-

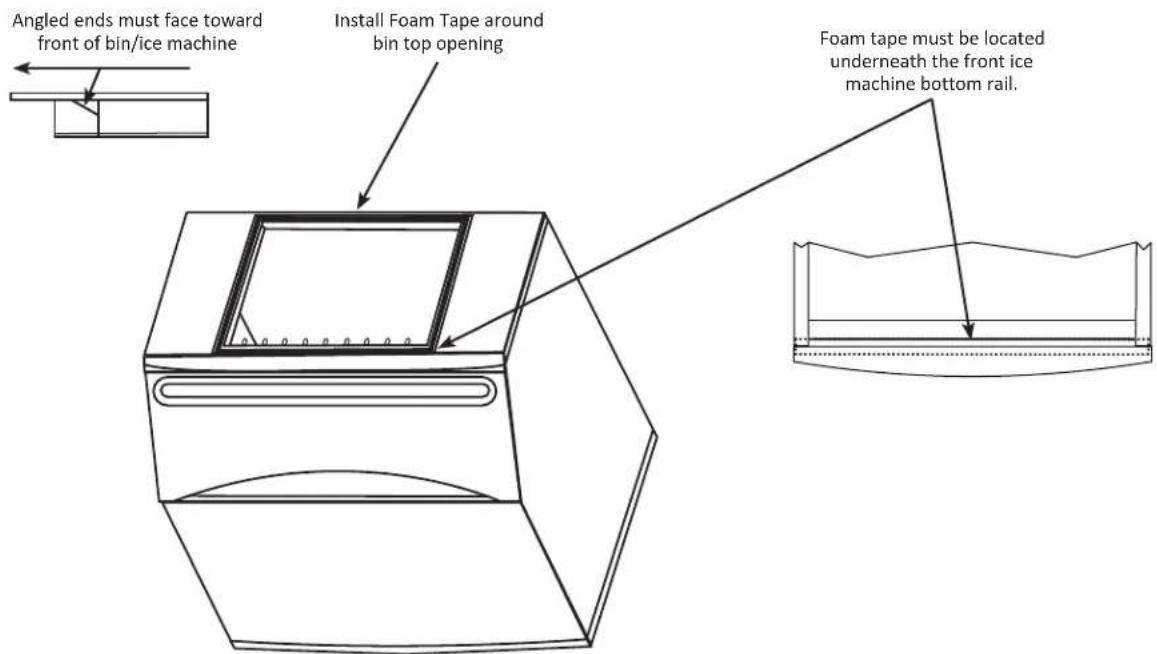

Refer to drawing and place support in position. Angled flange of support must face the front of the bin. Apply foam tape on top of the support.
-
Place bin adapter on bin - No fasteners are required.
- Apply foam tape from the kit around bin top opening.
A. Foam tape applied to the front of the bin opening must be located under the ice machine bottom rail.
B. Apply foam tape around the sides and rear of the bin top opening.
- Place bin in final position and adjust legs to level bin in all directions.
- Refer to Ice Machine Installation Manual for ice machine installation. Clean and sanitize the ice machine and bin when installation is complete.
