BRUKSANVISNING Flat 2513 091 Foster

Hood Flat inox 2513 0\_1

Hoods

Code: 2513 0_1

$Foster Flat 2513 091 - Hood Flat inox 2513 0\_1 - 1$


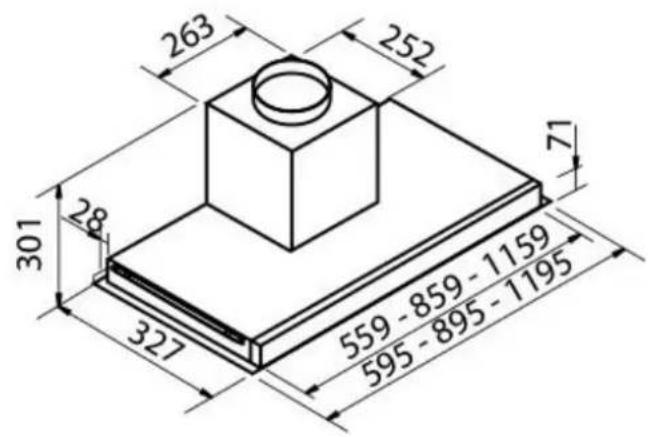

Code: 2513 061 60 cm

Code: 2513 091 90 cm

Code: 2513 021 120 cm

$Foster Flat 2513 091 - Hood Flat inox 2513 0\_1 - 2$

DETAILS

Material	Stainless steel
Texture	Satin
Energy class	A

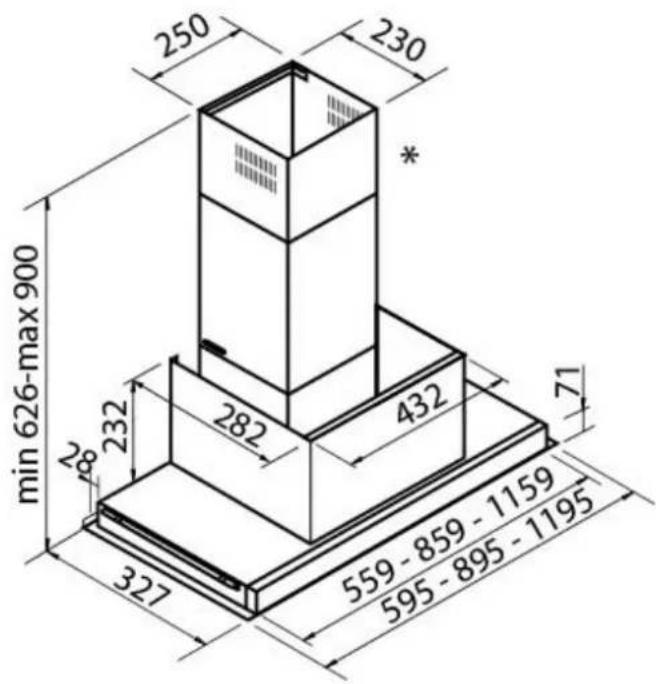

Product details	Undercabinet with optional telescopic chimney and stainless engine-cover
Grease filters	Grease filtres: 1 filtre for 60 cm hood, 2 filtres for 90 cm hood, 4 filtres for 120 cm hood
Operation	Suction hood (filtering mode with optional carbon filters)
Air exhaust hole	ø 120/150 mm
Lighting	Strip LED lighting (4.200 kelvin)
Air flow rate	750mc/h

Foster

Foster Flat 2513 091 - Foster - 1

Motor power	275W
Hood type	Built-in suction hood
Type of commands	Easy electronic controls
Suction speed	4 operating speeds
Notes:	Fume exhaust ducts must have an internal diameter not lower than 120 mm

FEATURES

Auto delayed shutdown	All the models with electronic interface can be programmed to turn off the suction at a postponed moment, so as to prolong the aeration of the room even after the cooking has been completed.
Led lighting	Particular attention to energy saving with LED lighting systems. They assure a 10 times lower consumption and a 10 times longer duration. Our LED lights are designed to create an adequate comfort and safety in the cooking area.
Perimetric aspiration	The perimeter suction is a feature common to many Foster hoods. The filters are hidden by steel- or crystal plates and the suction occurs along their perimeter. This has aesthetic advantages but also functional ones: the cleaning is easier, the suction power and noise-level are improved. The depression which occurs in the perimeter area facilitates in fact the suction of the particles composing the fumes.
Remote control	The ceiling suction systems and the Maya hoods are equipped with a remote control to easily activate all their functions from any position.
