BRUKSANVISNING MT-TL OC HILTI
2311342-06 2021

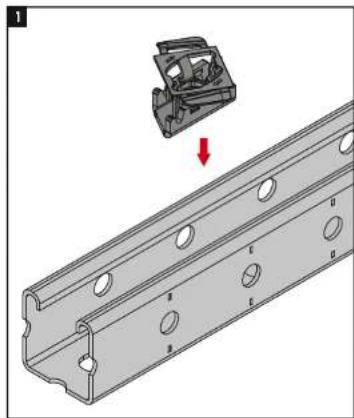

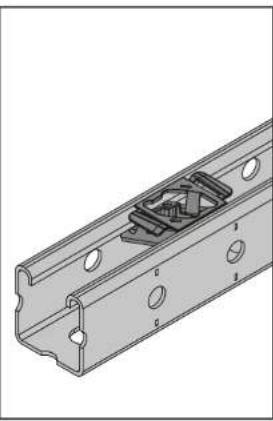

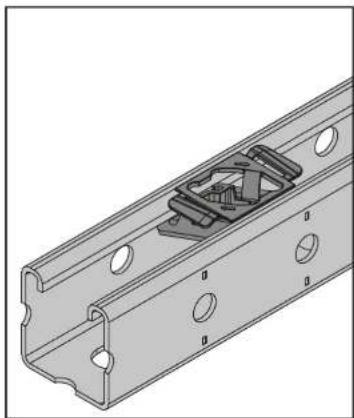

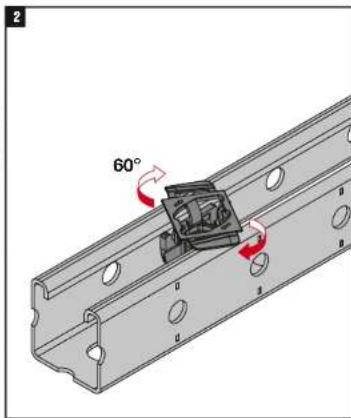

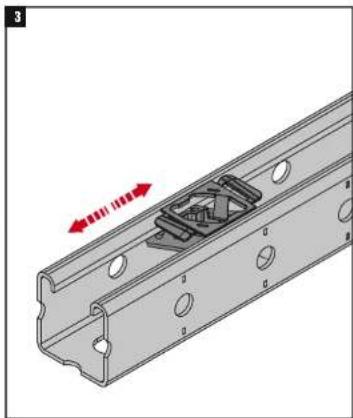

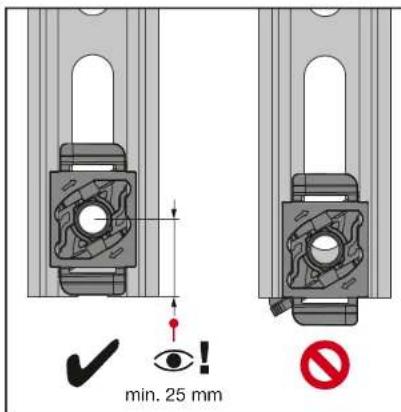

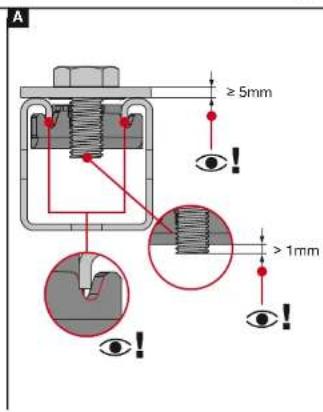

A ≥ 5mm > 1mm


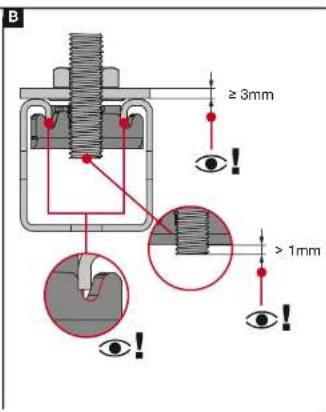

B ≥ 3mm > 1mm| A | B | |
| MT-TL M8 | 30 Nm 10 Nm | |
| MT-TL M8 OC | ||
| MT-TL 3/8° | 40 Nm(30 ft-lb) | 20 Nm(15 ft-lb) |
| MT-TL 3/8° OC | ||
| MT-TL M10 | 30 Nm 15 Nm | |
| MT-TL M10 OC | 40 Nm | 25 Nm |


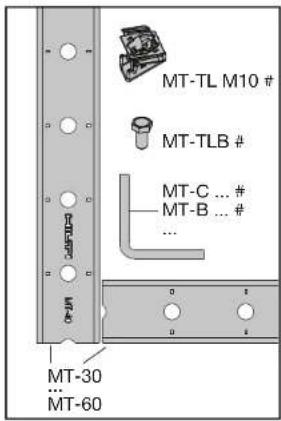

MT-TL M10 # MT-TLB # MT-C ... # MT-B ... # ... MT-30 ... MT-60

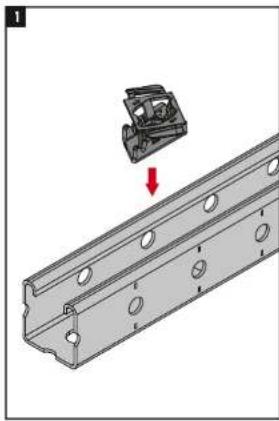

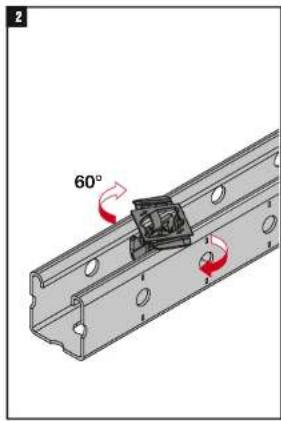

2 60°

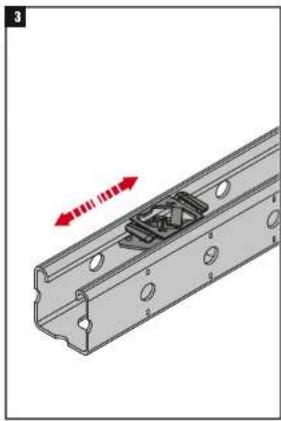

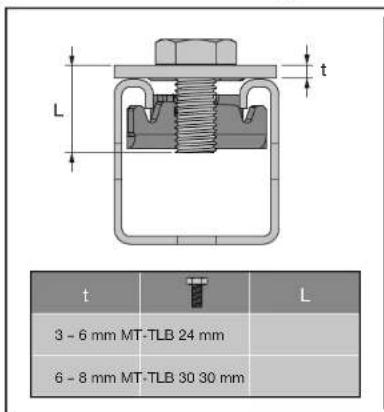

L t 3 - 6 mm MT-TLB 24 mm 6 - 8 mm MT-TLB 30 30 mm
