BRUKSANVISNING Can 10mm Stairville
User Manual / Instructions
1. Sound Action Mode

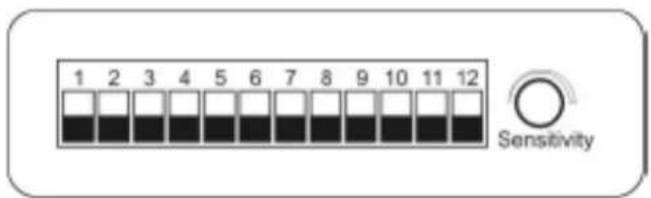

Set dipswitch 12 to ON. The LED PAR is controlled by music beat. With every music beat another color is shown. Sensitivity may be adjusted with the potentiometer.
2. Mix Color Mode
Set dipswitch 11 and 12 to ON. The LED PAR is in fading mode. Set dipswitch 1 to ON, the fading time is 2.5s.
The Fade-Time is set by dipswitches 1 to 9. The time is added.
| DIP 1 | DIP 2 | DIP 3 | DIP 4 | DIP 5 | DIP 6 |
| 2.5s | 5s | 7.5s | 10s | 15s | 20s |
| DIP 7 | DIP 8 | DIP 9 | DIP 9 | DIP1 to DIP 9 are OFF | |
| 40s | 80s | 160s | 320s | 640s | |
3. Manual Mode

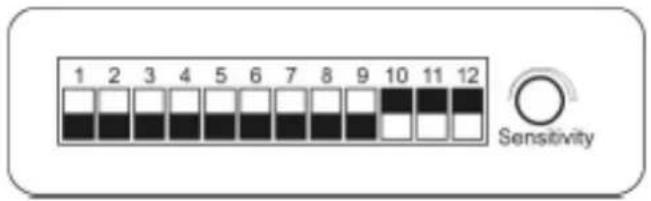

Set dipswitch 10, 11 and 12 to ON, the unit is in manual mode. In manual mode, the colour brightness may be set according to this table:
| RED | DIP 1,2 | OFF/ OFF | OFF/ON | ON/OFF | ON/ON |
| GREEN | DIP 3,4 | ||||
| BLUE | DIP 5,6 | ||||
| Brightness | 0 | 25% | 50% | 100% | |
4. DMX Mode
Set dipswitch 10, 11, and 12 to OFF. The unit is in DMX mode and may be controlled by any DMX controller.

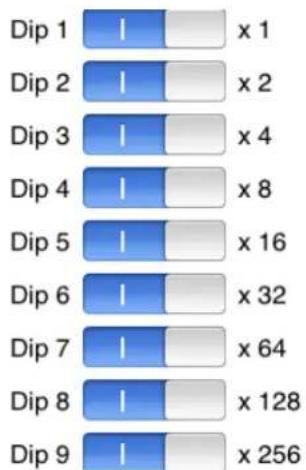

The DMX channels may be set by dipswitches 1 to 9, in the range of DMX channel 1 to 507. Dipswitch 1 is first channel. Dipwsitch 9 is channel 256.
bar_stacked
| Dip | Blue Segment (x) | Gray Segment (x) | Multiplier | |---|---|---|---| | Dip 1 | 1 | 1 | x 1 | | Dip 2 | 1 | 1 | x 2 | | Dip 3 | 1 | 1 | x 4 | | Dip 4 | 1 | 1 | x 8 | | Dip 5 | 1 | 1 | x 16 | | Dip 6 | 1 | 1 | x 32 | | Dip 7 | 1 | 1 | x 64 | | Dip 8 | 1 | 1 | x 128 | | Dip 9 | 1 | 1 | x 256 |The channel usage is according to this table:
| CH-1 | CH-2 | CH-3 | CH-4 | CH-5 | CH-6 | CH-7 |
| RED | GREEN | BLUE | MACRO | Speed/Strobe | MODE | Master DIM |
| 0 = OFF | 0 = OFF | 0 = OFF | 0-15Macro Off | 0-15 = OFF | 0 - 31 = Color Setting | 0-255 |
| 1 - 255 = DIM | 1 - 255 = DIM | 1 - 255 = DIM | 16-255 = Strobe16 Steps of Speed | |||
| 0-15 = OFF | 0-15 = OFF | 0-15 = OFF | 0-255Speed | 32-63 = Fade Out | ||
| 16- 255 = ON | 16-255 = ON | 16-255 = ON | ||||
| 0-15 = OFF | 0-15 = OFF | 0-15 = OFF | 64-95 = Fade In | |||
| 16- 255 = ON | 16-255 = ON | 16-255 = ON | ||||
| 0-15 = OFF | 0-15 = OFF | 0-15 = OFF | 96-127 = Fade In Out | |||
| 16- 255 = ON | 16-255 = ON | 16-255 = ON | ||||
| NA | NA | NA | 128-159 = Auto Mix | |||
| 160-191 = 3 Colour Chase | ||||||
| 192-223 = 7 Colour Chase | ||||||
| NA | 224-255 = Sound Action | |||||
| 8-255 = Macro31 Steps of Macro | 16-255 = Strobe16 Steps of Speed | NA |
