BRUKSANVISNING Dolti 78368/30/39 Lucide

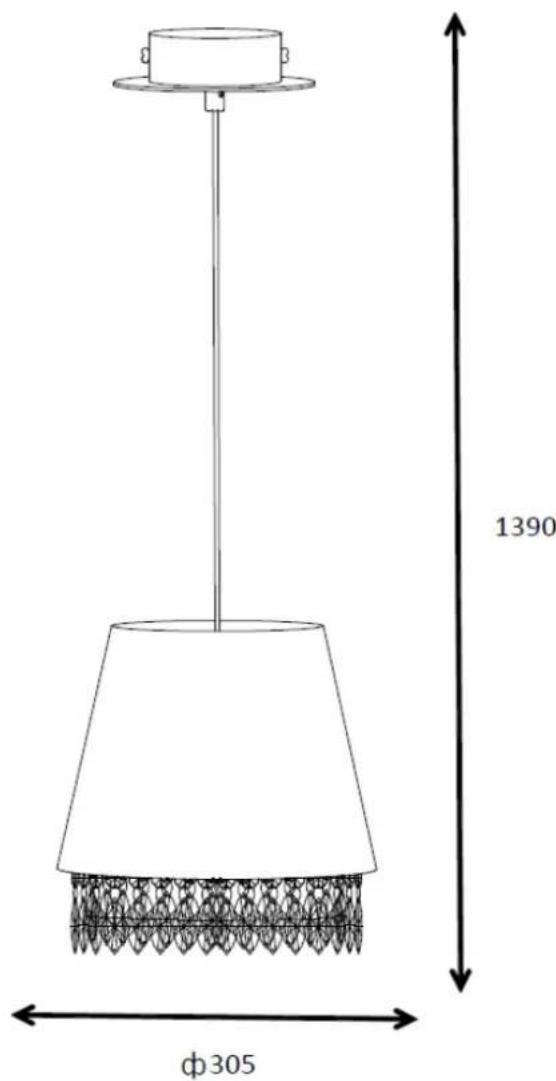

Line drawing of the item (with outline dimensions)

φ305 1390

Installation drawing (the same as it in its instruction manual)

Lucide Dolti 78368/30/39 - 2

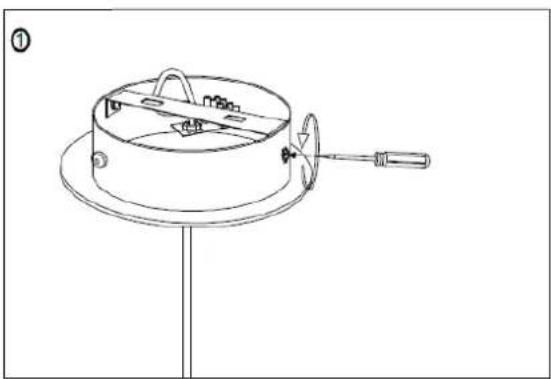

natural_image Technical line drawing of a mechanical device with a circular top and radial handle (no text or symbols)

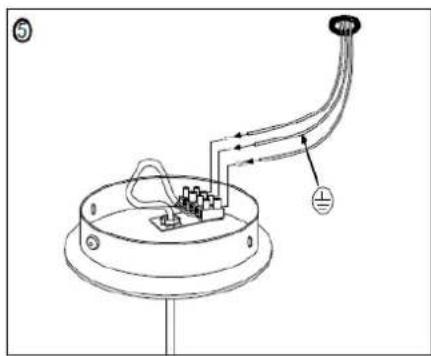

Technical diagram of an electrical component with labeled parts and wiring connections

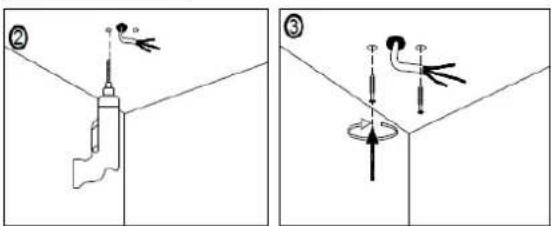

Technical diagram showing two methods of a tool or device with labeled components and directional arrows, likely illustrating a mechanical or electrical setup.

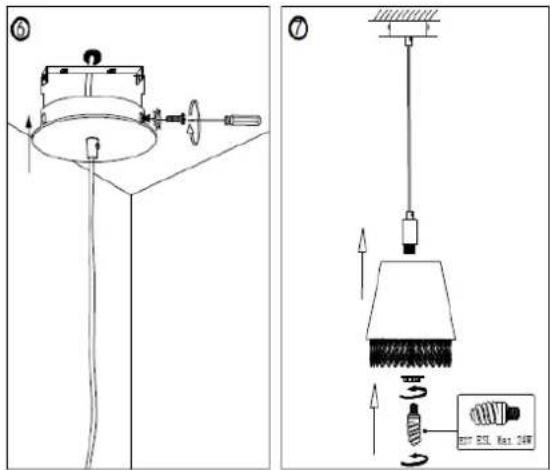

Technical diagram showing two mechanical assembly setups with labeled components and a hanging component, including a 3D model and a schematic view.

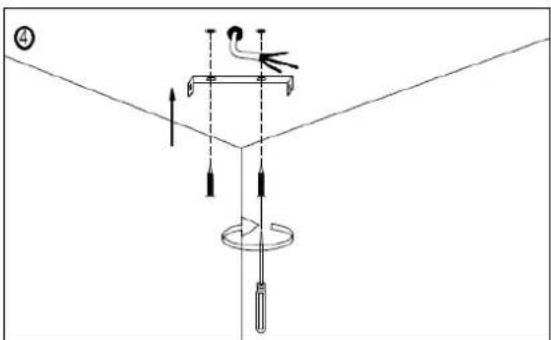

Diagram showing a mechanical or optical setup with labeled components and directional arrows, including a circular base and tool.

Diagram showing two types of electrical tools: a push-up tool and a pencil with two times the length of a screwdriver.

Diagram illustrating screw and nut assembly with labeled components and directional arrows

Diagram showing mechanical assembly with labeled parts and directional arrows, including 'NL' and connection points

Technical details

materials used: Metal ,acrylic and TC
color:chrome metal frame w/purple TC shade&purple acrylic droplet
dimmable and how is the fixture dimmable:
size: Height: Length: Width: Net Weight:139cm 30.5cm 30.5cm 0.91kgs
power requirements:220-240V-50Hz
bulb type and maximum Wattage:
number of bulbs:1XE27
IP degree:IP20

EES

label

(only

one

in

English,

LUCIDE 78368/30/39 This luminaire is compatible with bulbs of the energy classes: A++ A+ A B C D E 874/2012

Lucide NV

Bisschoppenhoflaan

2100

Deurne

Belgium

info@lucide.be

tel:

+32

(0)3

366

22

04

www.lucide.be
