BRUKSANVISNING EFFEKTIV T IKEA

EFFEKTIV T

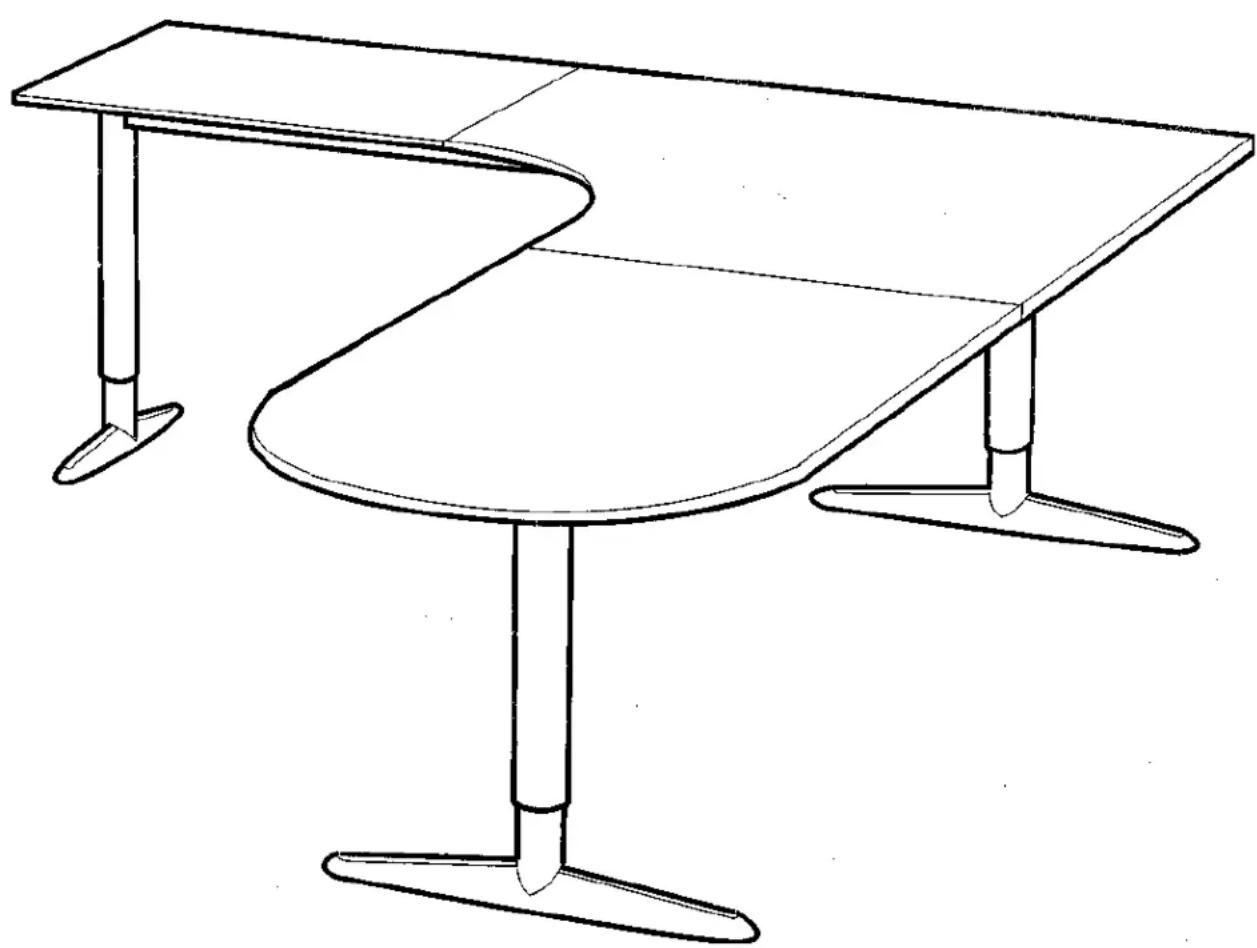

IKEA EFFEKTIV T - EFFEKTIV T - 1

natural_image Line drawing of a modern office table with curved legs and a flat top (no text or symbols)

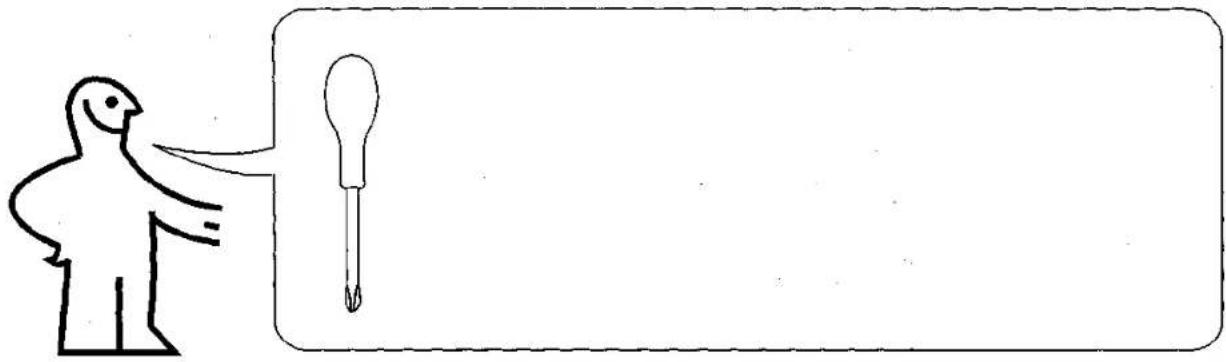

IKEA EFFEKTIV T - EFFEKTIV T - 2

natural_image Simple line drawing of a bird pointing at a dropper (no text or symbols)

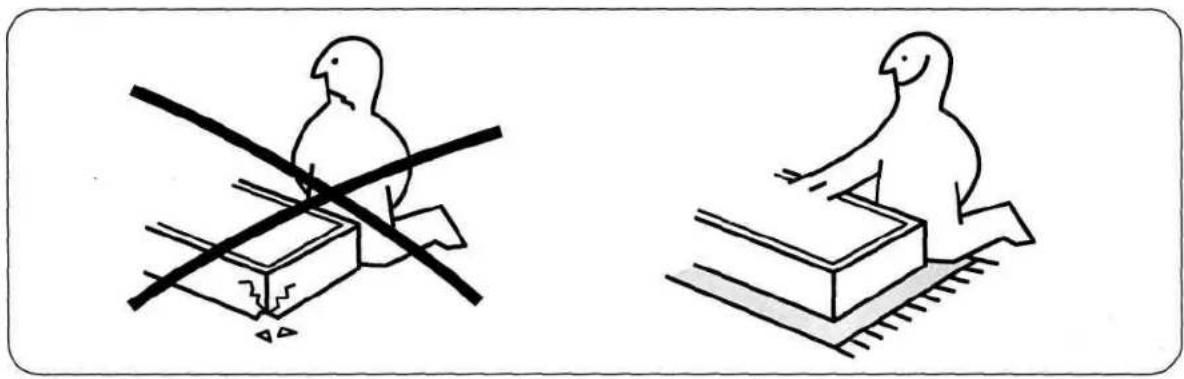

IKEA EFFEKTIV T - EFFEKTIV T - 3

natural_image Two line drawings of birds on a platform, one with a crossed-out line and the other with a rectangular base (no text or symbols)

Cartoon illustration showing two scenes: one with a question mark and a person reading, the other with a robot holding boxes and a IKEA building connected by a line.

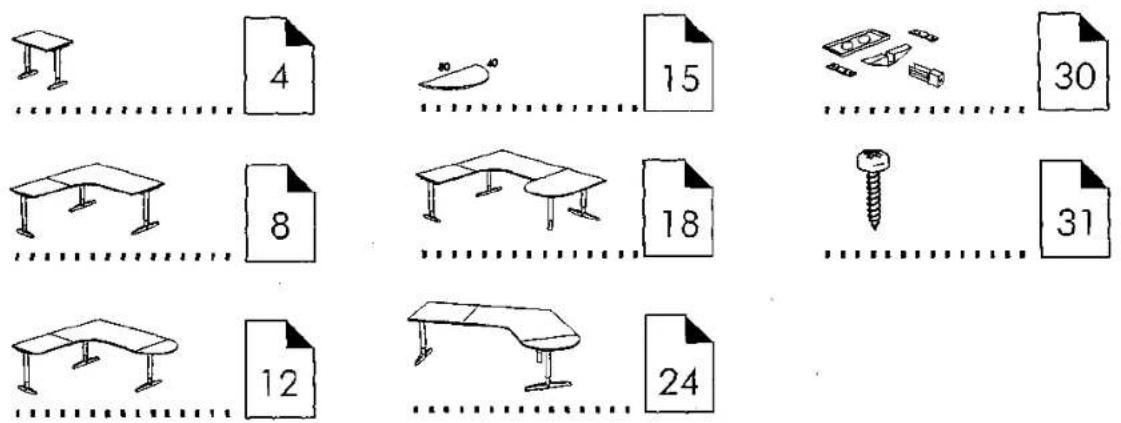

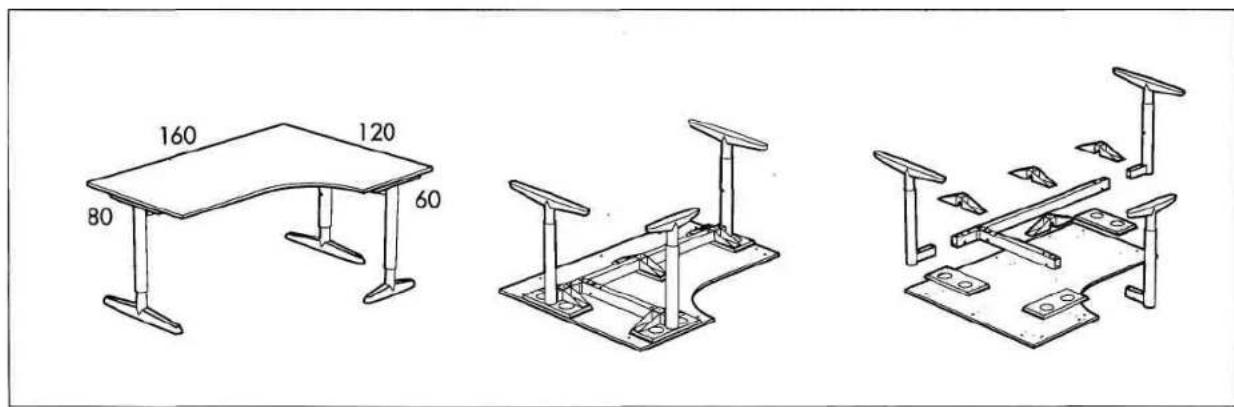

4 15 30 8 18 31 12 24

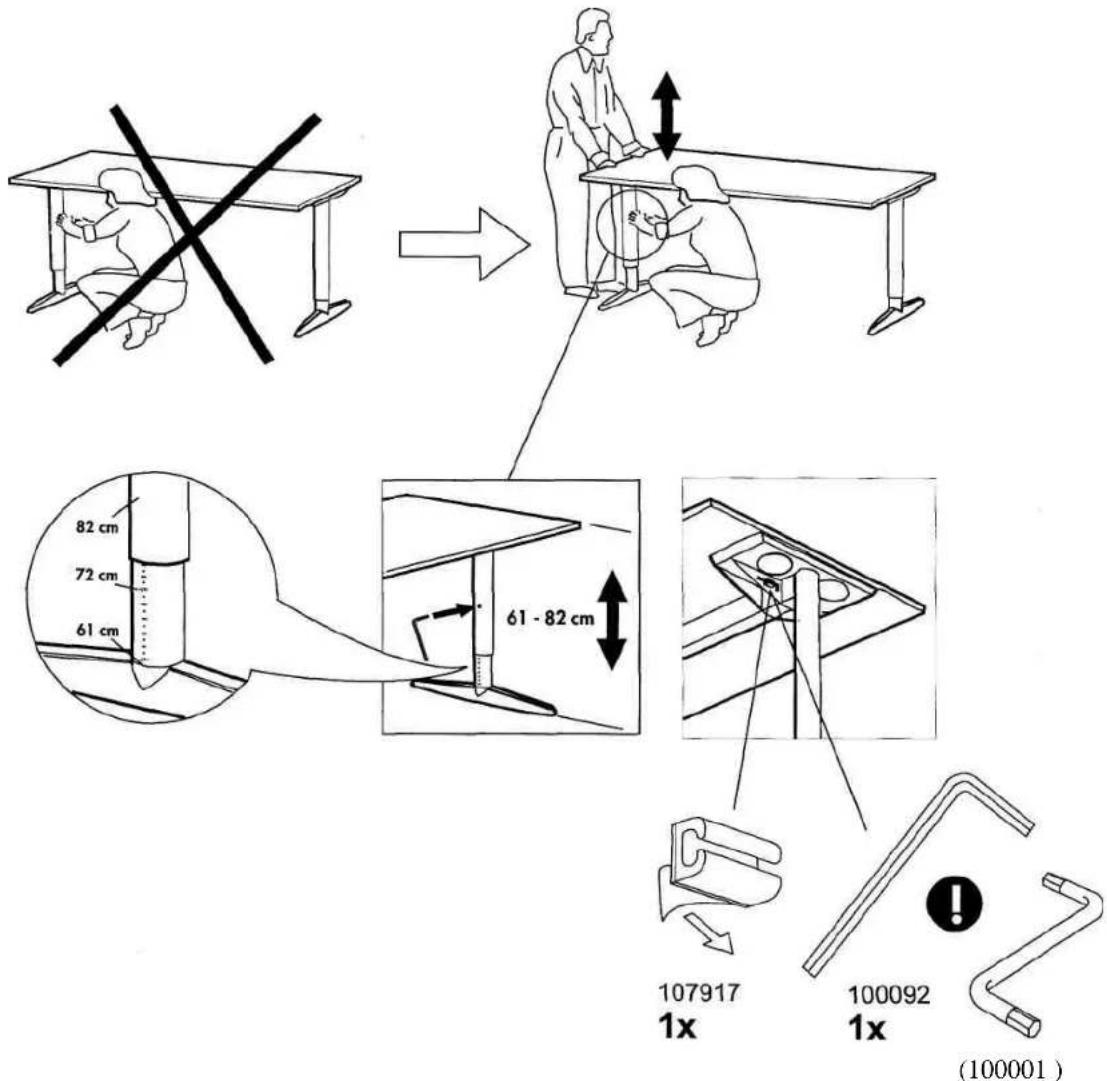

Diagram illustrating a medical procedure with labeled measurements and instructions for handling a device, including a crosshair symbol.

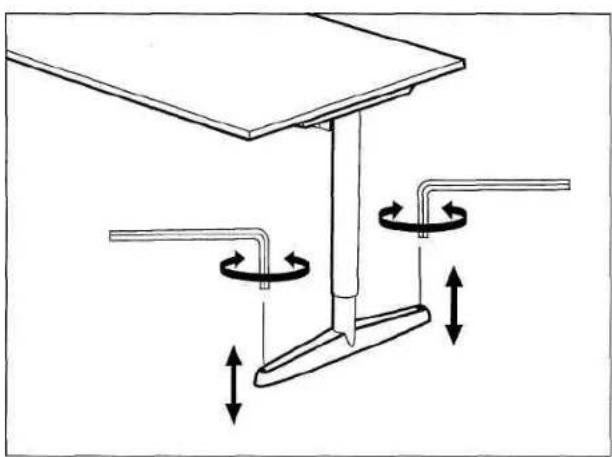

IKEA EFFEKTIV T - EFFEKTIV T - 7

natural_image Diagram of a mechanical assembly with rotating arms and directional arrows indicating motion (no text or symbols)

IKEA EFFEKTIV T - EFFEKTIV T - 8

natural_image Simple line drawing of a table with two legs and a side table, no text or symbols present

IKEA EFFEKTIV T - EFFEKTIV T - 9

natural_image Simple line drawing of a mechanical support structure with no text or symbols

IKEA EFFEKTIV T - EFFEKTIV T - 10

natural_image Technical line drawing of mechanical components including a lever, bracket, and base plate (no text or symbols)

IKEA EFFEKTIV T - EFFEKTIV T - 11

natural_image Simple line drawing of a two-legged table with legs and feet, no text or symbols present

IKEA EFFEKTIV T - EFFEKTIV T - 12

natural_image Technical line drawing of a two-side support structure with vertical legs and base (no text or symbols)

IKEA EFFEKTIV T - EFFEKTIV T - 13

natural_image Technical line drawing of mechanical components including flanges, brackets, and a base plate (no text or symbols)

80 160

IKEA EFFEKTIV T - EFFEKTIV T - 15

natural_image Technical line drawing of a two-side support structure with two vertical supports and a base plate (no text or symbols)

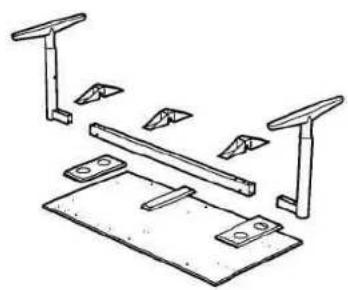

IKEA EFFEKTIV T - EFFEKTIV T - 16

natural_image Technical line drawing of a mechanical assembly with multiple components (no text or symbols)

120 60 120 80

IKEA EFFEKTIV T - EFFEKTIV T - 18

natural_image Technical line drawing of a mechanical support frame with two vertical arms and mounting base (no text or symbols)

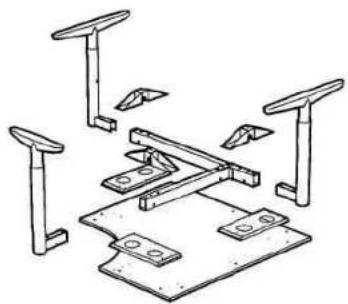

IKEA EFFEKTIV T - EFFEKTIV T - 19

natural_image Technical line drawing of a mechanical assembly with multiple supports and mounting brackets (no text or symbols)

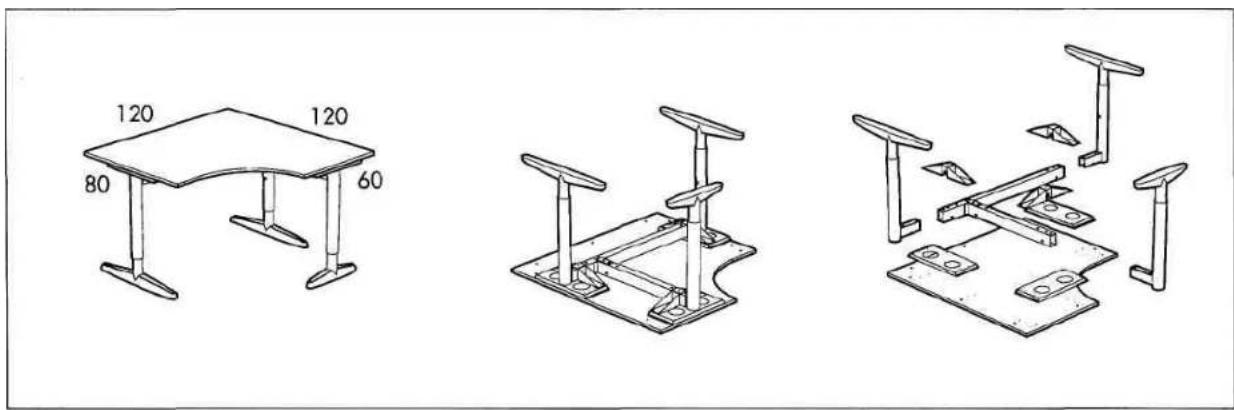

120 80 120 60

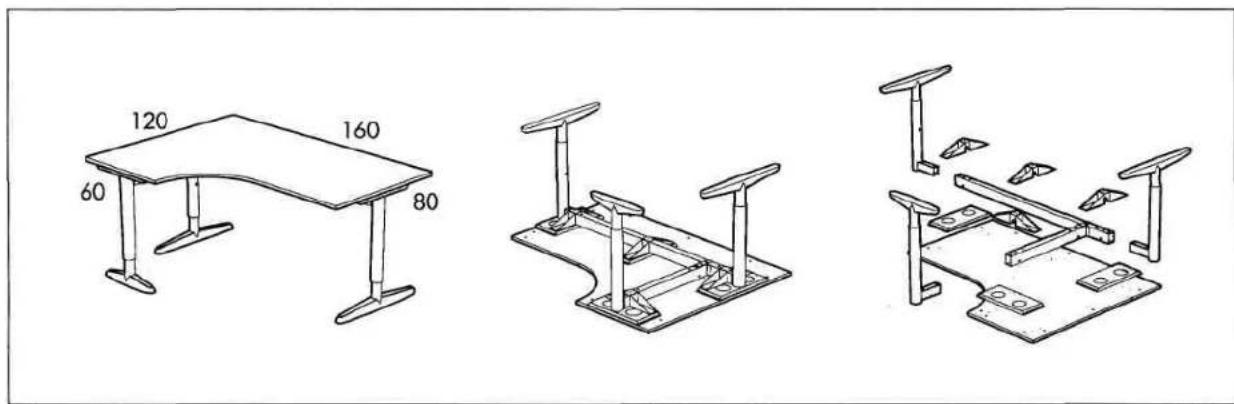

120 160 60 80

160 120 80 60

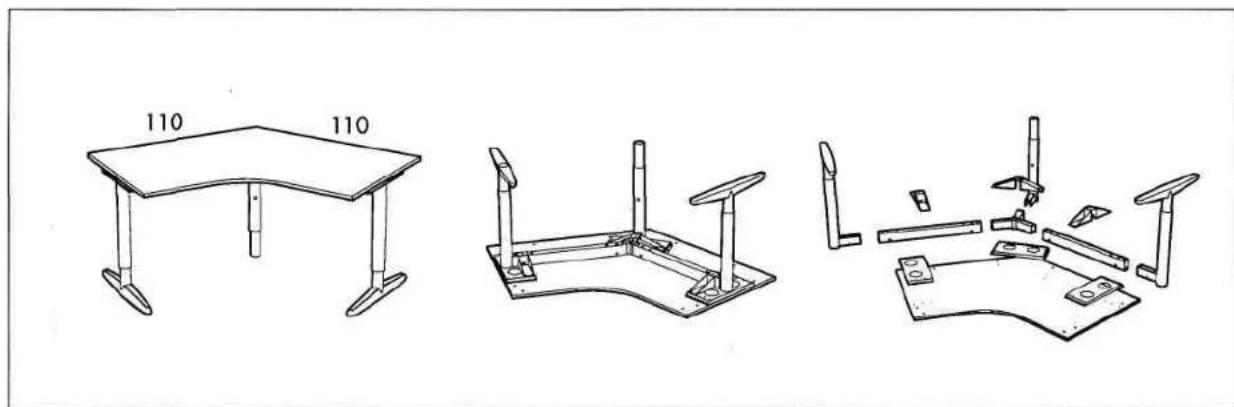

110 110

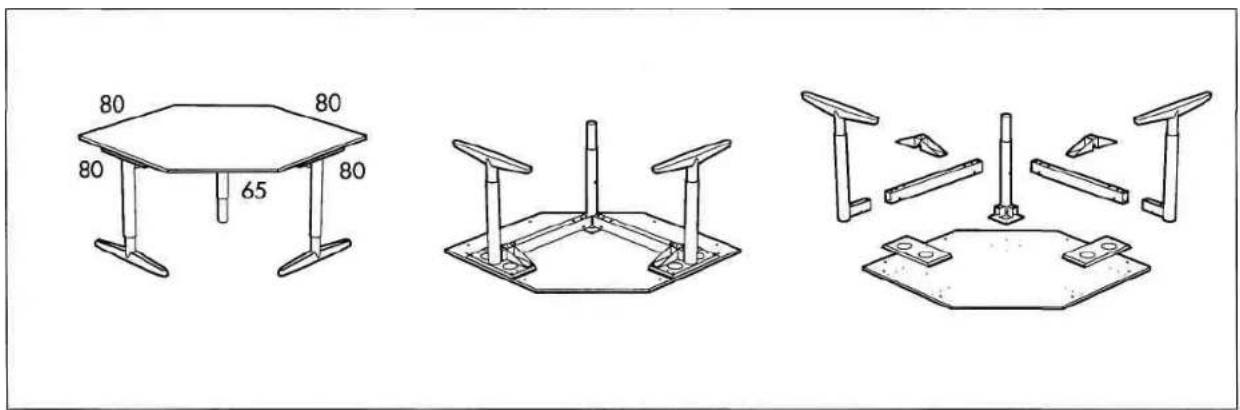

80 80 65 80 80

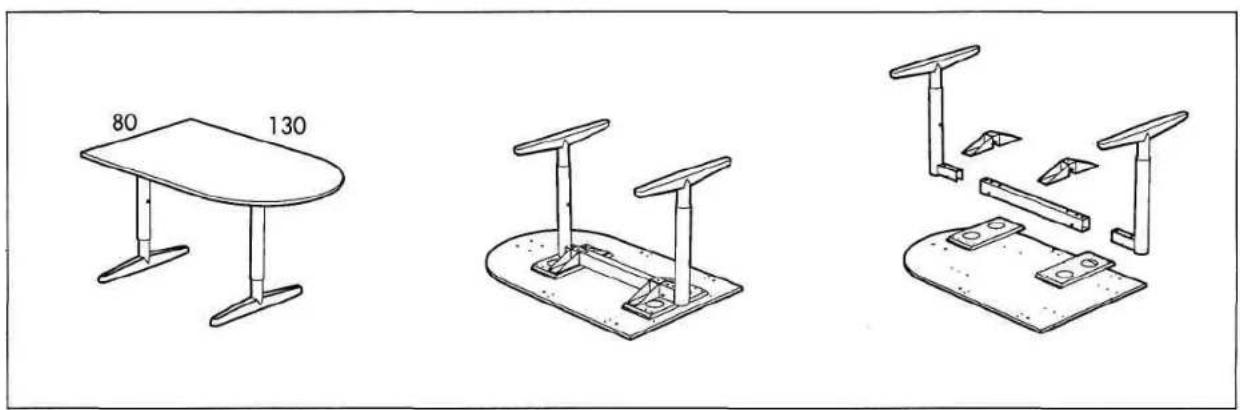

80 130

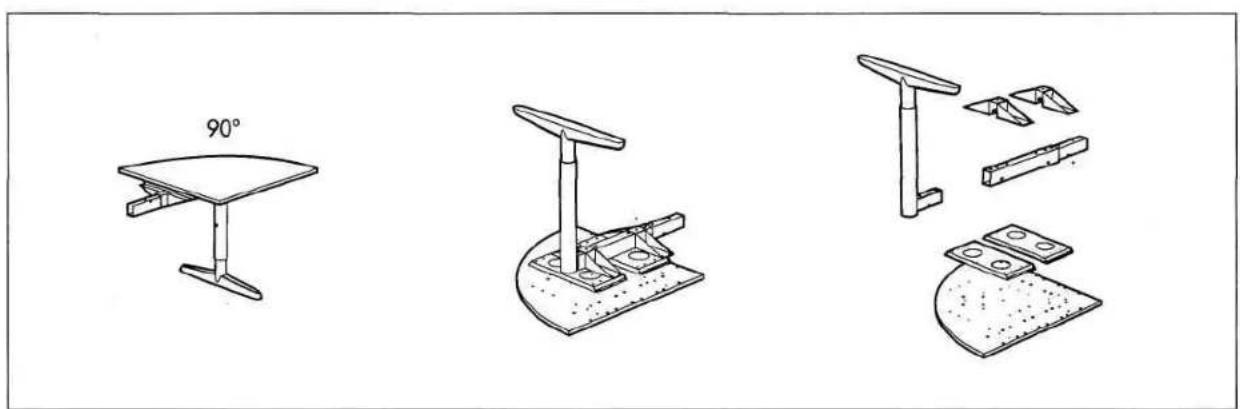

IKEA EFFEKTIV T - EFFEKTIV T - 26

natural_image Technical line drawings of three different outdoor furniture or equipment components with no visible text or symbols

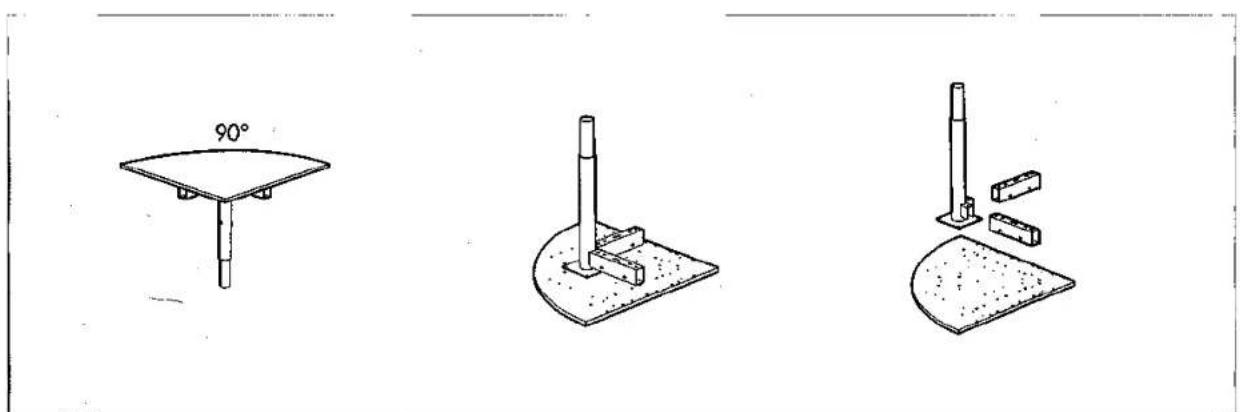

IKEA EFFEKTIV T - EFFEKTIV T - 27

natural_image Three technical line drawings of outdoor seating and support structures, no text or symbols present

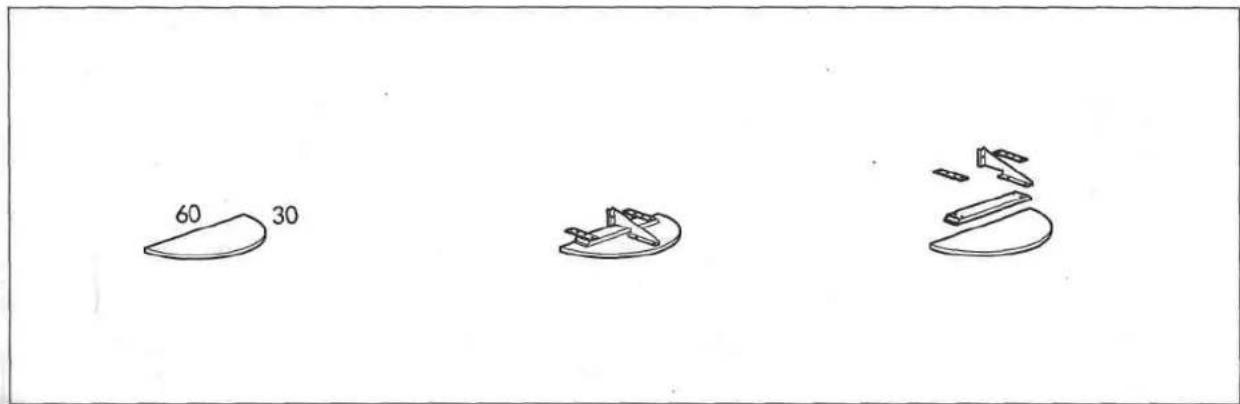

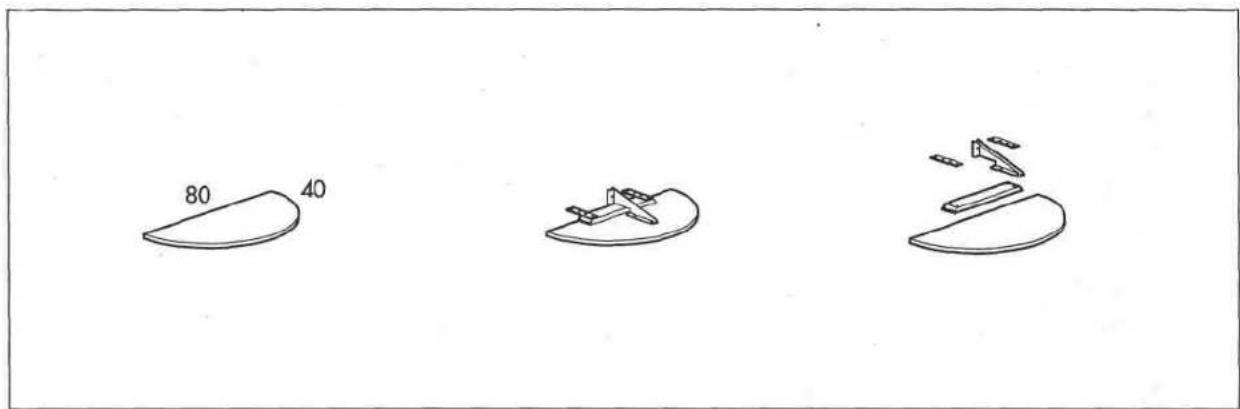

80 40

60 30

IKEA EFFEKTIV T - EFFEKTIV T - 30

natural_image Line drawing of a U-shaped table with legs and feet (no text or symbols)

104-972

IKEA EFFEKTIV T - EFFEKTIV T - 31

IKEA EFFEKTIV T - EFFEKTIV T - 32

IKEA EFFEKTIV T - EFFEKTIV T - 33

natural_image Diagram showing abstract shapes and components labeled A, with no readable text or symbols.

948-980-80
348-980-83

IKEA EFFEKTIV T - EFFEKTIV T - 34

natural_image Technical line drawing of a mechanical component with no visible text or symbols

348-978-80
748-978-83

C
IKEA EFFEKTIV T - EFFEKTIV T - 35

natural_image Line drawings of three mechanical components with circular holes, arranged in a staggered layout (no text or symbols)

900-195-09

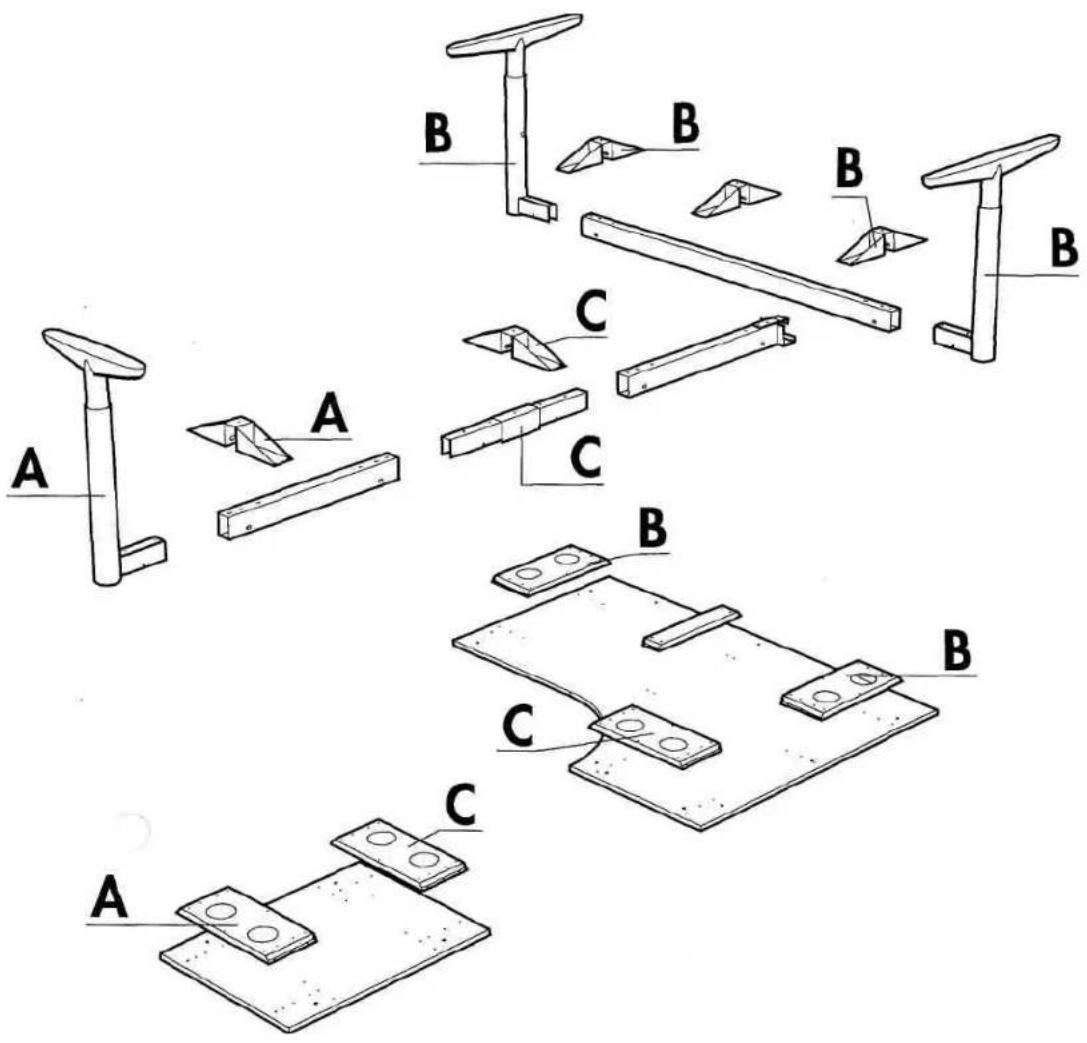

A B C A B B C B B C A C

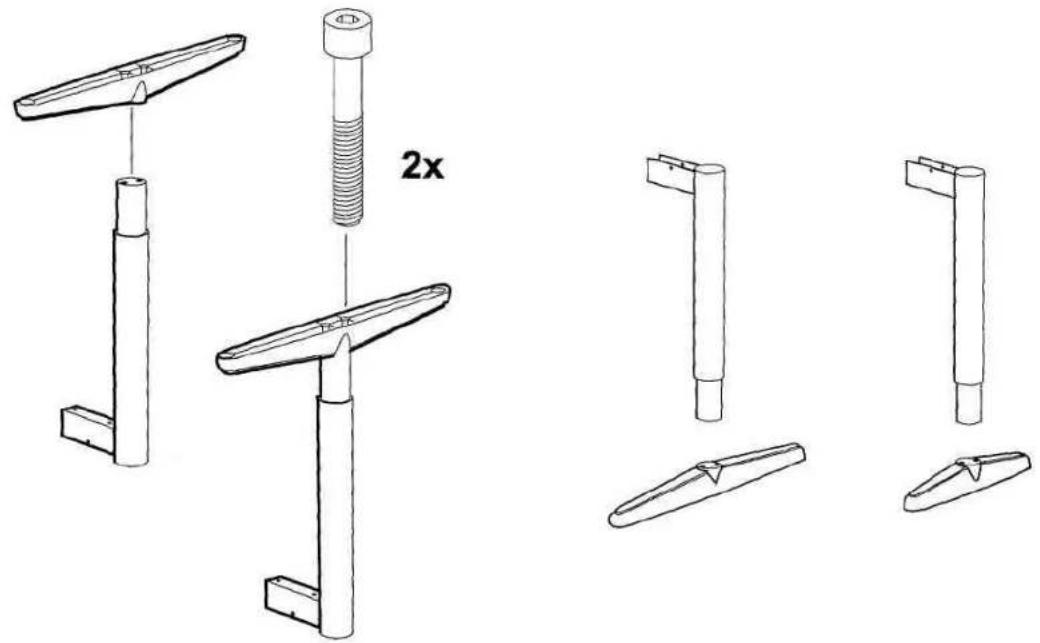

1
2x

2

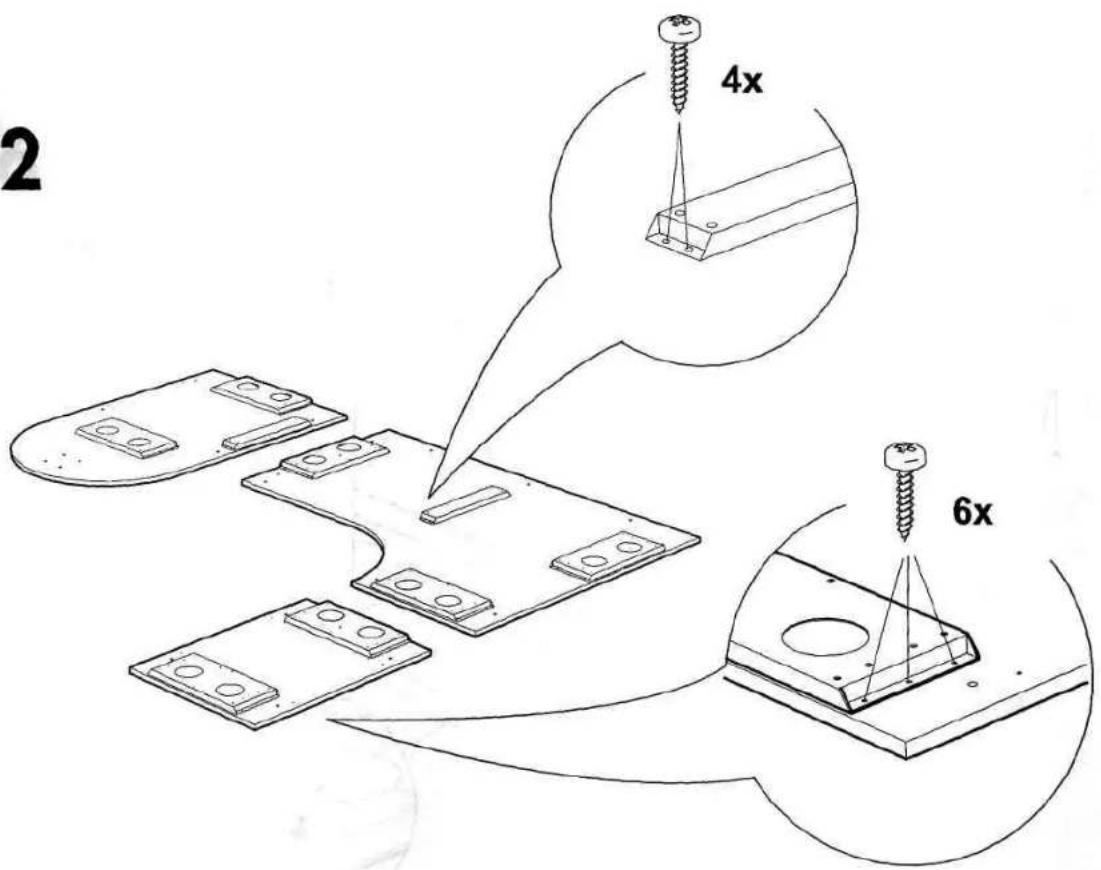

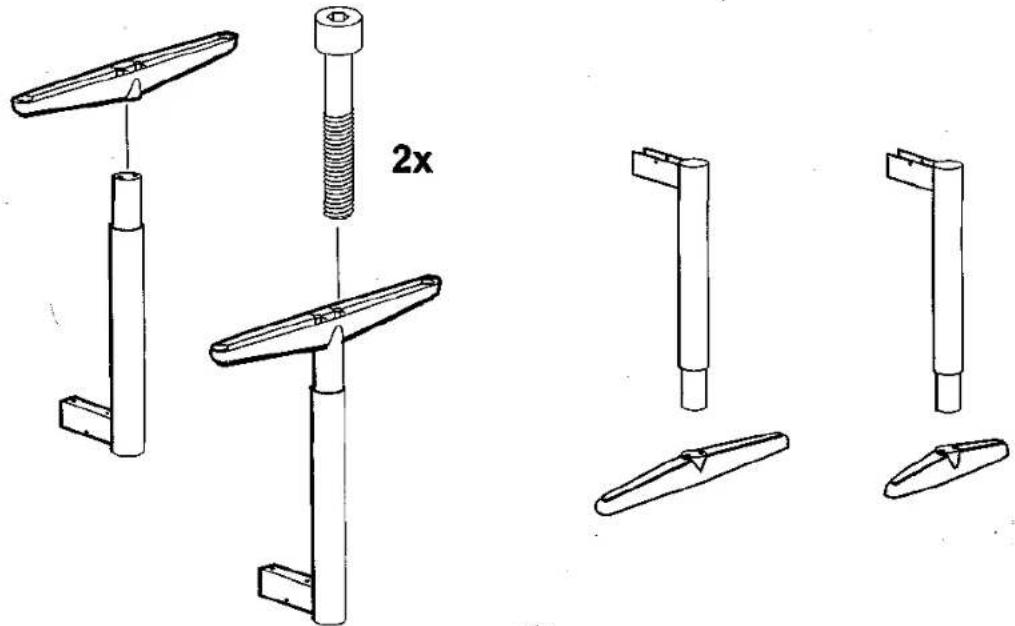

2 4x 6x

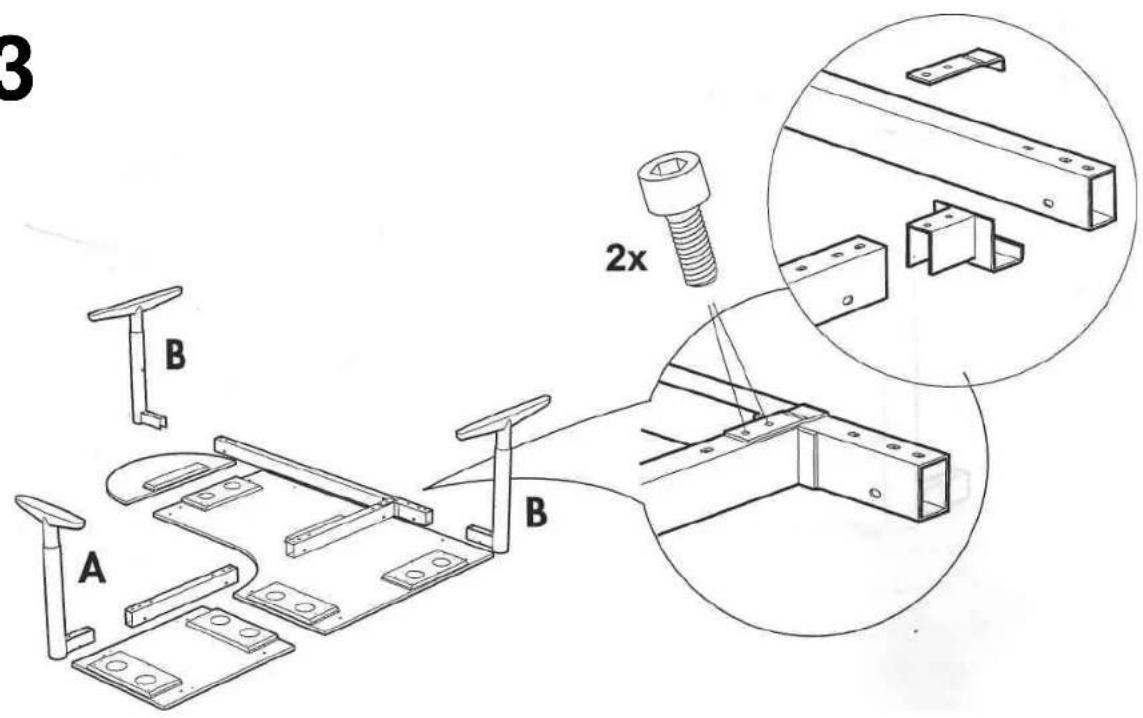

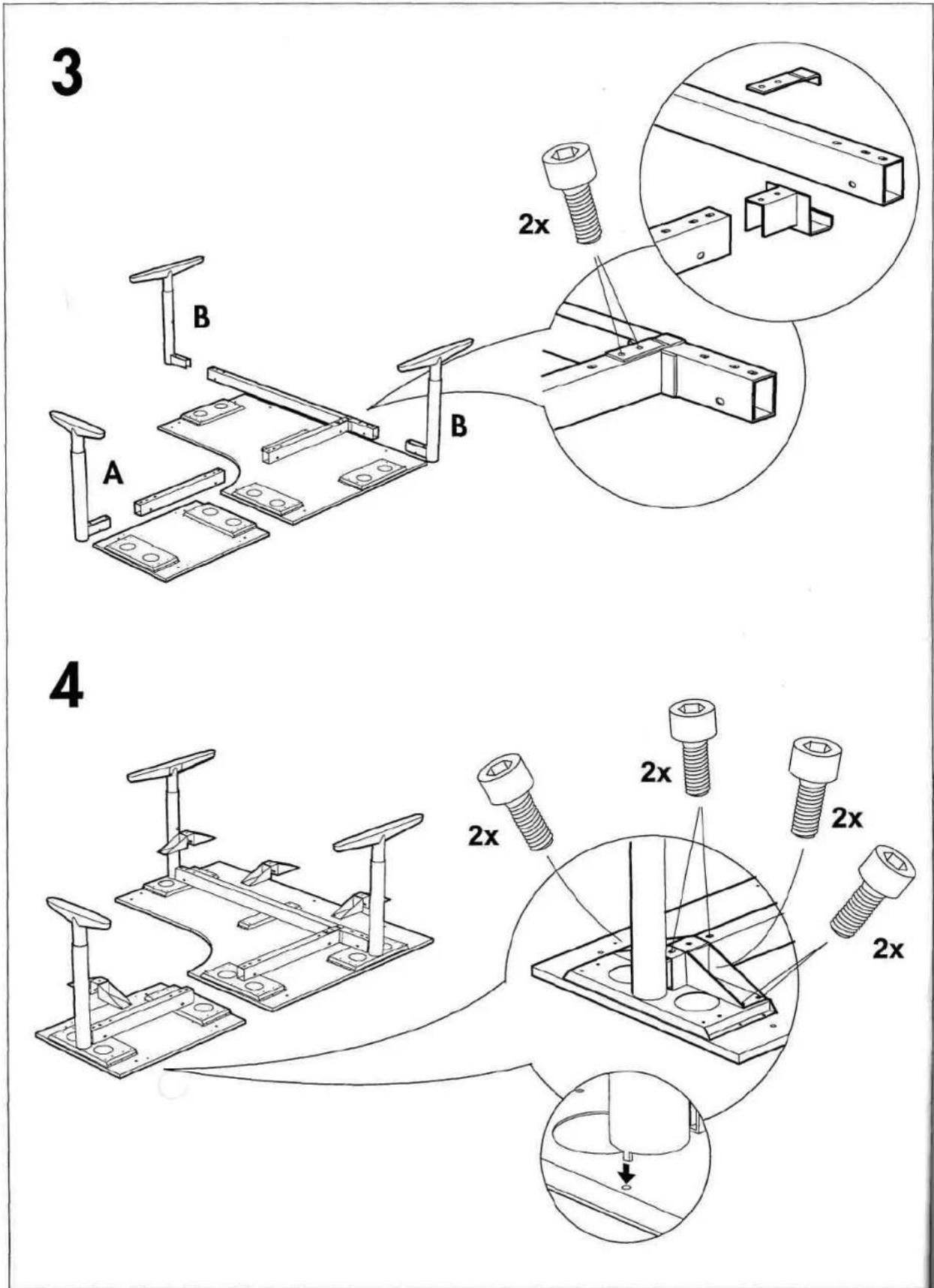

3 A B B 2x 4 2x 2x 2x 2x

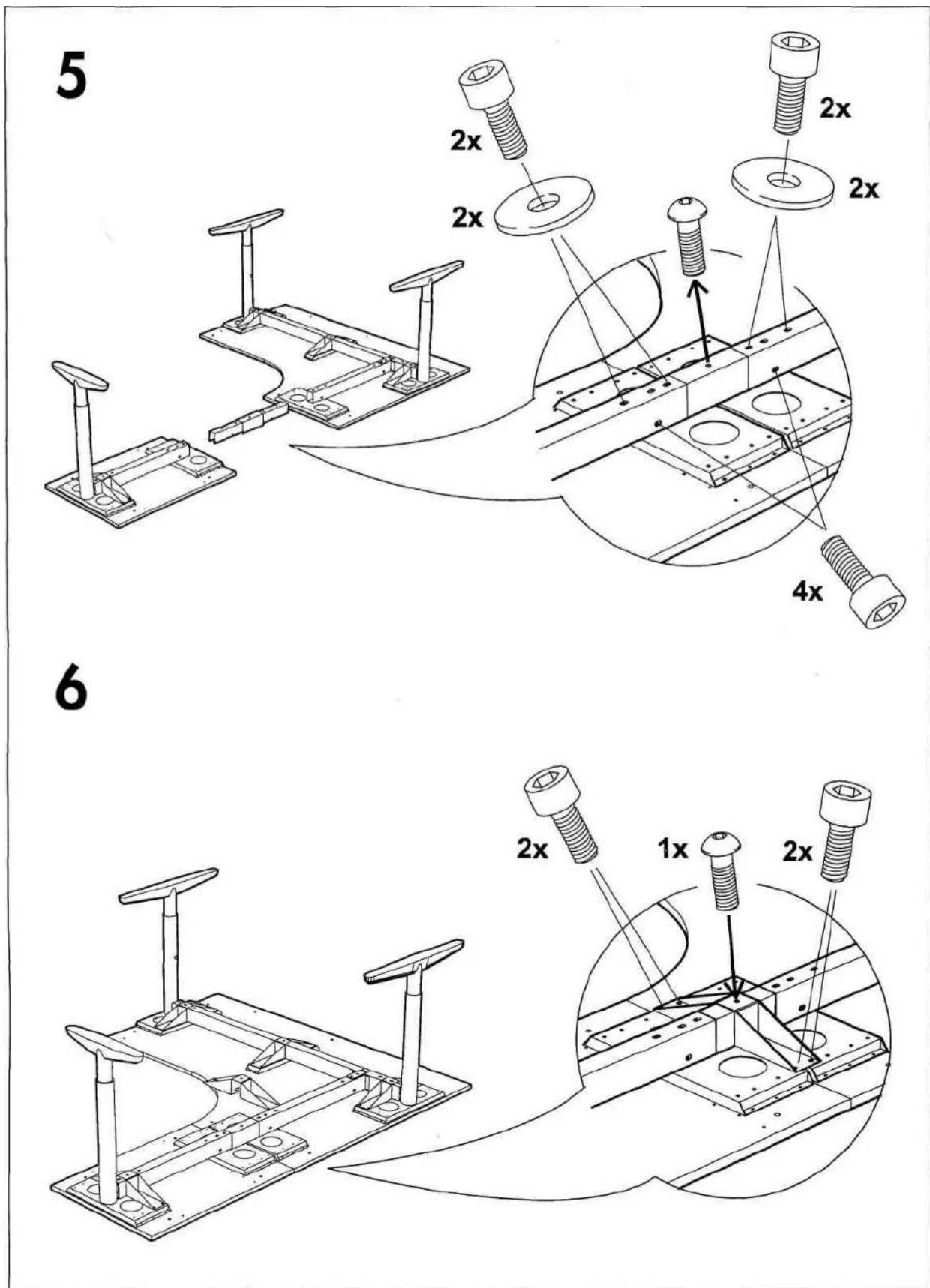

IKEA EFFEKTIV T - EFFEKTIV T - 40

IKEA EFFEKTIV T - EFFEKTIV T - 41

natural_image Line drawing of a double-decker table with two legs and a curved top, labeled 104-921 below (no text or symbols on the diagram itself)

IKEA EFFEKTIV T - EFFEKTIV T - 42

natural_image Pure technical line drawings of mechanical components without any text or symbols

948-980-80
348-980-83

IKEA EFFEKTIV T - EFFEKTIV T - 43

natural_image Simple line drawing of a mechanical component with no text or symbols

348-978-80
748-978-83

IKEA EFFEKTIV T - EFFEKTIV T - 44

natural_image Two simple line drawings of a U-shaped table with legs and legs, no text or symbols present.

C 900-195-09

IKEA EFFEKTIV T - EFFEKTIV T - 46
348-742-80

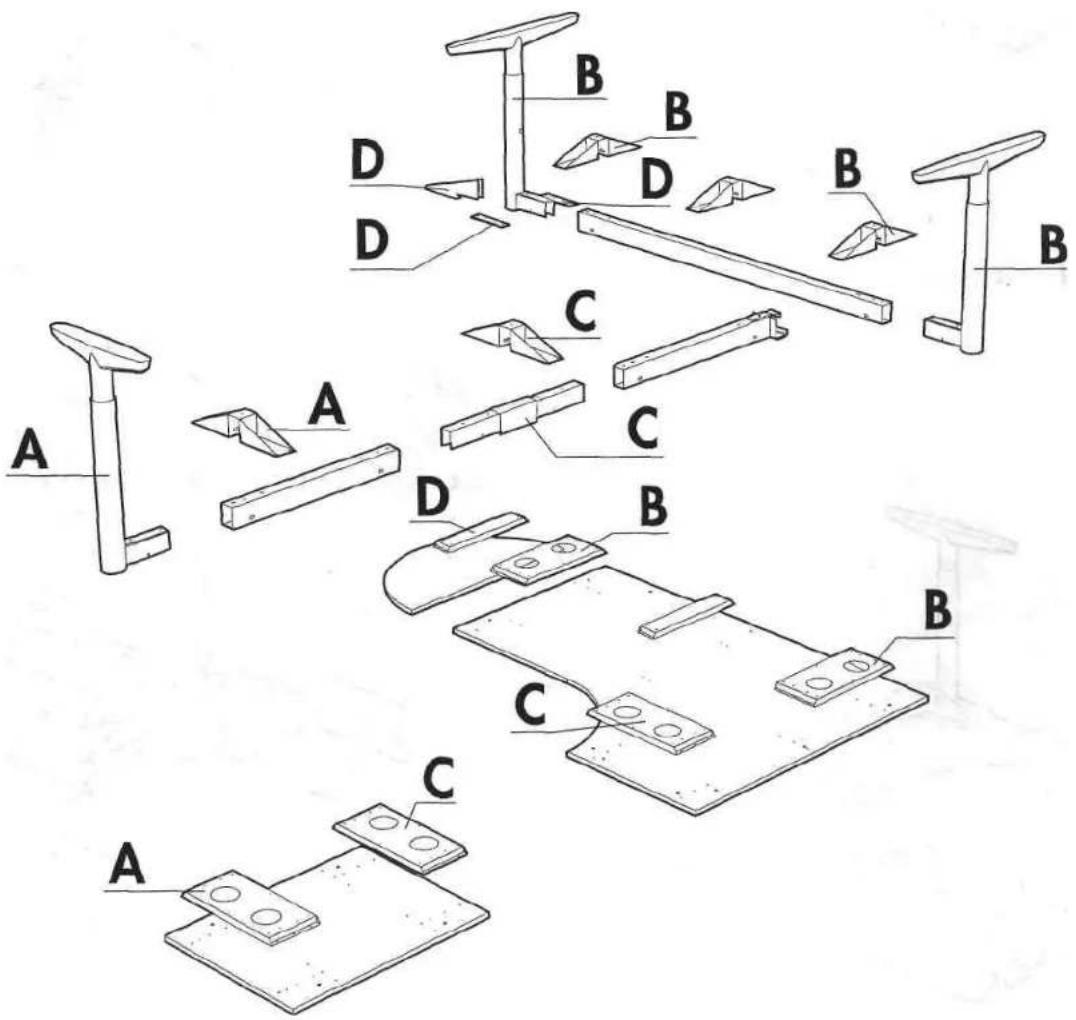

Technical diagram showing exploded view of mechanical components labeled A, B, C with various assembly parts and assembly details.

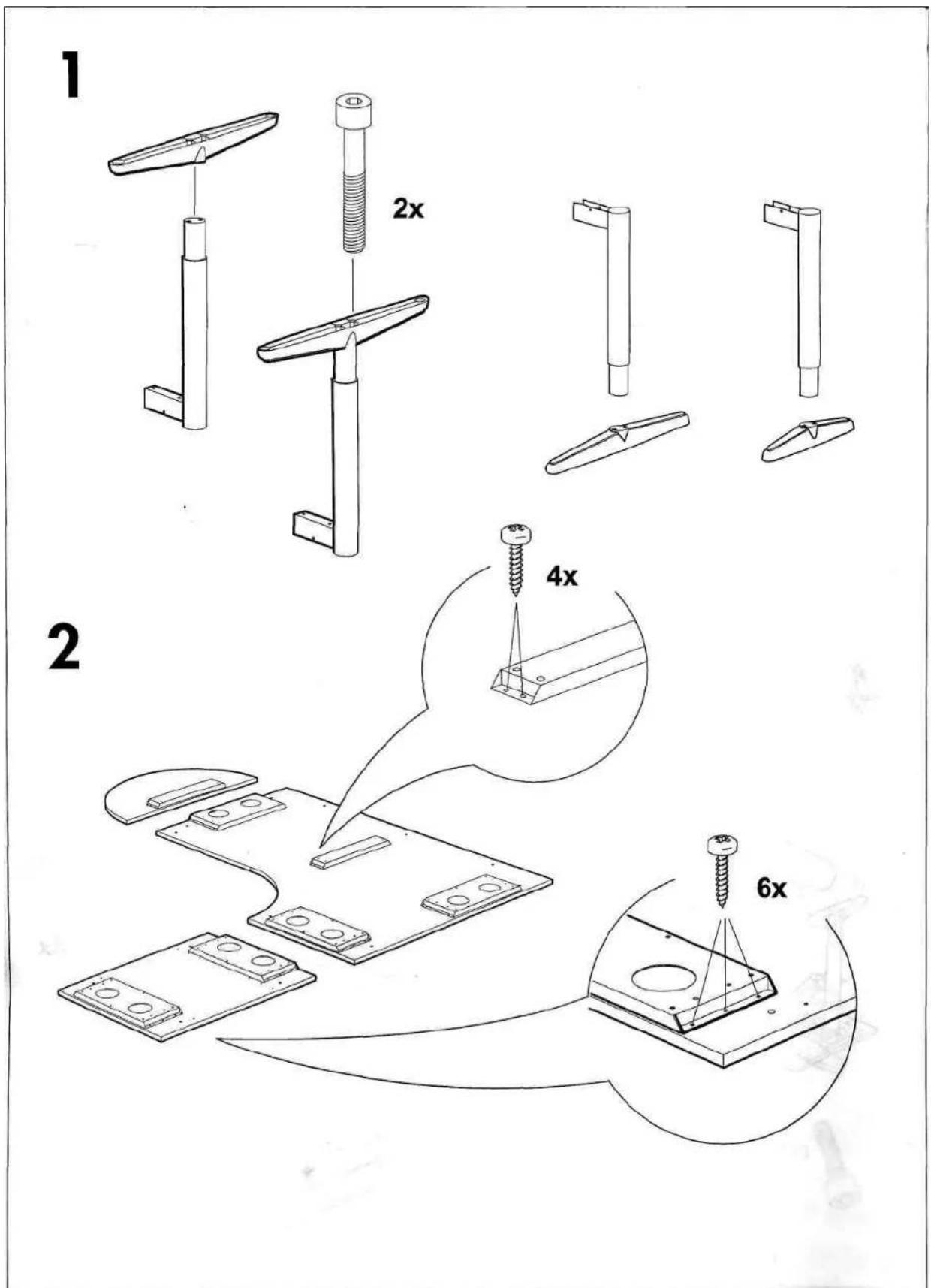

1 2x 4x 6x

3
3 A B B 2x

4

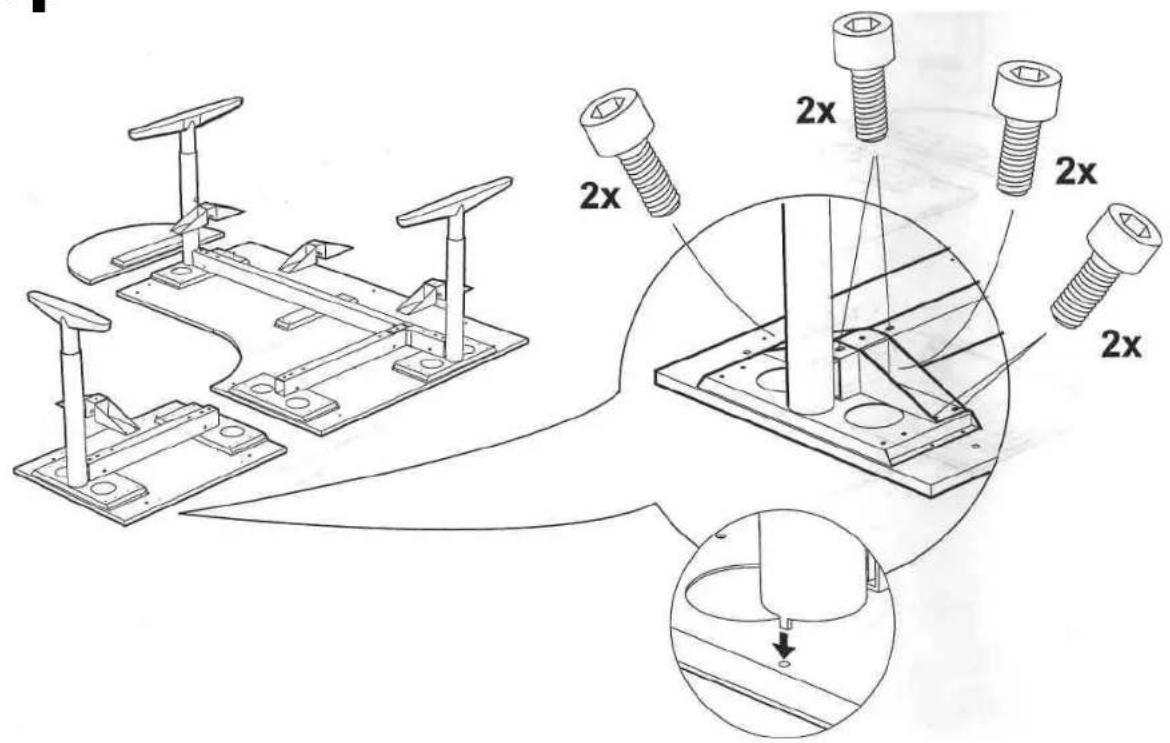

Technical diagram showing assembly of mechanical components with 2x bolt and pin alignment, including a close-up detail view.

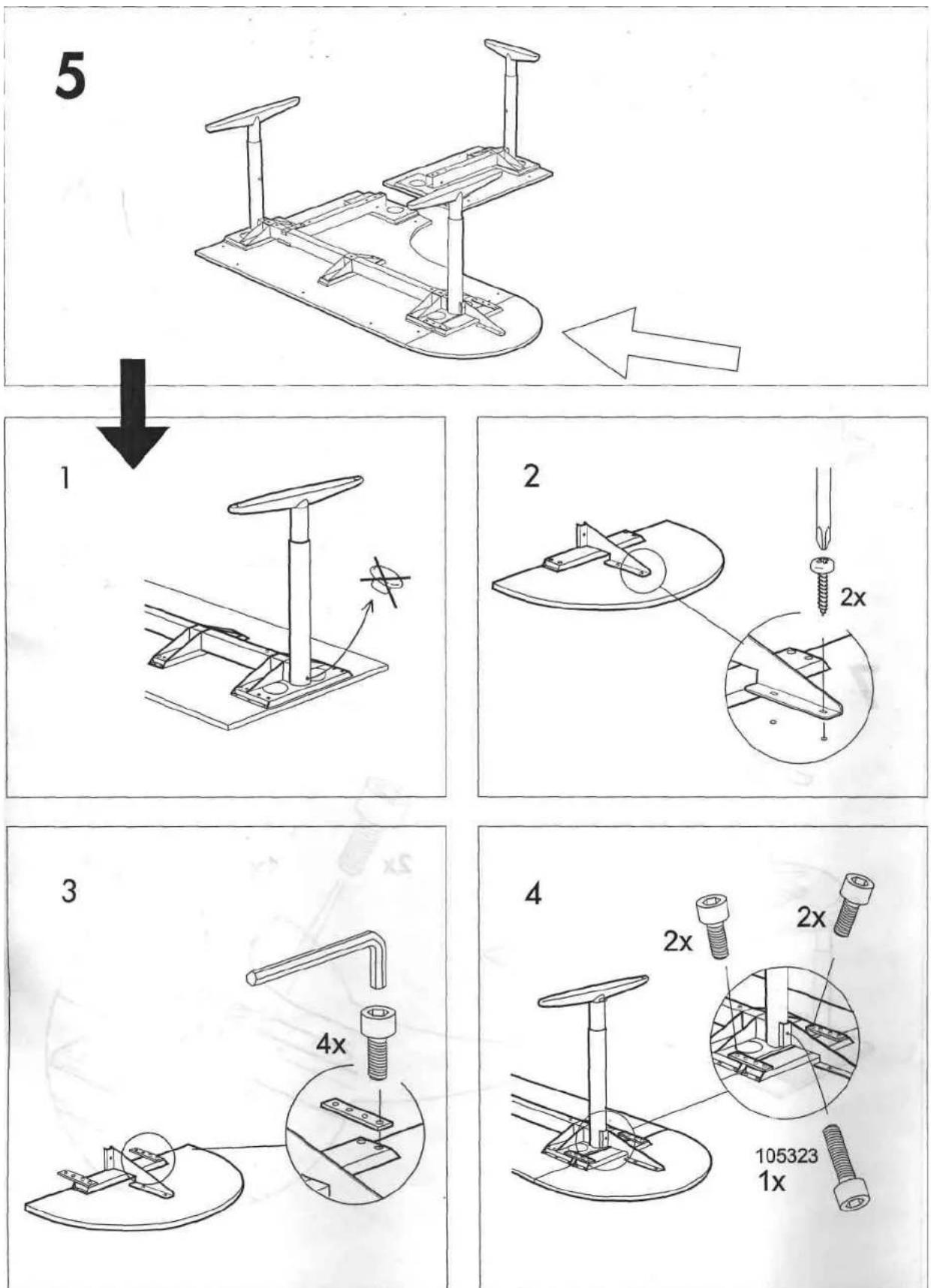

IKEA EFFEKTIV T - EFFEKTIV T - 51

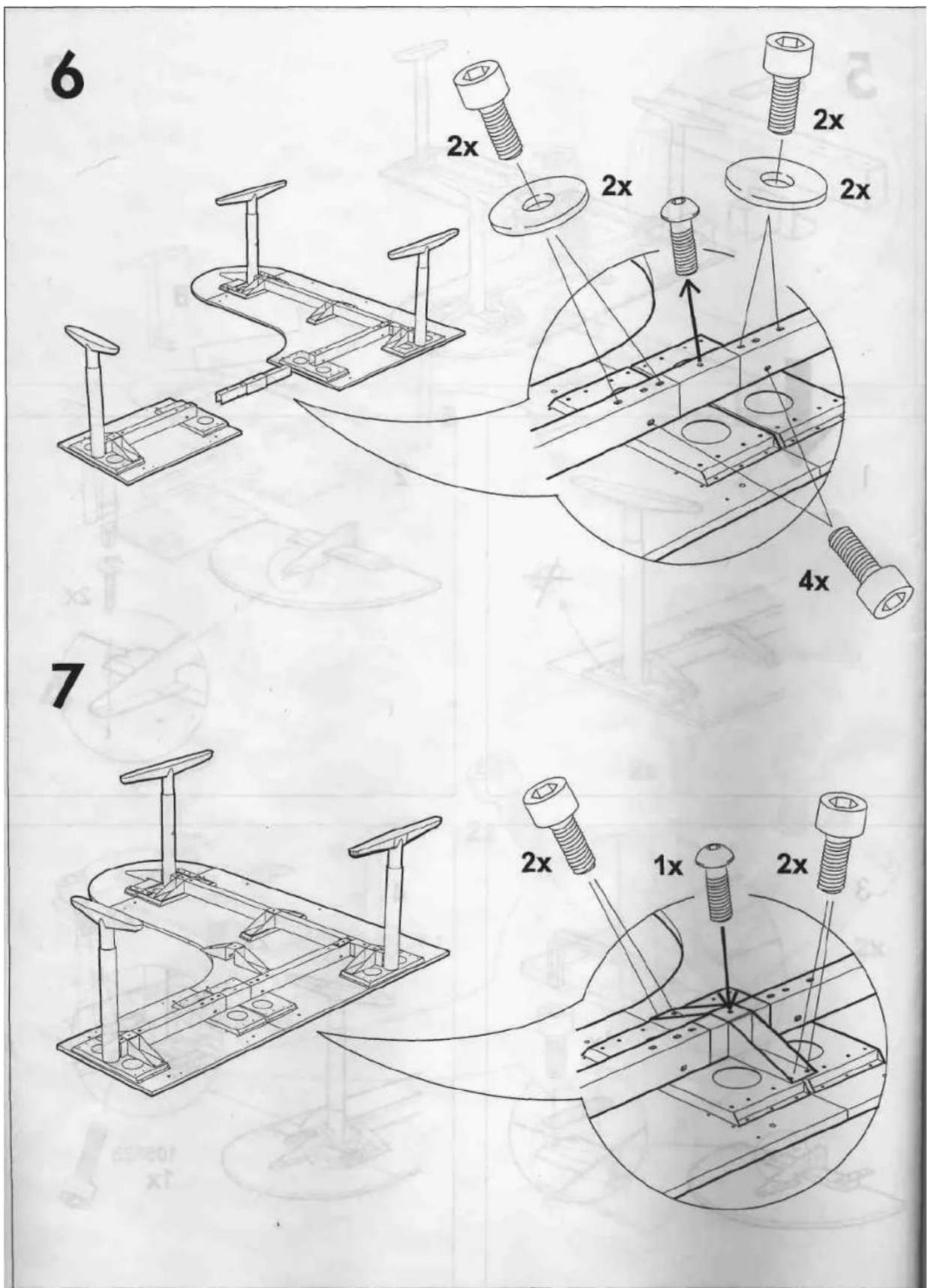

6 2x 2x 2x 2x 4x 7 2x 1x 2x

IKEA EFFEKTIV T - EFFEKTIV T - 53

natural_image Line drawing of a U-shaped table with legs and legs, labeled 104-960 (no text or symbols on the diagram itself)

A 948-980-80 348-980-83

B 348-978-80 748-978-83

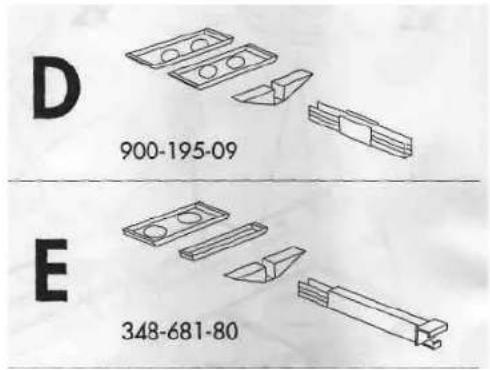

D 900-195-09 E 348-681-80

C 748-976-80 148-976-83

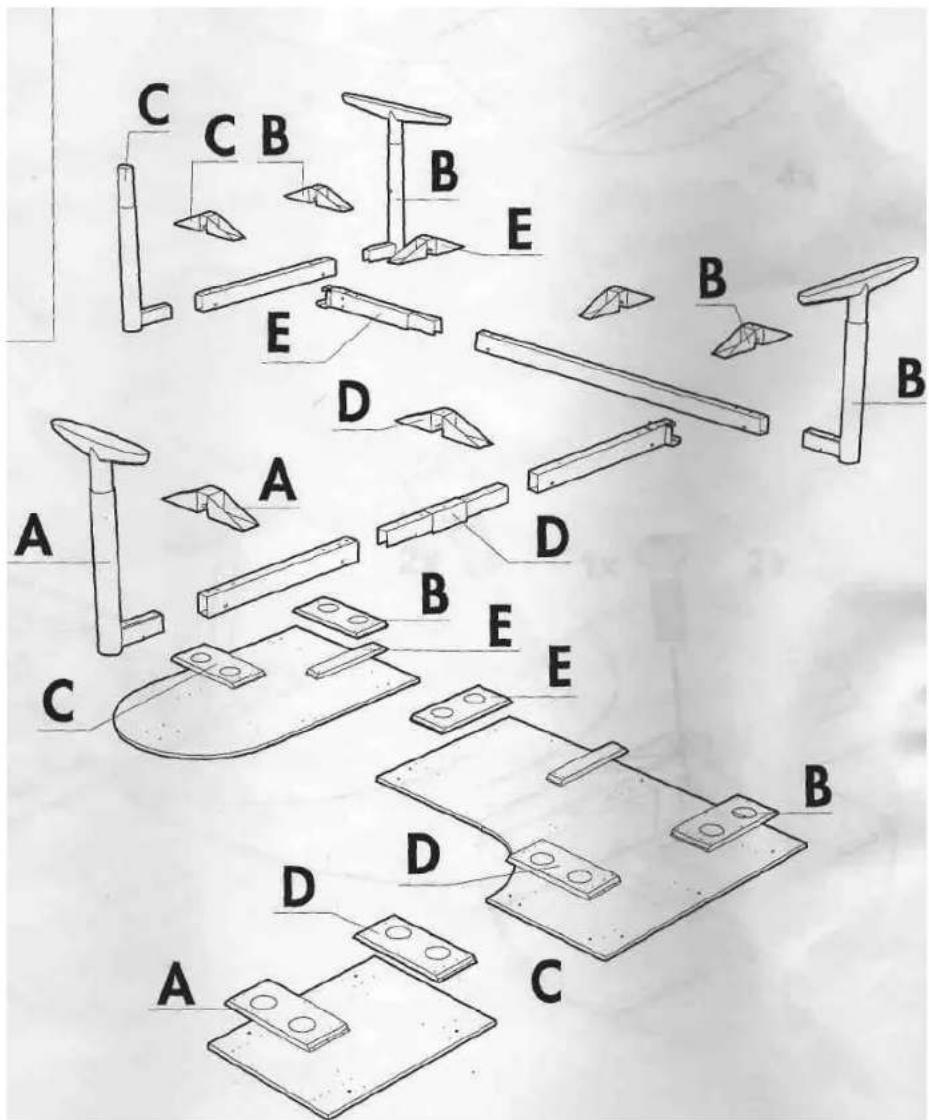

C C B B E E D A A D B E C E D B A C

1
2x

2

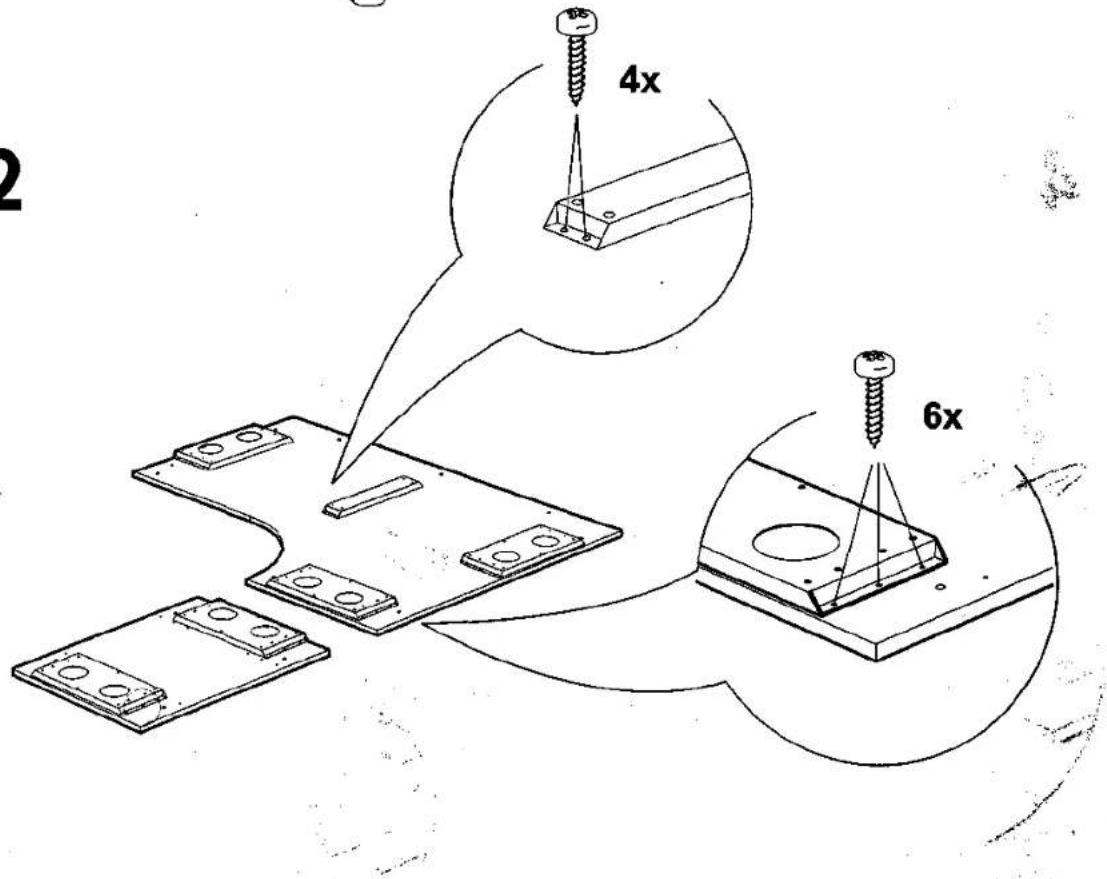

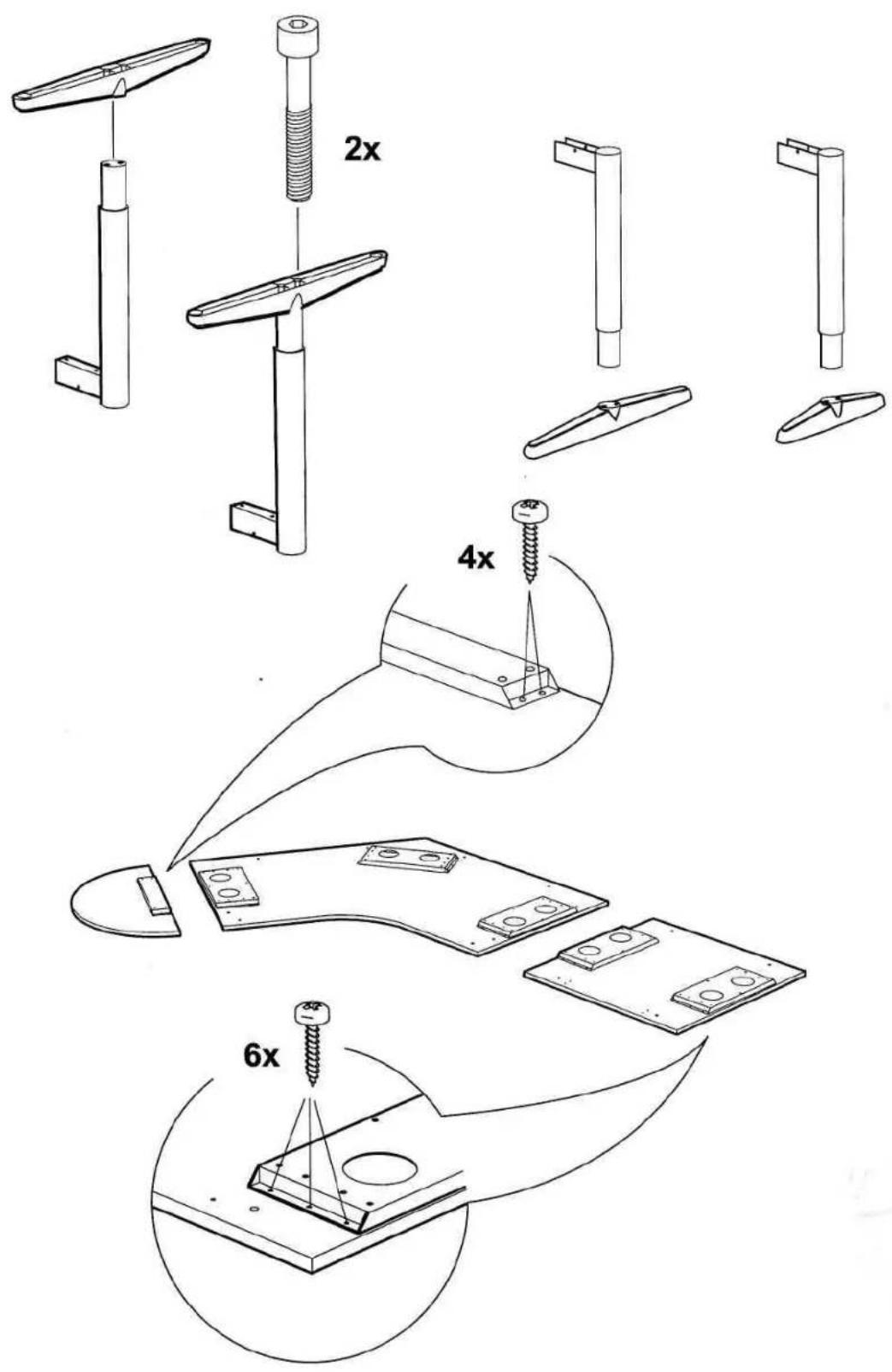

2 4x 6x

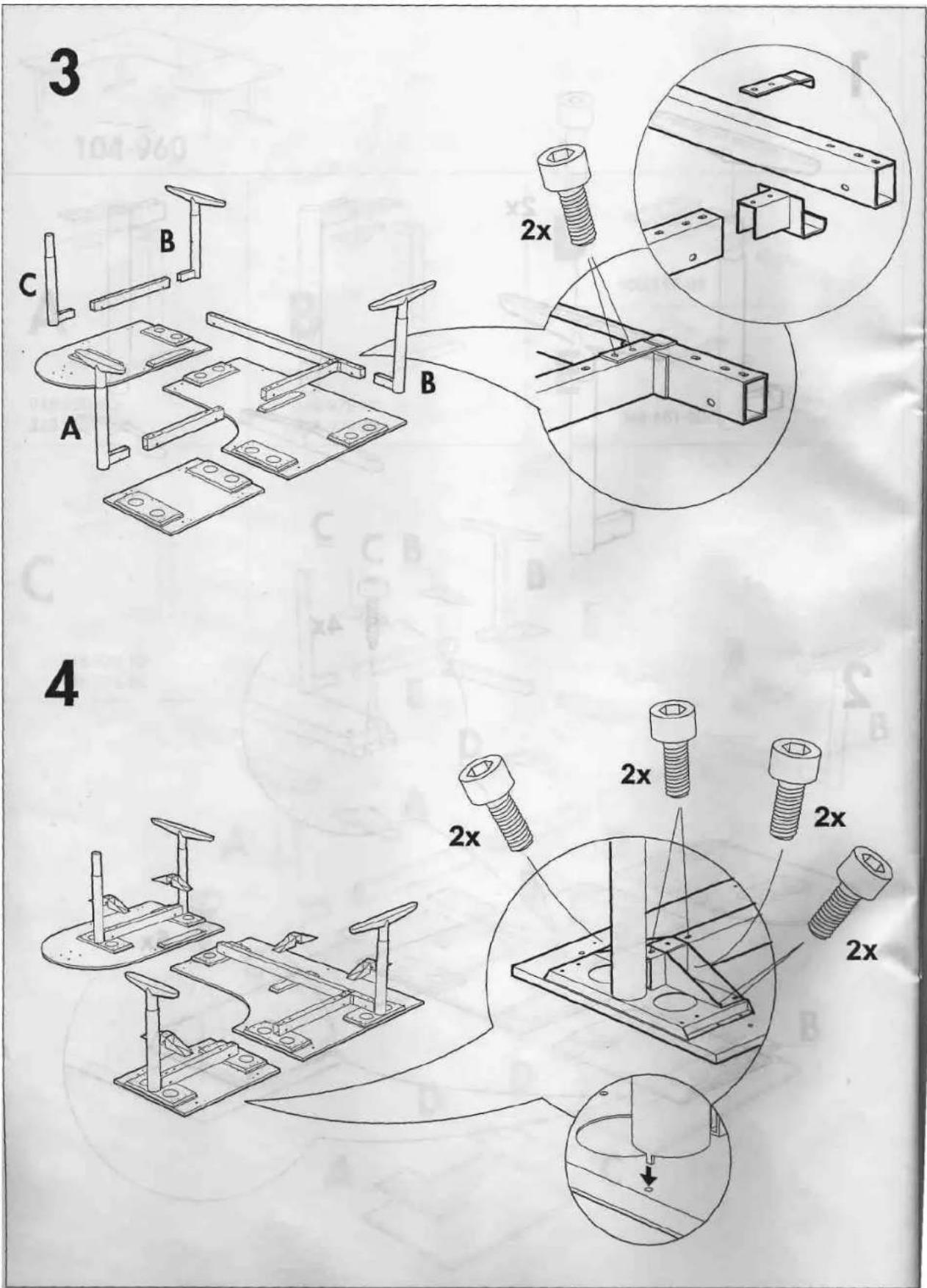

3 C B A B 2x 4 2x 2x 2x 2x

5

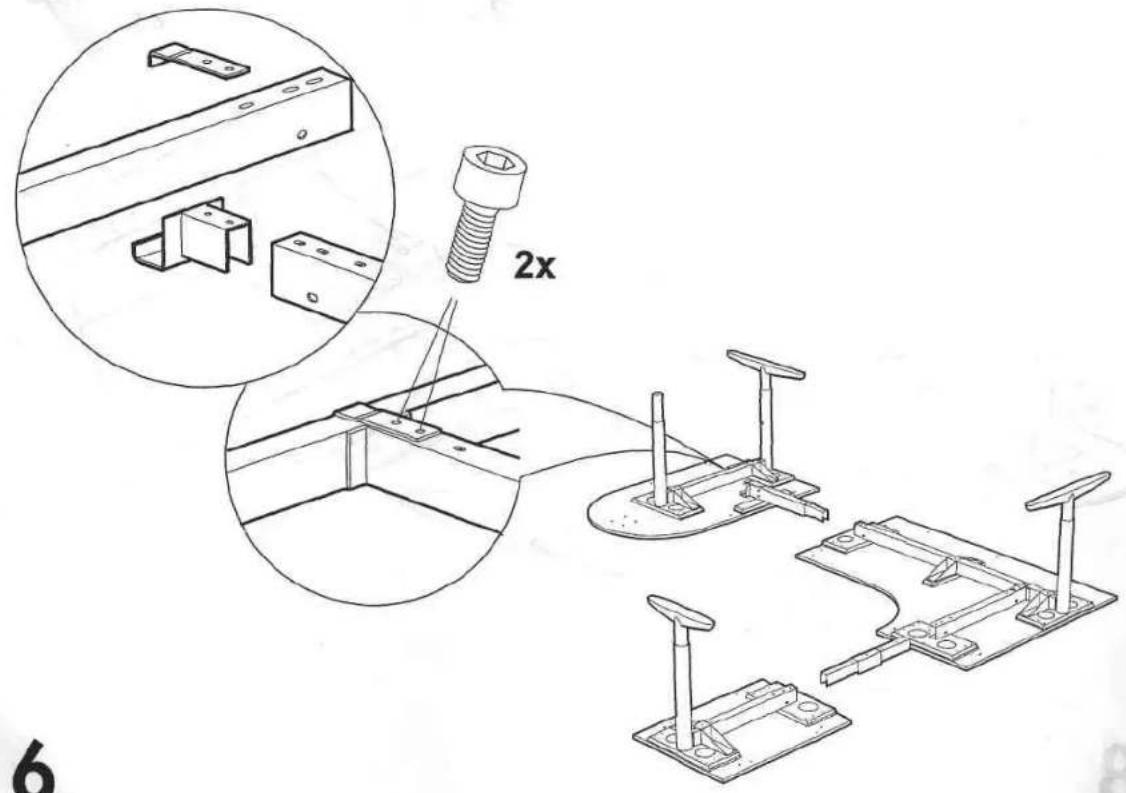

2x 6

6

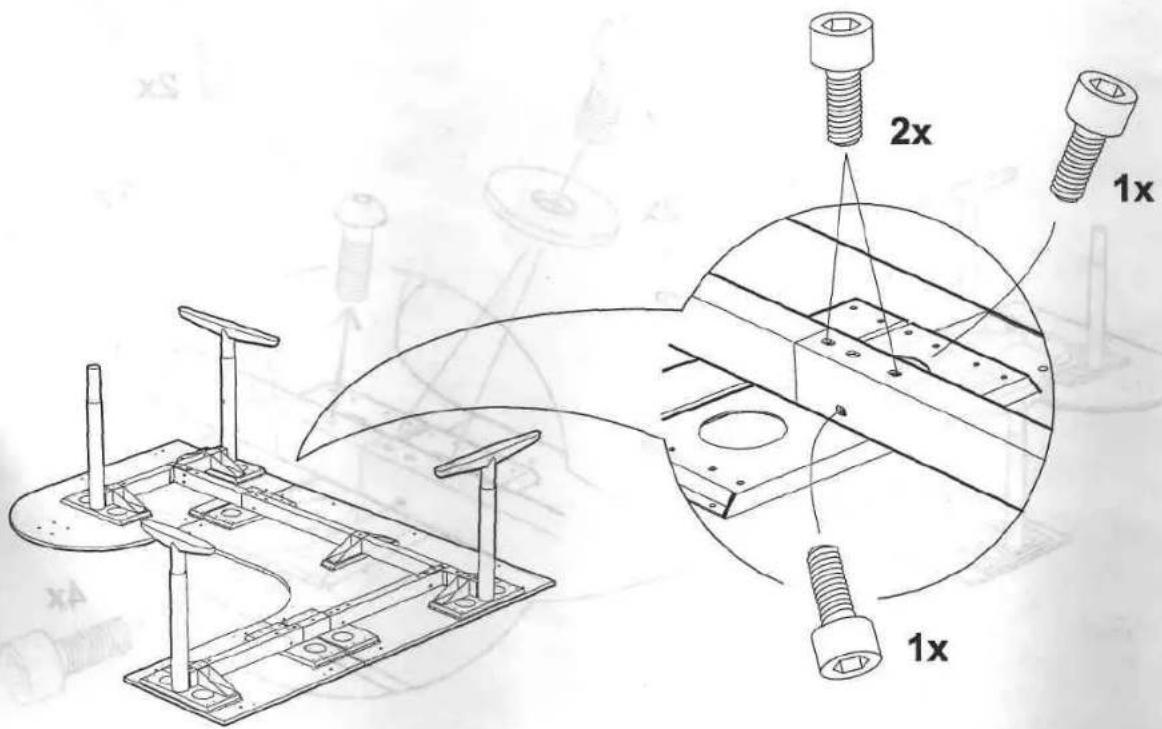

Technical diagram showing assembly of a mechanical component with labeled parts and dimensions (1x, 2x)

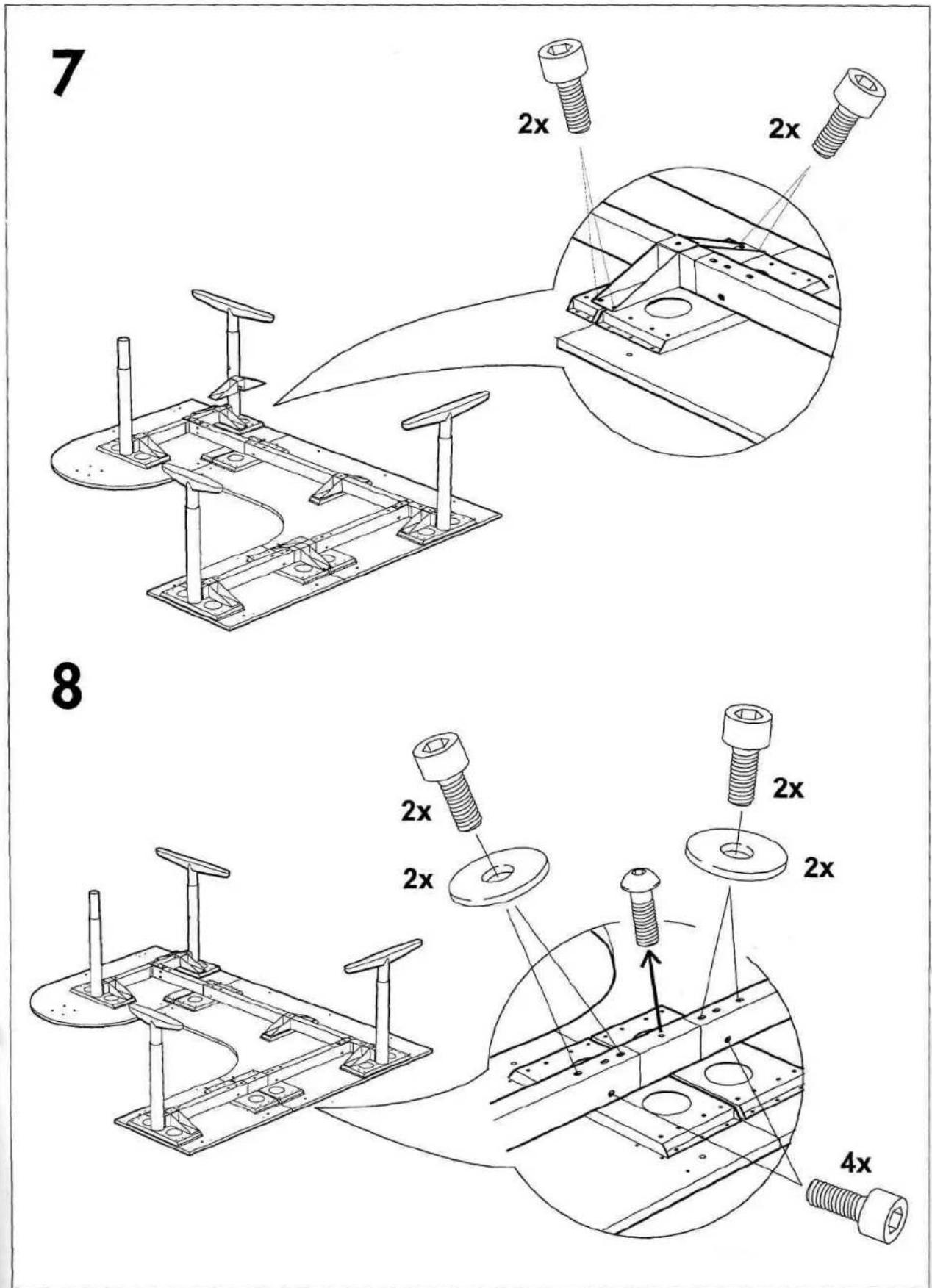

7 2x 2x 8 2x 2x 2x 2x 4x

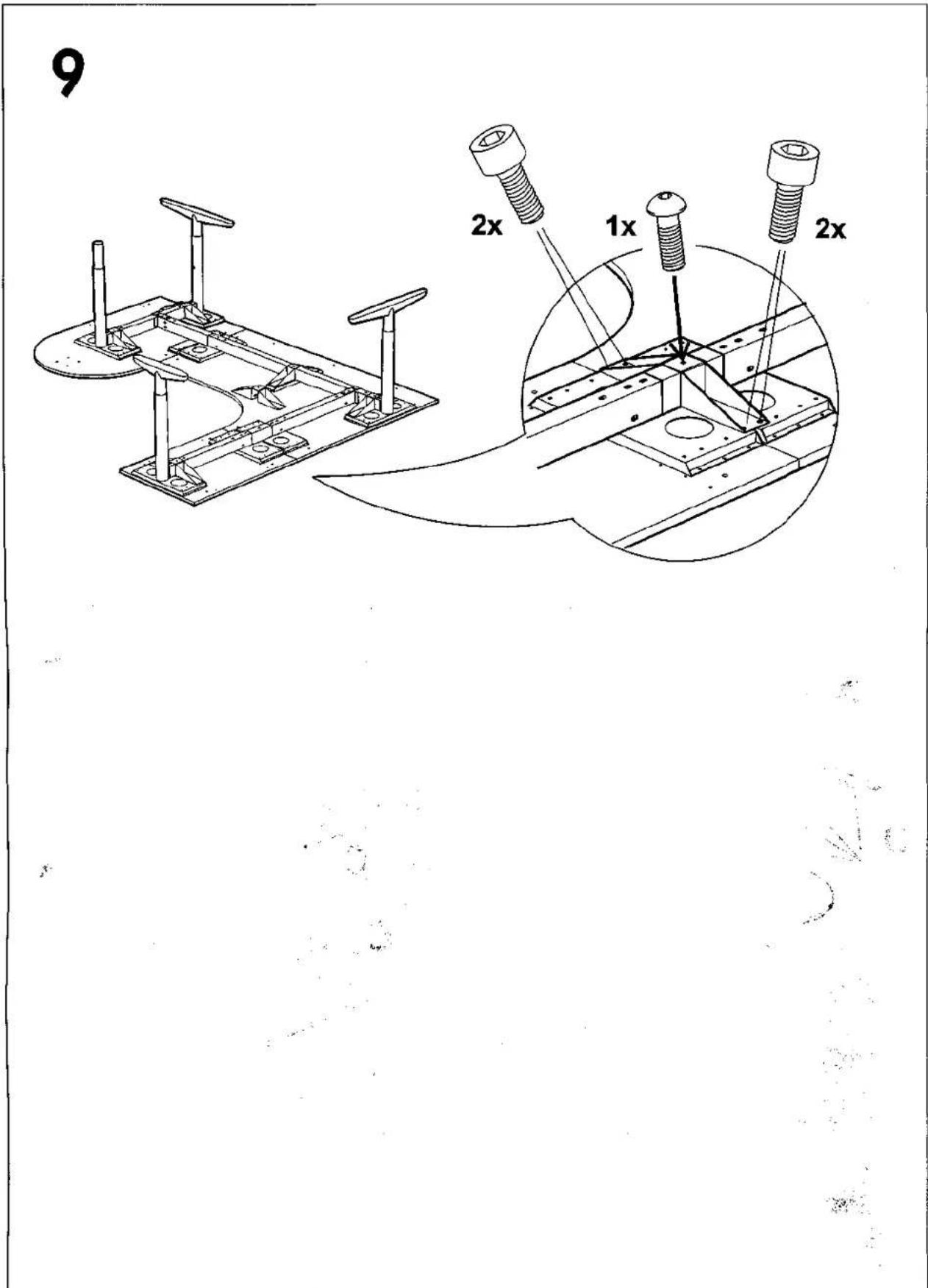

9 2x 1x 2x

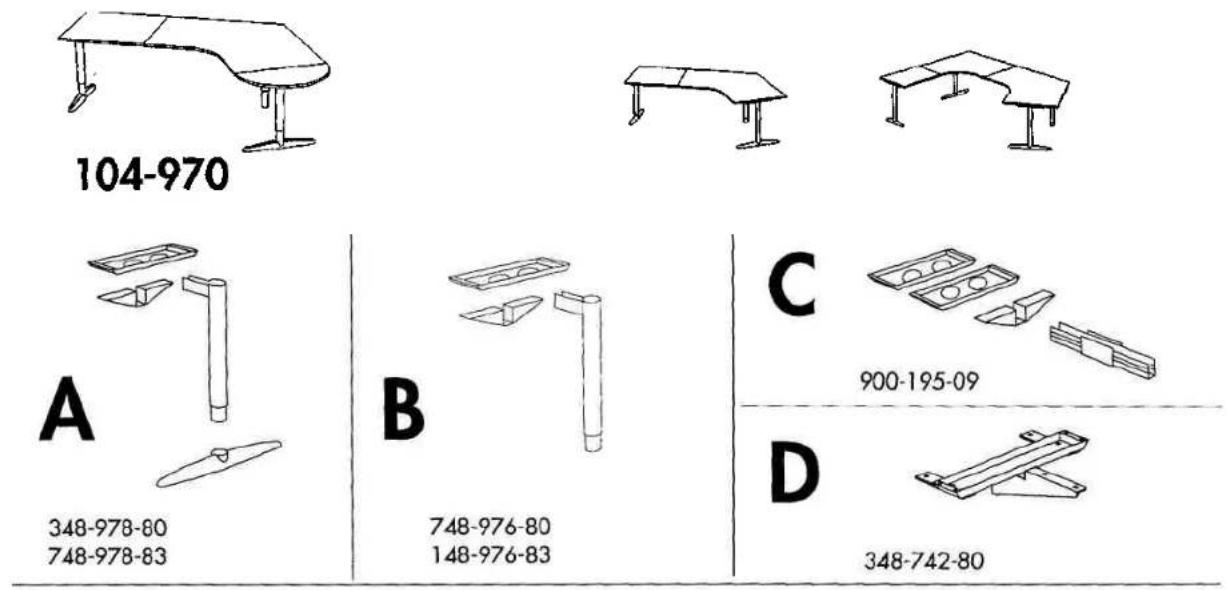

104-970 A 348-978-80 748-978-83 B 748-976-80 148-976-83 C 900-195-09 D 348-742-80

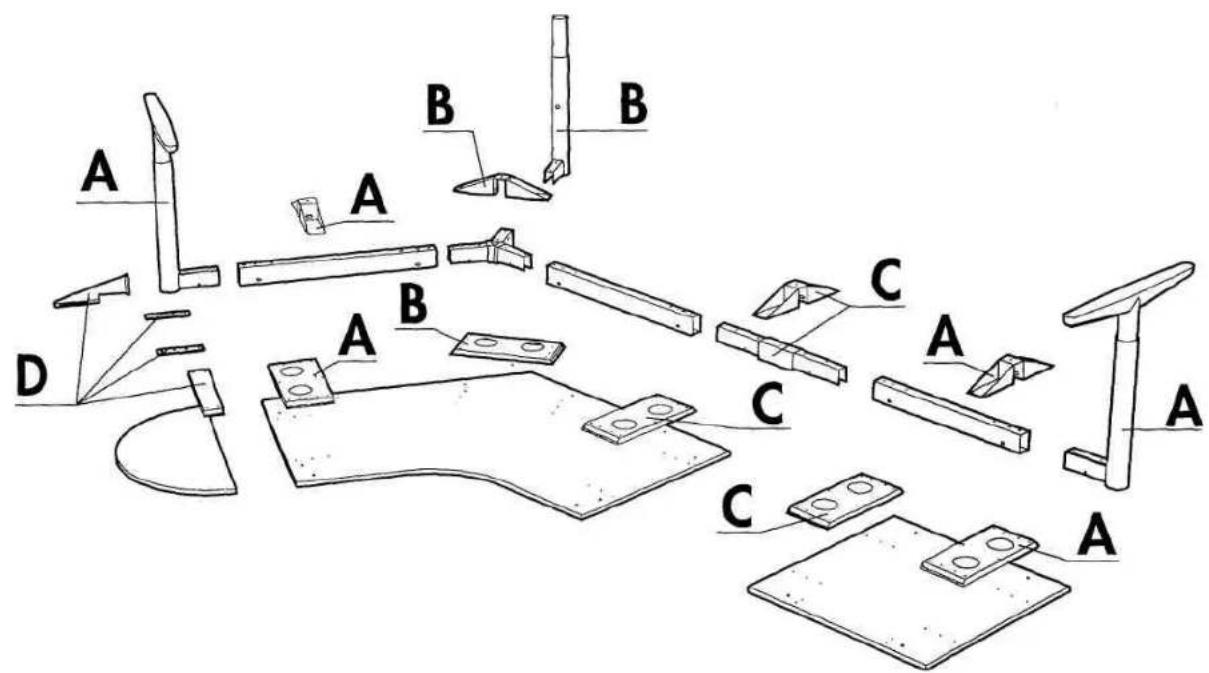

A B B A A B C A D C A A

1
2x 4x 6x

2

3

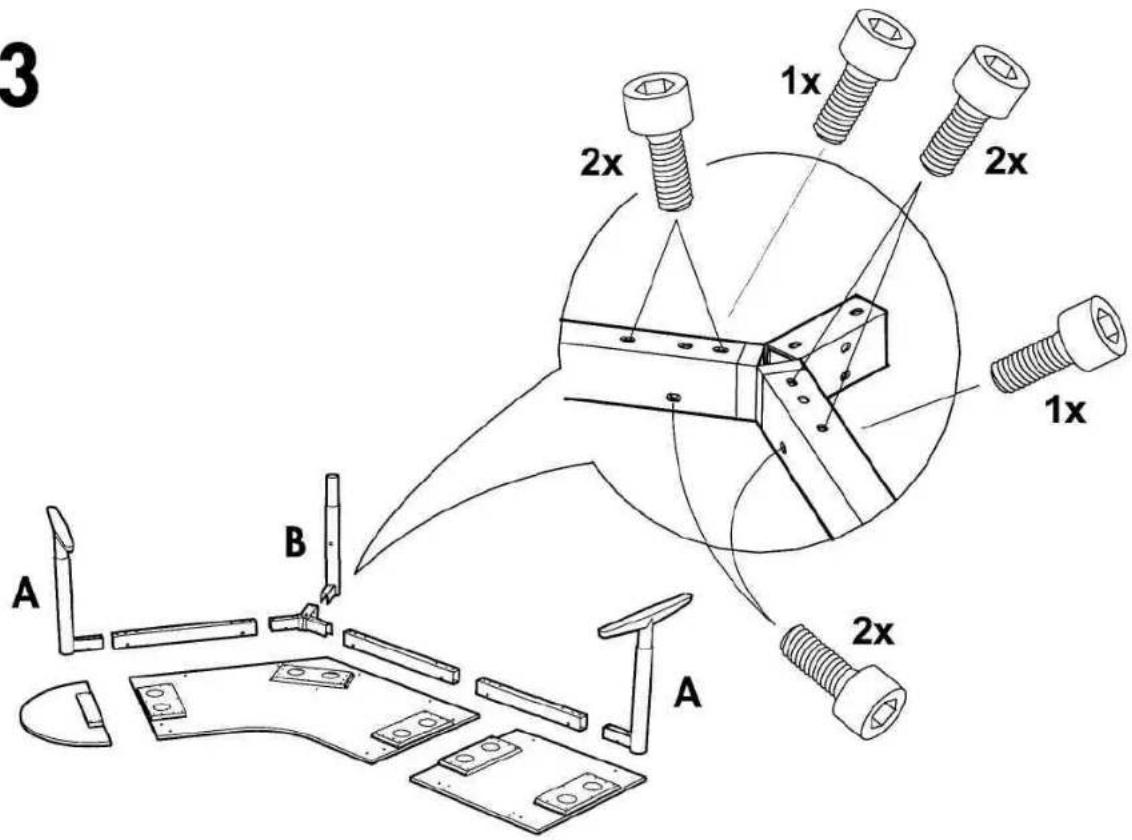

3 2x 1x 2x 1x A B A 2x

4

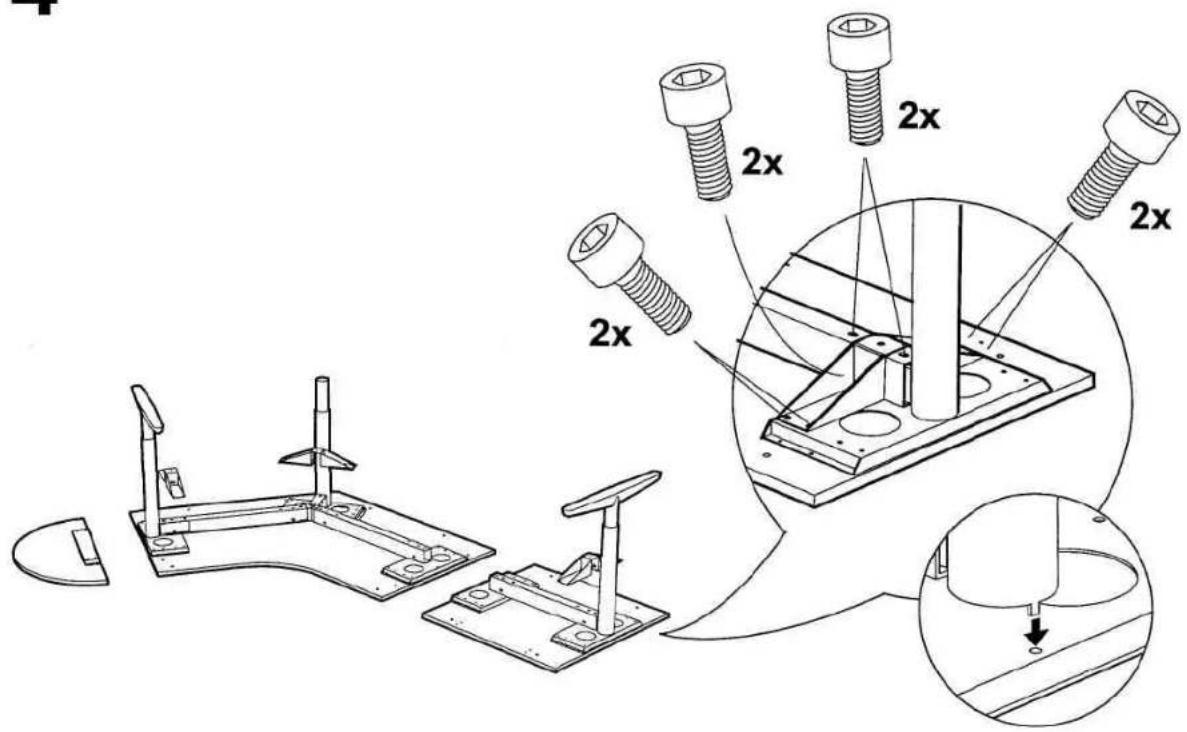

Technical diagram showing assembly of a mechanical component with 2x bolt and nut assembly, including a close-up detail view.

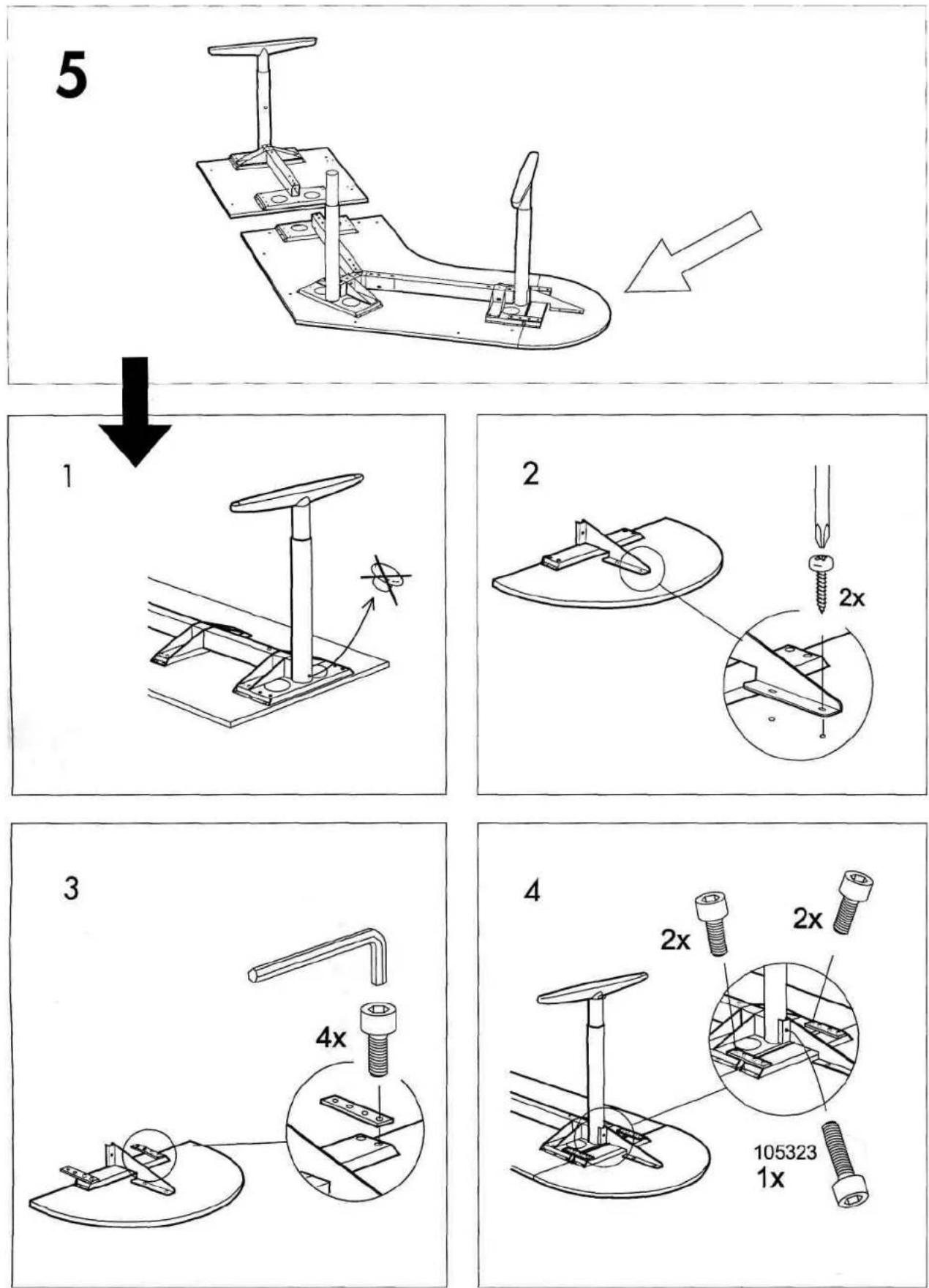

IKEA EFFEKTIV T - EFFEKTIV T - 71

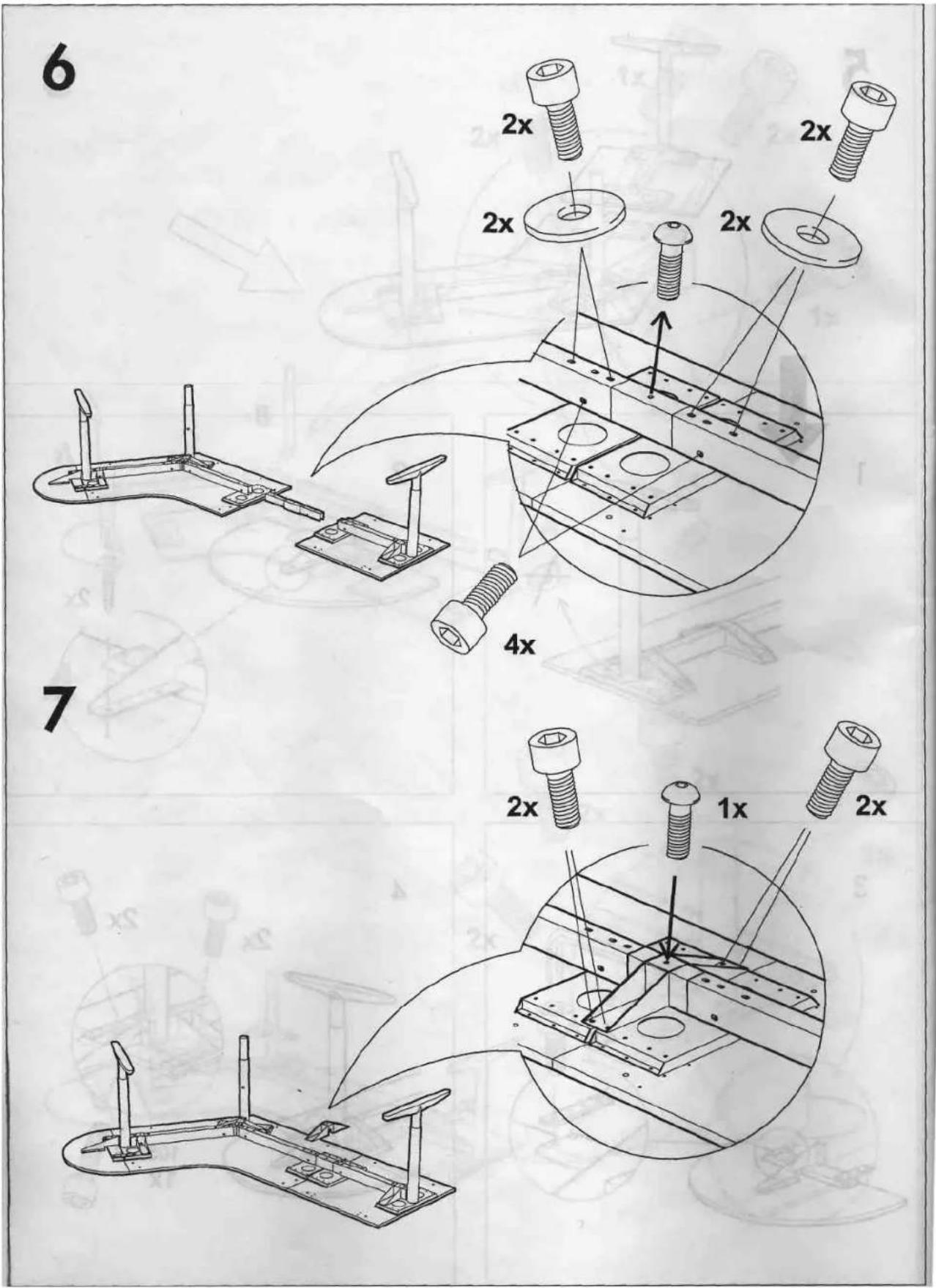

6 2x 2x 2x 2x 4x 7 2x 1x 2x

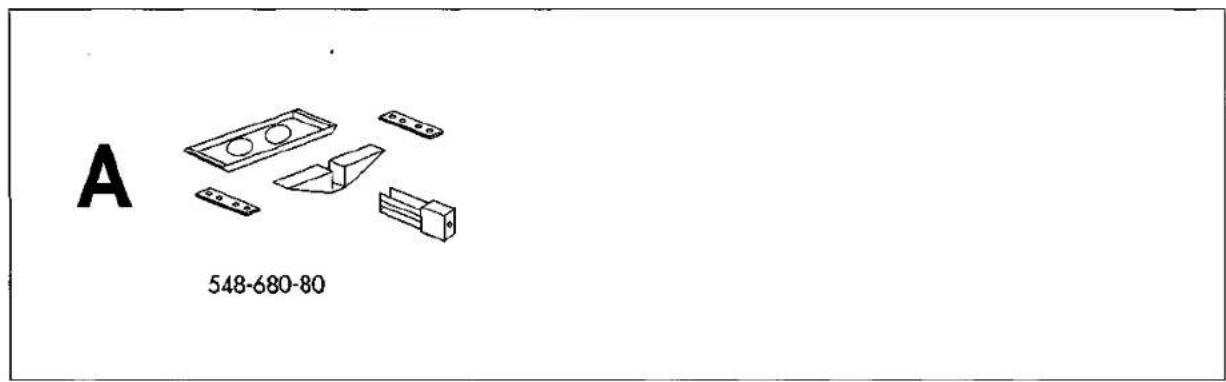

A 548-680-80

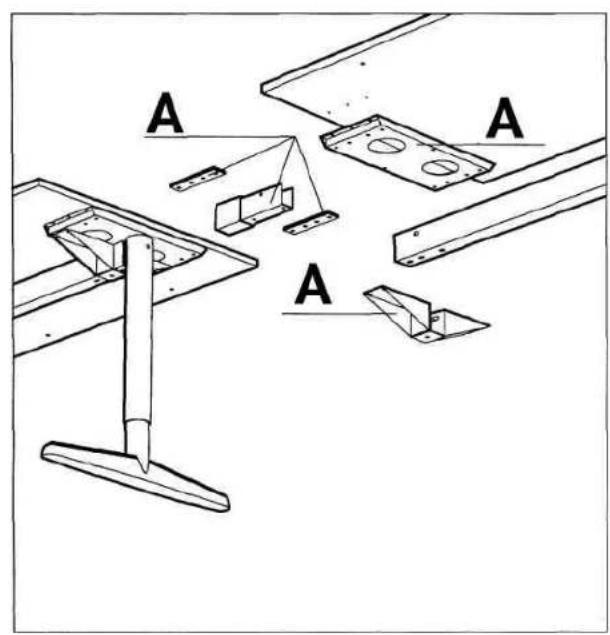

A A A

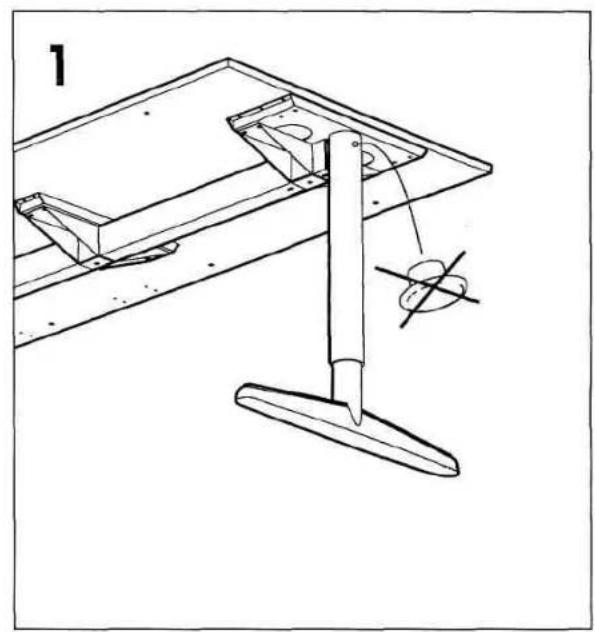

IKEA EFFEKTIV T - EFFEKTIV T - 75

natural_image Technical line drawing of a mechanical assembly with a vertical rod and base plate (no text or symbols)

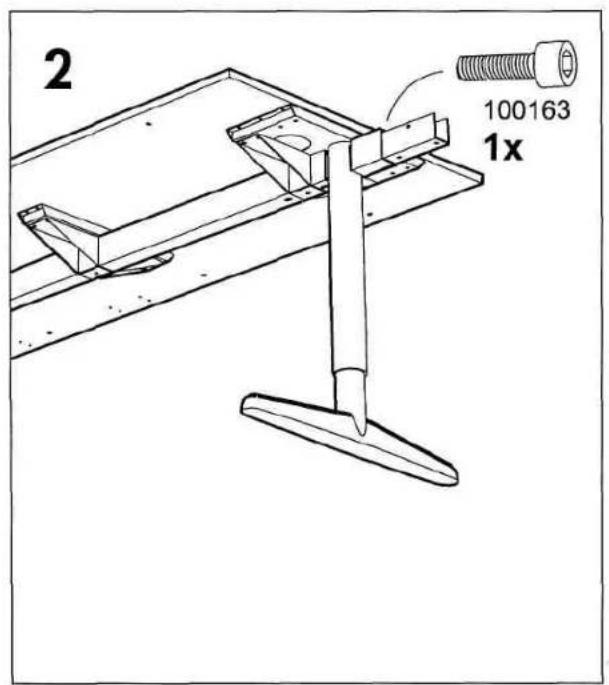

2 100163 1x

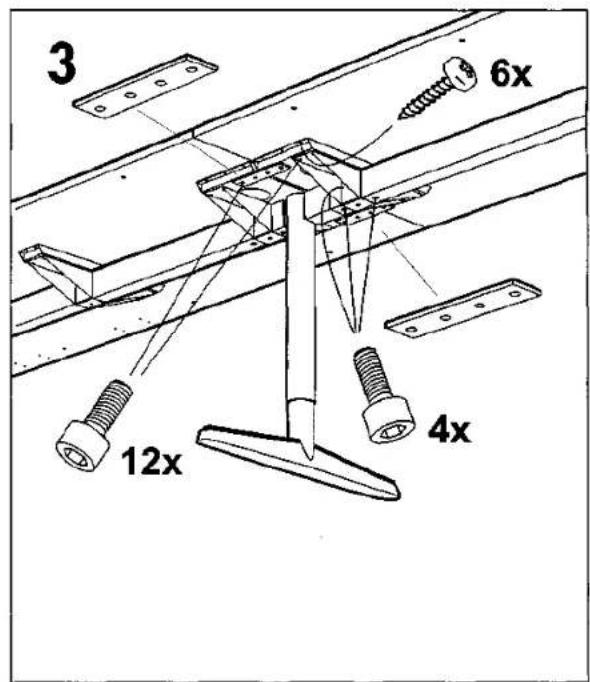

3 6x 12x 4x

109597100226103287108850100163100837105209100049100092
348-978-80748-978-83IKEA EFFEKTIV T - EFFEKTIV T - 7868211
948-980-80348-980-83IKEA EFFEKTIV T - EFFEKTIV T - 7968211
748-976-80148-976-83IKEA EFFEKTIV T - EFFEKTIV T - 8068
148-842-80548-842-8342
900-195-09IKEA EFFEKTIV T - EFFEKTIV T - 8112121411108490
348-681-80IKEA EFFEKTIV T - EFFEKTIV T - 8210101
548-680-80IKEA EFFEKTIV T - EFFEKTIV T - 83616111
000-197-59IKEA EFFEKTIV T - EFFEKTIV T - 84121241
348-742-80IKEA EFFEKTIV T - EFFEKTIV T - 856811053231
648-670-80IKEA EFFEKTIV T - EFFEKTIV T - 86441
248-672-80IKEA EFFEKTIV T - EFFEKTIV T - 87461
448-671-80IKEA EFFEKTIV T - EFFEKTIV T - 8821
048-673-80IKEA EFFEKTIV T - EFFEKTIV T - 8981

IKEA EFFEKTIV T - EFFEKTIV T - 90
