BRUKSANVISNING OL6000E CyberPower

The Best Quality Online Double Conversion UPS That Offers The Highest Level of Power Protection

CyberPower®

Reliability. Quality. Value.

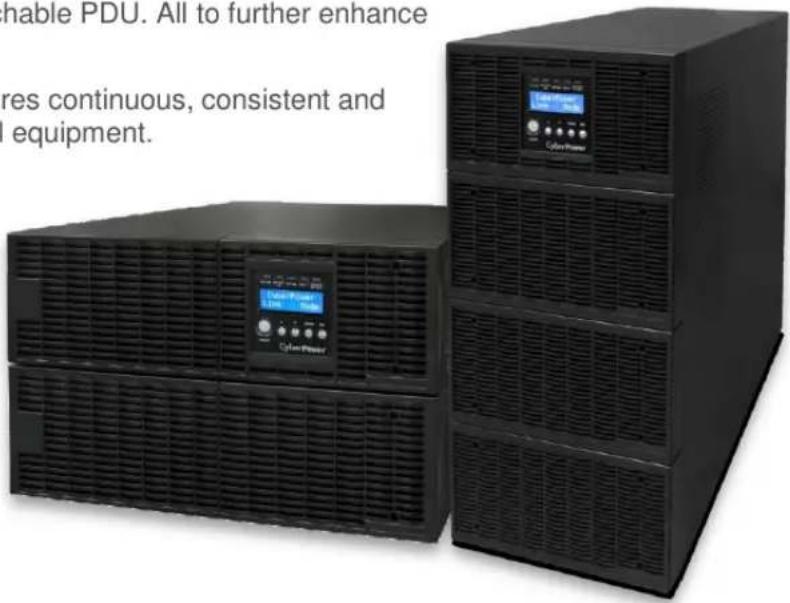

Featuring Online Double Conversion UPS topology, the Online Series provides the highest level of power protection and a guaranteed quality power supply to demanding businesses who value versatility, flexibility, manageability and performance. The numerous engineering excellences in the Online Series include an Economy Mode Setting, Hot-Standby and a Detachable PDU. All to further enhance its overall capability.

With its zero transfer time, the Online Series ensures continuous, consistent and clean Pure Sine Wave power to all mission-critical equipment.

Applications

• Home and Home Office
• Small Office
• Medium Business
• Corporate Data Center
• Networking, Servers & Workstations
• Industrial Equipment

Series Features

• Pure Sine Wave Output
• Online (Double Conversion) UPS Topology
• Rack/Tower Convertible Configurations
• EMI, RFI, Surge and Spike Protection
• Critical Load Outlets
• Phone/Fax/Modem/DSL/Network Protection
• Auto-Restart/Auto-Charge
• Emergency Power Off (EPO) Port
• Multifunction LCD Readout
• Rotatable LCD Indicator
• USB & Serial Connectivity Ports
• Extended Runtime (XL) Models
• Hot-Swappable Battery Packs
• PowerPanel® Business Edition Software

- SNMP/HTTP Remote Management Capability (Optional)


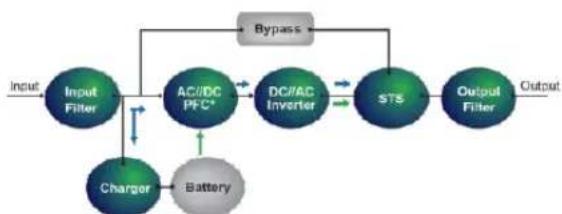

Online Double Conversion Topology

Online (Double Conversion) topology provides an extra layer of insulation from power problems. This is achieved by continuously operating off battery power and having zero transfer time during power outages. Online topology also stabilizes output frequency and voltage, and eliminates any line noise that may be apparent in industrial settings or when operating off generator power.

Online Topology

Dual Input Pure

SNMP /HTTP RM

VT FoL6D Display

Pure Sine Wave Output

For applications that require Pure Sine Wave power, CyberPower provides UPS models with True Sine Wave output, also known as Pure Sine Wave. They are designed for electronic devices that have Power Factor Correction (PFC) Power Supplies as well as for small AC motors and other devices that need true sine-wave power in order to function properly.

PowerPanel® Business Edition Management S/W

AUTO-SHUTDOWN SOFTWARE

CyberPower PowerPanel® Business Edition Management Software, is compatible with Windows7, Vista, XP, 2000 Pro., ME, 98, Windows Server 2008, 2003, Mac and Linux.

Technical Specification
CyberPower®
Reliability. Quality. Value.

Model OL6000ERT3UD OL8000ERT3UD OL10000ERT3UD OL6000E OL8000E OL10000E
Conguraon
Capacity (VA / Was) 6000 / 5400 8000 / 7200 10000 / 9000				6000 / 5400 8000 / 7200 10000 / 9000
Form Factor	Rackmount / Tower (Converble)			Tower
Topology	Online (Double Conversion)
Energy-Saving Technology	Yes
Input
Input Voltage Range	120 Vac - 139 Vac for 0~25% Load / 140 Vac- 159 Vac for 0~50% Load / 160 Vac - 179 Vac for 0~75% Load / 180 Vac - 280 Vac for 0~100% Load
Input Frequency Range	40 Hz - 70 Hz
Input Plug Type	(1) Hard Wire 3-wire
Output
UPS Outlets (Numbers)	(2) IEC C13, (1) IEC C19, (1) Hard Wire 3-wire			(8) IEC C13, (2) IEC C19, (1) Hard Wire 3-wire
Output Frequency	50 Hz / 60 Hz (Auto-Sensing or Congurable) ± 0.25 Hz
Typical Transfer Time	0ms
Overload Protecon	Line Mode : 105~125% Load for 1 min, 126~150% Load for 10 secBaery Mode : 105~130% Load for 10 sec, 131~150% Load for 2 sec
Surge Protecon and Filtering
Surge Protecon	IEC 61000-4-5 Level 3
DSL / Phone /FAX / ModemProtecon	RJ11 / RJ45 (One In / One Out)
Physical
Dimensions (H x W x D) (mm) -Power Module	132 x 433 x 660			616 x 265 x 660 (Baery included)
Dimensions (H x W x D) (mm) -Baery Module	132 x 433 x 660
Weight (kg) - Power Module	25			95 (Baeryincluded)	97 (Baery included)
Weight (kg) - Baery Module	76	78
Baery
Sealed Maintenance FreeLead Acid Baery	(20) 12V / 7.2AH	(20) 12V / 9AH		(20) 12V / 7.2AH	(20) 12V / 9AH
Typical Recharge Time (Hours)	4	5		4	5
Hot-Swappable	Yes
Runmes
Half-load / Full-load (mins)	15.8/5.3	22/8.5	15/5	15.8/5.3	22/8.5	15/5
Status Indicators
Indicators	Power On, Line Mode, Baery Mode, Bypass Mode, Fault, Replace Baery
Audible Alarms	Baery Mode, Baery Low, Overload, UPS Fault, Replace Baery
Mul-funcon LCD Readout	Yes
Communicaon
PowerPanel® Business Edion	Windows 7 / Vista / XP / 2000, Server 2008 / 2003, Linux
Management
Self Test	Yes
Auto-Charge / Auto-Restart	Yes
Auto-Overload Recovery	Yes
Cold Start (DC Start)	Yes
Connectivity Ports	(1) Serial Port (RS232), (1) USB Port, (1) Remote Control Port, (1) Relay Out, (1) EPO, (1) Backfeed
SNMP/HTTP Capable	Oponal

All specicaons are subject to change without noce. © 2012 Cyber Power Systems. All Trademarks are the property of their owners.

Smart App Online Series

OL6000/8000/10000ERT3UD

OL6000/8000/10000E

Battery

CyberPower®

Reliability. Quality. Value.

Model	BPE240V30ART3U	BPE240V50ART3U	BPE240V30A	BPE240V50A
Voltage	240VDC
Amperage	30A	50A	30A	50A
Physical
Dimensions (H x W x D) (mm)	132 x 433 x 660		600 x 265 x 660
Weight (kg)	76	78	135	139
Baery
Sealed Maintenance Free Lead Acid Baery	(20) 12V / 7.2AH	(20) 12V / 9AH	(40) 12V / 7.2AH	(40) 12V / 9AH
Interface	PP45
Typical Recharge Time	4 Hours	5 Hours	4 Hours	5 Hours
Built-in Charger	Yes
Environment
Operang Temperature	32~104 F (0~40°C)
Humidity	0~90% Non-Condensing

Tower Form Factor

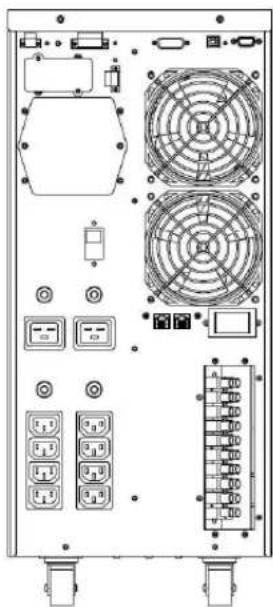

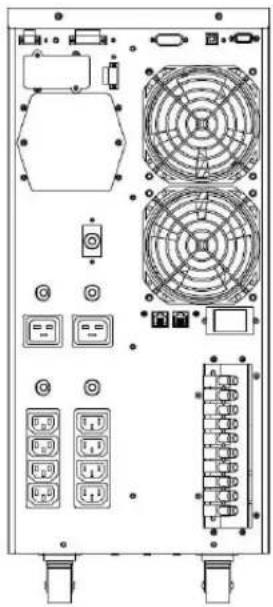

OL6000E

Back view of a computer rack with multiple fans, switches, and power connectors (no text or labels visible)

Back view of a computer rack unit with front panel, fan, and control panel (no text or symbols visible)

OL8000E OL10000E

Rackmount Form Factor

Diagram of an electronic device rear panel with ports, connectors, and a fan (no text or labels)

Line drawing of an electronic device rear panel with ports, connectors, and a fan (no text or labels)

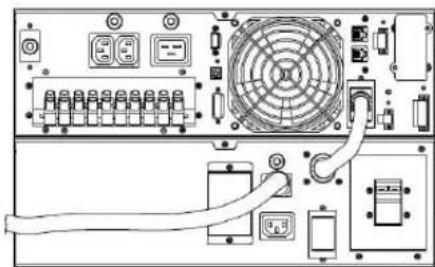

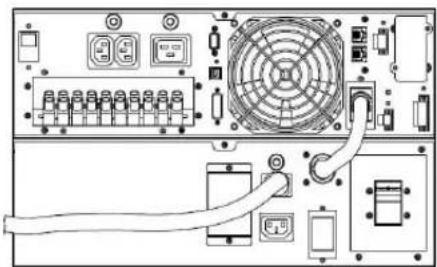

OL6000ERT3UD OL8000ERT3UD
OL10000ERT3UD

RoHS

CE

DISTRIBUTED BY:

CyberPower's

Manufacturing

Facilities are

ISO 9001:2000,

ISO 14000, and

QC080000

Approved
