BRUKSANVISNING BÅTSKÄR 905.533.79 IKEA

BÅTSKÄR

Line drawing of a portable gas stove with control panel and grating (no text or symbols)

Diagram showing a person pointing to three screwdriver icons with symbols: circle, cross, and plate.

Illustration showing three figures with different shapes: one standing on a platform, another crossed out with a pencil, and a third standing on a platform.

Two line drawings showing a bird perched on a platform and a bird crossing over a box, with no text or symbols present.

Illustration comparing two scenes: one showing a person reading at a desk with a question mark, the other showing a person holding a package next to an IKEA store.

Line drawing of a U-shaped tool with a flanged end and bolted base (no text or symbols)

1x

Technical line drawing of a threaded bolt with flange (no text or symbols)

4x

IKEA BÅTSKÄR 905.533.79 - BÅTSKÄR - 8
40x

IKEA BÅTSKÄR 905.533.79 - BÅTSKÄR - 9
24x

IKEA BÅTSKÄR 905.533.79 - BÅTSKÄR - 10
2x

1
Technical diagram showing two rectangular components mounted on a flat surface with a magnified inset highlighting a 4x ratio of 10099819 between them.

2

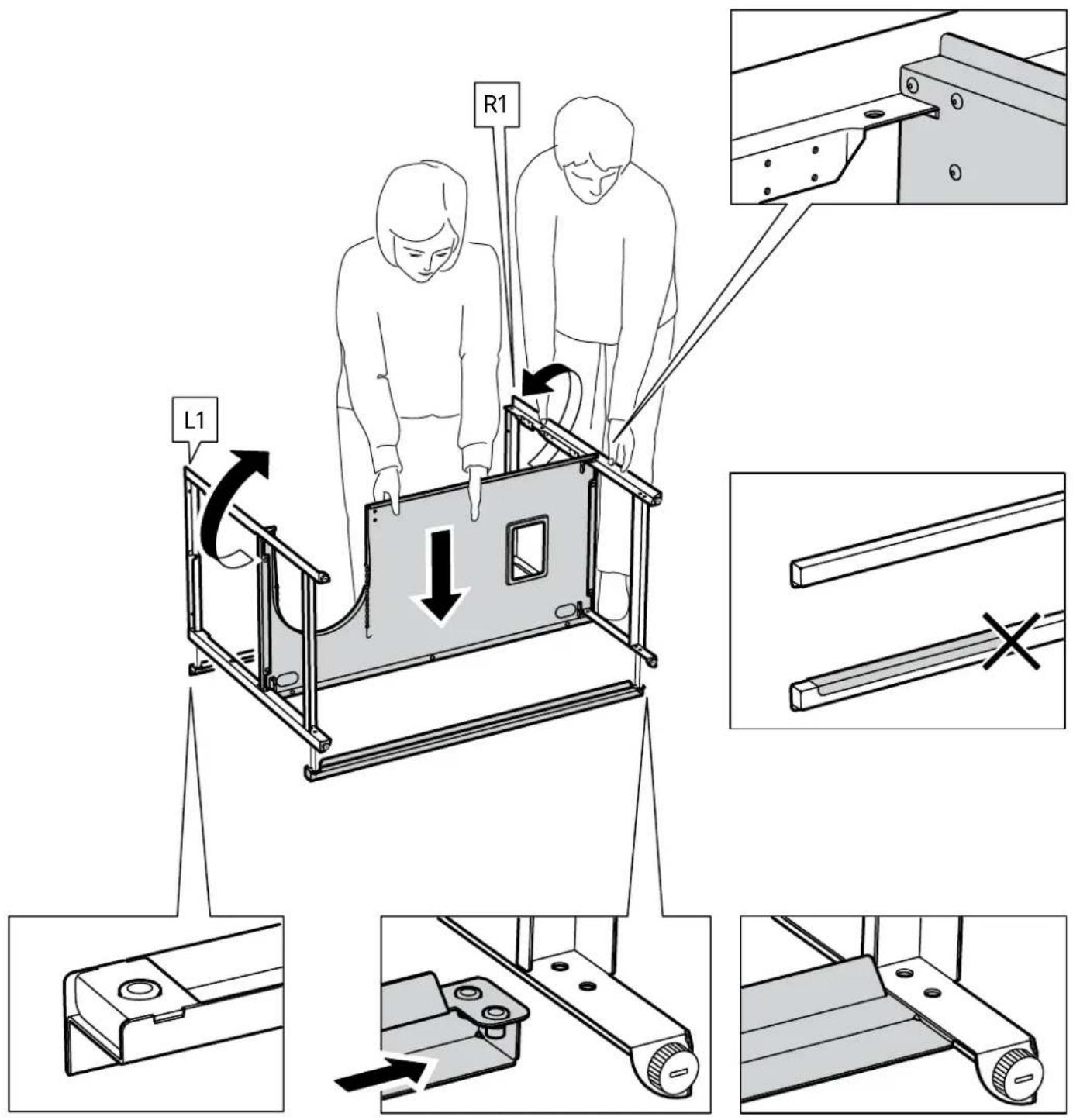

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows indicating motion or movement.

3
8x 130445 10042206

4

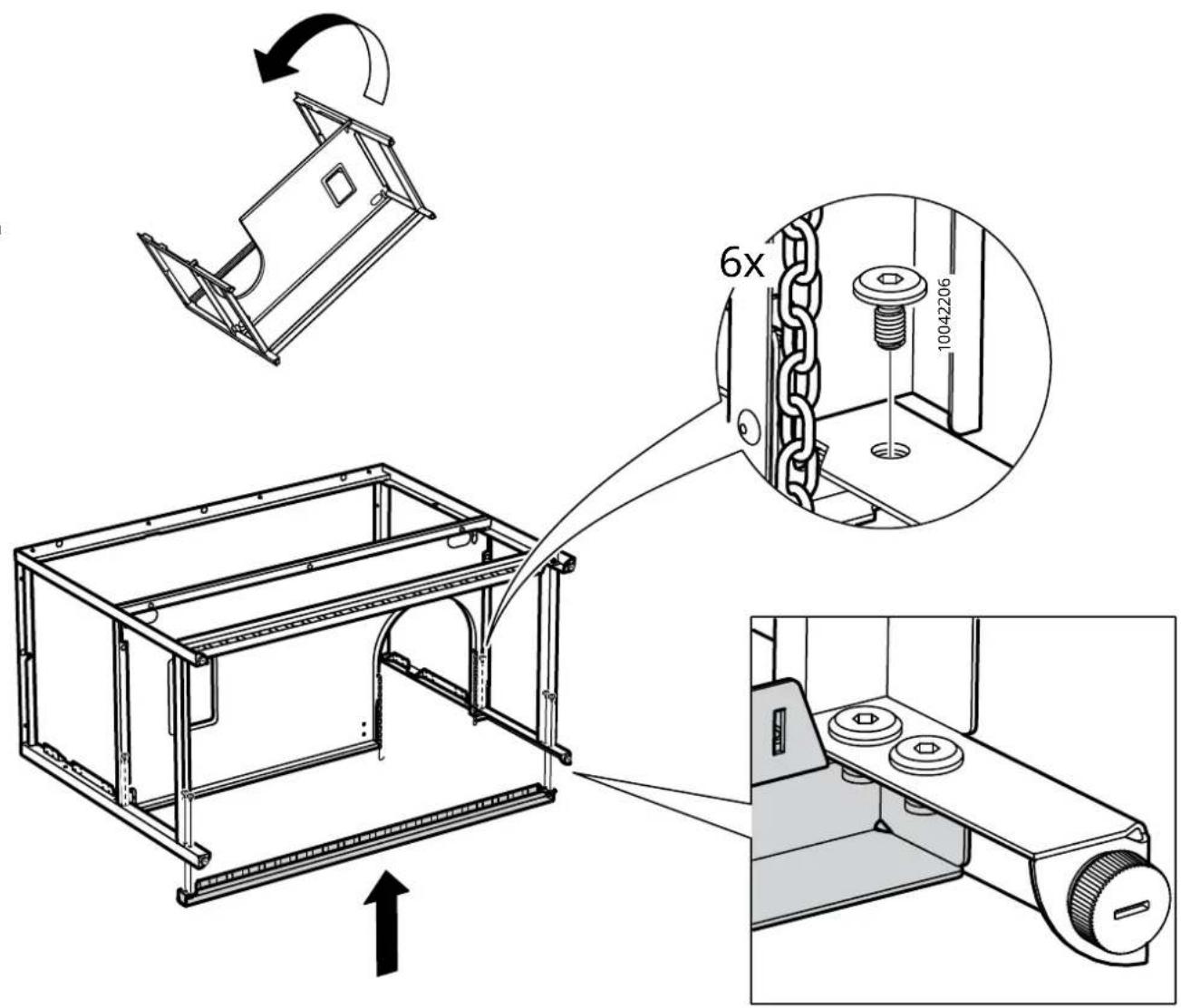

Technical diagram illustrating a mechanical assembly with labeled components and motion indicators

5

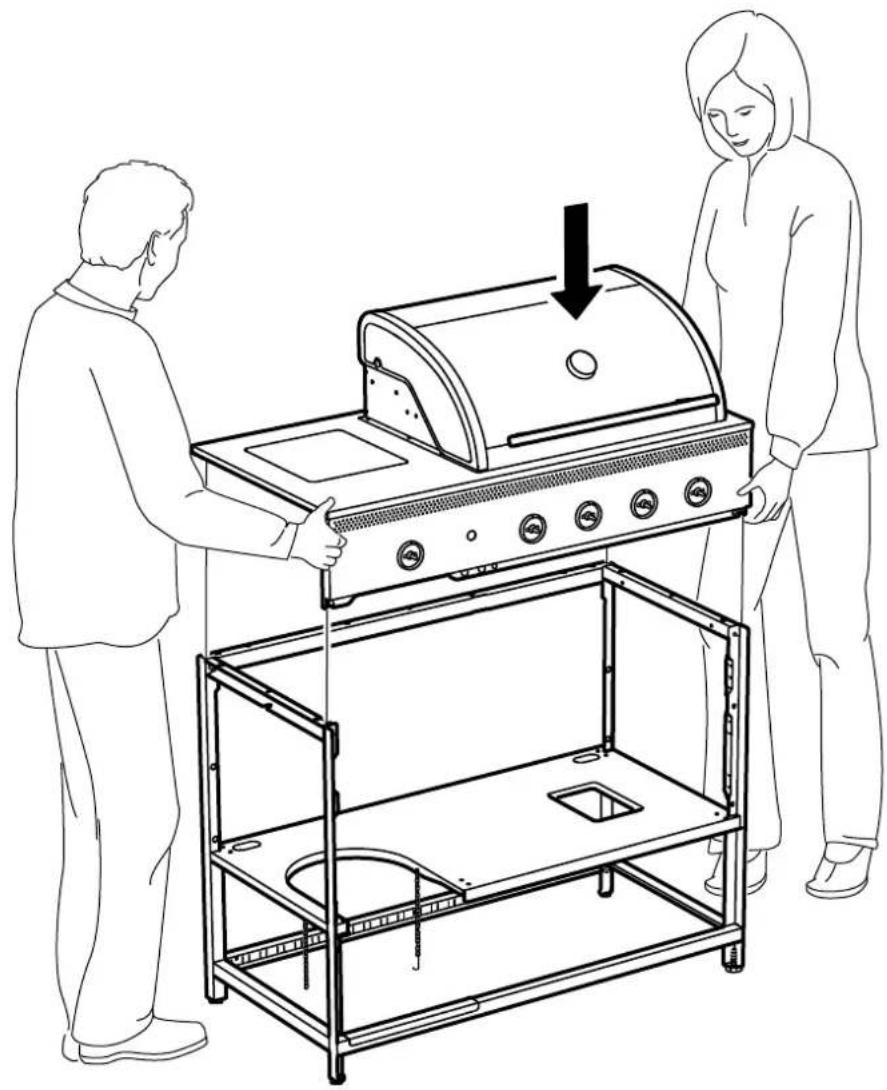

Line drawing of two people assembling a portable stove with a gas stove, no text or symbols present

6
6 7x 10042206

7
Technical diagram of a portable stove with labeled components and 5x magnified view

8
8 1x 10042206 1x 10042206

9
2x 10108757

10

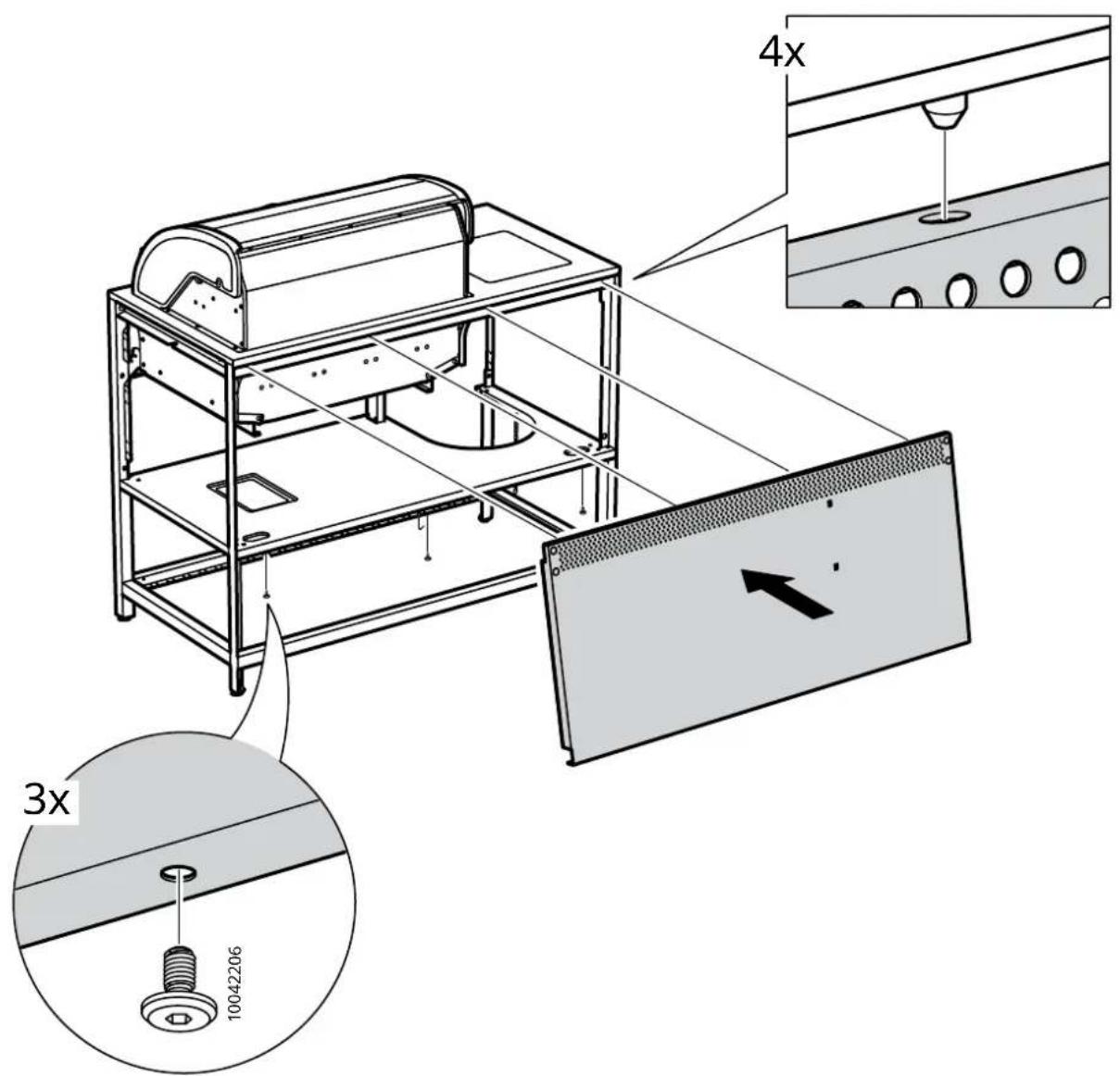

4x 3x 10042206

11 2x 10042206

12 2x 10042206

13
Technical diagram of a portable gas stove with labeled components and an inset showing 8x installation detail.

14 6x 10102170

15 22x Click!

16

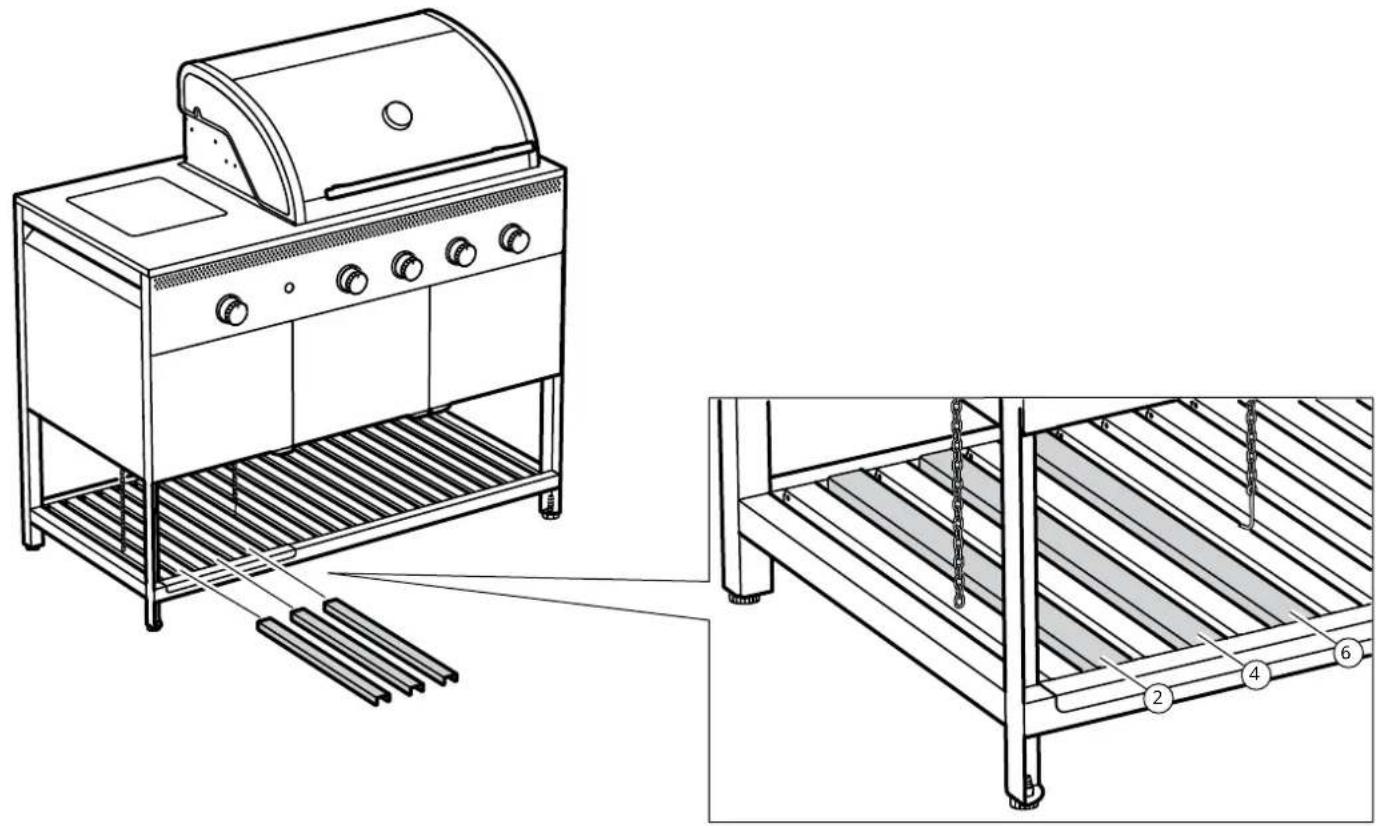

Technical diagram of a grill with labeled components and exploded view showing internal structure

17

Technical diagram of a portable gas stove with labeled components and 4x speed indicator for lifting a bolt.

i
Line drawing of a portable gas stove with heat exchangers and control panel (no text or symbols)

Diagram of a hand inserting a component into a device, showing directional arrows (no text or symbols)

Line drawing of a gas stove with heat exchangers and control panel (no text or symbols)

Diagram of a mechanical component with arrows indicating direction, no text or symbols present

18

19
9

20

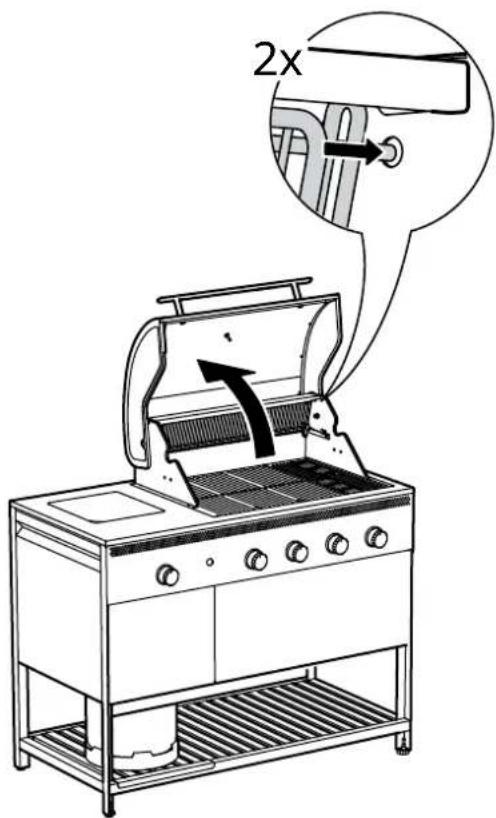

2x

Technical line drawing of a mechanical assembly with diagonal hatching and mounting bracket (no text or symbols)

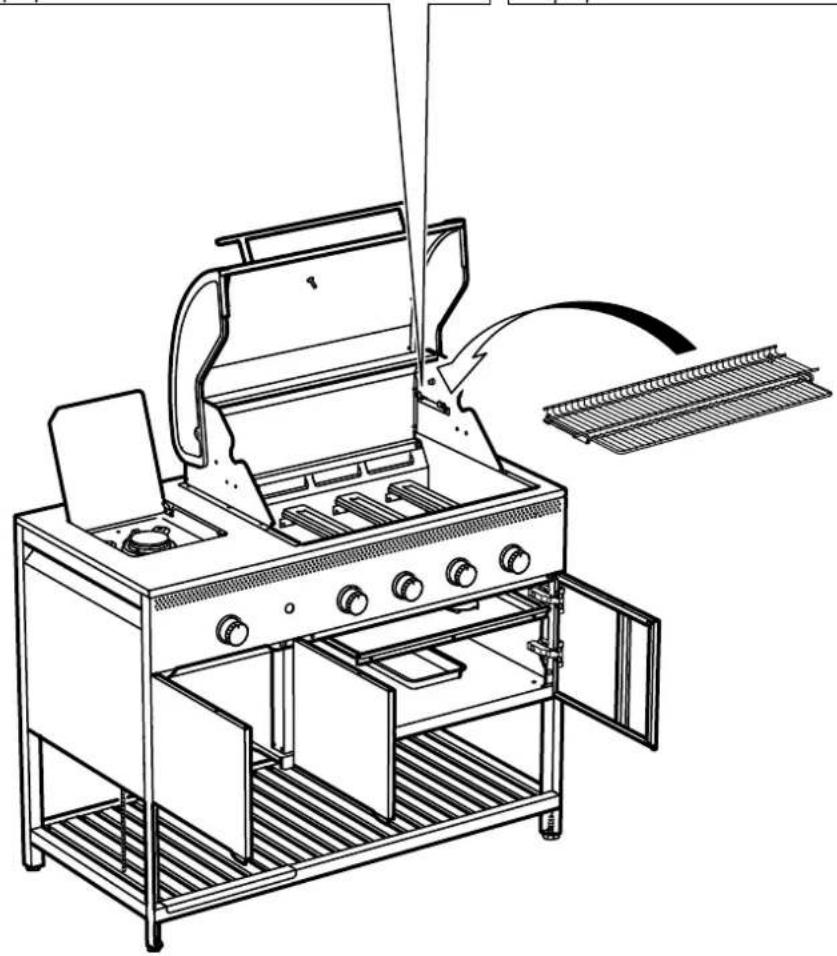

Line drawing of a gas stove with open doors and internal components (no text or symbols)

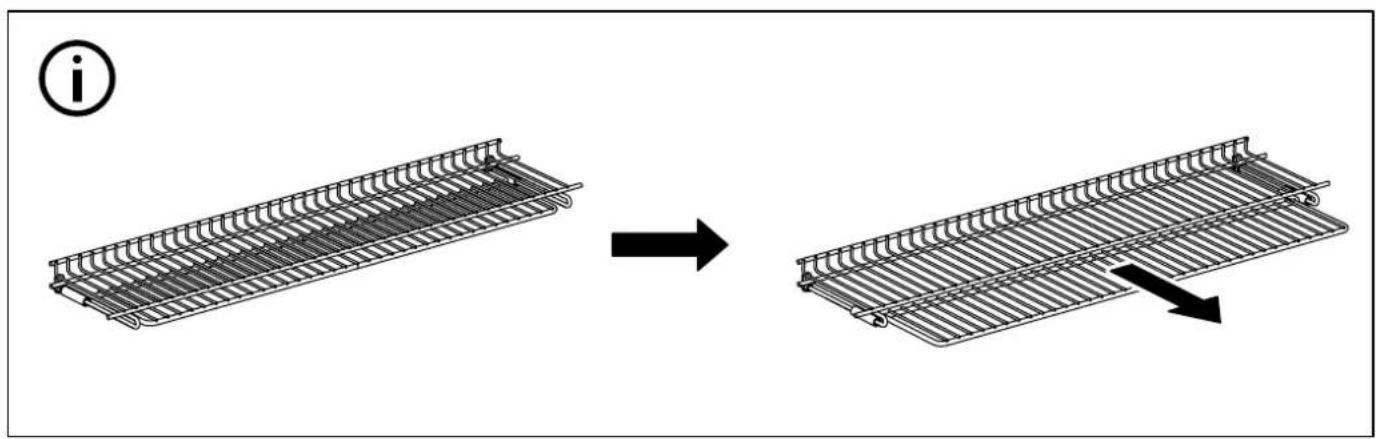

Diagram showing a wire mesh structure transforming into a folded panel, with arrows indicating process direction (no text or symbols)

21
Line drawing of a portable electric stove with open doors and internal compartments (no text or symbols)

22
Line drawing of a portable grill with open doors and grilles (no text or symbols)

23

Line drawing of a gas stove with open door, showing internal components and a downward arrow indicating assembly (no text or symbols present)

IKEA BÅTSKÄR 905.533.79 - 23 - 2

Max 580 mm (22 53/64")
Line drawing of a cylindrical gas cylinder with a vertical dimension arrow (no text or symbols)

Max 320 mm (12 19/32")
Line drawing of a cylindrical gas storage container with internal slots and side connectors (no text or symbols)

IKEA BÅTSKÄR 905.533.79 - 23 - 5

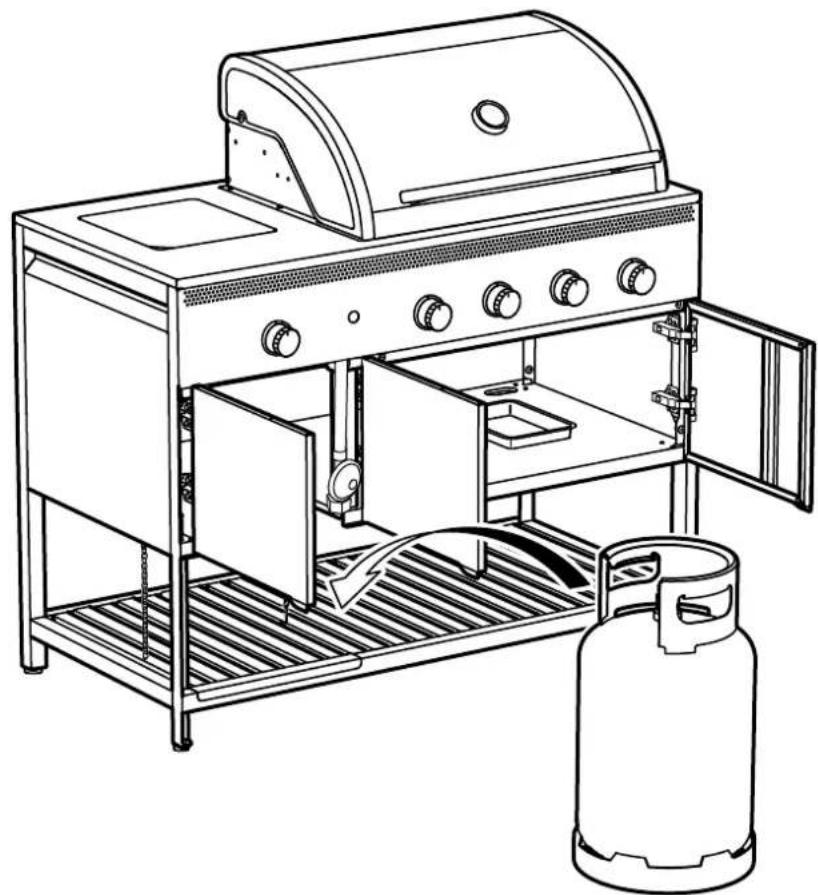

Line drawing of a gas stove with open doors, grilles, and a gas cylinder (no text or symbols)

i
Technical diagram of a gas stove with labeled components and a 1x ratio annotation for chain attachment.

i

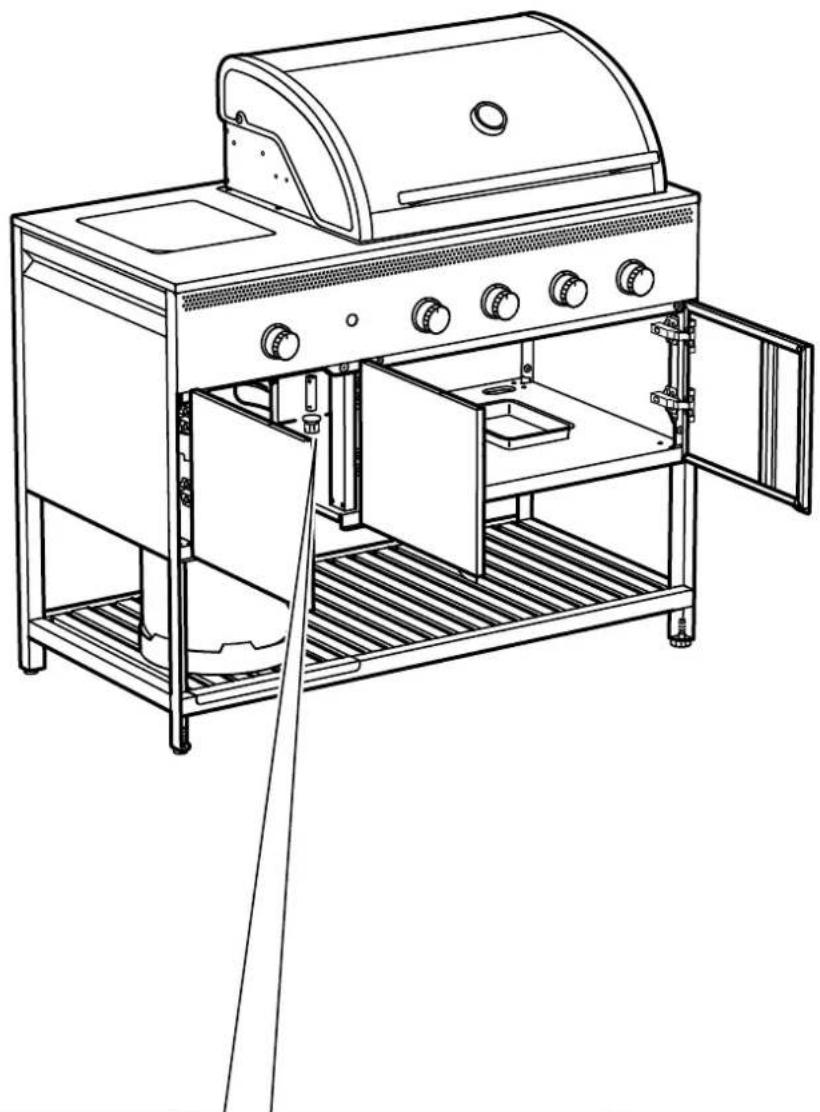

Line drawing of a gas stove with open doors and internal compartments (no text or symbols)

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

Diagram illustrating four steps of a cooking or heating process: boiling, heating with a tool, pressing down, and moving a rotary dial.

i Min. 10 mm (0" 3/8')

!
Line drawing of a portable gas stove with open doors, cooling pipes, and a thermometer indicating thermal resistance (no text or symbols present)

i
1
1x

2
2x
