BRUKSANVISNING PDWRBT36WT Pyle
2-Way Indoor/Outdoor Wireless BT Speaker System
1/2" High Compliance Polymer Tweeter
PYLE
PyleUSA.com

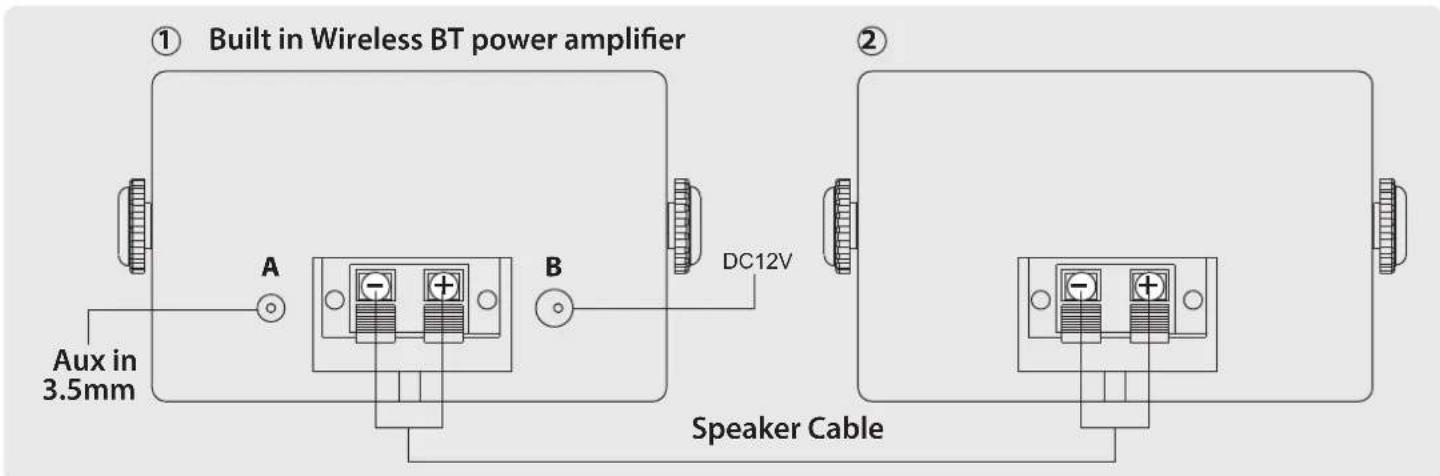

Wireless BT Connection Diagram
- As shown in diagram, will be the first two speakers docking, red lead to the positive, black lead to the negative.
- As shown in diagram 1, A port is 3.5mm AUX IN, B port is DC12V, the connection is complete.
Wireless BT Connectivity:
• Built-in Wireless BT Streaming Receiver
- Simple & Hassle-Free Connection Works with All of Today's Latest Devices (Smartphone, Tablet, Laptop, Computer, etc.)
- Wireless BT Version: 4.0
- Wireless BT Network Name: 'Pyle'
- Wireless BT Network Password: '0000' (4 Zeroes)
- Wireless Range: 30' + ft .
Questions? Issues?
We are here to help!
Phone: (1) 718-535-1800
Email: support@pyleusa.com
Technical Specs:
| Model Number | Peak Power | RMS Power | Subwoofers Size | Midranges | Tweeter | Frequency Magnet Colour Response | Impedance | Power | ||
| PDWRBT36WT3 | .5"200 Watt | 100 Watt | White | 1.75" | 1.0" | 70-21 kHz | 8 Ohm | DC12V | ||
| PDWRBT36BK | 100 Watt | 24 Oz B3a5K | 1.75"200 Watt | 1.0" | 70-21 kHz | 8 Ohm | DC12V | |||
| PDWRBT36YL | 200 Watt | 100 Watt | 3.5" | 1.75" | 1.0" | 70-21 kHz | 24 Oz | 8 Ohm | DC12V | Yellow |
| PDWRBT36RD | 200 Watt | 100 Watt | 3.5" | 1.75" | 1.0" | 70-21 kHz | 24 Oz | 8 Ohm | DC12V | Red |
| PDWRBT36BL | 200 Watt | 100 Watt | 3.5" | 1.75" | 1.0" | 70-21 kHz | 24 Oz | 8 Ohm | DC12V | Blue |
| Model Number | Peak Power | RMS Power | Subwoofers Size | Midranges | Tweeter | Frequency Magnet Colour Response | Impedance | Power | ||
| PDWRBT46WT | 300 Watt | 150 Watt | 4" | 1.75" | 1.0" | 60-21 kHz | 30 Oz | 8 Ohm | DC12V | White |
| PDWRBT46BK | 150 Watt | 30 Oz Black | 1.75"300 | Watt 1.0" | 60-21 kHz | 8 Ohm | DC12V | |||
| PDWRBT46YL | 300 Watt | 150 Watt | 4" | 1.75" | 1.0" | 60-21 kHz | 30 Oz | 8 Ohm | DC12V | Yellow |
| PDWRBT46RD | 300 Watt | 150 Watt | 4" | 1.75" | 1.0" | 60-21 kHz | 30 Oz | 8 Ohm | DC12V | Red |
| PDWRBT46BL | 300 Watt | 150 Watt | 4" | 1.75" | 1.0" | 60-21 kHz | 30 Oz | 8 Ohm | DC12V | Blue |
| Model Number | Peak Power | RMS Power | Subwoofers Size | Midranges | Tweeter | Frequency Magnet Colour Response | Impedance | Power | ||
| PDWRBT56WT | 500 Watt | 250 Watt | 5.25" | 1.75" | 1.0" | 50-21 kHz | 40 Oz | 8 Ohm | DC12V | White |
| PDWRBT56BK | 250 Watt | 40 Oz SB25k | 1.75"500 | Watt.0" | 50-21 kHz | 8 Ohm | DC12V | |||
| PDWRBT56YL | 500 Watt | 250 Watt | 5.25" | 1.75" | 1.0" | 50-21 kHz | 40 Oz | 8 Ohm | DC12V | Yellow |
| PDWRBT56RD | 500 Watt | 250 Watt | 5.25" | 1.75" | 1.0" | 50-21 kHz | 40 Oz | 8 Ohm | DC12V | Red |
| PDWRBT56BL | 500 Watt | 250 Watt | 5.25" | 1.75" | 1.0" | 50-21 kHz | 40 Oz | 8 Ohm | DC12V | Blue |
VISIT US ONLINE:
Have a question?
Need service or repair?
Want to leave a comment?
PyleUSA.com/ContactUs
California Prop 65 Warning
! WARNING:
This product contains Nickel carbonate which is known to the state of California to cause cancer birth defects and other reproductive harm. Do not ingest.
For more info go to: www.P65warnings.ca.gov
