BRUKSANVISNING MT-B-LDP S HILTI

2321404-06.2021

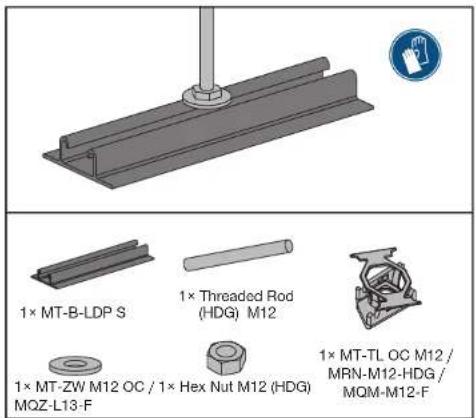

HILTI MT-B-LDP S - 1

text_image 1× MT-B-LDP S 1× Threaded Rod (HDG) M12 1× MT-ZW M12 OC / 1× Hex Nut M12 (HDG) MQZ-L13-F 1× MT-TL OC M12 / MRN-M12-HDG / MQM-M12-F

HILTI MT-B-LDP S - 2

text_image Diagram showing a mechanical assembly with a circular component and a downward arrow indicating motion or force direction.

HILTI MT-B-LDP S - 3

natural_image Diagram showing a mechanical assembly with a cylindrical shaft, nut, and flange, all with red arrows indicating direction (no text or symbols)

HILTI MT-B-LDP S - 4

text_image 3 20 Nm (14 ft-b) φ

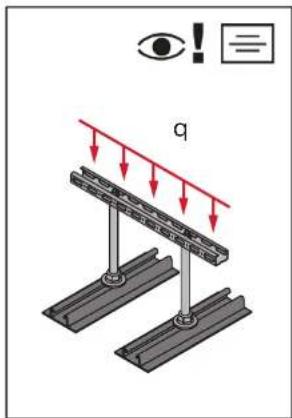

HILTI MT-B-LDP S - 5

text_image Diagram illustrating an optical setup with labeled components and light paths, including an eye icon and a label 'q'

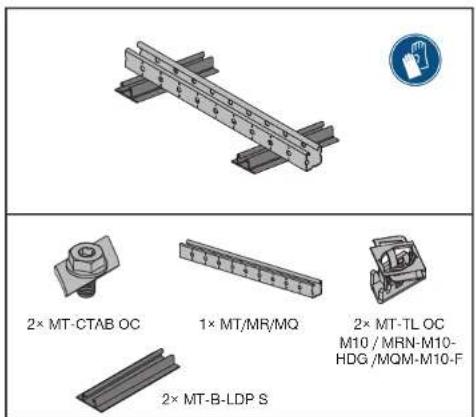

HILTI MT-B-LDP S - 6

text_image 2× MT-CTAB OC 1× MT/MR/MQ 2× MT-TL OC M10 / MRN-M10- HDG /MQM-M10-F 2× MT-B-LDP S

HILTI MT-B-LDP S - 7

text_image 1 2×

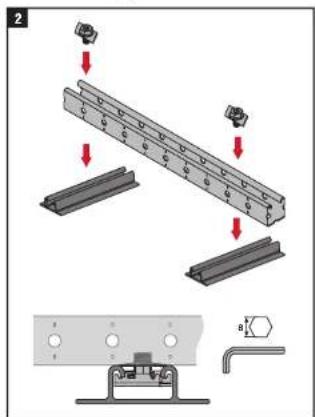

HILTI MT-B-LDP S - 8

text_image Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or movement.

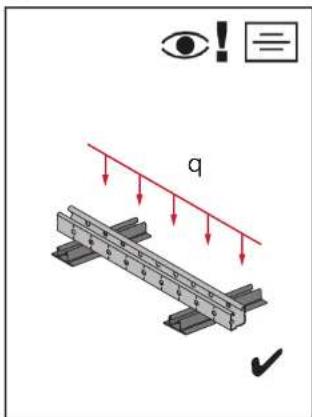

HILTI MT-B-LDP S - 9

text_image q

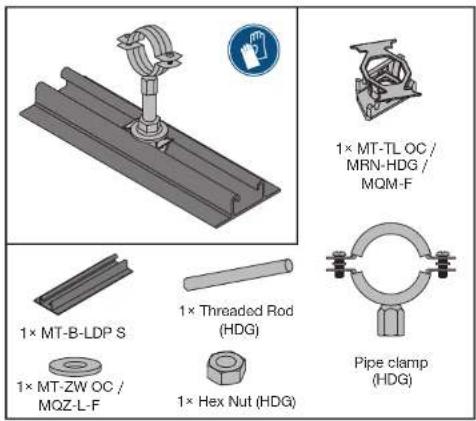

HILTI MT-B-LDP S - 10

text_image 1× MT-TL OC / MRN-HDG / MQM-F 1× MT-B-LDP S 1× Threaded Rod (HDG) 1× MT-ZW OC / MQZ-L-F 1× Hex Nut (HDG) Pipe clamp (HDG)

HILTI MT-B-LDP S - 11

text_image Diagram showing a mechanical assembly process with a circular component and a downward arrow indicating direction.

HILTI MT-B-LDP S - 12

natural_image Diagram showing a mechanical assembly with a cylindrical shaft, a nut, and a base plate, all with red arrows indicating motion direction (no text or symbols)

HILTI MT-B-LDP S - 13

text_image 20 Nm (14 ft-b)

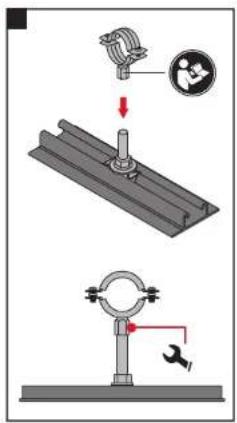

HILTI MT-B-LDP S - 14

text_image Diagram illustrating mechanical assembly steps with labeled components and directional arrows

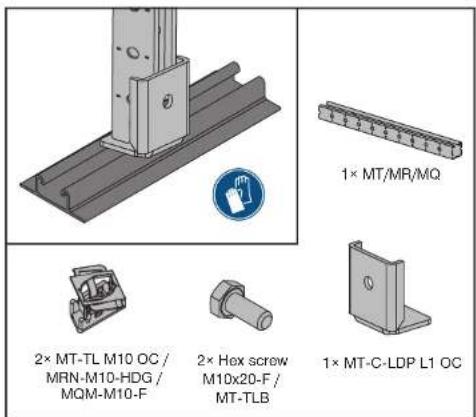

HILTI MT-B-LDP S - 15

text_image 1× MT/MR/MQ 2× MT-TL M10 OC / MRN-M10-HDG / MQM-M10-F 2× Hex screw M10x20-F / MT-TLB 1× MT-C-LDP L1 OC

HILTI MT-B-LDP S - 16

text_image Diagram showing a vehicle with a warning symbol and a red downward arrow indicating a drop or reduction in a mechanical component.

HILTI MT-B-LDP S - 17

text_image Technical diagram showing mechanical assembly steps with labeled components and dimensions

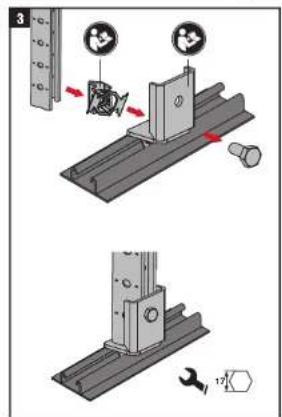

HILTI MT-B-LDP S - 18

text_image Technical diagram showing mechanical assembly steps with labeled components and directional arrows

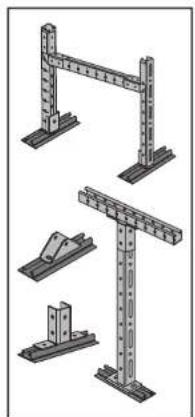

HILTI MT-B-LDP S - 19

natural_image Technical illustration of structural supports and truss structures (no text or symbols)
