BRUKSANVISNING Outdoor MO15RA2R Marvel
15" Marvel Outdoor All Refrigerator
Model # MO15RAS2
Performance
• CSA certified for outdoor use to withstand elements like rain, corrosion, high humidity and heat
- Tested to perform in temperatures as high as 115^ F
- Dynamic Cooling Technology™ delivers the industry's best temperature stability and rapid cool down, tested and proven to cool nearly 2x faster than competitors
• Thermal-efficient insulated cabinet ensures optimum energy efficiency and cooling performance
Storage Capabilities
• 2.7 cu. ft. capacity, stores (70) 12-oz cans
• (2) cantilevered, fully adjustable FreshFlo™ commercial-grade stainless steel roller-glide shelves
Temperature Controls
- Marvel Prime™ controls for precise, frost-free temperature management between 34° to 42° F
- Audible alarms for door ajar and high/low temperature ensure your contents stay at optimal temperature
Aesthetics
- Pristine white interior easily wipes clean and efficient arctic white LED lighting illuminates interior for better viewing
- Corrosion-resistant stainless steel exterior, sturdy pro-style handle and rugged stainless steel toe kick
- Finish: stainless steel
Additional Convenience
• Door lock provides added safety and security
- Close Door Assist System™ gently and automatically draws door to a close, ensuring door is never accidentally left ajar
- Stainless steel toe kick adjustable to 4" with leveling legs
- 1-year parts and labor warranty, 5-year sealed system parts warranty
Finish
Stainless Steel
Ordering Options
| Solid Stainless Steel Door with Lock, Right Hinge, Professional Handle | MO15RAS2RS |
| Solid Stainless Steel Door with Lock, Left Hinge, Professional Handle | MO15RAS2LS |
*Easy installation! No panel kit required. Consult your cabinet maker for overlay panel and handle options.
Certified for Outdoor Use

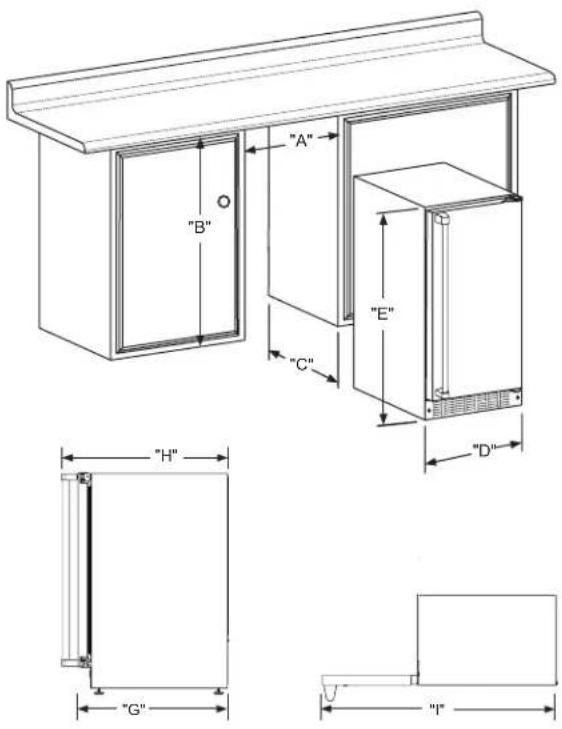

Product Dimensions
Rough-In Dimensions
| A. Rough-In Width 15" | |
| B. Rough-In Height 34" to 35" | |
| C. Rough-In Depth 24" |

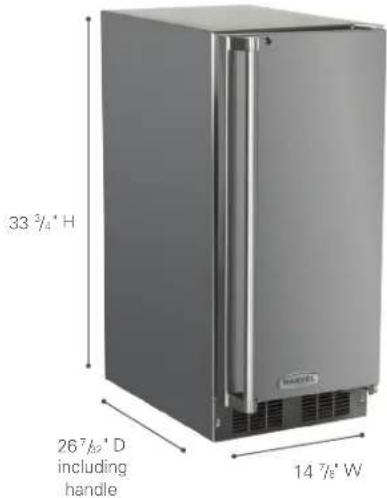

Product Dimensions
| D. Width 14 7/8" | |
| E. Height 33 3/4" to 34 3/4" | |
| F. Depth 21 1/2" | |
| G. Depth to Front of Door 23 23/32" | |
| H. Depth to Handle 26 7/32" | |
| I. Depth with door at 90° 37 13/32" |
Product Features
| Interior Cabinet Finish White | |
| Capacity Up to 70 12-oz cans | |
| Shelving System Roller-Glide Cantilever | |
| Shelf Fronts Stainless Steel | |
| Other Storage NA | |
| Interior Lighting White LED | |
| Toe Grill Finish Stainless Steel | |
| Hinge | Classic Hinge |
| Handle | Professional |
| Control Type | PrimeTM |
| Temperature Range | 34° to 42° F |
| Lock | Yes |
| Electrical Requirements | 120V / 60Hz / 15A |
| Length of Power Cord | 6' |
| Shipping Weight | 125 lbs |
| Finishes | Stainless Steel |
| Vacation Mode | No |
| Agency Approvals | CSA, ENERGY STAR |
For comprehensive installation instructions, please visit www.marvelrefrigeration.com to access the owner's guide.
