BRUKSANVISNING Premium 32RTH ORION

FULL HD 1080p

LED

PREMIUM WIDEE

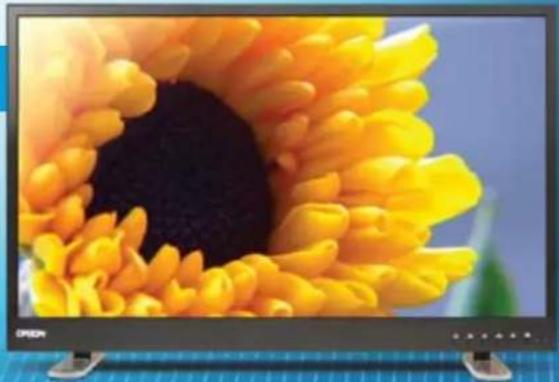

Digital TV displaying a yellow sunflower with a black center, placed on a blue surface (no text or symbols visible)

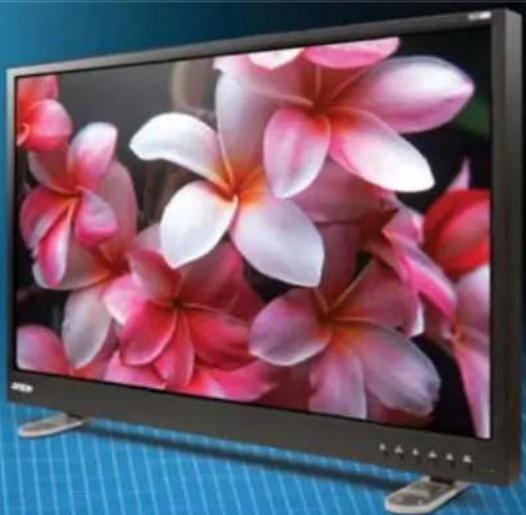

Large black flat-screen TV displaying pink and white floral wallpaper against a blue grid background (no text or symbols visible)

32RTH

BUILT TO RUN 24 X 7 X 365 CONTINUOUSLY

OVERVIEW

The ORION PREMIUM WIDE Series is our high performance, feature rich monitor line with an All Metal Cabinet, PIP / PBP, Dual Analog In, Auto Source Sequencing (up to 7 sources), Trigger Alarm / Sensor, 3D Comb Filter, Deinterlace, Noise Reduction. This series has the versatility and configuration options you need to support your security surveillance applications.

FEATURES

Metal Chassis
1920 x 1080p FULL HD
PIP / PBP Multi Display Function
3D Comb Filter / Deinterlace, Noise Reduction, Advanced Auto Power Recovery, Auto Source Sequencing, Trigger Source Switching, Auto Pixel Shift Multi-Language Support
BNC Video 2 In / 2 Out, S-Video 1 In / 1 Out, VGA 1 In, Component 1 In, DVI-D 1 In, HDMI 2 In, Audio 2 In, PC Stereo 1 In
Built-In Speakers
Wall and Rack Mount Kit

GSA

Contract No. GS-03F-0152X

Built to run 24 x 7 x 365

Continuously

Close-up of a black mechanical component with a white base and two protruding pins, labeled 'Flexible' in the top right corner (no other text or symbols visible)

SPECIFICATIONS

32RTH

Display
Screen Size	31.6 Inch
Max. Resolution	1920 x 1080 @ 60Hz
Pixel Pitch	0.364 x 0.364mm
Brightness	360cd/m2
Contrast Ratio	1400 : 1
Aspect Ratio	16 : 9
Viewing Angle (H/V)	178 / 178
Display Color	8bits / 16.7 Million
Response Time	< 8ms (Gray to Gray)
Video System	NTSC / PAL
Interface
Video In / Out (BNC Type)	2 In / 2 Out
S-Video In / Out	1 In / 1 Out
Component	1 In
DVI-D In / HDMI In	1 In / 2 In
VGA In (15Pin D-Sub)	1 In
Audio In (RCA Type)	3 Left & Right
PC Stereo In	1 In
Transmitter
Remote Control	Yes
Audio
Built-in Speakers	Yes (7.5W x 2)
Features
Multi Display Function	PIP / PBP
Filter Type	3D Comb Filter
Deinterlacing	Yes
Advanced Auto Power Recovery	Yes
Noise Reduction Control (NR)	Yes
LCD Protection Glass	N/A
Auto Pixel Shift	Yes
Auto Source Sequencing	Yes
Trigger Sensor	Yes (NO / NC)
Multi Language	English, Spanish, French, German, Italian
General
Outline Dimension (w/ stand)	28.82" x 18.98" x 5.91"
Net Weight	23.9 Kg (52.9 lbs)
Material / Color	Electronic galvanized Iron / Black
Desk Top Stand	Yes
Part / Labor	2year / 2year
Consumption: < On	< 150W
	AC100 ~ 240V(50/60Hz)
Operating Temperature	0 ~ 40°C / 32 ~ 104 F
Storage Temperature	-20 ~ 60°C / -4 ~ 140 F
Mounts
VESA ^TM Mount Size	200 x 200mm
Wall	WB-2642
Ceiling	CMK-01 w/ FMA-01

*Design and specifications are subject to change without notice

INPUT INTERFACE

A HDMI1 / HDMI2 In

B DVI-D In

© VGA In

D PC Stereo In

E Component

F Audio In

G S-Video In / Out

H CVBS1 In / Out

CVBS2 In / Out

J Trigger

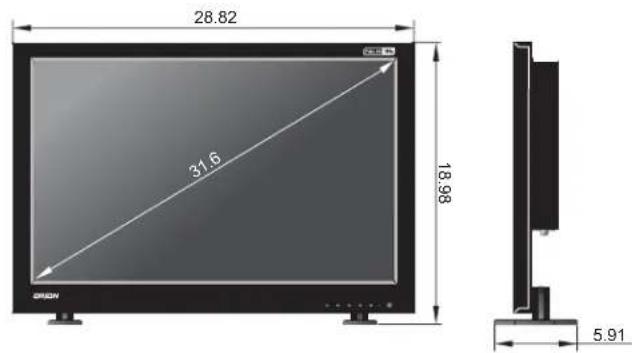

DIMENSIONS

OPTIONAL MOUNTS

ADVANTAGES

3D Comb Filter, Noise Reduction and Deinterlacing provides high quality color producing the best color sense

Analog & Digital

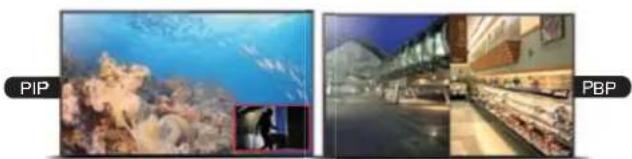

Picture-in-Picture (PIP) mode allows an image from an AV source to be displayed as a picture with in the image from a PC source (or vice-versa). Picture-by-Picture (PBP) mode permits images from an AV and PC source to be displayed side by side for split-screen viewing.

Two outdoor scenes: underwater coral with visible reflection and inset photo of a person in a mirror (no text or symbols)

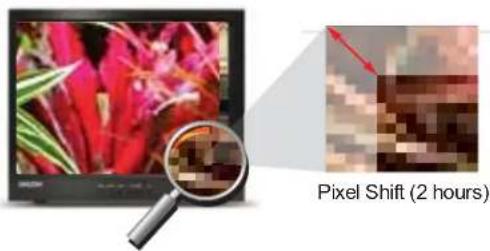

Auto Pixel ShiftDual Screen Display / Dual Signal In

Minutely moves pixels diagonally to prevent after-image / static image burn in
