BRUKSANVISNING CLBK Code Alarm
CLBK
Door Lock Cable Bracket
Prior to mounting the actuator or cable bracket, determine the installation location keeping in mind that in this application the actuator and actuator rod are best placed parallel to the factory locking cable.

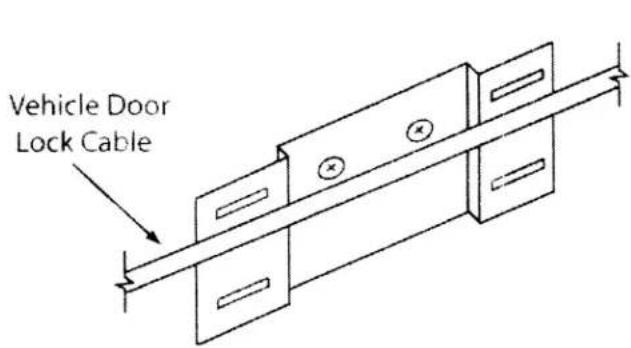

Mount the bracket to the vehicle door.

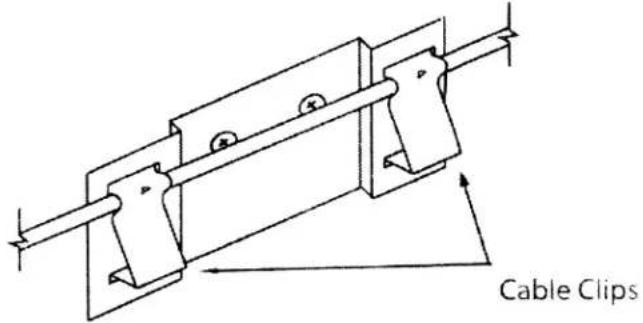

Attach the vehicle's door lock cable to the bracket with the supplied cable clips.

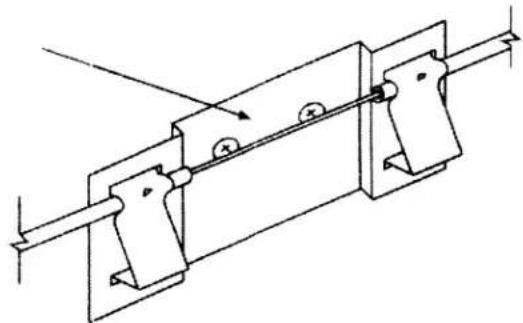

Carefully remove the cables sheathing without damaging the steel cable itself.


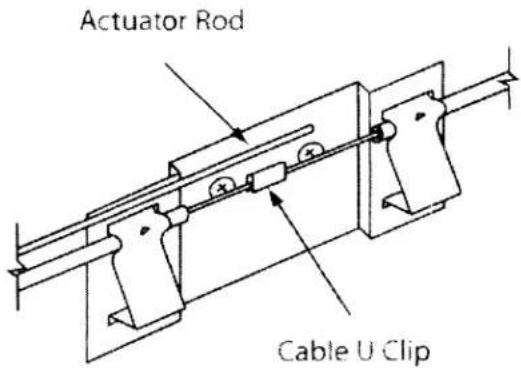

Technical line drawing of a mechanical assembly with rotating components and mounting brackets (no text or symbols)Align the actuator rod with the vehicle's door lock cable and position the cable U clip.

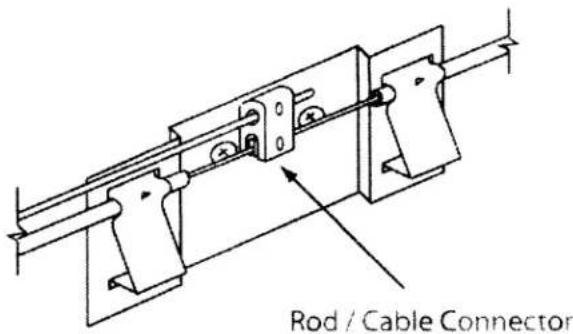

Attach the rod/cable connector and secure with allen screws making sure the cable U clip is in place to prevent damage to the cable.
