BRUKSANVISNING PAX KIRKENES IKEA

PAX

200 cm (78 3/4")

Illustration showing a person pointing to six different types of screwdriver tools: screwdriver, screwdriver with cross, screwdriver with circle, flat/curved tool, scissors, and ladder.

Two stylized human figures standing on wooden blocks, one crossed with a hammer and the other holding a hammer (no text or symbols present)

Two line drawings of birds on different positions: one with a crosshair and the other with a bird-like figure (no text or symbols)

Illustration comparing two scenes: one showing a person with a hammer and question mark, the other showing a person holding a package labeled 'IKEA' connected to a device.

IKEA PAX KIRKENES - PAX - 6

IKEA PAX KIRKENES - PAX - 7

Technical line drawing of a mechanical component with holes and a U-shaped groove (no text or symbols)

4x 120321

Technical line drawing of a mechanical component with multiple holes and a central hub (no text or symbols)

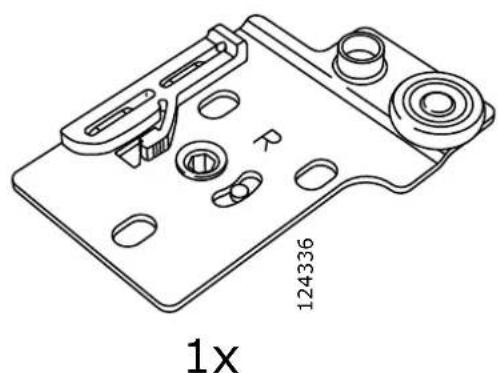

Technical line drawing of a mechanical component with mounting holes and a labeled part '1x' (no text or symbols beyond label)

Technical line drawing of a mechanical component with holes and a circular feature, labeled '1x' (no text or symbols beyond labels)

Technical line drawing of a mechanical component with holes and a labeled part '1x' (no text or symbols beyond labels)

Technical line drawing of a mechanical bracket component (no text or symbols)

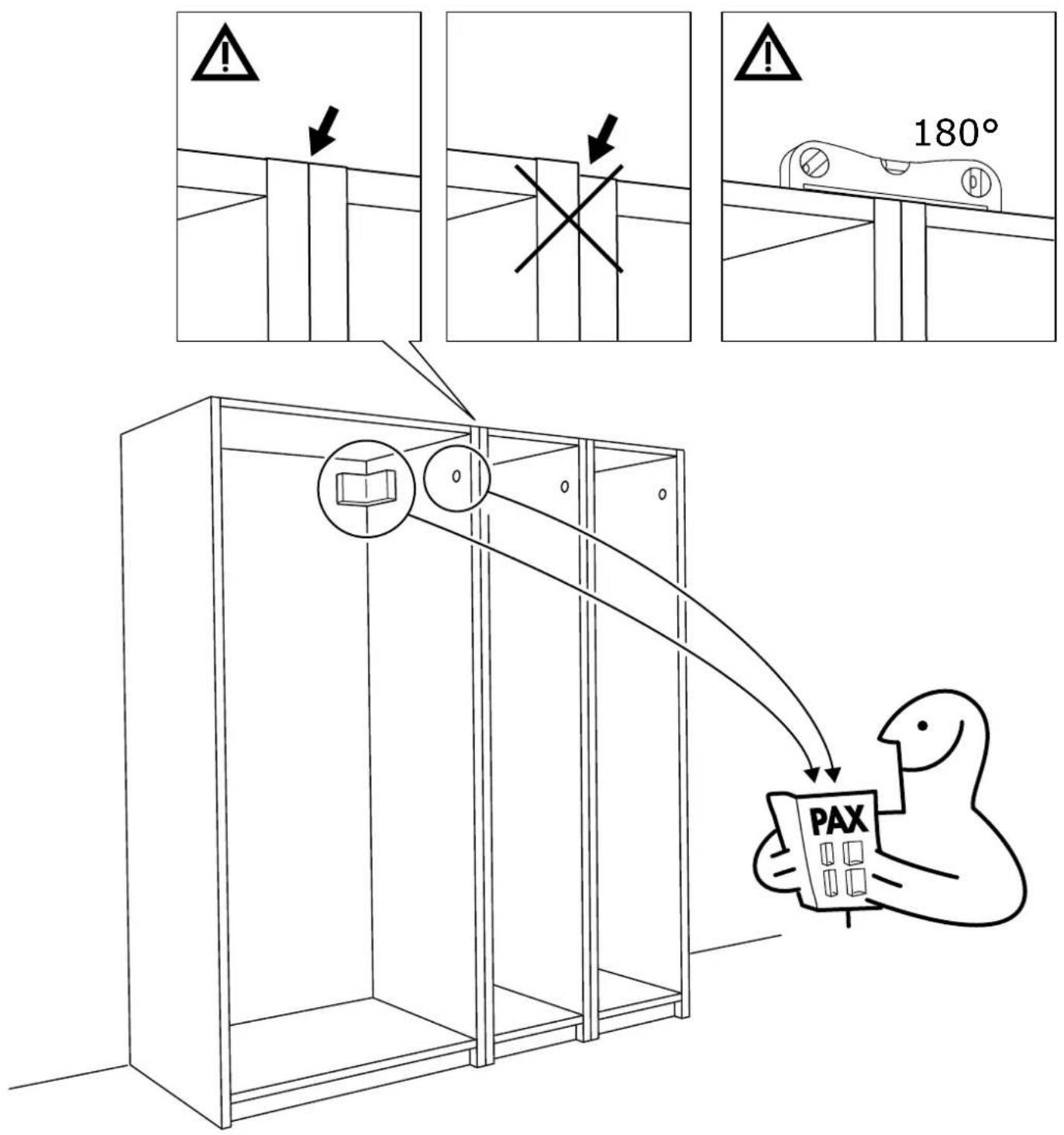

180° PAX

35 cm (13 3/4") Ø 10 mm (13/32") 34 mm (1 3/8") 60 mm (2 3/8") ⚠️ X

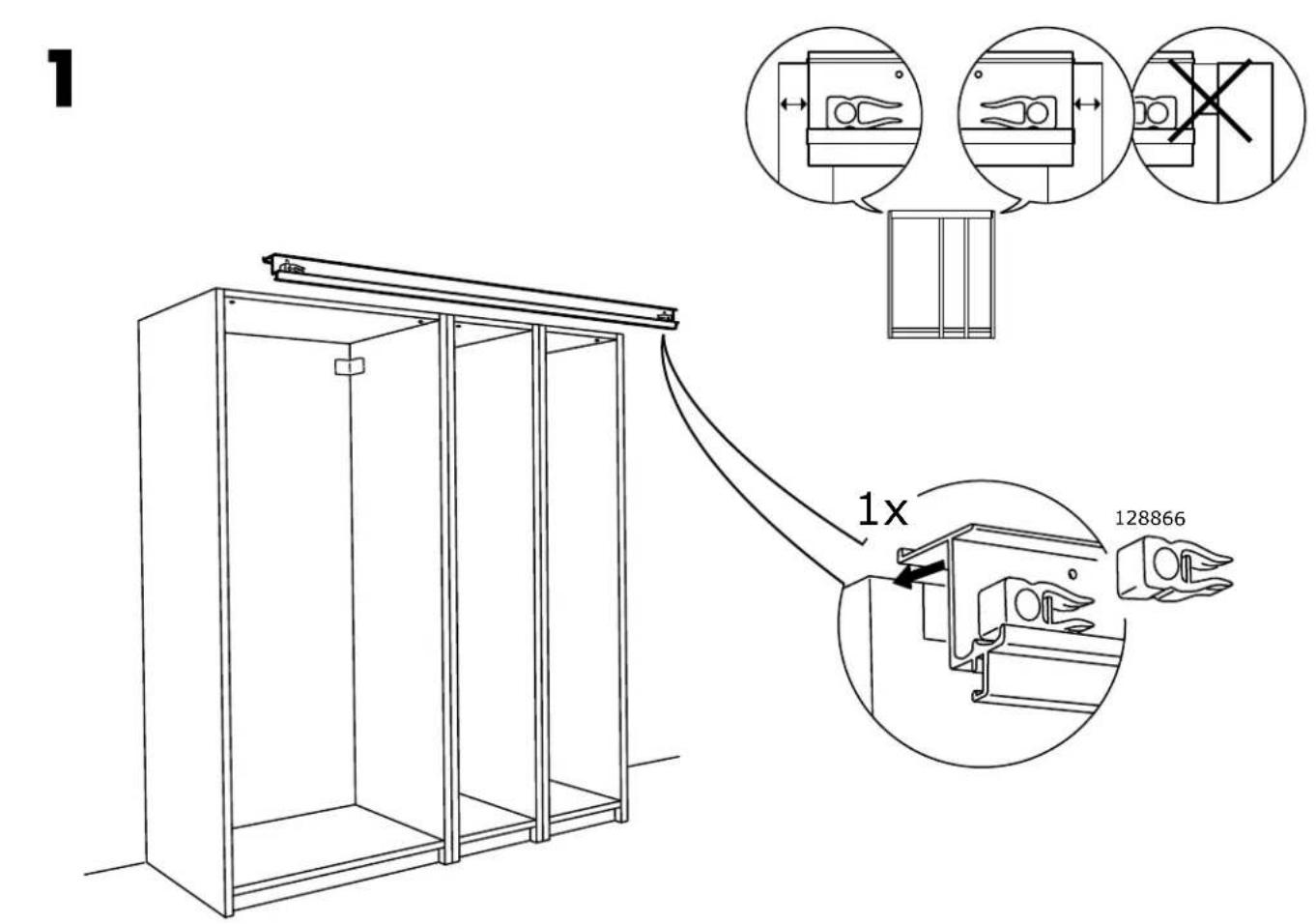

1 1x 128866

2 2x 109564

3
4x 124341 112573 112571

4
124342 8x 110438 101065 110438

5
8x 110438 110438 101065

6 2x R 120321 7 1x 112571

8
3x 112567 112571

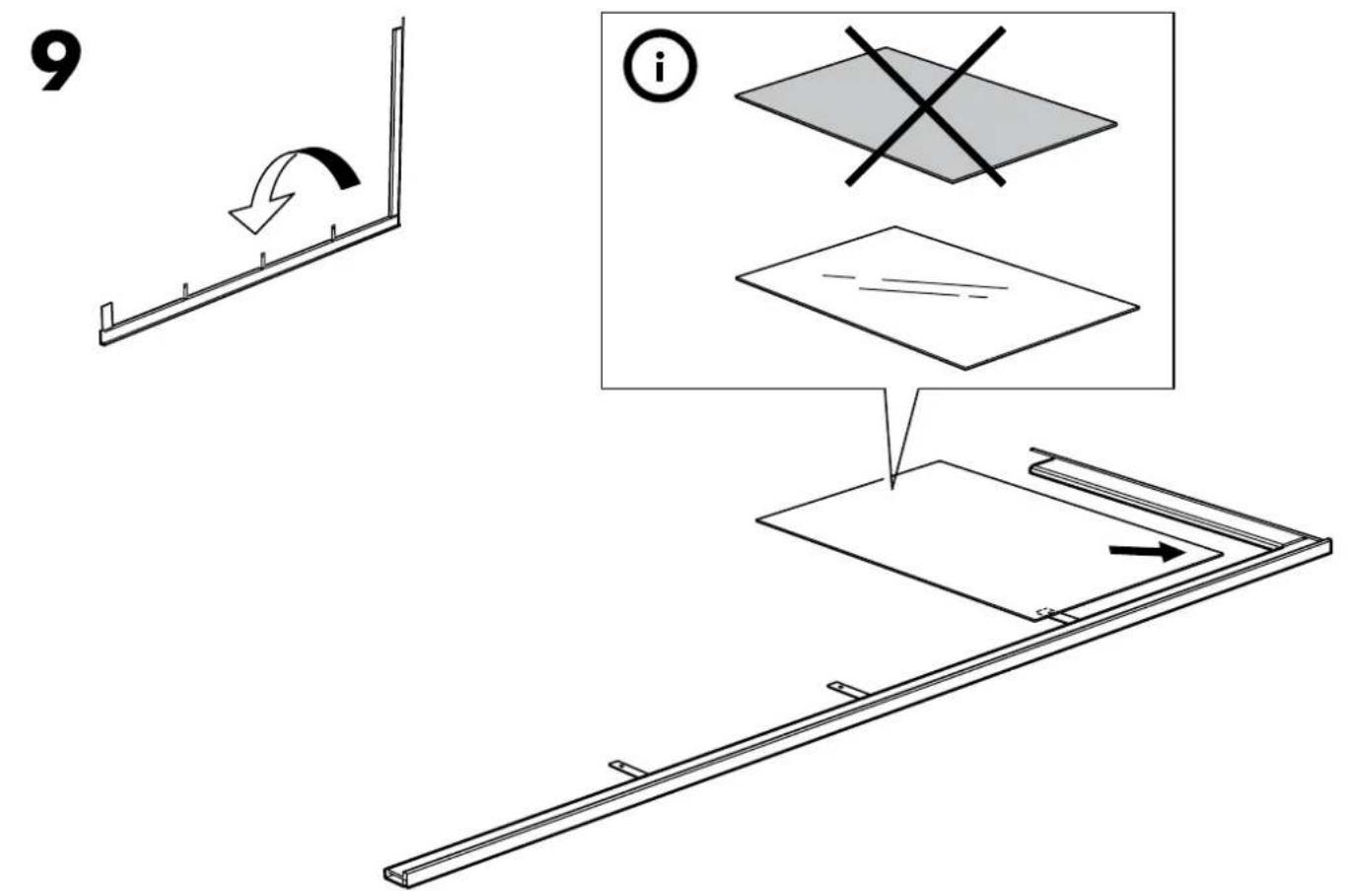

9 i

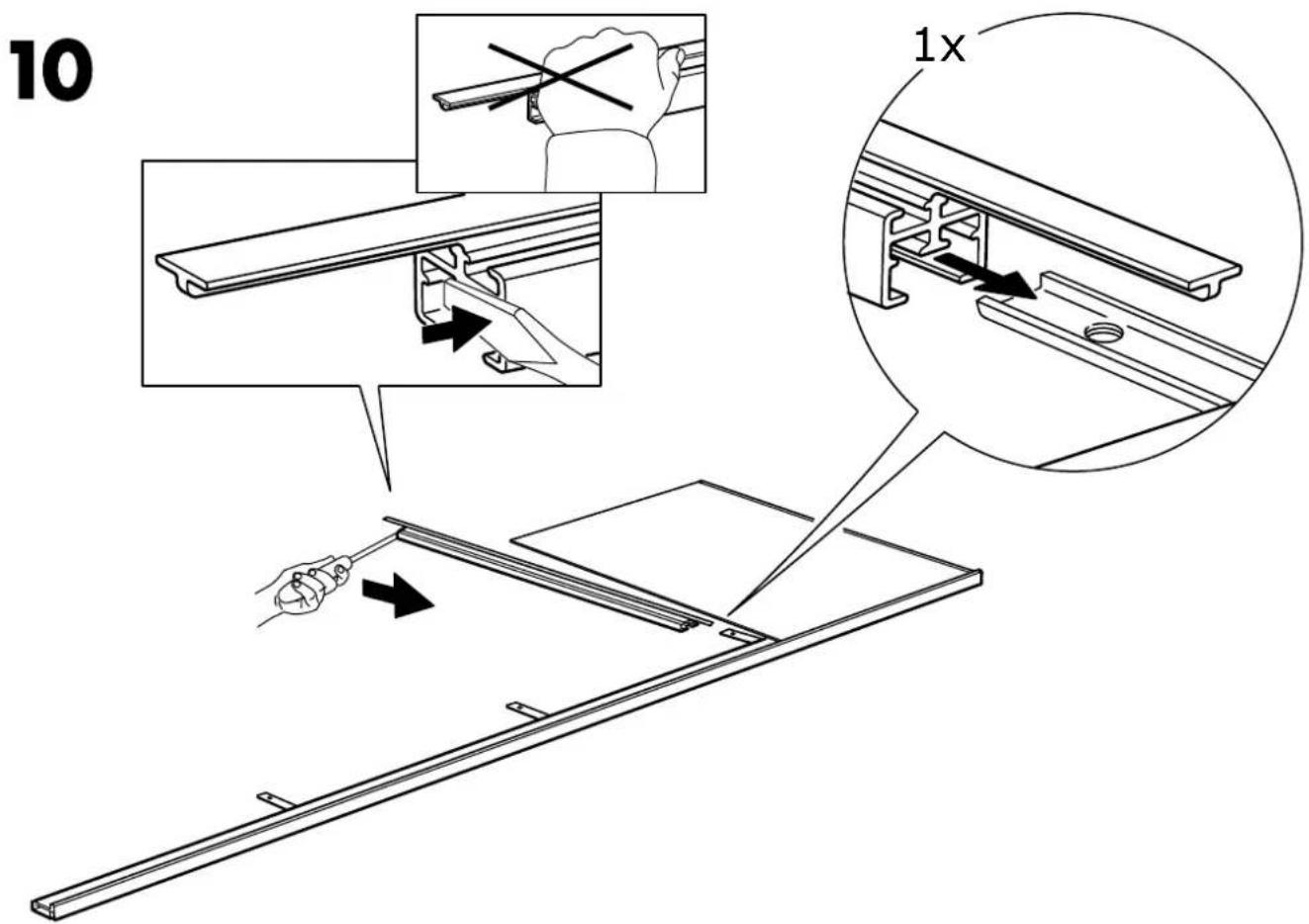

10 1x

11
1x 112567

12
1x 112567 1x

13
1x 112567 1x

120322 1x 112571 L

15
Technical line drawing of a rectangular panel with a curved arrow indicating motion, no text or symbols present

16
6 2x 112571 120321 R 120321 L 120322

17
Technical line drawing of a structural panel assembly with an arrow indicating direction (no text or symbols)

18

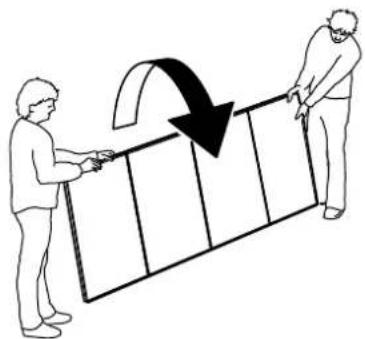

Illustration of two people interacting with a large rectangular block, one moving rightward (no text or symbols)

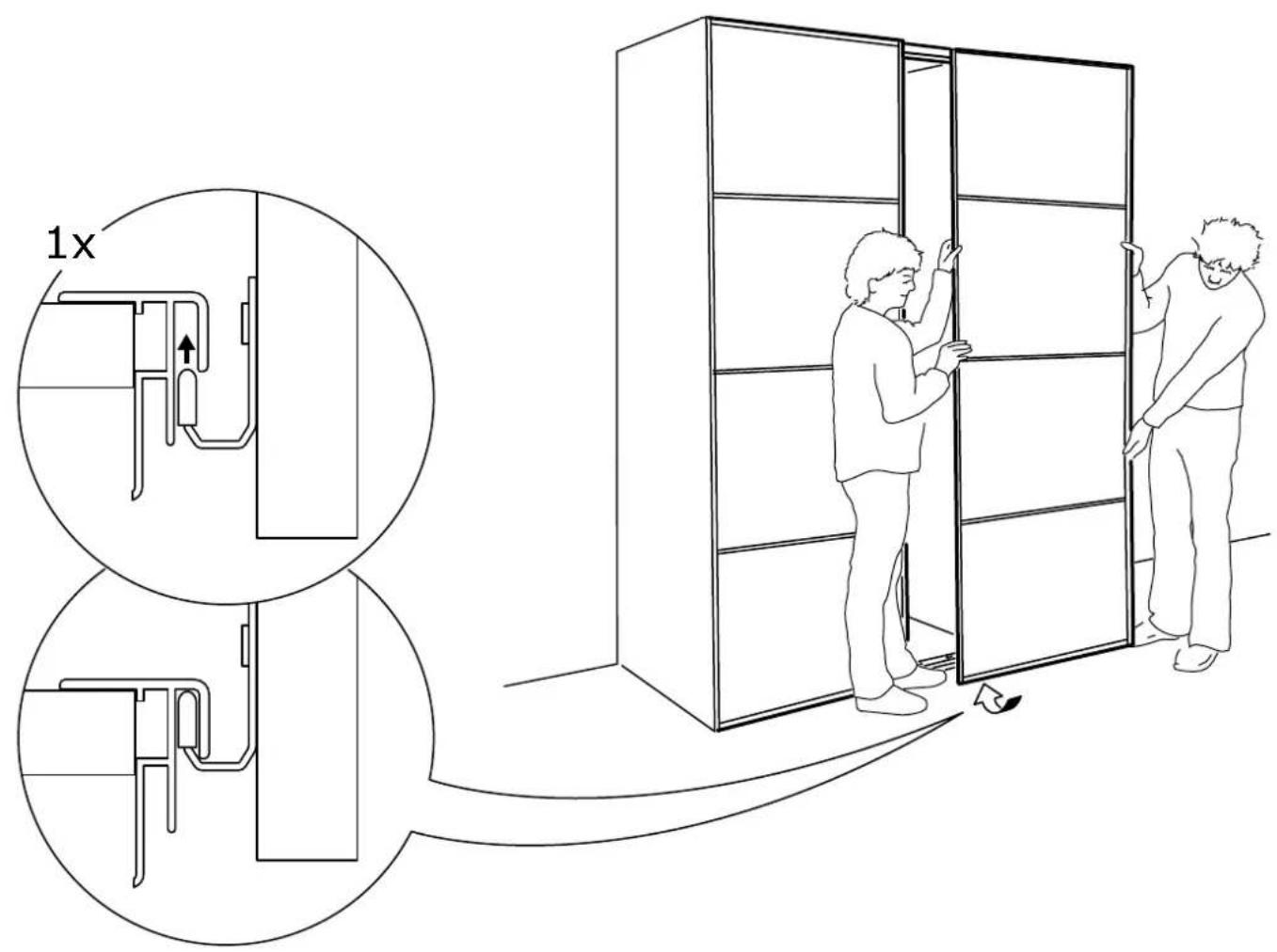

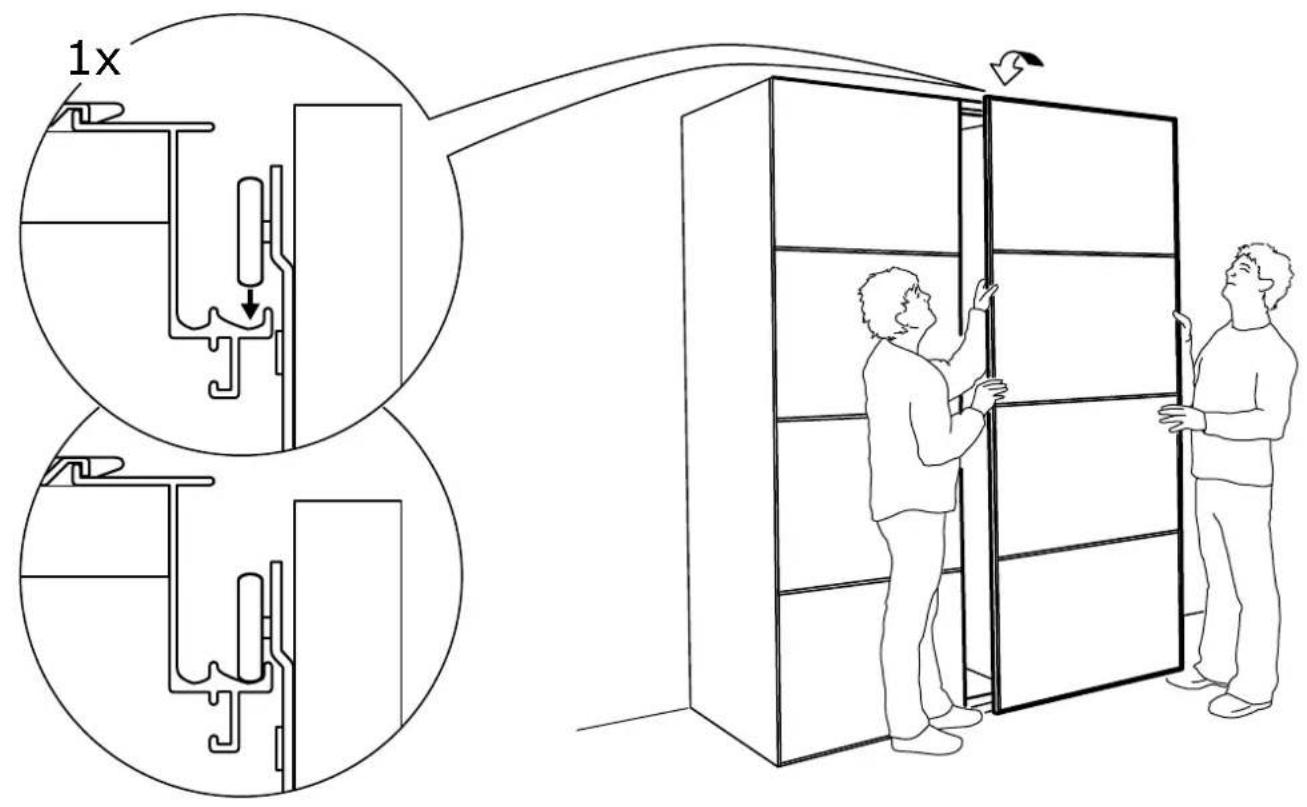

1x 112571 1125

19
9 3x 112571

20

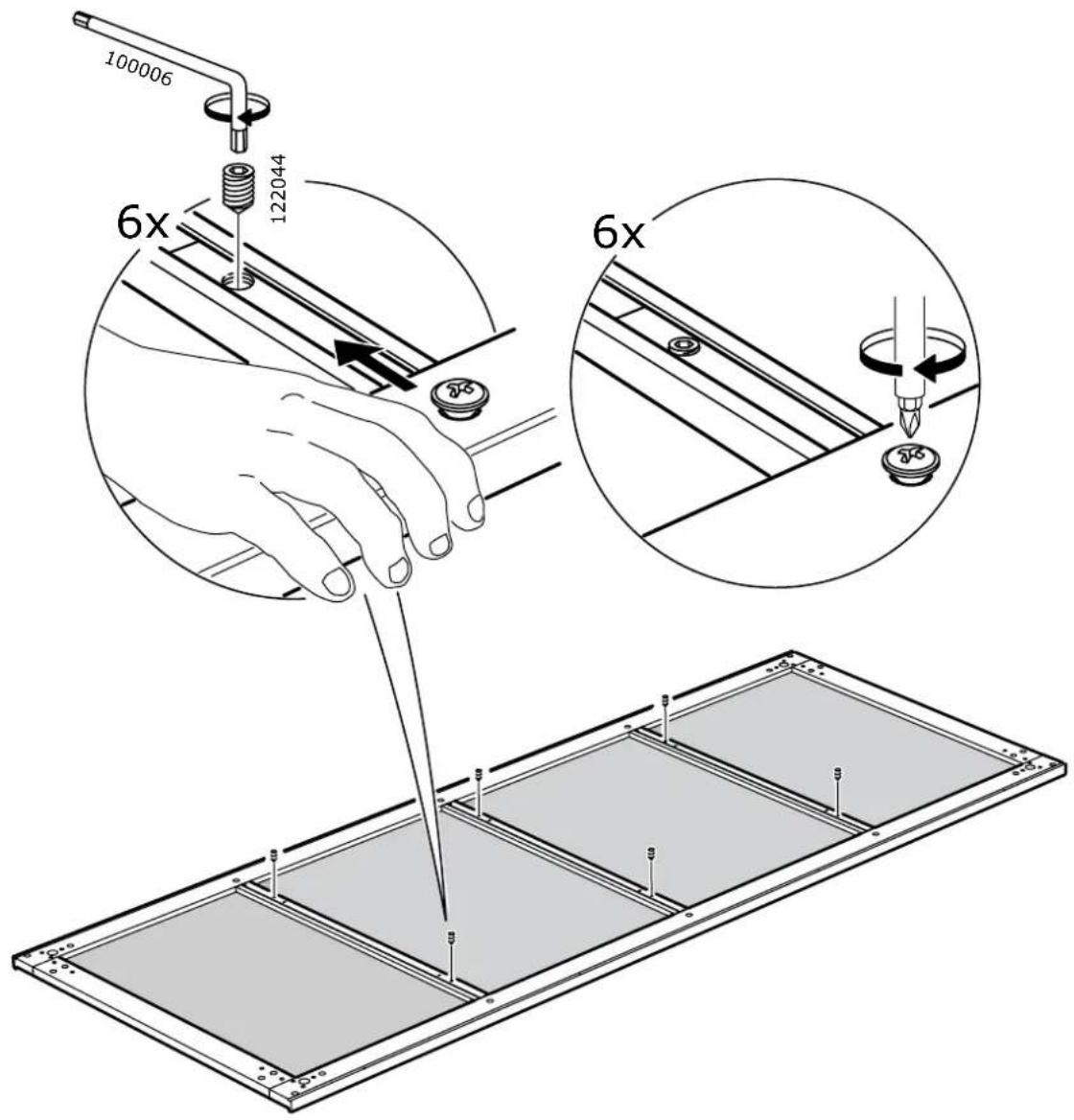

100006 6x 122044 6x

Simple diagram of a 3x3 grid split into two sections, no text or symbols present

21

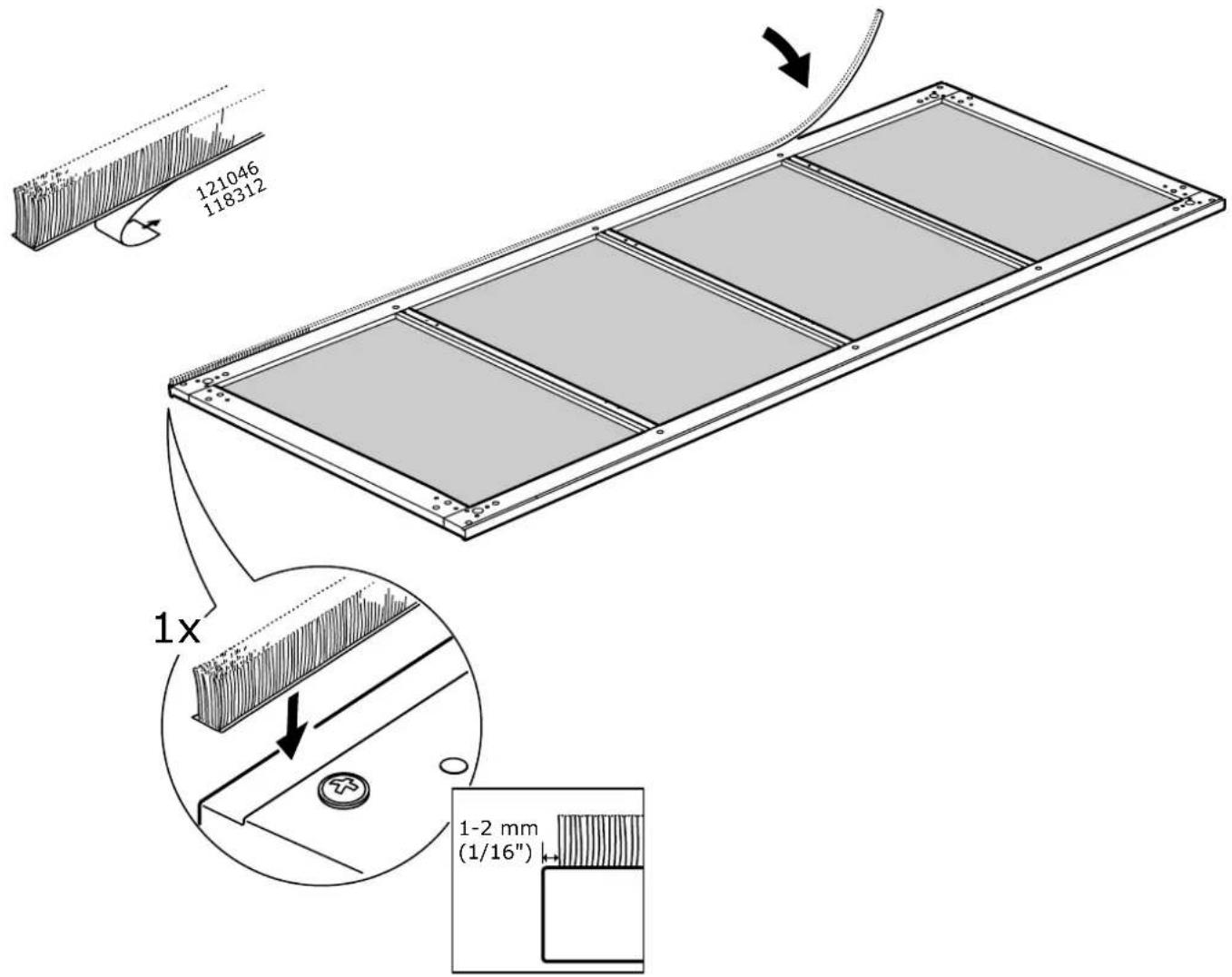

121046 118312 1x 1-2 mm (1/16")

22

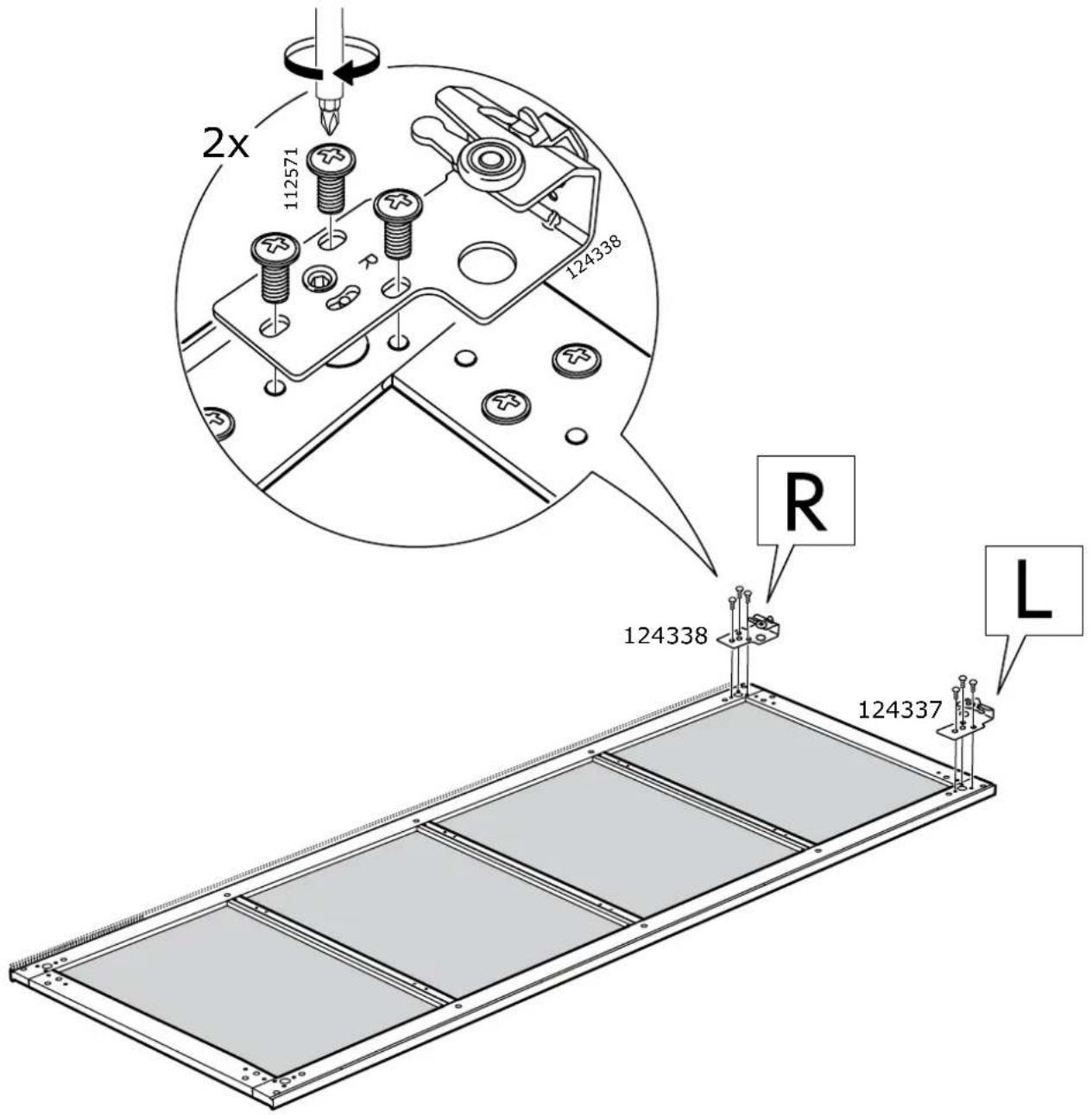

2x 112571 124338 R 124338 124337 L

23
139159 2x 6x 139159

24
Technical diagram showing a structural panel with cross-sectional details and 1x magnified view of the component being rotated.

25

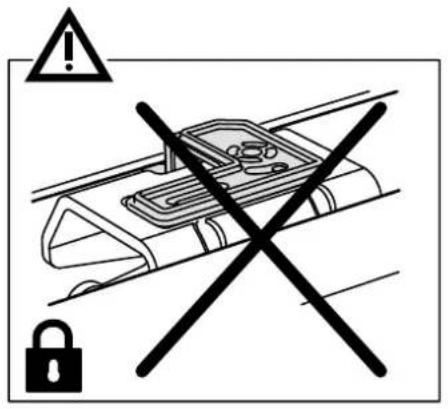

Warning symbol with exclamation mark and lock icon, indicating no liability or invalid status

Two-panel illustration showing hands installing a device with a lock mechanism (no text or symbols)

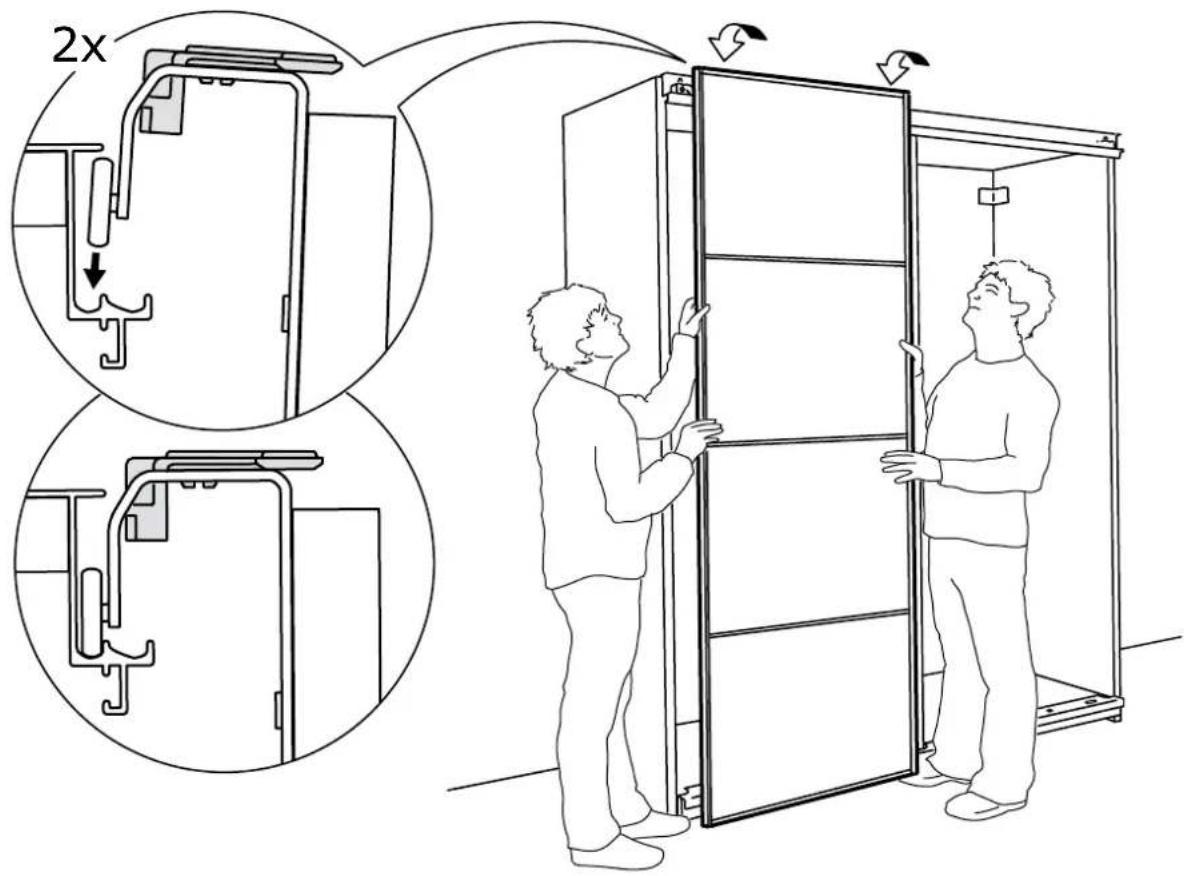

2x 2x

26

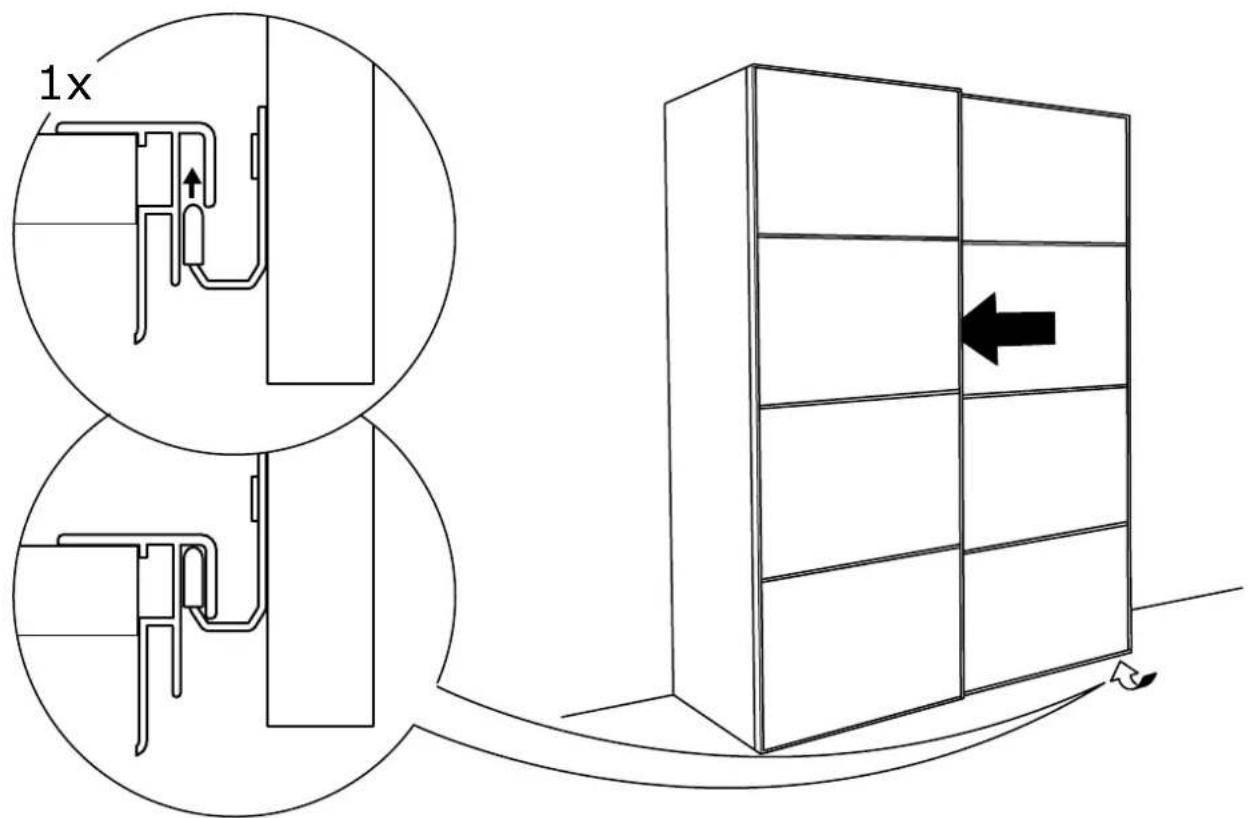

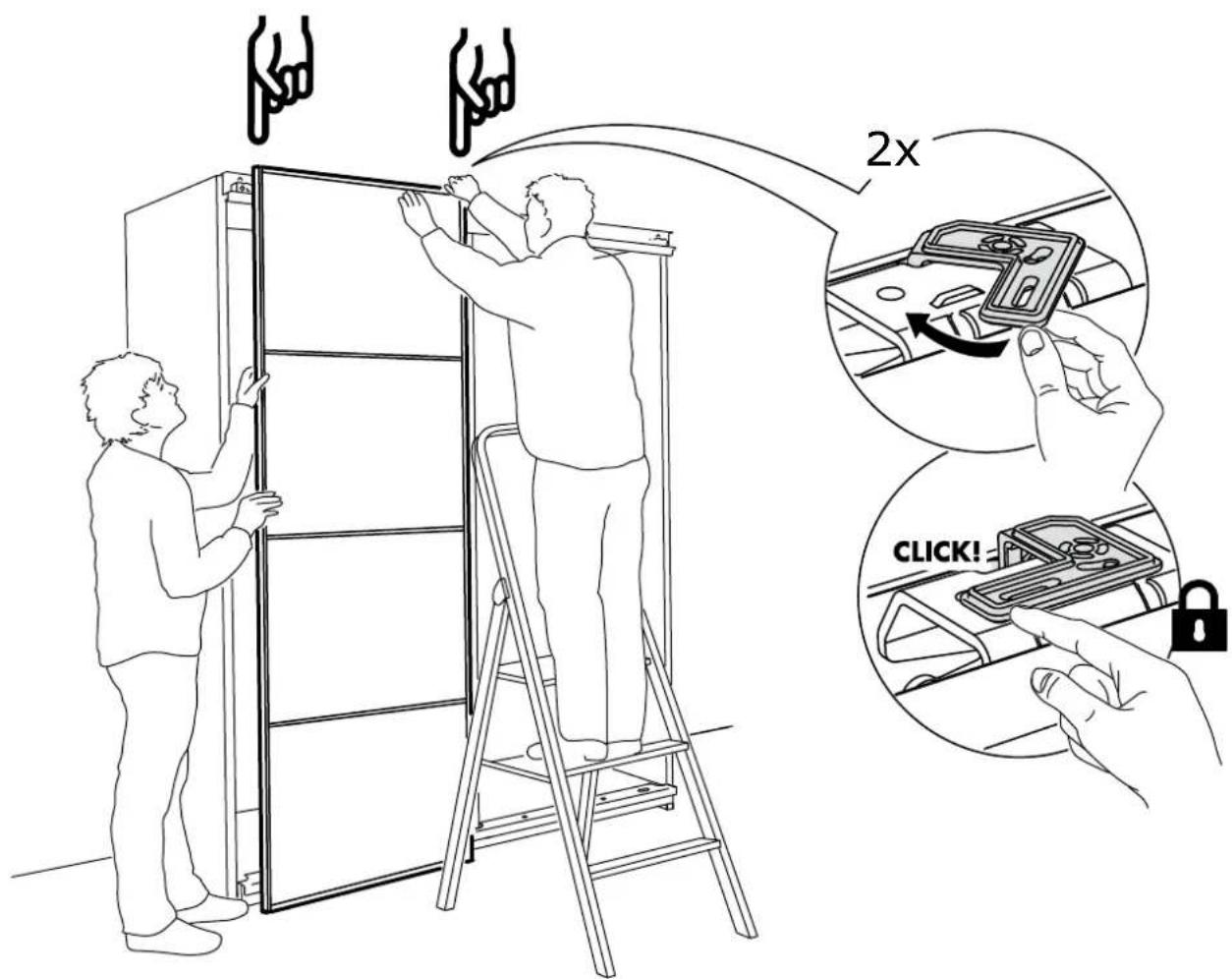

2x CLICK!

27

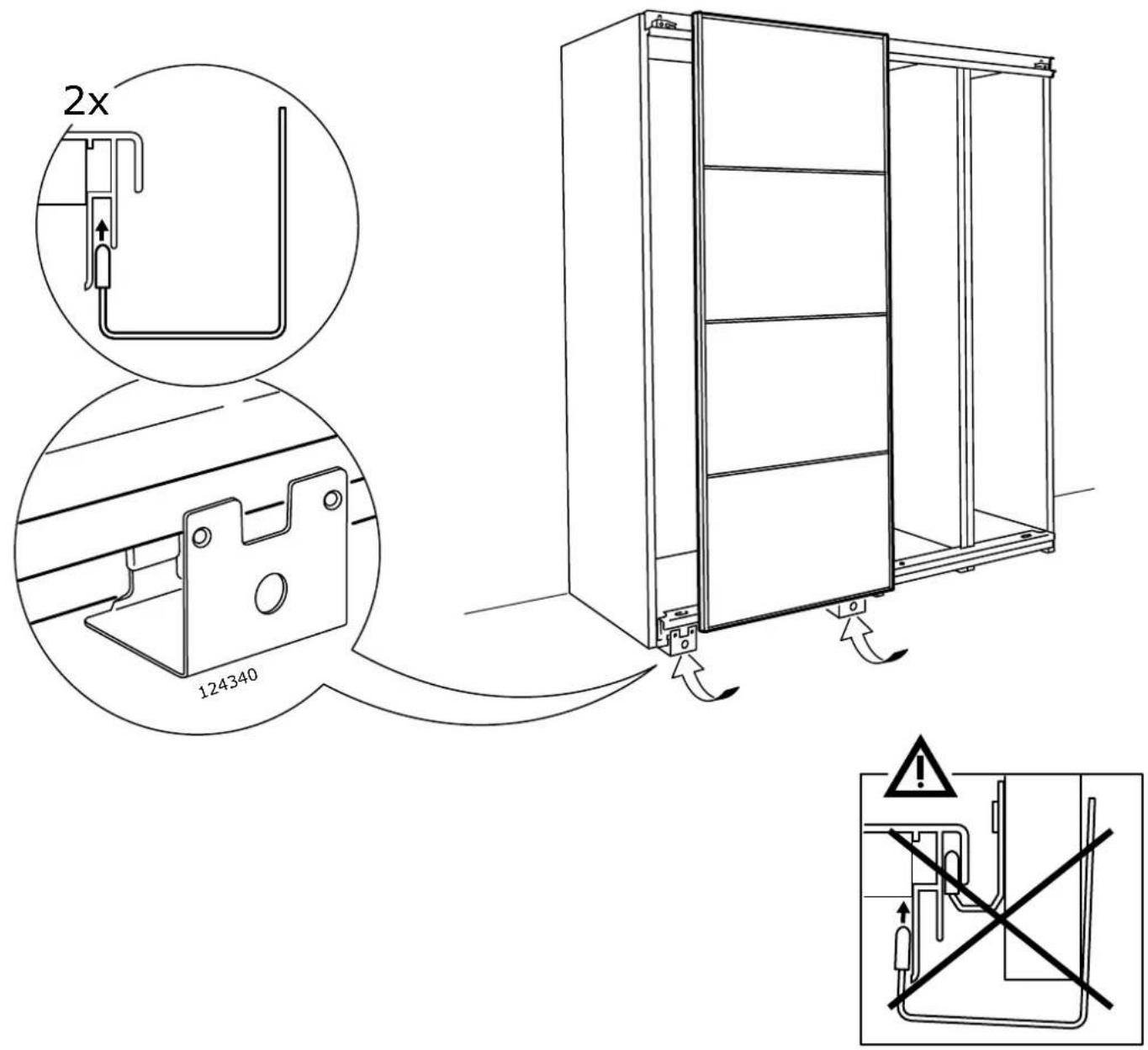

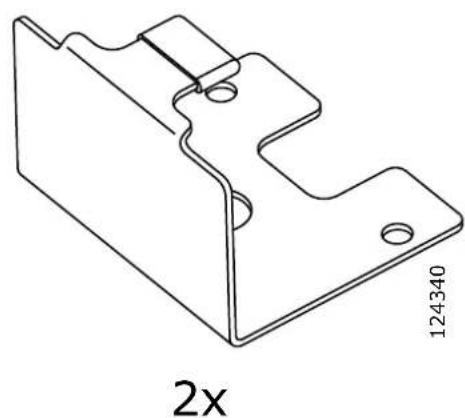

2x 124340

28 1x1x 112571 139159 1x 112571 1x 139159

Simple 3x3 grid diagram with alternating white and gray panels, no text or symbols present

29
121046 118312 1x 1-2 mm (1/16")

30

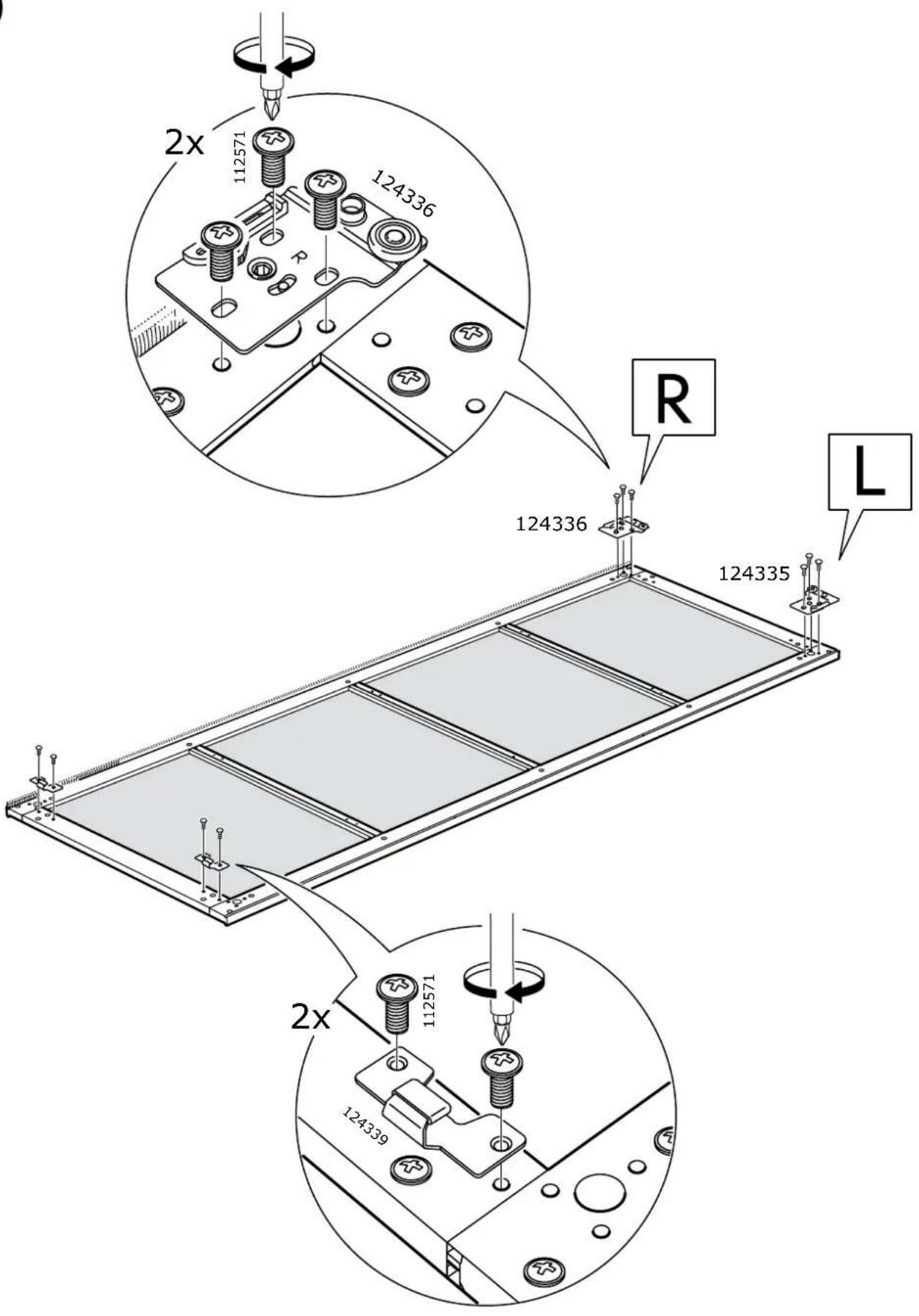

2x 112571 124336 R 124336 124335 L 2x 112571 124339

31

Warning sign with warning symbol, crossed-out device, and lock icon

Illustration of a hand using a tool to cut or adjust a piece of coins on a table (no text or symbols present)

Illustration of a hand using a tool to cut or install a piece of coins, with a lock and padlock nearby (no text or symbols)

34
Diagram illustrating a person opening a cabinet with a 1x magnified view showing internal components and structural changes.

35
35 2x

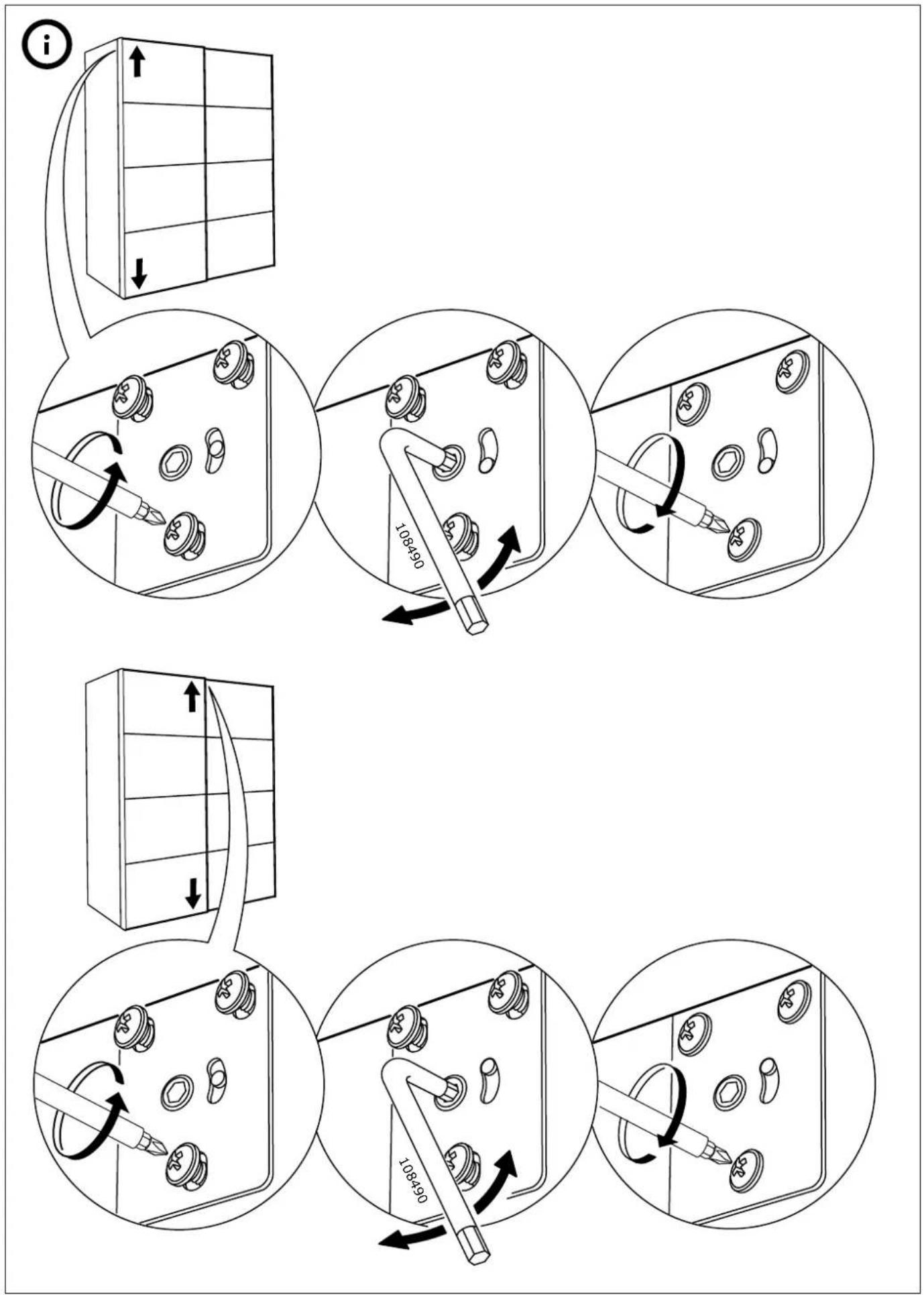


36
121063 118313 1x

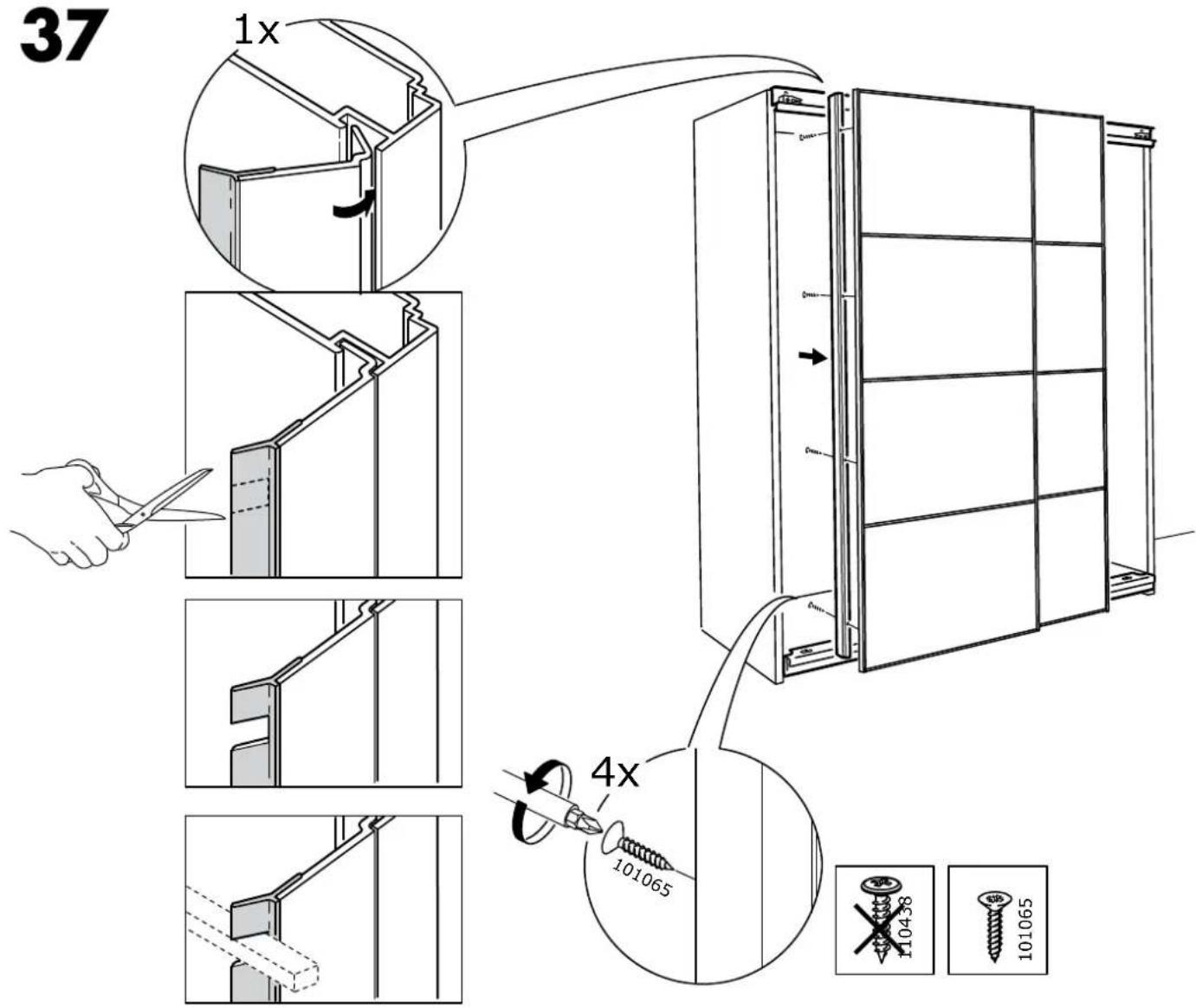

37 1x 4x 101065 110438 101065

38

2x 8x 110438

i 108490
