BRUKSANVISNING ThunderForm C1500C-07L MTX Audio
STEP 1: STEP 2:


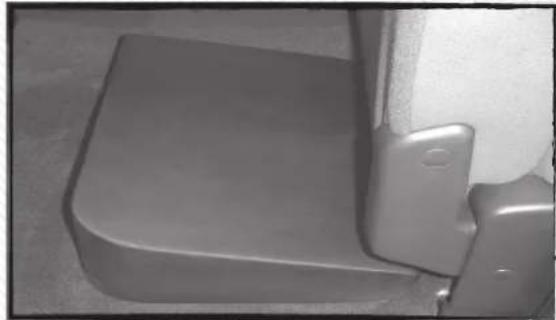

Close-up of a gray plastic door or seat with a small circular button on the side (no visible text or symbols)Flip up the driver side rear seat and place the enclosure on the floor as shown above. The enclosure should be inside the seat trim when the seat is in the lowered position.


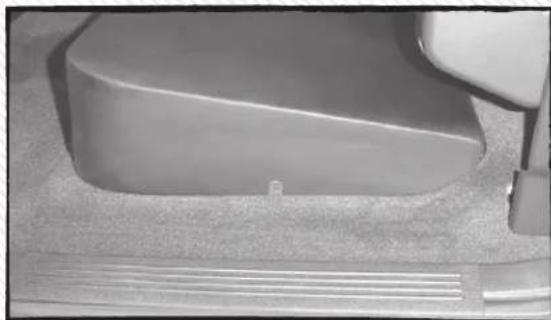

Close-up of a car seat and rear ramp mechanism (no text or symbols visible)Attach the mounting bracket to the enclosure as shown using (2) 2" screws to attach the bracket to the floor, and (1) M6 bolt to attach the bracket to the enclosure.
STEP 3:


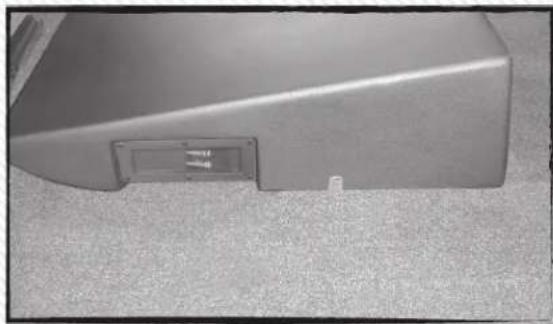

Close-up of a gray plastic container with a small rectangular slot on the side, placed on a textured surface (no text or symbols visible)From the passenger side, attach the second bracket to the enclosure as shown. Use the same screws from Step 2.
STEP 4:


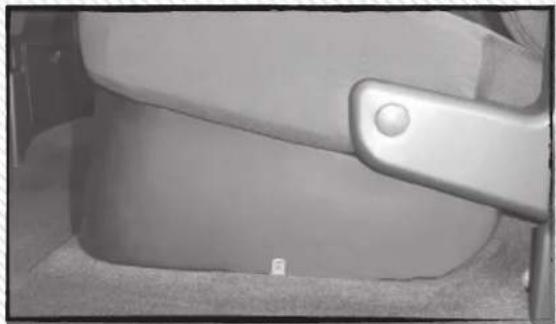

Close-up of a car seatbelt buckle with a handle and mounting bracket (no text or symbols visible)Make all final wire connections (See Page 2) and fold the seat down. Your installation is complete. Enjoy your new bass in a small space.

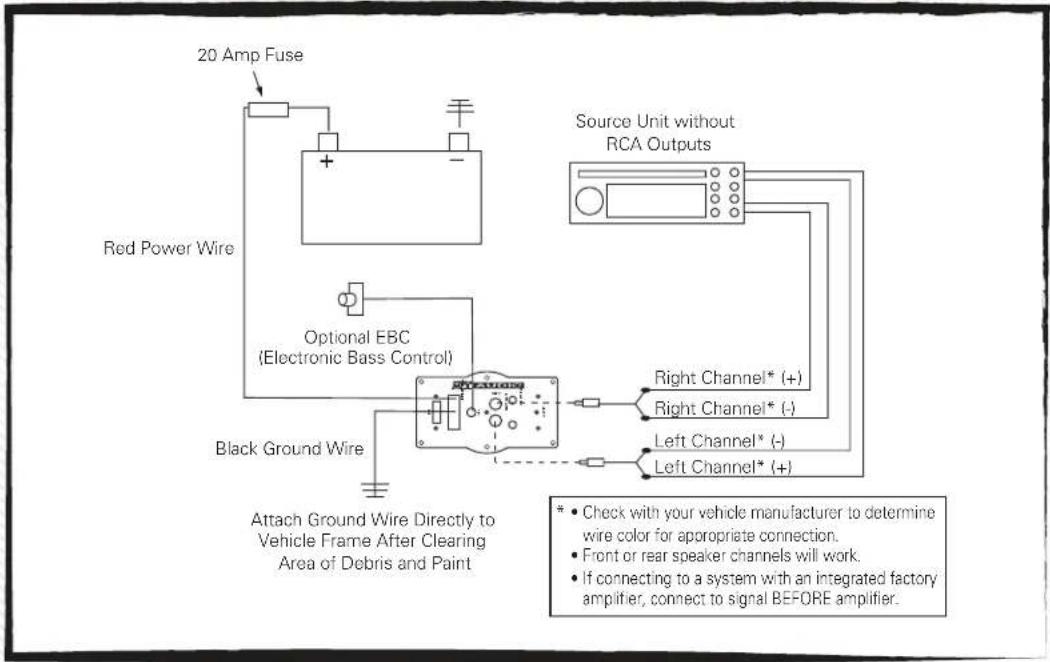

Speaker Level Wiring

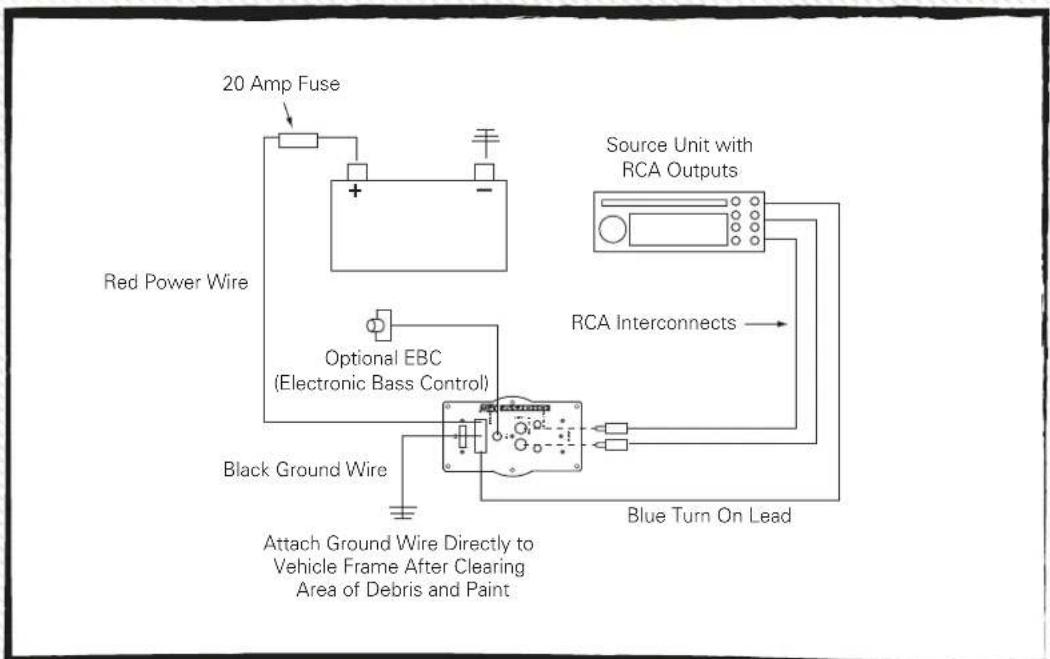

RCA Interconnect Wiring
