BRUKSANVISNING AJ-S55FX HITACHI

HITACHI FULLY AUTOMATIC WASHING MACHINE 日立全自動洗衣機

Model AJ-S55FX

Thank you for your purchase of HITACHI Fully Automatic Washing Machine.

• Please read this manual carefully for proper operation.
• Please keep this manual for future reference.

承蒙您選購日立的全自動洗衣機，謹此致衷心謝意

• 請細閱本說明書，以便正確使用本洗衣機
。閱讀完畢，請妥善保存本說明書，以備將來查閱

CONTENTS

目錄

Preface 前言 3

Safety Precaution 安全方面的注意事項....4

Installation Guide 安装指南 7

Installation 安装 12

Safety Check 安全檢查 13

Washing Machine Repair 洗衣機修理事宜....13

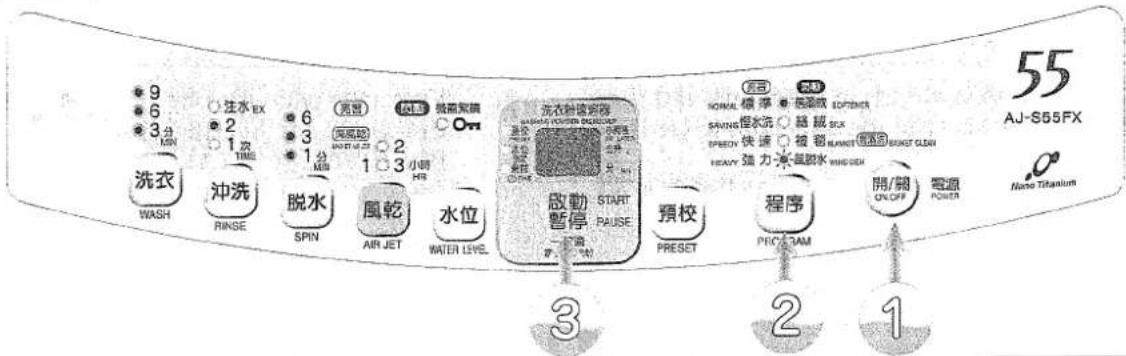

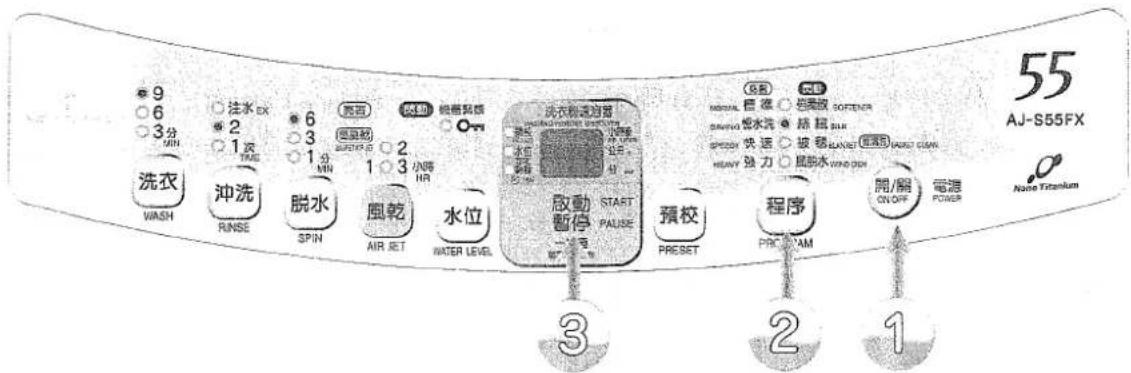

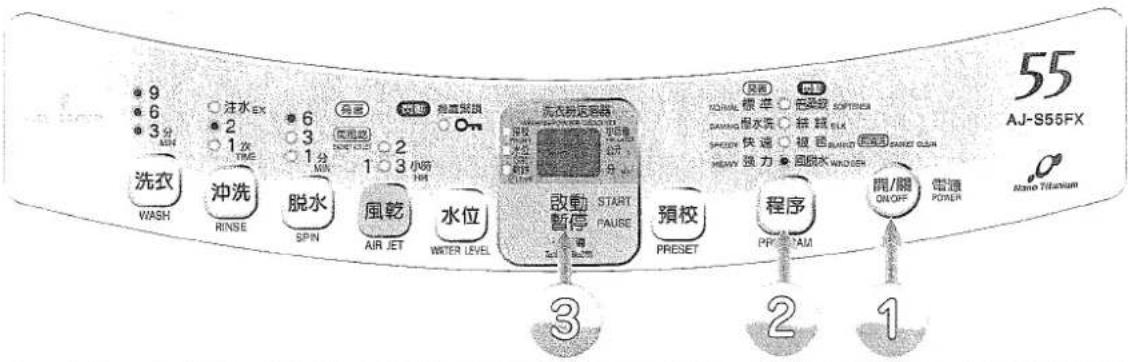

Control Panel 控制面板 14

Technical Description 各部件名稱 17

Before Using Your Machine 開始洗衣前 18

How to Use Detergent, Bleach and Fabric Softener

洗衣劑·漂白劑·柔軟劑的使用方法 19

Checking Amount of Laundry and Water Level Display

檢測洗衣量和水位顯示....22

Amount of Laundry and Detergent 洗衣量和洗衣粉量 23

Selection of Laundry Process 洗衣程序的選擇方法 24

NORMAL Process 標準程序....25

SAVING Process 懶水洗程序 27

SPEEDY Process 快速程序 29

HEAVY Process 強力程序....30

SOFTENER Process 倍柔軟程序....31

SILK Process 絲絨程序 32

BLANKET Process 被毯程序 36

WIND DEHYDRATION Process 風脫水程序....39

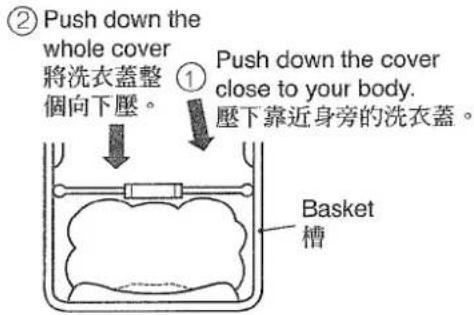

Using the Washing Cap 使用洗衣蓋 40

Washing in Your Favorite Way 按照您喜歡的方式進行洗衣 42

Content of the Laundry Process 洗衣程序的内容 44

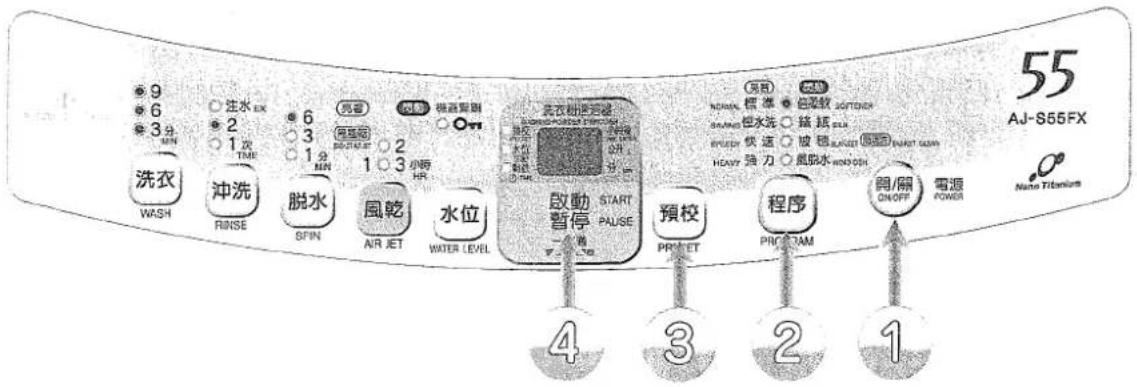

Using the Timer for Washing 預校定時洗衣 45

AIR JET Process 風乾程序 47

Using the Detergent Again 再次使用洗衣液 51

Use Guidelines 使用中的注意事項 52

Maintenance and Repair 維護保養方法 53

When Failure Happens 有故障發生時 ..... 58

Optional Parts 另售部件 64

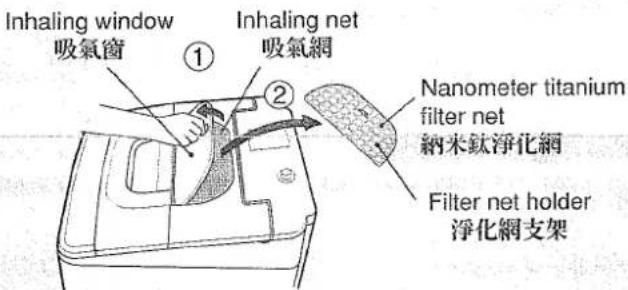

Air-jet drying 空氣噴射乾燥

It's an economic mode of drying without heating.

無需進行加熱的節能乾燥方式。

• May be used to dry the heat-irresistible swimsuit or the underwear containing the amino heat-insulation materials. 可乾燥不耐熱的泳衣或含氨基隔熱材料的內衣。
- Keep room free of mugginess for causing no temperature rise. 由於溫度不上升，房間不會悶熱。
• Control the black mildew. 抑制洗衣槽中的黑色霉菌。

※The drying capacity can be as high as 1.5kg.

乾燥容量可達1.5kg。

※The duration is irrelevant to the dryness level for applying the timer mode of drying.

採用定時乾燥方式，結束時間與乾燥程度無關。

Please read "USER MANUAL" carefully for proper operation.( ↗ 46)

請仔細閱讀“使用說明書”，以便您能正確使用。(46)

Laundry rearrangement and spinning 理衣脱水

Loosen the post-spinning laundry for easy taking out. 疏鬆脫水後的衣物，使之易於取出。

※ The laundry rearrangement may be out of service in the case that the washing capacity is more than 3kg. 洗衣量超過 3kg 時，有可能無法進行理衣程序。

※ The laundry rearrangement doesn't perform in the case of manual setup of "RINSE", "SPIN" or "SPIN ONLY". 手動設定“漂洗”、“脫水”或“只脫水”等時，不進行理衣程序。

Penetrating Wash with creamy detergent 乳脂型渗透清洗

Detergent penetrates the fabric, separating dirt from the fibers.

洗衣劑滲透至衣料內部，使污垢從布料纖維上脫落。

Soak clothes in concentrated extra strength detergent to get them completely clean.

使用通過濃縮而提高了去污力的洗衣液浸透衣物，從而徹底清除污漬。

1. Dissolve 溶解


Dissolve detergent to make concentrated detergent liquid.

溶解洗衣劑 制成濃縮洗衣液

2.Wet 濕潤

Dampen the clothing to help the detergent soak in.

輕微濕潤衣物以便於洗衣液的浸透

1. Soak 渗透


Simple line drawing of a T-shirt inside a garment with arrows indicating fabric or movement (no text or symbols)

Add concentrated liquid detergent, completely soaking the stain.

加入濃縮洗衣液，充分浸透污漬

1. Rub clothing thoroughly 逐步搓揉浸潤


2. Wash normally 正式清洗


Simple line drawing of a container with internal flow arrows, no text or symbols present

Washing-Powder Dissolver 22

The detergent dissolves when mixed by the electric motor, creating a fine, creamy concentrated detergent liquid.
※Please do not use soap powder or other hard to dissolve detergents in the washing-powder dissolver.

洗衣粉速溶器 22

洗衣劑与水在電動機的攪拌下溶解，

形成細膩的乳脂型濃縮洗衣液

*對於肥皂粉或不易溶解的洗衣劑，請勿使用洗衣粉速溶器。

Please read this part of substance carefully for proper operation before using your machine.

使用之前，請仔細閱讀這部分的內容，以便正確使用。

★ The precautions stated here are classified as "Warning" and "Attention" according to the damage and the emergency caused by misoperation, and are described respectively in line with the marks below

這裏所說的注意事項根據誤操作而引起的傷害大小以及緊迫程度，分為“警告”和“注意”兩種，並且按照以下標識進行區分說明

	This mark indicates the content of warning or attention.表示敦促警告及需要注意的内容。
	This mark indicates the prohibited action.表示禁止行爲。
	This mark indicates the compulsory action to be carried out.表示必須執行的強制行爲。

Warning 警告

Warning 警告
DismantlingProhibited禁止拆卸Avoid electric shock, fire, and body injury due to improper activity.避免因不恰當行為而導致觸電、火災及人身傷害。	Dismantle, repair or alterations should only carried out by professional technicians.除指定的專業維修人員外,應絕對禁止他人拆卸、修理或改裝洗衣機。	Please use the single socket with 220V, 10A specification.請單獨使用額定值為交流220V、10A以上容量的電源插座。The share of the same socket with other electric appliances may cause fire due to excessive heat.若與其他電器設備共用同一插座,可能因異常發熱而導致火災事故。
Grounding接地連接To prevent electricity leak which may cause injuries.避免因漏電故障引起傷害。	This washing machine is equipped with the electricity wire with bi-electrode grounding plug, please use the bi-electrode grounding socket.The creepage protector shall be used if possible.本品採用二極接地插頭電源線,請使用二極接地電源插座。可能的話,最好使用漏電保護器。	Washing machine should not be installed in humid place or in places exposed to wind and rain.Humid places prohibited禁止潮濕地方請勿將洗衣機安裝在潮濕或容易受到風吹雨淋的地方。Otherwise, electricity leak causing electric shock or fire may occur.避免觸電或因漏電而引發火災事故。
Wet handsProhibited禁止湿手觸摸Otherwise, this may cause electric shock.否則可能導致觸電事故。	Electricity supply must be unplugged with dry hands.嚴禁使用湿手插拔電源插頭。
Do not put your hand into the basket until it has stopped completely.在脱水槽完全停止轉動前,嚴禁將手伸進槽內拿取衣物。Even when the spinning of the basket is slow, there is still a danger of being caught in the motion, resulting injuries. Particular attention should be paid when children are around.即使旋轉緩慢,手部仍有被衣物纏繞的危險。兒童尤需注意。	Do not put your hands into the washing · spinning basket during the washing and rinsing process.Prohibited 禁止 洗衣和沖洗過程中,嚴禁將手伸入洗衣·脫水槽內。Even when the spinning is slow, hands may be trapped by clothes. If necessarily, please press pause button, and put your hands into the basket after it has stopped completely.即使旋轉緩慢,手部仍有被衣物纏繞的危險。(若必須將手伸入槽內時,請按下暫停按鈕,待洗衣,脫水槽完全停止旋轉後再伸入槽內)。
Damaged or loosen wire or plug should not be used.嚴禁使用已損壞的電源線、插頭或鬆動的插座。Otherwise electric shock, short circuit or fire may take place.否則可能導致觸電、短路或起火。	Do not damage wire.嚴禁損壞電源線。Prohibited 禁止Do not damage or alter the wire forcibly bend, pull, twist or handle the wire. Beside, please do not put weight on or trap the wire.請勿隨意進行改裝、強行彎曲、拉伸、扭曲及捆扎電源線。此外,亦請勿將重物壓在其上或夾於其中。Damage of wire may cause electric shock or fire.若電源線遭受損傷,可能導致觸電或火災。
Keep child away from the washing · spinning basket and do not place box or shelves next to the washing machine.嚴禁讓兒童探看洗衣·脫水槽。也請勿在洗衣機旁放置台架等物品。Children may fall into the basket resulting in injuries.兒童可能因掉入洗衣·脫水槽中造成人身傷害。	Thoroughly wipe the power plug when dirt is adhering the prong or around the base of the prong.Clear 清掃 電源插頭的插片以及插片的夾緊面上,若有塵垢附著時,請擦拭乾淨後再使用。Failure to do so may cause a fire.可能會引起火災。
This washing machine is strictly prohibited to get close to the locations with candle, mosquito-repellent incense, dog-end or other kinds of open flame.本洗衣機嚴禁靠近蜡燭、蚊香或煙頭等有明火的場所。To avoid injuries caused by the lock damage.避免因機構損壞而招致意想不到的傷害。	Do not put gasoline, benzine, alcohol, thinner of fabrics with these stains into or near to the washing machine.請勿將汽油、香蕉水、酒精、燒鹼或沾有上述液體的衣物放入槽內或靠近洗衣機。To prevent fire or explosion which may cause injuries.否則可能引發爆炸或火災事故。

Warning 警告

Prohibited 禁止

Do not insert a screwdriver into the Lid Lock hold.

嚴禁用螺絲刀插入洗衣機機蓋緊鎖裝置部位的孔內。

Prohibited 禁止

Do not open the lid in locked status by force. 嚴禁強行打開處於鎖定狀態的機蓋。

- Otherwise, the lid or locking device may be damaged, resulting in unstoppable spinning of washing • spinning basket and thus causing injuries. 否則將會損壞機蓋或鎖緊裝置，導致洗衣·脫水槽無法停止旋轉，造成人身傷害。

• To avoid injuries caused by the lock damage. 避免因裝置損壞而招致意想不到的傷害。

Attention 注意

Prohibited 禁止

Do not pull the wire from the socket when unplugging the unit.

拔掉電源插頭時，切勿拉扯電源線，必須拿住插頭本體向外拉。

To avoid electric shock or fire cause by short circuit may result. 避免觸電或因短路導致火災事故。

Prohibited 禁止

Do not stand on or put weight on the top of the unit.

請勿站立在洗衣機上，或者在其上放置重物。

- Otherwise, deformation and damage may result causing injuries. 可能因變形或損壞而造成人身傷害。

Prohibited 禁止

Water of above 50°C should not be used for washing.

用溫水進行洗滌時，水溫嚴禁超過50℃。

Prohibited 禁止

Keep hands and feet away from the bottom of the washing when it is motion.

運轉過程中，請勿將手或腳伸至洗衣機的下部。

- Ports in motion beneath the unit may cause injuries. 旋轉部件可能會引起人身傷害。

Illustration of a person using a washing machine (no text or symbols visible)

- Electric shock or leakage due to aging of insulator may cause fire. 可能因絕緣老化而引發觸電、漏電或火災事故。

Please unplug the unit when not using the unit for a long period of time.

不使用洗衣機時，必須將電源插頭拔出。

water leakage 漏水

Check water supply hose connection by turning on the water before washing.

開始洗衣前，請先打開水龍頭，檢查供水管的連接狀況。

- To prevent damages caused by possible water leakage due to loosen screw. 如果螺釘鬆脫，會因漏水而招致不必要的損失。

water leakage 漏水

Water supply hose should be tightly screwed to the unit.

供水管連接機體的螺母必須擰緊。

- Failure to do so may result in water leakage 可能導致漏水。

- Used for a long period of time, the unit may result in water leakage caused by loosen union nut. So please check it in time and screw tightly again.

長期使用後，可能會因連接螺母鬆動造成漏水而遭受不必要的損失。因而請務必定期檢查並重新擰緊已鬆動的螺母。

water leakage 漏水

When installing the washing machine, be sure to draw out the water drainage hose until the black or purple mark is seen.

安裝洗衣機時，請務必將排水管拉出至黑色或紫色標記處。

- Failure to do so may cause friction leading to damage 如果排水管沒有完全拉出，會與其他部件觸碰而導致破損引發漏水等意想不到的損失

Electricity supply must be unplugged with dry hands during maintenance and repair.

維修保養時，請務必將電源插頭從插座拔出。

- Otherwise, electric leakage causing injuries may occur. 避免因漏電而招致傷害。

Attention 注意

water eakage 漏水

Please turn off the water tap when not using the unit.

不使用洗衣機時，必須關閉水龍頭。

- To prevent damages caused by water leakage. 以防產生漏水。

Prohibited 禁止

Do not wash, rinse and spin the water proof fabric or cloth.

請勿洗滌防水性的苫布或衣物。

(sleeping bag, raincoat, cover of skiing, utilities, bicycles, cars and motors 睡袋、雨衣、滑雪用具以及自行車、轎車、摩托車的車罩等。

- Otherwise may lead to injury by abnormal vibration during spinning or damage the washing machine, wall, floor and clothes. 可能在脫水時產生異常振動而引起人身傷害，或者導致洗衣機、牆壁、地板以及衣物的損壞。

Prohibited 禁止

Do not incline installing the washing cap. Do not use the washing cap except SILK process, BLANKET process. 嚴禁傾斜安裝洗衣蓋，並絕對禁止在『絲絨』、『被毯』程序以外使用洗衣蓋。

- Splash of water may occur or washing cap may be swung out of the basket. 可能會因水滴飛濺或洗衣蓋彈飛出造成洗衣機受損或人身傷害事故。

Installation Guide 安裝指南

Installation of Washing Machine 洗衣機的安裝

Where to install 安装地方

Please install on a solid horizontal surface.

請安放在堅硬、平坦的地面上。

- Installation on a slippery or irregular surface may result in noise and shaking. 安放在易於滑動、柔軟的地面上，會容易產生振動和噪音。

Solid, horizontal surface 坚硬、平坦的地面

Weak surface 柔軟的地面

Irregular surface 凹凸的地面

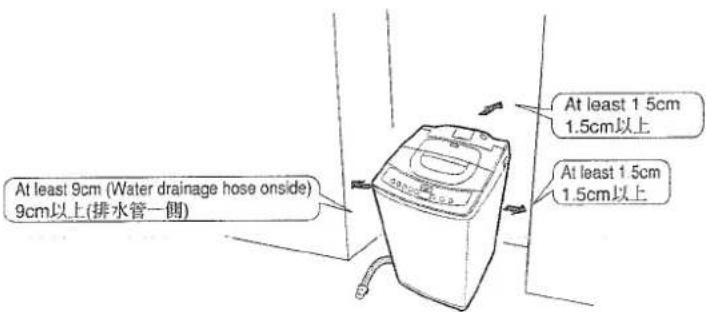

Avoid installing the unit too close to the wall.

請勿靠近牆壁安放。

- This is to prevent abnormal vibration and noise. 以防止異常振動和噪音。

How to install 安装方法

The unit should be installed on a flat horizontal surface.

請水平安裝洗衣機。

Otherwise sudden stop or abnormal sound may result during the spinning cycle.

若安裝得不水平，會導致脫水時停機或產生異常聲音。

Installation of Washing Machine 洗衣機的安裝

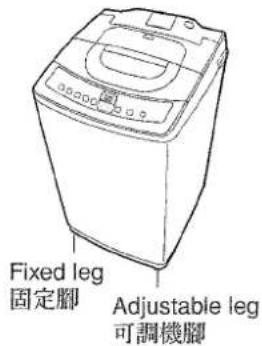

1 Adjust the instability of the washing machine with adjustable leg. 用可調機腳來調整洗衣機的不平穩。

2 Please make sure of the horizontality of the washing machine. 請確認機體的水平度。

- As shown in the figure, the horizontality can be easily observed by the string used to hang an object. 如圖所示，用懸掛重物的細繩來觀察，即可輕易確認其水平度。

It is level if the clearance between A and machine body is the same with that between a and the machine body. A 和 A 兩點與機體之間的間隙相同，即表示水平。

Inspection of trial run 試運轉的檢查

Put some water into the washing barrel and reconfirm its horizontality.

在洗衣槽內放些水，請再一次確認其水平度。

- The ground is level if all front, rear, left and right height difference between the spinning hole and water surface are less than 3mm. 脫水孔相對於水面的高度差(B與C的差)，如果前後左右均在3mm以內，就表示地面是水平的。

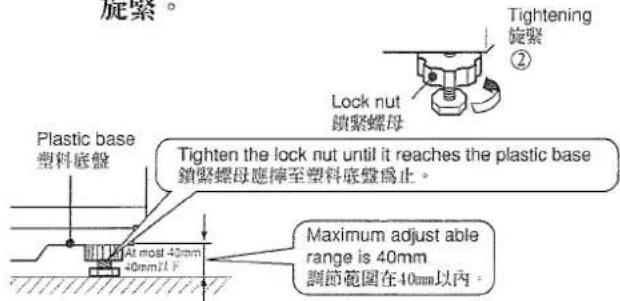

How to Use the Adjustable Leg 可調機腳的使用

1 Loosen the lock nut by unscrewing in arrow direction ① before using the adjustable leg to stabilize unit. 將鎖緊螺母沿箭咀方向 ① 旋鬆，再旋轉可調機腳調整機身的平穩。

2 After adjusting of the unit, tighten the lock nut by screwing it in arrow direction ②.

調整完畢後，將鎖緊螺母沿箭咀方向②旋緊。 Tightening

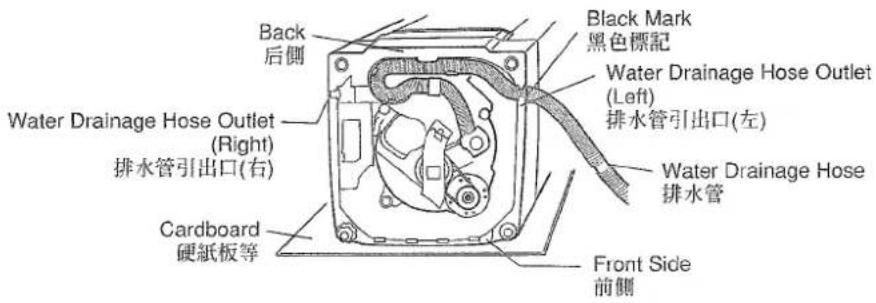

How to Change the Water Drainage Hose and How to Install the Base Plate 排水管的轉換方法及底板的安裝

The water drainage hose is installed at the factory on the left side. It can be moved to the right side if necessary.

產品出厂時，排水管安裝在機身左側，請視排水位置的具体情況將其換至右側。

Lay the unit down slowly. 請將機體輕輕地放倒。

- Lay the unit down on some corrugated paper to avoid damage. 放倒機体時，請在地面上放置一些瓦楞紙類的襯墊，以免損傷機身。

Pull out the water drainage hose from the right side of the unit. 排水管從右面引出。

① Remove the right water drainage hose cover. 將機体右面的排水管蓋拆下。
② After pulling out the black mark of the water drainage hose from the left groove of the unit, the purple mark of the water drainage should be inserted into the corresponding groove of the right unit.
把排水管黑色標記部從機体左側的凹槽內引出，紫色標記部應嵌入機体右側對應的凹槽內。
③ The water drainage hose should be pull out through the proper hose retainer when the hose is pulled out on the right.
排水管從右面引出時，排水管應通過相應的軟管固定夾后再引出。

③Hose Retainers 軟管固定夾

Water drainage hose outlet 排水管引出口

Attention 注意

The black or purple mark of the water drainage hose should be inserted into the corresponding groove of the unit. 安裝洗衣機時，請務必將排水管的黑色或紫色標記部嵌入機體相對應的凹槽內。

• Water drainage hose which inserts into the unit, can't touch other parts, to prevent the damage caused by water leakage.
  排水管在機體內的部分，不應與其他部件碰觸，以免因破損產生漏水而導致不必要的損失。

• Water drainage hose retainer must be tightened. 排水管固定夾必須夾緊。

• The inner section of the water drainage hose must be secured by the retainer before fetched out. 排水管機內部分必須經固定夾固定後再引出。

When fitting the water drainage hose to the water drainage outlet

排水管插入排水口時

If the water drainage outlet is too shallow or the end of the water drainage hose touches the grounds, cut the end of the water drainage hose in an oblique angle.

排水口較淺或排水管前端與地面碰觸時，可將排水管的前端沿斜向切除一部分。

• Failure to do so may cause insufficient rinsing or unit malfunction due to poor drainage or too much subbles during rinsing and spinning.
  若不切除，在漂洗及脫水時，由於排水狀況的不良，將會引起漂洗不充分或因肥皂沫而影響電機運轉。

How to install the base plate (Mount the base plate on the pad on top of unit)

底板的安裝(底板安放在洗衣機頂部的發泡上)

Fit the barb on the plate into the square hole of the bottom, and tighten the screws.

將底板上的倒鉤對準底盤上方孔插入，然後將螺絲擰緊。

Technical line drawing of a mechanical component with internal gears and shafts, shown in two views (no text or labels)

Water Drainage Hose Related Parts 排水管的相關部品

Ensure that the water drainage hose will not separate from its outlet even if there is vibration or the outlet is too big or too shallow.

當排水管因排水而引起振動，或排水口較大或排水口較淺時，應確保排水管不得脫出排水口。

■ Extended hose

排水管的延長

Please use optional extension drainage tube for lengthening the water drainage hose.

請使用另行銷售的延長軟管。

- Follow the instructions below to improve drainage efficiency. 為了有效地排水，請遵照下列的指示。

Attention 注意

- The method of pulling out the water drainage hose as shown below should be avoided. Otherwise, water leakage or abnormal sound may occur. 下圖所示的排水管取出方式應絕對禁止。否則會造成漏水或產生異音。

- When purchasing extension hose, make sure that the inner diameter of the hose is big enough, otherwise, poor drainage may cause and result in the malfunction of the unit. 如果使用市場上銷售的其他延長管，那麼您選擇的軟管內徑不應太小。否則將會降低排水性能，導致洗衣機不能正常運轉。

How to Install the Water Supply Hose 供水管的安裝

Connecting the water supply hose to the main unit 供水管與機體的連接

Firmly tighten the union nut when connecting the water supply hose to the main unit.

沿箭咀方向旋轉連接螺母，使其與供水口緊緊相連。

• Loosely tightened union nut will cause water leakage. 請務必擰緊供水管與機體的連接螺母，否則，將會漏水。
• When removing the hose, unscrew the union nut first. 拆卸供水管時，先鬆開連接螺母，再進行拆卸。

Extended the water supply hose 供水管的延長

Please use optional extension tube for lengthening the water supply hose. 請使用另行銷售的延長供水管。

Three standard of extension hoses (1m,2m,3m) are available. Please inquire distributors for extending the water supply hose.

備有 1m、2m 和 3m 三种規格供購買。如欲駁長供水管，請向銷售商查詢。

How to Install the One Touch Joint 便捷連接器的安裝

1 Confirm the diameter of the water tap. 確認水龍頭直徑。

- If the diameter exceeds 2cm, remove the joint ring. 若水龍頭的外徑超過 2cm，可將連接環取出。

3 Press the sealed pad evenly against the tap and tighten the four screws in a uniform fashion.

將密封墊均勻地壓在水龍頭上，再將4個螺釘均等地擰緊。

Tighten screw in advance if it is located close to the wall. 靠近牆壁的螺釘，可預先用手擰進一些。

2 Check the distance between joints ① and ②. 確認接頭 ③、④之間的間隙。

- Screw joint Ⓑ in the arrow direction to adjust the gap. 沿箭咀方向旋轉接頭 Ⓑ 調整間隙。

4 Tighten joint Ⓑ in the arrow direction to reduce the gap between joint Ⓐ and Ⓑ to 4mm or less. 沿箭咀方向擰緊接頭B，使接頭A、B之間的間隙在4mm以內。

• For water supply hose installation, please refer to "How to install water supply hose" in the user manual. 供水管的安裝參閱使用說明書中『供水管的安裝』一章。
• Loosening may occur with extended use. In such case, reinstall the joint following steps 2 to 4. 長時間使用後，可能會因鬆脫而引起漏水，此時請按 2～4 的步驟重新安裝。 (Carry out the same steps when reinstalling the one touch joint at a change of residence, etc.) (搬家等需重新安裝便捷連接器時，請按照相同的步驟進行。)

Appropriate water tap 適用的水龍頭

Horizontal taps A and B as shown below. 橫式 A、B 型水龍頭最為適宜。

Horizontal tap A 横式 A 型水龍頭

Horizontal tap B 横式 B 型水龍頭

Square mouth tap 方口水龍頭

Universal household tap 萬能水龍頭

Swivel tap 萬向水龍頭

Attention 注意

Please turn on the water tap to check to connecting condition of the water supply hose before washing.

開始洗衣前，請先打開水龍頭，檢查供水管的連接狀況。

To prevent damages caused by water leakage due to loosen screw. 如果螺釘鬆脫，會因漏水而招致不必要的損失。

How to install and remove the water supply hose

供水管的安裝方法和拆卸方法

Water tap

水龍頭

Do not allow water tap, one touch joint and rubber ring to touch the unit when installing them.

安裝水龍頭、便捷連接器以及滑環時，注意別讓它們碰到洗衣機機體。

Installing

安裝方法

1 Push down the rubber ring and insert the tap into the one touch joint. 將滑環下壓，然後插入便捷連接器內。

2 Release the rubber ring and push up the water supply hose until it clicks. 放開滑環，向上推壓供水管，直至發出“叭”的鎖緊聲為止。

- Pull the water supply hose to check that it does not come off easily. 拉一拉供水管，確認供水管不會脫落。

Main unit

機體

Turn the union nut in the direction as shown by the arrow and firmly. Connect it to the water supply opening.

沿箭咀方向旋轉連接螺母，使其與供水口緊緊相連。

Attention 注意

Firmly tighten the union nut when connecting the water supply hose to the main unit.

請務必旋緊供水管與機體的連接螺母。

- Failure to do so may result in water leakage.

螺母鬆脫的話，可能會漏水。

union nut

連接螺母

Line drawing of hands using a tool to adjust or install a component on a surface (no text or symbols)

• Loosely tightened union nut will cause water leakage. 連接螺母如不擰緊，可能產生漏水現象。
• When removing the hose, unscrew the union nut first. 拆卸時，擰下連接螺母，即可拆除。
• Please note that water supply hose and one touch joint should be used. 請使用隨機配套的供水管和便捷連接器。
• The appliance is to be connected to the water mains using new hose-sets and that old hose-sets should not be reused. 應使用附帶的新的連接水管進行連接，舊的連接水管不得再次使用。

Removing

拆卸方法

1 Turn off the water tap. 關閉水龍頭。

2 Press the start button and let the unit run for about ten seconds. 按下啟動按鈕，運轉10秒鐘。

- This is to prevent water splash when removing the tap 為了防止拆卸時水花四灑。

3 Remove the latch and the water supply hose while pushing down the rubber ring. 鬆開搭扣，拉下滑環，同時將供水管拔下。

If any of the following conditions or other abnormalities occur, immediately pull out the power plug to prevent an accident and request help from an authorized dealer or agent.

如出現下列情況或其他異常現象，請立即拔下電源插頭，務必向有關的經銷商委托檢查、修理。(可能根據實際情況收取費用)

• Never conduct repairs by yourself as it may be dangerous. 請勿自行維修，以免發生危險。
• If you have used the washing machine for 4 - 5 years, even if the following conditions and other abnormalities do not occur, request for safety inspection of the machine is stilled required. 使用超過 4 - 5 年的洗衣機，即使沒有出現下列情況或其他異常現象，亦請進行安全檢查。
• If the power supply cord is damaged, Please repair it in a repair shop appointed by the manufacturer or its service agents in order to avoid a hazard. 電源線破損時，請到厂商指定的店舖修理，以免危險。

• The washing machine bottom must not be obstructed by carpeting when the washing machine is installed on a carpet floor. 在鋪有地毯的地面安置洗衣機時，請注意不要因地毯妨礙洗衣機的底面放置。

• When you turn on the switch, the machine sometimes does not operate.
  若打開開關，洗衣機或會停止運作。

• The power cord has "cracks" or "flaws". 電線出現損毀或裂痕。
• There are abnormal sounds and vibrations during operation. 運行過程中發出異常聲音或震動。
• The agitator does not stop easily. (It takes over 15 seconds for the agitator to stop) 洗衣槽不易停止。(停止洗衣槽需要 15 秒鐘以上)
• There is water leakage. (Basket, hose, joint, etc.) 漏水。(洗衣槽、水管、接頭等)
• There is a smell of burning. 有燒焦味。
• If you touch the machine, you may get an electric shock. 用手触摸時，有電擊的感覺。

Illustration of a person standing beside a steaming bowl with a sad face, expressing confusion (no text or symbols)

In case when the washing machine is used in places other than ordinary households.

在一般家庭以外使用時

- If the washing machine is in use for extremely long periods of time compared to ordinary household usage, such as in dormitories and hospitals, it may be necessary to change parts (such as the clutch, belt or sealed pad) more frequently. In this case, consult with the dealer from whom you purchased the washing machine and have the machine inspected periodically. 如在宿舍或醫院等地方使用，而每天的使用時間比一般家庭較長時，或需在短期內更換零件（如离合器、皮帶、密封墊等）。請與購買洗衣機的商店聯絡，接受定期檢查後再使用。

Washing Machine Repair

洗衣機修理事宜

In case of malfunction of the washing machine, read the manual in detail before requesting repair services. If the problem still cannot be solved, contact an authorized service dealer or a service agent and provide the following information.

① Model name: AJ-S55FX.
② Describe abnormal situations and damages in detail.
③ Your address and telephone number.
若洗衣機在使用期間發生故障，在請求維修前，請務必詳閱本說明書。若發生的故障或異常情況未能用本說明書的指示解決，請與認可的維修服務店聯絡。請向維修服務店提供下列資料：
①產品型號：AJ-S55FX。
②盡可能詳細的說明故障狀況或異常情況的內容。
③您的聯絡地址和電話號碼。
    AG["Used to set the processes of washing, rinsing or spinning manually or change the setup. 在按照自己需要設定洗衣、沖洗、脱水方式或更改設定內容時使用。"]
    AH["Used to set the air-jet duration or basket air jet duration. 在設定風乾時間或筒風乾時使用。"]
    AI["Please select the proper air-jet duration in compliance with the air-jet level required to the laundry. The indicator lights to describe the air jet duration. 根據對衣物的風乾程度，請選擇相應的風乾時間。通過各指示燈點亮或閃爍，顯示出風乾時間。"]
    AJ["BASKET AIR JET (LED ON) 筒風乾（亮著）"] --> AK["DRY for 1 hour (LED ON) 風乾1小時（亮著）"]
    AL["DRY for 3 hour (FLASH) 風乾3小時（閃動）"] --> AM["DRY for 2 hour (FLASH) 風乾2小時（閃動）"]

In the case of any of the following manual setup, the washing machine will make 2 sounds for acceptance (to announce the datum mark of indication):

當手動設定為下述狀態之一時，洗衣機都會發出2聲表示接收的聲響（以告知您指示基準點）：

① The water level is "50L"; ② The washing duration is over 18 minutes ("9 minutes" + "6 minutes" + "3 minutes"); ③ Rinsing duration is "twice"; ④ The spinning duration is "6 minutes"; ⑤ The preset duration is "9 hours later"; ⑥ The process switches to "NORMAL"; ⑦ Switch Air Jet to "Basket Air Jet".

①水位為『50L』：②洗滌時間為「18分以上（『9分』＋『6分』＋『3分』）」：③沖洗次數為「2次」：④脫水時間為『6分』：⑤預校時間為「9小時後」：⑥程序切換到『標準』程序：⑦風乾切換到『筒風乾』程序。

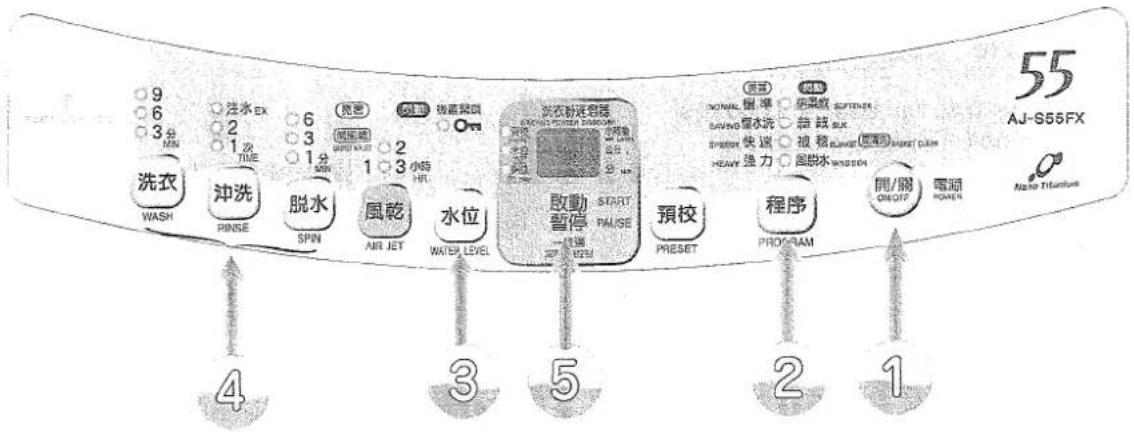

    W["The button is used to start the operation or temporarily pause the operation. 控制洗衣機啟動或暫停時使用。"]
    W --> X["After selecting the required process, press this button to start or pause the process operation. 選擇好需要的程序後，按此按鈕可啟動或暫停執行程序。"]
    W --> Y["If press the "PAUSE" button during the course of spinning, no button signal can be received until the switching off the power, and the lid can't be opened. 如脫水過程中按下暫停按鈕後，到開關斷開為止都不再接收任何按鈕信號，機蓋亦不能打開。"]
    Z["Preset Button"] --> AA["The button is used to preset operation time. 45 預校運轉時使用。45"]
    Z --> AB["The washing process can be set to finish in 3-12 hours. 洗滌可預校在3-12小時后完成。"]
    Z --> AC["Normal, Saving, Speedy, Heavy and Wind dehydration mode can be preset, other modes cannot."]

- Never press 2 (or more) buttons together, which may cause misoperation. 請勿同時按住 2 個以上（包括 2 個）的按鈕，以免造成誤操作。

Lid Lock function 機蓋緊鎖功能

The lid will be locked automatically when washing for children's safe.

爲防止意外傷害及保護兒童的安全，洗衣過程中供水開始後，洗衣機會自動將機蓋鎖緊。

Setup safe model 設定安全保護模式

1 Close the Lid, press "ON/OFF" button.

關閉機蓋，按下電源開關按鈕 開/關 CNOFF。

2 Press and hold down the "WASH" button for at least three seconds.

持續按住“洗衣”3秒鐘以上。

The buzzer makes a sound of "beep" to announce the completion of setup.

Lid Lock indicator will light.

蜂鳴器發出“嗶”聲響告知設定已完成。機蓋緊鎖標誌指示燈被點亮。

• To unlock the Lid Lock, repeat the above operations once again.

The buzzer makes a sound of "beep" to announce the completion of remove.

Lid Lock indicator will be out.

- 要解除機蓋緊鎖功能，再一次重複上述操作。

蜂鳴器發出“嗶”聲響告知設定已解除。機蓋緊鎖標誌指示燈熄滅。

3 Cut off the power supply. 切斷電源。

Attention 注意

- With the set of Lid Lock function, the washing machine can't operate if the lid is opened. (The control panel will release the alarm if the lid is opened)

設定機蓋緊鎖功能後，洗衣機不能在機蓋處於開啟狀態時運轉。(機蓋處於開啟狀態時，控制面板將發出警報)

When you want to open the lid 想打開機蓋時

Press "START/PAUSE" button ➕ Lock will be removed automatically after washing. Lid can be opened.

按下啟動暫停按鈕旋轉結束，鎖緊解除，可打開機蓋。

When beginning again 再啟動時

With the set of safe mode, the lid will be locked as the washing machine restarts.

Without the set of safe mode, the lid will be locked automatically during the course spinning.

在設定為安全保護模式時，洗衣機再啟動時機蓋會立即被鎖緊。

若沒有設定安全保護模式，在脫水時機蓋會自動鎖緊。

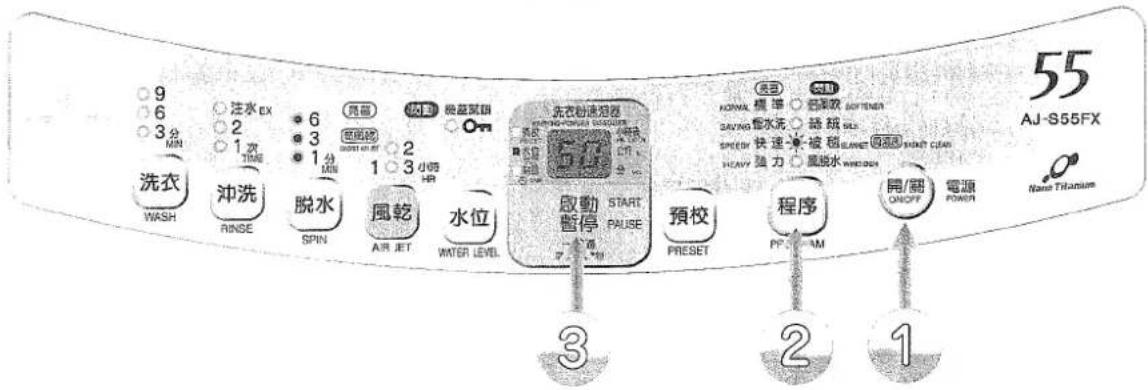

Hope to switch off the buzzer beep after the completion of the washing process 希望消除洗衣結束的蜂鳴聲時

Follow the below steps to switch off the buzzer beep after the completion of washing process.

按以下順序進行操作，可消除洗衣結束的蜂鳴聲。

1 Press the power button. 接通電源開關。

2 Press and hold down the START/PAUSE button for at least three seconds, the buzzer beep can be switched off.

持續按住啟動按鈕3秒鐘以上，蜂鳴聲消除。

- You can press and hold down the START/PAUSE button for at least three seconds to recover the beeping. 接通電源開關後，持續按住啟動按鈕3秒鐘以上，可將蜂鳴聲恢復。

The number next to the sign is the page number for detailed description.

Accessories (Refer to "Installation Guide") 附件(請參照『安裝指南』)

Water supply hose供水軟管	One touch joint便捷連接器	Washing cap洗衣蓋	Base plate(Screws include)底板(帶螺釘)	Nanometer titaniumfilter net assy納米鈦淨化网組件
(One)(1根)	(One)(1個)	(One)(1個)	(One)(1塊)	(One)(1個)

Preparation for washing machine

洗衣機的準備

When the first using 第一次使用時

The washing machine can be used only after the proper installation in compliance with the "Installation Guide".

按照『安裝指南』，確定將洗衣機安裝好後才可使用。

Daily using 日常的使用

1 The front of the water drainage hose must insert in the drainage outlet. 排水管的前端應牢固地插入排水口內。
2 Connect the water supply hose and turn on the water tap. 接好供水管並緩慢打開水龍頭。
3 Insert the power plug into the socket. 將電源插頭插入插座。

Preparation for laundry

洗衣前的衣物準備

Secure strings and pull zips up before putting laundry into the washing machine. (beneficial suggestion) 洗滌帶有帶子或拉鏈的衣物時，請先繫好帶子或將拉鏈完全拉上。(有益的提示)

- This is to prevent damage to clothes and zips. 防止損傷衣物和拉鏈。

The laundry from which the hair or silk is inclined to run shall have its inner side turn to external before washing. 易起球或脫絲的衣物，請先翻至內面再進行洗滌。

Line drawing of a long-sleeve sweater with no text or symbols

Please remove soil or dirt from laundry before washing.

洗滌前，請先將衣物上的泥沙除去。

Illustration of hands cleaning a surface with a container and cloth (no text or symbols)

Remove anything from the laundry before washing. (Do not forget anything in pocket)

洗滌前，請先取出衣服中的異物。(不要忘記口袋中的東西)

- To avoid damaging the clothes and unit malfunction 以免損傷衣物或導致洗衣機出現故障。

Clothes of easily-fadeaway colors must be separated. 易褪色的衣物應分開洗滌。

The jeans and alike 如牛仔褲等衣物

- The bluejeans that are inclined to fade may decolor during washing. 洗滌易褪色的藍色牛仔褲可能會引起褪色現象。

The vulnerable laundry shall be put into the wash string bag before washing. 洗滌容易損傷的衣物時，請放入洗衣袋中進行洗滌。

To be cautious, please put the laundry with lace or the woman underwear with steel wire into the optional wash string bag before washing. 慎重起見，請將帶蕾絲的衣物或帶鋼絲的女性內衣放入市面出售的洗衣袋中清洗。

- Prevent the laundry from damaging by accident. 防止衣物意外受损。

The laundry from which the silk is inclined to run shall be put into the string bag before washing.

易抽絲的衣物請放入洗衣袋中清洗。

The laundry made of corduroy or other particular cloth, and the black hose or other clothing sensitive to silk-running shall be put into the optional anti-silk-running string bag before washing.

像燈芯絨等特殊布料或黑色長統襪等容易脫絲的衣物，請放入市面出售的防脫絲洗衣袋中清洗。

Please handle the dirt as early as possible.

請盡早處理污垢。

As it's hard to remove the dirt after adhering to laundry for long, the dirt shall be under cleanout and handling with detergent before washing, which brings better washing effect.

污垢長時間附在衣物上會很難脫落，在洗衣前先清洗污垢並用洗衣劑處理，洗衣時效果會更加明顯。

How to put laundry in 衣物的放入方法

Put in the laundry as evenly distributed as possible.

盡可能均匀地放入待洗衣物。

Put bulky or floating laundry in basket first. 大件衣物或易浮起的衣物應先放入洗衣槽。

- It smoothes rotation of the laundry. 有利於衣物的良好旋轉。

- Splash of water must be prevented 防止水滴飛灑。

The bluejeans and other thick cloth shall be evenly distributed in the washing basket before washing. (Prevent the laundry from overflowing during washing) 將牛仔褲等厚布料衣物均匀地放入洗衣槽內再進行清洗。(防止脫水時衣物溢出)

• Press the laundry with hand during water supply, and make the water infiltrate the cloth sufficiently. 供水時用手壓住衣物，讓水充分滲入布料。
• Splash of water must be prevented 防止水滴飛濺。

How to Use Detergent, Bleach and Fabric Softener 洗衣劑·漂白劑·柔軟劑的使用方法

Powder Synthetic Detergent 粉末合成洗衣劑

How to add Detergent 洗衣劑的加入方法

1 Open the washing-powder dissolver cover 打開洗衣粉速溶器蓋

2 Add detergent 加入洗衣劑

3 Close the washing-powder dissolver cover 關閉洗衣粉速溶器蓋

Notes 備注

- When detergent sticks to the detergent guide, even when it is closed, it will remain in the detergent guide.

Please clean it out. 55

洗衣劑粘附在洗衣劑導向時，即使關閉，洗衣劑也會殘留在洗衣劑導向內。請進行清洗。

- After adding detergent, close the washing-powder dissolver cover.

加入洗衣劑後請切實關好洗衣粉速溶器蓋。

- The washing-powder dissolver cover only opens about 90°. Attempting to force it further open may lead to damage.

洗衣粉速溶器蓋只能打開約90°的角度。強行打開可能會造成損壞。

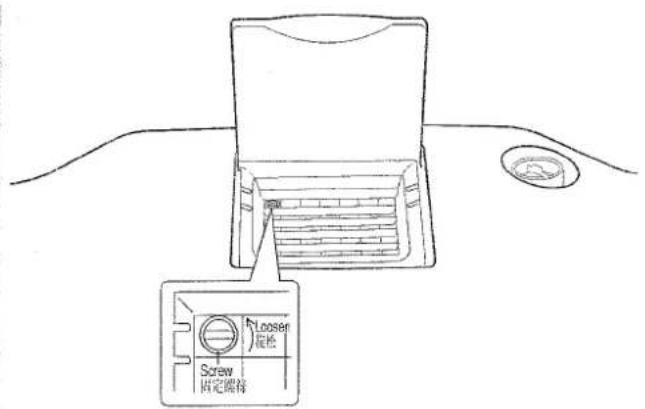

Detergent guide disassembly and assembly 洗衣劑導向的拆卸和安裝

■ Disassemble the detergent guide 拆卸洗衣劑導向

1 Rotate counterclockwise 90°, remove the screw. 按逆時針方向旋轉90°，取下固定螺釘。
2 Hold firmly and pull up. 拿住洗衣劑導向往上拉。
3 Remove detergent guide. 取下洗衣劑導向。

Installing the detergent guide 安裝洗衣劑導向

1 Snap the clasp on the front of the detergent guide in place. 將洗衣劑導向的前側的一個搭扣插入。
2 Press the detergent guide down until you hear a "click". 按下洗衣劑導向，直至听到“喀嗒”一聲為止，使搭扣扣入。
3 Insert the screw (being careful about its orientation) and rotate it clockwise 90°. 插入固定螺釘(注意方向)，按順時針方向旋轉90°。

After detergent is added and the cover is closed, the washing-powder dissolver will begin operation. 放入洗衣劑後關閉加入口蓋，洗衣粉連溶器開始運轉。
The washing-powder dissolver will begin operation approximately 1 minute after detergent is added, the cover is closed, and operation starts. 預先加入洗衣劑，關閉蓋子啟動机器，約1分鐘後洗衣粉速溶器開始運轉。
- To add detergent after the washing-powder dissolver has begun operation, add it directly to the washing · spinning basket.

洗衣粉速溶器開始運轉後加入洗衣劑或補充加入洗衣劑時請直接投入洗衣·脫水筒中。

图2-10 2014年1月1日

1. 2017年，公司与上海浦东发展银行股份有限公司签订了《关于使用部分闲置募集资金进行现金管理的协议》。

1. 2014年1月1日，公司与上海浦东发展银行股份有限公司签订了《最高额保证合同》，约定在2014年1月1日（含）前30日内执行。

1. 2017年，公司与上海浦东发展银行股份有限公司签订了《关于使用部分闲置募集资金进行现金管理的协议》。

Liquid detergent

液體洗衣劑

Dilute the liquid detergent with water and gently pour it into the injection opening.

將液體洗衣劑用水均勻稀釋，由注入口慢慢倒入。

Bleach 漂自劑

Dilute the bleach with water before the washing and gently pour it into the injection opening.

開始洗衣時，先用水稀釋，然後由注入口慢慢倒入。

Liquid detergent and bleach

injection opening

液體洗衣劑、漂白劑注入口

Medical illustration showing a hand performing a procedure on a patient's abdomen (no text or labels)

Attention 注意

• Follow the instructions for the liquid detergent and bleach on the labels for the usage amount and method to use.
  關於液體洗衣劑和漂白劑的使用量和使用方法，請參照其相關說明。
• Please do not pour bleach directly onto the items being washed. Otherwise, it may cause discoloring and damage the clothes 請避免將漂白劑直接用於衣物上，以免引起變色或布料損壞。

To softener laundry during SOFTENER process put in fabric softener to washing powder dissolver by using the following method. For the specific time to put in refer to the SOFTENER process.

在倍柔软程序中，為了加倍柔軟衣物，請將柔軟劑加入洗衣粉連容器中。具体加入時間，參見倍柔軟程序（31）

1 Open the washing powder dissolver cover.

打開洗衣粉速溶器蓋

2 Add fabric softener 加入柔軟劑

3 Close the washing powder dissolver cover.

關閉洗衣粉速溶器蓋

Open

打開

Simple line drawing of a laptop with a circular button on the right side (no text or symbols)

Notes 備注

• The concentrated type easily solidifies. Please use twice the amount of water to dilute such fabric softener. 濃縮型柔軟劑易於固化，因此請用2倍清水將其稀釋後再使用。
• Once consumption of the softener shall be less than 45ml. Excessive consumption of the softener instead prevents it from being effective 柔軟劑的“一次使用量”應低於45mL，使用過多的柔軟劑反而不能有效發揮作用。
• Please do not leave the fabric softener in the basket for an extended period (12 hours) as the fabric softener may solidify and cause malfunction. 請勿讓柔軟劑長時間(超過12小時)停留在洗衣槽內，以免柔軟劑在注入口中固化，導致洗衣機運轉不良。
• When the washing machine or the basket is tilted, water may flow into fabric softener injection opening (Thus fabric softener performance will be reduced) 若洗衣機傾斜或供水時洗衣槽傾斜時，水可能會流進柔軟劑注入口。(導致柔軟劑失去其應有的作用)
• Please use an appropriate amount of detergent. Too much fabric softener may result in poor rinsing and fabric softener performance. 請使用適量的洗衣劑，使用量過多會降低漂洗效果和柔軟劑的效果。

1 Open the cap of the fabric softener injection opening. 打開柔軟劑注入口的蓋子。

Diagram of a car interior showing steering wheel, dashboard, and gear shift (no text or labels)

• Softener filling opening can only be opened by an angle of up to 120°. Forced operation may damage the filling opening. 柔軟劑注入口只能打開約120°的角度。強行打開可能會損壞注入口。

2 Pour the fabric softener into the injection opening in accordance with the indication of water level before the washing starts.

洗衣開始前，按照水位表示，將柔軟劑倒入柔軟劑注入口內。

- When you find it difficult to pour the fabric softener into the injection opening, push the basket to one side to pour the fabric softener in. 當柔軟劑不易倒入注入口時，請將洗衣槽偏向一側後再倒入柔軟劑。

3 Close the cap of the fabric softener injection opening. 關閉柔軟劑注入口的蓋子。

- Please note that fabric softener should be closed. 請務必關閉柔軟劑注入口才可進行運轉。

4 Fabric softener will be dispensed into the basket during the final rinse.

柔軟劑會在最後一次漂洗前自動投入槽內。

- Dispensation of the fabric softener is performed automatically by the rotation of the spinning basket. The fabric softener moves in gradually during the spinning and reaches the basket before the final spinning. 柔軟劑是利用脫水槽旋轉而自動投入槽內的，在中間脫水過程中，柔軟劑從注入口移向內部，直至最後脫水結束前投入槽內。

<柔軟劑的大致用量>

Water level 水位		20L	31L	40L	50L
Fabric softener 柔軟劑	Concentrated type 濃絵型	4 mL	7 mL	9 mL	11 mL
	Regular type 普通型	13 mL	20 mL	27 mL	33 mL

- Concentrated detergent: 6.6mL for 30L of water 濃縮型柔軟劑：水位30L使用量6.6mL

- Normal detergent: 20mL for 30L of water 普通型柔軟劑：水位30L使用量20mL

Checking Amount of Laundry

洗衣量的檢測

Select the process required for washing after put in the laundry and press the "START" button. The sensors begin to detect the weight of laundry, and water level are displayed correspondingly. ("Silk", "Blanket", "Basket Clean", and "Air Jet" processes do not include this automatic detection.

放入洗滌物後選擇洗滌所需程序，按下啟動按鈕，傳感器開始檢測洗滌物的重量，并相應顯示所需的水位。（『絲絨』、『被毯』、『簡清洗』、『風乾』程序不進行檢測。）

1 Put the laundry in, turn the power ON. Select the desired course, and press the START button. 放入洗滌物，按下電源開關按鈕。 選擇洗滌所需程序，按下啟動按鈕。

Illustration of a person running inside a container with motion arrows indicating rotation (no text or symbols)

Before filling starts, the pulsator will rotate to determine the quantity of laundry (it will not damage clothing). 波輪在無水狀態下旋轉，檢測洗滌量。(不會損傷衣物)

2 Appropriate water level indicated. 顯示所需的水位。

Laundry quantity testing 洗滌量檢測中

Water level indication 顯示水位

Remaining time indication 顯示剩餘時間

3 Add detergent (19) 放入洗衣劑。(19)

After adding detergent, fabric softener, and bleach, please close the lid. 放入洗衣劑、柔軟劑、漂白劑後，請關閉洗衣機機蓋。

- Add detergent within 1 minute after the water level is displayed. (If the "Water Level" button is pressed at this time, the machine will not continue waiting, but will immediately start operation) 顯示水位後，請在1分鐘內放入洗衣劑。（此時若按下“水位”按鈕，則洗衣機不再等待而立即開始運轉）

- To add detergent when there is water in the basket or if operation has begun, add it directly into the basket. 洗涤筒中有水或運轉開始後，要增加投入洗衣劑時，請將洗衣劑直接投入洗衣筒中。

About the Washing-Powder Dissolver

關於洗衣粉速溶器

Note (Please read carefully) 備注(敬請仔細閱讀)

Types of detergents 洗衣劑的種類

• Please use easily dissolved detergents in the washing-powder dissolver. 洗衣粉速溶器中請使用易溶性洗衣劑。
• Natural Soaps and synthetic soaps should be completely dissolved then placed directly in the washing and spinning basket. 天然肥皂、复合肥皂等，請在充分溶解後直接投入洗衣·脫水筒中。
• If granulated soap is put into the washing-powder dissolver, it might remain there, so it should be thoroughly crushed beforehand. 結塊的洗衣劑如放入洗衣粉速溶器則可能會殘留在盒中，所以請粉碎後加入。

Amount of detergent 洗衣剂的用量

- The amount of detergent you should use varies depending on the type of detergent. Please refer to the instructions on the detergent packaging together with the water level indicator (L). Do not use too much. (for approximate amounts) 23

洗衣劑的用量因種類的不同而有所差异，請參考洗衣劑包裝物上記載的“使用量的標準”，結合水位顯示(L)，不要使用過量。(大致用量) 23

Attention 注意

• To keep the detergent from solidifying and causing leaks, do not leave it in the washing-powder dissolver for long periods. 請勿將洗衣劑長時間留在洗衣粉速溶器內，以免因洗衣劑固化而導致漏水現象的發生。
• Clean the washing-powder dissolver once a month. 56 每間隔一個月左右請清理一次洗衣粉速溶器。 56

Amount of Laundry 洗衣量	Water Level 水位	Synthetic detergent 合成洗衣劑
		Concentrated detergent 濃縮型洗衣劑		Regular detergent 一般洗衣劑
		20g for 30L of water (Powder) 水位30L需20g (粉末)	25mL for 30L of water (Liquid) 水位30L需25mL (液體)	40mL for 30L of water (Liquid) 水位30L需40mL (液體)
5.5kg	50L	33g	41mL	66mL
3.5kg	40L	27g	33mL	53mL
1.5kg	31L	20g	25mL	40mL
0.5kg	20L	13g	17mL	27mL

• Please refer to the description given by the detergent manufacturer for the usage amount and the details of detergent. 洗衣劑的使用量，詳細情況請參照洗衣劑生產廠家的說明。
• The list of detergent amount (approximate amount) in this table takes the measuring spoon in the package of concentrated synthetic detergent as benchmark. (20g detergent for 30L water) 本表中洗衣粉量（大致用量）的表示，以濃縮合成洗衣劑包裝中的計算匙為基準。（水位30L使用20g洗衣劑）
• If laundry is only lightly stained, use only half of the amount of detergent to be used. 如果衣物只是輕微有些髒，則洗衣粉量為上表所示值的一半為宜。
• The excessive usage of detergent brings no more cleanness but the side effect of insufficient rinsing. 使用過多的洗衣劑並不能增加洗衣的潔淨度，相反會引起沖洗不充分而導致弊端。

Amount of Laundry

洗衣量

• Laundry load varies according to different taps, sizes and thickness of cloth. Approximate weight of laundry is shown in ( )表中( )內所示的是一件衣物的大致重量。由於洗滌的衣物種類、大小、厚度各有不同，因此洗衣量也有所不同。
• When washing normal clothes, the appropriate amount of washing load is about 70 to 80 percent of the amount indicated. In case the agitator stops which indicates overload, please check and if necessary, adjust the load. 如為一般衣物，其洗衣量為表中所示值70%、80%最為恰當。若攪拌停止，表示放入的衣物過多，請檢視衣物旋轉情況並予以調整。

Approximate amount of laundry 衣物的大致重量

Briefs (Cotton 50g) 男用內褲（棉約50g）

Long-sleeved vest (Cotton 150g) 長袖內衣（棉約150g）

Bath towel (Cotton 300g) 浴巾（棉約300g）

Socks (Cotton 50g) 襪子（棉約50g）

Blouse (Blended materials 200g) 女式襯衣（混棉約200g）

Pajama(Top and bottom) (Cotton 500g) 睡衣（上、下）（棉約500g）

Towel (Cotton 70g) 毛巾（棉約70g）

Shirt (Blended materials 200g) 男式襯衣（混棉約200g）

Sheet (Cotton 500g) 床單（棉約500g）

The washing machine have eight courses.

Please select the appropriate detergent and course for laundry according to the table below.

本洗衣機備有8種洗衣程序。

請參照下表，根據衣物種類和髒污程度選擇適合的洗衣程序。

Type of laundry 衣物種類

Extremely stained laundry 很髒的衣物

Regular laundry 一般的衣物

Slightly stained laundry 輕微污漬的衣物

Heavily stained laundry 嚴重污垢的衣物

Heavily stained children laundry 很髒的兒童衣物

Clothes with dry-clean or dry-clean and hand wash label

有乾、乾標誌的衣物

Bulky laundry 大件衣物

Illustration of household appliances including a washing machine, a cup with liquid, a tray with patterned contents, and a closed bag (no text or symbols)

Recommended Automatic Process 建議的全自動程序

Heavily stained such as collar, cuff and socks. 領子、袖口、襪子等頑固污垢

Normal washing for little dirty laundry. 對不太髒污的衣物進行普通的洗滌

Normal washing for slightly stained laundry 對輕微污漬的衣物進行普通的洗滌

Work clothes and other heavily stained laundry 工作服等嚴重污垢的衣物

Need to softener laundry 需特別柔順的衣物

Coat or sweater with dry-clean label. 有乾洗標誌的毛衣或大衣等

Comforters and blankets 被子或毛毯等

NORMAL 標準

Wash with strong water current. 用强水流充分洗涤。

WIND DEHYDRATION 風脫水

Uses powerful currents to wash, then pre-dries. 用强水流洗淨衣物，然後直接預干燥。

SAVING 懳水洗

The most economic way to clean your laundry. 以最節約的方式來洗淨衣物。

27

SPEEDY 快速

The fastest way to clean your laundry. 以最快速的方式來洗淨衣物。

29

HEAVY 強力

Removes stains with powerful water currents and soaking. 用強勁的水流洗滌後，通過浸洗來去除污垢。

30

SOFTENER 倍柔軟

Wash with strong water current, softener laundry.

用強水流洗滌後，加倍柔順衣物。

31

SILK 絲絨

Wash with spinning water current.

利用旋轉水流精心洗滌。

32

BLANKET 被毯

Wash with blanket water current. 利用被毯水流精心洗涤。

36

Recommended Detergent 建議的洗衣劑

Powder synthetic detergent 粉末合成洗衣劑

(Please pour into washing-powder dissolver

請放入洗衣粉速溶器

Liquid detergent 液體洗衣劑

Please pour into Bleach and liquid detergent injection opening

請倒入液體洗衣劑·漂白劑注入口

Special detergent used in clothes with dry-clean label

乾洗標誌衣物專用洗衣劑

Neutral liquid detergent

液體中性洗衣劑

Please pour into Bleach and liquid detergent injection opening

請倒入液體洗衣劑·漂白劑注入口

Liquid detergent

液體洗衣劑

Neutral liquid detergent used for the feather materials and alike

羽毛等材料使用液體中性洗衣劑

Please pour into Bleach and liquid detergent injection opening

請倒入液體洗衣劑·漂白劑注入口

Put the laundry in, close the lid, and press the power switch.

放入衣物，關閉機蓋，按下電源開關按鈕

The unit is set automatically to the "NORMAL" process.

洗衣機自動設定為『標準』程序

- In the case of any process other than "NORMAL", press the "PROGRAM" button to switch over. 若非標準程序時，請按動『程序』按鈕進行切換。

Press the START button.

按下啟動按鈕啟動暫停

★ Put in the detergent according to the displaying water level.

Close the washing-powder dissolver cover. (The sound of buzzer indicates washing completion.)

根據顯示水位放入洗衣劑

關閉洗衣粉速溶器蓋

(蜂鳴聲響起表示洗衣完畢)

• The pulsator to detect the amount of laundry and display the necessary water level on the control panel. 22 攪拌翼旋轉檢測出洗衣量並由控制面板顯示所需水位。 22
• After the water level are displayed, the washing machine will pause about 1 minute for putting in the detergent. (Press the "WATER LEVEL" button at this time will start operation immediately.) 顯示出水位後，洗衣機會為投放洗衣劑而等待1分鐘左右。

(此時按下“水位”按鈕，則洗衣機會立即開始運轉)

Use of detergent 使用洗衣劑

: Powder synthetic detergent 粉末合成洗衣劑 Liquid detergent 液體洗衣劑

• How to put detergent in 19 關於洗衣劑的投入方法 19
• During washing, the "WASH" indicator lamps will flash in sequence, indicating that washing is in progress. 在洗滌過程中，『洗衣』指示燈循環依次閃爍，以告知您正在進行洗衣運轉。

Washing of the "NORMAL" process『標準』程序的洗衣過程

Dissolve detergent溶解洗衣劑	Washing洗衣	First Rinsing第一次沖洗		Second Rinsing第二次沖洗		Spinning脫水
Approximately two minutes約2分鐘			(Water-storage rinsing)(儲水沖洗)Spinning afterdraining排水後進行脫水		(Water-storage rinsing)(儲水沖洗)Spinning afterdraining排水後進行脫水	Spinning afterdraining排水後進行脫水
			Supply water to the required level and performing agitating供水到規定水位並進行攪拌		Supply water to the required level and performing agitating供水到規定水位並進行攪拌
			Balancedagitating平衡攪拌		Balancedagitating平衡攪拌

Approximately two minutes 約2分鐘
(Water-storage rinsing) (儲水沖洗)
Spinning after draining 排水後進行脫水
Supply water to the required level and performing agitating 供水到規定水位並進行攪拌
Spinning after draining 排水後進行脫水

When using Bleach and Fabric softener 21

使用漂白劑、柔軟劑時 21

The washing machine will not proceed if the lid remains open. Do close the lid.

機蓋開啟狀態下，洗衣機不會運轉。請務必關閉機蓋。

Attention 注意

• The dirt or the yellow spot that adhere to cloth for long may be not removed completely even with the steeping cleanout.
(The pre-cleanout or the bleacher is recommended).
長期附在衣物上的污垢或黃斑，即使浸泡清洗也不一定能將其完全清除。
(建議事先清洗或使用漂白劑)。
- Please make sure the inhaling window is closed before operation. If the washing machine operates with the inhaling window open, the water may splash.
請務必關閉吸氣窗後才進行運轉。洗衣機在吸氣窗開啟狀態下運轉時，水滴可能會飛濺出來。

Put the laundry in, close the lid, and press the power switch.

放入衣物，關閉機蓋，按下電源開關按鈕

Press the "PROGRAM" button and select the "SAVING" process.

按下『程序』按鈕 程序，選擇『慳水洗』

- With each pressing on the "PROGRAM" button, the indicator will light or flash in sequence.

每按動一次程序按鈕，各指示燈會依次點亮或閃爍。

Press the START button.

按下啟動按鈕 啟動暫停

★Put in the detergent according to the displaying water level.

Close the washing-powder dissolver cover.

(The sound of buzzer indicates washing completion.)

根據顯示水位放入洗衣劑

關閉洗衣粉速溶器蓋

(蜂鳴聲響起表示洗衣完畢)

• The pulsator will detect the amount of laundry and display the necessary water level on the control panel. 22 攪拌翼旋轉檢測出洗衣量並由控制面板顯示所需水位。 22
• After the water level are displayed, the washing machine will pause about 1 minute for putting in the detergent. (Press the "WATER LEVEL" button at this time will start operation immediately.)

顯示出水位後，洗衣機會為投放洗衣劑而等待1分鐘左右。

(此時按下“水位”按鈕，則洗衣機會立即開始運轉)

Use of detergent使用洗衣劑

: Powder synthetic detergent粉末合成洗衣劑Liquid detergent液體洗衣劑

- How to put detergent in 19 關於洗衣劑的投入方法 19

Washing of the "SAVING" process『慳水洗』程序的洗衣過程

Dissolve detergent溶解洗衣劑	Washing洗衣	First Rinsing第一次沖洗	Second Rinsing第二次沖洗		Spinning脫水
Approximately two minutes約2分鐘		[Saving rinsing](懼水洗沖洗)Spinning afterdraining排水後進行脫水When thespinning of thebasket is slow,the water supplyis beginning洗衣槽緩慢旋轉的同時,開始供水			Spinning afterdraining排水後進行脫水

Spinning after draining 排水後進行脫水

When using Bleach and Fabric softener 21

使用漂白劑、柔軟劑時 21

The washing machine will not proceed if the lid remains open. Do close the lid. 機蓋開啟狀態下，洗衣機不會運轉。請務必關閉機蓋。

Notes 備注

• The laundry made of chemical fiber or polyester fiber is light, so the water level may be low in such case. Please put the bulky laundry or the massive laundry into the washing basket first.
  化學纖維或聚酯纖維等材料的衣物重量輕，水位可能較低。因此請將大件衣物或厚重衣物先放入洗衣槽內。
  • To avoid the water at too low level, please press the "WATER LEVEL" button to adjust the water to proper level. 擔心水位過少時，請按下水位按鈕將水位調節到合適水位。

Attention 注意

• Please make sure the inhaling window is closed before operation. If the washing machine operates with the inhaling window open, the water may splash.
  請務必關閉吸氣窗後才進行運轉。洗衣機在吸氣窗開啟狀態下運轉時，水滴可能會飛濺出來。

Put laundry in, close the lid, press the power switch.

放入洗滌物，關閉機蓋，按下電源開關按鈕

Press the "PROGRAM" button, select the "SPEEDY" process.

按下『程序』按鈕 程序，選擇『快速』

- With each pressing on the "PROGRAM" button, the indicator will light or flash in sequence. 每按動一次程序按鈕，各指示燈會依次點亮或閃爍。

The water level is automatically set to "31L". It can also set water level by manual according to the amount of laundry.

洗衣機自動設定水位為“31L”，也可手動設定水位。

- Add appropriate detergent, close the washing-powder dissolver cover. 投入相應洗衣劑，關閉洗衣粉連溶器蓋。

Press the START button.

(The sound of buzzer indicates washing completion.) 按下啟動按鈕啟動暫停

(蜂鳴聲響起表示洗衣完畢)

• After the water level are displayed, the washing machine will pause about 1 minute for putting in the detergent. 顯示出水位後，洗衣機會為投放洗衣劑而等待1分鐘左右。
• Laundry amount is 1.2 kg or less. 洗滌量在 1.2kg 以下。

• Use of detergent: powder synthetic detergent, liquid detergent 使用洗衣劑：粉末合成洗衣劑、液體洗衣劑

• How to put detergent in 19 關於洗衣劑的投入方法 19

Washing of the "SPEEDY" process『快速』程序的洗衣過程

Dissolve detergent 溶解洗衣劑

Approximately two minutes

約2分鐘

Washing 洗衣

Agitate 攪拌

(water-injection rinsing) (注水冲洗)

Spinning after draining 排水後進行脫水

Supply water to the required level and performing agitating, then to supply water and agitating at the same time. 供水到規定水位並進行攪拌，然後再進水，同時攪拌。

Balanced agitating 平衡攪拌

Spinning 脫水

Spinning after draining 排水後進行脫水

When using Bleach and Fabric softener 21

使用漂白劑、柔軟劑時 21

The washing machine will not proceed if the lid remains open. Do close the lid.

機蓋開啟狀態下，洗衣機不會運轉。請務必關閉機蓋。

Put laundry in, close the lid, press the power switch.

放入洗滌物，關閉機蓋，按下電源開關按鈕

Press the "PROGRAM" button, select the "HEAVY" process.

按下『程序』按鈕 程序，選擇『強力』

- With each pressing on the "PROGRAM" button, the indicator will light or flash in sequence.

每按動一次程序按鈕，各指示燈會依次點亮或閃爍。

Press the START button.

按下啟動按鈕啟動暫停

★Put in the detergent according to the displaying water level.

Close the washing-powder dissolver cover.

(The sound of buzzer indicates washing completion.)

根據顯示水位放入洗衣劑

關閉洗衣粉速溶器蓋

(蜂鳴聲響起表示洗衣完畢)

• The pulsator will detect the amount of laundry and display the necessary water level on the control panel. 22 攪拌翼旋轉檢測出洗衣量並由控制面板顯示所需水位。 22
• After the water level are displayed, the washing machine will pause about 1 minute for putting in the detergent. 顯示出水位後，洗衣機會為投放洗衣劑而等待1分鐘左右。

Use of detergent 使用洗衣劑

: Powder synthetic detergent 粉末合成洗衣劑 Liquid detergent 液體洗衣劑

• How to put detergent in 19 關於洗衣劑的投入方法 19
- During washing, the "WASH" indicator lamps will flash in sequence, indicating that washing is in progress. 在洗衣過程中，『洗衣』指示燈循環依次閃爍，以告知您正在進行洗衣運轉。

Washing of the "HEAVY" process『強力』程序的洗衣過程

Dissolve detergent溶解洗衣劑	Washing洗衣	First Rinsing第一次沖洗		Second Rinsing第二次沖洗		Spinning脫水
		(Water-storage rinsing)(儲水沖洗)		(Water-storage rinsing)(儲水沖洗)
			Spinning afterdraining排水後進行脫水		Spinning afterdraining排水後進行脫水	Spinning afterdraining排水後進行脫水
約2分鐘	Agitate攪拌
			Supply water tothe required leveland performingagitating進水到規定水位并進行攪拌		Supply water tothe required leveland performingagitating進水到規定水位并進行攪拌
			Balancedagitating平衡攪拌		Balancedagitating平衡攪拌

When using Bleach and Fabric softener 21

使用漂白劑、柔軟劑時 21

The washing machine will not proceed if the lid remains open. Do close the lid.

機蓋開啟狀態下，洗衣機不會運轉。請務必關閉機蓋。

Attention 注意

- Please do not wash non colorfast fabrics. 請勿清洗易褪色的衣物。

Put the laundry in, close the lid, and press the power switch. 放入洗滌物，關閉机蓋，按下電源開關按鈕

Press "PROGRAM" button 程序, and select "SOFTENER" process.

按下『程序』按鈕 程序，選擇『倍柔軟』程序.

• Each time pressing "PROGRAM" button, indicators will light or flash in sequence.
  一次『程序』按鈕，各指示燈會依次點亮或閃爍。

Press the START button.

按下啟動按鈕啟動暫停

★ Put in the correspondent detergent according to the displaying water level.

根據顯示水位，投入相應洗衣劑

Close the washing-powder dissolver cover 關閉洗衣粉速溶器蓋

★ To softener laundry, put in fabric softener to washing powder dissolver by using the following method. 為了加倍柔順衣物，請將柔軟劑按以下方法加入至洗衣粉速溶器內。

(1) Be sure to notice the approximate time for two warning sound of adding fabric softener as shown in figure below. 請注意如下圖所示柔軟劑加入的兩次提示音出現的大致時段。

(2) The two warning sound indicates the start & stop time (within 2 minutes when second warning sound comes) to put in softening agent. Please add softening agent during such duration. 21 兩次提示音的響起表示柔軟劑加入的起、止（第二次提示音響起約2分鐘內）時間，請在該段時間內，將柔軟劑加入。21

• The pulsator rotates to detect the amount of laundry and display the water level required on the control panel. 攪伴翼旋轉檢測出洗衣量並由控制面板顯示所需水位。
• After the water level is displayed, the washing machine will pause about 1 minute for putting in the detergent. (Press the "WATER LEVEL" button at this time will start operation immediately.)

顯示出水位后，洗衣機會為投放洗衣劑而等待1分鐘左右。(此時按下“水位”按鈕，則洗衣機會立即開始運轉)

Use of detergent 使用洗衣剂

: Powder synthetic detergent 粉末合成洗衣劑 Liquid detergent 液體洗衣劑

• HOW TO PUT DETERGENT IN. 19 關於洗衣劑的投入方法。 19
• During washing, the "WASH" indicator lamps will flash in sequence, indicating that washing is in process. 在洗衣過程中，「洗衣」指示燈循環依次閃爍，以告知您正在進行洗衣運轉。

Washing of the "SOFTENER" process『倍柔軟』程序的洗滌過程

Dissolve detergent 溶解洗衣劑

Washing 洗衣

First Rinsing 第一次沖洗

Second Rinsing 第二次冲洗

Spinning 脫水

Approximately two minutes 約2分鐘

washing-powder dissolver is working 洗衣粉速溶器工作

Agitate + steeping 攪拌十浸泡

(Water-storage rinsing) (儲水沖洗)

Spinning after draining 排水后進行脫水

Supply water to the required level and performing agitating 進水到規定水位并進行攪拌

Balanced agitating 平衡攪拌 Second warning sound when adding fabric softener 柔軟增加入的第二次提示音

(Water-storage rinsing) (儲水沖洗)

Spinning after draining 排水后進行脫水

Start water supply 開始進水 (washing-powder dissolver is working) (洗衣粉速溶器工作) Supply water to the required level and performing agitating 進水到規定水位并進行攪拌

Balanced agitating 平衡攪拌

Spinning after draining 排水后進行脫水

When using Fabric softener and Bleach 21 使用柔軟劑·漂白劑時 21
The washing machine will not proceed if the lid remains open. Do close the lid. 机蓋開啓狀態下，洗衣机不會運轉。請務必關閉机蓋。
When only rinsing and spinning, only one warning sound for put in fabric softener can be heard. 只冲洗和脱水的情况下，只有一次柔软剂加入的提示音。

Attention 注意

- If you need to leave for a while when the washing machine starts, please add softening agent at inlet (P21) or select other process. 如果您在啟動洗衣机后需離開，請將柔軟劑加入柔軟劑注入口（P21）或選擇其他程序。

Before using your machine

開始洗衣前

Please note that the washing cap should be used in "SILK" process.

用『絲絨』程序洗滌衣物時，請務必使用洗衣蓋

- Washing without the cap may cause the laundry damage and the washing machine failure. 不用洗衣蓋進行洗衣時，可能會造成衣物損傷及洗衣機損壞。

How to install and uninstall the washing cap 40

洗衣蓋的安裝和拆卸方法 40

The "SILK" process applies the mode of basket rotation, which uses the rotating water in the basket to wash the fine cloth with 📋 label and the laundry with Ⓞ label gently.

『絲絨』程序採用洗衣槽旋轉的方式，利用槽內的旋轉水流，對有 📋 標誌的精細衣物和有 🕒 標誌的衣物進行柔和的洗滌。

• Some laundries can't be washed due to the cloth materials. 也有因布料原因而不能進行洗滌的衣物。
• Because this process imitates the dry cleaning that handles the laundry without external force, please remove the oil contamination, the dirt and the color spot off the laundry. 由於本程序模仿乾洗，不使用外力對衣物進行洗滌，因此請事先除掉衣物上的油污、泥垢及色斑等。

Laundries within or out of the washing range

能洗滌和不能洗滌的衣物

Laundries within the washing range

能洗滌的衣物

Among the signs of

clothes' washing

methods

衣物的洗衣標誌中

With Hand wash label

有標誌的

With Dry clean label

有 乾洗 標誌的

• The sweater, the knitted sweater (high-quality cashmere, mohair and alike) 毛衣、羊毛衫（高級羊绒、馬海毛等）

- The trousers, the skirts 西褲、裙子

- The overall, the shirt, the one-piece dress (silk, flax and alike) 罩衫、襯衫、連衣裙（絲綢、麻等）

• The school uniform, the sailor uniform 學生服、海員服

※ Even the laundry with ⓣ label may be out of the washing range. Please refer to "Laundries out of the washing range" at the right side.

即使有乾洗標誌的衣物也可能不能洗滌。

請參照右邊的“不能洗滌的衣物”。

Laundries out of the washing range

不能洗涤的衣物

• The leather craft or the leather decoration 皮革製品和皮革裝飾品
• The laundries with decoration (feather, fur and alike) 帶裝飾品（羽毛、皮毛等）的衣物
• The rayon, the amino-copper fiber and their mixture 人造絲、銅氨纖維及其混紡物
• The laundries inclined to decolor 易脱色衣物
• The necktie, the suit and the overcoat 領帶、西裝和大衣
• The laundries handled with the coating process, the resin process (with bond), the grain-rolling process (with the raised or sunken patterns) 進行了塗層加工、樹脂加工（使用黏合劑）、軋紋加工（有凹凸花紋）的衣物
• The laundries applied with the forcefully-contorted fiber (forcefully-twisted wire) such as silk and wool (especially the jacquard and alike) 採用絲綢、羊毛等強力扭曲纖維的衣物（尤其是提花等）
• The silk, the corduroy and the alike wools 天鵝絨、燈芯絨等毛料
• The laundries with no washing label 沒有洗衣標籤的衣物

Attention 注意

- If the laundry is not included in the above list, please wash it with reference to the detergent specification

以上並未提及的衣物·請參照洗衣劑說明書進行洗滌

Preparation for the washing

洗衣的準備

Preparation for the laundry

衣物的準備

• Remove the color spot or the dark dirt before washing. 衣物上有色斑或嚴重污垢時，請事先將其清除掉。
• Please fasten the fasteners or the zip of laundry completely. 請將衣物鈕扣扣上並將拉鏈完全拉上。
• As to the laundries with fastener or broider, turn its inner side to external before washing. 帶鉚扣或有刺繡的衣物，請先翻至內面再進行洗滌。

Make sure the decoloring possibility

確認有否脫色

• Please make sure the decoloring possibility of the laundry. Dip the white towel with the detergent, use it to wipe the inconspicuous part of the laundry, and observe whether the towel is attached with color. Don't wash the laundry that decolors. 請事先確認可能脫色的衣物是否會脫色。用白色毛巾沾上洗衣液，在衣物不顯眼處用力擦拭，觀察毛巾是否染上顏色。不能對脫色的衣物進行洗滌。
• Pay particular attention to the laundries that are inclined to decolor, such as the scarf. 圓巾等容易脫色的衣物，應特別注意。

Make the dirt or the color spot easy to remove

使污垢或色斑等易於清除

The oil contamination around the collar or the wristband 領子或袖口處的油垢

• As to the dirt around the fringe of collar, wristband, lap or pocket, use the brush with detergent to wipe these positions hard for dirt removal.
  對於領子、袖口、下擺或口袋邊緣等處污垢，可用沾上洗衣液的刷子在上述位置用力擦拭來清除。

The color spot 色斑

• Underlay the towel at the inner side of laundry, and use the brush with detergent to flap gently and remove the color spot.
  可在衣物內面墊上毛巾，用沾上洗衣液的刷子在色斑處輕輕拍打，使色斑脫落。

Use of detergent

洗衣劑的使用

Use of detergent

洗衣劑的使用

• Please use special detergent (liquid) to wash clothes with Dry clean label.
  洗衣標誌中有乾洗標誌的衣物，請用乾洗衣物專用洗衣劑(液體)進行洗滌。

• Please use neutral liquid detergent (liquid) to wash clothes with Hand washing label.
  有標誌的衣物，也可用中性洗衣劑(液體)進行洗滌。

• Please refer to the detergent specification for the usage amount of detergent.
  洗衣劑使用量請參照洗衣劑說明書。

- Do not use other detergent except liquid detergent. 除液體洗衣劑外，請勿使用其他洗衣劑。

Do not use Bleach.

請勿使用漂白劑

• The bleacher is of strong alkalinity and will do harm to the clothes.
  漂白劑具有強烈鹼性，會損傷布料。

As to the laundry that highly shrinks after washing, the paper model shall be prepared in advance in order to get the laundry back to the original size.

對洗滌後縮水嚴重的衣物，事先應準備好其紙樣，以便將衣物重新恢復到原有尺寸。

How to wash

洗衣方法

Make preparation

進行準備 32

- The laundry amount is below 1.2kg 洗衣量在 1.2kg 以下。

Put the laundry in and install the washing cap, then press the power switch.

放入衣物，安裝好洗衣蓋，按下電源開關按鈕

• Unfold the laundry evenly and fold it properly, then put it into the washing basket, with the washing cap on. 將衣物均勻展開並折疊平整後，放入洗衣槽內，將洗衣蓋壓在其上。
• To prevent the laundry from declining or deforming during the course of spinning. 防止脫水時衣物偏斜及變形。
• Refer to page 40 for proper installation of the washing cap. 洗衣盖的安装方法 40

Press the "PROGRAM" button and select the "SILK" process.

按下『程序』按鈕 程序，選擇『絲絨』

- With each pressing on the "PROGRAM" button, the indicator will light or flash in sequence. 每按動一次程序按鈕，各指示燈會依次點亮或閃爍。

• The water level is automatically set to "31L". The water level can switch on 20L or 31L according to the washing capacity. 洗衣機自動設定水位為“31L”。水位可根據洗衣量在“20L”或“31L”之間切換。
  Put in the liquid detergent and close the lid. 加入液體洗衣劑後，關閉機蓋
• Any button other than "WATER LEVEL" is invalid. 除水位按鈕外，其餘按鈕都無效。

Press the START button.

按下啟動按鈕啟動暫停

(The sound of buzzer indicates washing completion.) (蜂鳴聲響起表示洗衣完畢)

Washing of the "SILK" process

『絲絨』程序的洗衣過程

Rotating water + Soaking

(repeat cycle two times)

旋轉水流+浸泡(重複2次)

Draining→Spinning

排水→脱水

Rotating water + Soaking

旋轉水流+浸泡

Draining→Spinning

排水→脱水

Washing
洗衣

Attention 注意

- Please make sure the inhaling window is closed before operation. If the washing machine operates with the inhaling window open, the water may splash.

請務必關閉吸氣窗後才進行運轉。洗衣機在吸氣窗開啟狀態下運轉，水滴可能會飛濺出來。

After the end of washing

洗衣結束後

Drying methods

晾乾方法

• Sweaters of wool, Angora and cashmere shall be laid in shady and cool place after dressing to be dried in shade. 羊毛、安哥拉羊毛和山羊絨等毛衣應在整形後，放置於陰涼處風乾。
• Woolen sweater can be flattened out on a level board for drying and sunning to prevent distortion. 可將羊毛衫攤平在平坦的木板上晾曬，以防止變形。
• Blouse or one-piece dress shall be dressed and hung in hanger for drying in shade. 罩衫或連衣裙應整形，掛置於衣架上風乾。

• Preset operation is not available in the "SILK" mode. “絲絨”程序不能進行預校運轉。
  • Make sure the washing cap is used. 請務必使用洗衣蓋。

It may aggravate the shrinkage or discoloration of the clothes, make sure clean water is used for washing 可能會造成衣物縮水甚至變色。請務必使用潔淨的水洗滌。

- Use appropriate quantity of detergent. 使用適量的洗衣劑。

Excessive consumption of detergent will lead to insufficient rinse and may do harm to the clothes. 使用過量洗衣劑會導致沖洗不充分，並有可能損傷衣物。

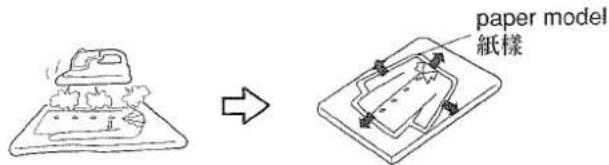

Treatment (recovery of the shrinkage and distortion) 處理方法(縮水或變形的恢復方法)

• Hover the steam flatiron over the clothes, release steam and dress the clothes.
將蒸汽熨斗輕懸於衣物上，使之噴出蒸汽並整理衣物形狀。
• After spraying sufficient steam, flatten out and dress the clothes.
充分噴過蒸汽後，按紙樣平鋪衣物並整理其形狀。

Before using your machine

開始洗滌前

The basket rotates and creates "Blanket washing current" and "Soak" process to gently wash comforters, blanket and bed spread.

洗衣槽旋轉產生洗被毯水流，使被褥等物不會遭受過大的力，從面對床罩、被褥、毛毯進行柔和洗滌。

Please note that washing cap should be used in BLANKET process.

以『被毯』程序洗衣時，請務必使用洗衣蓋。

- Washing without the cap may do harm to the clothes and the washing machine. 不用洗衣蓋，可能會造成衣物損傷及洗衣機損壞。

For installation and dismantlement of the washing cap, please see page 40.

洗衣蓋的安裝和拆卸方法 40

Washable Comforter

能洗滌的被子

- Comforters filled with synthetic (polyester) fibre. Quilt (single, less than width 140cm X length 200cm, the weight of the batting in the quilt less than 1kg) 內部棉架材質為化學纖維(聚酯纖維)的被子 被子(單人寬 140cm x 長 200cm 以下，內部棉架重量不超過 1kg)

- Quilt with the interior batting being feather, and with a sign of ☐、☑. (For example: The batt inside the close fitting comforter is 0.5kg) 內部棉絮材質為羽毛，有☐、☑標誌的被子 (例：貼身輕被內部棉絮重量為0.5kg)

Simple line drawing of a rectangular tray with nine curved patterns inside (no text or symbols)

Attention 注意

- Don't wash the comforter with the wool as its batt material inside or the silk as its cover material. 請勿洗滌內部棉架材質為羊毛或被套材質為絲綢的被子。

Washable Blanket

能洗滌的毛毯

- Blankets with label 有標誌的毛毯

- Acryl or Polyester fiber double breadth elastic blanket, looped pile carpet and woven carpet (less than 140cm(W) x 200cm(L) and single weight not over than 2.4kg) 丙烯酸類或聚酯纖維的雙幅尺寸彈力毛毯、毛圈毛毯、編織毛毯(寬140cm x 長200cm以下，單件重量不超過2.4kg) - Please refer to operation manual of electric blanket for the washing of electric carpet 電熱毯的洗滌請參照電熱毯使用說明書進行。

Other Washable Items

其他能洗滌的物品

- Mattress with 📋 label 有 📋 標誌的床墊 - Pillow cases and cushions filled with synthetic (polyester) fibre 有 📋 標誌的枕頭、坐墊(內部棉架材質為化學纖維(聚酯纖維))

How to put in comforter and blanket

被子和毛毯的放入方法

1 Put in the corner first, then the rest of the comforter slowly. 從被角開始，將被子逐漸放入洗衣槽內。

Line drawing of a person using a washing machine (no text or symbols)

2 To squeeze air out from the inside of the comforter put it in slowly.

將被子內部棉絮中的空氣擠出，然後逐漸將其放入洗衣槽內。

Line drawing of a washing machine with a side panel and handle (no text or symbols)

How to wash

洗衣方法

Make preparation

進行準備 36

Put the laundry in and install the washing cap, then press the power switch.

放入衣物，安裝好洗衣蓋，按下電源開關按鈕

• Unfold the laundry evenly and fold it properly, then put it into the washing basket, with the washing cap on. 將被子或毛毯放入洗衣槽內，安裝好洗衣蓋。
  • Refer to page 40 for proper installation of the washing cap

洗衣蓋的安裝方法 40

Press the "PROGRAM" button and select the "BLANKET" process.

按下『程序』按鈕 程序，選擇『被毯』

- With each pressing on the "PROGRAM" botton, the indicator will light or flash in sequence. 每按動一次程序按鈕，各指示燈會依次點亮或閃爍。

Use of detergent 使用洗衣劑

: Liquid detergent 液體洗衣劑
: Neutral liquid detergent 液體中性洗衣劑

The washing machine is automatically set to high water level. It can also set water level by manual according to the washing amount.

洗衣機自動設定為高水位，也可根據衣物的多少， 手動設定水位

Close the lid after adding the liquid detergent. 加入液體洗衣劑後，關閉機蓋

(It will not show the general amount of detergent.) (不會顯示出洗衣劑的大致用量)

- The basket will rotate when adding water. Please close the lid. 供水時洗衣槽會旋轉，請關閉機蓋。

Press the START button.

按下啟動按鈕啟動暫停

(The sound of buzzer indicates washing completion.) (蜂鳴聲響起表示洗衣完畢)

Washing cycle of BLANKET process

被毯」程序的洗衣過程

Basket rotating water + Soaking 筒旋轉水流+浸泡

Draining→Spinning 排水→脱水

Basket rotating water + Soaking 筒旋轉水流+浸泡

Draining→Spinning 排水→脱水

Washing 洗衣

Rinsing twice 沖洗2次
Spinning 脱水

- The washing basket rotates slowly, generate rotating water and softly wash the quilt and blanket. 洗衣槽緩慢旋轉產生洗被毯旋轉水流對被褥和毛毯進行柔和洗滌。

Attention 注意

- Please make sure the inhaling window is closed before operation. If the washing machine operates with the inhaling window open, the water may splash.

請務必關閉吸氣窗後才進行運轉。洗衣機在吸氣窗開啟狀態下運轉，水滴可能會飛濺出來。

After the end of washing

洗衣結束後

Method to take out 取出方法

- Opposite to the put-in sequence, pull out the comforter slowly.

與放入時相反，應緩慢將被子拉出。

• The timer operation is not applicable to the "BLANKET" process. 『被毯』程序不能進行預校運轉。
• Please make sure to use the washing cap. 請務必使用洗衣蓋。
• Scrub away tough stains by liquid detergent prior to washing. 被子邊緣等處有嚴重污垢時，請事先用液體洗衣劑將其清除掉。

Natural air-jet at the place with good ventilation 在良好通風處讓其自然風乾

(About 4 hours are needed to dry the comforter in sunny days)

(在晴天曬被子約需4小時)

• When drying the comforter in sun, the frequent turning-over will shorten the drying duration. When drying the comforter in sun, the frequent flap will make the comforter fluffy and comfortable. 晾曬被褥時，若能經常將其翻身會乾得更快。晾曬時，若能經常拍打被褥，會使棉被蓬鬆舒適。
• Neaten up the oblique batting in the quilt, make the quilt more dry, fluey and comfortable. (in order to prevent deterioration of batting and damage of quilt, please cover the coverlet to protect the quilt)

整理羽絨被中偏斜了的棉

絮，可使棉被乾燥並蓬鬆舒適。(爲防止羽緘變質或被子受損，請蓋上被單以保護被子)

- When the blanket is still wet, use the brush to tease the hair towards one direction, so as to keep the blanket in good looking.

趁毛毯潮濕時，使用刷子將毛朝同一方向梳理整齊，使之保持美觀。

Clothes not suitable for this mode 不适宜此程序的衣物

- Clothes that cannot be washed in silk mode 不能在絲絨程序中洗滌的衣物 (32)

- Clothes of easily fade away colors 易褪色衣物

- Quilt and blanket 被子、毛毯

- Clothes with a ☐ sign in washing mark 洗滌標誌中有 ☐ 標誌的衣物

Shoes 鞋子

- Easily distorted clothes 容易變形的衣物

Put laundry in, close the lid, press the power switch. 放入洗滌物，關閉機蓋，按下電源開關按鈕

Press the "PROGRAM" button and select "WIND DEHYDRATION".

按下『程序』按鈕 程序，選擇『風脫水』

• With each pressing on the "PROGRAM" button, the indicator will light or flash in sequence. 每按動一次程序按鈕，各指示燈會依次點亮或閃爍。
• When the "Normal" light appears and the "Wind Dehydration" light flashes, the Wind Dehydration mode has been selected. 當「標準」指示燈點亮，同時『風脫水』指示燈閃爍時，表示為「風脫水」程序。

Press the START button.

按下啟動按鈕啟動暫停

★Put in the detergent according to the displaying water level. Close the washing-powder dissolver cover. (The sound of buzzer indicates washing completion.)

根據顯示水位放入洗衣劑關閉洗衣粉速溶器蓋

(蜂鳴聲響起表示洗衣完畢)

• The pulsator will detect the amount of laundry and display the necessary water level on the control panel. 22 攪拌翼旋轉檢測出洗衣量並由控制面板顯示所需水位。 22
• After displaying the water level, the unit will wait one minute for detergent to be added. (Press the "WATER LEVEL" button at this time will start operation immediately.) 顯示出水位後，洗衣機會為投放洗衣劑而等待1分鐘左右。 (此時按下“水位”按鈕，則洗衣機會立即開始運轉)
• Detergent to use: powder synthetic detergent, liquid detergent 使用洗衣劑：粉末合成洗衣劑、液體洗衣劑
  • How to put detergent in 19 關於洗衣劑的投入方法 19
• During washing, the "WASH" indicator lamps will flash in sequence, indicating that washing is in progress. 在洗衣過程中，『洗衣』指示燈循環依次閃爍，以告知您正在進行洗衣運轉。
• During the Wind Dehydration course, the "SPIN" indicator lamps will flash in sequence, indicating that wind dehydration is in progress. 在風脫水過程中，『脫水』指示燈循環依次閃爍，以告知您正在進行風脫水運轉。

Washing of the "WIND DEHYDRATION" process『風脫水』程序的洗衣過程

Dissolve detergent 溶解洗衣劑

Washing 洗衣

First rinsing 第一次冲洗

Second rinsing 第二次冲洗

Wind dehydration 風脫水

When using Bleach and Fabric softener 21 使用漂白劑、柔軟劑時 21
The washing machine will not proceed if the lid remains open. Do close the lid. 機蓋開啟狀態下，洗衣機不會運轉。請務必關閉機蓋。

Wind Dehydration can be preset. “風脫水”程序能進行預校運轉。

Attention 注意

- If you are concerned about clothes being damaged, please do not use this feature. (there is a potential for damage) 擦L衣物受揮時，避免使用該程序。 有可能損傷衣物！

Make sure the washing cap is used in "SILK" or "BLANKET" mode.

進行『絲絨』或『被毯』程序時，請務必使用洗衣蓋。

Installation of the washing cap

洗衣蓋的安裝方法

1 Bend the cap as is shown in the figure and then put it in the basket with the side with letter faced up.

洗衣蓋內有文字一面朝上，如圖所示將其彎曲並先放入洗衣槽內側。

2 ①Press the washing cap on your side, squeeze the whole cap into the basket.

壓下身旁的洗衣蓋，將洗衣蓋整個壓入洗衣槽內。

②Press hard the whole washing cap down and flatten it up.

用力將洗衣蓋整個向下壓，擺放平整。

Attention 注意

- Please install the washing cap in right way to avoid unnecessary injury. 請正確安裝洗衣蓋，避免造成不必要的傷害。

Adjustment of the position and height of the washing cap 調整洗衣蓋的位置高度

In "SILK" mode 『絲絨』程序時

• The installation position (height) of the basket shall be determined by the type, size, and thickness of the washings. Please install the washing cap at a height where it could press against the washings slightly. 洗衣蓋的安裝位置(高度)應根據衣物的種類、大小、厚度而定，請將洗衣蓋安裝在可輕壓住衣物的高度。
• There is a sign of protrusion on the interior wall of the basket, indicating where the installation position shall be, which can be used as reference at the time of installation. 洗衣槽內壁上有表示安裝位置的突起標誌，安裝時可供參考。
• For light and thin clothes such as blouse, towels can be put into the basket to adjust the height of the washings and avoid oblique of the washing. 洗滌罩衫等輕薄衣物時，可在洗衣槽內放入毛巾等物，以調節衣物高度，避免脫水時衣物偏斜。

Attention 注意

- Do not add any clothes on the washing cap after the installation of the cap. 洗衣蓋安裝完畢後，請不要在洗衣蓋上再加入衣物。

In "BLANKET" mode 『被毯』程序時

Put the washing cap into the basket, hold the central circle, and pull it right beneath the balance ring.

把洗衣蓋放入洗衣槽內，握住中圈將其拉到平衡環正下方。

- Do not clip the clothes when installing the washing cap. 安裝洗衣蓋時，請勿夾住衣物。

Attention 注意

Prohibited 禁止

It is prohibited to install the washing cap aslant. In addition, the washing cap is prohibited from being used in other modes except the "BLANKET" and "SILK" mode.

嚴禁傾斜安裝洗衣蓋。另外，除『被毯』、『絲絨』程序外，嚴禁在其他程序中使用洗衣蓋。

- Lest the splashed water drop or the washing cap bounced out will cause body injury or damage of the washing machine.

以免水滴飛濺或洗衣蓋飛出造成人身傷害或洗衣機損壞。

- When keeping the washing cap, please prevent it from deforming.

保管洗衣蓋時，請注意防止其變形。

- The washing cap is a consumable good Purchases can be made at authorized dealers.

Refer page 64 for the optional components.

洗衣蓋屬於消耗品，若有損壞請到指定的商鋪購買。

另售部品 64

Taking out the washing cap

洗衣蓋的取出方法

1 Push the washing cap down.

將洗衣蓋向下壓。

2 As shown in the figure hold on to the center part and bend it to the arrow direction.

如圖抓住中圈，將洗衣蓋向箭咀方向彎曲。

3 Pull the washing cap out.

然後順勢將洗衣蓋拉起， 取出。

Any of the processes of "Washing", "Rinsing" and "Spinning" can be set up alone, and the processes can also operate in combination. (The content of the washing will not be stored)

可以單獨設定洗衣、沖洗、脫水任何一個程序，亦可將各個程序組合運轉。(衣物內容將不會被儲存)

Attention 注意

• Except the "washing → rinsing → spinning" and "washing → spinning", when other washing modes are set, no stirring of the washings will be made for loosening clothes after the completion of drainage.
  除“洗衣→沖洗→脫水”及“洗衣→脫水”設定外，設定其他洗滌方式時，最後排水結束後不會為疏鬆衣物而進行理衣攪拌。

    E["4: 洗衣"] --> F["沖洗"]
    G["5: 洗衣"] --> H["沖洗"]
    I["6: 洗衣"] --> J["沖洗"]
    K["7: After draining and spinning, it begins to add water for rinsing 排水和脱水結束後，開始供水準備沖洗。"] --> L["沖洗"]
    M["8: 沙洗"] --> N["沖洗"]
    O["9: Select spinning "1 min." when draining only.\n只排水時，請選擇脫水“1分鐘”進行運轉。"]

How to use the "WATER LEVEL" button 水位按鈕的使用

Each time the "WATER LEVEL" button is pressed, the value display will cycle through the following values. 每按一次水位按钮，數字顯示框內會按如下內容切換。

Tips 簡要說明

When adding water during washing or rinsing process, press and hold the WATER LEVEL button for continuous injection of water.

(When the top water level is reached, no more water is able to be charged) 洗衣或沖洗過程中要加水時按下水位按鈕，持續按住即可加水。 (到達最高水位後，將無法再度加水)

※During "SILK" modes, water level can only be set to "20L" and "31L".

在絲絨程序中水位只能選擇“20L”、“31L”。

How to use the "WASH" button 洗衣按钮的使用

With each pressing on the "WASH" button, the indicator will move towards the arrow. 每按一次洗衣按钮，指示燈會沿著箭咀方向移動。

18分以上 (9 minutes, 6 minutes and 3 minutes LED light) (9分、6分、3分指示灯贴亮)

15分 (9 minutes and 6 minutes LED light) (9分、6分指示燈點亮)

12分 (9 minutes and 3 minutes LED light) (9分、3分指示熔點亮)

9分 (9 minutes LED light) (9分指示燈點亮)

6分 (6 minutes LED light) (6分指示燈點亮)

3分 (3 minutes LED light) (3分指示燈點亮)

LED extinguishes (no washing) 指示燈熄滅 (不洗衣)

Tips 簡要說明

※Manual setting can't be made in "HEAVY", "SILK" and "BLANKET" modes.

在「絲絨」和「被毯」程序中不能進行手動設定。

※"18 and up" can only be used with the "NORMAL", "SOFTENER" and "WIND DEHYDRATION" processes "18分以上" 只有「標準」、『倍柔軟』和「風脫水」程序可以設定。

How to use the "RINSE" button 沖洗按鈕的使用

With each pressing on the "RINSE" button, the indicator will move towards the arrow. 每按一次沖洗按鈕，指示燈會沿著箭咀方向移動。

2次+1次+注水

2次+1次

(1)

2次+注水

1次+注水

1次

LED extinguishes 指示燈熄滅

3 times of rinse with stored water (儲水沖洗3次)

2 times of rinse with injection water (注水冲洗2次)

2 times of rinse with stored water (儲水沖洗2次)

1 times of rinse with injection water (注水冲洗1次)

1 times of rinse with stored water (儲水沖洗1次)

(no rinsing) (不冲洗)

Tips 簡要說明

※ Manual setting can't be made in "SILK" and "BLANKET" modes. 在『絲絨』和「被毯」程序中不能進行手動設定。

How to use the "SPIN" button 脫水按鈕的使用

With each pressing on the "SPIN" button, the indicator will move towards the arrow.

每按一次脫水按鈕，指示燈會沿著箭咀方向移動。

9分

(6 minutes and 3 minutes LED light) (6分·3分指示燈點亮)

7分 (6 minutes and 1 minutes LED light) (6分、1分指示燈點亮)

6分

(6 minutes LED light) (6分指示燈點亮)

3分

(3 minutes LED light) (3分指示燈點亮)

1分

(1 minutes LED light) (1分指示燈點亮)

LED extinguishes 指示熄熄滅

No spinning (不脱水)

Tips 簡要說明

※Manual setting can't be made in "SILK" and "WIND DEHYDRA-TION" modes.

在『絲絨』、『風脫水』程序中不能進行手動設定。

End The buzz stands for the end of washing. 結束 蜂鳴聲響起表示洗滌結束

This part describes the process of each process.

本部分對各洗衣程序的過程進行說明。

( ) indicates it may be manually switched within the range contained in the bracket by pressing the buttons. No ( ) means no switch.

( )中表示用各按鈕可切換的範圍。無( )表示不能進行切換。

Process 程序	Automatic setup of water level 自動設定的水位	Washing 洗衣	Rinsing 冲洗		Spinning 脫水	Required duration (approximate) 所需時間(大約)
			Round 1 第一次	Round 2 第二次
NORMAL標準	50~20L(50~20L)	30分(30~3分)	Water-storage rinsing 储水沖洗	Water-storage rinsing 储水沖洗	6分(9~1分)	63分(70~28分)
			(Water-storage or water-injection rinse 1~3 times)(儲水或注水沖洗1~3次)
SAVING慳水洗	50~20L(50~20L)	9分(15~3分)	Sprinking rinsing 噴淋沖洗	Water-storage + water-injection rinsing 储水+注水沖洗	6分(9~1分)	40分(55~28分)
			(Water-storage or water-injection rinse 1~3 times)(儲水或注水沖洗1~3次)
SPEEDY快速	31L(31~20L)	3分(15~3分)	Water-injection rinsing 注水沖洗		6分(9~1分)	27分(45~25分)
			(Water-storage or water-injection rinse 1~3 times)(儲水或注水沖洗1~3次)
HEAVY強力	50~20L(50~20L)	60分	Water-storage rinsing 储水沖洗	Water-storage rinsing 储水沖洗	6分(9~1分)	105分(112~100分)
			(Water-storage or water-injection rinse 1~3 times)(儲水或注水沖洗1~3次)
SOFTENER倍柔軟	50~20L(50~20L)	30分(30~3分)	Water-storage rinsing 储水沖洗	Water-storage rinsing 储水沖洗	6分(9~1分)	66分(79~31分)
			(Water-storage or water-injection rinse 1~3 times)(儲水或注水沖洗1~3次)
SILK絲絨	31L(31~20L)	9分	Water-storage rinsing 储水沖洗	Water-storage rinsing 储水沖洗	1分	36分
BLANKET被毯	50L(50~20L)	50分	Water-storage rinsing 储水沖洗	Water-storage rinsing 储水沖洗	15分(15~1分)	94分(94~85分)
WIND DEHYDRATION風脱水	50~20L(50~20L)	30分(30~3分)	Water-storage rinsing 储水沖洗	Water-storage rinsing 储水沖洗	60分	118分(125~85分)
			(Water-storage or water injection rinse 1~3 times)(儲水或注水沖洗1~3次)

Time required for washing 洗衣所需時間

• The washing time includes the time of charging (volume of 15L per minute) and draining (standard condition). 洗衣時間包括供水時間（供水位每分鐘15L）和排水時間（標準狀態）。
• The washing time depends on the water pressure, washing quantity and drainage condition etc. 所需時間隨水壓、洗衣量和排水條件等因素變化而變化。
• In the "NORMAL", "SAVING", "SPEEDY", "HEAVY", and "WIND DEHYDRATION" modes, the washing machine determine the optimum washing mode by checking the load and texture of the washings. The time shown in the above table are ones in standard condition (marked with 200). 在『標準』、『慳水洗』、『快速』、『強力』和『風脫水』程序中，洗衣機通過檢測洗涤量和質地，決定最佳洗衣方式。上表所示時間為標準狀態（用表示）下的時間。
• There are certain errors between the "washing time" & "spinning time" and the actual operation time. “洗衣時間”、“脫水時間”与實際運轉時間存在一定誤差。
• The "NORMAL", "SAVING", "SPEEDY", "HEAVY", and "WIND DEHYDRATION" modes, the washing machine will stir the clothes for 2-4 minutes after final spinning for fluey effect. (stirring may not be made for some washing loads.)

『標準』、『慳水洗』、『快速』、『強力』和『風脫水』程序在最終脫水結束後，會進行攪拌（2\~4分鐘）以理順衣物，達到疏松效果。（有的洗衣量不能進行此攪拌）

Change of the options in the modes 關於更改程序內容

• () indicates it may be manually switched within the range contained in the bracket by pressing the buttons. ( )中表示用各按鈕可手動切換的範圍。
• Options in modes can't be changed after the completion of the "washing" process. 不能在“洗衣”過程結束後更改程序內容。
• Changes can't be made during the period from the beginning of charging to the time when the level of charged water reach the stated standard. 從供水開始到水位達到規定水位的過程中，也不能進行更改。

Switch of modes 關於切換程序

- Modes can't be switched after the starting of washing machine. If it is necessary to switch, please cut off the power supply first, and then proceed with the switch. 不能在啟動後切換程序。如需更改，請切斷電源後再進行程序切換：

Put the laundry in, close the lid, and press the power switch.

放入衣物，關閉機蓋，按下電源開關按鈕

Press the "PROGRAM" button, select the washing process.

按下『程序』按鈕 程序，選擇洗衣方式

- With each pressing on the "PROGRAM" button, the indicator will light or flash in sequence.

每按動一次程序按鈕，各指示燈會依次點亮或閃爍。

Press the "PRESET" button, set the pre-defined time.

按下『預校』按鈕 預校，設定預校時間

- Set the time it will take to finish washing from now. 設定從現在開始多長時間後結束洗衣。

- Predefined time can be switched by pressing the "PRESET" button.

按下預校按鈕，可切換預校時間。

Press the START button.

按下啟動按鈕啟動

暫停

★ Based on the washings (roughly), add detergent and then close the lid. (The sound of buzzer indicates washing completion.) 根據洗衣量(大致)，放入洗衣劑。放入洗衣劑後，關閉機蓋。(蜂鳴聲響起表示洗衣完畢)

- The pulsator rotation check the washing load and display it in the control panel. 22

攪拌翼旋轉檢測洗衣量並由控制面板顯示出來。 22

- When use Powder Synthetic Detergent, please add detergent in the washing-powder dissolver. 19 使用粉末合成洗衣劑時，請將洗衣劑加入洗衣粉速溶器。 19

- Please do not use liquid detergent when it is in prefined washing. 預校洗滌時，請勿使用液體洗衣劑。

※ Predefined operation can't be set in "SOFTENER", "SILK", "BLANKET", "BASKET CLEAN" and "AIR JET" modes.

『倍柔軟』、『絲絨』、『被毯』、『筒清洗』、『風乾』程序不能設定預校運轉。

How to use the "PRESET" button (Switched options)

預校按鈕的使用方法（切換內容）

The timer function allows the finishing time to be set to 3 hours \~ 12 hours later. This feature comes in handy when you wish to do the washing while you are out or when you With to do the washing at night and hang out in the morning.

可將洗衣完成時間設定在3～12小時後，在外出時進行洗衣，或在夜間洗衣早晨晾曬，利用本功能是相當便利的。

Press the "TIMER" button to set the washing content. It will change a washing content for press the button each time.

按下預校按鈕，設定洗衣內容。每按一次按鈕，改變一次設定。

In the following cases

在以下情况下

Fix the timer duration: press the "PRESET" button. (With the button pressing and holding, the timer duration will be displayed)

確認預校內容：按下預校按鈕。 (持續按下期間，顯示預校內容)

Cancel the timer duration: switch off the power "ON/OFF" button.

取消預校內容：切斷電源開關

Change the timer duration: switch off the power "ON/OFF" button, and reset.

更改預校內容：切斷電源開關後，重新設定。

Attention 注意

• In predefined operation, do not mix the clothes liable to discoloration. 預校運轉時，請勿將容易脫色的衣物混在一起洗滌。
• With the power unplugged or cut, the preset process will be canceled.

拔掉電源插頭或停電時，預校程序將被取消。

• The washing time varies with the change of the load and texture of the washings and the volume of the charged water 洗衣時間隨洗衣量和質地及供水位的變化而改變。
• To prevent the laundry from corrugating, take it out for drying as early as possible after the end of washing. 爲防止衣物起皺，洗衣結束後應盡早取出晾乾。
• Please make sure the inhaling window is closed before operation. If the washing machine operates with the inhaling window open, the water may splash. 請務必關閉吸氣窗後才進行運轉。洗衣機在吸氣窗開啟的狀態下運轉，水滴可能會飛濺出來。

Preparing for AIR JET

開始風乾前

Air-Jet function helps to shortion the time for laundry airing by using of strong wind and high-speed spinning. It prevents shirkage and trans frigue that caused by beating.

風乾功能利用強風和高速脫水，縮短衣物晾干時間，可免除傳統熱烘式干衣引致縮水變形的問題。

• May be used to dry the heat-irresistible swimsuit or the underwear containing the amino heat-insulation materials. 可對不耐熱的泳衣或含隔熱材料的內衣進行風乾。
• Keep room free of mugginess for causing no temperature rise. 由於溫度不上升房間不會悶熱。

Provide the same drying effect as the airing in the room.

可以達到和房間內晾乾同等的乾燥效果。

• Please use the optional drying net for the cotton textile that is hard to dry by airing. 風乾難以晾乾的棉織品時，請使用乾燥網配件。（另售）
• Maximal 1.5kg of blending chemical fiber can be dried in 3 hours. 可在3小時內風乾1.5kg化學纖維混紡等衣物。

● Be able to control the black mildew in the washing basket. (The process of "BASKET AIR JET" that only dries the washing basket may be applied to prevent the mildew.) 📞 50

可抑制洗衣槽中的黑色霉菌。(可利用僅風乾洗衣槽的『筒風乾』程序來防止霉菌) 50

The drying capacity can be as high as 1.5kg. (Blending chemical fiber)

衣物最大風乾量為1.5kg。(化學纖維混紡)

Excessive use of detergent may cause insufficient air-jet or unexpected corrugations. 洗衣量過多時會造成風乾不充分或出現較多皺紋。

Laundries not applicable to air-jet 不適宜風乾的衣物

• Laundries not applicable to the washing processes of "SILK" (31) 不能在絲絨程序中洗滌的衣物 (31)
• Comforter and blanket 被子、毛毯
• Shoes 鞋子
• Laundries inclined to decolor 易脱色衣物
• Laundries with the 📄 label for washing 洗衣標籤中有 📄 標誌的衣物
• Laundries inclined to be reshaped 容易變形的衣物

Please never handle the waterproof paper or laundries with air-jet mode. 請勿風乾具防水性的紙張或衣物。

■ Approximate weight of air-jet laundries 風乾物的大致重量

White shirt

(blending, about 200g) 白襯衫 (混紡約200克)

Overall

(blending, about 200g) 單衫 (混紡約 200 克)

Sweater

(chemical fiber, about 500g) 絨布衫 (化學纖維約500克)

Close-fitting trousers (with the amino heat-insulation materials)

(chemical fiber, about 200g) 緊身褲(含隔熱材料) (化學纖維約200克)

Washable silk (silk, about 200g) 可洗的絲綢 (絲綢約200克)

sports suit (jacket and trousers) (chemical fiber, about 700g) 運動衫(上下)

(化學纖維約700克)

Lady's shirt vest (with the amino heat-insulation materials) (chemical fiber, about 200g) 女用襯衣背心(含隔熱材料) (化學纖維約200克)

Night-suit (jacket and trousers) (blending, about 500g) 睡衣(上下) (混紡約500克)

work clothes (blending, about 800g) 工作服 (混紡約800克)

- The figure in the parentheses means the approximate weight of one piece of clothes. The weight varies according to the type, size and thickness of laundries.

( )中的數值表示一件衣物的大致重量，該重量隨衣物種類、大小、厚度等因素的變化而有所不同：

Attention 注意

• Please well rearrange the laundries before putting them into the washing basket. 請務必將衣物理順後再放入洗衣槽內。
  Excessive or poorly-rearranged laundries may cause operation failure. 放入衣物過多或衣物尚未理順時，可能會出現錯誤。

Please pause the operation after the operation failure, reduce the amount of laundry and correct the laundry declination or enwinding, then press the start button. If the failure remains after repeating the above procedure 2 or 3 times, please contact an authorized service dealer.

出現錯誤後，請暫停運轉，減少衣物量並消除衣物偏斜和纏繞，然後再次按下啟動按鈕啟動暫停。若反復2至3次仍出現錯誤，請與認可的維修服務店聯絡。

Maintenance of Washing Basket (to keep it clean)…BASKET AIR JET Process 洗衣槽的保養 (爲保持其清潔)…筒風乾程序

Frequent air-jet to the washing basket may prevent the mildew. (Applied frequency: once a week)

經常風乾洗衣槽可抑制黑色霉菌的生長。(使用頻率：約每周1次)

The process of "BASKET AIR JET" is the same applied as that of "Air-jet Process". (48)

『筒風乾』程序的使用方法與“風乾的方法”相同。(48)

Press the AIR JET button, and set the option as "BASKET AIR JET" to start operation. (Operation is as long as about 20 minutes)

按下風乾按鈕（風乾），設定為『筒風乾』後便可運轉。(運轉時間約20分鐘)

The black mildew can be cleaned with the common oxidized bleacher.

出現黑色霉菌時，可用市面有售的氧化型漂白劑進行清洗處理。

Attention 注意

• Please never put laundry into the washing basket during the course of basket air jet. 筒風乾時，請勿在洗衣槽內放入衣物。

Maintenance of nanometer titanium filter net 納米鈦淨化網的維護

1 Open the inhaling window to 60° (you will feel a click), and remove the filter net. 吸氣窗打開至60°的位置（有"卡塔"的感觸），取下淨化網支架。

The stains remained on inhaling window and inhaling net can be removed with a soft cloth. 吸氣窗、吸氣網有污垢時可用軟布清潔。

2 If there are stains on nanometer titanium filter net, please remove them with dust collector. 納米鈦淨化網上有污垢時，請用吸塵器從淨化網支架上去除。

Illustration of a hand holding a tool interacting with a mechanical component (no text or symbols visible)

If the stains are serious, please replace with a new nanometer titanium deodorization filter net. 若污垢很多，建議更換新的納米鈦淨化網。

3 Hold the nanometer titanium filter net and release it from holder (with 8 latches)
抓住納米鈦淨化網使它脫離淨化網支架（8個搭扣）
Use a soft cloth to clean the stains on filter net holder. 淨化網支架有污垢時可用軟布清潔。

4 Install the nanometer titanium filter net onto its holder.

把納米鈦淨化網安裝到它的支架上。

Attention 注意

When installing, insert the nanometer filter net into its holder latches (8 places) and pins (3 places). 安裝時，納米鈦淨化網要插入到它的支架的搭扣（8個），銷子（3處）上。

5 Install the nanometer titanium filter net onto the inhaling net.

將納米鈦淨化網裝在吸氣網上。

Attention 注意

If nanometer titanium filter net is incorrectly installed, it may reduce the deodorization effect when drying. 納米鈦淨化網安裝不正確，會降低乾燥時的除臭效果。

6 Close the inhaling window. 關閉吸氣窗。

Notes 備注

The nanometer titanium filter net assy is an exchangeable part.

納米鈦淨化網組件是一種可更換式部件。 If loss, damage, or severely stains occur, please purchase at service agent. 當出現丟失、破損、污垢嚴重時請到緯修服務店購買。

Using the Detergent Again

再次使用洗衣液

Use the detergent again

再次使用洗衣液

1 "Washing" only for the 1st collective of laundries. 對第一批衣物進行“單洗”。

2 Put in the 2nd collective of laundries, and select the favorite washing mode.

放入第二批衣物，選擇喜歡的洗衣方式進行洗衣。

• Set the proper water level for the laundries. 設定適合衣物的水位。
• When changing wash settings between loads to "SILK" or "BLANKET", clutch adjustment will cause temporary drainage.
  當您選擇與第一批衣物不同的洗滌方式，設定為『絲絨』和『被毯』程序運行時，因离合器調整，會有短暫的排水現象。

3 Rinse and spin the 1st collective of washed laundries 對第一批已經洗過的衣物進行沖洗和脫水。

- Set the proper water level for the laundries. 設定適合衣物的水位。

Do not remove the plug of power supply during the operation.

運轉過程中，請勿拔掉電源插頭。

• Lest the washing machine will be in trouble. Make sure the operation is suspended or the power supply is cut off before removing the plug.
  以免引起洗衣機故障。請務必暫停運轉或切斷電源開關後，再拔掉電源插頭。

Do not add excessive amount of detergent. 請勿投入過量洗衣劑。

• Excessive detergent won't improve the washing effect much. 投入過量洗衣劑，洗衣效果並無多大改變。
  • Instead, it will cause insufficient rinse and lead to some problems due to excessive foams.
  相反會造成沖洗不充分，以及因泡沫過多而引起某些問題。

Don't be close to television or radio. 請勿靠近電視機或收音機。

• It may interfere with the television or radio. 可能會對電視機或收音機構成干擾。

The power supply switch is in ineffective condition after the power supply is cut off and before the Mode LED extinguishes.

切斷電源後，程序指示燈尚未熄滅前，電源開關處於無效狀態。

- To switch on the power supply, it is recommended to press the power supply switch again after the LED extinguishes. 想再次接通電源時，應待指示燈熄滅後再按下電源開關。

Attentions in continuous operation. 連續運轉時應注意。

• Manually set the washing time as "12 minutes", operate the washing machine for over 3 consecutive cycles, the protective mechanism may work and stop the motor.
  手動將洗衣時間設定為“12分鐘”，連續運轉3個循環以上時，保護裝置可能會起作用而使馬達停止運轉。
• If continuous operation is necessary, please restart the operation of the washing machine after 30 minutes more or less. 需連續運轉時，請隔30分鐘左右再讓洗衣機重新運轉。

Do not have the drying net close to magnetic card.

請勿將乾燥網靠近起搏器或磁卡等物品。

- It may cause error or failure of the magnetic card 可能會導致誤動作或磁卡不能使用等問題。

Attention on dewfall.

結露時應注意。

- Since the humidity is high in summer, there will be dewfall outside the washing machine when washing with cool water, which may damp the floor. Please pay attention to it. 由於夏天濕度較高，當用冷水進行洗衣時，會在洗衣機外側出現結露現象，有可能會將地板弄濕，請加以注意。

Do not put in excessive clothes. 請勿投入過多衣物。

- It may cause overflow of the clothes during washing. The placement of washings please see page 19. 有可能造成衣物在洗衣過程中溢出。 衣物的放入方法 19。

After spinning, the lock-in function of the lid is unlocked, but the washing basket will remain rotating for over 15 seconds.

脫水結束後，機蓋鎖緊功能被解除，但洗衣槽還會旋轉15秒以上。

- Stop use immediately and please request repair. 立即停止使用並請僱人維修。

Do not use sharp-edged article to press the buttons.

請勿使用鋒利的物品來按按鈕。

- Lest the buttons be damaged or in trouble. 以免造成破損或故障。

Don't open the lid while the inhaling window is open.

吸氣窗打開狀態下，不要開關機蓋。

- It may cause damage. 可能會造成破損。

When washing the thick clothes such as jersey, the oblique of the clothes in the basket is liable to cause the security problem.

洗滌運動衫等厚衣物時，由於衣物在槽內偏斜，較易導致安全開關動作。

Maintenance to the washing basket (to keep it clean) ... BASKET CLEAN Process

洗衣槽的保養（爲保持其清潔）… 筒清洗程序

It's hard for the soap alkali residue and the mildew to adhere to the stainless steel basket, but the soap alkali residue may come into being after long usage.

Please perform the regular maintenance, and clean the washing basket bimonthly.

雖然肥皂鹼垢和霉菌很難附在不銹鋼槽內，但長時間使用後，有可能形成肥皂鹼垢。

請定期進行保養，大約2個月對洗衣槽進行一次清洗。

Regular maintenance
定期的保養

Press the Power switch.

按下電源開關按鈕

Press the "PROGRAM" button and select the "BASKET CLEAN" process.

按下『程序』按鈕 程序，選擇『筒清洗』程序。

Press the START button.

按下啟動按鈕啟動暫停

After adding the detergent, close the lid.(The buzz sounds indicating the completion of washing)

投入漂洗劑後，關閉機蓋。(蜂鳴聲響起表示洗衣完畢)

BASKET CLEAN mode is completed

筒清洗程序完畢

※"Basket" process operates as "Branket" process 36 『简清洗』程序的運轉過程中同『被毯』程序的洗滌過程 (36)。

• With each pressing on the "PROGRAM" button, the indicator will light or flash in sequence. 每按動一次程序按鈕，各指示燈會依次點亮或閃爍。
• The detergent is the oxidizing bleacher sell in the city. Please infuse 250g (about one bottle) bleacher.

清洗劑為市面有售的氧化型漂白劑，請在洗衣槽內倒入250g(約1瓶)漂白劑。

- Please do not use regular detergent, for it will not be able to clean the basket.

請勿使用日常使用的清洗劑，因爲不能達到清洗筒的目的。

- Pleas do not put clothes in the basket. It is automatically set to "50L", water level can't select.

請勿在洗衣槽內放入衣物。自動設定水位為「50L」，水位不可選擇。

About the abnormality alarm

關於異常警報

In the following cases, the flash of indicator and the sound of buzzer will announce the abnormality.

If the washing machine generates unexpected error alarm, the washing machine shall be temporarily suspended for a while, and then restarted. If the same error alarm occurs again, please follow the following steps.

出現下列情況時，將通過指示燈的閃動和蜂鳴器聲響告知您發生異常。

但若洗衣機出現意外的錯誤警報時，應先暫停機器，然後再次啟動。

若再次出現同樣的錯誤警報，請按以下步驟進行檢查。

Display 顯示	Alarm content 警報內容	Part to check 檢查部位	Solution 處理方法
	Fail to supply water無法供水時Fail to reach the full water level within 40 minutes or fail to reach the required level (10L) within 8 minutes 經過40分鐘還無法達至滿水位,或經過8分鐘還沒有達到規定水位(10L)時	• Is the tap turned on?水籠頭是否打開?• Is the tap water pipe frozen or out of supply?自來水管是否凍結或停水?• Is the filtering net at the water supply opening blocked by contamination?供水口濾網是否被污物堵塞?	啟動暫停▼Troubleshooting排除異常▼啟動暫停▼Restart operation再次啟動運轉
	Fail to drain water無法排水時Fail to drain up water within 5 minutes經過5分鐘還無法排水完畢	Check the water drainage hose請對排水管進行檢查• Is the water drainage hose laid down?排水管是否被放下?• Is the water drainage hose squeezed up?排水管是否被壓扁?• Is the end of water drainage hose blocked because of merging in water?排水管端部是否浸沒於水中而被堵塞?• Is the water drainage hose blocked by silt or lint? (Drainage opening need to be checked also)排水管中是否被泥沙或棉絮堵塞?(排水口也需檢查)• Is the water drainage hose frozen?排水管是否有凍結?• Is the water drainage hose properly installed?9 是否正確安裝了排水管?9	Please press the "START/PAUSE" button to pause the operation, rearrange the laundry evenly, and restart with the lid closed.請按下暫停按鈕暫停運轉,調整衣物平衡後,關閉機蓋重新啟動。
	Stop during the spinning course脫水過程中停止	• Is the laundry laid aside?衣物是否偏置於一側?

When Failure Happens (continued)

有故障發生時(續)

Display顯示	Alarm content警報內容	Part to check檢查部位	Solution處理方法
	The lid is not locked completely(The lid is not completely closed)機蓋沒有完全鎖緊(機蓋沒有完全關閉時)	• Is there foreign substance under the lid?機蓋下有異物?	Troubleshooting排除異常▼Restart operation再次啟動運轉
	Washing basket can not rotate(washing, rinse, spinning)洗衣槽無法旋轉(洗衣、沖洗、脫水)	• Are the washings oblique?衣物有無偏斜?• Or is the washing machine placed straight? See page 7洗衣機是否水平放置? [IMAGE] 7	Please press the "START/PAUSE" button to pause the operation, rearrange the laundry evenly, and restart with the lid closed.請按下暫停按鈕暫停運轉,調整衣物平衡後,關閉機蓋重新啟動。
	Lock of lid can not be unlocked機蓋鎖緊無法解除	• Press "PAUSE" button, and then restart it.按下暫停按鈕,然後重新啟動	If there is still trouble, stop using the unit and request repair.若仍出錯,請停止使用並僱人修理。

• If the above abnormal alarms occur, they may be caused by outside interference.
  At that time, please press the suspend button to suspend the washing machine, then restart it. If the same alarms occur, please stop the use and request repair.
  若出現上述之外的異常警報，有可能是由外來干擾導致。
  此時請按下暫停按鈕暫停運轉，然後重新啟動，若仍出現相同的異常警報，請停止使用並僱人修理。

Before the repair request 要求修理前
Please recheck the following items 請再次檢查以下項目

Case 現象	Cause 原因
Fail to running 不運轉	• Is power cut? 是否停電? • Does fuse or breaker blow? 保險絲或熔斷器是否燒斷? • Can the power plug enter the socket properly? 電源插頭是否可靠地插入電源插座? • Is the power switch on? 電源開關是否打開? • Is the tap turned on? 水龍頭是否打開? • is the "Preset washing process" set? 是否設定了“預校定時洗衣程序”? 45 • Whether the "START" button is pressed or not? 有無按下啟動按鈕?

Case 現象

Fail to supply water

不供水

No spinning, washing

basket can't rotate

不脫水、洗衣槽無法旋轉

No agitating

不攪拌

Unable to air-jet dry

無法風乾

It doesn't work after setting

of air-jet dry

設定風乾後無法工作

Can not open the lid

機蓋打不開

Abnormal sound occurs

發出異常聲音

No buzz at the end of washing

洗衣結束後無蜂鳴聲

The lid can't be opened during

the operation.

運轉過程中，機蓋無法打開

Water leakage

漏水

Water can not be reserved

(when pouring the water with water basket)

不能儲水

(用水桶等容器倒入水時)

Cause 原因

Please refer to "Part to check" in "About abnormality alarm". 58

請參照“關於異常警報”中的『檢查部位』。58

- Please refer to "The Approximate air-jet duration of laundry". 49 請參照“衣物的大致風乾時間”。 49

- If there is water remained in the dehydrating basket, Start button can not be pressed. And it can only be pressed after draining all of the water. 脫水槽中有水積存時，就不能接受“啟動”鍵，要先進行排水，把水排光後再按“啟動”。

- If there is outage and shutdown during the operation, the washing machine will generate alarms and cut off the power supply. The lid is still locked. When power supply is switched on again, the lid lock will be unlocked. 電源開關是否打開？ （運轉過程中出現斷電或停電時，洗衣機將發出異常警報並自動切斷電源，機蓋仍處於鎖定狀態。再次接通電源後，機蓋鎖定將解除。）

- Is the washing machine declining or shaky? 7 Installation Guide 洗衣機是否有傾斜或搖晃？ 7 安裝指南

• Is any barrette or metal item mixed in the washing basket? 有無髮夾或金屬物體混入洗衣槽內？

- Is the buzz at the end of washing set as canceled? 16 是否已設定取消洗衣結束蜂鳴聲？16

- Whether have the lid lock function (safety protection mode)?

16

是否進行了機蓋緊鎖功能(安全保護模式)的設定？16

• Is the tap of proper shape?

水龍頭的形狀是否合適？11

- Are the one touch joint and the connection nut unfastened? 11, 12 便捷連接器和連接螺母是否出現鬆動？11, 12

• Is the power on?

電源開關是否打開？

(In case of power cut during draining, the drainage valve will keep open. And the drainage valve will close after the power resumes.)

(原因在於排水過程中出現斷電或停電時，排水閥會保持開啟狀態。再次接通電源後，排水閥將關閉。)

- Except the failures mentioned above, the lid lock protector may cause cases such as stop during operation or lid unable to be opened. In such case, please unplug the power supply unit. Plug it back after 5 minutes, and then reset operation. 除了上述故障外，如發生運行中途停止或機蓋無法打開的現象，是童鎖開關保護器動作。此時，請拔下電源插頭，五分鐘後再插上，重新設定並運行即可。

Automatic power OFF

電源自動關閉功能

The power will be cut automatically at the end of operation. 運轉結束後，電源開關將自動切斷。
The power will be automatically cut if the washing machine keeps one of the following status for above 1 hour. 在下列情況中，若將洗衣機放置1小時以上，則電源開關將自動切斷。

1) Pause

暫停狀態

2) Lid open

機蓋開啟的狀態

3) Abnormality alarm describer in page 58

如同58頁的異常警報狀態

With no pressing on "START/PAUSE" button in 5 minutes after the power on, the power will be cut automatically. 接通電源後，若不按下啟動按鈕，則5分鐘之後電源開關將自動切斷。

The following cases are not the failures

以下現象並非故障

Case 現象

About the water charging關於供水	Supply water during the course of washing洗衣過程中供水
	The water can no be charged when starting washing form rinse.從沖洗開始洗衣時,無法供水
	After connecting the water supply pipe, water will come in from the water supply opening if turning on the tap供水管連接後,打開水龍頭,有水從供水口處流出
	The pulsator stop rotating during the charging for about 1 minutes.供水過程中攪拌翼停止旋轉,供水停止約1分鐘
About the sound關於聲音	"Rustle" happens as rotating the washing basket by hand用手轉動洗衣槽,發出“沙沙”聲音
	It sounds "Karcha" at the beginning of washing or spinning.洗衣或脫水開始時發出“卡嚓”聲音
	It buzzes during the operation.運轉過程中發出“嗡一”或“嗡嗡”聲音

Cause 原因

·Supply water automatically if the water level drops during the course of washing.洗衣過程中若水位下降,便會自動補水。

·The rinse water can only be charged after drainage and spinning.排水和脫水之後才開始進沖洗用水。

·With the application of decompression valve, the close of valve needs certain duration.由於採用了減壓閥,閥門關閉需要一定的時間。

·It may be influenced by outside interference, and it takes some time for the sensor to detect the interference.可能受到了外來干擾的影響,而傳感器檢測干擾需要一定時間。

·The sound comes from the water flow in the liquid balance used to relieve the spinning vibration.這是降低脫水振動的液體平衡器中水流的聲音。

·That is generated during the mode switch of the clutch (the strength of the sound varies with the sound duration)這是離合器進行模式切換時的聲音。(聲音大小隨發生時間而變化)

·That is the electromagnetic sound of the motor switched on and off.這是電機通斷電或電閘的電磁音。

■ Extended water drainage hose (about 80 cm)

延長用排水軟管（約80cm）

- For drainage hose extension 用於延長排水軟管。

Clipassy (for drying net) 夾子組件（乾燥網用）

Washing cap 洗衣蓋

Drying Net (special use) 乾燥網（專用）

Lint filter 棉絮過濾器

Line drawing of two plastic containers, one open and one closed, with no text or symbols present.

Nanometer titanium filter net assy 納米鈦淨化網組件

Extended water supply hose 延長用供水管（1m/2m/3m）

- For supply hose extension. 用於延長供水管。

Product Specifications

產品規格

Model	型號	AJ-S55FX	AJ-S55FX
Type	種類	Fully automatic washing machine	全自動洗衣機
Power	電源	220V~50Hz	220V ~ 50Hz
Normal washing capacity	標準洗衣容量	5.5kg(the quality of dry cloth)	5.5kg(乾布的質量)
Normal spinning capacity	標準脫水容量
Normal water level	標準水位	50L ("NORMAL" process)	50L(『標準』程序)
Rating power	額定功率	Washing: 380W; Spinning: 300W	洗滌時: 380W; 脫水時: 300W
Washing mode	洗衣方式	Automatic reverse pulsator type	自動正反攪拌方式
Pressure of tap water	自來水水壓	0.03MPa ~ 0.8MPa(0.3kgf/cm2 ~ 8kgf/cm2)	0.03MPa ~ 0.8MPa(0.3kgf/cm2 ~ 8kgf/cm2)
Profile dimension	外形尺寸	W539mm x L530mm x H965mm	寬539mm x 長530mm x 高965mm
Weight	重量	About 29kg	約29kg

Hitachi Appliances, Inc

No. 15-12, 2-chome, Nishi-Shinbashi, Minato-ku, Tokyo 105-8410, Japan

Tel: Tokyo (03) 3502 - 2111
