BRUKSANVISNING CJ66UBLY Panduit
TERMINATION

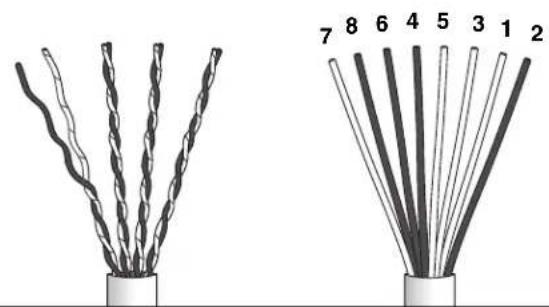

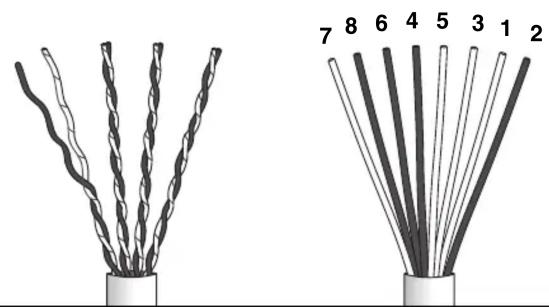

1 Remove all but one twist per pair, smooth conductors and arrange in proper color sequence.
| Part Numbers - CJ588**Y, CJ5E88**Y, CJD588**Y | |||||
| T568A T568B | |||||
| 2 | GREEN | R3 | 2 | ORANGE | R2 |
| 1 | WHITE/GREEN | T3 | 1 | WHITE/ORANGE | T2 |
| 3 | WHITE/ORANGE | T2 | 3 | WHITE/GREEN | T3 |
| 5 | WHITE/BLUE | T1 | 5 | WHITE/BLUE | T1 |
| 4 | BLUE | R1 | 4 | BLUE | R1 |
| 6 | ORANGE | R2 | 6 | GREEN | R3 |
| 8 | BROWN | R4 | 8 | BROWN | R4 |
| 7 | WHITE/BROWN | T4 | 7 | WHITE/BROWN | T4 |
See Page 2 for CJ64/66/88 Series Wiring Sequences
2


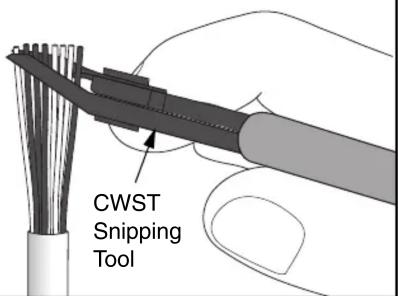

CWST Snipping Tool3


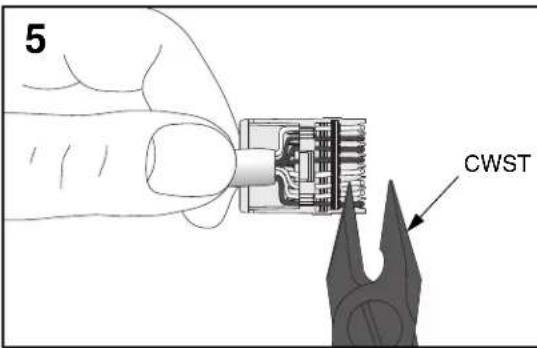

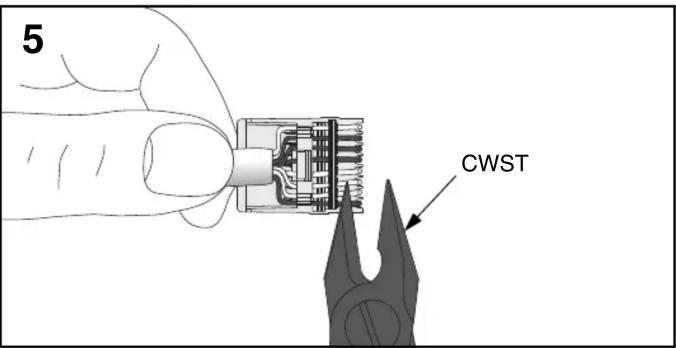

5 CWST6


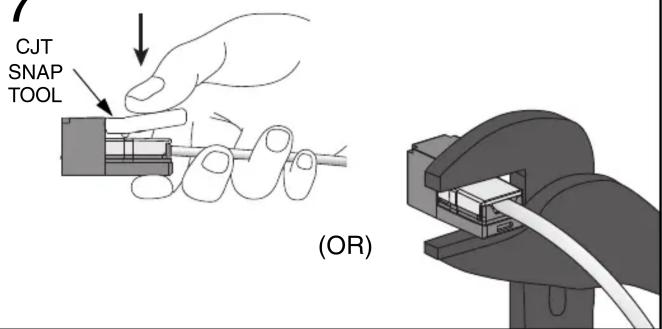

CJT SNAP TOOL (OR)** Denotes color.

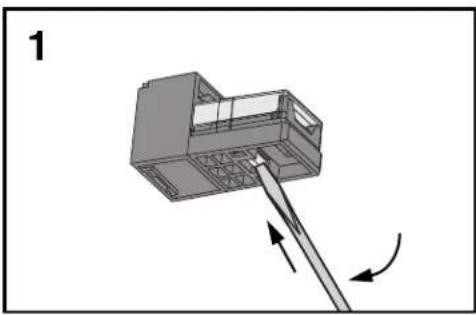

TERMINATION CAP REMOVAL
| 10 Base-T | EIA/TIA 568A, ISDN | USOC 4-Wire (8 Pin Jack) | RJ45, USOC 8-Wire | EIA/TIA 568B, AT&T 258A, WECO | USOC 4-Wire, in 6 pin | USOC 6-Wire (8 Pin Jack) | USOC, RJ11/RJ25 | ||||||||||||||||
| 1 | WHT/GRN | T3 | 1 | WHT/GRN | T3 | 1 | NC | NC | 1 | BRN | R4 | 1 | WHT/ORG | T2 | 1 | 1 | NC | NC | 1 | WHT/GRN | T3 | ||
| 2 | GRN | R3 | 2 | GRN | R3 | 2 | NC | NC | 2 | WHT/GRN | T3 | 2 | ORG | R2 | 2 | WHT/ORG | T2 | 2 | WHT/GRN | T3 | 2 | WHT/ORG | T2 |
| 3 | WHT/BRN | T4 | 3 | WHT/ORG | T2 | 3 | WHT/ORG | T2 | 3 | WHT/ORG | T2 | 3 | WHT/GRN | T3 | 3 | BLU | R1 | 3 | WHT/ORG | T2 | 3 | BLU | R1 |
| 4 | NC | NC | 4 | BLU | R1 | 4 | BLU | R1 | 4 | BLU | R1 | 4 | BLU | R1 | 4 | WHT/BLU | T1 | 4 | BLU | R1 | 4 | WHT/BLU | T1 |
| 5 | NC | NC | 5 | WHT/BLU | T1 | 5 | WHT/BLU | T1 | 5 | WHT/BLU | T1 | 5 | WHT/BLU | T1 | 5 | ORG | R2 | 5 | WHT/BLU | T1 | 5 | ORG | R2 |
| 6 | BRN | R4 | 6 | ORG | R2 | 6 | ORG | R2 | 6 | ORG | R2 | 6 | GRN | R3 | 6 | 6 | ORG | R2 | 6 | GRN | R3 | ||
| 7 | NC | NC | 7 | WHT/BRN | T4 | 7 | NC | NC | 7 | GRN | R3 | 7 | WHT/BRN | T4 | 7 | GRN | R3 | ||||||
| 8 | NC | NC | 8 | BRN | R4 | 8 | NC | NC | 8 | WHT/BRN | T4 | 8 | BRN | R4 | 8 | NC | NC | ||||||
WIRING DIAGRAMS FOR CJ588, CJ5E88, CJD588, CJ64/66/88 SERIES


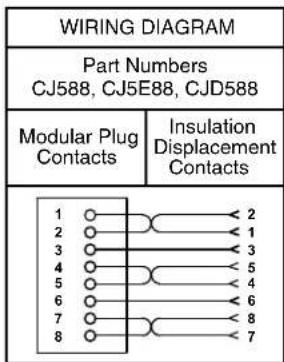

WIRING DIAGRAM Part Numbers CJ588, CJ5E88, CJD588 Modular Plug Contacts Insulation Displacement Contacts 1 2 2 3 3 4 5 4 5 6 5 6 7 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70
| WIRING DIAGRAM | |||||
| Part Number Part Number CJ64 CJ66 | Number | Part Number CJ88 | |||
| Modular Plug Contacts | Insulation Displacement Contacts | Modular Plug Contacts | Insulation Displacement Contacts | Modular Plug Contacts | Insulation Displacement Contacts |
 |  |  | |||
Notes:
- For specified performance, follow TIA/EIA 568-B installation guidelines.
- Jack Modules can terminate PVC or Plenum rated 22-24 AWG solid or stranded IWC cable with insulated conductor outside diameter ranging between 0.035 inch (0.88mm) and 0.048 inch (1.2mm).
- Jack Modules may be re-terminated a minimum of 10 times.
- For technical and performance information, consult Panduit Technical Support.
- MUAJC588 Jack Modules suit a standard switch mechanism pattern on various Australian faceplates.
- For Mini-Com Mini-Jack Shielded Jack Module instructions, refer to PN348*.
As with all Wiring Accessories, the following statements apply:
- Never install communications wiring during a lightning storm.
- Never install communications wiring in wet locations unless the jack is specifically designed for use in wet locations.
- Never touch uninsulated communications wiring or terminals unless the communication line has been disconnected at the network interface.
- Use caution when installing or modifying communication wiring.
For Instructions in Local Languages and Technical Support:
www.panduit.com/resources/install_maintain.asp
PANDUIT
www.panduit.com
E-mail:
cs@panduit.com
Fax:
(708) 444-6993
