BRUKSANVISNING CG-5 Kata

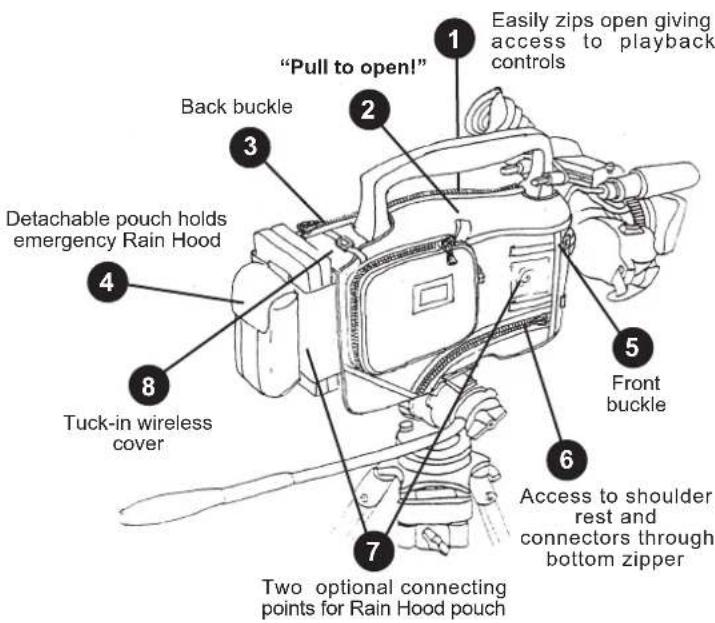

"Pull to open!" Easily zips open giving access to playback controls Back buckle 3 Detachable pouch holds emergency Rain Hood 4 Tuck-in wireless cover 5 Front buckle 6 Access to shoulder rest and connectors through bottom zipper 7 Two optional connecting points for Rain Hood pouch

Flexible viewfinder glove allows full rotation. Zipper access to buttons
Clear vinyl access window for LCD display and control panel

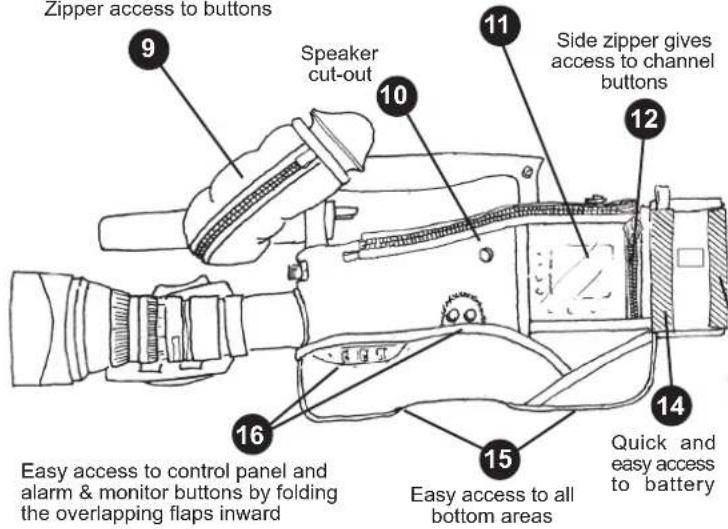

Zipper access to buttons Speaker cut-out Side zipper gives access to channel buttons 11 12 16 15 14 Easy access to control panel and alarm & monitor buttons by folding the overlapping flaps inward Easy access to all bottom areas Quick and easy access to battery

CAMERA GLOVE

INCLUDES RAIN HOOD AND FLEXIBLE VF COVER

KT/VA-601-5

CG-5

for PHILIPS BTS LDK-100/110/120/140/150 camcorders

KATA's new camera glove is custom fitted to your camera so that it "fits like a glove":

• Protection against cold, dirt, bumps and scratches
- Attractive design
- Improved product engineering: overlapping closure design
- Accommodates batteries in several sizes
- Designed not to interfere with camera operation

- "Pull to open!" system

• Advanced materials:

The gloves are made of a specially engineered lamination:

A External layer of nylon elastic knit, which enables ventilation and is not abrasive to your skin.
B Middle layer of shock resistant advanced closed cell neoprene perforated foam, prevents overheating of your camera.

C Internal knit layer protects the camera body.

This non-fray lamination enables you to cut open additional slots to fit your exact working configuration.

Kata CG-5 - for PHILIPS BTS LDK-100/110/120/140/150 camcorders - 1
Hook & loop adjustment ensures a snug fit on a wide range of batteries, and protects the battery well

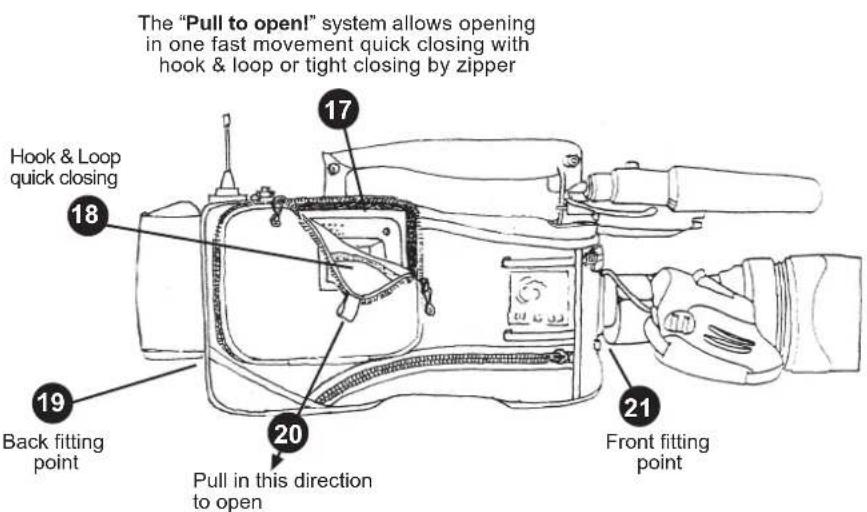

The "Pull to open!" system allows opening in one fast movement quick closing with hook & loop or tight closing by zipper Hook & Loop quick closing 17 18 20 Back fitting point 19 21 Front fitting point Pull in this direction to open

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.DS031206

MATERIALS

  • Neoprene foam laminated between two layers of elastic cloth
    • Clear PU UV protected windows
  • Nylon hook & loop material
  • Silent action YKK® zippers
  • Fastex-ITW® nylon or acetal buckles

SPARE PARTS (If lost or damaged)

• VA-601-1-RH Rain Hood with pouch
• VA-601-1-VF Flexible Viewfinder Cover

Development & production by KATA Ltd.

POB 45078 Jerusalem, Israel 91450

Tel: +972-2-5911000

Fax: +972-2-5400504

www.kata-bags.com

Info: technical@kata-bags.com

Sales: video@kata-bags.com

Kata CG-5 - SPARE PARTS (If lost or damaged) - 1
KATA. A SIMPLE CASE OF BETTER DESIGN.

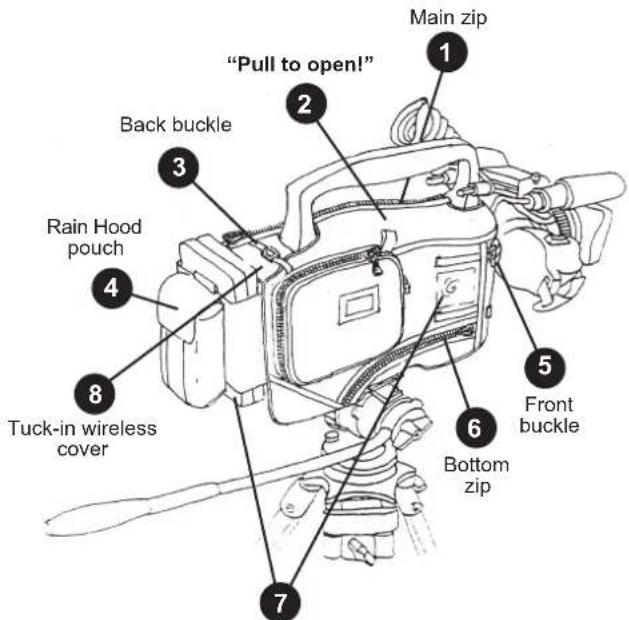

"Pull to open!" Main zip 1 2 Back buckle 3 Rain Hood pouch 4 5 Front buckle 6 Bottom zip 7 Tuck-in wireless cover

Two optional connecting points for Rain Hood pouch

CAMERA GLOVE

INCLUDES RAIN HOOD AND FLEXIBLE VF COVER

KT/VA-601-5

CG-5

for PHILIPS BTS LDK-100/110/120/140/150 camcorders

GENERAL INSTRUCTIONS

1. DRESSING THE CAMERA

Open the main zipper (No.1) and buckles (No.3, No.5).

Put the camera in the glove.

Stretch the bottom part to fit around points (No.19) and (No.21) (Important!)

Pull up and close zipper (No.1).

Close buckles (No.3) and (No.5).

2. ADJUSTMENT TO BATTERY

First close left hook strap, (No.4) then adjust back part to your battery with right hook strap (No.13)

Use the left hook strap for changing battery (No.14)

Note:

do not open right hook strap (No.13) each time you change the battery.

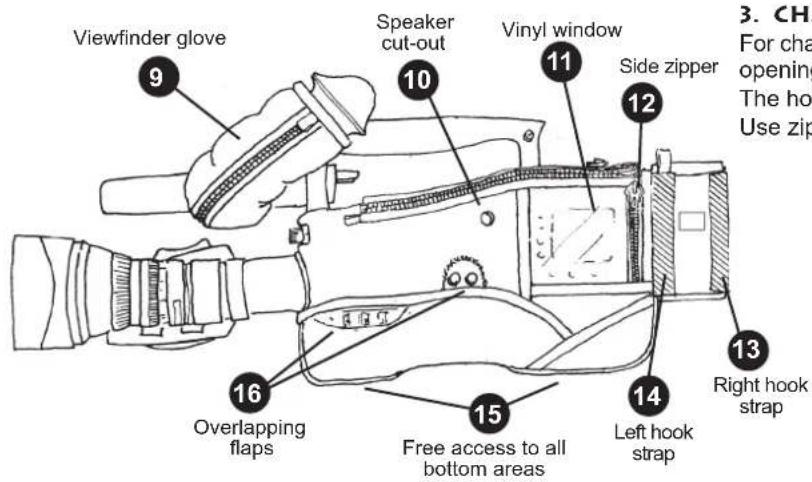

Viewfinder glove 9 Speaker cut-out 10 Vinyl window 11 Side zipper 12 3. CH. For cha opening The ho Use zip 13 Right hook strap 14 Left hook strap 15 Overlapping flaps 16

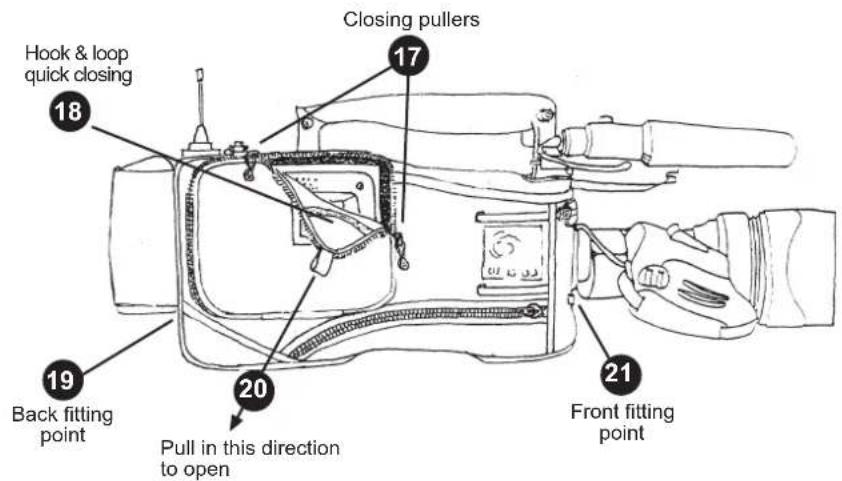

Hook & loop quick closing 18 Closing pullers 17 Back fitting point 20 Pull in this direction to open 21 Front fitting point

  1. CHANGING TAPE - "Pull to open!" system.

For changing tape pull strap (No.2) in a diagonal direction (No.20), opening the whole zipper in one movement.

The hook & loop (No.18) enables quick temporary closing.

Use zippers (No.17) for tight closing.

  1. SETUP CARD - For access to setup card slot open main zipper (No.1) and front buckle (No.5).

  2. For access to covered buttons, fold overlapping flaps inward (No.15).

  3. VIEW FINDER GLOVE

Open buckle and zipper and pull over VF. If necessary, cut out a window to expose the Tally light.

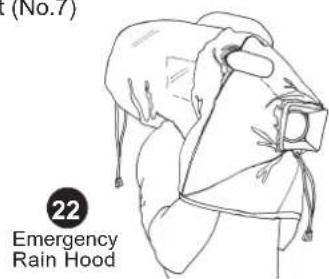

  1. RAIN HOOD

Emergency Rain Hood (No.22) in pouch (No.4). The Rain Hood pouch

has two optional

connecting points:

back and front (No.7)

(No.7) 22 Emergency Rain Hood

Development & production by KATA Ltd.

POB 45078 Jerusalem, Israel 91450

Tel: +972-2-5911000

Fax: +972-2-5400504

www.kata-bags.com

Info: technical@kata-bags.com

Sales: video@kata-bags.com

Kata CG-5 - ADJUSTMENT TO BATTERY - 4
KATA. A SIMPLE CASE OF BETTER DESIGN.
