Installation Instructions

Salara/Series M by Draper

Caution

① Read and understand these instructions; keep them for future reference. Follow instructions carefully.
② Care in both mounting and correct operation will mean long and satisfactory service from your Draper screen.
③ Locate the screen where the audience can best see it, and where other room fur nish ings permit.
④ Mount the screen so that the bottom of the picture, when screen is fully extended, will be above the heads of viewers.
⑤ When raising screen, pull down and, while holding, allow for slow retraction into the case to reduce risk of injury from falling screen.
⑥ Screen should be installed level (using a carpenter's level). ⑦ Nothing should be fastened to screen dowel or viewing surface. NOTE: Screen has been thoroughly inspected and tested at factory and found to be operating prior to shipment.

Wall/Ceiling Flush Mounting

① Attach Mounting Brackets to wall or ceiling (see Fig. 1). The installer should furnish screws, toggle bolts, molly bolts, nylon or lead anchors as required by the mounting surface. Installer also needs to ensure the mounting surface is reinforced sufficiently to support the screen. Brackets must be level with each other.

Figure 1

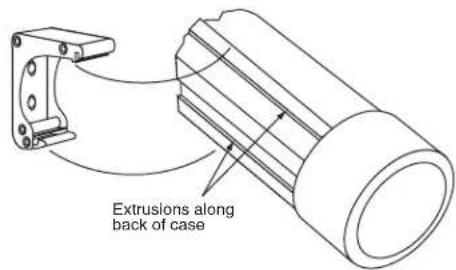

② Attach the screen by snapping the extrusions on the back of the case onto the brackets. With the lower edge of the screen case tilted away from the wall, engage the rib on top of the case with the slot on each bracket. Slide the screen case along the brackets to adjust the screen location from left to right if necessary (see Fig. 2). Once the case is in position, pivot the case back toward the brackets until the lower edge of the case "snaps" into place with the spring-loaded latch (see Fig. 3).

Figure 2

1

2

3
Figure 3

Operating Instructions—Standard

To lower picture surface, pull screen down. Hesitate—then allow screen to retract very slowly until it locks in place.

⚠ To raise picture surface, pull screen down and, while holding, allow for slow retraction into the case to reduce risk of injury from falling screen.

Operating Instructions—AutoReturn

To lower picture surface, pull screen down. Hesitate—then allow screen to retract very slowly until it locks in place.

To raise picture surface, pull screen down gently until it stops, then release.

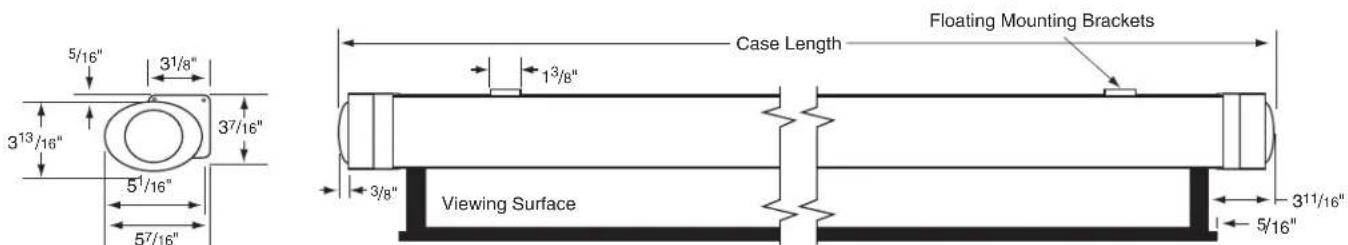

Dimensions

Viewing Surface Care & Maintenance

Matt White & High Contrast Grey

Clean surface with a solution of mild dishwashing liquid diluted with warm water. Sponge the surface, rinse with clear water and blot dry. Do not use cleaning solvents or abrasives.

Glass Beaded

Clean with a very soft brush or cloth and care fully dust the surface. DO NOT USE SOAP, WATER, SOLVENTS OR ABRASIVES. These substances will damage a glass beaded viewing surface.

DRAPER®

411 S. Pearl St., Spiceland, IN 47385 USA ■ 765-987-7999

www.draperinc.com ■ fax [phone]

Copyright ©2008 Draper Inc. Form SalaraM_Inst08 Printed in U.S.A.

If you encounter any diffi culty installing or ser vic ing your Salara, call your dealer or Draper, Inc., Spiceland, Indiana, [phone]; or fax [phone].
