KORISNIČKI PRIRUČNIK Royston ROY-802-GA_LED Crystorama
CRYST®RAMA
LIGHTING THE WAY FOR SIXTY YEARS
ASSEMBLY INSTRUCTION MODEL #ROY-802-GA_LED
WARNING:
Electrical Danger
Turn Power Off
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes
Fixture uses integrated LEDs(included) 20 WATTS MAX.
The fixture is Damp rated.

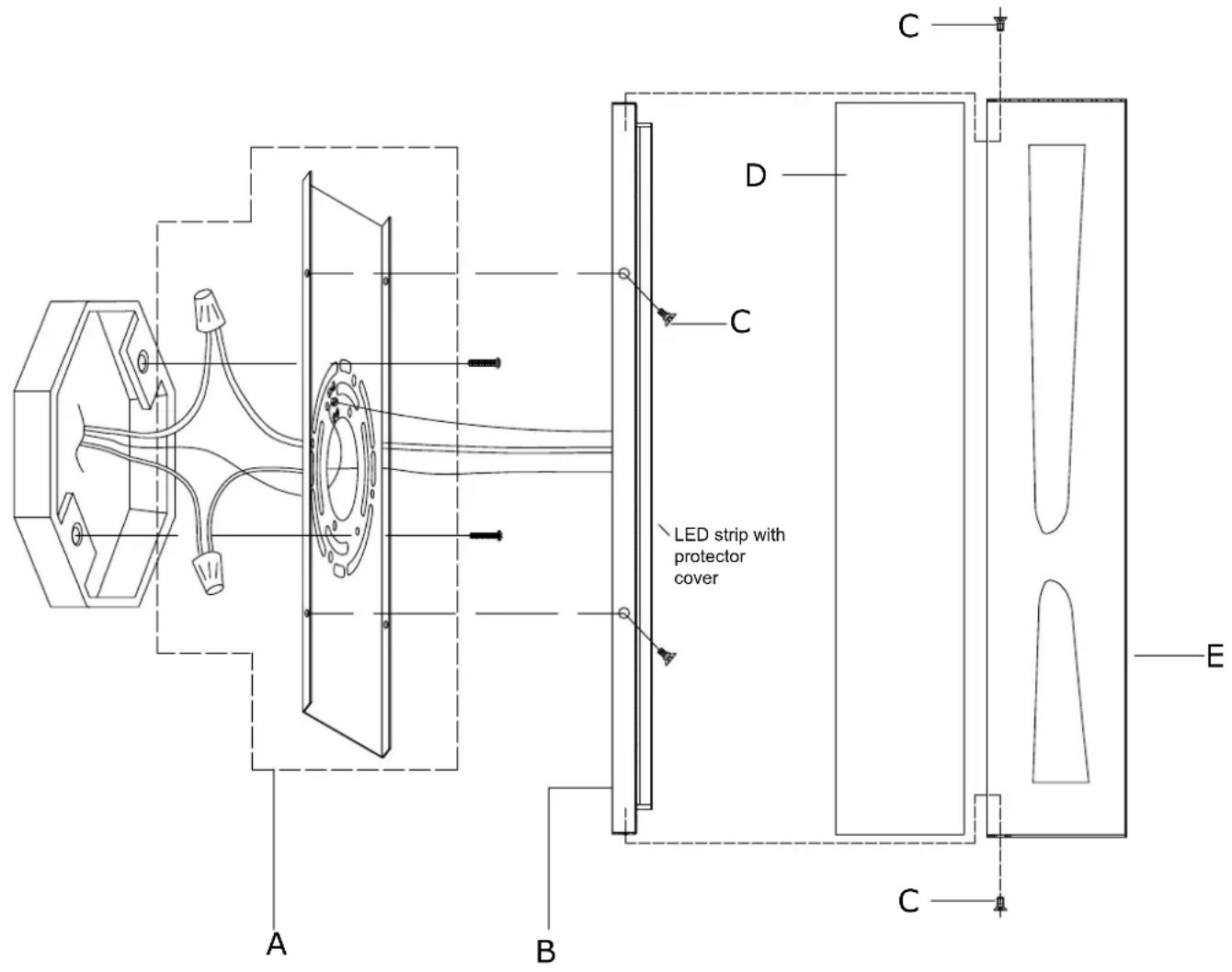

HOW TO INSTALL:
Place the fixture parts on a soft cloth-covered platform before installation of fixture.
- Attach the mounting plate to the outlet box using two outlet box screws.
- Place the backplate over the mounting plate and secure with four screws.
- Lay the metal frame flat, place the glass panel inside, and fold the four metal clips on the frame to secure the glass.
- Place the frame over the backplate and secure with screws.
Place the glass panel in the metal frame. Fold the four iron pieces on the metal frame to secure the glass in place.
WARNING: This product can expose you to Lead,
which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.p65warnings.ca.gov
Part Number
Part Numbers
A. (1)-Mounting hardware
Wire connector x2.
Mounting plate x1.
Machine screw x2.
B. (1)-Backplate
C. (8)-Screw

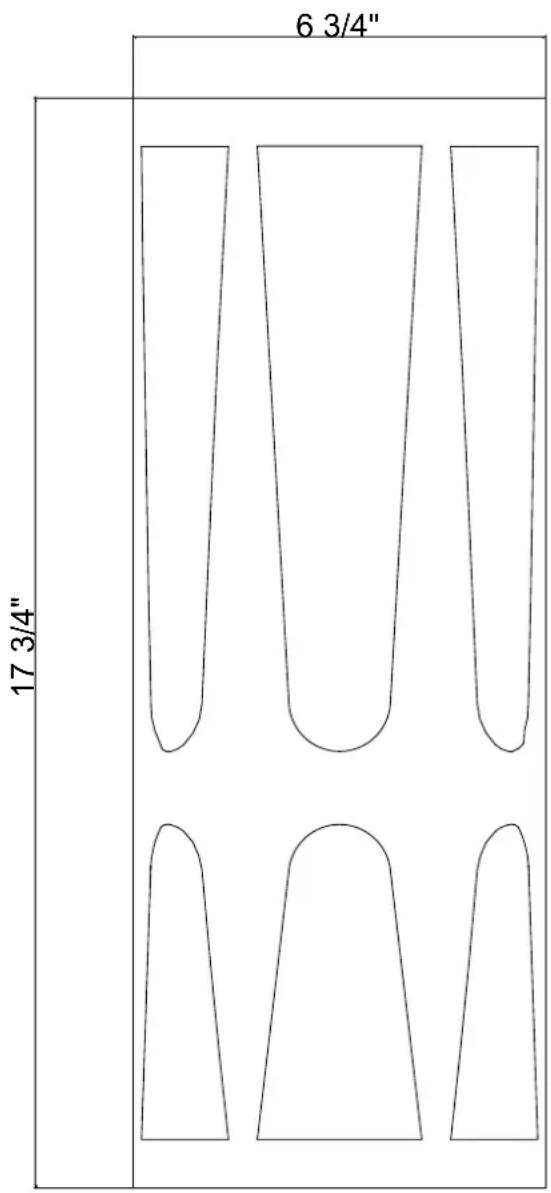

D. (1)-Glass panel ; W6 1/2", H17 1/2"
E. (1)-Metal Frame
