CSV-1596 QUICK INSTALLATION GUIDE
USB Type C 3.2 Gen1, 6-in-1 Hub with HDMI™8K30Hz-4K120Hz, 2xUSB Type-A, RJ45 and 2xUSB Type-C, Data and PD charging 100 watt
Thank you for purchasing our CSV-1596 Product. After unpacking the product, please make sure you have all the items provided and checked for any damages. In case of any missing/damaged parts please inform your supplier immediately.

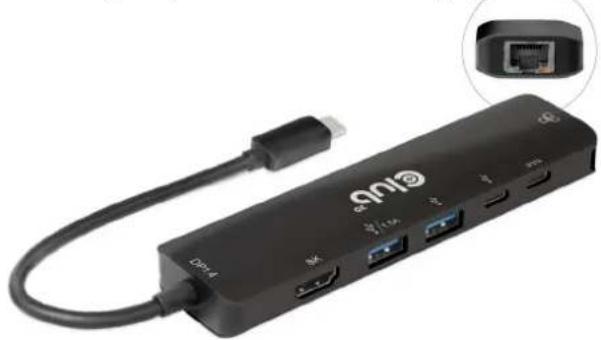

You should have:
•CSV-1596
• QIG, Quick Installation Guide


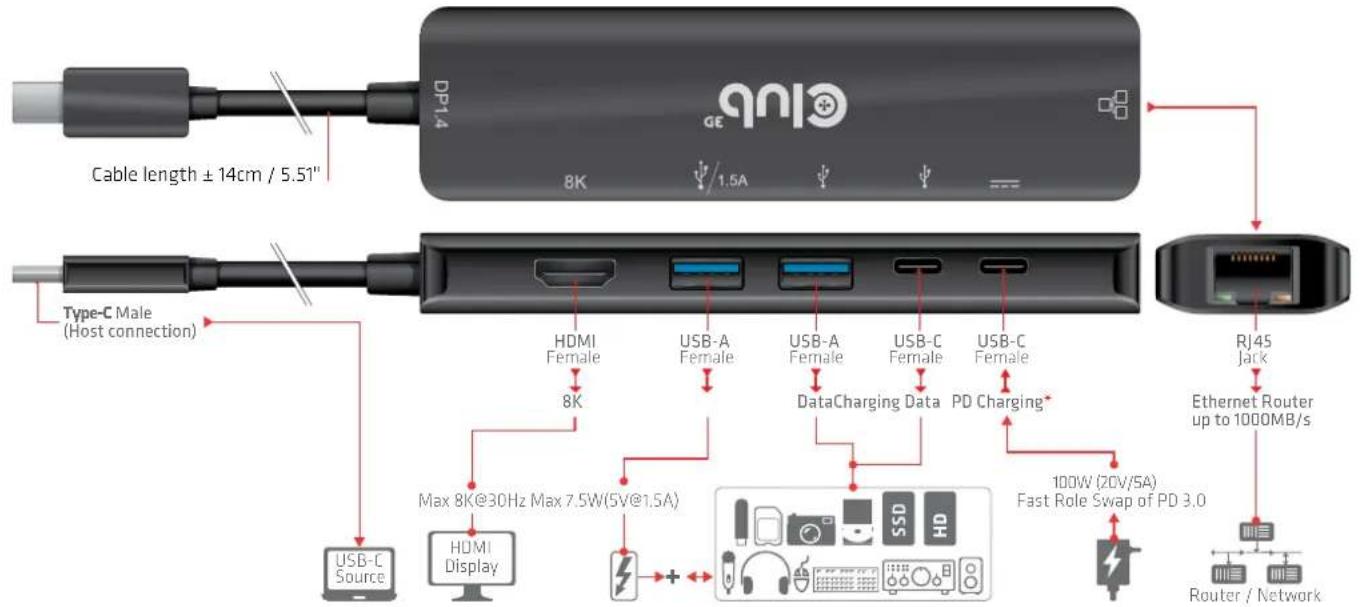

Black OPD network device with USB cable and connector ports, shown with inset detail (no text or symbols on main body)The Club 3D CSV-1596 is a USB Gen1 Type-C, 6-in-1 Hub with HDMI™8K30Hz-4K120Hz, 2xUSB Type-A, RJ45 and 2xUSB Type-C, Data and PD charging 100 watt, providing an ideal solution for extending the port of Type-C/Thunderbolt host (PC/Laptop/Mobile phone,etc.), especially for those host with a single Type-C port. This hub adopts the latest DP1.4 Alt mode supported IC, enabling to output HDMI™ video with max. 8K30Hz-4K120Hz and at the meanwhile transfer USB 3.1 data with max 5Gbps. The USB Type-A and Type-C data ports allow you to connect 4 USB devices simultaneously. 1 Gigabit Ethernet for super fast Ethernet. Besides, the Type-C female supports PD 3.0 PD Charging 100W (15W is dedicated to the functioning of this product, the rest power(max 85W) will be passed to charge for the host. This 6-in-1 Hub will work on all DP Alt mode supported Type-C hosts.
* === USB-C port for PD charging Hub and Laptop/Device only!
Features:
■ Upstream USB Type-C Female:
- Support DP1.4 Alt mode
- Support HBR3
- Support DSC1.1/1.2a or uncompressed video
- Support DSC 1.1/1.2a decoder
- Support 8/10/12 bit color depth
- Support pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0
- Support positive and negative connection
■ Downstream HDMI™ Female:
- Support HDMI™ max 7680*4320@30HZ
- Support HDMI™ max 4196(3840)x2160@120Hz
- Support Dynamic HDR10+
- Support HDCP1.4&HDCP2.3 specification
- Support HPD
- Support DSC 1.1/1.2a decoder
- Support 8/10/12 bit color depth output
- Support pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0
- Support 1 to 32 channels LPCM 192kHz audio output
- Supports HBR audio up to 1536kHz
Note: The output resolution, refresh rate, video pixel format depends on the performance of the computer and the monitor.
■ 2x USB Type-A Female
1- USB Type-A port (next to HDMI" port) supports max 7.5W(5V@1.5A) do
2-USB Type-A, second port support max 4.5W(5V@900mA) downstream charging
Max 5Gbps bandwidth per USB Type-A port
■ RJ45 (Gigabit Ethernet)
-Support 10Mbps/100Mbps/1000Mbps
■ USB Type-C Data Female(Close to USB-A port)
- Max 5Gbps data transmission
- Support 4.5W(5V@900mA) downstream charging
- Support short-circuit, over-current, over-voltage protection
■ USB Type-C Female (for PD 3.0 Charging)
- Support PD Charging 100W (15W is dedicated to the functioning of this product, the rest power (max 85W) will be passed to charge for the host)
-Support Fast Role Swap of PD 3.0, the connected device will not get disconnected while plugging in and out PD Adapter
About 100W Charging (for PD 3.0 Charging):
The adapter will take 15W (of the 100W). PD the Maximum support is 85W.
