NAVODILA ZA UPORABO PLEDRD27 Pyle

LED LIGHTING

QUICK GUIDE

MODELS:

PLEDRD27, PLEDSQ27, PLEDRD42, PLEDSQ48, PLED32B180, PLED42B240, PLED52B300, PCLED28B180, PCLED36B234,

PCLED44B288, PCVLED42B240, PCVLED50B288, PCVLED52B300

MAY BE USED FOR: Vehicles-4x4, SUV, Jeep, Truck, Tractor, Rhinos And Other Multipurpose Vehicles such As Excavator, Forklift And Golf Cart - Others-Indoor & Outdoor uses, Off Road Lighting, Trailer Interior & Exterior Lighting, Construction Lighting, Garden, Backyard Lighting, Boat Lighting, Hotels, City Squares Public Building, Mining, Outdoor Billboards' Lighting, Outdoor Landscape Lighting, etc.

INSTALLATION: Mount the light bar in a desired location, keep the bottom base nuts snug but don't tighten immediately. First, adjust the bar so it is centered on your off road vehicle (or wherever you're deciding to mount), then tighten the bolt on the bottom of the bracket

SPECIFICATIONS:

MODEL	LED Power	Operating Voltage	Waterproof Rating	Bulbs Lumen		Color Temp	Material	Lens Material	Mounting Bracket	Beam Type	Dimensions Life
PLEDRD27 27W	10-30V DC	IP 67		9pcs*3w high intensity Epistar LEDs	1,890 LM 6000K		Diecast Aluminum	PC	Stainless Steel	Flood beam (60°)	113*113*50mm > 30,000 Hrs
PLEDSQ27 27W	10-30V DC	IP 67		9pcs*3w high intensity Epistar LEDs	1,890 LM 6000K		Diecast Aluminum	PC	Stainless Steel	Flood beam (60°)	108*108*50mm > 30,000 Hrs
PLEDRD42 42W	10-30V DC	IP 67		14pcs *3W Epistar High intensity LEDs	2,940 LM 6000K		Diecast Aluminum	PC	Stainless Steel	Flood beam (60°)	113*113*63mm > 30,000 Hrs
PLEDSQ48 48W	10-30V DC	IP 67		16pcs *3W Epistar High intensity LEDs	3,360 LM 6000K		Diecast Aluminum	PC	Stainless Steel	Flood beam (60°)	108*108*62mm > 30,000 Hrs
PLED32B180 180W	10-30V DC	IP 67		60pcs *3W Epistar High intensity LEDs	12,600LM 6000K		Diecast Aluminum	PC Alu firm bracket		Combo 30° + 60°	810 *85*80mm > 30,000 Hrs
PLED42B240 240W	10-30V DC	IP 67		80pcs *3W Epistar High intensity LEDs	16,800 LM	6000K	Diecast Aluminum	PC Alu firm bracket		Combo 30° + 60°	1060*85*80mm > 30,000 Hrs
PLED52B300 300W	10-30V DC	IP 67		100pcs *3W Epistar High intensity LEDs	21,000 LM	6000K	Diecast Aluminum	PC Alu firm bracket		Combo 30° + 60°	1320.2*85*80mm > 30,000 Hrs
PCLED28B180 180W	10-30V DC	IP 67		60pcs *3W Cree High intensity LEDs	15,300 LM 6000K		Diecast Aluminum	PC Alu firm bracket		Combo 30° + 60°	710*80*65mm > 30,000 Hrs
PCLED36B234 234W	10-30V DC	IP 67		78pcs *3W Cree High intensity LEDs	19,890 LM	6000K	Diecast Aluminum	PC Alu firm bracket		Combo 30° + 60°	913*80*65mm > 30,000 Hrs
PCLED44B288 288W	10-30V DC	IP 67		96pcs *3W Cree High intensity LEDs	24,480 LM	6000K	Diecast Aluminum	PC Alu firm bracket		Combo 30° + 60°	1120*80*65mm > 30,000 Hrs
PCVLED42B240	240W 10-30V DC	IP 67		80pcs *3W Cree High intensity LEDs	16,800 LM	6000K	Diecast Aluminum	PC	Stainless Steel	Combo 30° + 60°	1065*87*80mm > 30,000 Hrs
PCVLED50B288	288W 10-30V DC	IP 67		96pcs *3W Cree High intensity LEDs	20,160 LM	6000K	Diecast Aluminum	PC	Stainless Steel	Combo 30° + 60°	1270*87*80mm > 30,000 Hrs
PCVLED52B300	300W 10-30V DC	IP 67		100pcs *3W Cree High intensity LEDs	21,000 LM	6000K	Diecast Aluminum	PC	Stainless Steel	Combo 30° + 60°	1320*87*80mm > 30,000 Hrs

14 GAUGE WIRING HARNESS

/w Marine Grade Power Switch and Fused Power Supply

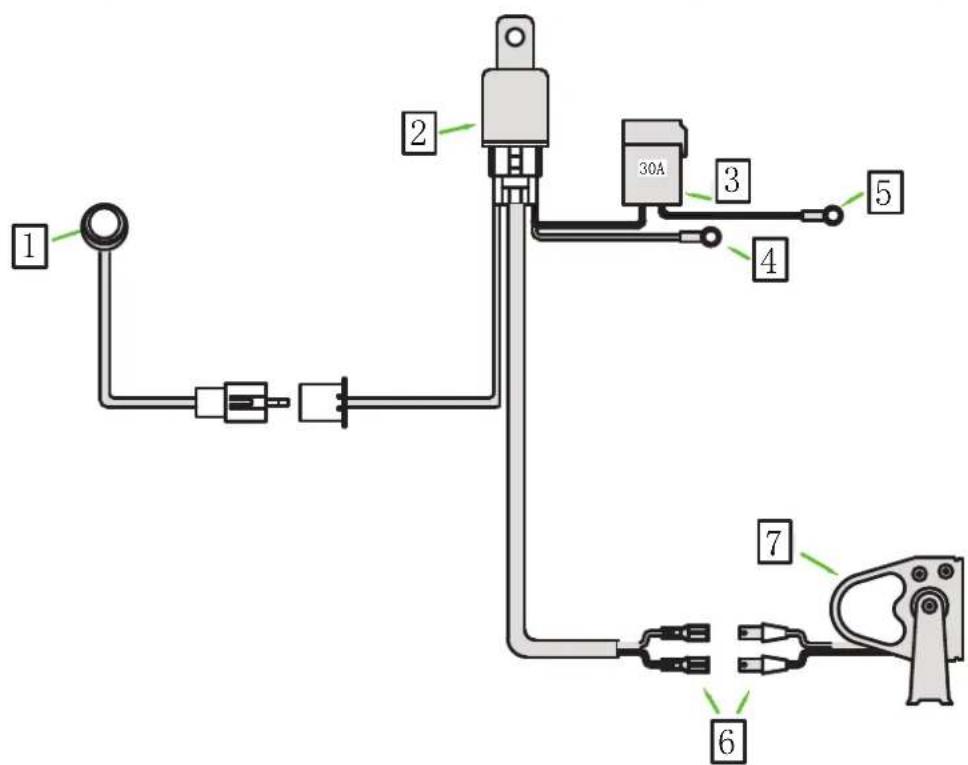

INSTALLATION DIAGRAM

KEY

1. POWER ON/OFF SWITCH
2. RELAY
3. RELAY FUSE
4. NEGATIVE BATTERY CONNECTION
5. POSITIVE BATTERY CONNECTION
6. LED LAMP CONNECTION (SAME AS 2 OR 4 OUTPUTS)
7. LED LAMP

Features:

Power Supply Cable Setup Wiring

Universal Compatibility for Custom

Installation & Applications

Includes Waterproof Power ON/OFF

Switch

Coated, Rugged & Weather-Resistant

Integrated Relay Connector Tab

Universal Circlip Power Connections

Technical Specs:

Works with 10-30V DC Power Sources

Total Cable Length: 9.8' ft.(3 Meter)

14 AWG Wire

40 Amp Integrated Power Relay

30 Amp Blade Inline Fuse

Sold as: 1
