MANUAL DE UTILIZARE EA-CK9M Edimax
Antenna Installation Cable Kits
Outdoor with surge arrestor & jumper included Indoor direct link without surge arrestor & jumper
Edimax Technology Co., LTD.
TEL:886-2-7739-6888
FAX:886-2-7739-6887
sales@edimax.com.tw
China
Beijing Edimax Science &
Technology Co., LTD.
TEL:8610-6213-9288
FAX:8610-6213-9231
sales@edimax.com.cn
U.S.A.
Edimax Computer Company
TEL:1-408-496-1105
FAX:1-408-980-1530
sales@edimax.com
Latin America
TEL:1-786-845-8099
FAX:1-786-331-8490
sales_latinamerica@edimax.com
Europe
Edimax Technology Europe B.V.
TEL:31-499-377344
FAX:31-499-372647
sales@edimax.nl
U.K.
Edimax Technology (UK) Ltd.
TEL:44-870-7740226
FAX:44-870-7740227
info@edimax.co.uk
- Via cable loss system EIRP can be easily calculated
- Flexible – Modulized product options provided
- Multi-brand support (RP-SMA is the most popular Interface)
- Standards - Works with 2.4GHz 802.11g/b to extend wireless network. Feasible to upgrade to 802.11a.
- Allows you to deploy the suitable WLAN environment
- Allows you to fully make use of your existing device.
- Deploys WLAN environment easily & quickly
Content of Package
- Outdoor :
Low loss cable with RP-SMA plug jumper Surge Arrestor for AP connection
- Indoor :
Low loss cable for AP connection with RP-SMA plug

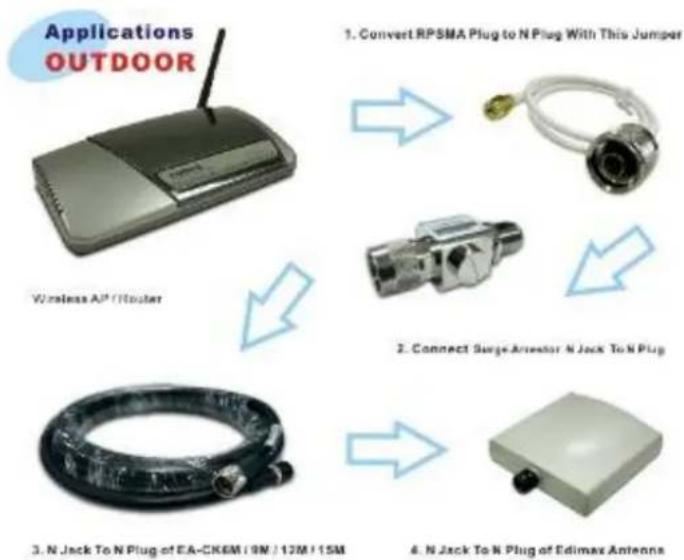

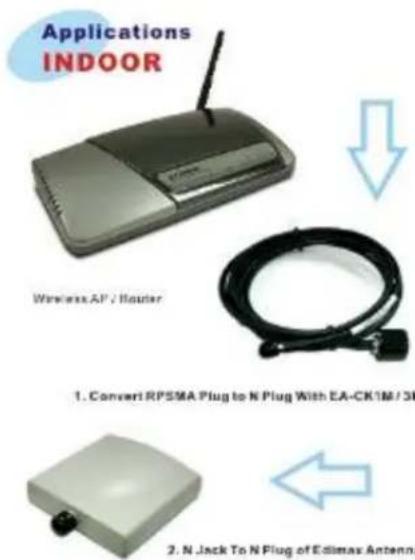

| Outdoor Low Loss Coaxial Cable Series | ||||
| Model NO. | Length | Cable Type | Jumper | System Loss (Max) |
| EA-CK6M 6 M | LMR®400 | RP-SMA To N Plug | 4.2 dB | |
| EA-CK9M 9 M | 4.9 dB | |||
| EA-CK12 | 12 M 5.5 dB | |||
| EA-CK15 15 M | 6.2 dB | |||
| Weatherproof (PE with 5 years UV Resistant) / Low Pd & Low Cd / Outside Diameter : 10.29 mmOperating Temperature : -40 ~ +85 °C / Storage Temperature : -70~ +185 °C | ||||
| Indoor Direct Link Cable Series | ||||
| EA-CK1M 1 M | 1.0 dB | LMR®200 | RP-SMA | |
| EA-CK3M 3 M | 2.2 dB | |||
| Weatherproof (PE with 5 years UV Resistant) / Low Pd & Low Cd / Outside Diameter : 4.95 mmOperating Temperature : -20 ~ +65 °C / Storage Temperature : -30~ +75 °C | ||||
| High Gain Antenna Series | ||||
| Model NO. | dBi | Type | Jumper | Cable Length |
| EA-IO5D | 5 dBi | Indoor Omni | RP-SMA | 1 M |
| EA-ID6D | 6 dBi | Indoor Direction | 1 M | |
| EA-OO8D 8 dBi | Outdoor Omni | N Plug | N/A | |
| EA-OD9D 9 dBi | Outdoor Direction | |||
| EA-OD14 14 dBi | Outdoor Direction | |||
| EA-OD19 19 dBi | Outdoor Direction | |||
