MANUAL DE UTILIZARE JG440IN HAGER
Ratings to IEC60947-3, BS EN 60947-3 and AS/NZS 3947-3 / IP66
| Type | 2 pole 3 pole 3 pole + switched Neutral | |||||||||||
| Rated operational voltage | 250V a.c. 50/60HZ 440V a.c. 50/60Hz 440V a.c. 50/60Hz | |||||||||||
| Utilization category | AC23 A AC23 A AC23 A | |||||||||||
| Model number | JG220IN | JG232IN | JG240IN | JG263IN | JG320IN | JG332IN | JG340IN | JG420IN | JG432IN | JG440IN | JG463IN | |
| Rated Operational current | 20A 32A 40A 63A 20A 32A 40A 20A 32A 40A 63A | |||||||||||
| Rated insulation voltage (a.c.) | 250V | 250V | 250V | 250V | 440V | 440V | 440V | 440V | 440V | 440V | 440V | |
| Rated impulse withstand voltage | 2500V | 2500V | 2500V | 2500V | 2500V | 2500V | 2500V | 2500V | 2500V | 2500V | 2500V | |
| Rated short-time withstand current for 1 sec | 240A | 384A | 480A | 756A | 240A | 384A | 480A | 240A | 384A | 480A | 756A | |
| Rated short-circuit making and breaking capacities for 50 ms | 240A | 384A | 480A | 756A | 240A | 384A | 480A | 240A | 384A | 480A | 756A | |
| Live terminal screws torque value | 2NM | 2.5NM | 2.5NM | 2.5NM | 2NM | 2.5NM | 2.5NM | 2NM | 2.5NM | 2.5NM | 2.5NM | |
| Neutral terminal screws torque value | 2NM | 2NM | 2NM | 2.5NM | 2NM | 2NM | 2NM | 2NM | 2.5NM | 2.5NM | 2.5NM | |
| Earth terminal screws torque value | 2NM | 2NM | 2NM | 2NM | 2NM | 2NM | 2NM | 2NM | 2NM | 2NM | 2NM | |
| Conductor Rigid-stranded | Min. size (sq.mm) & number | 2.5 | 6 | 6 | 10 | 2.5 | 6 | 6 | 2.5 | 6 | 6 | 10 |
| 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| Max. size (sq.mm) | 4 | 10 | 10 | 16 | 4 | 10 | 10 | 4 | 10 | 10 | 16 | |
| Rated duty | Uninterrupted duty | |||||||||||
| Note: Use padlock with €6.00 mm shank when required to lock the unit in the ‘OFF’ position. | ||||||||||||


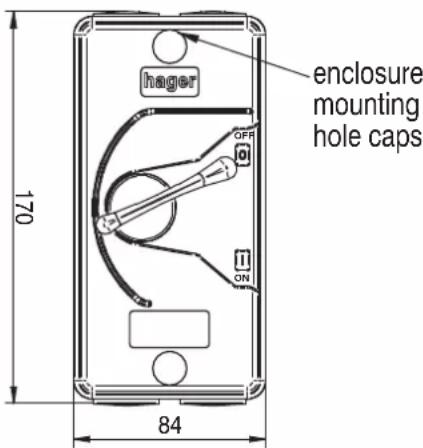

hager 170 84 enclosure mounting hole caps


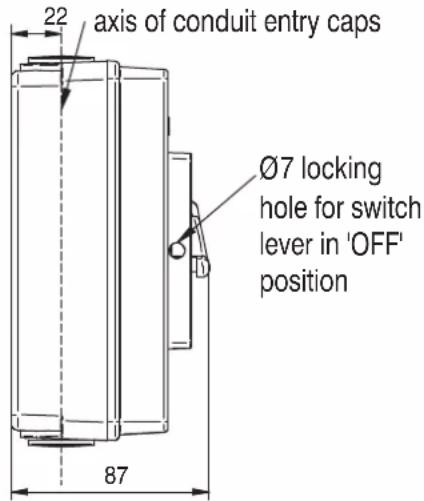

axis of conduit entry caps Ø7 locking hole for switch lever in 'OFF' position 22 87


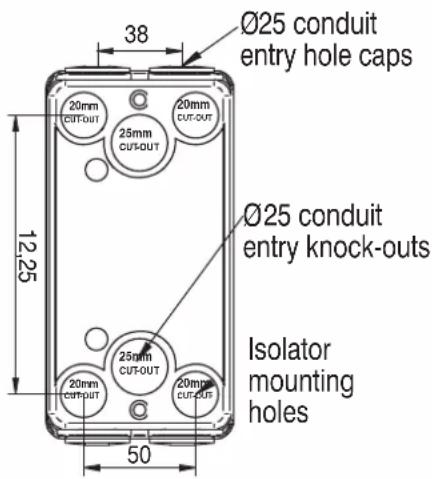

Ø25 conduit entry hole caps Ø25 conduit entry knock-outs Isolator mounting holes 38 12.25 20mm CUT-OUT 25mm CUT-OUT 20mm CUT-OUT 25mm CUT-OUT 20mm CUT-OUT 20mm CUT-OUT 50Dimensions (mm)
Installation instructions
- Disconnect the incoming supply to the unit prior to maintenance/installation of the switch-disconnector.
- Necessary precautions must be observed to maintain the IP66 rating requirement of the unit.
Hole caps are provided for the unit mounting screws and the cover enclosure mounting screws.
Conduit entry hole caps, reducer gland and conduit mounted on unit during the installation should be taped with thread tape seal or sealed with silicone sealant to maintain the IP66 rating. - Total current and ratings of unit must not be exceeded.
- Terminal screws must be tightened as per table above.
- Ensure that the switch actuator is in the 'OFF' position and the switch lever of cover enclosure is positioned in the 'OFF' / 'O' position when mounting the cover enclosure.
- The 7mm ∅ hole on the rib adjacent to the switch lever is to provide locking facility of the switch lever in the 'OFF' position with padlock with shank diameter of 6 mm.
