MANUAL DE UTILIZARE G91632 NE Defy

G91641 N	G10720 N
G91640 NE	G10721 NE
G91635 NE	G10715 NE
G91632 NE	G10710 NE
G91631 NE	G10705 NE

EN

INSTRUCTION MANUAL

SBS F740 / F790 ECO REFRIGERATORS

Read this manual before initial installation and operation of the refrigerator!

Dear Customer,

Your new Defy refrigerator was manufactured in a state of the art facility and has passed the strictest quality control procedures.

Please read this manual carefully before using your product for the first time and then store it within easy reach for future reference.

We trust you will enjoy years of trouble free use.

The user manual:

• This manual will provide you with information on how to safely operate and care for your refrigerator in order that you gain the maximum benefit from it.
• Pay particular attention to any safety instructions.
• Please read all additional documents supplied with your product.
• Please note that this manual may be used for several similar but different models. Please check for relevance regarding your particular model.

Explanation of symbols used in this manual

Important safety information. Warning for hazardous situations with regard to life and property.

Caution; Warning for supply voltage.

Caution; Warning for fire hazard.

Useful information. Important information or useful hints about usage.

	Unpacking: Remove all packaging.Ensure that packing material is disposed of in a responsible manner and that any plastic bags are cut up to prevent children playing with them and accidentally suffocating.
	If the refrigerator is damaged in any way do not use it. Report the damage to your dealer who will take the necessary corrective action.

1 Important safety information 4

General safety 4

Warnings 4

HC warning 5

For models with water fountain 5

Intended use 5

Child safety 5

2 Your Refrigerator 6

3 Installation 7

Installation location 7

Attaching the plastic wedges 7

Adjusting the feet 8

Power connection 8

Water connection 8

Connecting water hose to the product 9

Connecting to water to mains 9

Water filter 11

Fixing external filter to the wall 11

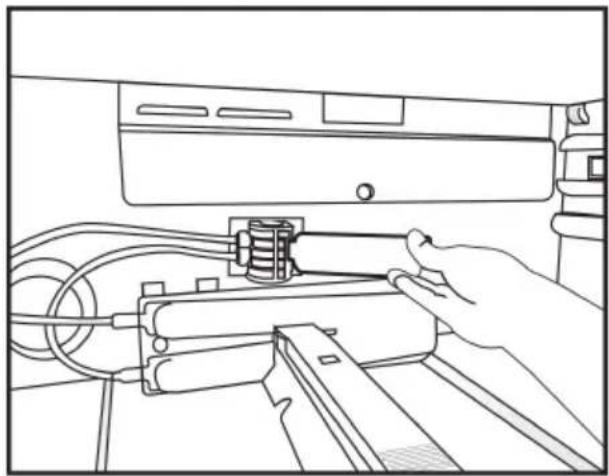

Internal filter 12

Water line 12

Carboy line 12

4 Preparation 14

Things to be done for energy saving 14

First use 14

5 Using the product 15

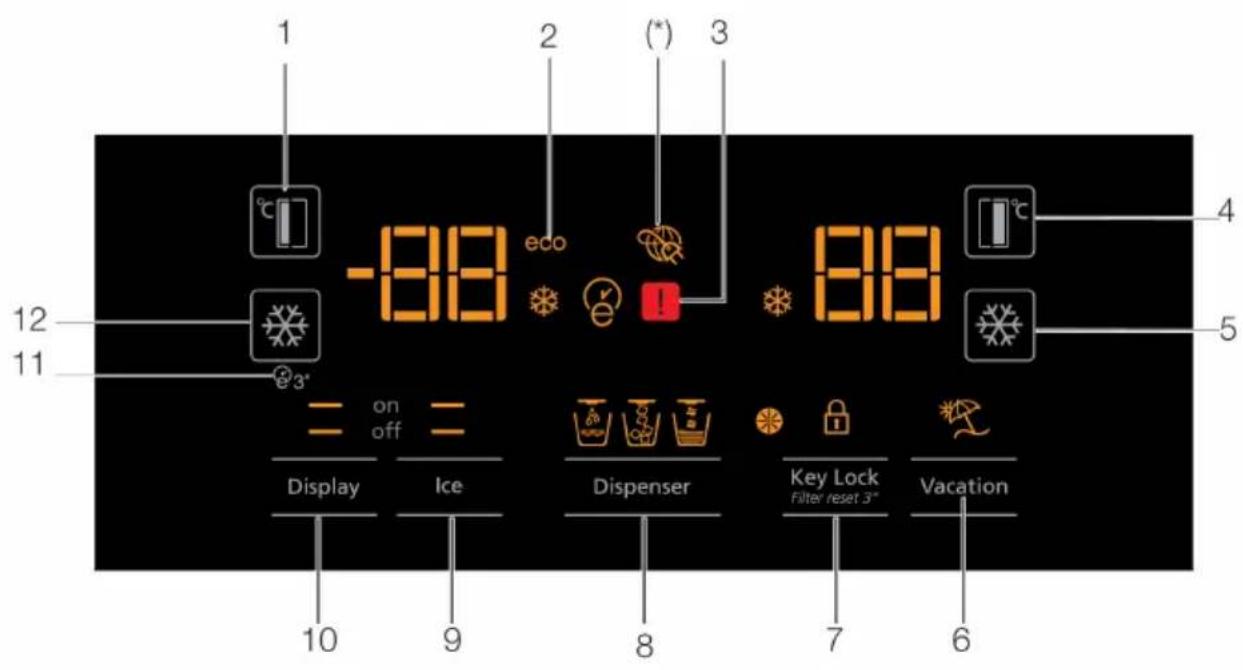

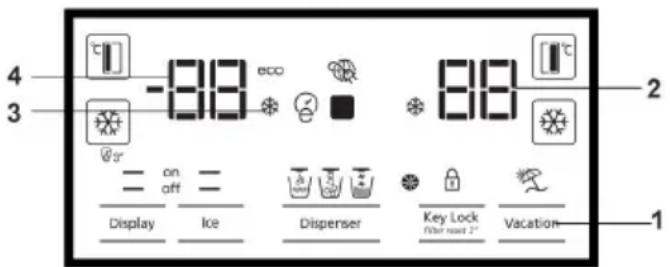

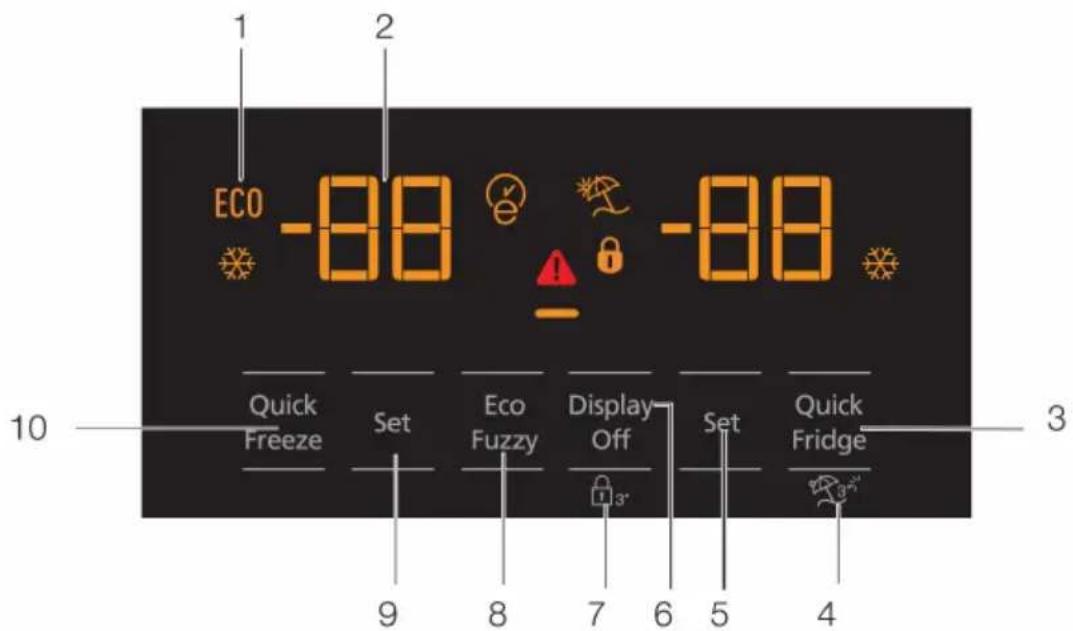

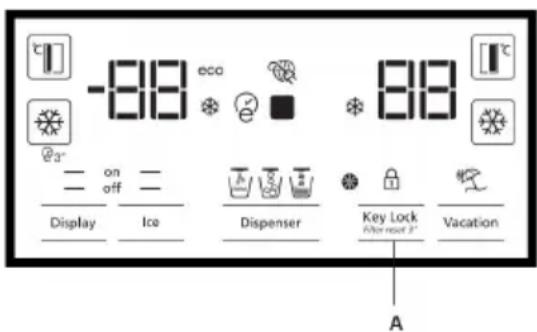

Indicator panel 15

Activating the water filter replacement alert 22

Using the water fountain 23

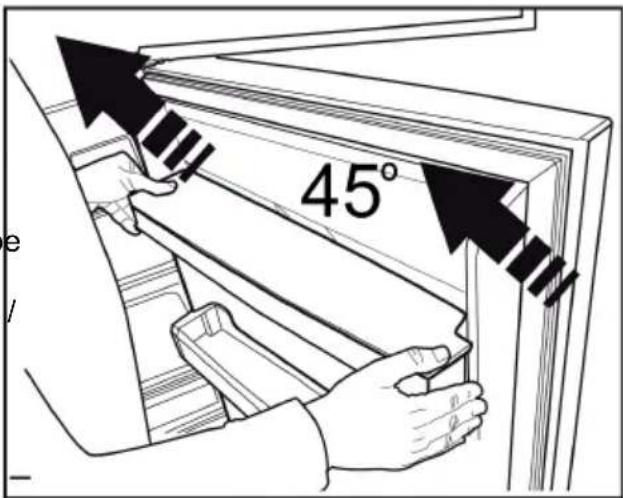

Cleaning the water tank 24

Dispensing Ice / water 25

Drip tray 25

Zero degree compartment 26

Vegetable bin 26

Blue light 26

Ionizer 26

Minibar 26

Odour filter 26

Icematic and ice storage container 27

Ice-maker 27

Freezing fresh food 28

Recommendations for storing frozen foods 28

Deep freezer details 28

Placing food 29

Door open alert 29

Interior light 29

6 Maintenance and cleaning 30

Preventing malodour 30

Protecting plastic surfaces 30

7 Troubleshooting 31

8 Service centres 34

9 Warranty 35

1 Important safety information

This section provides the safety instructions necessary to prevent the risk of injury and material damage. Failure to observe these instructions will invalidate all types of product warranty.

General safety

This refrigerator is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the refrigerator by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the refrigerator.

Warnings

• In case of malfunction, unplug the product.
• After unplugging, wait at least 5 minutes before plugging in again. Unplug the product when not in use. Do not touch the plug with wet hands! Do not pull the cable to unplug, always hold the plug.

- Wipe the power plug's tip with a dry cloth before plugging in.

- Do not plug in the refrigerator if the socket is loose.

- Unplug the product during installation, maintenance, cleaning and repair.

- If the product will not be used for a while, unplug the product and remove any food inside.

- Do not use steam or steam cleaning materials for cleaning the refrigerator and melting the ice inside. Steam may contact the electrified areas and cause short circuit or electric shock!

- Do not wash the product by spraying or pouring water on it! Danger of electric shock!

- In case of malfunction, do not use the product, as it may cause electric shock. Contact the authorized service before using the product.

- Plug the product into an earthed socket. Earthing must be done by a qualified electrician.

• If the product has LED type lighting, contact the authorized service for replacing or in case of any problem.
• Do not touch frozen food with wet hands! It may adhere to your hands!
• Do not place liquids in bottles and cans into the freezer compartment. They may burst out!
• Place liquids in an upright position after tightly closing the lid.
• Do not spray flammable substances near the product, as it may burn or explode.
• Do not keep flammable materials and products with flammable gas (sprays, etc.) in the refrigerator.
• Do not place containers holding liquids on top of the product. Splashing water on an electrified part may cause electric shock and risk of fire.
• Exposing the product to rain, snow, sunlight and wind will cause electrical danger. When relocating the product, do not pull by holding the door handle. The handle may come off.
• Take care to avoid trapping any part of your hands or body in any of the moving parts inside the product.
• Do not step or lean on the door, drawers and similar parts of the refrigerator. This will cause the product to fall down and cause damage to the parts.
  • Take care not to trap the power cable.

Diagram of a refrigerator interior with a lightning bolt and plug, showing no text or symbols

HC warning

- If the product comprises a cooling system using R600a gas, take care avoid damaging the cooling system and its pipe while using and moving the product. This gas is flammable. If the cooling system is damaged, keep the product away from sources of fire ventilate the room immediately.

The label on the inner left side indicates the type of gas used in the product.

For models with water fountain

• Water supply pressure must be minimum 1 bar and maximum 8 bars.
- Use drinking water only.

Intended use

• This product is designed for home use. It is not intended for commercial use.
• The product should be used to store food and beverages only.
• Do not keep sensitive products requiring controlled temperatures (vaccines, heat sensitive medication, medical supplies, etc.) in the refrigerator.
• The manufacturer assumes no responsibility for any damage due to misuse or mishandling.
• The product's bench life is 10 years. The spare parts necessary for the product to function will be available for this period.

Child safety

• Keep packaging materials out of children's reach.
• Do not allow children to play with the product.
• If the product's door comprises a lock, keep the key out of children's reach.

to	Warning: Repairs must be carried out by authorised persons only. Repairs carried out by incompetent persons create a user risk.
end	Unplug the refrigerator from the wall socket when you clean the refrigerator.

	Warning: Never dispose of the Refrigerator in a fire.
	Do not dispose of your Refrigerator along with regular household waste.

Contact your local authority for disposal information and facilities available.

	A damaged power cable must be replaced by a qualified electrician.
	A damaged refrigerator must not be operated before it is repaired! There is danger of an electric shock!

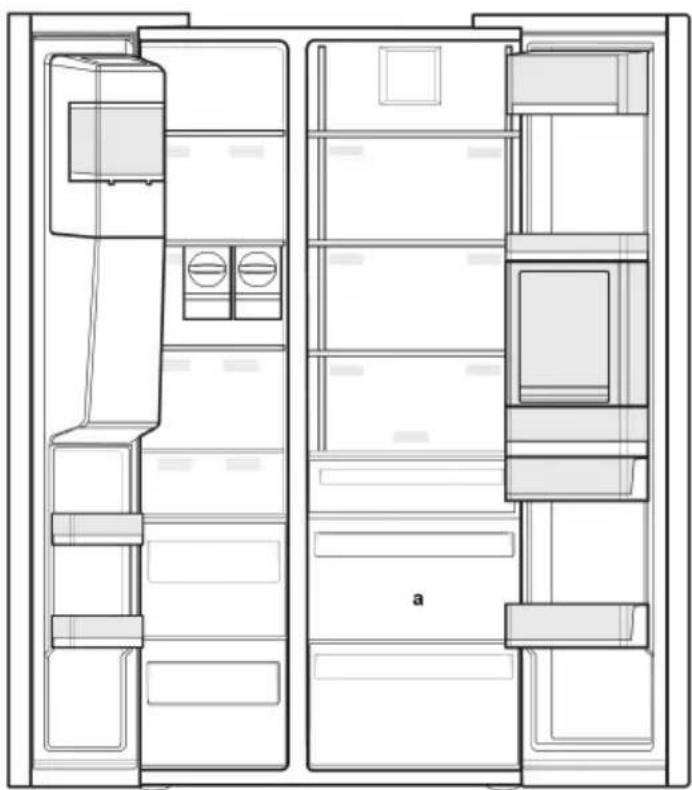

1 2 3 4 5 6 7 9 10 8 11 12 13 14 15 *15 *16 *17

1- Freezer compartment
2- Cooler compartment
3- Fan
4- Butter-cheese compartment
5- Glass shelves
6- Cooler compartment door shelves
7- Minibar accessory
8- Water tank
9- Odour filter

10- Zero degree compartment
11- Vegetable bins
12- Adjustable feet
13- Frozen food storing compartments
14- Freezer compartment door shelves
15- Icematics
16- Ice storage box
17- Ice-maker decorative lid

*Optional

*Optional: Figures in this user guide are schematic and may not be exactly match your product. If your product does not comprise the relevant parts, the information pertains to other models.

3

Installation

Installation location

Contact the Authorized Service for the product's installation. To ready the product for installation, see the information in the user guide and make sure the electric air water utilities are as required. If not, call a electrician and plumber to arrange the utilities as necessary.

Attaching the plastic wedges

Use the plastic wedges provided with the product to provide sufficient space for air circulation between the product and the wall.

1. To attach the wedges, remove the screws on the product and use the screws provided with the wedges.

	WARNING: The manufacturer assumes no responsibility for any damage caused by the work carried out by unauthorized persons.
	WARNING: The product's power cable must be unplugged during installation. Failure to do so may result in death or serious injuries!
	WARNING: If the door span is too narrow for the product to pass through, remove the door and turn the product sideways; if this does not work, contact the authorized service.

Line drawing of a hand inserting a screwdriver into a computer monitor (no text or symbols)

1. Attach the 2 plastic wedges on the ventilation cover shown as in the figure.

Line drawing of a hand using a screwdriver to adjust or install a device component (no text or symbols visible)

• Place the product on a flat surface to avoid vibration.
• Place the product at least 30 cm away from heaters, stoves and similar sources of heat and at least 5 cm away from electric ovens.
• Do not expose the product to direct sunlight or keep in damp environments.
• The product requires adequate air circulation to function efficiently. If the product will be placed in an alcove, remember to leave at least 5 cm distance between the product and the ceiling and the walls.
• Do not install the product in environments with temperatures below -5°C.

Installation

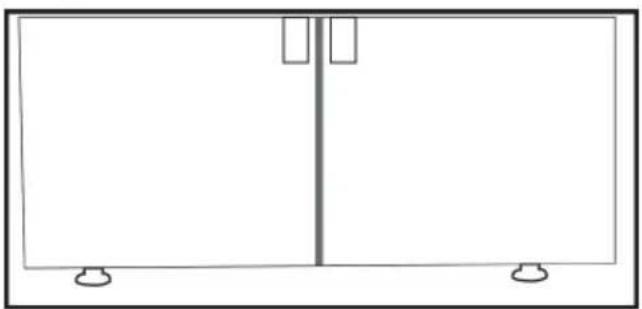

Adjusting the feet

- If the product is not in a balanced position, adjust the front adjustable feet by rotating right or left.

Simple line drawing of a two-decker cabinet with two doors and two base supports (no text or symbols)

Mechanical assembly diagram showing a hand holding a lever with a rotating arrow indicating rotation (no text or symbols present)

Power connection

WARNING: Do not use extension or multi sockets in the power connection.

WARNING: Damaged power cable must be replaced by authorized service.

When placing two coolers in an adjacent position, leave at least 4 cm distance between the two units.

• Our firm will not assume responsibility any damages due to usage without earthing and power connection in compliance with national regulations.
• The power cable plug must be easily accessible after installation.
• Connect the refrigerator to an earthed socket with 220-240V/50 Hz voltage. The plug must comprise a 10-16A fuse.
• Do not use a multi-group plug with or without an extension cable between the wall socket and the refrigerator. Page

Water connection (Optional)

WARNING: Unplug the product and the water pump (if available) during connection.

- The product's water mains, filter and carboy connections must be done by authorized service. The product can be connected to a carboy or directly to the water mains, depending on the model. To establish the connection, the water hose must first be connected to the product. - Check to see the following parts are supplied with your product model:

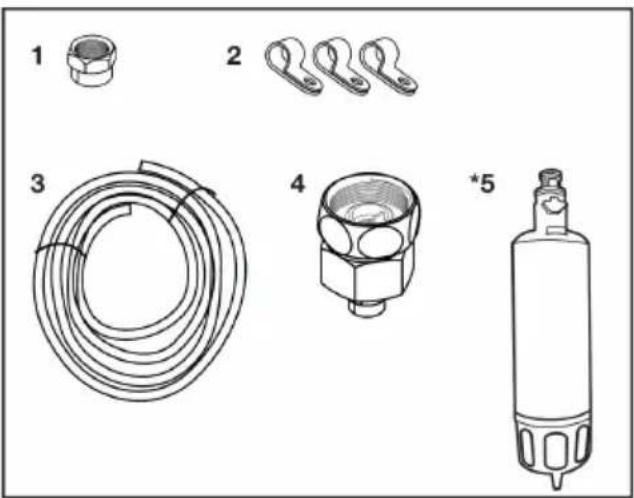

1 2 3 4 *5

1. Connector (1 piece): Used to attach the water hose to the rear of the product.
2. Hose clip (3 pieces): Used to fix the water hose on the wall.
3. Water hose (1 piece, 5 meters, diameter 1/4 inches): Used for the water connection.
4. Faucet adapter (1 piece): Comprises of a porous filter, used for connection to the cold water mains.
   for Water filter (1 piece *Optional): Used to connect the mains water to the product. Water filter is not required if a carboy connection is available.

Installation

Connecting water hose to the product

To connect the water hose to the product, follow the instructions below.

1. Remove the connector on the hose nozzle adaptor at the back of the product and run the hose through the connector.

Two-step diagram showing hand tool application: one to press a component, the other to hold a small object (no text or symbols present)

1. Push the water hose down tightly and connect to the hose nozzle adaptor.

Line drawing of a hand inserting a cable into a device panel (no text or symbols)

1. Tighten the connector manually to fix on the hose nozzle adaptor. You may also tighten the connector using a pipe wrench or pliers.

Line drawing of a hand adjusting a mechanical component with no visible text or symbols

1. Connect the other end of the hose to the water mains or to the water pump. See page 10 to use a carboy.

Connecting to water mains (Optional)

To use the product by connecting to the cold water mains, a standard 1/2" valve connector must be installed to the cold water mains in your home. If the connector is not available or if you are unsure, consult a qualified plumber.

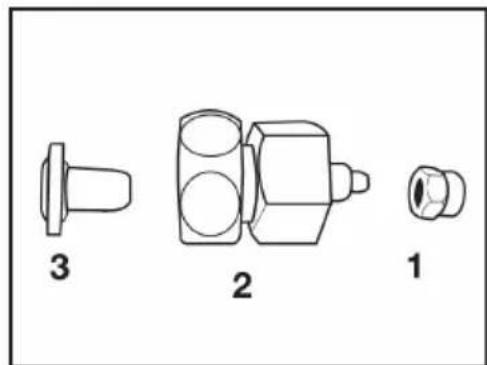

1. Detach the connector (1) from the faucet adaptor (2).

Three technical line drawings of mechanical components labeled 1, 2, and 3 (no text or symbols beyond labels)

1. Connect the faucet adaptor to the water mains valve.

Line drawing of a mechanical or electrical component with no visible text, numbers, or symbols

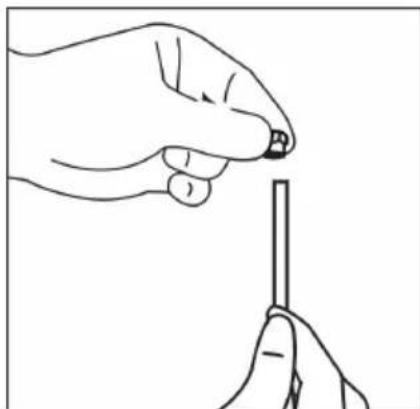

1. Attach the connector around the water hose.

Line drawing of a hand holding a pen tip, no text or symbols present

Installation

1. Attach the connector into the faucet adaptor and tighten by hand / tool.

Line drawing of a mechanical or electrical component with no visible text or symbols

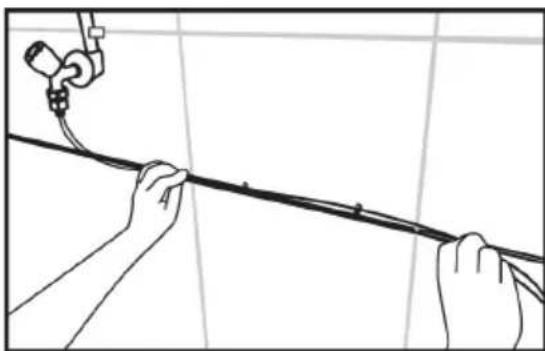

1. To avoid damaging, shifting or accidentally disconnecting the hose, use the clips provided to fix the water hose appropriately.

Line drawing of hands holding a thin cable with a tool attached (no text or symbols)

WARNING: After turning the tap on, ensure there is no water leak on either end of the water hose. In case of leakage, turn the valve off and tighten all connections using a pipe wrench or pliers.

For products using water carboy (Optional)

To use a carboy for the product's waterin and start the water pump.

connection, the water pump recommended by the authorized service must be used.

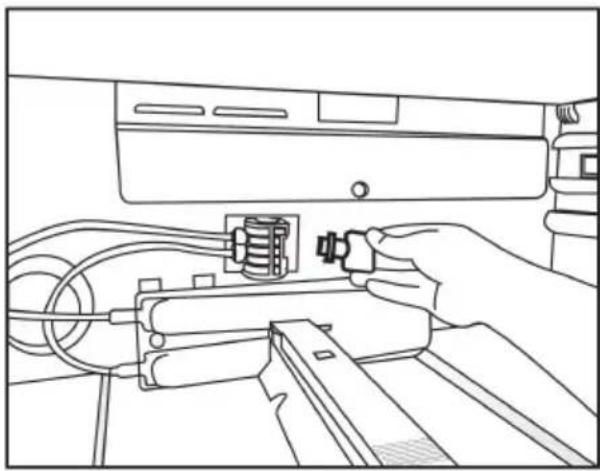

1. Connect one end of the water hose provided with the pump to the product an follow the instructions.

Line drawing of a hand inserting a plug into a device panel (no text or symbols)

1. Connect the other end of the water hose to the water pump by pushing the hose into the pump's hose inlet.

Line drawing of a hand connecting a cable to an electronic device (no text or symbols)

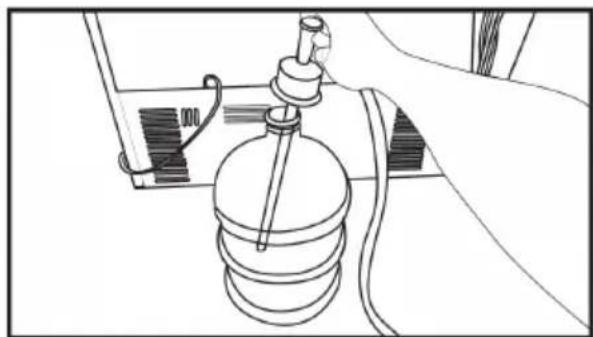

1. Place and fasten the pump hose inside the carboy.

Line drawing of a laboratory apparatus with a round-bottom flask, tubing, and a vertical tube (no text or symbols)

1. Once the connection is established, plug

	Please wait 2-3 minutes after starting the pump to achieve the desired efficiency.
	Please read the pump's user guide for water connection.
	When using a carboy, a water filter is not required.

Installation

Water filter

(Optional)

The product may have an internal or external filter, depending on the model. To attach the water filter, follow the instructions below.

Fixing external filter on the wall (Optional)

WARNING: Do not fix the filter on to the product

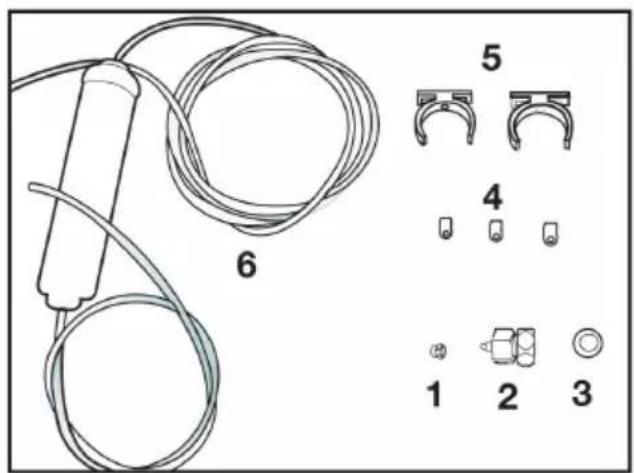

Check to see the following parts are supplied with your product model:

6 5 4 1 2 3

1. Connector (1 piece): Used to attach water hose to the rear of the product.

2. Faucet adapter (1 piece): Used for connection to the cold water mains.

3. Porous filter (1 piece)

4. Hose clip (3 pieces): Used to fix the water hose on the wall.

5. Filter connecting apparatus (2 pieces): Used to fix the filter on the wall.

6. Water filter (1 piece): Used to connect the product to the water mains. A water filter is not necessary when using carboy connection.

7. Connect the faucet adaptor to the water mains valve.

8. Determine the location to fix the external filter. Fix the filter's connecting apparatus (5) on the wall.

9. Attach the filter in the upright position on the filter connecting apparatus, as indicated on the label. (6)

Line drawing of a hand holding a mechanical component with a bolt, against a grid background (no text or symbols)

1. Attach the water hose extending from the top of the filter to the product's water connection adaptor, (see page 9).

Line drawing of a hand holding a tool with a clip, against a plain background (no text or symbols)

the After the connection is established, it should look like the figure below.

Line drawing of a hand holding a cylindrical object with a tool, next to an upward arrow (no text or symbols)

Simple line drawing of a door with an arrow pointing to the side panel (no text or symbols)

Installation

Internal filter

The internal filter provided with the product is not installed upon delivery; please follow the instructions below to install the filter.

Line drawing of a computer monitor with a hand inserting a cable to the right panel (no text or symbols)

Water line

Line drawing of a medical device with a catheter connected to a door (no text or symbols)

Carboy line

Line drawing of a water pump connected to a door, no text or symbols present

Do not use the first 10 glasses of water after connecting the filter.

1. The "Ice Off" indicator must be active while installing the filter. Switch the ON-OFF indicator using the "Ice" button on the screen.

-88 + 88 Control Air valve Air inlet Pumpout SET on off Ice Del

1. Remove the vegetable bin (a) to access the water filter.

Top-down architectural sketch of a refrigerator layout showing front and side views (no text or symbols)

Installation

1. Remove the water filter by-pass cover by pulling.

A few drops of water may flow out after removing the cover; this is normal.

Line drawing of a hand inserting a cable into a device component (no text or symbols)

1. Place the water filter cover into the mechanism and push to lock in place.

Line drawing of a hand operating a mechanical device with cables and components (no text or symbols)

1. Push the "Ice" button on the screen again to cancel the "Ice Off" mode.

	The water filter will clear certain foreign particles in the water. It will not clear microorganisms in the water.
	See page 22 for activating the filter replacement period.

4 Preparation

Things to be done for energy saving

Connecting the product to electronic energy-saving systems is harmful, as it may damage the product.

• Do not keep the refrigerator doors open for long periods.
• Do not place hot food or beverages the refrigerator.
• Do not overfill the refrigerator; blocking the internal air flow will reduce the cooling capacity.
• The energy consumption value specified for the refrigerator was measured with the freezer compartment's upper shelf removed, other shelves and the lowest drawers in place and under maximum load. The top glass shelf can be used depending on the shape and size of f to be frozen.
• Depending on the product's features; defrosting frozen foods in the cooler compartment will ensure energy saving and preserve food quality.
• Make sure the foods are not in contact with the cooler compartment temperature sensor indicated below.

Simple line drawing of a ceiling fixture with a bulb and internal components (no text or symbols)

First Use

Before using your refrigerator, make sure the necessary preparations are made in line with the instructions in “Safety and environment instructions” and “Installation” sections.

- Keep the product running with no food inside for 6 hours and do not open the door, unless absolutely necessary.

into

A sound will be heard when the compressor is engaged. It is normal to hear sound even when the compressor is inactive, due to the compressed liquids and gasses in the cooling system.

It is normal for the front edges of the refrigerator to be warm. These areas are designed to warm up in order to prevent condensation.

5

Using the product

Indicator panel

Indicator panels may vary depending on the model of your product.

Audial and visual functions of the indicator panel will assist in using the refrigerator.

8 1 2 3 9 e -188 7 6 5 4

1. Cooler compartment indicator
2. Error status indicator
3. Temperature indicator
4. Vacation function button
5. Temperature adjustment button
6. Compartment selection button
7. Cooler compartment indicator
8. Economy mode indicator
9. Vacation function indicator

*optional

* Optional: Figures represented in this instruction manual are schematic and may not correspond exactly with your refrigerator. If the parts are not included in the refrigerator you have purchased, they may be model specific and therefore only valid for some models.

1. Cooler compartment indicator

The cooler compartment light will turn on when adjusting the cooler compartment temperature.

2. Error status indicator

This sensor will activate if the refrigerator is not cooling adequately or in case of sensor Compartment selection button

fault. When this indicator is active, the Use the refrigerator compartment selection freezer compartment temperature indicator button to toggle between the cooler and will display "E" and the cooler compartment freezer compartments.

temperature indicator will display "1, 2, 3...7. Cooler compartment indicator

etc. numbers. The numbers on the indicator The freezer compartment light will turn on serve to inform the service personnel about when adjusting the cooler compartment the fault. temperature.

3. Temperature indicator

Indicates the temperature of the freezer and cooler compartments.

4. Vacation function button

To activate this function, press and hold the Vacation button for 3 seconds. When the Vacation function is active, the cooler compartment temperature indicator displays the inscription "-" and no cooling process will be active in the cooling compartment.

This function is not suitable to keep food in the cooler compartment. Other

compartments will remain cooled with the respective temperature set for each compartment.

Push the Vacation button (3) again to cancel this function.

5. Temperature adjustment button

Respective compartment's temperature varies in -24^ ..... -18^ and 8^ ... 1^ ranges.

s6r Compartment selection button

Use the refrigerator compartment selection button to toggle between the cooler and freezer compartments.

7. Cooler compartment indicator

The freezer compartment light will turn on twhen adjusting the cooler compartment temperature.

8. Economy mode indicator

Indicates the refrigerator is running on energy-saving mode. This indicator will be active when the temperature in the freezer compartment is set to -18^ .

9. Vacation function indicator

Indicates the vacation function is active.

1 ECO -88 -88 2 -88 10 Quick Freeze Set Eco Fuzzy Display Off Set Quick Fridge 3 9 8 7 6 5 4

1- Economic use
2- High temperature / fault alert
3- Rapid cooling
4- Vacation function
5- Cooler compartment temperature setting
6- Energy saving (display off)
7- Keypad lock
8- Eco-fuzzy
9- Freezer compartment temperature setting
10- Rapid freezing

1. Economic use

This sign will light up when the freezer compartment is set to -18^ , the most economical setting. (ECO) Economic use indicator will turn off when rapid cooling rapid freezing function is selected.

2. High temperature / fault alert

This indicator ⚠️ ) will light up in caseorofopening the door will deactivate the temperature faults or fault alerts. If you see energy-saving function and the display this indicator is lit up, please contact your signals will return to normal. Pressing this nearest authorised service agent for button (—) again will turn off the energy assistance. saving sign and deactivate the energy saving

3. Rapid cooling

When the rapid cooling function is turned on, the rapid cool indicator will light up (✗) and the cooler compartment temperature indicator will display the value 1. Push Rapid cool button again to cancel this function. The Rapid cool indicator will turn off and return to normal setting. The rapid cooling function will be automatically cancelled after 1 hour, unless cancelled the user. Too cool a large amount of food, press the rapid cool button before placing the food in the cooler compartment.

4. Vacation function

To activate the Vacation function, press the button number (4) for ( ) 3 seconds; this will activate the vacation mode indicator ( ). When the Vacation function is active, the cooler compartment temperature indicator displays the inscription "-" and no cooling process will be active in the cooling compartment. This function is not suitable to keep food in the cooler compartment. Other compartments will remain cooled with the respective temperature set for each compartment. Push the vacation function button again to cancel this function.

5. Cooler compartment temperature setting

After pressing the button number (5), the cooler compartment temperature can be set to 8,7,6,5,4,3,2 and 1 respectively. (T)

6. Energy saving (display off)

Pressing this button (—) will light up the energy-saving sign (—) and the Energy saving function will activate. Activating the energy saving function will turn off all other signs on the display. When the energy saving function is active, pressing any button

eorofopening the door will deactivate the energy-saving function and the display signals will return to normal. Pressing this button (—) again will turn off the energy saving sign and deactivate the energy saving function.

7. Keypad lock

Press the keypad lock button (3") simultaneously for 3 seconds. The keypad lock sign will light up and the keypad lock will be activated; the buttons will be inactive when the Keypad lock is activated. Press the Keypad lock button again simultaneously for 3 seconds. The keypad lock sign will turn off and the keypad lock shade will be disengaged. Press the keypad lock button (3") to prevent changing the refrigerator's temperature settings.

8. Eco-fuzzy

To activate the eco-fuzzy function, press and hold the eco-fuzzy button for 1 second. When this function is active, the freezer will switch to the economic mode after at least 6 hours and the economic use indicator will light up. To deactivate the ( ) eco-fuzzy function, press and hold the eco-fuzzy function button for 3 seconds.

The indicator will light up after 6 hours when the eco-fuzzy function is active.

9. Freezer compartment temperature setting

The temperature in the freezer compartment is adjustable. Pressing the button number (9) will enable the freezer compartment temperature to be set at -18,-19, -20, -21, -22, -23 and -24.

10. Rapid freezing

For rapid freezing, press the button number (10); this will activate the rapid freezing indicator (※).

When the rapid freezing function is turned on, the rapid freeze indicator will light up and the freezer compartment temperature indicator will display the value -27. Press the Rapid freeze button (❄️) again to cancel this function. The Rapid freeze indicator will turn off and return to normal setting. The rapid freezing function will be automatically cancelled after 24 hours, unless cancelled by the user. To freeze a large amount of fresh food, press the rapid freeze button before placing the food in the freezer compartment.

1 2 3 -88 eco (*) 88 °C 4 5 12 11 3* on off Display Ice Dispenser Key Lock Filter reset 3" Vacation 10 9 8 7 6

1. Freezer compartment temperature setting
2. Economy mode
3. Error status
4. Cooler compartment temperature setting
5. Rapid cooling
6. Vacation function
7. Keypad lock / filter replacing alert cancellation
8. Water, fragmented ice, ice cubes selection
9. Ice making on/off
10. Display on/off
11. Autoeco
12. Rapid freezing

* Optional: Figures represented in this instruction manual are schematic and may not correspond exactly with your refrigerator. If the parts are not included in the refrigerator you have purchased, they may be model specific and therefore only valid for some models.

1. Freezer compartment temperature setting Pressing the button (☐) number (1) will enable the freezer compartment temperature to be set at -18,-19,-20,-21,-22,-23,-24,-18...

2. Economy mode

Indicates the refrigerator is running on energy-saving mode. This indicator will active when the freezer compartment temperature is set at -18^ or the energy-saving cooling is engaged by eco-extra function. (ECO)

3. Error status

This sensor will activate if the refrigerator not cooling adequately or in case of so fault. (⚠️) When this indicator is activated, the freezer compartment temperature indicator will display "E" and the cooler compartment temperature indicator will display "1, 2, 3..." etc. numbers. The numbers on the indicator serve to inform the service personnel about the fault.

4. Cooler compartment temperature setting

After pressing the button (☐) number (4), the cooler compartment temperature can be set to 8,7,6,5,4,3,2 respectively.

5. Rapid cooling

For rapid cooling, press the button nur (5); this will activate the rapid cooling indicator (✗). Press this button again to deactivate this function. Use this function when placing fresh foods into the cooler compartment or to rapidly cool the food items. When this function is activated, refrigerator will be engaged for 1 hour.

6. Vacation function

When the Vacation function ( ^* ) is active, the cooler compartment temperature indicator displays the inscription "- - " and no cooling process will be active in the cooling compartment. This function is not suitable to keep food in the cooler compartment. Other compartments will remain cooled with the respective temperature set for each compartment.

Press the vacation function button again to cancel this function. ( * )

7. Keypad lock / Keypad lock / filter Replacing alert cancellation

Press keypad lock button ( 🔒) to activate the keypad lock. You may also use this function to prevent changing the refrigerator's temperature settings. The refrigerator's filter must be replaced every 6 months. If you follow the instructions in the section 5.2, the refrigerator will automatically calculate the remaining period and the filter replacing alert indicator ( ✙) will light up when filter expires. Press and hold the button ( ✕) for 3 seconds to turn off the filter alert light.

1. Water, fragmented ice, ice cubes selection Navigate the water ( ), ice cube ( ) and fragmented ice ( ) selections using the button number 8. The active indicator will remain lit.

9. Ice making on/off

Press the button ( ) number (9) to cancel (off —) or activate (on —) ice-making.

10. Display on/off

the Press the button ( — off) number (10) to cancel (XX) or activate ( — on) display on/off.

Autoeco

Press the auto eco button (@3), number (11), for 3 seconds to activate this function. If the door remains closed for a long time when this function is activated, the cooler section will switch to economic mode. Press the button again to deactivate this function. The indicator will light up after 6 hours when the auto eco function is active. (✗)

Rapid freezing

Press the button (✗) number (12) for rapid freezing. Press the button again to deactivate the function.

Activating the water filter replacement alert

(For products connected to water mains and comprising filter)

The water filter replacement alert is adjusted as described below.

1. Press the A (Keypad lock) button while the refrigerator is operational.

-88 eco 88 = on off = Display Ice Dispenser Key Lock Vacation A

1. Then press the following buttons respectively.

-88 eco = on off = Display Ice Disperser Key Lock Other next 2 Vacation

1. Vacation button.
2. Cooler temperature adjustment button.
3. Rapid cool adjustment button.
4. Freezer temperature adjustment button.

If the buttons are not pressed in the respective order, the button I indicator will turn off, a short audible alert will be heard and the Filter Replacement Alert indicator will light up.

The filter service life automatic calculation function is inactive by default. This function must be activated for products comprising a filter. Your refrigerator will automatically indicate the filter replacement period after 6 months. Repeating this process when the filter service life automatic calculation is active will cancel this function.

Using the water fountain (for certain models)

	The first few glasses of water taken from the fountain will normally be warm.
	If the water fountain is not used for a long time, dispose of the first few glasses of water to get clean water.

You must wait approximately 12 hours to get cold water after first operating.

Use the display to select the water option, then press the trigger to get water. Remove the glass shortly after pressing the trigger.

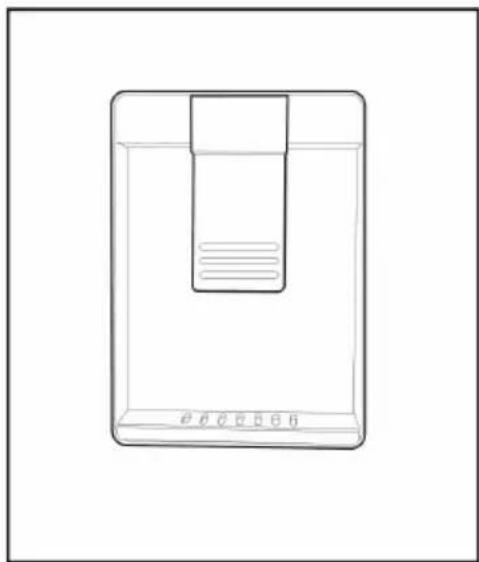

Filling the fountain water tank

Open the water tank's lid, as shown in the figure below. Fill with pure and clean drinking water. Close the lid.

Illustration of hands pouring liquid from a container into a small bowl on a table (no text or symbols)

Line drawing of a rectangular device with a central vertical slot and base plate (no text or symbols)

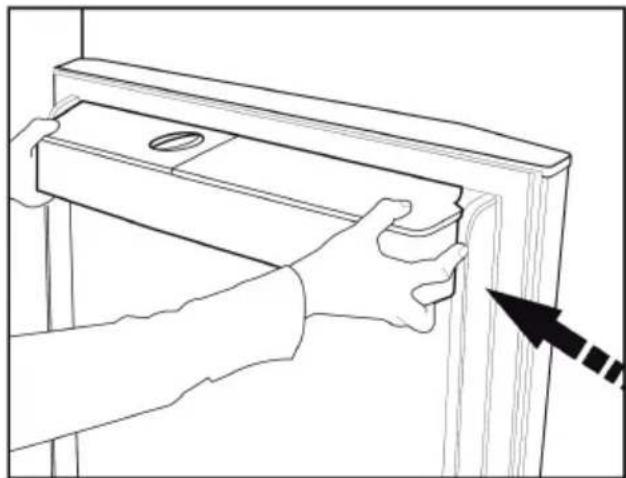

Cleaning the water tank

Remove the water filling reservoir inside the door shelf.

Detach by holding both sides of the door shelf.

Hold both sides of the water tank and remove at a 45^ angle.

Remove and clean the water tank lid.

Do not fill the water tank with fruit juice, fizzy beverages, alcoholic beverages or any other liquids incompatible for use in the water fountain. Using such liquids will cause malfunction and irreparable damage in the water fountain. Using the fountain in this way is not within the scope of warranty. Certain chemicals and additives in the beverages liquids may cause material damage to the water tank.

The water tank and water fountain components cannot be washed with dishwashers.

Line drawing of a person using a tool to adjust or install a wooden door panel (no text or symbols present)

45° e /

Line drawing of a hand holding a curved object on a wooden beam, with no text or symbols present.

Dispensing ice / water (Optional)

To take water (💡) / ice cube (💡) / fragmented ice (💡), use the display to select the respective option. Take water/ice by pushing the trigger on the water fountain forward. When switching between ice cube (💡) / fragmented ice (💡) options, the previous ice type may be discharged a few more times.

-88 Display Air Dispenser Key Lock Measurement

• Wait approximately 12 hours before taking ice from the ice / water fountain for the first time. The fountain may not discharge ice if there is insufficient ice in the ice box.
• The 30 pieces of ice cubes (3-4 Litres) may then discharge the water inside the drip taken after first operating should not betray. used.
• In case of power blackout or temporary malfunction, the ice may partly melt and refreeze. This will cause the ice pieces to merge with each other. In case of extended power blackouts or malfunction, the ice may melt and leak out. If you experience this problem, remove the ice in the ice box and clean the box.
  The water dripping from the water fountain accumulates on the drip tray; no water drainage is available. Pull the drip tray out or push on the edges to remove the tray. You
  say then discharge the water inside the drip etray.

WARNING: The product's water system should be connected to a cold water line only. Do not connect to a hot water line.

- The product may not discharge water during first operation. This is caused by the air in the system. The air in the system must be discharged. To do this, push the water fountain trigger for 1-2 minutes until the fountain discharges water. The initial water flow may be irregular. The water will flow normally once the air in the system is discharged.

• The water may be cloudy during first use of the filter; do not consume the first 10 glasses of water.
• You must wait approximately 12 hours to get cold water after first installation.
• The product's water system is designed for clean water only. Do not use any other beverages.
• It is recommended to disconnect the water supply if the product will not be used for long periods during vacation etc.
• If the water fountain is not used for a long time, the first 1-2 glasses of water received may be warm.

Drip tray (optional)

-88 eco 88 Display Ice Dispenser Key Lock vacuum 27

Zero degree compartment (Optional)

- Use this compartment to keep delicatessen at lower temperatures or meat products for immediate consumption. Do not place fruits and vegetables in compartment. You can expand the product's internal volume by removing any of the zero degree compartments. To remove the compartment, simply pull forth, lift up and pull out.

Vegetable bin

- The refrigerator's vegetable bin is designed to keep vegetables fresh by preserving humidity. For this purpose, the overall cold air circulation is intensified the vegetable bin. Keep fruits and vegetables in this compartment. Keep the green-leaved vegetables and fruits separately to prolong their life.

Blue light

(Optional)

- The product's vegetable bins comprise blue light. The vegetables in the bin w continue to photosynthesize under the blue light's wavelength effect and remain live and fresh.

lonizer

(Optional)

- The ionizer system in the cooler compartment's air duct serves to ionize the air. The negative ion emissions will this eliminate bacteria and other odour causing molecules in the air.

Minibar

(Optional)

- The refrigerator's minibar door shelf can be accessed without opening the door. This will allow you to easily take frequently consumed food and beverages from the refrigerator. To open the minibar cover, e push with your hand and pull towards in yourself.

WARNING: Do not sit, hang or place heavy objects on the minibar cover. This may damage the product or cause you to be injured.

To close this compartment, simply push will forward from the upper section of the cover.

Odour filter

(optional)

The odour filter in the cooler compartment's air duct will prevent undesirable odour formation.

Using the product

Icematic and ice storage container (Optional)

• Fill the icematic with water and put in place. The ice will be ready after approximately two hours. Do not remove the icematic to take ice.
• Turn the buttons on the ice chambers right hand side by 90°; the ice will fall to the ice storage box below. You may then remove the ice storage box and serve the ice.

The ice storage box is intended for storing ice only. Do not fill with water. Doing so will cause it to break.

Illustration of a hand inserting a circular component into a safe drawer with an arrow indicating rotation (no text or symbols)

Ice-maker (Optional)

• The ice maker is located on the upper section of the freezer cover.
• Hold the handles on the sides of the ice stock reservoir and move up to remove.
• Remove the ice-maker decorative lid by moving up.

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Illustration of hands holding a document or folder, no text or symbols visible

Illustration of a hand holding a rectangular object, possibly a device or tool, with no visible text or symbols.

Freezing fresh food

• To preserve food quality, the food items placed in the freezer compartment must be frozen as quickly as possible, use the rapid freezing for this.
• Freezing food items when fresh will extend the storage time in the freezer compartment.
• Pack the food items in air-tight packs and seal tightly.
• Make sure the food items are packed before putting in the freezer. Use freez holders, tinfoil and damp-proof paper, plastic bag or similar packaging material instead of traditional packaging paper.
• Mark each food pack by writing the on the package before freezing. This allows you to determine the freshness each pack every time the freezer is opened. Keep the earlier food items in the front to ensure they are used first.
• Frozen food items must be used immediately after defrosting and must be frozen again.
• Do not freeze large quantities of food all at once.
  will

Recommendations for storing frozen foods

The compartment must be set to at least 18^ C.

1. Place the food items in the freezer as health quickly as possible to avoid defrosting.

2. Before freezing, check the "Expiry Date" is on the package to make sure it has not expired.

he Make sure the food's packaging is not damaged.

Deep freezer details

As per the IEC 62552 standards, the freezer must have the capacity to freeze 4,5 kg of food items at -18°C or lower temperatures in 24 hours for each 100 litres of freezer compartment volume. Food items can only be preserved for extended periods at or below temperatures of -18°C . You can keep the foods fresh for months (in deep freezer

date or below temperatures of 18^ C).

of Food items to be frozen must not come into contact with the already frozen food inside the freezer to avoid partial defrosting of the already frozen food.

no Boil the vegetables and filter the water to extend the frozen storage time. Place the food in air tight packages after filtering and place in the freezer. Bananas, tomatoes, lettuce, celery, boiled eggs, potatoes and similar food items should not be frozen.

Freezing these food items will simply reduce

the nutritional value and food quality, as well as possible spoiling which is harmful to

Freezer Compartment Setting	Cooler Compartment Setting	Descriptions
-18°C 4°C	This is the default, recommended setting.
-20,-22 or -24°C	4°C	Recommended for ambient temperatures exceeding 30°C.
Rapid Freeze	4°C	Use this to freeze food items in a short time, the product will reset to previous settings when the process is completed.
-18°C or colder	2°C	Use these settings if you believe the cooler compartment is not cold enough due to ambient temperature or frequently opening the door.

Placing food

Freezer compartment shelves	Various frozen goods including meat, fish, ice cream, vegetables etc.
Cooler compartment shelves	Food items inside pots, capped plate and capped cases, eggs (in capped case)
Cooler compartment door shelves	Small and packed food or beverages
Vegetable bin Fruits	and vegetables
Fresh food compartment	Delicatessen (breakfast food, meat products to be consumed at short notice)

Door open alert

(Optional)

An audible alert will be heard if the product's door remains open for 1 minute. The audible alert will stop when the door is closed or any button on the display (if available) is pressed.

Interior light

Interior light uses a LED type lamp. Contact authorized service for any problems with this lamp.

Cleaning the product regularly will prolong its service life.

WARNING: Disconnect the power before cleaning the refrigerator.

• Do not use sharp and abrasive tools, soap, house cleaning materials, detergents, gas, gasoline, varnish and similar substances for cleaning.
• Melt a teaspoonful of carbonate in the water. Moisten a piece of cloth in the water and wring out. Wipe the device with this cloth and dry off thoroughly.
• Take care to keep water away from the lamp's cover and other electrical parts.
• Clean the door using a wet cloth. Remove all items inside before detaching the door and chassis shelves. Lift the door shelves up to detach. Clean and dry the shelves, then attach back in place by sliding in from above.
• Do not use chloric water or cleaning products on the exterior surface and chrome-coated parts of the product. Chlorine will cause rust on such metallic surfaces.

Preventing malodour

The product is manufactured free of any odorous materials. However, keeping the food in inappropriate sections and improper cleaning of internal surfaces may lead to malodour.

To avoid this, clean the inside with carbonated water every 15 days.

• Keep the foods in sealed holders. Microorganisms may spread out of unsealed food items and cause malodour.
• Do not keep expired and spoilt foods in the refrigerator.

Protecting plastic surfaces

Oil spilled on plastic surfaces may damage the surface and must be cleaned immediately with warm water.

IMPORTANT: Check the trouble shooting list on the following page before contacting service. Doing so will save you time and money. This list includes frequent complaints that are not related to faulty workmanship or materials. Certain features mentioned herein may not apply to your product.

7 Troubleshooting

The refrigerator is not working.

• The power plug is not fully settled. >>> Plug it in to settle completely into the socket.
- The fuse connected to the socket powering the product or the main fuse is blown. >>> Check the fuses.

Condensation on the side wall of the cooler compartment (MULTI ZONE, COOL, CONTROL and FLEXI ZONE).

• The environment is too cold. >>> Do not install the product in environments with temperatures below -5°C.
• The door is opened too frequently >>> Take care not to open the product's door too frequently.
  • The environment is too humid. >>> Do not install the product in humid environments.
• Foods containing liquids are kept in unsealed holders. >>> Keep the foods containing liquids in sealed holders.
• The product's door is left open. >>> Do not keep the product's door open for long periods.
• The thermostat is set to too low a temperature. >>> Set the thermostat to an appropriate temperature.

Compressor is not working

• In case of sudden power failure or pulling the power plug off and putting back on, the gas pressure in the product's cooling system is not balanced, which triggers the compressor thermic safeguard. The product will restart after approximately 6 minutes. If the product does not restart after this period, contact service.
• Defrosting is active. >>> This is normal for a fully automatic defrosting product. The defrosting is carried out periodically.
  • The product is not plugged in. >>> Make sure the power cord is plugged in.
  • The temperature setting is incorrect. >>> Select the appropriate temperature setting.
• There is a power outage. >>> The product will continue to operate normally once the power is restored.

The refrigerator's operating noise is increasing while in use.

- The product's operating performance may vary depending on the ambient temperature variations. This is normal and not a malfunction.

The refrigerator runs too often or for too long.

• The new product may be larger than the previous one. Larger products will run for longer periods.
• The room temperature may be high. >>> The product will normally run for long periods in a higher room temperature.
• The product may have been recently plugged in or a new food item is placed inside. >>> The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside. This is normal.
• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product.
• The doors were opened frequently or kept open for long periods. >>> The warm air moving inside will cause the product to run longer. Do not open the doors too frequently.
  • The freezer or cooler door may be ajar. >>> Check that the doors are fully closed.
• The product may be set to too low a temperature. >>> Set the temperature to a higher degree and wait for the product to reach the adjusted temperature.
• The cooler or freezer door gasket may be dirty, worn out, broken or not properly settled. >>> Clean or replace the gasket. A damaged / torn door gasket will cause the product to run for longer periods in order to maintain the current temperature.

The freezer temperature is very low, but the cooler temperature is adequate.

- The freezer compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The cooler temperature is very low, but the freezer temperature is adequate.

- The cooler compartment temperature is set to a very low degree. >>> Set the cooler compartment temperature to a higher degree and check again.

The food items kept in cooler compartment drawers are frozen.

- The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The temperature in the cooler or the freezer is too high.

• The cooler compartment temperature is set to a very high degree. >>> The cooler compartment temperature setting influences the freezer compartment temperature. Change the cooler or freezer compartment's temperature and wait until the relevant compartments reach the adjusted temperature level.
• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently.
• The door may be ajar. >>> Fully close the door.
• The product may have been recently plugged in or a new food item is placed inside. >>> This is normal. The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside.
• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot foods into the product.

Shaking or noise.

• The ground is not level or durable. >>> If the product is shaking when moved slowly, adjust the feet to balance the product. Also make sure the ground is sufficiently durable to bear the product.
• Any items placed on the product may cause noise. >>> Remove any items placed on the product.

The product is making noise of liquid flowing, spraying etc.

- The product's operating principles involve liquid and gas flow. >>> This is normal and not a malfunction.

There is sound of wind blowing coming from the product.

- The product uses a fan for the cooling process. This is normal and not a malfunction.

There is condensation on the product's internal walls.

• Hot or humid weather will increase icing and condensation. This is normal and not a malfunction.
• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently; if open, close the door.
• The door may be ajar. >>> Fully close the door.

There is condensation on the product's exterior or between the doors.

- The ambient weather may be humid, this is quite normal in humid weather. >>> The condensation will dissipate when the humidity is reduced.

The interior smells bad.

• The product is not cleaned regularly. >>> Clean the interior regularly using a sponge, warm water and carbonated water.
• Certain holders and packaging materials may cause odour. >>> Use holders and packaging materials free of odour.
• Foods were placed in unsealed holders. >>> Keep food in sealed holders. Microorganisms may spread out of unsealed food items and cause malodour.
• Remove any expired or spoilt foods from the product.

The door is not closing.

• Food packages may be blocking the door. >>> Relocate any items blocking the doors.
- The product is not standing in the full upright position on the ground. >>> Adjust the feet to balance the product.
- The ground is not level or durable. >>> Make sure the ground is level and sufficiently durable to bear the product.

The vegetable bin is jammed.

- Food items may be in contact with the upper section of the drawer. >>> Reorganize the food items in the drawer.

Warning: If you cannot eliminate the problem although you follow the instructions in this section, consult your dealer or an Authorised Service Agent. Never try to repair a non-functional refrigerator yourself.

Record in the space below the listed information for future reference.

SERIAL NUMBER......

DATE OF PURCHASE......

PURCHASED FROM......

Please register your product at

www.defy.co.za

DEFY APPLIANCES (PTY) LTD

P.O.BOX 12004

JACOBS

DURBAN

4026

SOUTH AFRICA

8

Service Centres

If you have followed the instructions and still have a problem, contact the nearest Defy Service Centre. They will be able to advise you on any aspect of the product or send a qualified technician to repair it.

South African Service Agents:

BLOEMFONTEIN

160 Long Street, Hilton, Bloemfontein 9301

Tel: [phone]

[e-mail]

CAPE TOWN

5A Marconi Rd. Montague Gardens, 7441

Tel: [phone]

[e-mail]

DURBAN

35 Intersite Avenue, Umgeni Business Park,

Durban, 4051

Tel: [phone]

[e-mail]

EAST LONDON

16 Bowls Rd. Arcadia, East London, 5201

Tel: [phone]

[e-mail]

JOHANNESBURG

Cnr. Mimetes & Kruger Sts. Denver ext.12

Johannesburg, 2094

Tel: [phone] or 011 621 0300

[e-mail]

POLOKWANE

87 Nelson Mandela Drive, Superbia 0699

Tel: [phone] / 7 / 8 / 9

[e-mail]

PORT ELIZABETH

112 Patterson Road, North End, Port Elizabeth 6001

Tel: [phone]

[e-mail]

PRETORIA

Block A1 Old Mutual Industrial Park,

Cnr. D.F.Malan Drive & Moot Str. Hermanstad, 0082

Tel: [phone]

[e-mail]

Sub-Saharan Africa Service Agents:

ZAMBIA: SOUTHGATE INVESTMENTS LTD

Plot 1606, Sheki Sheki Road

P.O. Box 33681

Lusaka, 10101, Zambia

Tel: [phone]

Fax: [phone]

[e-mail]

NAMIBIA: ATLANTIC DISTRIBUTORS (PTY) LTD

10 Tienie Louw Street, Northern Industrial Area

P.O. Box 21158, Windhoek, Namibia

Tel: [phone]

Fax: [phone]

[e-mail]

ZIMBABWE: TRADECOMAFRICA

Trade Com Africa, 183 Loreley Crescent

Msasa, Harare, Zimbabwe

Tel: [phone]

Cell: [phone]

Cell: [phone]

BOTSWANA: RAY MORGAN AGENCIES

RMA Service Centre, Plot 48, East Gate

Gaborone International Commerce Park

Kgale View, Gaborone

Botswana

Tel: [phone]

Fax: [phone]

Cell: [phone]

[e-mail]; [e-mail]

SWAZILAND: LYNDS DISTRIBUTORS

P.O Box 716, Mbabane, Swaziland, H100

Tel: [phone]

Fax: [phone]

MOZAMBIQUE: COOL WORLD. LDA

Rua da Resistencia No. 97B R/C

Cell: [phone]

[e-mail]

Nosso Show Room

Av: da Industrias, Parcela No.735 * 735A

Machava, Maputo

OTHER AREAS ARE SERVICED BY OVER 200 AUTHORISED SERVICE AGENTS. PLEASE CONSULT THE NEAREST REGIONAL DEFY SERVICE CENTRE FOR DETAILS.

9

Warranty

This certificate is issued by DEFY APPLIANCES (PTY) LIMITED manufacturers of Defy and Ocean products, hereinafter the Company, to the original purchaser only, of the appliance described on the certificate and shall constitute the only warranty given in respect of this appliance.

The Company warrants to the original purchaser that for a period of TWO YEARS from date of purchase the appliance is free from defect under normal domestic use, both in workmanship and material, subject to the following conditions.

1. Repair or replacement of any part of this appliance, found by the Company to be defective, shall be at the election of the Company. The Company reserves the right to effect such service through any of its Service Divisions or Authorised Service Dealers. The cost of such service shall be borne by the Company in full, provided that the appliance is located no further than 50km from a Company Service Centre or an Authorised Service Dealer. Where the appliance is located beyond the 50km radius, the purchaser shall be liable for the standard travelling charges, as determined by the Company.
2. Vitreous enamelware, fuses and lamps are specifically excluded from these warranties. It is an express condition of these warranties that the purchaser takes due care and attention in the use and maintenance of the appliance. Abuse, misuse in conflict with operating instructions, connection to incorrect voltages and subjection to commercial use shall release the Company from its obligations.
3. This warranty shall become void and cease to operate if the appliance is dismantled by, or any repairs to the appliance are effected by any persons not duly authorised by the Company, or if substitute parts not approved by the Company are used in the appliance, or if the serial number of the appliance is removed.
4. The Company shall not be responsible for damages resulting from fire, flood, civil disturbances or any Act of God. The Company shall not, in terms of these warranties be responsible nor held liable for any consequential loss or damage of any kind caused by or due to the failure or malfunction of the appliance.
5. The Company shall not be responsible for transportation or other costs other than those incurred within the provisions of Point 1 of this Certificate.
6. For warranties in the Republic of South Africa and Sub-Saharan Africa, please contact your nearest Defy office. Please refer to the previous page for respective South African service agents and Sub-Saharan Africa service agents.
7. Where service is requested under warranty and no fault or defect can be found by the Company, all costs incurred will be for the purchaser's account.
8. This Certificate as well as your invoice will serve as proof of purchase. For the purpose of warranty, it will be essential to produce this Certificate and invoice. Failure to do so, will render the purchaser liable for service costs.

KEEP THIS CERTIFICATE AND SALES INVOICE AS PROOF OF PURCHASE FOR WARRANTY PURPOSES.
