INSTRUKCJA OBSŁUGI AW2210 ALIENWARE

Alienware OptX™ AW2210 User's Guide

About Your Monitor

Setting Up the Monitor

Operating the Monitor

Troubleshooting

Appendix

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of your monitor.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates a potential for property damage, personal injury or death.

Information in this document is subject to change without notice. © 2009 Dell Inc. All rights reserved.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Alienware is a trademark or registered trademark of Alienware Corporation; Dell and the DELL logo are trademarks of Dell Inc; Microsoft, Windows, and Windows Vista are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

Model AW2210t

August 2009 Rev. A03

About Your Monitor

Alienware OptX™ AW2210 User's Guide

Package Contents
Product Features
Identifying Parts and Controls
Monitor Specifications
Universal Serial Bus (USB) Interface
Plug and Play Capability
Maintenance Guidelines

Package Contents

Your monitor ships with the components shown below. Ensure that you have received all the components and contact Dell if something is missing.

NOTE: Some items may be optional and may not ship with your Monitor. Some features or media may not be available in certain countries.

	Monitor with stand
	Cable Cover
	Power Cable
	DVI Cable
	HDMI Cable
	USB Cable

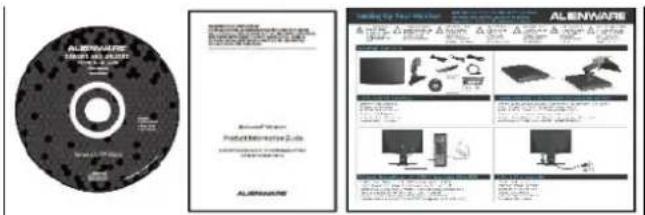

ALLENWARE CD ALLENWARE Product Information Guide ALLENWARE

• Drivers and Documentation media
• Setup Guide
  • Safety Information

Product Features

The Alienware OptX™ AW2210 has an active matrix, thin-film transistor (TFT), liquid crystal display (LCD), and LED backlight. The monitor features include:

■ 21.5-inch (546.86 mm) viewable area display. 1920 x 1080 resolution, plus full-screen support for lower resolutions.
■ Wide viewing angle to allow viewing from a sitting or standing position, or moving side-to-side.
■ Tilt, swivel, and vertical extension capabilities.
■ Plug and play capability if supported by your system.

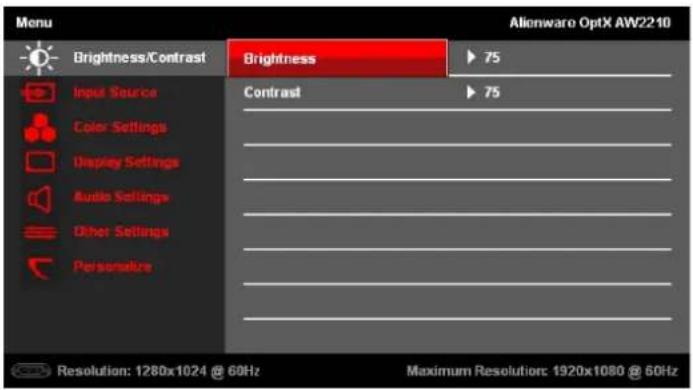

■ On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.
■ Software and documentation media includes an information file (INF), Image Color Matching File (ICM), and product documentation.
■ Energy Saver feature for Energy Star compliance.
■ Security lock slot.

Identifying Parts and Controls

Front View

Front view of a black computer monitor with a stand (no visible text or symbols)

Front View

Preset Modes Brightness/Contrast Input Source Menu Exit

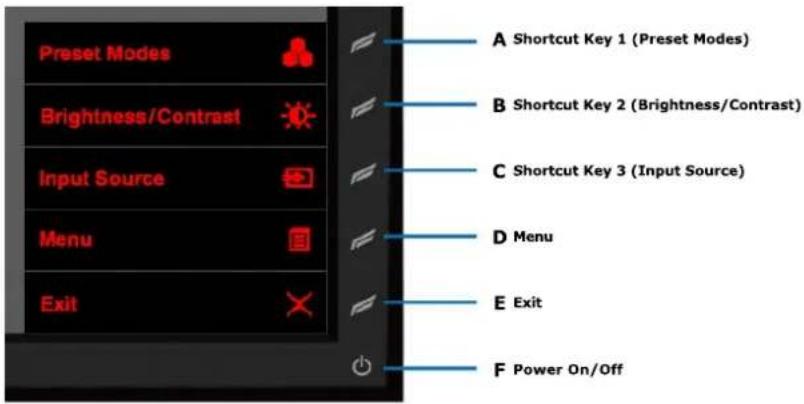

Front panel controls

Label Description

1	Shortcut Key 1 (Preset Modes)
2	Shortcut Key 2 (Brightness/Contrast)
3	Shortcut Key 3 (Input Source)
4	Menu
5	Exit
6	Power On/Off

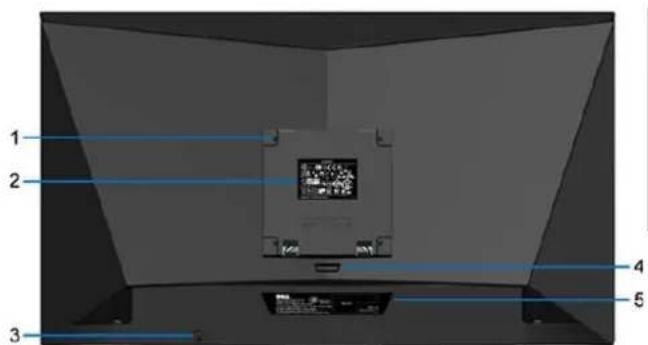

Back View

1 2 3 4 5

Back view

3D model of a computer monitor with a labeled component '6' on the side (no other text or symbols visible)

Back view with monitor stand

	Label	Description/Use
1	VESA mounting holes (100 mm) (behind attached VESA plate)	Use to mount the monitor.
2	Regulatory rating label	Lists the regulatory approvals.
3	Security lock slot	Use a security lock with the slot to help secure your monitor.
4	Stand removal button	Press to release the stand.
5	Barcode serial number label	Refer to this label if you need to contact Dell for technical support.
6	Cable management slot	Use to organize cables by placing them through the slot.

Side View

3D rendering of two computer monitors with adjustable legs (no text or symbols visible)

Left view
Right view

Bottom View

Back view of a black electronic device showing internal components like ventilation, ports, and connectors (no text or symbols visible)

1 2 3 4 5 6 7

Bottom view

Label	Description
1	AC power cord connector
2	HDMI connectors (2)
3	DVI connector
4	Audio Line-in
5	Audio Line-out
6	USB upstream port
7	USB downstream ports (4)

Monitor Specifications

Flat Panel Specifications

Model	AW2210
Screen type	Active matrix - TFT LCD
Panel type	TN
Screen dimensions	21.5 inches (21.5-inch viewable image size)
Preset display area:
Horizontal	476.64 mm (18.77 inches)
Vertical	268.11 mm (10.56 inches)
Pixel pitch	0.248 mm
Viewing angle	160^ (vertical) typ, 170^ (horizontal) typ
Luminance output	300 cd/m ^2 (typ)
Contrast ratio	1000 to 1 (typ)
Dynamic contrast ratio	Up to 80,000 : 1 (max)
Faceplate coating	Antiglare with hard-coating 3H
Backlight	4 CCFL
Response Time	2ms typical (Grey to Grey)
Color gamut (Typical)	85%*

* AW2210 color gamut (typical) is based on CIE1976 (85%) and CIE1931 (72%) test standards.

Resolution Specifications

Model	AW2210
Horizontal scan range	30 kHz to 83 kHz (automatic)
Vertical scan range	56 Hz to 75 Hz (automatic)
Maximum resolution	1920 x 1080 at 60 Hz

Video Supported Modes

Model	AW2210
Video display capabilities (DVI playback)	480i/480p/576i/576p/720p/1080i/1080p (Support HDCP)

Preset Display Modes

Display Mode	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock (MHz)	Sync Polarity (Horizontal/Vertical)
720 x 400	31.5	70.0	28.3	-/+
640 x 480	31.5	60.0	25.2	-/-
640 x 480	37.5	75.0	31.5	-/-
800 x 600	37.9	60.0	40.0	+/+
800 x 600	46.9	75.0	49.5	+/+
1024 x 768	48.4	60.0	65.0	-/-
1024 x 768	60.0	75.0	78.8	+/+
1152 x 864	67.5	75.0	108.0	+/+
1280 x 1024	64.0	60.0	135.0	+/+
1280 x 1024	80.0	75.0	135.0	+/+
1920 x 1080	67.5	60.0	148.5	+/+

Electrical Specifications

Model	AW2210
Video input signals	Digital DVI-D TMDS, 600 mV for each differential line, positive polarity at 50 ohm input impedance
	HDMI TMDS, 600 mV for each differential line, positive polarity at 50 ohm Input impedance or 100 Ohm per differential pair
	Audio Input and Output signals : Input signal
	level: 1 Vrms without clipping
Synchronization input signals	Separate horizontal and vertical synchronizations, polarity-free TTL level, SOG (Composite SYNC on green)
AC input voltage/frequency/current	100 to 240 VAC/50 or 60 Hz ± 3 Hz/1.5 A (Max.)
Inrush current	120V:40A (Max.) 240V:80A (Max.)

Physical Characteristics

Model	AW2210
Connector type	DVI-D, white connector; HDMI, black connector
Signal cable type	Digital: Detachable, DVI-D, Solid pins, shipped detached from the monitor
	High Deinition Multimedia Interface: Detachable, HDMI, 19 pins
Dimensions (with stand)
Height	18.14 inches (460.82 mm)
Width	20.33 inches (516.27 mm)
Depth	7.64 inches (193.97 mm)
Dimensions (without stand)
Height	12.35 inches (313.75 mm)
Width	20.33 inches (516.27 mm)
Depth	3.25 inches (82.46 mm)
Stand dimensions
Height	14.57 inches (370.2 mm)
Width	15.75 inches (400.1 mm)
Depth	7.64 inches (193.97 mm)
Weight
Weight with packaging	15.80 lbs (7.18 kg)
Weight with stand assembly and cables	13.05 lbs (5.92 kg)
Weight without stand assembly(For wall mount or VESA mount considerations - no cables)	8.75 lbs (3.97 kg)
Weight of stand assembly	4.30 lbs (1.95 kg)

Environmental Characteristics

Model	AW2210
Temperature
Operating	5° to 35°C (41° to 95°F)
Non-operating	Storage: -20° to 60°C (-4° to 140°F)Shipping: -20° to 60°C (-4° to 140°F)
Humidity
Operating	10% to 80% (non-condensing)
Non-operating	Storage: 5% to 90% (non-condensing)Shipping: 5% to 90% (non-condensing)
Altitude
Operating	3,657.6 m (12,000 ft) max
Non-operating	12,192 m (40,000 ft) max
Thermal dissipation	256.08 BTU/hour (maximum)153.65 BTU/hour (typical)

If you have VESA's DPM™ compliance display card or software installed on your computer, the monitor can automatically reduce its power consumption when not. This is referred to as Power Save Mode*. If the computer detects input from keyboard, mouse, or other input devices, the monitor automatically resumes function following table shows the power consumption and signaling of this automatic power saving feature:

VESA Modes	Horizontal Sync	Vertical Sync	Video	Power Indicator	Power Consumption
Normal operation	Active	Active	Active	White	45 W (typical)/75 W (maximum)
Active-off mode	Inactive	Inactive	Blanked	Amber (Breathing)	2 W
Switch off	-	-	-	Off	Less than 1 W

The OSD will only function in the normal operation mode. When the Exit control is touched in Active-off mode, one of the following messages will be displayed:

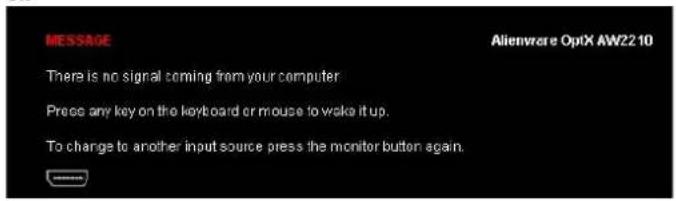

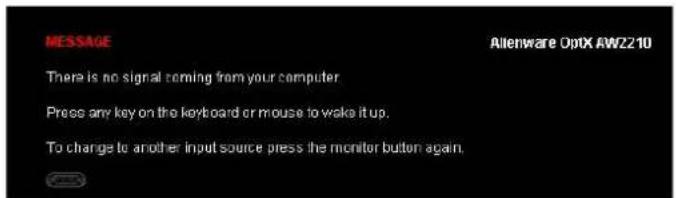

MESSAGE Allenware OptX AW2210 There is no signal coming from your computer. Press any key on the keyboard or mouse to wake it up. To change to another input source press the monitor button again.

OR

MESSAGE Alienvore OptX AW22 10 There is no signal coming from your computer Press any key on the keyboard or mouse to wake it up. To change to another input source press the monitor button again.

Activate the computer and the monitor to gain access to the OSD.

NOTE: This monitor is ENERGY STAR®-compliant

* Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor

DVI Connector

8 7 6 xx 3 2 1 16 15 14 xx 11 10 9 24 23 22 xx 19 18 17

Pin Nur

24-pin Side of the Connected Signal Cable

Back to Contents Page

Appendix

Alienware OptX™ AW2210 User's Guide

Safety Instructions
FCC Notice (U.S. Only) and Other Regulatory Information
Contacting Dell

WARNING: Safety Instructions

WARNING: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards, and/or mechanical hazards.

For information on safety instructions, see the Product Information Guide.

FCC Notices (U.S. Only) and Other Regulatory Information

For FCC notices and other regulatory information, see the regulatory compliance website located at: http://www.dell.com/regulatory_compliance.

Contacting Dell

For customers in the United States, call 800-WWW-DELL (800-999-3355).

NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.

Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues:

1. Visit support.dell.com.
2. Verify your country or region in the Choose A Country/Region drop-down menu at the bottom of the page.
3. Click Contact Us on the left side of the page.
4. Select the appropriate service or support link based on your need.
5. Choose the method of contacting Dell that is convenient for you.

Back to Contents Page

Back to Contents Page

Setting Up Your Monitor

Alienware OptX™ AW2210

If you have an Alienware™ desktop or an Alienware™ portable computer with internet access

1. Go to http://support.dell.com, enter your service tag, and download the latest driver for your graphics card.

2. After installing the drivers for your Graphics Adapter, attempt to set the resolution to 1920X1080 again.

NOTE: If you are unable to set the resolution to 1920x1080, please contact Dell™ to inquire about a Graphics Adapter that supports these resolutions.

Back to Contents Page

Setting Up Your Monitor

Alienware OptX™ AW2210

If you have a non Alienware™ desktop, portable computer, or graphics card

In Windows XP:

1. Right-click on the desktop and click Properties.
2. Select the Settings tab.

3. Select Advanced

4. Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, ATI, Intel etc.).

5. Refer to the graphic card provider website for updated driver (for example, http://www.ATL.com OR http://www.NVIDIA.com).

6. After installing the drivers for your Graphics Adapter, attempt to set the resolution to 1920X1080 again.

In Windows Vista ^® or Windows 7:

1. Right-click on the desktop and click Personalization.
2. Click Change Display Settings.

3. Click Advanced Settings.

4. Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, ATI, Intel etc.).

5. Refer to the graphic card provider website for updated driver (for example, http://www. ATI.com OR http://www.NVIDIA.com).

6. After installing the drivers for your Graphics Adapter, attempt to set the resolution to 1920X1080 again.

NOTE: If you are unable to set the resolution to 1920x1080, contact the manufacturer of your computer or consider purchasing a graphics adapter that will be resolved of 1920x1080.

Back to Contents Page

Operating the Monitor

Alienware OptX™ AW2210 User's Guide

Using the On-Screen Display (OSD) Menu
Setting the Maximum Resolution
Using the Tilt, Swivel, and Vertical Extension

Using the On-Screen Display (OSD) Menu

Using the OSD Controls

Use the controls on the front of the monitor to select a Shortcut Key function, to navigate the OSD menu and to adjust the characteristics of the image being displayed.

Preset Modes Brightness/Contrast Input Source Menu Exit Shortcut Key 1 (Preset Modes) Shortcut Key 2 (Brightness/Contrast) Shortcut Key 3 (Input Source) Menu Exit Power On/Off

Icon		Description
	Shortcut Key 1 (Preset Modes)	Select this Shortcut to choose from a list of preset color modes.
	Shortcut Key 2 (Brightness/Contrast)	Select this Shortcut to activate Brightness/Contrast adjustment.
	Shortcut Key 3 (Input Source)	Select this Shortcut to select between different video signals that may be connected to your monitor.
	Menu	Launch the Menu. See Navigating the Menu.
	Exit	Exit On-Screen Display.
	Power On/Off	Turn monitor on or off.The white LED indicates the monitor is on and fully functional.A breathing amber LED indicates it is in power save mode.

Navigating the Menu

1. Select ☐ to launch the menu

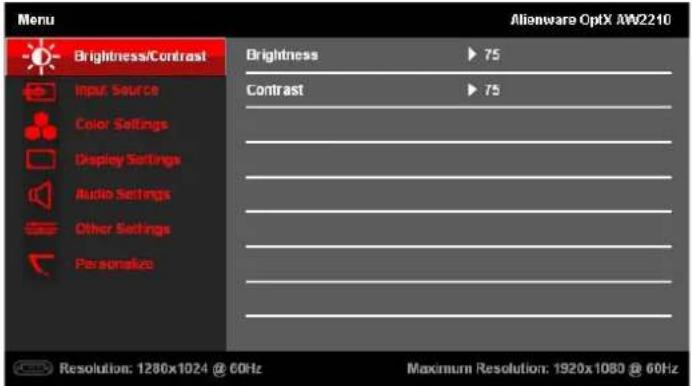

Menu Alienware OptX AW2210 Brightness/Contrast Brightness ▶ 75 Contrast ▶ 75 Input Source Color Settings Display Settings Audio Settings Other Settings Personalize Resolution: 1280x1024 @ 60Hz Maximum Resolution: 1920x1080 @ 60Hz

1. Select □ or □ to move between the setting options. As you move from one icon to another, the option name is highlighted. See Menu Options for a complete list of all the options available for the monitor.
2. Select □ to move to the Sub-menu.

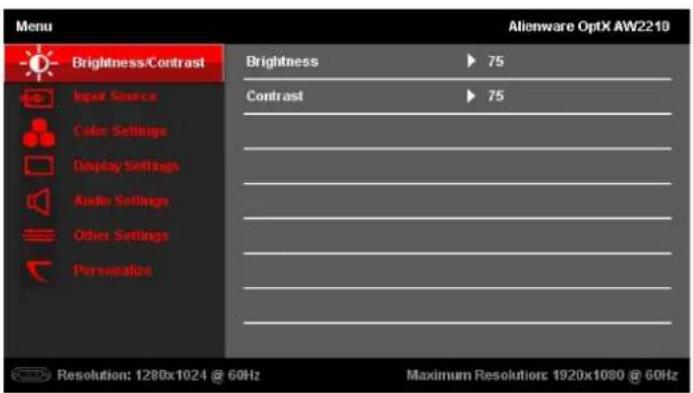

Menu Brightness/Contrast Brightness ▶ 75 Input Source Contrast ▶ 75 Color Settings Display Settings Audio Settings Other Settings Perspectives Resolution: 1280x1024 @ 60Hz Maximum Resolution: 1920x1080 @ 60Hz Alienware OptX AW2210

1. Select or to move between the setting options.
2. Select to call out the slider bar for adjusting the value if the setting.

1. Select or, to adjust the value of the setting.
2. Select to return to the Sub-menu.

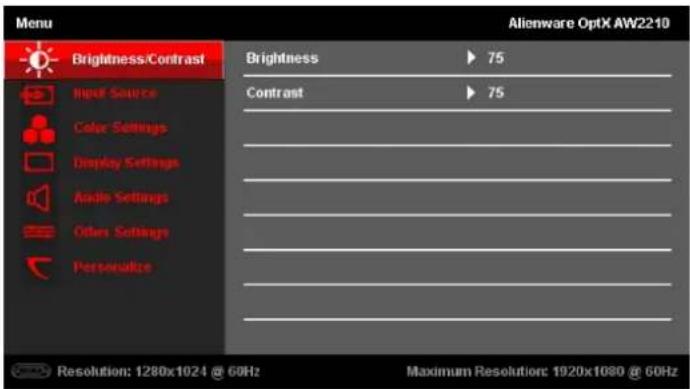

Menu Brightness/Contrast Brightness ▶ 75 Input Source Contrast ▶ 75 Color Settings Display Settings Audio Settings Other Settings Personality Resolution: 1280x1024 @ 60Hz Maximum Resolution: 1920x1080 @ 60Hz Alienware OptX AW2210

1. Select again to return to the Main menu.


Menu Alienware OptX AW2210 Brightness/Contrast Brightness ▶ 75 Contrast ▶ 75 Light Source Color Settings Display Settings Audio Settings Other Settings Personalize Resolution: 1280x1024 @ 60Hz Maximum Resolution: 1920x1090 @ 60Hz

1. Select ✗ to exit from the On-screen Display menu.
   Menu Options

Icon	Menu and Submenus	Description
	BRIGHTNESS/CONTRAST	Use this menu to activate Brightness/Contrast adjustment.
	Brightness	Brightness adjusts the luminance of the backlight.
	Contrast	Adjust Brightness first, and then adjust Contrast only if further adjustment is necessary.The Contrast function adjusts the degree of difference between darkness and lightness on the monitor screen.
[+CC+]	INPUT SOURCE	Use the INPUT SOURCE menu to select between different video signals that may be connected to your monitor.
	Auto Select	Select Auto Select to scan for available input signals.
	DVI-D	Select DVI-D input when you are using the Digital (DVI) connector.
	HDMI	Select HDMI input when you are using the HDMI connector.
	COLOR SETTINGS	Use the Color Settings to adjust the color setting mode and color temperature.There are different color setting sub-menus for DVI-D and Video input.
	Input Color Format	Allows you to set the color format of the video input signal to:RGB: Select this option if your computer, DVD player or Game Console using the HDMI or DVI cable to connect to tYPbPr: Select this option if your DVD player, Game Console or other device connected to the display only support format.
	Mode Selection	Allows you to set the display mode to:
	Graphics: Select this mode if your monitor is connected to your computer.Video: Select this mode if you are enjoying video movies on your display. For DVD playback, selecting this mode g viewing experience.NOTE: Depending upon the Display Mode you select the Preset Modes available for your monitor changes.
Preset Modes	Allows you to choose from a list of preset color modes.In the Graphics mode, you can set the color to the following preset values:Standard: Loads the monitor's default color settings. This is the default preset mode.Multimedia: Loads color settings ideal for multimedia applications.Game: Loads color settings ideal for most gaming applications.Warm: Increase the color temperature. The screen appears warmer with a red/yellow tint.Cool: Decreases the color temperature. The screen appears cooler with a blue tint.Custom (R, G, B): Allows you to manually adjust the color settings.In the Videomode, you can set the color to the following preset values:Movie: Loads color settings ideal for movies. This is the default preset mode.Game: Loads color settings ideal for gaming.Sports: Loads color settings ideal for sports.Nature: Loads color settings ideal for nature.
Hue	This feature can shift color of video image to green or purple. This is used to adjust the desired flesh tone color.Decrease the value of the Hue, increases the green shade of the video image.Increase the value of the Hue, increases the purple shade of the video image.NOTE: Hue adjustment is available only for video input.
Saturation	This feature can adjust the color saturation of the video image.

		Decrease the value of the Saturation, increases the monochrome appearance of the video image.Increase the value of the Saturation, increases the colorful appearance of the video image.NOTE:Saturation adjustment is available only for video input.
	Reset Color Settings	Resets your monitor's color settings to the factory defaults.
	DISPLAY SETTINGS
	Wide Mode	Adjust the image ratio as 4:3 or full screen.
	Sharpness	This feature can make the image look sharper or softer.
	Dynamic Contrast	Dynamic Contrast provides higher contrast if you choose Game preset, Movie Preset, Sports Preset and Nature Preset.NOTE:Brightness control is disabled while in Dynamic Contrast mode and will be grayed out.
	Response Time	This function improves the response time in Multimedia preset, gaming preset, sports preset and theatre presets.
	Reset Display Settings	Reset the image to the original factory setting.
	AUDIO SETTINGS
	Line out source	Use the LINE OUT SOURCE menu to select between different video signals that may be connected to your monitor.
	Reset audio settings	Reset the audio to the original factory setting.
	OTHER SETTINGS

Language	Language option to set the OSD display to one of six languages (English, Espanol, Francais, Deutsch, Japanese, or Simp Chinese).
Menu Transparency	This function is used to change the OSD background from opaque to transparent.
Menu Timer	This function is used to change the slider in 1 second increments, from 5 to 60 seconds.
Menu Lock	Controls user access to adjustments. When 'Lock' is selected, no user adjustments are allowed.NOTE:When the OSD is locked, press the first OSD control above the Power On/Off control for 15 seconds to unlock it.
Button Sound	Turns on or off the button sound.

Setting Up Your Monitor

Alienware OptX™ AW2210

Setting the display resolution to 1920X1080 (maximum)

For maximum display performance with Microsoft® Windows® operating systems, set the display resolution to 1920X1080 pixels by performing the following steps:

In Windows XP:

1. Right-click on the desktop and click Properties.

2. Select the Settings tab.

3. Move the slider-bar to the right by pressing and holding the left-mouse button and adjust the screen resolution to 1920X1080.

4. Click OK.

In Windows Vista ^® or Windows 7:

1. Right-click on the desktop and click Personalization.

2. Click Change Display Settings.

3. Move the slider-bar to the right by pressing and holding the left-mouse button and adjust the screen resolution to 1920X1080.

4. Click OK.

If you do not see 1920X1080 as an option, you may need to update your graphics driver. Please choose the scenario below that best describes the computer system you are using, and follow the provided directions:

1: If you have an Alienware desktop or an Alienware portable computer with internet access.

2: If you have non Alienware desktop, portable computer, or graphics card.

Back to Contents Page

Alienware OptX™ AW2210

User's Guide

Setting the display resolution to 1920X1080 (maximum)

Information in this document is subject to change without notice. © 2009 Dell Inc. All rights reserved

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Alienware is a trademark or registered trademark of Alienware Corporation; Dell and the DELL logo are trademarks of Dell Inc; Microsoft, Windows, and Windows Vista are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

Model AW2210t.

August 2009 Rev. A03

Back to Contents Page

Setting Up the Monitor

Alienware OptX™ AW2210 User's Guide

• Attaching the Stand
  Connecting the Monitor
  Organizing the Cables and Attaching the Cable Cover
  Removing the Stand
  Wall Mounting (Optional)

Attaching the Stand

NOTE: The stand is detached from monitor when it is shipped from the factory.

Two black rectangular objects on white plates, one being lifted by a hand using a tool (no text or symbols visible)

Remove the monitor cover and place the monitor on it.

1. Fit the two tabs on the upper part of the stand into the grooves on the back of the monitor.
2. Lower the stand so that the monitor mounting area snaps onto the stand.

Connecting Your Monitor

WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions.

To connect your monitor to the computer:

1. Turn off your computer and disconnect the power cable.
2. Connect your monitor to your computer using ONLY ONE of the following cables: the DVI (digital DVI-D) or the HDMI cable. Use both the cables only when they are connected to two different computers with appropriate video systems.

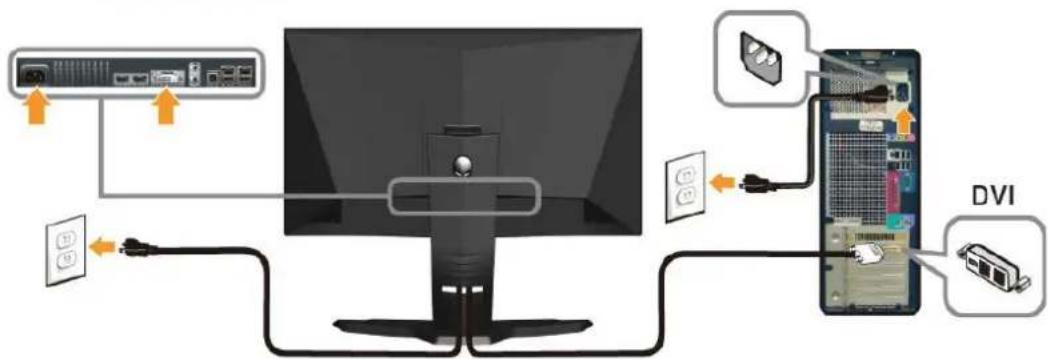

Connecting the White DVI Cable

Diagram showing connection between a computer monitor and DVI device, with labeled ports and cable connections.

OR

Connecting the HDMI Cable

Diagram showing connection between a computer monitor and an HDMI, with labeled components and signal flow arrows.

NOTE: You can connect your Alienware display to an Xbox, PlayStation or DVD player.

CAUTION: The graphics are used for the purpose of illustration only. Appearance of the computer may vary.

Connecting the USB cable

Connect one end of the USB cable that shipped with your monitor to the USB upstream port (see Bottom View) on your monitor, and the other end to an available USB port on your computer/device.

Diagram showing a desktop computer connected to a device via cable, with an icon indicating cable connectivity.

Organizing the Cables and Attaching the Cable Cover

Illustration of a computer monitor with attached cables and connectors (no text or symbols)

After attaching all necessary cables to your monitor and computer (see Connecting Your Monitor for cable attachments), use the cable management slot to organize all cables as shown above.

Attaching the Cable Cover

Illustration of a computer monitor with a stand and an orange arrow pointing to the front panel (no text or symbols visible)

Attach the cable cover to the monitor after making the required cable connections to the monitor.

Removing the Stand

NOTE: To prevent scratches on the LCD screen while removing the stand, ensure that the monitor is placed on a clean surface.

To remove the stand:

3D diagram of a mechanical component with labeled parts (1, 2), showing no text or symbols beyond labels

1. Press and hold the stand release button.
2. Lift the stand up and away from the monitor

Wall Mounting (Optional)

Illustration of a computer monitor with an arrow pointing to it, no visible text or symbols on the device itself.

Diagram showing directional arrows and a central display with Chinese text, likely illustrating a system or process flow.

(Screw dimension: M4 x 10mm).

Refer to the instructions that came with the VESA compatible base mounting kit.

1. Place the monitor panel on a soft cloth or cushion on a stable flat table.
2. Remove the stand
3. Use a screwdriver to remove the four screws securing the plastic cover.
4. Attach the mounting bracket from the wall mounting kit to the LCD.
5. Mount the LCD on the wall by following the instructions that came with the base mounting kit.

Back to Contents Page

Back to Contents Page

Troubleshooting

Alienware OptX™ AW2210 User's Guide

Troubleshooting Your Monitor
Common Problems
Product-Specific Problems
Universal Serial Bus Specific Problems

WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions

Troubleshooting Your Monitor

Self-Test Feature Check

Your monitor provides a self-test feature that allows you to check whether your monitor is functioning properly. If your monitor and computer are properly connected but the monitor screen remains dark, run the monitor self-test by performing the following steps:

1. Turn off both your computer and the monitor.
2. Unplug the video cable from the back of the computer. To ensure proper Self-Test operation, remove both Digital (white connector) and the HDMI cables from the back of computer.
3. Turn on the monitor.

The floating dialog box should appear on-screen (against a black background) if the monitor cannot sense a video signal and is working correctly. While in self-test mode, the power LED remains white. Also, depending upon the selected input, one of the dialogs shown below will continuously scroll through the screen.

Alienware OptX AW2210 No DVI-D Cable

Allenware OptX AY2210 No HDMI1 Cable

1. This box also appears during normal system operation, if the video cable becomes disconnected or damaged.
2. Turn off your monitor and reconnect the video cable; then turn on both your computer and the monitor.

If your monitor screen remains blank after you use the previous procedure, check your video controller and computer, because your monitor is functioning properly.

Built-in Diagnostics

Your monitor has a built-in diagnostic tool that helps you determine if the screen abnormality you are experiencing is an inherent problem with your monitor, or with your computer and video card.

NOTE: You can run the built-in diagnostics only when the video cable is unplugged and the monitor is in self-test mode.

To run the built-in diagnostics:

1. Ensure that the screen is clean (no dust particles on the surface of the screen).
2. Unplug the video cable(s) from the back of the computer or monitor. The monitor then goes into the self-test mode.
3. Touch the A and D controls on the front panel, simultaneously for 2 seconds. A gray screen appears.

Preset Modes Brightness/Contrast Input Source Menu Exit A Shortcut Key 1 (Preset Modes) B Shortcut Key 2 (Brightness/Contrast) C Shortcut Key 3 (Input Source) D Menu E Exit F Power On/Off

1. Carefully inspect the screen for abnormalities.
2. Touch the D control on the front panel again. The color of the screen changes to red.
3. Inspect the display for any abnormalities.
4. Repeat steps 5 and 6 to inspect the display in green, blue, and white colored screens.

The test is complete when the white screen appears. To exit, touch the D control again.

If you do not detect any screen abnormalities upon using the built-in diagnostic tool, the monitor is functioning properly. Check the video card and computer.

Common Problems

The following table contains general information about common monitor problems you might encounter and the possible solutions.

Common Symptoms	What You Experience	Possible Solutions
No Video/Power LED off	No picture	·Ensure that the video cable connecting the monitor and the computer is properly connected and secure.·Verify that the power outlet is functioning properly by using any other electrical equipment.·Ensure that the power control is depressed fully.
No Video/Power LED on	No picture or no brightness	·Increase brightness & contrast controls using the OSD,·Perform monitor self-test feature check.·Check for bent or broken pins in the video cable connector.·Run the built-in diagnostics.
Poor Focus	Picture is fuzzy, blurry, or ghosting	·Eliminate video extension cables.·Reset the monitor to Factory Settings.·Change the video resolution to the correct aspect ratio (16:9).
Shaky/Jittery Video	Wavy picture or fine movement	·Reset the monitor to Factory Settings.·Check environmental factors.·Relocate the monitor and test it in another room.
Missing Pixels	LCD screen has spots	·Cycle power on-off.·Pixel that is permanently off is a natural defect that can occur in LCD technology.·Run the built-in diagnostics.
Stuck-on Pixels	LCD screen has bright spots	·Cycle power on-off.·Pixel that is permanently off is a natural defect that can occur in LCD technology.·Run the built-in diagnostics.
Brightness Problems	Picture too dim or too bright	·Reset the monitor to Factory Settings.·Adjust brightness & contrast controls using the OSD.
