INSTRUKCJA OBSŁUGI ML-900C Ikan
Description
E-IMAGE ML-900C new designed monopod with geared center column is extremely solid and wobble free. Geared center column provides extra height if you need to get your camera high up, it can be used on moving shooting and other events, which is easier to use than hand-head. It integrates the monopod, sticks and low profile tripod into one. Easy to get functions switching and it is a great choice for travel and outdoor shooting.

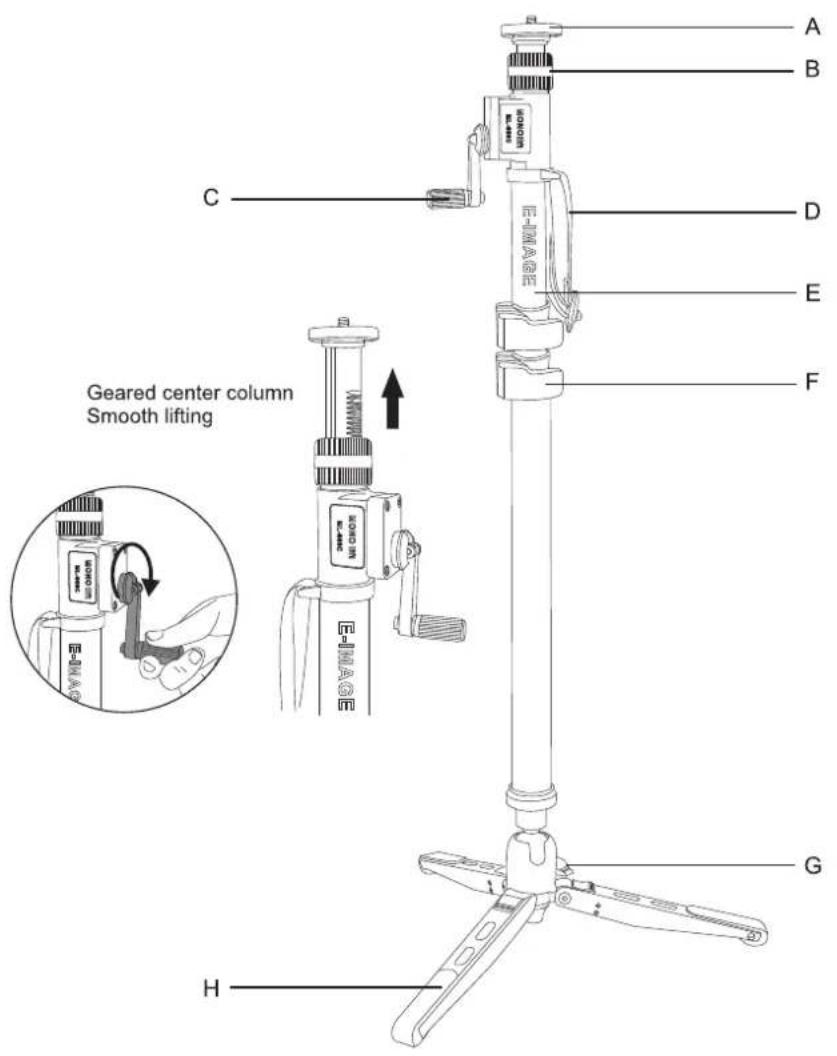

ML-900C
A: Bearing plate for fluid head
B: Rotation locking knob
C: Gear elevator handle
D: Wrist strap
E: Monopod spong cover
F: Flip lock
G: Wing locking knob
H: Aluminium leg support
Specifications
| Model No. | ML-900C |
| Material | Carbon fiber |
| Max.Height | 185cm/72.8in |
| Payload | 10kg/22.0lb |
| Net Weight | 1660g/3.7lb |
| Folded Height | 81cm/31.2in |
Contact Information
NINGBO EIMAGE STUDIO EQUIPMENT CO., LTD
Add: NO.373 South Hangyong Road, Luotuo Industry Zone, Zhenhai, Ningbo, China 315202
Tel: +86-574-55681753/55681675 Fax: +86-574-86590078
E-mail: sales@eimagevideo.com
Visit www.eimagevideo.com for more information
EIMAGE official QR code
Instructions


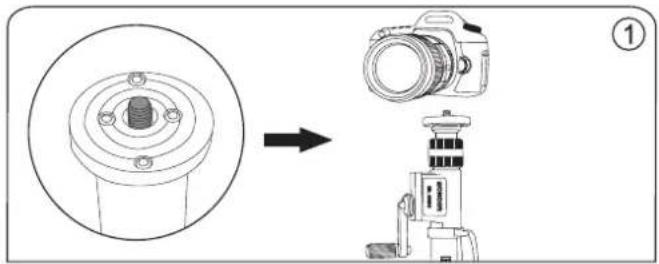

Diagram showing a camera assembly process: adding a nut to a circular component and adding a camera to a mechanical device (no text or symbols present)- Camera can be attached to the monopod directly.


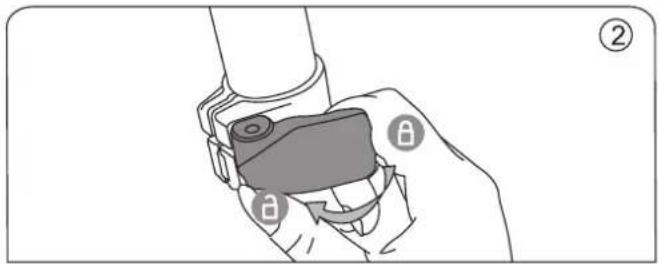

Illustration of a hand holding a device with a lock and adjustment knob (no text or symbols)- Open the flip locking to expand or collapse monopod tube.


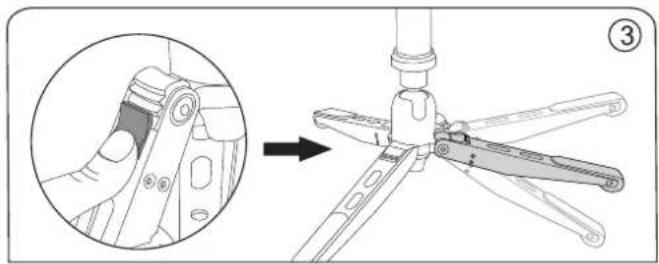

Technical illustration showing a hand operating a mechanical component with an inset close-up of the joint detail (no text or symbols present)- Push the block to adjust the mini leg angle.

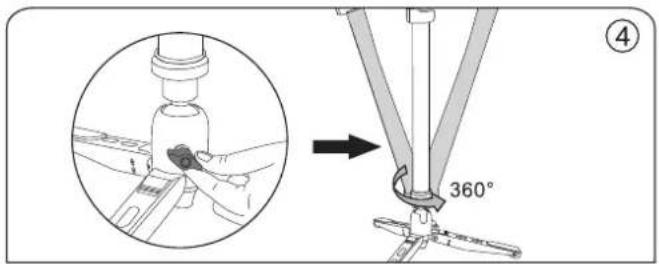

- Loose the Wing locking knob, the monopod can swivel 360° and be tilted in any direction.

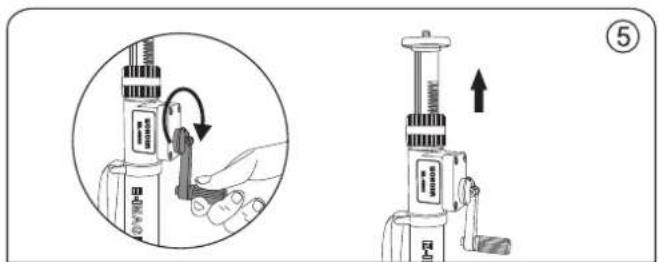

- Geared center column provides extra height if you need to get your camera high up, it can be used on moving shooting and other events, which is easier to use than hand-head.

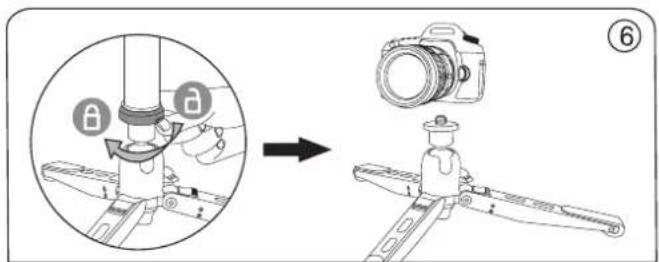

- Loose the bottom base of monopod to remove the monopod, the mini leg can be acted as a mini tripod, make low angle shooting.

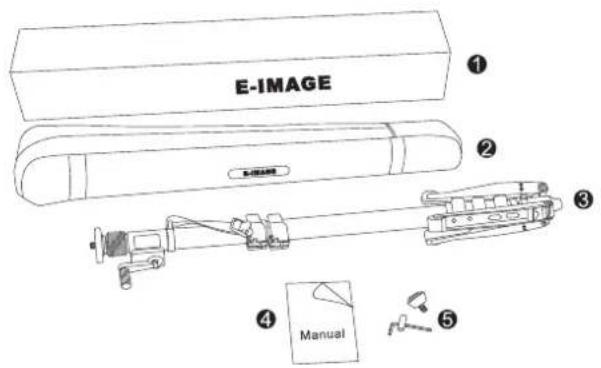

In the box
① Gift box
② Carry bag
③ Monolift
④ User manual
⑤ Wrench
Replaceable rubber foot
