• Mini Mushroom draft towers feature a distinctive beading on the column.
  • The draft tower is a marketing tool, not just a bar fixture.
  • Compact design is easily accommodated on most bar tops.
• All stainless steel contact with the beer for the ultimate in draft purity.

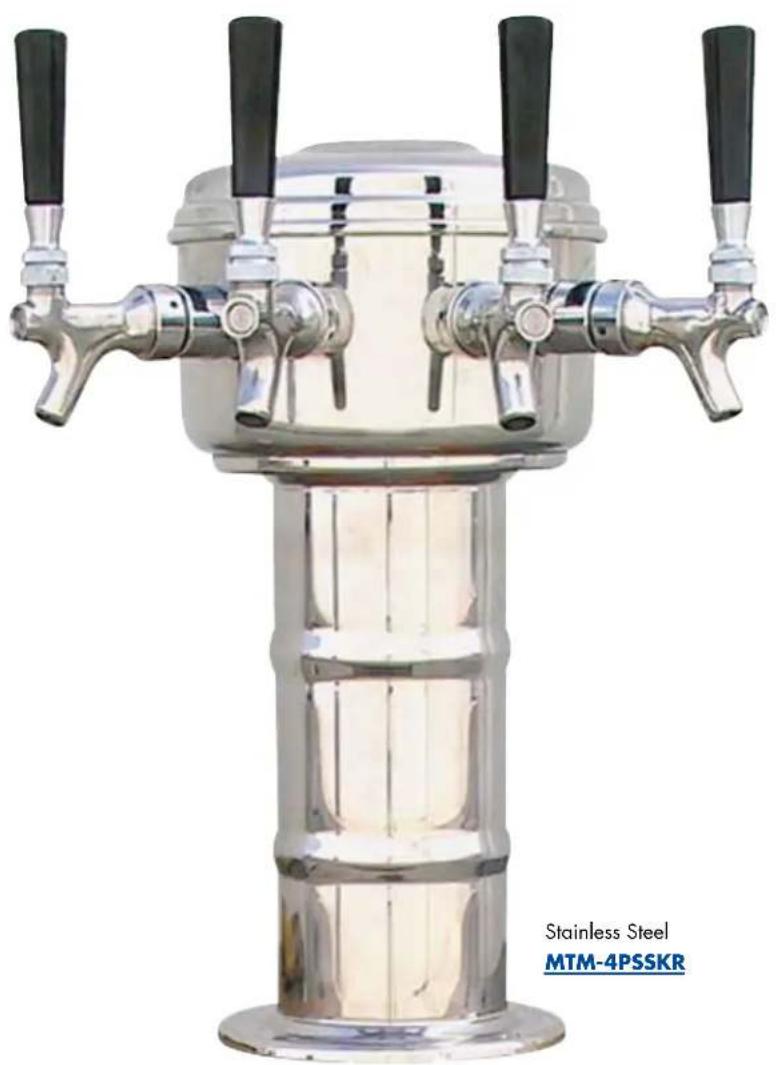

Exterior view of a stainless steel water tap shaker (MTM-4PSSKR) with three black handles and a central glass cap (no text or symbols on the device itself)

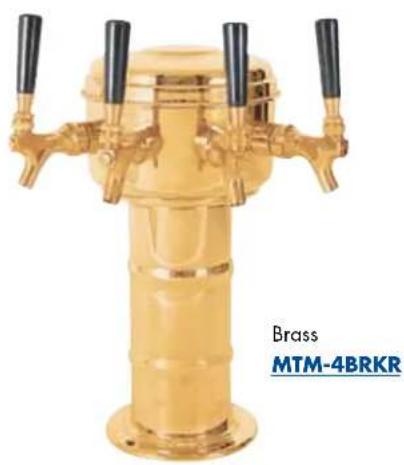

Golden industrial water tap vessel with three black handles, labeled 'Brass MTM-4BRKR' (no other text or symbols visible)

Features

Faucet knobs not included.

Certified

by the National

Sanitation Foundation.

Stainless Steel

beer contact for the pure taste of fresh draft beer.

The integrated Kool-Rite module provides

optimum cooling at the point of dispense.

Modular construction makes the installation

process as simple as PLUG "N" POUR.

Part No. Faucets Finish Dispense System Shipping Weight Box Dimensions

MTM-4PSSKR*	4	Polished S/S	Kool-Rite (Glycol)	10 kg	1245mm L x 610mm W x 356mm H
				23 lbs	49"L x 24"W x 14"L
MTM-4BRKR*	4	Brass	Kool-Rite (Glycol)	10 kg	1245mm L x 610mm W x 356mm H
				23 lbs	49"L x 24"W x 14"L

Certified

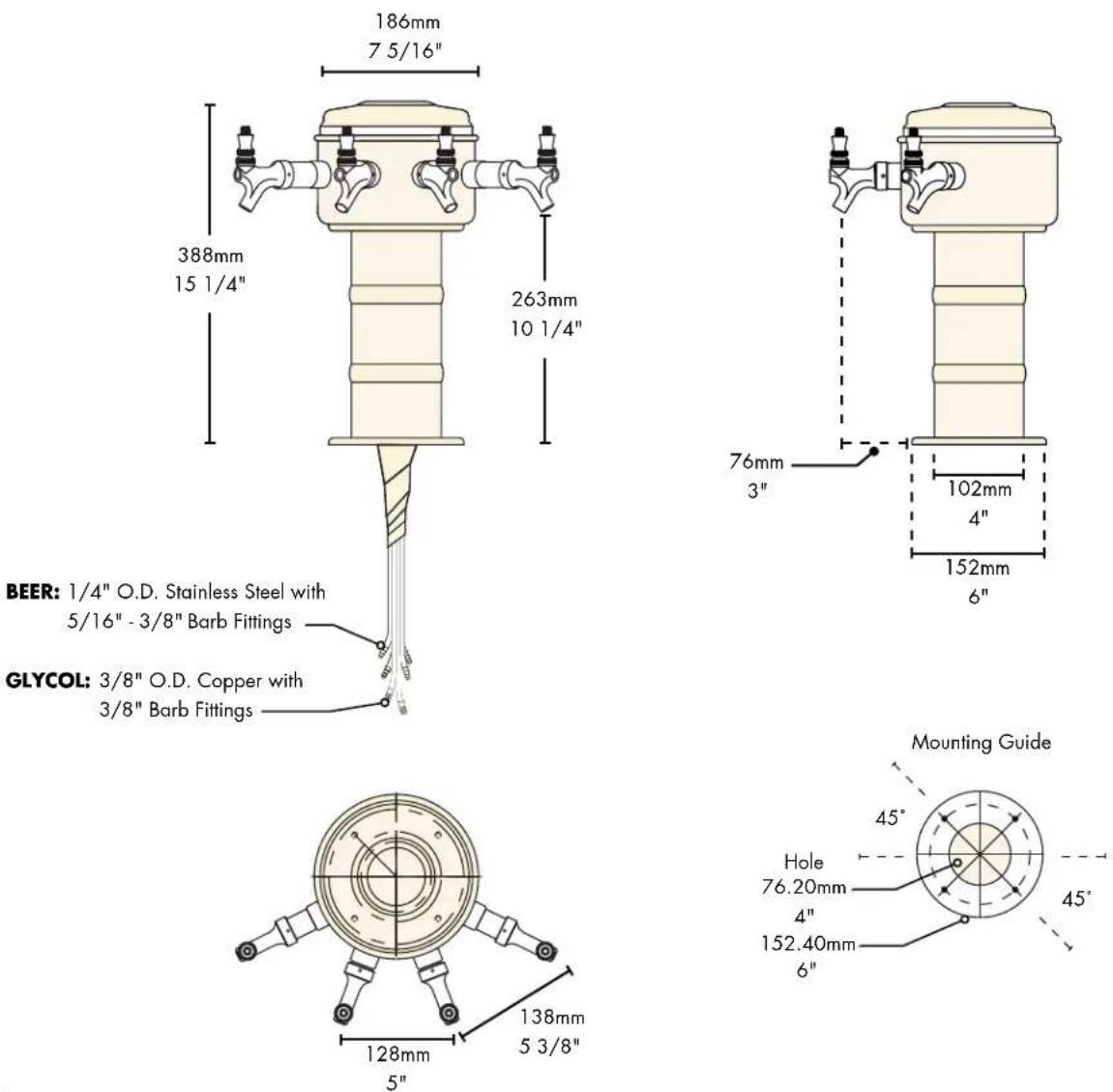

Dimensions
