INSTRUKCJA OBSŁUGI 638-50133 Hooker
ASSEMBLY INSTRUCTION
Item#: 638-50133 Bennett X-Base Lateral File
** Please make sure you have all parts indicated below prior to assembly.


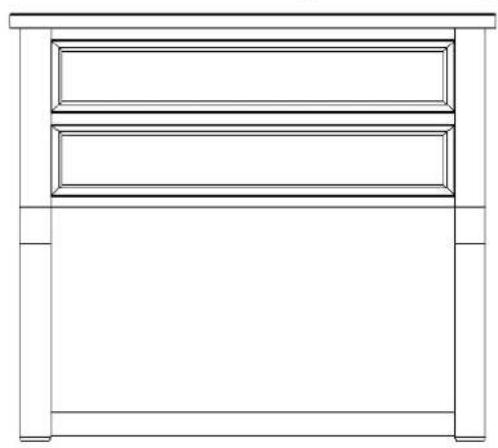

Simple line drawing of a cabinet or shelf with two horizontal drawers and vertical supports (no text or symbols)| NO. | HARDWARE LIST | Q'TY | |
| A | B | Nut | 2 |
| B | s= | Spanner | 1 |
| C | Lock Washer | 6 | |
| D | Flat Washer | 6 | |
| E | Full Treaded Bolt | 2 | |
| F | Allen Wrench | 1 | |
| G | Bolt | 4 | |

Assembly Steps:
- Place file top upside down on a soft surface to prevent from being scratched.

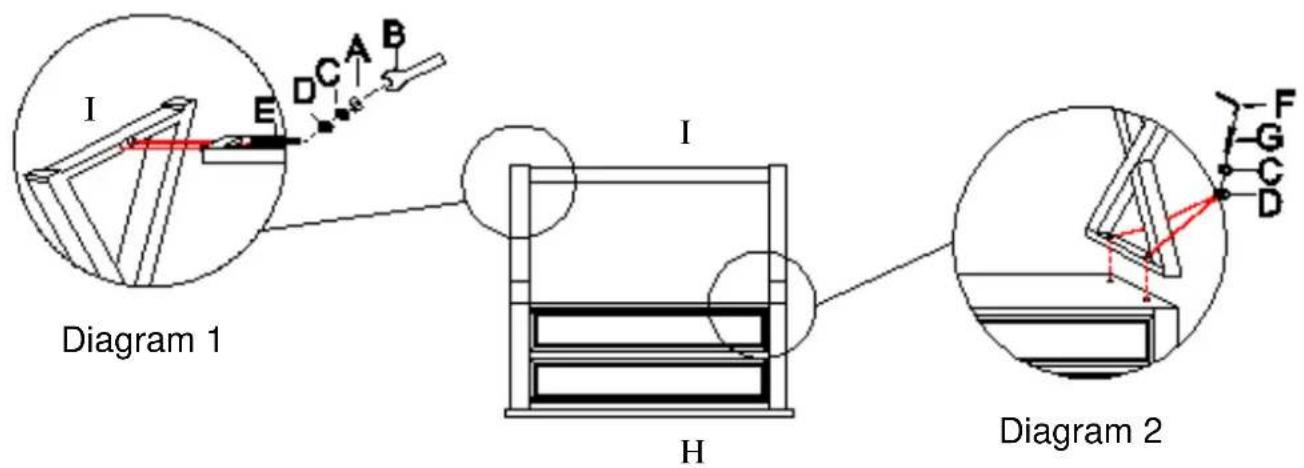

- Insert bolts (E) into hole of left and right X-bases (I), attach the end of stretcher to bolts (E) on X-bases (I) using flat washer (D), lock washer (C) and nut (A), tighten securely with spanner (B)(see diagram 1).
- Attach assembled X-base(I) to top using bolts (G), lock washers (C), flat washers (D) and secure all bolts with allen wrench (F) in a clockwise direction (see Diagram 2).
- Turn the case upright.
Cleaning Instruction: Clean finished parts with a mild dishwashing liquid and water solution on a damp cloth. Polish the finish with soft cloth and an industry recognized furniture polish
