DIGI TRANSPORT® WR11 XT

Secure 3G/4G/LTE cellular router for retail, kiosk and industrial control applications

Digi TransPort WR11 XT delivers a cost-optimized 4G LTE connection to mission critical M2M applications around the world. These cellular routers are ideal for connecting:

• Building and process automation controllers
• Smart grid assets (meters, switches and controllers)
• IP cameras and access controllers
• Remote data loggers, flow meters and sensing equipment
• Telco infrastructure controllers
• ATMs, kiosks and service terminals

The Digi TransPort WR11 XT provides a secure, reliable connection to industrial controllers, retail terminals and process automation equipment on third party sites or remote locations. This drop-in connectivity gives operators a way to reduce the cost of downtime and service calls and also increase revenue by bringing distributed sites online faster.

Digi management solutions provide easy setup, configuration and maintenance of large installations of remote Digi TransPort devices. Digi Remote Manager ^® offers web-based device management for remote Digi cellular routers, gateways and third-party devices.

• Global HSPA+ and 4G LTE support and certification
• Extremely resilient cellular connection through patented Digi SureLink™, VRRP+ protocol and dual SIM slots
• Enterprise routing features for security, logging and redundancy (e.g., stateful firewall, VPN, SNMP); no annual enterprise software license required
• Digi Remote Manager provides mass configuration, device management and troubleshooting tools
• Rugged aluminum enclosure, flanges and optional DIN rail clip for flexible mounting
• 5-year warranty standard—no additional cost

RELATED PRODUCTS

DigiTransPort ^® WR21

DigiTransPort® WR31

Digi TransPort ^® WR44 R

Accessories

Digi Remote Manager*

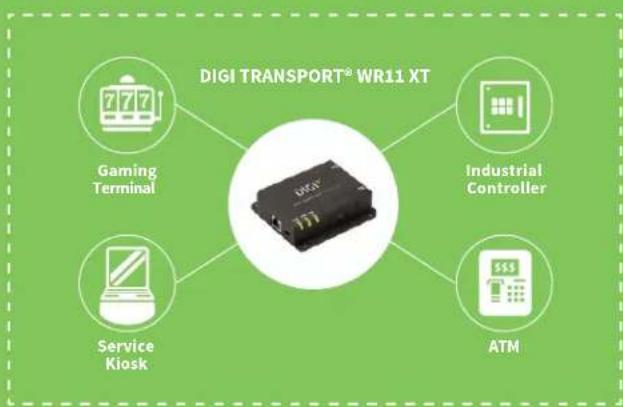

APPLICATION EXAMPLE

SPECIFICATIONS	Digi TransPort® WR11 XT
CELLULAR
LTE - EMEA (M3)	LTE CAT 1: 800(B20)/900(B8)/1800(B3)/2100(B1)/2600 (B7)2G EDGE: 900/1800 MHzTransfer rate (max): 10 Mbps down, 5 Mbps up
LTE - EMEA/APAC (L7)	LTE CAT 3: 800(B20)/1800(B3)/2600(B7)3G HSPA+: 900/2100 MHz2G Edge/GPRS: 850/900/1800/1900 MHzTransfer rate (max): 100 Mbps down, 50 Mbps upApprovals: Vodafone
LTE - UNITED STATES (M4)	LTE CAT 1: 700(B12)/850(B5,B26)/AWS(B4)/1900(B2,B25)Transfer rate (max): 10 Mbps down, 5 Mbps upApprovals: Sprint (pending)
LTE - NORTH AMERICA (M6)	LTE CAT 1: 700(B12,B13)/850(B5)/AWS(B4)/1900(B2)HSPA+: 850/1900 MHzTransfer rate (max): 10 Mbps down, 5 Mbps upApprovals: PTCRB, AT&T, Verizon, Telus (pending)
LTE - ANZ/LATAM (M9)	LTE CAT 1: 700(B28)/850(B5)/900(B8)/1800(B3)/2100(B1)3G HSPA+: 850/900/2100 MHzTransfer rate (max): 10 Mbps down, 5 Mbps up
GLOBAL HSPA+ - (U9)	3G HSPA+: 850/900/1700AWS/1900/2100 MHz2G EDGE/GPRS: 850/900/1800/1900 MHzTransfer rate (max): 21 Mbps down, 5.76 Mbps upApprovals: PTCRB, Vodafone
CONNECTORS	(2) 50 Ω SMA (center pin: female); (1) connector for non-LTE models
SIM SLOTS	(2) Mini-SIM (2FF)
SIM SECURITY	Screw-down SIM cover
SOFTWARE & MANAGEMENT
REMOTE MANAGEMENT	Digi Remote Manager* (cloud based); SNMP v1/v2c/v3 (user installed/managed)
LOCAL MANAGEMENT	WebUI (HTTP/HTTPS); CLI (Telnet, SSH, SMS)
MANAGEMENT/TROUBLESHOOTING TOOLS	FTP, SFTP, SCP; Protocol analyzer with PCAP for Wireshark; Event logging with Syslog and SMTP; NTP/SNTP
MEMORY	20 MB RAM, 10 MB file space
ETHERNET
PORTS	(1) RJ-45; 10/100 Mbps (auto-sensing)
PHYSICAL
DIMENSIONS (L X W X H)	3 in x 4 in x 1 in (7.62 cm x 10.16 cm x 2.54 cm)
WEIGHT	0.5 lb (.22 kg)
STATUS LEDS	Power on, WWAN signal strength, WWAN service
ENCLOSURE	Industrial (Metal) / IP30
POWER REQUIREMENTS
POWER INPUT	5 VDC, 15W minimum power source required
POWER SUPPLY	Must be used with a Digi approved power supply
POWER CONSUMPTION	3.5W typical (Idle); 10W typical (Peak Tx/Rx)
ENVIRONMENTAL
OPERATING TEMPERATURE	-30°C to +70°C (-22°F to +158°F) reduced cellular performance may occur above +60°C
RELATIVE HUMIDITY	5% to 95% (non-condensing)
APPROVALS
CELLULAR	PTCRB
SAFETY	UL 60950, CSA 22.2 No. 60950, EN60950
EMISSIONS/IMMUNITY	CE, FCC Part 15 Class B, AS/NZS CISPR 22, EN55024, EN55022 Class B
WARRANTY
PRODUCT WARRANTY	5 years

DIGI TRANSPORT® WR11 XT - TOP

LEFT SIDE

RIGHT SIDE

ENTERPRISE SOFTWARE	DESCRIPTION
PROTOCOL SUPPORT	HTTP, HTTPS, FTP, SFTP, SSL, SMTP, SNMP (v1/v2c/v3), SSH, Telnet and CLI for web management; Remote management via Digi Remote Manager; SMS management, protocol analyzer, ability to capture PCAP for use with Wireshark; DynDNS; Dynamic DNS client compatible with BIND9/No-IP/DynDNS
SECURITY/VPN	IP filtering, stateful inspection firewall with scripting, address and port translation; VPN: IPSec with IKEv1, IKEv2, NAT Traversal; SSL, SSLv2, SSLv3, FIPS 197, open VPN client and server; PPTP, L2TP;(5) VPN tunnels (not upgradable); Cryptology: SHA-1, MD5, RSA; Encryption: DES, 3DES and AES up to 256-bit (CBC mode for IPsec); Authentication: RADIUS, TACACS+, SCEP for X.509; certificates; Content filtering (via 3rd party); MAC address filtering; VLAN support
ROUTING/FAILOVER	IP pass-through; NAT, NAPT with IP port forwarding; Ethernet bridging; GRE; Multicast routing; Routing protocols: PPP, PPPoE, RIP (v1, v2) OSPF, SRI, BGP, iGMP routing (multicast); RSTP (Rapid Spanning Tree Protocol); IP failover: VRRP, VRRP+TM; Automatic failover/ failback to second GSM network/standby APN
OTHER PROTOCOLS	DHCP; Dynamic DNS client compatible with BIND9/No-IP/DynDNS; QoS via TOS/DSCP/WRED

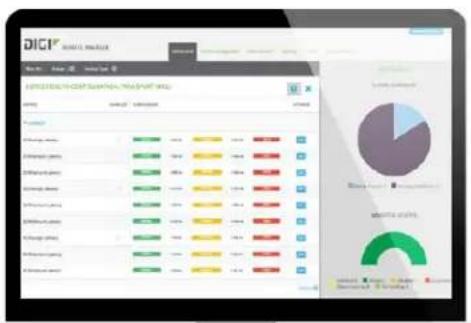

DIGI REMOTE MANAGER

INFRASTRUCTURE

• Hosted in a commercial-grade SAS 70-certified environment
  – Superior availability, operating to 99.9% or greater
• Open APIs available to support application development

CAPABILITIES

– Centralized management of remote devices over 3G/4G/LTE
- Define standard configurations and automatically monitor individual devices for PCI security compliance
- Report and alert on performance statistics, including connection history, signal quality, latency, data usage and packet loss
- No servers or applications to operate and maintain
- Complete tasks for your entire device network in minutes
- Edit configurations and update firmware for your individual devices or groups
- Monitor the status and location of your remote device via a web browser
- Active or deactivate cellular lines and monitor data to ensure you never incur overage charges

SECURITY

• Certified SSAE-16 facilities
• Over 175 Security Controls in place to protect your data
• Enables compliance with security frameworks like PCI, HIPAA, NIST and more
  – Earned SkyHigh's Cloud Trust Program highest ranking of Enterprise-Ready

PART NUMBERS DIGI TRANSPORT WR11 XT

WR11-M300-DE1-XB Digi TransPort WR11 XT - 4G LTE EMEA/APAC, Single Ethernet

WR11-M400-DE1-XB Digi TransPort WR11 XT - 4G LTE Sprint, Single Ethernet

WR11-M600-DE1-XB Digi TransPort WR11 XT - 4G LTE North America, Single Ethernet

WR11-M900-DE1-XB Digi TransPort WR11 XT - 4G LTE APAC/LATAM, Single Ethernet

WR11-L700-DE1-XB Digi TransPort WR11 XT - 4G LTE EMEA/APAC, Single Ethernet with 2G/3G fallback

WR11-U900-DE1-XB Digi TransPort WR11 XT - HSPA+ Global, Single Ethernet

PART NUMBERS ACCESSORIES*

76000926 Antenna - Cellular, 3G/4G/LTE
76000954 Antenna Base - SMA, 1m, RG174
76002074 Accessory Kit - AC Power, Std Temperature, EU Plug
76002065 Accessory Kit - DC Power
76002062 Accessory Kit - AC Power, Std Temperature, US Plug
76002063 Accessory Kit - AC Power, Std Temperature, Intl Plugs
76002064 Accessory Kit - AC Power, Extd Temperature, Intl Plugs
76000935 AC Power Supply - EU Plug to SVDC - 2.5mm locking barrel plug
76000965	AC Power Supply - Extd Temperature, Universal plugs (US, EU, UK, AU) to 5VDC - 2.5mm locking barrel plug
76000934 AC Power Supply - US Plug to 5VDC - 2.5mm locking barrel plug
76000976 DC Power Supply - Converts 9-30VDC to 5VDC - 2.5mm locking barrel plug
76002021	AC Power Supply - Std Temperature, Universal plugs (US, EU, UK, AU) to 5VDC - 2.5mm locking barrel plug
76000826 Cable - Ethernet, RJ45 to RJ45, 2m

*Sold separately, unless otherwise noted.
