INSTRUKCJA OBSŁUGI RDI311 Manta
INSTRUCTION MANUAL
WOODEN RADIO
Model H5021


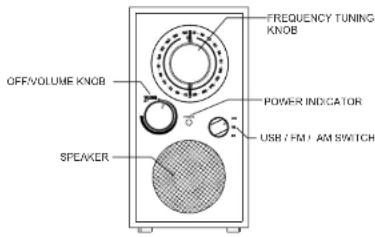

FREQUENCY TUNING KNOB OFF/VOLUME KNOB POWER INDICATOR USB / FM / AM SWITCH SPEAKER
-
Turn the switch to USB and turn the volume knob open the power.
-
Insert USB disk into the USB socket, it works immediately if Mp3 available in the U disk, the unit will check the SD/MMC/TF socket automatically if there is no USB, and will play the available Mp3 immediately if with SD/MMC/TF card inserted. Press or time to pause and twice to player, repeat the operation until press REPEAT to stop. Press for the last music and for next.
-
Press Mode button to choose USB/SD/MMC/TF/AUX.
OPERATION
- Be Sure the power cable is connect with the power outlet.
- Place the radio on flat and open area for best reception.
- Switch on the radio and select between FM / AUX. The power indicator will light up.
- Adjust the volume by turning the volume knob.
- Adjust the Tuning Knob for desired station.
-
Reception can be improved by extending the FM wire Antenna.
-
"The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus."
- "To be completely disconnect the power input, the mains plug of apparatus shall be disconnected from the mains." as the disconnect devices is the mains plug of apparatus.
- "The mains plug of apparatus should not be obstructed OR should be easily accessed during intended use."
* minimum 20mm distances around the apparatus for sufficient ventilations. * the ventilation should not be impeded by covering the ventilation openings with items such as newspaper, table-cloths, curtains etc.
* no naked flame sources such as lighted candles should be placed on the apparatus.
* attention should be drawn to the environmental aspects of battery disposal * the use of apparatus in moderate climates
