INSTRUKCJA OBSŁUGI DIY-B60 LYYT
12-24V RGB DMX Controller 3x8A
User Manual
Introduction
This DMX decoder is designed to convert the universal standard DMX512/1990 into analogue signal to control either 12V or 24V RGB LED tape. This model can drive 8A/channel and it simply assigns a colour per DMX channel. DC power input and colour channel outputs are connected via screw terminals. DMX input and through connection are also via screw terminals with the start address set by side mounted DIP switches. Powered by a 12V or 24V power supply, this decoder enables 3 channel DMX control of Red, Green and Blue output.
Features
• 3 channel DMX control for RGB colour mixing
• 256 levels of brightness
- Up to 8A output per channel
• 12V or 24V operation
- Screw terminal DMX input
Specification
| Item | Value |
| Power supply | 12-24Vdc |
| Power max.: | ≤288W/12V ≤576W/24V |
| Current consumption | 24A max. |
| DMX channels | 3 |
| Output current | 3 x 8A max. |
| Power connection | Screw terminals |
| Output | Blue, Red, Green, V+ |
| Working temperature | -20 ~ 50°C |
| IP rating | IP20 |
| Dimensions | 170 x 30 x 40mm |
| Weight | 92g |

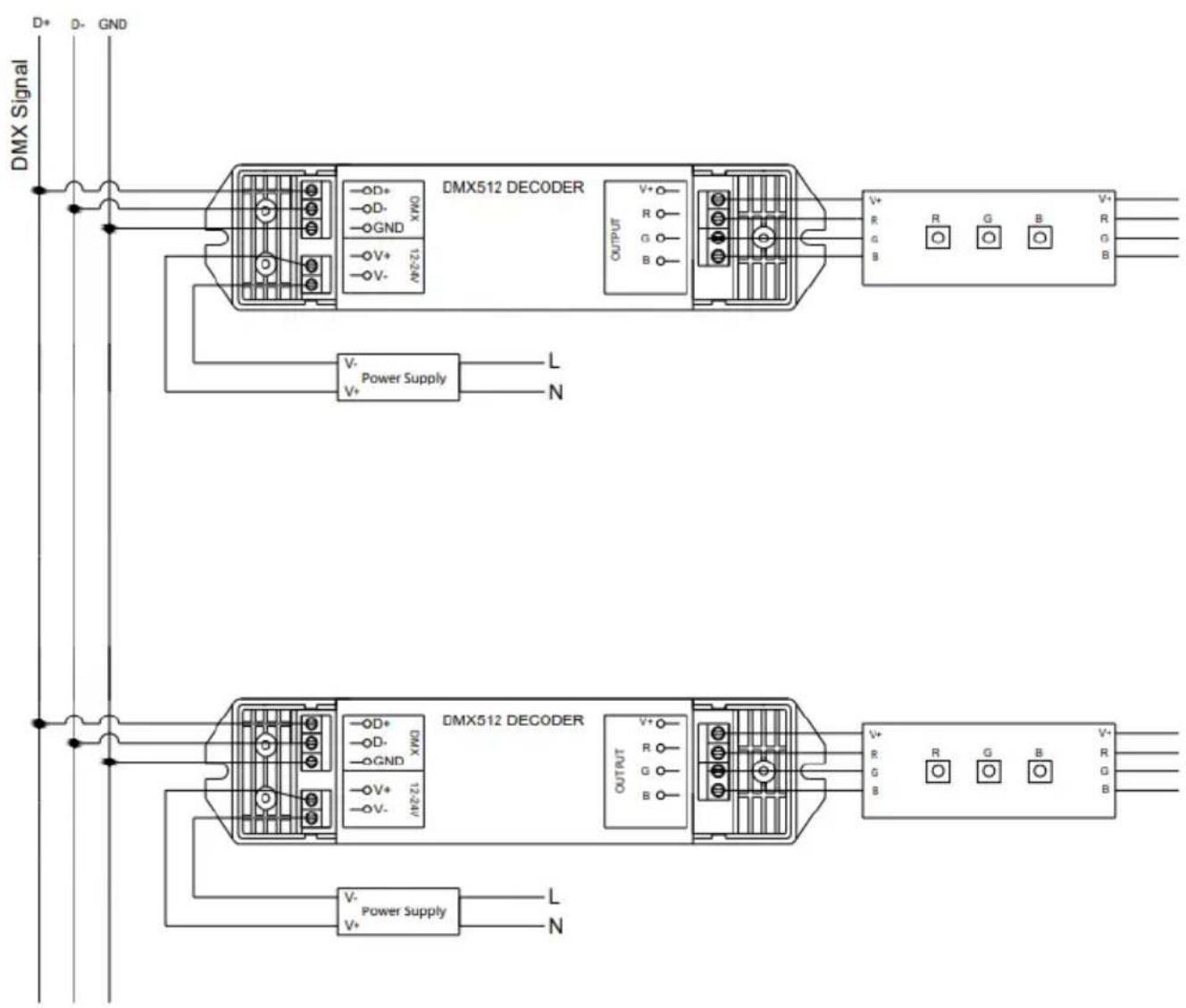

Wiring Diagram


This product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.
Errors and omissions excepted.
Copyright© 2022 AVSL Group Ltd, Unit 2 Bridgewater Park,
Taylor Road, Trafford Park, Manchester. M41 7JQ.
www.avsl.com
AVSL (Europe) Ltd, Unit 3D North Point House, North Point Bus. Park, New Mallow Road, Cork, Ireland.
Iyyt RGB DMX Controller
| DIP SWITCH | DMX ADDR | DIP SWITCH | DMX ADDR | DIP SWITCH | DMX ADDR | DIP SWITCH | DMX ADDR |
| 123456789 | NUMBER | 123456789 | NUMBER | 123456789 | NUMBER | 123456789 | NUMBER |
| 100000000 | 001 | 001101000 | 044 | 111010100 | 087 | 010000010 | 130 |
| 010000000 | 002 | 101101000 | 045 | 000110100 | 088 | 110000010 | 131 |
| 110000000 | 003 | 011101000 | 046 | 100110100 | 089 | 001000010 | 132 |
| 001000000 | 004 | 111101000 | 047 | 010110100 | 090 | 101000010 | 133 |
| 101000000 | 005 | 000011000 | 048 | 110110100 | 091 | 011000010 | 134 |
| 011000000 | 006 | 100011000 | 049 | 001110100 | 092 | 111000010 | 135 |
| 111000000 | 007 | 010011000 | 050 | 101110100 | 093 | 000100010 | 136 |
| 000100000 | 008 | 110011000 | 051 | 011110100 | 094 | 100100010 | 137 |
| 100100000 | 009 | 001011000 | 052 | 111110100 | 095 | 010100010 | 138 |
| 010100000 | 010 | 101011000 | 053 | 000001100 | 096 | 110100010 | 139 |
| 110100000 | 011 | 011011000 | 054 | 100001100 | 097 | 001100010 | 140 |
| 001100000 | 012 | 111011000 | 055 | 010001100 | 098 | 101100010 | 141 |
| 101100000 | 013 | 000111000 | 056 | 110001100 | 099 | 011100010 | 142 |
| 011100000 | 014 | 100111000 | 057 | 001001100 | 100 | 111100010 | 143 |
| 111100000 | 015 | 010111000 | 058 | 101001100 | 101 | 000010010 | 144 |
| 000010000 | 016 | 110111000 | 059 | 011001100 | 102 | 100010010 | 145 |
| 100010000 | 017 | 001111000 | 060 | 111001100 | 103 | 010010010 | 146 |
| 010010000 | 018 | 101111000 | 061 | 000101100 | 104 | 110010010 | 147 |
| 110010000 | 019 | 011111000 | 062 | 100101100 | 105 | 001010010 | 148 |
| 001010000 | 020 | 111111000 | 063 | 010101100 | 106 | 101010010 | 149 |
| 101010000 | 021 | 000000100 | 064 | 110101100 | 107 | 011010010 | 150 |
| 011010000 | 022 | 100000100 | 065 | 001101100 | 108 | 111010010 | 151 |
| 111010000 | 023 | 010000100 | 066 | 101101100 | 109 | 000110010 | 152 |
| 000110000 | 024 | 110000100 | 067 | 011101100 | 110 | 100110010 | 153 |
| 100110000 | 025 | 001000100 | 068 | 111101100 | 111 | 010110010 | 154 |
| 010110000 | 026 | 101000100 | 069 | 000011100 | 112 | 110110010 | 155 |
| 110110000 | 027 | 011000100 | 070 | 100011100 | 113 | 001110010 | 156 |
| 001110000 | 028 | 111000100 | 071 | 010011100 | 114 | 101110010 | 157 |
| 101110000 | 029 | 000100100 | 072 | 110011100 | 115 | 011110010 | 158 |
| 011110000 | 030 | 100100100 | 073 | 001011100 | 116 | 111110010 | 159 |
| 111110000 | 031 | 010100100 | 074 | 101011100 | 117 | 000001010 | 160 |
| 000001000 | 032 | 110100100 | 075 | 011011100 | 118 | 100001010 | 161 |
| 100001000 | 033 | 001100100 | 076 | 111011100 | 119 | 010001010 | 162 |
| 010001000 | 034 | 101100100 | 077 | 000111100 | 120 | 110001010 | 163 |
| 110001000 | 035 | 011100100 | 078 | 100111100 | 121 | 001001010 | 164 |
| 001001000 | 036 | 111100100 | 079 | 010111100 | 122 | 101001010 | 165 |
| 101001000 | 037 | 000010100 | 080 | 110111100 | 123 | 011001010 | 166 |
| 011001000 | 038 | 100010100 | 081 | 001111100 | 124 | 111001010 | 167 |
| 111001000 | 039 | 010010100 | 082 | 101111100 | 125 | 000101010 | 168 |
| 000101000 | 040 | 110010100 | 083 | 011111100 | 126 | 100101010 | 169 |
| 100101000 | 041 | 001010100 | 084 | 111111100 | 127 | 010101010 | 170 |
| 010101000 | 042 | 101010100 | 085 | 000000010 | 128 | 110101010 | 171 |
| 110101000 | 043 | 011010100 | 086 | 100000010 | 129 | 001101010 | 172 |
