INSTRUKCJA OBSŁUGI 6603-C Micro Matic

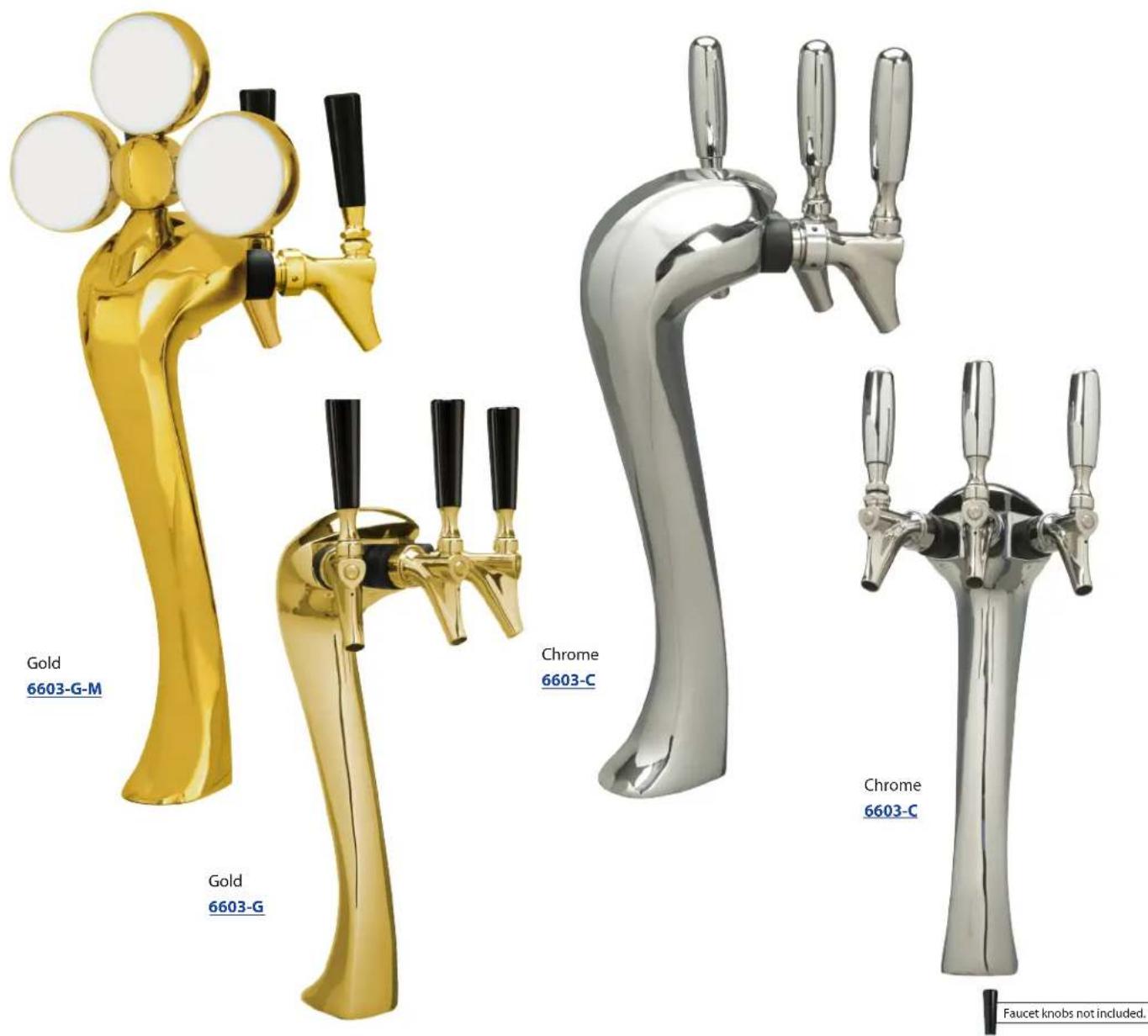

• Flowing curves with a mirror polish finish
• Available in either frost-free exterior or ice frosted exterior.
• The draft tower is a marketing tool, not just a bar fixture.
• All stainless steel contact with the beer for the ultimate in draft purity.

Faucet knobs not included.
Part No. Faucets Finish Dispense System Shipping Weight Box Dimensions
| 6603-C (No Ice) | 3 | Chrome | Glycol | 6 kg 812mm L x 330mm W x 279mm H | |
| 13 lbs | 32"L x 12"W x 11"H | ||||
| 6603-G (No Ice) | 3 | Gold | Glycol | 6 kg 812mm L x 330mm W x 279mm H | |
| 13 lbs | 32"L x 12"W x 11"H | ||||
| 6603-C-F (Ice Frosted) | 3 | Chrome | Glycol | 6 kg 812mm L x 330mm W x 279mm H | |
| 13 lbs | 32"L x 12"W x 11"H | ||||
| 6603-C-M(No Ice, Medallion) | 3 Chrome | Glycol | 6 kg 812mm L x 330mm W x 279mm H | ||
| 13 lbs | 32"L x 12"W x 11"H | ||||
| 6603-G-M(No Ice, Medallion) | 3 Gold | Glycol | 6 kg 812mm L x 330mm W x 279mm H | ||
| 13 lbs | 32"L x 12"W x 11"H | ||||

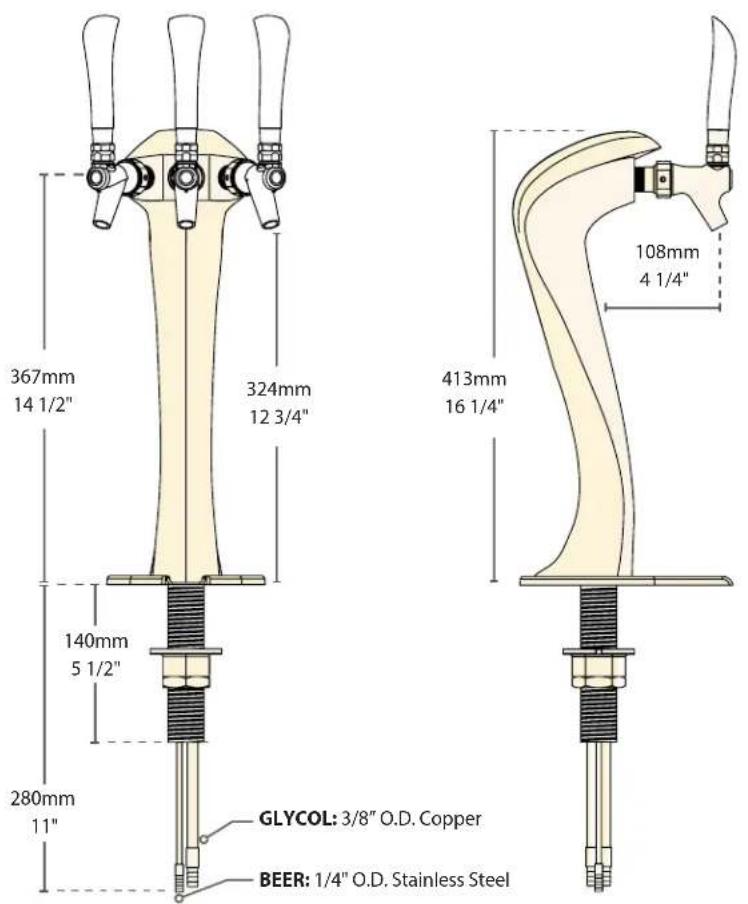

Dimensions

01222-D1112 Copyright ©2012 Micro Matic USA, Inc. All Rights Reserved.
Toll Free: 1-
(866) 327-4159
| West | Central | Southeast | Northeast |
| 19791 Bahama StreetNorthridge, CA 91324Tel. (818) 701-9765Fax. (818) 701-9844 | 10726 North Second StreetMachesney Park, IL 61115Tel. (815) 968-7557Fax. (815) 968-0363 | 2364 Simon CourtBrooksville, FL 34604Tel. (352) 799-6331Fax. (352) 796-2429 | 4601 Saucon Creek RoadCenter Valley, PA 18034Tel. (610) 625-4464Fax. (610) 625-4466 |
