INSTRUKCJA OBSŁUGI SLR12DVC SSL
Congratulaons on your purchase of this Sound Storm Laboratories (SSL) SLR Series Subwoofer. SSL takes great pride in producing products that look great, sound great, and stand up to the daily rigors applied by audio enthusiasts around the world. We appreciate your condence and support and thank you for choosing SSL.
SOUND STORM LABORATORIES


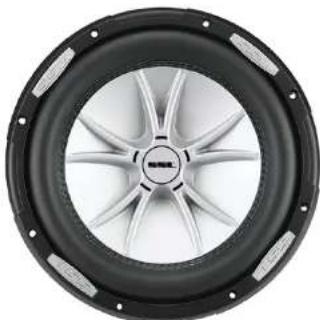

Close-up of a black speaker wheel with radial spokes and metallic blades (no text or symbols visible)SLR12DVC 12" (30 cm) Subwoofer
• Dual 4 Ω Voice Coils
• 2500 W Peak Power Handling
• High Eciency Polypropylene Cone
- Butyl Rubber Surround
SOUND STORM® LABORATORIES
SOUND STORM®
Technical Support
If you need technical support with your SSL product or have quesons about its use, please contact us:
805.751.4855
Product Specicaons
Impedance Dual 4 Ω
Fs 36 Hz
Qts 0.81
Qms 4.71
Qes 0..96
Vas 1.374 ^3 (38.9 liters)
Xmax 12 mm
Sensitivity (1 W/ 1 m) 85 dB
Peak Power Handling 2500 W
Mounng Depth 6-5/16" (160 mm)
Cutout Diameter 11-1/4" (286mm)
*Due to ongoing product development the content is subject to change without noce
SLR12DVC_0314
6
SOUND STORM

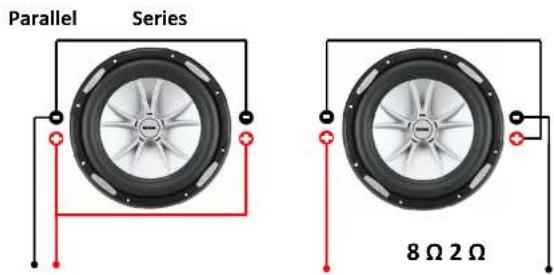

Wiring your Subwoofer

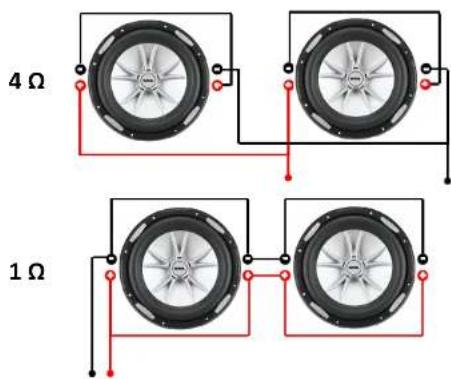

Mulple Subwoofers
4
Enclosures
The SLR12DVC is designed to work in a small sealed enclosure, of 1.0^3 . Since the woofer has pole-vent, it needs a minimum clearance from the rear wall of the enclosure of 0.75" (19 mm). Below you will find the dimensions to make the enclosure to suit the subwoofer, it has been designed for maximum output while retaining great sound quality.
A ported enclosure may also be used, and will yield a 3-6dB boost in output. Below you will find the dimensions of the enclosure, please note the tuning frequency with a recommended 12dB/Oct. crossover
The dimensions have already accounted for the volume displacement of the subwoofer, and using 3/4" (19mm) MDF. All dimensions are external.
Enclosure Dimensions
Sealed Dimensions:
Length (L) : 17.5" (445 mm)
Width (W) : 11.5" (292 mm)
Height (H) : 14" (356 mm)
Cutout Diameter: 11-1/4" (286 mm)
Int. Volume: 1.0 ^3
Ported Dimensions:
Length (L) : 15.5" (394mm)
Width (W) : 15.5" (394 mm)
Height (H) : 14" (356 mm)
Cutout Diameter: 11-1/4" (286 mm)
Port Dimensions: 4" x 12" (102 x 305 mm)
Tuning Freq: 45 Hz
Int. Volume: 1.3 ^3
