INSTRUKCJA OBSŁUGI Sundo-1 Kata

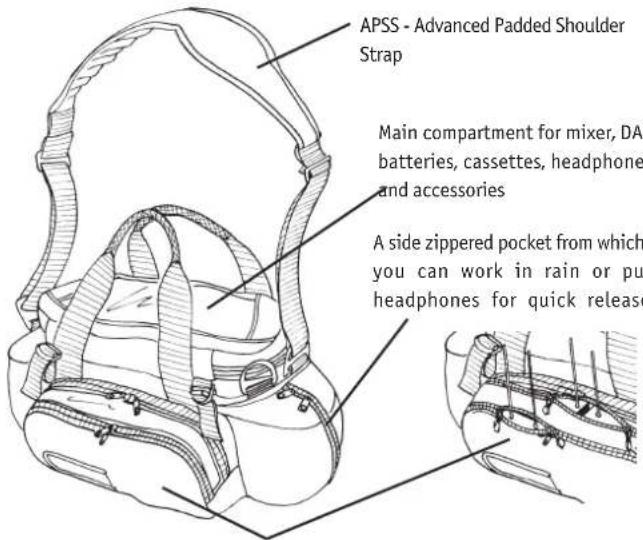

Front compartment can hold up to 3-4 wireless transmitters, hand microphones, power supplies and connectors

Clear vinyl window (can be folded)
Modular interior divider allows you to position the mixer either close to or away from your body

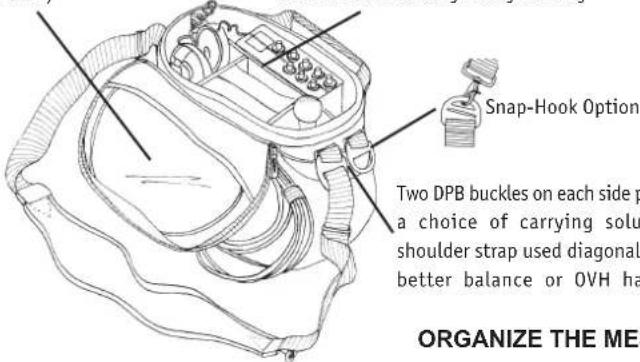

ORGANIZE THE MESS

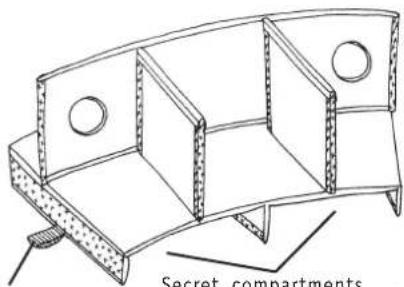

Technical line drawing of a mechanical assembly with labeled 'Secret compartments' (no other text or symbols)

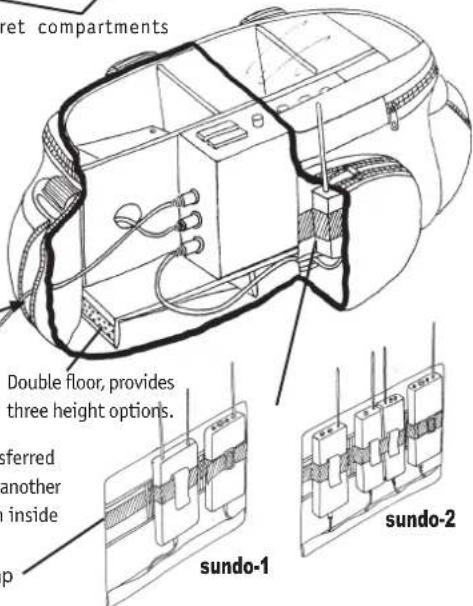

Three "pull-out" supports lift and lower the double floor.

Side pocket+side holes provides easy access to mixer with both hands for working in rain

All the wires can be transferred from one compartment to another while keeping all of them inside

Elastic strap

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.DS311006

audio solutions

sundo - audio operational cases

Name: SUNDO-1 Order Code: KT VD-130-1

	External Max. Size		Internal Main Compartment
Length	18.5"	47 cm	13.8"	35 cm
Width	9.8"	25 cm	7.1"	18 cm
Height	9.8"	25 cm	7.8"	20 cm
Weight	3.1 lbs 1.4 kg

Name: SUNDO-2 Order Code: KT VD-130-2

	External Max. Size		Internal Main Compartment
Length	19.3"	49 cm	14.6"	37 cm
Width	11"	28 cm	7.1"	18 cm
Height	9.8"	25 cm	7.8"	20 cm
Weight	3.7 lbs 1.7 kg

The two SunDo models offer the ultimate in audio gear transport and protection for the ENG professional with more room to store the supplies and accessories you need close at hand.

SunDo has ergonomic design and smart, modular organization. Smart solutions for working in rain include access openings for cables. Every SunDo comes equipped with an APSS padded strap for carrying the case on your shoulder or across the chest. Or use KATA's innovative Opposite V Harness (OVH) (See Carrying/working positions on back side)

Kata's Unique Features

(See catalog for details)

• APSS-shoulder strap (Patent)
• Dual use Yellow Aluminum Buckle (Reg. des.)
- Yelloop (yellow "loop" interior fabric)
- Modi-Vers
• Toblerone Shock Absorbers
- Six Layers of Protection
- ID Window

MATERIALS

• Fabric: DuPontd 1000 denier Cordurad and specially fabricated Nycore with fluorocarbon based water-repellent finish on the outside and three layers of polyurethane coating on the inside.
• Straps: High tenacity Polypropylene and Nylon webbing.
• Padding: Cross-linked Polyethylene-foam in shoulder straps and handles.
• Zippers: Silent action YKKd coil and molded zippers.
• Buckles: ITWd and Duraflexd Nylon and Acetal buckles.

options

VG-808 - CABLE HOLDERS, HOOK & LOOP, SET OF 5

VG-808

Development & production by KATA Ltd.

POB 45078 Jerusalem, Israel 91450

Tel: [phone]

Fax: + 972-2-5400504

www.kata-bags.com

Info: [e-mail]

Sales: [e-mail]

KATA. A SIMPLE CASE OF BETTER DESIGN.

carrying/working options

Name: OVH Order Code: KT VG-611

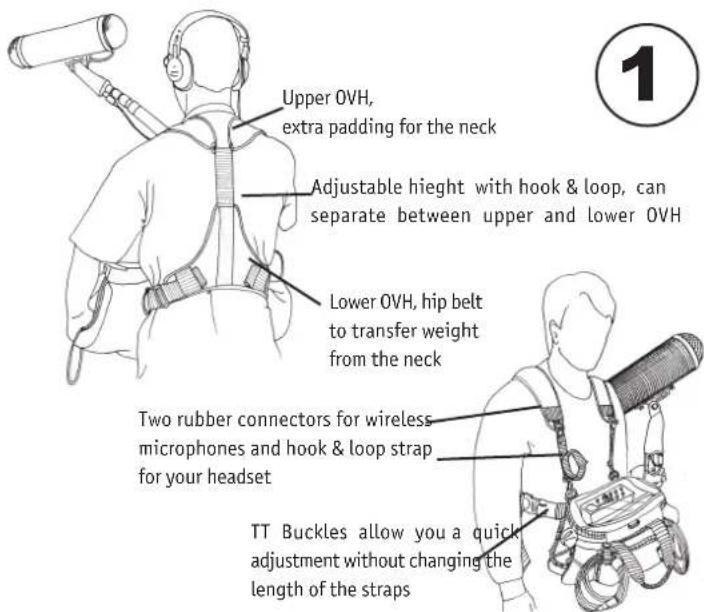

OVH Sound Harness - Opposite V Harness

Designed for carrying the Koala and SunDo (Could be connected to other bags - see note#) in the front position. The OVH is ergonomically designed and padded with special anatomical layers and is adjustable for carrying/working height. Lets you work comfortably without the risk of neck aches by distributing the burden of weight between the shoulders and the back.

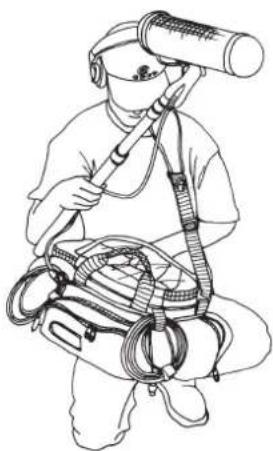

sundo IN CROSS-SIDE WORKING POSITION

Cross side working position:

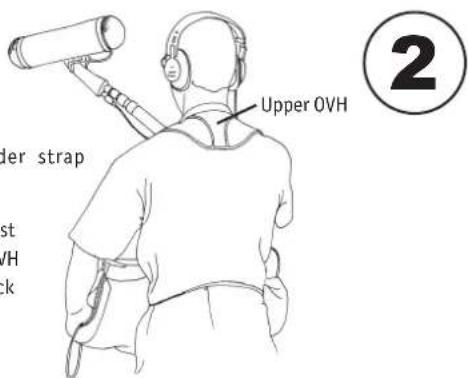

option 1 - Upper OVH

option 2 - APSS shoulder strap

Line drawing of a person wearing a headset and holding a cylindrical device (no text or symbols)

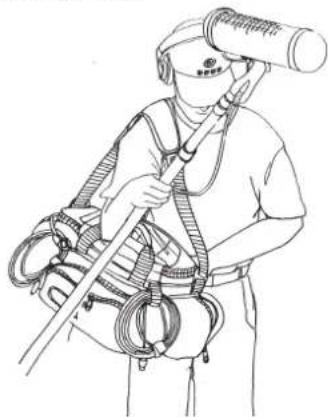

sundo IN SIDE WORKING POSITION

Side working position:

option 1 - Upper OVH

option 2 - APSS shoulder strap

Line drawing of a person wearing a helmet and harness, holding a large cylindrical object (no text or symbols)

sundo+panda

SunDo can be combined with the Panda Back-Pack case, designed to carry more sound equipment (see Panda Data-Sheet for

ovh sound harness

L 20" W 20" H 5" Weight: 0.66 lbs 50cm 50cm 13cm 0.3 Kg

To connect the OVH to other products other than the SunDo and Koala, you can order the universal connecting strap.

Contact Kata Technical Support at:

[e-mail]

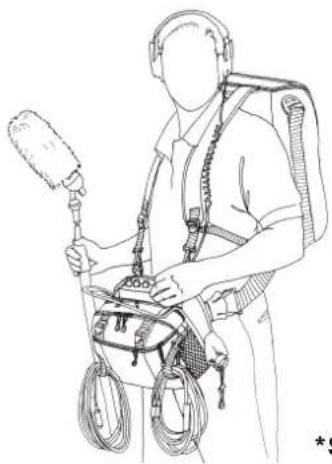

sundo IN FRONT WORKING POSITION

Front working position:

option 1 - Upper OVH

option 2 - APSS shoulder strap

For short term use we suggest using the upper part of the OVH without the triangular back support.

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.DS311006

Line drawing of a person using an X-ray or sonar device with a head-mounted sensor and two coiled cables (no text or symbols)

\*SOLD SEPARATELY

Development & production by KATA Ltd.

POB 45078 Jerusalem, Israel 91450

Tel: [phone]

Fax: [phone]

www.kata-bags.com

Info: [e-mail]

Sales: [e-mail]

KATA, A SIMPLE CASE OF BETTER DESIGN.

Which Kata Koala mixer case Or SunDo – Audio operational Case Fits your mixer:

MIXER TYPE	ITEM #	NAME ITEM #		SunDo MODEL
SHURE
FP31 KOALA-1 SunDo-1	VD 111		VD 130-1
FP32 KOALA-1 SunDo-1	VD 111		VD 130-1
FP32A	VD 111	KOALA-1	VD 130-1	SunDo-1
FP33	VD 111	KOALA-1	VD 130-1	SunDo-1
SQN
4S IV	VD 112	KOALA-2	VD 130-2	SunDo-2
4 (STEREO)	VD 112	KOALA-2	VD 130-2	SunDo-2
3		NONE	VD 130-1	SunDo-1
PSC (Professional Sound Corp)
M4	VD 112	KOALA-2	VD 130-2	SunDo-2
M4A	VD 112	KOALA-2	VD 130-2	SunDo-2
M4 MKII	VD 113	KOALA-3	VD 130-2	SunDo-2
WENDT
WENDT X4	VD 112	KOALA-2	VD 130-2	SunDo-2
COOPER SOUND
CS104	VD 112	KOALA-2	VD 130-2	SunDo-2
AUDIO DEVELOPMENT
A/D261	VD 112	KOALA-2	VD 130-2	SunDo-2
FILMTECH
LSP4	VD 112	KOALA-2	VD 130-2	SunDo-2
LSP3	VD 113	KOALA-3	VD 130-2	SunDo-2
EAA
MKII	VD 112	KOALA-2	VD 130-2	SunDo-2
MKIII	VD 112	KOALA-2	VD 130-2	SunDo-2
SOUND DEVICES
442	VD 113		VD 130-1	SunDo-1KOALA-3

VD-111 - KOALA-1 VD-130-1 - SUNDO-1

VD-112 - KOALA-2 VD-130-2 - SUNDO-2

VD-113 - KOALA-3

Koala / SunDo case can hold mixer +up to 4 Wireless microphones system, a power supply unit, and a hand Mic,

A Spear Battery or Cassette + Cables and connectors

Rain cover can be added to koala in case off bad weather condition.
