Type de produit	Caméra sportive 360°
Marque	Ricoh
Modèle	WG-M1 (série THETA)
Capteur	2 capteurs CMOS 1/2,3 pouces 12 Mpx (sortie 14 Mpx effectifs)
Objectif	Double objectif fisheye F2.0
Résolution photo	Jusqu'à 5376 x 2688 (équivalent 14 Mpx)
Résolution vidéo	Full HD 1920 x 1080 à 30 images/s
Mémoire interne	8 Go (intégrée)
Type d'alimentation	Batterie rechargeable lithium-ion via USB
Poids	Environ 125 g
Dimensions (L x H x P)	Environ 130 x 60 x 23 mm
Temps de démarrage	Environ 1,5 seconde
Connexion sans fil	Wi-Fi (portée environ 10 m)
Prise de vue 360°	Horizontale 360° et verticale 360°
Fonctions principales	Prise de vue photo et vidéo 360°, contrôle à distance via smartphone, modes Auto, Priorité Vitesse, Priorité ISO, Manuel
Modes spéciaux	Intervalomètre, bracketing, composite d'intervalles, longue exposition jusqu'à 60 s
Visionnage en réalité virtuelle	Compatible avec casques VR (mode simple ou double objectif)
Entretien et nettoyage	Nettoyer avec un chiffon doux et sec. Éviter l'humidité et la poussière excessive.
Sécurité	Utiliser avec précaution. Éviter les chocs et l'exposition à des températures extrêmes. Conserver hors de portée des enfants.
Pièces détachées et réparabilité	Pour toute réparation ou pièce détachée, contacter le service après-vente Ricoh agréé.
Informations générales	Fabriqué par Ricoh. Compatible avec les applications Ricoh THETA (de base), THETA+ et THETA+ Video. Partage direct sur Facebook, YouTube, Twitter, Instagram et Google Street View.

FOIRE AUX QUESTIONS - WG-M1 RICOH

Comment prendre une photo 360° avec le Ricoh WG-M1 ?

Allumez l'appareil en appuyant sur le bouton d'alimentation. Visez et appuyez sur le déclencheur. Une seule prise suffit pour capturer toute la scène. Vous pouvez également utiliser l'application smartphone pour un déclenchement à distance.

Comment transférer des images vers un smartphone ?

Activez le Wi-Fi du smartphone et connectez-vous au réseau de l'appareil. Lancez l'application Ricoh THETA de base, sélectionnez 'Images appareil', puis choisissez les images à transférer. Les images sont sauvegardées sur le téléphone.

Comment utiliser la télécommande via l'application ?

Téléchargez l'application Ricoh THETA de base. Connectez l'appareil en Wi-Fi. Dans l'application, appuyez sur l'icône d'alimentation pour accéder à l'écran de prise de vue à distance. Utilisez l'icône de déclencheur pour prendre une photo ou démarrer une vidéo.

Quelle est la durée maximale d'enregistrement vidéo en continu ?

L'appareil peut enregistrer jusqu'à 25 minutes en continu pour les modèles haut de gamme (THETA S) et environ 5 minutes pour le modèle standard (THETA SC). Vérifiez la version de votre appareil.

Comment utiliser le retardateur (self-timer) ?

Maintenez le bouton d'alimentation enfoncé tout en appuyant sur le bouton Wi-Fi pour activer le retardateur. Le délai par défaut est de 5 secondes, réglable via l'application (2, 5 ou 10 secondes).

Comment visionner les images en réalité virtuelle (VR) ?

Dans l'application de base, sélectionnez une image puis appuyez sur l'icône en bas à droite. Choisissez le mode simple ou double objectif. Placez le smartphone dans un casque VR compatible pour une expérience immersive.

Quelles applications sont disponibles pour le Ricoh WG-M1 ?

Les applications officielles sont : Ricoh THETA (application de base pour la prise de vue, le transfert et le partage), THETA+ (édition de photos 360°) et THETA+ Video (édition de vidéos 360°). Elles sont disponibles sur iOS et Android.

Comment modifier les paramètres de prise de vue (exposition, balance des blancs) ?

Dans l'application de base, vous pouvez changer le mode de prise de vue entre Auto, Priorité Vitesse, Priorité ISO et Manuel. Utilisez l'application pour ajuster la luminosité, les teintes, la température de couleur et d'autres réglages.

Comment partager des images 360° sur les réseaux sociaux ?

Depuis l'application Ricoh THETA, vous pouvez poster directement sur Facebook (images et vidéos 360°), Twitter (lien vers theta360.com) et YouTube (vidéos 360°). Utilisez THETA+ pour partager des images recadrées sur Instagram et LINE.

Comment nettoyer l'objectif de la caméra ?

Utilisez un chiffon doux et non pelucheux (type microfibre) pour essuyer délicatement les lentilles. N'utilisez pas de produits chimiques agressifs. Évitez de toucher les lentilles avec les doigts. Rangez l'appareil dans un étui de protection.

MODE D'EMPLOI WG-M1 RICOH

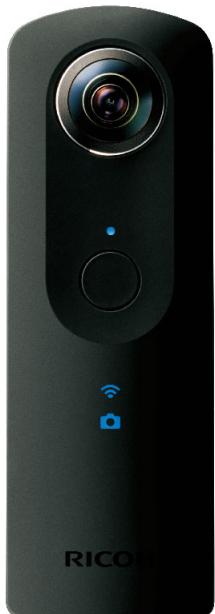

Getting started with RICOH THETA

Easy to Follow Instruction

Black RICO remote control device with camera lens and Wi-Fi icon (no text or symbols on device body)

Exterior view of a modern office building (no signage)

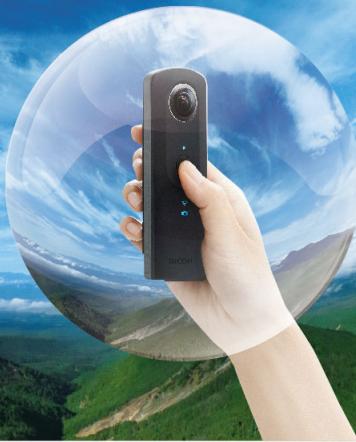

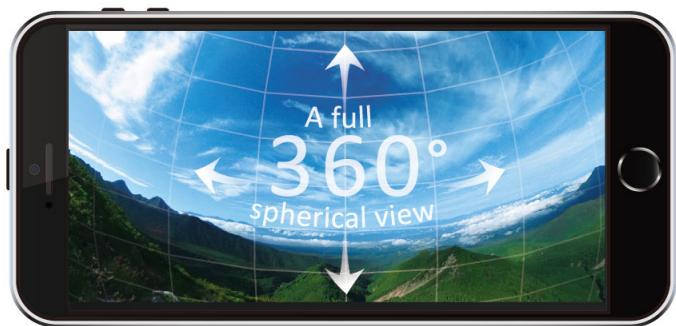

Have a virtual experience of being there.

Hand holding a remote control device against a scenic mountain landscape background (no text or symbols visible)

View captured images on a smartphone to enjoy the full 360° experience in all directions.

*To enjoy images taken by RICOH THETA with smartphone, dedicated application is needed.

▲Download the dedicated app!

360° horizontally

360°vertically

Hand interacting with a smartphone displaying a scenic mountain landscape and upward arrows (no text or symbols)

Expanding

Reducing

What can you do with RICOH THETA?

Shoot

Record an entire scene with a single shot.

Line drawing of a person looking out of a landscape with mountains, trees, and water (no text or symbols)

By using the application, RICOH THETA also enables shooting using remote control or manually.

RICOH THETA technology

Two super-wide-angle lenses (fish-eye lenses)

Real-time image processing technology

Generating 360° images

View

By using the application, view a 360° picture or video.

Watch your favorite parts from a 360^ picture or video simply by swiping and pinching. With VR headset, the image on the display moves in step with you.

Basic application

RICOH THETA S

For RICOH THETA S / SC

Enjoy

Edit in various fun ways and share worldwide.

[Non-Text]

You can use various SNS and email services to easily share 360° images with your friends, and using the editing app lets you enjoy the content in even more ways.

Special editing app

THETA+

For 360° pictures

THETA+ Video

For 360^ videos

Shooting pictures

Let's shoot!

Taking Still Images

1. Turn the power on.

Press the power button while holding down the wireless button to activate self-timer mode*.

*The default setting for self-timer shooting is 5 seconds. The setting can be changed between 2 seconds, 5 seconds and 10 seconds using the app.

*THETA S unit requires an update for this feature.

1. Hold it still and press the shutter button.

Just one shot is enough. No need to think about the camera position.

*Recorded images are stored in the camera's built-in memory.

Explore Creative Shooting Positions!

Shoot from above your head when you don't want to stand out in the picture.

It's a good idea to bend your elbow a little when shooting.

*All of the app screenshots featured in this booklet are from the iOS.

Shooting Remotely

1. Tap the ⏻ of the basic app and move to remote shooting display.

1. Tap ☑ to release the shutter.

Illustration of a person using a telescope under a starry night sky with a crescent moon and stars (no text or symbols)

*Wi-Fi can be connected up to approx. 10 meters away.

*A connection setup is necessary when connecting RICOH THETA to a smartphone for the first time. For connection methods, refer to the "Quick Start Guide" included with the product.

*Turn the smartphone's Wi-Fi mode on.

The LIVE view function of the basic application for 📄 RICOH THETA S allows a photo to be taken by simulating on a smartphone. (In still image mod

*Turn the smartphone's Wi-Fi mode on.

[You can change the shooting mode to make various adjustments including brightness and color hues]

Auto shooting

Shutter Priority

ISO Priority

Manual

Shooting Videos

1. Press the shooting mode button and select the video mode.

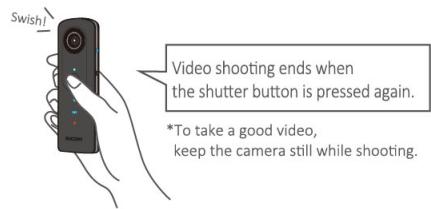

1. Press the shutter button to start video shooting.

Fix the THETA in place when shooting!

When taking a video with THETA, minimal shake will allow for natural viewing, even with a VR headset.

Line drawing of a person using a VR headset, no text or symbols present

Crowd at night with bright stage lights and raised hands, no visible text or symbols

Taking a Video by Remote Control

1. Tap the Ⓞ of the basic app and move to remote shooting display.

*Turn the smartphone's Wi-Fi mode on.

1. Tap to start recording, and tap again to stop.

Illustration of a person using a smartphone and recording, next to a smartphone displaying a control interface (no text or symbols on screen)

*Wi-Fi can be connected up to approx. 10 meters away.

Take natural photos!

Using a tripod and remote shooting allows you to take more appealing photos.

Line drawing of four people gathered around a table with food and drinks (no text or symbols)

You can use a selfie-stick to take natural photos from your own perspective.

Still Images and Videos

View them now!

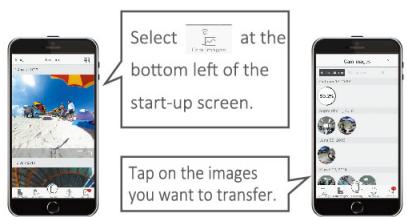

Transferring to a Smartphone

Launch the basic app, select [Cam images] and tap the images you want to transfer.

*Turn the smartphone's Wi-Fi mode on.

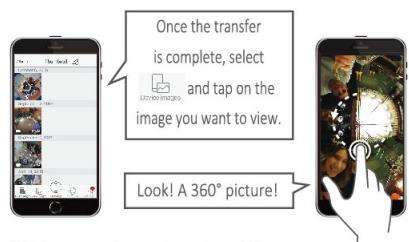

Viewing on a Smartphone

Select [Device images] and tap on the image you want to view.

*Pictures can also be viewed on a PC. *Once an image has been transferred it is saved.

Still Images Enjoy 360° experiences!

Group of people enjoying beer at a wooden table, smiling and interacting (no visible text or symbols)

Check out a sample here▼

Aerial view of a person in a leaping gear flying over a cityscape with greenery and a blue sky (no visible text or symbols)

Check out a sample here▼

Viewing in VR

1. Select the image you want to view in the basic app, and tap at the bottom right of the image. Choose single lens or twin lens.

*VR viewing may be unavailable on some Android devices.

1. Enjoy virtual experiences with a VR headset

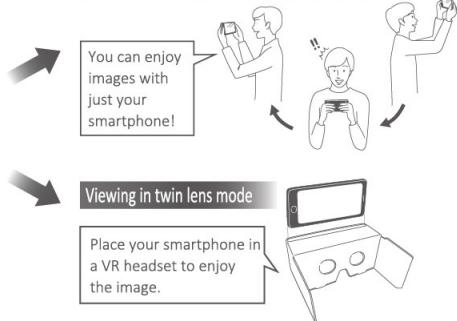

Viewing in single lens mode

*Commercially available VR headsets can be used.
* Consult the instruction manual for each product for information on recommended ages.

Videos Enjoy 360° experiences!

Man wearing VR headset and earphones, looking upward (no text or symbols visible)

Fisheye view of a circular interior space with a person holding a device, no visible text or symbols

Check out a sample here▼

Check out a sample here▼

Editing Still Images / Editing Videos

The THETA+ and THETA+ Video smartphone apps are specially designed for editing still images and video, respectively.

As well as editing still images and video in various ways, you can also save them on your smartphone and share them with your friends.

THETA+ (for still images)

• View (view selection)

•Text

- Filters (color tone change)

• Cropping

- Image correction

(cutting out part of the image)

-Stamp

• Time lapse editing

- Sharing

As of February 2017 *Operation may vary depending on the OS.

THETA+ Video (for videos)

• View (view selection)

- Filters (color tone change)

- Trimming

(cutting video length, adjusting playback speed)

• BGM

- Cropping

(cutting out part of the video framing)

- Sharing

As of February 2017 *Operation may vary depending on the OS.

Display 360-degree content in various ways

Select from four different views to create images unique to RICOH THETA. ^*1

Aerial fisheye view of a city square with skyscrapers and pedestrians, under a clear blue sky (no visible text or symbols)

Little planet

Fisheye lens view of a crowded urban plaza with buildings and green spaces under a clear sky (no visible text or symbols)

Mirror ball

Panoramic city street view with pedestrians crossing a zebra crossing, modern buildings in background under clear sky (no visible text or signage)

Flat

Low-angle fisheye view of a dense urban street with tall skyscrapers and visible traffic lights (no signage or text)

Straight

Freely change color hues and brightness

Interior view of a food display with colorful bell peppers and a central circular structure (no visible text or symbols)

→

Overhead view of a supermarket aisle with customers and banana-shaped decorations, no visible text or signage

Ten filters are available to change the color tones. Seven types of image correction including exposure, contrast and saturation can also be applied. ^2

Have fun decorating with stamps and text \*2

Circular image with a person inside a ring, surrounded by stars and a blue sky (no text or symbols)

Choose from around 100 stamps and enter your own text to decorate your 360-degree images.

Make changes to videos ^*3

Two people posing with peace signs on an outdoor bar, wearing orange shirts (no visible text or symbols)

Cancel

You can cut videos down to the desired length and modify the playback speed.

By adding your favorite background music, you can add drama to your movies.

Create time lapse videos ^*2

Nighttime landscape photo of a mountainous region with starry sky and scattered clouds (no text or symbols visible)

This mode lets you create 360-degree time lapse videos by combining multiple still images recorded with the interval shooting feature.

Save your images in two ways: 360-degree image or cropped image

360

360-degree images

Even after editing, you can spin and rotate the image. If posted to Facebook or YouTube (videos only), the 360-degree content can be experienced in VR using a smartphone.

Cropped images

This mode produces unique images cropped onto a flat surface. These images can be posted as-is to many social media sites such as Instagram and LINE.

Choose from seven crop types including square and 16:9. *2

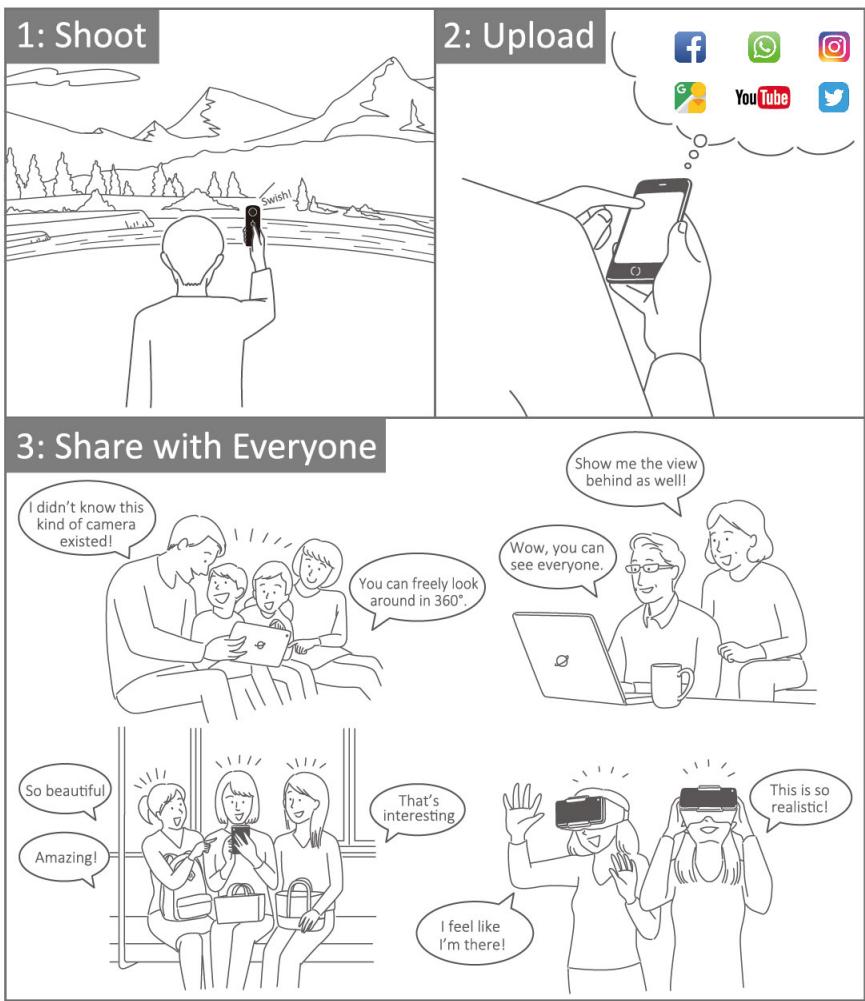

Enjoy pictures and videos by sharing

You can easily post to SNS sites such as Twitter and Facebook from the basic app or editing app.

Using SNS

360° images taken with RICOH THETA can be enjoyed on supported SNS sites.

• Compatible SNS (examples):

Posting to Facebook

Spherical still images and videos can be posted as-is to Facebook, allowing your friends to view your content in 360°

Posting to Twitter

You can upload content to the Ricoh cloud space

(theta360.com) and place a link in a Twitter post. The linked page can be viewed in 360°.

Posting to Instagram

Using the THETA+ and THETA+ Video editing apps, you can share your proud creations with friends. Posting creative THETA images to Instagram is a popular style!

Close-up of a textured spherical object with warm lighting and warm tones, no visible text or symbols.

Posting to YouTube

YouTube supports 360° video. With the YouTube app you can easily share virtual reality experiences in VR view (twin lens).

Two-panel video frame showing a highway with traffic lights and navigation arrows, no visible text or symbols

Posting to Google Street View

Using the Street View app, you can do everything from shooting THETA images with remote control to uploading 360° images.

*These are images of submitted pictures.

Sharing without Posting to SNS

If you upload images to the Ricoh cloud s (theta360.com) without posting to an SN you can share the image only with those you send the URL to.

Turn off all SNS selections.

Check the uploaded image.

Send the URL

Explore Various Shooting Scenarios

Crowd celebrating at a sports event with a large stadium and golden ribbons, no visible text or symbols

Wedding Ceremonies

Group wedding scene with bride and groom in a circular garden setting (no visible text or symbols)

Time with Family and Friends

Group of people inside a circular airplane cabin, viewed from the side (no visible text or symbols)

We recommend shooting still images or video even on regular days when nothing much is happening.

Even when it's not a particularly special day, photos taken with family serve as a record of precious moments. As time passes, you will look back on unassuming daily moments—of a daughter when she was still a baby, a beloved grandparents, or even your own younger self—and be able to recreate those instances in the vivid detail of a 360-degree virtual experience.

Learn More

Go to the Official RICOH THETA accounts

This official account is loaded with information about various 360° works and ways of enjoying RICOH THETA. Follow the account to enjoy RICOH THETA even more.

The RICOH THETA Facebook page offers extensive information including usage tips and stories behind the development of the RICOH THETA.

RICOH THETA

News related to RICOH THETA is distributed.

RICOH THETA official

Filled with RICOH THETA's creative works.

theta360official

Loaded with 360° videos shot using RICOH THETA.

RICOH THETA

RICOH THETA Official Website – theta360.com

The official site helps you get even more out of your RICOH THETA with the latest information on RICOH THETA and related apps, a sample gallery that allows you to rotate images, and the cloud space, which allow you to post and share the 360° spherical images you have taken.

RICOH THETA S

High-end Model

For capturing a 360° world with amazing beauty

Black RICO remote control device with lens and control buttons (no visible text or symbols)

The RICOH THETA S achieves high quality combined with excellent performance. Record a 360° spherical world with exceptional clarity and quality just the way you want, in still images or extended-length movies (up to 25 minutes).

High Resolution

- 1/2.3" 12M CMOS sensor × 2 (Output pixel count equivalent to 14M) - F2.0 lens

Full HD video Capture ^1

• 30 fps • 25 minutes continuous shooting

360° Live View Shooting ^2

Long exposure (Maximum 60 seconds) ^2

Quick start-up in around 1.5 seconds

8 GB Memory

Self-timer ^4

HD Live Streaming ^4

HDMI Port (Type-D)

New Features

Multi bracket shooting *2 *4

Interval composite shooting ^2*4

Color temperature specification shots *2 *4

My Settings ^24

RICOH THETA SC

Standard-class Model

Enjoy 360° shooting with high performance and ease of use

RicoH remote device with camera lens and control buttons (no visible text or symbols on body)

360° for everyone.

RICOH THETA SC offers viewers a new experience of a 360° spherical world as if they are actually there.

It keeps the high image quality, but better convenience.

High Resolution

- 1/2.3" 12M CMOS sensor × 2 (Output pixel count equivalent to 14M) - F2.0 lens

Full HD video Capture ^*1

• 30 fps • 5 minutes continuous shooting

360 ^® Live View Shooting ^*2

Long exposure (Maximum 60 seconds) ^2

Quick start-up in around 1.5 seconds

8 GB Memory

Self-timer

Lightweight at around 102g

Four Colors

*1 Data is recorded in Full HD (1920 × 1080) resolution, but the resolution of spherical videos when viewed differs depending on the type of display or display magnification.
*2 When RICOH THETA S basic app is used *3 Dual fish-eye output, when connected by USB *4 A firmware update is required.

PC application

PC app for converting, viewing and sharing spherical images shot

Basic app * : Viewing, SNS posting, converting videos, writing with slant top/bottom correction

* Adobe AIR ^* must be installed for use

Live streaming app: converting live streaming videos

Wi-Fi is a registered trademark of the Wi-Fi Alliance. Windows is either a registered trademark or a trademark of Microsoft Corporation in the United States and/or other countries. Mac, iPhone, App Store are trademarks of Apple Inc. IOS is a trademark of Cisco in the US and is used under license. Adobe and AIR are either trademarks or registered trademarks of Adobe Systems Incorporated in the United States and/or other countries. Facebook and "f" logo are the registered trademarks of Facebook, Inc. Twitter and Twitter logo are the registered trademarks of Twitter, Inc. Tumblr and Tumblr logo are the registered trademarks of Tumblr, Inc. Instagram and the camera logo are trademarks of Instagram, LLC in the United States and other countries. Multi-Color Camera logo is the trademark or registered trademark of Instagram, Inc. Android, Google Play, Nexus, YouTube, Google, Google Map, Google+ and Google Street View are the registered trademarks of Google Inc.
