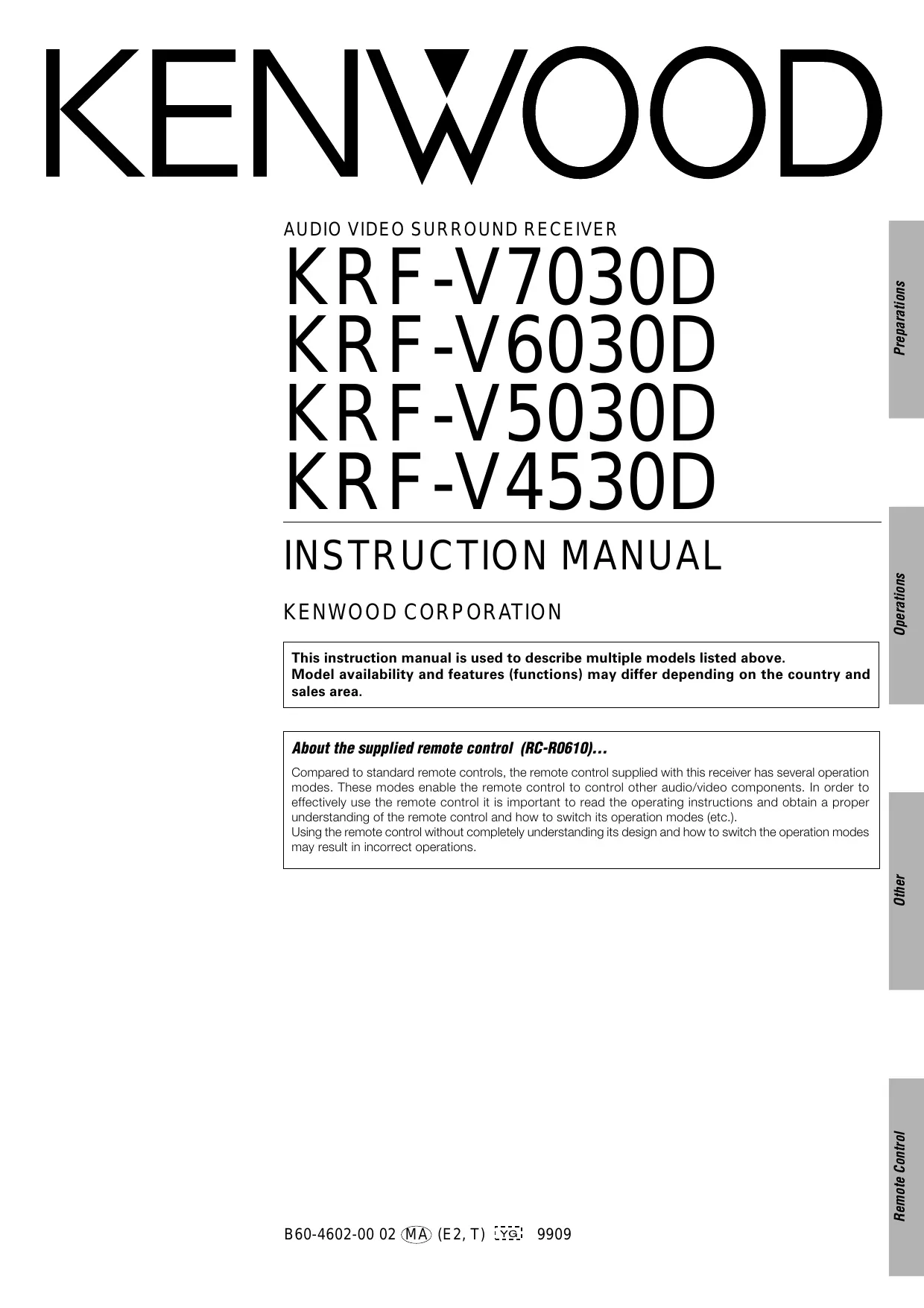

AUDIOVIDEO SURROUND RECEIVER
KRF-V7030D
KRF-V6030D
KRF-V5030D
KRF-V4530D
INSTRUCTION MANUAL
KENWOOD CORPORATION
This instruction manual is used to describe multiple models listed above.
Model availability and features (functions) may differ depending on the country and sales area.
About the supplied remote control (RC-R0610)...
Compared to standard remote controls, the remote control supplied with this receiver has several operation modes. These modes enable the remote control to control other audio/video components. In order to effectively use the remote control it is important to read the operating instructions and obtain a proper understanding of the remote control and how to switch its operation modes (etc.).
Using the remote control without completely understanding its design and how to switch the operation modes may result in incorrect operations.
Units are designed for operation as follows.
U.K.and Europe .AC 230V only
Russia .AC 220V only
For the United Kingdom
Factory fitted moulded mains plug
- The mains plug contains a fuse. For replacement, use only a 13-Amp ASTA-approved (BS1362) fuse.
- The fuse cover must be refitted when replacing the fuse in the moulded plug.
- Do not cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or adaptor, or consult your dealer. If nonetheless the mains plug is cut off, remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply.
IMPORTANT: The wires in the mains lead are coloured in accordance with the following code:
Blue : Neutral
Brown : Live
Do not connect those leads to the earth terminal of a three-pin plug.
Safety precautions
WARNING :
TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED "DANGEROUS VOLTAGE" WITHIN THE PRODUCT'S EN-CLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.
Unpacking
Unpack the unit carefully and make sure that all accessories are put aside so they will not be lost.
Examine the unit for any possibility of shipping damage. If your unit is damaged or fails to operate, notify your dealer immediately. If your unit was shipped to you directly, notify the shipping company without delay. Only the consignee (the person or company receiving the unit) can file a claim against the carrier for shipping damage.
We recommend that you retain the original carton and packing materials for use should you transport or ship the unit in the future.
Keep this manual handy for future reference.
Accessories
FM indoor antenna (1)
AM loop antenna (1)
For KRF-V7030D and KRF-V6030D
Remote control unit (1)
RC-R0610
Batteries (R6/AA) (2)
For KRF-V5030D and KRF-V4530D
Remote control unit (1)
RC-R0510
Batteries (R6/AA) (2)
Microcomputer malfunction
If operation is not possible or an erroneous display appears, even though all connections have been made properly, reset the microcomputer referring to "In case of difficulty".
Maintenance of the unit
When the front panel or case becomes dirty, wipe with a soft, dry cloth. Do not use thinner, benzine, alcohol, etc. for these agents may cause discoloration.
Do not use contact cleaners because it could cause a malfunction. Be specially careful not to use contact cleaners containing oil, for they may deform the plastic component.
Contents
Caution: Read the pages marked carefully to ensure safe operation.
Preparations
Before applying the power 2
Safety precautions 2
Unpacking 2
How to use this manual 4
Special features 4
Names and functions of parts 5
Setting up the system 8
Connecting audio components 8
Connecting video components 9
Connecting a DVD player. 9
Digital connections 10
Connecting to the AUX IN jacks
(KRF-V7030 only) 11
Connecting the antennas 11
Connecting the system control 12
Connecting the speakers 13
Preparing the remote control 14
Preparing for surround sound 15
Speaker settings 15
Normal playback 16
Preparing for playback 16
Listening to a source component 17
Adjusting the sound 17
Recording 18
Recording audio (analog sources) 18
Recording video 19
Recording audio (digital sources) 19
Listening to radio broadcasts 20
Tuning (non-RDS) radio stations 20
Using RDS (Radio Data System) 20
Using the DISPLAY key 21
Presetting RDS stations
(RDS AUTO MEMORY) 21
Presetting radio stations manually 22
Receiving preset stations 22
Receiving preset stations in order (P.CALL).....22
Tuning by program type (PTY search) 23
Ambience effects 24
Surround modes 24
Surround play 25
DVD 6-channel playback 26
Convenient functions 27
Operations
Other
In case of difficulty 28
Specifications 29
Remote
Control
(Separate
booklet)
Quick start guide 1
Getting the most
from your remote control 3
Setup code chart 4
In case of difficulty 5
Remote operation of other components.... 6
How to use this manual
The manual covers the KRF-V7030D, KRF-V6030D, KRF-V5030D, and KRF-V4530D. Items such as functions, number of jacks, and remote control details differ somewhat between these models. To confirm the functions available on the model you have purchased, refer to the table below.
| Model name | Remote Control | | Terminal | |
| Speaker out | VIDEO 3jacks | Front input |
| KRF-V7030D | RC-R0610 | 2 systems (A, B) | Equipped | Equipped |
| KRF-V6030D | RC-R0610 | 2 systems (A, B) | Not equipped | Not equipped |
| KRF-V5030D KRF-V4530D | RC-R0510 | 1 system | Not equipped | Not equipped |
This manual is divided into four sections, Preparations, Operations, Other, and Remote Control.
Preparations
Shows you how to connect your audio and video components to the receiver and prepare the surround processor.
We've tried to make setting up your system as easy as possible. However, since this receiver works with all of your audio and video components, connecting the system can be fairly complex.
Operations
Shows you how to operate the various functions available from the receiver.
Other
Shows you additional information such as "In case of difficulty" (trouble-shooting) and "Specifications".
Remote Control (Separate booklet) (KRF-V7030D/KRF-V6030D only)
Includes the "Quick Start Guide," which shows you how to operate other components using the remote control, as well as a detailed explanation of all remote control operations. Once you have registered your components with the proper setup codes, you'll be able to operate both this receiver and your other AV components (TV, VCR, DVD player, LD player, CD player, etc.) using the remote control supplied with this receiver.
Memory back up function
Please note that the following items will be deleted from the unit's memory if the power cord is disconnected from the AC outlet for approximately 3 days.
Special features
True home theater sound
This receiver incorporates a wide variety of surround modes to bring you maximum enjoyment from your video software. Select a surround mode according to your equipment or the software you are going to play and enjoy!
Dolby Pro Logic & Dolby 3 Stereo
This surround system reproduces theater-like surround sound from video software marked DOLEY SURROUND
The PRO LOGIC mode uses the built-in adaptive matrix circuit to steer the Left, Center, Right and Surround channel audio signals.
The 3 STEREO mode will redirect the Surround signal to the front left and right speakers when only the front and center speakers are used.
Dolby Digital (AC-3)
The DOLBY DIGITAL (AC-3) mode lets you enjoy full digital surround from software processed in the Dolby Digital (AC-3) format. Dolby Digital (AC-3) provides up to 5.1 channels of independent digital audio for better sound quality and more powerful presence than conventional Dolby Surround.
DTS (KRF-V7030D only)
DTS (Digital Theater System) is a 5.1 channel digital audio format that provides five full-spectrum channels and one low-frequency (subwoofer) channel for unprecedented clarity, optimum channel separation and a (wide) dynamic range.
In the DTS mode, the 5.1 channel digital input from a DTS CD, LD or DVD disc (carrying the "DTS" marking) can be played in Digital Surround.
Important:
When a DTS disc is played on a CD, LD or DVD player, noise may be output from the analog output. It is recommended that you connect the digital output of the player to the digital input of this unit.
If you own a DVD player equipped with 6-channel output, this receiver allows you to obtain the full surround sound impact of DVD source material featuring multi-channel encoding. Since the source signals are digital and each channel is input independently, the resulting ambience is far superior to what can be achieved with conventional surround sound systems.
Universal IR (InfraRed) remote control (KRF-V7030D/KRF-V6030D only)
In addition to the basic receiver, the remote control supplied with this receiver can also operate almost all of your remote controllable audio and video components. Just follow the simple setup procedure to register the components you have connected.
RDS (Radio Data System) tuner
The receiver is equipped with an RDS tuner that provides several convenient tuning functions: RDS Auto Memory, to automatically preset up to 40 RDS stations broadcasting different programs; station name display, to show you the name of the current broadcast station; and PTY search to let you tune stations by program type.
PTY (Program TYpe) search
Lets you tune stations by specifying the type of program you want to hear.
1 POWER key Use to turn the main power ON/OFF.
ON/STANDBY (1 / 6) key Use to switch the power ON/STANDBY when the POWER is turned ON. STANDBY indicator
MULTI CONTROL knob -15 (For KRF-V7030D) Used to make a variety of settings.
MULTI CONTROL keys (For KRF-V6030D/V5030D/V4530D) Used to make a variety of settings.
SETUP key Use to select the surround sound settings.
Surround indicators DTS indicator (For KRF-V7030D) Lights when the receiver is in the DTS mode. DOLBY DIGITAL indicator Lights when the receiver is in the Dolby Digital mode. PROLOGIC indicator Lights when the receiver is in the PROLOGIC mode.
3STEREO indicator Lights when the receiver is in the 3 STEREO
DOWN MIX indicator 26 (For: KRE-V7030D)
Lights when the receiver is in the DOWN MIX mode.
INPUT MODE key Use to switch between the digital and analog inputs.
DIMMER key 19 -27 Use to adjust the brightness of the display. Use to select the REC MODE.
MONITOR key Use to monitor the source that is connected to theVIDEO2/MONITOR jack.
VOLUME CONTROL knob
PHONES jack Use for headphone listening.
1 SPEAKERS A/B keys -16 (For KRF-V7030D/V6030D) Use to turn the A/B speakers ON/OFF.
1 SPEAKER key (For KRF-V5030D/V4530D)
Use to turn the speaker ON/OFF.
MUTE key
(For KRF-V5030D/V4530D)
Use to temporarily mute the sound.
Sound key Use to adjust the sound quality and ambience effects.
BAND key Use to select the broadcast band.
AUTO key -20 Use to select the auto tuning mode.
LISTEN MODE key Use to select the listening mode.
MEMORY key -21 Use to store radio stations in the preset memory.
SOURCE DIRECT key Use to pass the source material direct to the amplifier.
INPUT SELECTOR knob Use to select the input sources.
SVIDEO/AV AUX/AUDIO L/R
jacks
(For KRF-V7030D)
Remote control unit (RC-R0610) (KRF-V7030D/V6030D)
Page references such as RC-6 indicate pages in the remote control operation manual (Separate booklet).
There are some cases in which keys (or knobs) that have the same function on the receiver and on the remote control have different names. In the instructions of this manual, if the names of corresponding keys (or knobs) on the receiver and remote control are different, the name of the remote control key is indicated in parentheses.
Numeric keys RC Provide functions identical to those of the original remote control supplied with the component you are controlling.
LSTN.M key Use to select the listening mode. RETURN key RCUse to operate other components.
SETUPkey 15 Use to select the surround sound settings. MENU key RC-7 Use to operate other components.
Sound key Use to adjust the sound quality and ambience effects. OSD key RC-7 Use to operate other components.
MULTI CONTROL keys 15 Used to make a variety of settings. Use to operate other components. P.CALL < / > keys 22 If tuner is selected as the input source, these keys function as P.CALL keys.
If CD or MD is selected as the input source, these keys function as skip keys.
TUNING keys RC Use to operate the tuner or selected component. If CD or MD is selected as the input source, these keys function as search keys.
B. BOOST key Use to select the maximum adjustment setting for the low frequency range. RECEIVER key
Use to return to the operation of the receiver.
DISC SKIP key RC- If CD is selected as the input source, this key functions as the multi-CD player disc skip key. A/Bkey RC-
If TAPE is selected as the input source, this (A and B) of a double cassette deck.
+100 key Use to select the disc number with the multiCD player.
TITLE key RC-Use to operate other components.
INPUT SELECTOR keys (DVD, PHONO, CD/DVD, TUNER, MD/TAPE, VIDEO1,VIDEO2,VIDEO3, AV AUX) -Selects the inputs and sets the remote control to operate the component registered at the respective input.
17 MUTE key Use to temporarily mute the sound.
17 POWER key Use to turn the receiver on and off.
12 POWER key (TV, VCR/CDR, DVD) RC-
Use to turn the other components on and off.
RDS operation keys -21-23 Use to receive RDS broadcasts.
ENTER key RC- Use to operate other components.
key If tape is selected as the input source, this key functions as the play key for side B of the cassette (the side facing away from the front of the deck).
15 BAND key Use to select the broadcast band.
/ key RC- If CD is selected as the input source, this key functions as the play/pause key.
If MD is selected as the input source, this key functions as the play key.
AUTO key 20 Use to select the auto tuning mode.
■ key RC-6 If CD or MD is selected as the input source, this key functions as the stop key.
71 key RC-6 Use to operate other components.
INPUT SEL. key RC-6 Use to operate other components.
CHANNEL / keys RC-Use to select the channel.
TVSEL.key RC-
Use to operate other components.
VOLUME keys Use to adjust the receiver volume.
DVD player operation
Press the DVD POWER key on the remote control for more than 2 seconds to turn on the connected KENWOOD DVD player. Press the DVD POWER key again to activate the DVD player operation mode.
DVD player operation keys
Numeric keys If CD or MD is selected as the input source, these keys function as numeric keys. If tuner is selected as the input source, these keys are used to call up station presets.
SETUP key Use to select the surround sound settings. MENU key Use to operate other components.
SOUND key Use to adjust the sound quality and ambience effects. OSD key Use to operate other components.
4 MULTI CONTROL keys Used to make a variety of settings. P.CALL keys If tuner is selected as the input source, these keys function as P.CALL keys.
keys
If CD or MD is selected as the input source, these keys function as skip keys.
TUNING keys If tuner is selected as the input source, these keys function as tuning keys. If CD or MD is selected as the input source, these keys function as search keys.
BASS BOOST key Use to select the maximum adjustment setting for the low frequency range.
DISC SKIP key If CD is selected as the input source, this key functions as the multi-CD player disc skip key. A/B key If TAPE is selected as the input source, this (A and B) of a double cassette deck. +100 key Use to select the disc number with the multi- CD player.
INPUT SELECTOR keys (DVD, PHONO, CD/DVD, TUNER, MD/TAPE, VIDEO1,VIDEO2) 17 Selects the inputs and sets the remote control to operate the component registered at the respective input.
MUTE key Use to temporarily mute the sound. POWER (1 / 6) key Use to turn the receiver on and off.
DVD POWER key Used to operate DVD player. For details, refer to the instruction manual of your DVD player.(Press the DVD key for more than 2 seconds.)
12 RECEIVER key Use to return to the operation of the receiver.
TITLE key Use to operate other components. RDS operation keys 21 23 Use to receive RDS broadcasts.
LISTEN MODE key Use to select the listening mode. RETURN key Use to operate other components.
ENTER key Use to operate other components. key If tape is selected as the input source, this key functions as the play key for side B of the cassette (the side facing away from the front of the deck).
16 BAND key Use to select the broadcast band.
/ key
If CD is selected as the input source, this key functions as the play/pause key.
If MD is selected as the input source, this key functions as the play key.
AUTO key Use to select the auto tuning mode. key If CD or MD is selected as the input source, this key functions as the stop key.
10 1 key Use to operate other components.
VOLUME keys Use to adjust the receiver volume.
Make connections as shown below.
When connecting the related system components, be sure to also refer to the instruction manuals supplied with the components you are connecting.
Do not connect the power cord to a wall outlet until all connections are completed.
DTS disclaimer clause
DTS Digital Surround™ is a discrete 5.1 channel digital audio format available on CD, LD, and DVD software which consequently cannot be decoded and played back inside most CD, LD, or DVD players. For this reason, when DTS-encoded software is played back through the analog outputs of the CD, LD, or DVD player, excessive noise will be exhibited. To avoid possible damage to the audio system, proper precautions should taken by the consumer if the analog outputs are connected directly to an amplification system. To enjoy DTS Digital Surround™ playback, an external 5.1 channel DTS Digital Surround™ decoder system must be connected to the digital output (S/P DIF, AES/EBU, or TosLink) of the CD, LD or DVD player.
The only audio product model incorporating the DTS Digital Surround decoder is the KRF-V7030D.
VIDEO 2/MONITOR jacks (for KRF-V6030D/V5030D/V4530D)
The receiver's VIDEO 2MONITOR jacks can be used in two different ways. Make the appropriate setting for the component connected to the jack when the receiver is turned on.
Use as a VIDEO 2 jack
You can connect a video deck or the like to these jacks and perform video playback and recording. The initial factory setting is "VIDEO 2 .
Use as a MONITOR jack
You can connect a cassette deck or the like to these jacks and make use of the deck's monitoring function during recording. Alternately, you can connect a graphic equalizer to these jacks to apply compensation to the music signal.
To use the VIDEO 2MONITOR jacks as MONITOR jacks, hold down the MONITOR key of the main unit for more two seconds so that the indication shown below appears.
- At the same time the setting is switched to "MONITOR," the audio input source switches to tuner and the video input source switches to VIDEO 1.
- To switch the setting back to "VIDEO 2," once again hold down the MONITOR key for two seconds or more.
Notes
- Be sure to insert all connection cords securely. If their connections are imperfect, the sound may not be produced or noise may interfere.
- Be sure to remove the power cord from the AC outlet before plugging or unplugging any connection cords. Plugging/unplugging connection cords without disconnecting the power cord can cause malfunctions and may damage the unit.
- Do not connect power cords from components whose power consumption is larger than what is indicated on the AC outlet at the rear of this unit.
Analog connections
Audio connections are made using RCA pin cords. These cables transfer stereo audio signal in an "analog" form. This means the audio signal corresponds to the actual audio of two channels. These cables usually have 2 plugs each end, one red for the right channel and one white for the left channel. These cables are usually packaged with the source unit, or are available at your local electronics retailer.
Connecting audio components
When you connect the video component to theVIDEO2/MONITORjacks, connect the video cord (yellow RCA pin cords) of the connected component to theVIDEO2 IN jack (KRF-V6030D/V5030D/V4530D only).
Connecting video components
A video component with digital audio outputs should be connected to the VIDEO2 or VIDEO3 (KRF-V7030D only) jacks.
If you have connected a DVD player to the receiver with digital connection, be sure to read the "Input mode settings" section on the following page carefully.
To switch the speakers off, press the MUTE key.
CAUTION
Be sure to adhere followings. Or proper ventilation will be blocked causing damage or fire hazard.
- Install the KRF-V7030D/V6030D/V5030D/V4530D on the top of the system.
- Do not place any objects impairing heat radiation onto the top of unit.
- Leave a space around the unit (from the largest outside dimension including projection) equal or greater than, shown below.
Top panel : 50 cm
Side panel : 10 cm
Back panel : 10 cm
Digital connections
The digital in jacks can accept DTS, Dolby Digital (AC-3), or PCM signals. Connect components capable of outputting DTS, Dolby Digital (AC-3), or standard PCM (CD) format digital signals.
If you have connected any digital components to the receiver, be sure to read the "Input mode settings" section on this page carefully.
To connect an LD player with a DIGITAL RF OUT, connect the LD player to the KENWOOD RF digital demodulator (DEM-9991D).
Next, connect the DIGITAL OUT jacks of the demodulator to the DIGITAL IN jacks of the receiver.
Connect the video signal and analog audio signals to the Video2 or Video3 (KRF-V7030D only) jacks. (See "Connecting video components".)
CD, DVD, VIDEO2 and VIDEO3 (KRF-V7030D only) inputs each include jacks for digital audio input and analog audio input.
You must select beforehand which type of input is to be used for each connected component.
The initial factory setting is to use the digital audio signal for playback (CD, DVD,VIDEO2,VIDEO3).
To use the analog audio input for playback instead (if, for example, you have connected a VCR to theVIDEO2 orVIDEO3 input), you must set the input mode for the corresponding input to the analog mode.
After completing connections and turning on the receiver, follow the steps below.
Use the INPUT SELECTOR knob to select CD, DVD, VIDEO2, or VIDEO3.
Press the INPUT MODE key.
Each press switches the setting as follows:
In DTS play mode (KRF-V7030D only)
D-AUTO(digital input, auto sound)
L ② D-MANUAL (digital input, manual sound)
In DVD play mode
D-AUTO (digital input, auto sound)
② D-MANUAL (digital input, manual sound)
③ 6CHINPT(DVD6CHinput)
- ④ ANALOG (analog input, manual sound)
In other mode than DTS or DVD play mode
D-AUTO(digital input, auto sound)
② D-MANUAL (digital input, manual sound)
L ③ ANALOG (analog input, manual sound)
Select this setting to play digital signals from a DVD, CD, or LD player.
Select this setting to play analog signals from a cassette deck, VCR, or turntable.
Auto sound:
In the auto sound mode (AUTO SOUND indicator lights), the receiver selects the listening mode automatically during playback to match the type of input signal (Dolby Digital, PCM, DTS) and the speaker setting. The initial factory setting is auto sound on.
To keep the receiver set to the currently selected listening mode, use the INPUT MODE key to select "D-MANUAL" (manual sound). However, even when this setting is selected, there may be cases in which the listening mode is selected automatically to match a Dolby Digital source signal depending on the combination of listening mode and source signal.
Connecting to the AUX IN jacks (KRF-V7030D only)
The AUX IN jacks are convenient for connection of video components such as a camcorders and video games.
Connecting the antennas
AM loop antenna
The supplied loop antenna is for use indoors. Place it as far as possible from the receiver, TV set, speaker cords and power cord, and adjust the direction for best reception.
AM antenna terminal connections
Insert cord.
Returnlever.
FM indoor antenna
The supplied indoor antenna is for temporary use only. For stable signal reception we recommend using an outdoor antenna. Disconnect the indoor antenna when you connect one outdoors.
FM outdoor antenna
Lead the 75 coaxial cable connected to the FM outdoor antenna into the room and connect it to the FM 75 terminal.
FM antenna terminal connections
Insert cord.
To select the source connected to the AUX IN jacks, select AV AUX by using the INPUT SELECTOR knob.
When you connect the audio source such as the MD player, you do not need to connect the video cable.
When you connect the unit and the component with the SVIDEO cord, you can get better picture quality.
Connecting the system control
Connecting system control cords after connecting a KENWOOD audio component system lets you take advantage of convenient system control operations.
This unit is compatible only with the [SL-16] mode. The system control operation is not available if the unit is connected in the [XS8], [XS], or [XR] connection mode.
If your component has the mode select switch, set the connected components to the [SL16] mode.
EXAMPLE: [SL16] mode connections
The underlined portion represents the setting of the system control mode.
[SL16]
[SL16] [XS] [XS8] [XR]
[SL16] [XS] [XS8]
[XS]
![KENWOOD KRF-V4550D - EXAMPLE: [SL16] mode connections - 1](/content/2024/11/201259/images/89f8a627923013e14c31d9d1402af9b2aa7820749dc73d9cd45c7db28c90824f.jpg)
- In order to take advantage of the system control operations, the components must be connected to the correct jacks. To use a CD player it must be connected to the CD jacks. To use a cassette deck (or MD recorder) it must be connected to the MD/TAPE jacks. When using more than one CD player (etc.) only the one connected to the specified jacks may be connected for system control.
- Some CD players and cassette decks are not compatible with the [SL16] system control mode. Do not make system connections with equipment that is not [SL16] compatible.
- Some MD players are not system control compatible. You cannot make system control connections to this kind of equipment.
Notes
- [SL16] equipment cannot be combined with [XR], [XS], and [XS8] equipment for system operations. If your equipment consists of this kind of combination, please do not connect any system control cords. Even without system control cords, normal operations can be carried out without effecting performance.
- Do not connect system control cords to any components other than those specified by KENWOOD. It may cause a malfunction and damage your equipment.
- Be sure the system control plugs are inserted all the way in to the system control terminals.
Do not connect a system control cord to a cassette deck connected to theVIDEO2/MONITOR jacks.
SYSTEM CONTROL OPERATIONS
Remote Control
Lets you operate this unit with the system remote supplied with the receiver.
Automatic Operation
When you start playback from a source component, the input selector on this unit switches to that component automatically.
Synchronized Recording
Lets you synchronize recording with the start of playback when recording from CD, MD or analog discs.
Registering setup codes for KENWOOD audio components (KRF-V7030D/V6030D only)
- Once you finish making the system connections, be sure to register the appropriate setup code for each component. RC-3
- If you own remote controllable KENWOOD audio components that are not compatible with system control, registering the setup code enables you to control those components using the remote control supplied with this unit (without connecting system control cords). To register setup codes for your remote controllable KENWOOD audio components, see "Registering setup codes for other components".
RC-3
Connecting the speakers
Strip coating
Loosen
Insert
4 Secure.
Front Speakers A
Surround Speakers
Be sure to connect both surround speakers)
Strip coating
Push the lever.
Insert the cord.
4 Return the lever.
- Never short circuit the + and - speaker cords.
- If the left and right speakers are connected inversely or the speaker cords are connected with reversed polarity, the sound will be unnatural with ambiguous acoustic imaging. Be sure to connect the speakers correctly.
Speaker impedance
After confirming the speaker impedance indications printed on the rear panel of the receiver, connect speakers with matching impedance ratings. Using speakers with a rated impedance other than that indicated on the rear panel of the receiver could result in malfunctions or damage to the speakers or receiver.
Speaker placement
Front speakers: Place to the front left and right of the listening position. Front speakers are required for all surround modes.
Center speaker: Place front and center. This speaker stabilizes the sound image and helps recreate sound motion. Be sure to connect a center speaker when using the Dolby 3 Stereo mode.
Surround speakers : Place to the direct left and right, or slightly behind, the listening position at even heights, approximately 1 meter above the ears of the listeners. These speakers recreate sound motion and atmosphere. Required for surround playback.
Subwoofer: Reproduces powerful deep bass sounds.
- Although the ideal surround system consists of all the speakers listed above, if you don't have a center speaker or a subwoofer, you can divide those signals between the available speakers in the speaker settings steps to obtain the best possible surround reproduction from the speakers you have available.
Preparing the remote control
Loading the batteries
Remove the cover.
Insert the batteries.
Close the cover.
- Insert two AA-size (R6) batteries as indicated by the polarity markings.
Operation
When the STANDBY indicator is lit, the power turns ON when you press the POWER key on the remote control. When the power comes ON, press the key you want to operate.
- When pressing more than one remote control key successively, press the keys securely by leaving an interval of 1 second or more between keys.
Notes
- The supplied batteries may have shorter lives than ordinary batteries due to use during operation checks.
- When the remote-controllable distance gets shorter than before, replace both batteries with new ones.
- Placing the remote sensor in direct sunlight, or in direct light from a high frequency fluorescent lamp may cause a malfunction.
In such a case, change the location of the system installation to prevent malfunction.
Speaker settings
To enable you to obtain optimum enjoyment from the receiver's listening modes, make sure to complete the speaker settings (subwoofer, front, center, and surround speakers) as described below.
Turn on the power to this receiver by pressing POWER and ON/STANDBY key.
2 Select a speaker system.
Press the SET UP key to make the subwoofer setting indication (SUBW) appear.
Use the MULTI CONTROL to select the appropriate subwoofer setting.
① SUBWYES: A subwoofer is connected to the receiver.
② SUBWNO: No subwoofer is connected to the receiver.
- When the setting "SUBW NO" is selected, the front speakers automatically are set to "Large" and the procedure skips to step ⑤.
Press the SET UP key to accept the setting.
- The front speakers setting indication (FRNT) appears.
| SP | R | SW | L | R | S | D | C | T | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z |
Use the MULTI CONTROL to select the appropriate front speakers setting.
① FRNT NML (normal):
Average size front speakers are connected to the receiver.
connected to the receiver. ② FRNT LRG (large): Large front speakers are con- nected to the receiver.
Press the SET UP key to accept the setting.
- The center speaker setting indication (CNTR) appears.
If you selected NML as the front speakers setting.
Use the MULTI CONTROL to select the appropriate center speaker setting.
If you selected LRG as the front speakers setting.
Press the SET UP key to accept the setting.
- The surround speaker setting indication (SURR) appears.
Use the MULTI CONTROL to select the appropriate surround speaker setting.
If you selected LRG as the center speaker setting.
If you'sleterchther thurRGD spelckertanspeabiensetingto the receiver.
9 Press the SET UP key to accept the setting.
- The receiver enters the speaker volume level adjustment mode.
- In steps 8 and 4, indications appear only for the selected channels of the speakers that require adjusting.
Adjust the volume levels for the speakers.
Sit in your normal listening position and listen to the test tone. Adjust the volume levels for the speakers until all speakers seem to be equally loud.
Use the MULTI CONTROL to adjust the volume when the test tone is being output from the speaker channel to be adjusted.
The channel indication blinks while the test tone is being output.
The test tone issues from the speakers for 2 seconds at a time in the following sequence:
Lch Cch Rch RS LS SW Lch
- If you change the volume level settings for the speakers while listening to music, the settings referred to on this page are also changed.
27
- If the speaker setting selects are changed, the speaker level settings are reset.
Press the SET UP key.
- The receiver enters the mode for inputting the distance to the speakers.
Measure the distance from the listening position to each of the speakers.
Jot down the distance to each of the speakers.
Distance to front speakers: feet (meters)
Distance to center speaker: feet (meters)
Distance to surround speakers: feet (meters)
Use the MULTI CONTROL to select the distance to the front speakers.
Press the SET UP key.
Repeat steps 2 and to input the distance for each of the speakers.
Setup is complete when the input indication reappears.
Display when all speakers have been selected.
- The speakers you selected appear on the display. Confirm that all the speakers have been correctly selected.
If the input level of an analog source signal is too high, adjust the input level.
Use the INPUT SELECTOR knob to select the source who's input level you want to adjust.
- You can store a separate input level for each input source. If the MONITOR function is on, you can store an input level for when MONITOR is on independently of the input levels for the input sources.
Press the SOUND key several times until the INPUT indication appears.
Use the MULTI CONTROL to adjust the input level.
- The adjustment mode is displayed for approximately eight seconds.
- The input level may be adjusted to any one of three settings: 0, -3, and -6. (The initial setting is 0.)
Press the SOUND key to return to the input indication.
Normal playback
Preparing for playback
Some preparatory steps are needed before starting playback.
If you have selected a component connected to the CD, DVD, VIDEO2, or VIDEO3 (KRF-V7030D only) jacks, make sure that the input mode setting is correct for the type of audio signal to be used.
Selecting MD/TAPE
Select the source name corresponding to the component connected to the MD/TAPE jacks. The initial factory setting is "TAPE". To change the source name associated with the MD/TAPE jacks to "MD," follow the steps below:
Use the INPUT SELECTOR knob to select TAPE.
Hold down the AUTO key for more than 2 seconds.
The source indication changes to "MD".
- To return to the original indication, repeat the above procedure.
- You also will need to change the name input to the remote control to "MD". RC→
Selecting the speaker system (except for KRF-V5030D/V4530D)
Press the SPEAKERS A or B key to select the speaker system to be used.
A ON : Sound from the speakers connected to the SPEAKERS A terminals on the rear panel.
B ON : Sound from the speakers connected to the SPEAKERS B terminals on the rear panel.
A+B ON : Sound from both the speakers connected to the SPEAKERS A and B terminals on the rear panel.
A+B OFF : No sound from the speakers. Use this setting when listening with headphones for stereo sound and virtual surround in all playback modes.
The indicator for the speakers you want to use should be lit.
KRF-V7030D/V6030D
The speaker indicator lights.
KRF-V5030D/V4530D
- Activating a surround mode or selecting "DVD/6ch" as the input source causes speaker system A to be selected automatically.
On the KRF-V5030D/V4530D, press the SPEAKER key to switch the speakers on and off.
Turning on the receiver
Turn on the power to the related components.
Turn on the power to this receiver by pressing POWER and ON/STANDBY keys.
Listening to a source component
The input sources change as shown below:
Selecting a source using the INPUT SELECTOR knob
KRF-V7030D
① "PHONO" ② "TUNER" ③ "CD/DVD" ④ "TAPE"or"MD" ⑤ "VIDEO1" ⑥ "VIDEO2" ⑦ "VIDEO3" ⑧ "DVD/6ch" ⑨ "AV AUX"
KRF-V6030D/V5030D/V4530D
① "PHONO"
② "TUNER"
③ "CD/DVD"
④ "TAPE" or "MD"
⑤ "VIDEO1"
⑥ "VIDEO2"
⑦ "DVD/6ch"
2 Start playback from the selected source.
Use the VOLUME CONTROL knob (VOLUME keys) to adjust the volume.
SelectingVIDEO2/MONITOR(exceptforKRF-V7030D)
Depending on the component connected to the VIDEO 2/MONITOR jacks, select either the "VIDEO 2" setting or the "MONITOR" setting, as appropriate.
Adjusting the sound
Adjusting the tone
You can adjust the sound quality when the receiver is in the PCM stereo and analog stereo mode.
Press the SOUND key to select the tone mode to be adjusted.
BASS: Select this to adjust the low frequency range. (Press the SOUND key once.)
TREB: Select this to adjust the high frequency range. (Press the SOUND key twice.)
Use the MULTI CONTROL to adjust the sound quality.
- The bass and treble levels are adjustable from -10 to +10 in 2 step increments.
- The adjustment item is displayed for approximately 8 seconds.
Once-touch low frequency emphasis (bass boost)
You can adjust the sound quality when the receiver is in the PCM stereo and analog stereo mode.
Press the B. BOOST (BASS BOOST) key.
- Press the key once to select the maximum (+10) low frequency emphasis setting.
- This key does not function when the receiver is in the sound quality or ambience effects adjustment mode.
Switching back to the previous setting
Press the B. BOOST (BASS BOOST) key again.
Muting the sound
The MUTE key lets you mute the sound of the speakers.
Press the MUTE key.
Blinks
To cancel
Press the MUTE key again so that the MUTE indicator goes off.
- Muting can also be canceled by adjusting the volume.
SOURCE DIRECT playback (analog sources only)
Use this function to pass the source material direct to the amplifier, bypassing any audio processing.
Press the SOURCE DIRECT key.
- When you press the LISTEN MODE, SOUND, or SETUP keys, or switch to another input source, SOURCE DIRECT playback will be canceled.
To cancel
Press the SOURCE DIRECT key again.
- If SOURCE DIRECT playback was activated when using a surround mode, cancelling it reactivates the previous surround mode.
Listening with headphones
1 (KRF-V7030D/V6030D)
Press the SPEAKERS A or B key so that the speaker indicator goes off.
(KRF-V503ODV453OD)
Press the SPEAKER key so that the speaker indicator goes off.
Make sure the SPEAKERS indicators are turned off.
KRF-V7030D/V6030D
Make sure the SP indicators are turned off.
KRF-V5030D/V4530D
- If you turn off all of the speakers when in the surround mode, the mode is cancelled as well, resulting in stereo playback.
- The speakers do not switch off during the 6CH INPUT mode. Select the other input mode.
Connect headphones to the PHONES jack.
Use the VOLUME CONTROL (VOLUME) to adjust the volume.
Recording audio (analog sources)
Recording a music source
When recording a music source, switch theVIDEO2MONITOR setting to MONITOR (KRF-V6030D/V5030D/V4530D only).
Use the INPUT SELECTOR knob to select the source (other than MD/ TAPE) you want to record.
Set the cassette deck to record.
Start playback, then start recording.
Recording tapes
When recording a music source, switch theVIDEO2MONITOR setting to MONITOR (KRF-V6030D/V5030D/V4530D only).
MONITOR MD/TAPE recording
Press the MONITOR key.
Use the INPUT SELECTOR knob to select a source other than MD/ TAPE.
- Start playback on the cassette deck connected to the MONITOR jacks and start recording on the cassette deck connected to the MD/TAPE jacks.
MD/TAPE MONITOR recording
Use the INPUT SELECTOR knob to select MD/TAPE.
Start playback on the cassette deck connected to the MD/TAPE jacks and start recording on the cassette deck connected to the VIDEO2MONITOR jacks.
- To copy tapes using a double cassette deck, refer to the instruction manual of the double cassette deck.
MONITOR function (analog sources only)
You can connect a cassette deck or graphic equalizer to the VIDEO2/MONITOR jacks of the receiver. If a graphic equalizer is connected, the MONITOR key should be left in the on position. Alternately, if a cassette deck equipped with a 3-head system is connected to the VIDEO2/MONITOR jacks, you will be able to monitor the just-recorded signal while making recordings on the cassette deck. By switching the MONITOR key on and off, you can compare the sound of the source signal and the just-recorded signal. For more information, refer to the instruction manual of the connected component.
Recording video
Use the INPUT SELECTOR to select the video source (other than Video1) you want to record.
Set the video deck connected to VIDEO 1 to record.
- Select the REC MODE to record a digital input source.
Start playback, then start recording.
- With certain video software, recording may not be normal due to the copy guard condition.
Recording audio (digital sources)
Switch on the REC MODE to record a digital input source.
Usually use the A-REC MODE to record audio input sources.
When the digital mode changes during recording in the A-REC MODE, the audio may be interrupted momentarily. To record the audio from the beginning of the digital mode change, use the M-REC MODE.
With a model that is not compatible with DTS, no audio is reproduced even when the DTS signals are input.
Recording music in A-REC MODE
Use the INPUT SELECTOR to select the source (CD, DVD, VIDEO2, or VIDEO3) you want to record.
Set the cassette deck to record.
Press and hold the DIMMER key for more than 2 seconds to select the A-REC MODE.
- The mode changes every 2 seconds as shown below.
① REC MODE off:
②A-REC MODE：
③M-REC MODE：
The digital input record mode is switched off.
The digital input signals (DTS, Dolby Digital, or PCM) are identified automatically and converted into stereo signals that are ready for recording.
The input signal type at the moment this mode is selected is held throughout this mode.
Start playback, then start recording.
- If the audio reproduction stops in the middle due to change in the input signals, etc., press the DIMMER key.
Recording music in M-REC MODE
Use the input selector to select the source (CD, DVD,VIDEO2, orVIDEO3) you want to record.
Set the cassette deck to record.
Play the source to be recorded.
Press and hold the DIMMER key for more than 2 seconds to select the M-REC MODE.
- The mode changes every 2 seconds as shown below.
The digital input record mode is switched off.
The digital input signals (DTS, Dolby Digital or PCM) are identified automatically and converted into stereo signals that are ready for recording.
The input signal type at the moment this mode is selected is held throughout this mode.
Play the source from the beginning and start recording.
- If the audio reproduction stops in the middle due to change in the input signals, etc., press the DIMMER key.
Tuning (non-RDS) radio stations
Radio stations can be classified into RDS (Radio Data System) stations and other stations. To listen to or store RDS stations in the preset memory, see the section entitled, "Using RDS".
Use the INPUT SELECTOR or TUNER key to select the tuner.
Use the BAND key to select the desired broadcast band.
Each press switches the band as follows:
Use the AUTO key to select the desired tuning method.
Each press switches the tuning method as follows:
- Normally, set to "AUTO" (auto tuning). If the radio waves are weak and there is a lot of interference, switch to manual tuning. (With manual tuning, stereo broadcasts will be received in monaural.)
Use the MULTI CONTROL to select the station.
Frequency Lights when a broadcast is display being received in stereo.
"TUNED" is displayed when a station is received
Auto tuning : The next station is tuned automatically.
Manual tuning: Turn the knob (press the key) to select the desired station.
Using RDS (Radio Data System)
RDS is a system that transmits useful information (in the form of digital data) for FM broadcasts along with the broadcast signal. Tuners and receivers designed for RDS reception can extract the information from the broadcast signal for use with various functions, such as automatic display of the station name.
RDS functions:
PTY (Program Type Identification) Search
-23
Automatically tunes to a station that is currently broadcasting the specified program type (genre).
PS (Program Service Name) Display Automatically displays the station name transmitted by the RDS station.
RDS Auto Memory function 21 Automatically selects and stores up to 40 RDS stations in the preset memory.
If fewer than 40 RDS stations have been stored in the preset memory, regular FM stations will be stored in the remaining places.
Radio text function
Displays the radio text data transmitted by some RDS stations when you press the DISPLAY key. There is no display if no text data was transmitted.
The "RDS" indicator lights up when an RDS broadcast (signal) is received.
Note
Some functions and function names may differ for certain countries and areas.
Before using a function utilizing the RDS, be sure to perform the RDS Auto Memory operation by referring to the description in "Presetting RDS stations (RDS AUTO MEMORY)".
Using the DISPLAY key
Pressing the DISPLAY key changes the contents of the display.
Each press switches the display mode as follows:
PS (Program Service name) display:
The station name is displayed automatically when an RDS broadcast is received,
If no PS data was sent, "NO PS" is displayed.
RT (Radio Text) display:
Text data accompanying the RDS broadcast scrolls across the display. "NOR" or "RT----" is displayed if the current RDS station does not provide RT data.
Frequency display:
Displays the frequency of the current station.
| SP | L | R | FM | AM10 |
| RDS | SW | MHz STEREO | ST10 |
Preseting RDS stations (RDS AUTO MEMORY)
This function automatically stores up to 40 RDS stations in the preset memory. In order to use the PTY function, the RDS stations must be stored in the preset memory using the RDS AUTO MEMORY function.
Use the INPUT SELECTOR to select the tuner.
Use the BAND key to set the broadcast band to "FM".
Press and hold the MEMORY key for more than 2 seconds.
- After a few minutes, up to 40 RDS stations are preset in order from channel "01".
- Stations already stored in the preset memory may be replaced by RDS stations. (i.e., If the RDS AUTO MEMORY function finds 15 RDS stations, the stations currently preset at numbers 01 15 are replaced by the RDS stations.)
Presetting radio stations manually
The RDS auto memory function assigns preset numbers to RDS stations starting from preset number "1". Therefore, be sure to execute the RDS auto memory function before using the following operations to manually store AM stations and other FM stations, and RDS stations.
"Presetting RDS stations (RDS AUTO MEMORY)".
21
Tune to the station you want to store.
Press the MEMORY key while receiving the station.
Proceed to step within 5 seconds. (If more than 5 seconds elapse, press the MEMORY key again).
Use the MULTI CONTROL to select one of the station presets (1-40).
4 Press the MEMORY key to accept the setting.
- Repeat steps 1, 2, 3, and 4 to store as many stations as necessary.
- If you store a station at a previously used preset, the old station will be replaced by the new one.
Receiving preset stations
Press TUNER to select the tuner as the source.
Enter the number of the preset you want to receive (up to "40").
Press the numeric keys in the following order:
$$
\begin{array}{l} \text {F o r ＂ 1 5 ＂ , p r e s s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .} \ \text {F o r ＂ 2 0 ＂ , p r e s s .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ...}. \end{array}
$$
- If you make a mistake entering a two digit number, press the +10key several times to return to the original display and start again.
Receiving preset stations in order (P.CALL)
Press TUNER to select the tuner as the source.
Use the P.CALL keys to select the desired station.
Each time you press the key, another preset station is received in order.
$$
\begin{array}{l} \text {P r e s s i n g t h e P . C A L L ()} \text {k e y d o e s t h e f o l l o w i n g} \ 0 1 \rightarrow 0 2 \rightarrow 0 3 \rightarrow \dots \dots \dots 3 8 \rightarrow 3 9 \rightarrow 4 0 \rightarrow 0 1 \rightarrow 0 2 \rightarrow 0 3 \rightarrow \ \end{array}
$$
$$
\begin{array}{l} \text {P r e s s i n g t h e P . C A L L} (\triangleleft) \text {k e y d o e s f o l l o w i n g} \ 0 1 \leftarrow 0 2 \leftarrow 0 3 \leftarrow \dots \dots \dots 3 8 \leftarrow 3 9 \leftarrow 4 0 \leftarrow 0 1 \leftarrow 0 2 \leftarrow 0 3 \leftarrow \ \end{array}
$$
Holding down the key, lets you skip through the presets, receiving each for 0.5 seconds apiece.
Tuning by program type (PTY search)
This function lets you set the tuner to automatically search for stations which are currently broadcasting the type of program (genre) you want to listen to.
Under certain receiving conditions, it may take more than 1 minute to complete the search.
Preparations
- Execute the RDS auto memory procedure.
- Set the broadcast band to FM.
- Tune to an RDS station.
Press the PTY key to activate the PTY search mode.
When an RDS broadcast is received, the program type is shown on the display. If no PTY data is available, or if the station is not an RDS station, "NONE" is displayed.
2 While the "PTY" indicator is lit, use the P.CALL keys to select the program type of your choice.
Program type table
| Program Type Name | Display | Program Type Name | Display |
| News | NEWS | Weather | WEATHER |
| Current Affairs | AFFAIRS | Finance | FINANCE |
| Information | INFO | Children's programmes | CHILDREN |
| Sport | SPORT | Social affairs | SOCIAL |
| Education | EDUCATE | Religion | RELIGION |
| Drama | DRAMA | Phone In | PHONE IN |
| Culture | CULTURE | Travel | TRAVEL |
| Science | SCIENCE | Leisure | LEISURE |
| Varied Speech | VARIED | Jazz music | JAZZ |
| Pop Music | POP M | Country Music | COUNTRY |
| Rock Music | ROCK M | National Music | NATION M |
| Easy Music | EASY M | Oldies Music | OLDIES |
| Light Classical Music | LIGHT M | Folk Music | FOLK M |
| Serious Classical Music | CLASSICS | Documentary | DOCUMENT |
| Other Music | OTHER M | | |
NO PROG is displayed if this operation is attempted before performing the RDS Auto Memory operation.
Press the PTY key to start searching.
EXAMPLE: Searching for a Rock Music broadcast.
Display while searching
Display when a station is received.
Station name display
- No sound is heard while "PTY" is blinking.
- If the desired program type cannot be found, "NO PROG" is displayed, then after several seconds the display returns to the original display.
To select another program type
Repeat steps 1, 2 and 3.
This receiver is equipped with listening modes that allow you to enjoy an enhanced sonic ambience with a variety of video sources. In order to obtain the optimum effect from the surround modes, make sure to input the proper speaker settings beforehand.
Surround modes
DTS (KRF-V7030D only)
The DTS multi-channel audio format is available on CD, LD and DVD software. DTS is a strictly digital format and can not be decoded inside most CD, LD or DVD players. For this reason, if you attempt to listen to DTS encoded software through the analog output of your new CD, LD or DVD player, you will experience digital noise in most cases. This noise can be quite loud if the analog output is connected directly to a high power amplification system. Proper measures for playing the digital output as described below should be taken to avoid this situation. To enjoy DTS Digital Surround playback, an external 5.1 channel DTS Digital Surround decoder system or an amplifier with a built-in DTS Digital Surround decoder must be connected to the digital output (S/P DIF, AES/EBU or TosLink) of a CD, LD or DVD player. KRF-7030D is incorporate the DTS decoder.
- LFE = Low Frequency Effects. This channel delivers separate non-directional bass signals to the subwoofer for more dynamic deep bass sound effects.
DTS has a .1 or LFE channel.
The indication "LFE" appears in the display when a signal is being input for this channel.
Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic" and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. ©1992-1997 Dolby Laboratories. All rights reserved.
Manufactured under license from Digital Theater Systems, Inc. US Pal. No. 5,451,942 and other worldwide patents issues and pending. "DTS" and "DTS Digital Surround" are trademarks of Digital Theater Systems, Inc. © 1996 Digital Theater Systems, Inc. All rights reserved.
Dolby Digital (AC-3)
The Dolby Digital (AC-3) surround format lets you enjoy up to 5.1 channels of digital surround sound from Dolby Digital (AC-3) program sources (such as Laserdisc or DVD software marked DOLBY). Compared with previous Dolby surround, Dolby Digital (AC-3) provides even better sound quality, greater spatial accuracy, and improved dynamic range.
Note
Although a full set of speakers (front left, right, and center, surround left and right, and a subwoofer) is required for true 5.1 channel Dolby Digital (AC-3) surround sound, this receiver lets you enjoy Dolby Digital (AC-3) (and Dolby Surround) program sources, even if you connect only the front speakers. ("Speaker placement")
- LFE = Low Frequency Effects. This channel delivers separate non-directional bass signals to the subwoofer for more dynamic deep bass sound effects.
Although only Dolby Digital (AC-3) soundtracks incorporate a separate low frequency channel, connecting a subwoofer will also improve deep bass performance in the other surround modes.
The indication "LFE" appears in the display when a signal is being input for this channel.
Dolby Pro Logic
Dolby Pro Logic is a specially encoded 2 channel surround format designed to provide theater-like surround sound from Dolby Surround encoded sources (such as video and Laserdisc software marked DOLBY SURROUND). This receiver is equipped with a Dolby Pro Logic surround decoder to let you enjoy the wide variety of currently available Dolby Surround home video software.
Dolby 3 Stereo
Dolby 3 Stereo is available for systems that do not have surround speakers. When in the Dolby 3 Stereo mode, the surround information is redirected to the front left and right speakers. This mode is designed for use with Dolby Surround program sources, but can also improve sound field unity for programs that are not Dolby Surround encoded. Dialog positioning and sound image definition, however, may not be as accurate when used with programs that are not Dolby Surround encoded.
DVD 6-channel mode
Using a DVD player or the like equipped with six (5.1) output channels and the receiver, you can enjoy multi-channel encoded DVD source material in all its splendor. Since the source signals are digital and each channel is input independently, the resulting sound quality, sense of spaciousness, and dynamic range are superb.
- LFE = Low Frequency Effects. This channel delivers separate non-directional bass signals to the subwoofer for more dynamic deep bass sound effects.
The indication "LFE" appears in the display when a signal is being input for this channel.
Surround Play
The DTS compatible models can reproduce a CD, DVD, or LD carrying the DTS mark. (KRF-V7030D only)
DOLBY DIGITAL can be used when playing DVD or LD software bearing the DOLBY mark and DOLBY DIGITAL (AC-3) format digital broadcasts (etc.). DOLBY PRO LOGIC and DOLBY 3 STEREO can be used when playing video, DVD, or LD software bearing the DOLBY SURROUND mark.
Preparations
- Turn ON related components.
- Complete "Preparing for surround sound" (speaker settings).
- Use the INPUT SELECTOR to select the component you wish to play back with surround sound.
- Use the INPUT MODE key to select the input mode (analog or digital) for the source you wish to play back.
- Noise will be produced when a DTS source is played by selecting the analog input.
1 Start playing the video software.
Press the LISTEN MODE (LSTN.M) key to select the listening mode.
The listening mode settings are stored separately for each input. If the input mode is set to digital auto ("AUTO SOUND" lights), the receiver selects the optimal listening mode automatically based on the type of input signal and the speaker settings.
Each press of the LISTEN MODE (LSTN.M) key switches the setting as listed below.
The listening mode settings are different depending on the type of input signal.
(The DOLBY DIGITAL, PROLOGIC, or 3 STEREO indicator lights up.)
1DOLBY DIGITAL: DOLBY DIGITAL surround
②PRO LOGIC: PRO LOGIC surround
③3STEREO: 3-STEREO surround
④STEREO: Normal stereo playback
When you select DOLBY DIGAITAL
(The DTS indicator lights up.)
DTS: DTS surround
②STEREO: Normal stereo playback
① PRO LOGIC: PRO LOGIC surround (The PRO LOGIC indicator lights up.)
(2)3STEREO: 3-STEREO surround (The 3 STEREO indicator lights up.)
③STEREO: Normal stereo playback
- If a Dolby Digital signal having more channels than the maximum number of playback channels available using the receiver's current settings is input, the DOWN MIX indicator on the front panel lights up and downmixing is performed to match the number of available channels.
Adjust the volume.
Notes
- Depending on the type of the signal or speaker setting, some listening modes cannot be selected.
- When playback is started, the sound may be cut or interrupted before the input source is confirmed as Dolby Digital.
- To enjoy Dolby Digital (AC-3) surround (as well as all the other listening modes) from a single component, be sure to use a Dolby Digital (AC-3) compatible source component. Connect the Dolby Digital (AC-3) compatible source component's Dolby Digital (AC-3) format digital audio signal to one of the DIGITAL INPUT jacks on the back of the receiver. Connect the normal audio signal correctly to the respective component's AUDIO jacks.
DVD 6-channel playback
Using a DVD player or the like equipped with six (5.1) output channels and the receiver, you can enjoy surround sound playback.
When you try to play a disc other than Dolby Digital (AC-3) such as DTS CD, no sound is produced or, noise may be heard. To avoid this situation, make sure that you connect the component to the receiver's DVD 6CH. INPUT jacks through a surround processor which can decode the surround signal you want to listen to.
Connecting a DVD player which can decode the surround signal itself is also acceptable.
Preparations
- Connect your DVD player to the DVD 6ch jacks of the receiver.
- Turn on all other components that will be used.
- Complete "Preparing for surround sound".
15
- If speaker system B is on when "DVD/6ch" is selected as the input source, it switches off and speaker system A turns on automatically.
Start playback of the DVD software.
Adjust the volume.
- It is not possible individually to adjust the volume level or sound quality (SET UP, SOUND) of the separate channels when the receiver is in the DVD 6ch mode. Adjust the volume with the controls of the DVD player. For the powered subwoofer, you can adjust the volume of the subwoofer using the subwoofer's own volume control.
(KRF-V5030D/V4530D only)
When you press the POWER (DVD) key and the DVD player does not turn on, press the 1 or 2 key during pressing the POWER (DVD) key.
Convenient functions
Adjusting the sound
You can make further adjustments to the sound while listening to playback in the surround mode.
Press the SOUND key to select the item you want to adjust.
Each press switches the selection as listed below. Note that some items are not displayed in certain modes.
| ①BASS (low frequency range sound quality adjustment) | -17 |
| ②TREB (high frequency range sound quality adjustment) | -17 |
| ③Cch(center speaker level adjustment) | |
| ④RS (right surround speaker level adjustment) | |
| ⑤LS (left surround speaker level adjustment) | |
| ⑥SW (subwoofer level adjustment) | |
| ⑦INPUT (input level adjustment) | -16 |
| ⑧NIGHT (midnight mode on/off) | |
Use the MULTI CONTROL to adjust the setting as desired.
- The adjustment item is displayed for approximately 8 seconds.
Midnight mode (Dolby Digital (AC-3) mode only)
When watching movies at night, you might not be able to raise the volume as loud as normal. Midnight mode compresses the dynamic range of previously specified parts of the Dolby Digital (AC-3) sound track (like scenes with sudden increases in volume) to minimize the difference in volume between the specified and non-specified parts. This makes it easy to hear all of the sound track, even when listening at low volumes.
Press the SOUND key several times until "NIGHT" is displayed.
- This can be selected only if DVD,VIDEO2 orVIDEO3 is selected as the source and the listen mode is set to "DOLBY DIGITAL."
Use the MULTI CONTROL to select the on or off setting.
- The adjustment item is displayed for approximately 8 seconds.
- Some Dolby Digital (AC-3) software may not be compatible with the Midnight mode.
Display dimmer adjustment
The dimmer function lets you select the brightness of the receiver's display. You might find this useful if you darken your room to watch movies or listen to music.
Each time you press the DIMMER key, the display brightness changes among the three available settings. Select the brightness level you find most pleasing.
96kHz LPCM playback
The receiver is compatible with the 96kHz LPCM playback. To play a 96kHz DVD, set the listen mode to "STEREO."
- When "96kHz" appears in the display, press the LISTEN MODE key (the listen mode changes to the STEREO mode).
Resetting the Microcomputer
If the microcomputer may malfunction (unit cannot be operated, or shows an erroneous display) if the power cord is unplugged while the power is ON, or due to some other external factor. If this happens, execute the following procedure to reset the microcomputer and return the unit to its normal operating condition.
With the power cord plugged in, turn the POWER key OFF. Then, while holding down the ON/STANDBY key, press POWER.
- Please note that resetting the microcomputer will clear the contents of the memory and returns the unit to the state it was in when it left the factory.
Amplifier
| Symptom | Cause | Remedy |
| No sound from the speakers. | ·The speaker cords are disconnected.
·VOLUME is set to the minimum position.
·MUTE is ON.
·The SPEAKERS switches are set to OFF. | ·Connect them properly referring to “Connecting the speakers” →13
·Adjust the volume to a proper level.
·Turn OFF the MUTE. →18
·Set the SPEAKERS switch(es) to ON. →16 |
| The standby indicator blinks and sound is not output. | ·Speaker cords are short-circuited. | ·Turn the power off, eliminate the short-circuit-ing, then turn on the power again. |
| Sound is not output from one of the speakers. | ·The speaker cord is disconnected. | ·Connect it properly referring to “Connecting the speakers”. →13 |
| Sound is not output from the surround
speakers and/or the center speaker, or their sound is
very small. | ·The surround speaker cords and/or the center
speaker cord is disconnected.
·A surround mode has not been engaged.
·The surround and/or center volume controls are
set to the minimum level. | ·Connect it properly referring to “Connecting the speakers” →13
·Select a surround mode.
·Adjust the speaker levels using the test tone. →15 |
| A humming noise is generated when the PHONO input selector is selected. | ·The audio cord from the turntable is not con-
nected to the PHONO jacks.
·The turntable is not grounded. | ·Insert the audio cord plugs securely into the PHONO jacks.
·Connect the grounding wire to the GND termini-
nal on the rear panel. |
| When playing a Dolby Digital (AC-3) source signal
using a DVD player, the sound is cut off soon after it
starts. | ·There are many possible causes for this prob-
lem, depending on the type of DVD player used. | ·Set the input mode to digital manual before
starting playback of the Dolby Digital source. →10 |
| No sound is produced during playback from a DVD
player. | ·The input mode is set to digital manual. | ·Press the INPUT MODE key to select to digital
auto mode. →10 |
| A video source cannot be recorded normally. | ·The software is copy-guarded. | ·Copy-guarded video software cannot be re-
corded. |
| No audio is produced when a DTS source is played
(except for KRF-7080D) | ·The model does not incorporate a DTS decoder. | ·DTS sources cannot be reproduced with a model
that does not incorporate a DTS decoder. |
Tuner
| Symptom | Cause | Remedy |
| Radio stations cannot be received. | • No antenna is connected.
• The broadcast band is not set properly.
• The frequency of the desired station is not tuned. | • Connect an antenna.
→11
• Set the broadcast band properly.
• Tune the frequency of the desired station.
→20 |
| Interference. | • Noise due to ignition noise from an automobile.
• Noise due to interference from an electric appliance.
• Noise due to a nearby TV set. | • Install the outdoor antenna away from the road.
• Turn off the power to the appliance.
• Install the receiver farther away from the TV. |
| A station which was preset cannot be received by pressing the corresponding numeric key. | • The preset station belongs to a frequency that cannot be received.
• The preset memory was cleared because the power cord had been unplugged for a long period of time. | • Preset a station with a receivable frequency.
• Preset the station again. |
AUDIO section (KRF-V7030D/V6030D)
Rated power output during STEREO operation DIN/EC (DIN 1kHz, 0.7% T.H.D., at 4 100W + 100W
Effective power output during SURROUND operation
FRONT (1kHz, 0.7% T.H.D. at 4 Ω, one channel driven)
100W + 100W
CENTER (1kHz, 0.7% T.H.D. at 4 Ω, one channel driven)
100W
SURROUND (1kHz, 0.7% T.H.D. at 4 Ω, one channel driven)
100W + 100W
Total harmonic distortion. 0.055% (1 kHz, 50W, 4Ω)
Frequency response (IHF '66) CD 13Hz 53kHz, +0dB, 30dB
Signal to noise ratio (IHF 66)
PHONO (MM) 75 dB
CD 91 dB
Input sensitivity / impedance
PHONO (MM) 2.5mV/27kΩ
CD 200mV/47kΩ
MONITOR IN (KRF-V6030D:VIDEO2/MONITOR) 200mV/47kΩ
Output level /impedance
TAPE REC 200mV/1kΩ
MONITOR OUT (KRF-V6030D:VIDEO2/MONITOR) 200mV/1kΩ
PRE OUT (SUBWOOFER) 2V/22kΩ
Tone control BASS 10dB (at 100Hz TREBLE 10dB (at 10kHz
AUDIO section (KRF-V5030D/V4530D)
Rated power output during STEREO operation (KRF-V503OD) DIN/EC (DIN 1 kHz, 0.7% 4Ω) .80W + 80W Rated power output during STEREO operation (KRF-V453OD) DIN/EC (DIN 1 kHz, 0.7% THD, 4Ω) .60W + 60W
Effective power output during SURROUND operation (KRF-V5030D) FRONT (1kHz, 0.7% T.H.D.at 4 , one channel driven) .80W+80W
CENTER (1kHz, 0.7% T.H.D. at 4Ω, one channel driven)
80W
SURROUND (1kHz, 0.7% T.H.D. at 4Ω, one channel driven)
80W + 80W
Effective power output during SURROUND operation (KRF-V4530D) FRONT (1kHz, 0.7% T.H.D.at 4 , one channel driven) .60W+60W
CENTER (1kHz, 0.7% T.H.D. at 4Ω, one channel driven)
60W
SURROUND (1kHz, 0.7% T.H.D. at 4Ω, one channel driven)
60W + 60W
Total harmonic distortion (KRF-V5030D) 0.055% (1 kHz, 40W, 4Ω)
Total harmonic distortion (KRF-V4530D) 0.04% (1 kHz, 30W, 4Ω)
Frequency response (IHF '66) CD 13Hz 53kHz, +0dB, 3.0dB
Signal to noise ratio (IHF 66)
PHONO (MM) 75 dB
CD 91 dB
Input sensitivity / impedance
PHONO (MM) 2.5mV/27kΩ
CD 200mV/47kΩ
MONITOR IN (VIDEO2MONITOR) 200mV/47kΩ
Output level /impedance
TAPE REC 200mV/1kΩ
MONITOR OUT (VIDEO2/MONITOR) 200mV/1kΩ
PRE OUT (SUBWOOFER) 2V/2.2kΩ
Tone control BASS 10dB (at 100Hz TREBLE 10dB (at 10kHz
DIGITAL AUDIO section
Sampling frequency 32kHz, 44.1 kHz, 48kHz, 96kHz Input level /impedance /wave length
Optical . -15dBm -21 dBm), 660 nm 30nm Coaxial . 0.5Vpp / 75
VIDEO section
VIDEO inputs /outputs
VIDEO (composite) 1 Vp-p/75Ω
SVIDEO (KRF-V7030D only)
(luminance signal) 1 Vp-p/75Ω
(chrominance signal) 0.286 Vp-p/75Ω
FM tuner section
Tuning frequency range. 87.5MHz 108MHz
Usable sensitivity (DIN at 75Ω)
MONO 1.2 V/13.2 dBf (40kHz dev. S/N 26 dB)
STEREO 45 V/42.1 dBf (46kHz dev. S/N 46 dB)
Total harmonic distortion (1 kHz)
MONO 0.2% (65.2 dBf input)
STEREO 0.8% (65.2 dBf input)
Signal to noise ratio (DIN weighted)
MONO 65 dB (40 kHz dev. 65.2 dBf input)
STEREO 60 dB (46 kHz dev. 65.2 dBf input)
Stereoseparation(DIN1kHz) 36dB Selectivity(DIN 300kHz 64dB
Frequency response (30Hz 15kHz), +0.5 dB, 30 dB
AM tuner section
Tuning frequency range. 531 kHz 1,602 kHz
Usable sensitivity. 16 V/(600 V/m)
Signal to noise ratio (30% mod 1 mV input) 50 dB
GENERAL
Power consumption KRF-V5030D 220W KRF-V7030D/V6030D 250W
AC outlet SWITCHED... (total 90W max.)
Dimensions. W: 440mm H: 143mm D: 400mm Weight .89kg
MEMO
KENWOOD
For your records
Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your dealer for information or service on this product.
