SCARABEO 50 4T - Scooter APRILIA - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Scooter 50cc à quatre temps
Moteur	Moteur monocylindre 4 temps, refroidi par air
Cylindrée	49,9 cm³
Puissance maximale	2,6 kW (3,5 ch) à 8 000 tr/min
Transmission	Automatique, variateur
Consommation de carburant	Environ 2,5 L/100 km
Capacité du réservoir	7 litres
Dimensions (L x l x H)	1 850 mm x 700 mm x 1 130 mm
Poids	90 kg
Freins avant	Disque de 220 mm
Freins arrière	Tambour de 140 mm
Suspension avant	Fourche télescopique
Suspension arrière	Amortisseur unique réglable
Type de pneus	Avant : 120/70-14, Arrière : 140/60-14
Éclairage	Phare avant halogène, feux arrière LED
Capacité de charge	150 kg
Entretien et nettoyage	Changement d'huile tous les 2 000 km, nettoyage du filtre à air
Pièces détachées et réparabilité	Disponibilité élevée des pièces, facilité de réparation
Sécurité	Équipements de sécurité conformes aux normes, antivol recommandé
Informations générales	Idéal pour la ville, économique, permis A1 ou B requis

FOIRE AUX QUESTIONS - SCARABEO 50 4T APRILIA

Comment démarrer mon APRILIA SCARABEO 50 4T ?

Pour démarrer votre APRILIA SCARABEO 50 4T, assurez-vous que le scooter est sur une surface plane, tournez la clé de contact en position 'ON', tirez le frein arrière, puis appuyez sur le bouton de démarrage.

Que faire si le moteur ne démarre pas ?

Vérifiez si la batterie est chargée, si le réservoir est plein et si le coupe-circuit n'est pas activé. Si le problème persiste, consultez un mécanicien.

Comment vérifier le niveau d'huile ?

Pour vérifier le niveau d'huile, placez le scooter sur une surface plane, retirez la jauge d'huile, essuyez-la, puis réinsérez-la sans la visser. Retirez-la à nouveau et vérifiez le niveau d'huile.

Quand dois-je changer l'huile moteur ?

Il est recommandé de changer l'huile moteur tous les 2 000 à 3 000 kilomètres ou tous les 6 mois, selon l'utilisation.

Que faire si les freins ne fonctionnent pas correctement ?

Si les freins semblent faibles ou font du bruit, vérifiez le niveau de liquide de frein et l'usure des plaquettes. Si nécessaire, remplacez-les ou consultez un professionnel.

Comment régler le carburateur ?

Pour régler le carburateur, localisez les vis de richesse et de ralenti. Tournez-les légèrement dans le sens horaire ou antihoraire tout en écoutant le moteur. Ajustez jusqu'à ce que le moteur tourne de manière fluide.

Quelle pression des pneus dois-je maintenir ?

La pression recommandée des pneus pour l'APrilia Scarabeo 50 4T est généralement de 2,0 bars à l'avant et de 2,2 bars à l'arrière. Vérifiez le manuel pour des informations spécifiques.

Comment nettoyer le filtre à air ?

Pour nettoyer le filtre à air, retirez le couvercle du filtre, sortez le filtre, puis nettoyez-le avec de l'air comprimé ou de l'eau savonneuse. Assurez-vous qu'il est complètement sec avant de le réinstaller.

Où puis-je trouver des pièces de rechange ?

Les pièces de rechange pour l'APrilia Scarabeo 50 4T peuvent être trouvées chez les concessionnaires APRILIA, dans les magasins de pièces de scooter ou en ligne sur des sites spécialisés.

Comment prolonger la durée de vie de ma batterie ?

Pour prolonger la durée de vie de votre batterie, assurez-vous de la charger régulièrement, évitez les décharges profondes et nettoyez les bornes pour éviter la corrosion.

MODE D'EMPLOI SCARABEO 50 4T APRILIA

APRILIA WOULD LIKE TO THANK YOU

for choosing one of its products. We have drawn up this manual to provide a comprehensive overview of your vehicle's quality features. Please read it carefully before riding the scooter for the first time. It contains information, tips and precautions for using your vehicle. It also describes features, details and devices to assure you that you have made the right choice. We believe that if you follow our suggestions, you will soon get to know your new vehicle well and will use it for a long time at full satisfaction. This booklet is an integral part of the vehicle, and should the vehicle be sold, it must be transferred to the new owner.

SCARABEO 50 4T

aprilia

The instructions in this manual are intended to provide a clear, simple guide to using your scooter; brief descriptions of maintenance procedures and periodical controls to be carried out on the vehicle by authorised Aprilia Dealers or Workshops have been also included. The booklet also contains instructions for simple repairs. Any operations not specifically described in this manual require the use of special tools and/or particular technical knowledge: for these operations, please take your scooter to an authorised Aprilia Dealer or Workshop.

Personal safety

Failure to completely observe these instructions will result in serious risk of personal injury.

Safeguarding the environment

Sections marked with this symbol indicate the correct use of the vehicle to prevent damaging the environment.

Vehicle intactness

The incomplete or non-observance of these regulations leads to the risk of serious damage to the vehicle and sometimes even the invalidity of the guarantee.

The recommendations above are very important. They are used to highlight those parts of the booklet that should be read with particular care. As you can see, each sign consists of a different graphic symbol, making it quick and easy to locate the various topics. Before starting the engine, read this manual carefully, particularly the "SAFE RIDING" section. Your safety as well as other's does not only depend on the quickness of your reflexes and agility, but also on how well you know your scooter, its efficiency and your knowledge of the rules for SAFE RIDING. For your safety, get to know your scooter well so as to safely ride and master it in road traffic IMPORTANT This booklet is an integral part of the vehicle, and should the vehicle be sold, it must be transferred to the new owner.

SCARABEO

50 4T

aprilia

INDEX

INDEX

Chap. 01 Vehicle
Chap. 02 . Use
Chap. 03 Maintenance
Chap. 04 Technical data
Chap. 05 Programmed maintenance
Chap. 06 . Special fittings

SCARABEO

50 4T

aprilia

Chap. 01

Vehicle

01_01

01_02

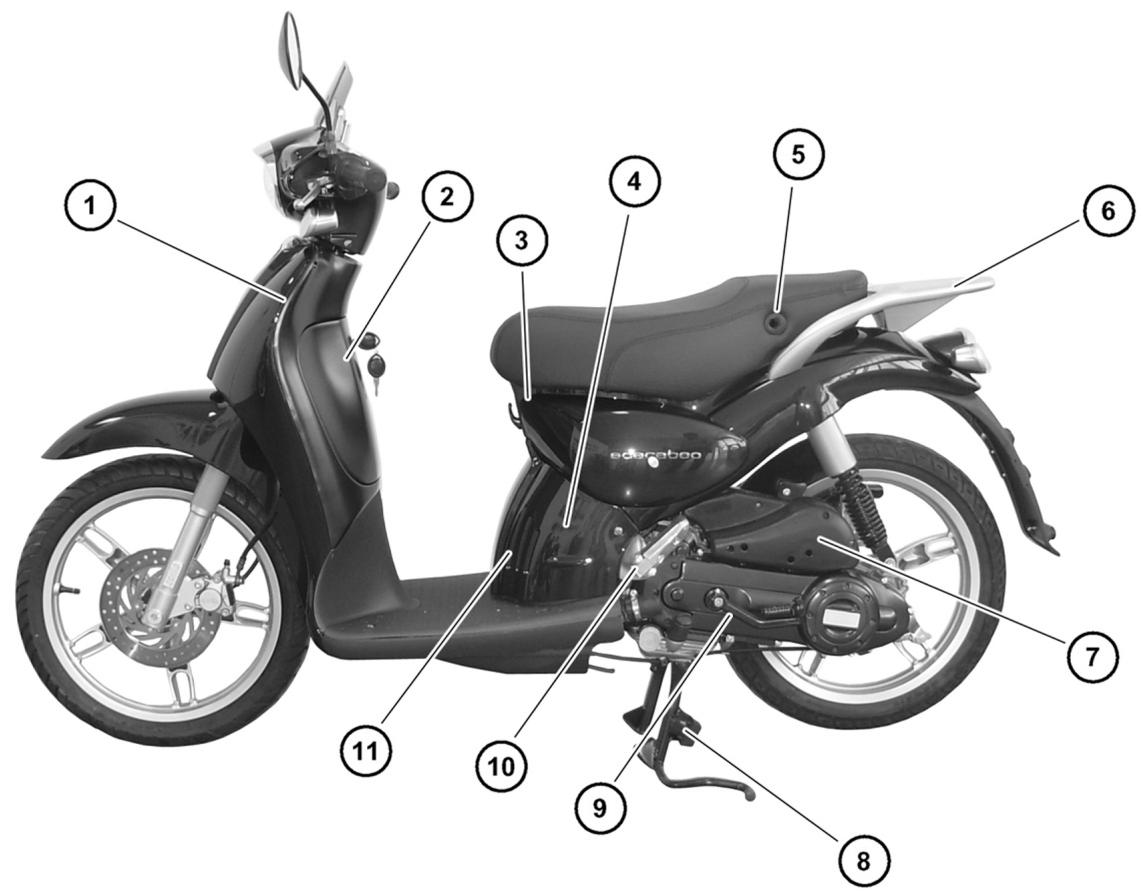

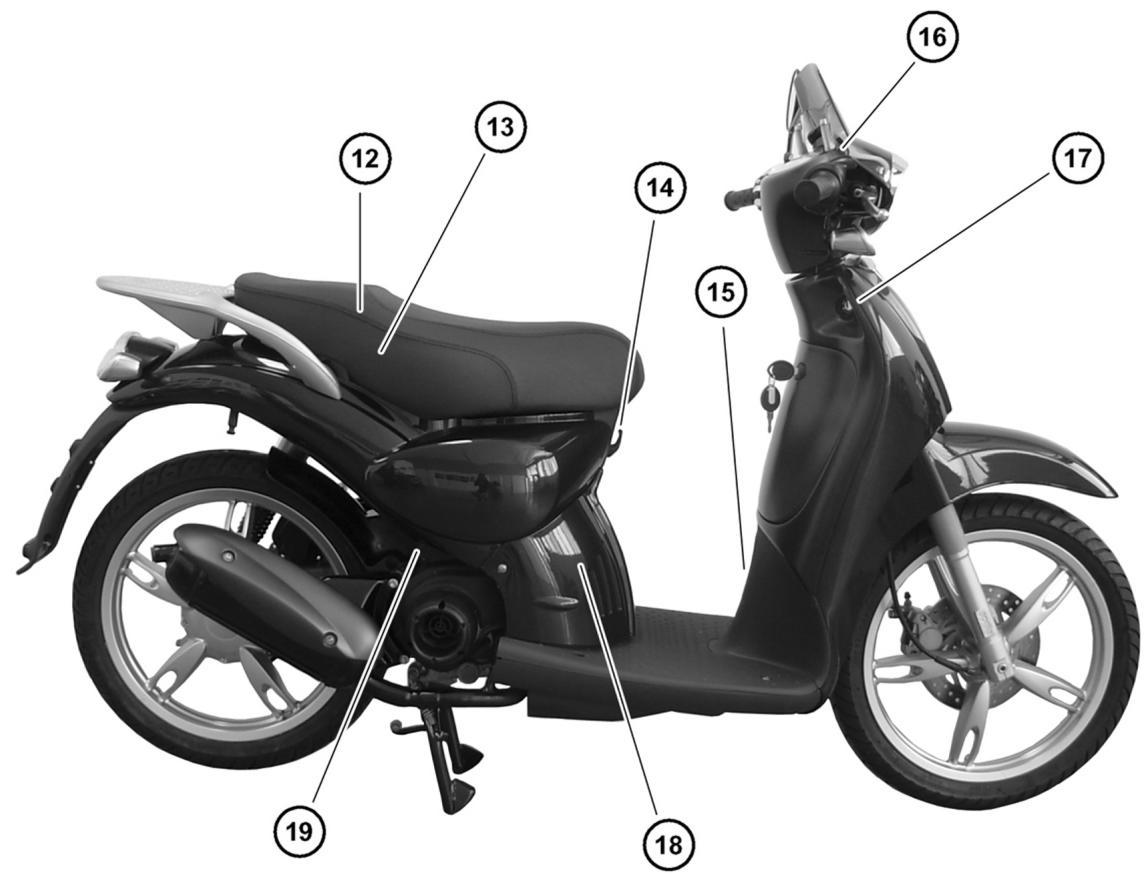

Arrangement of the main components (01_01, 01_02)

KEY:

1. Horn
2. Glovebox
3. Fuse box
4. Battery
5. Saddle lock
6. Luggage rack
7. Air filter
8. Centre Stand

9. Starting pedal

10. Left passenger footrest (countries where available)

11. Inspection cover
12. Fuel tank cap
13. Fuel tank
14. Bag hook
15. Chassis number cover
16. Front brake fluid reservoir
17. Ignition switch /steering lock
18. Spark plug
19. Right passenger footrest (countries where available)

01_03

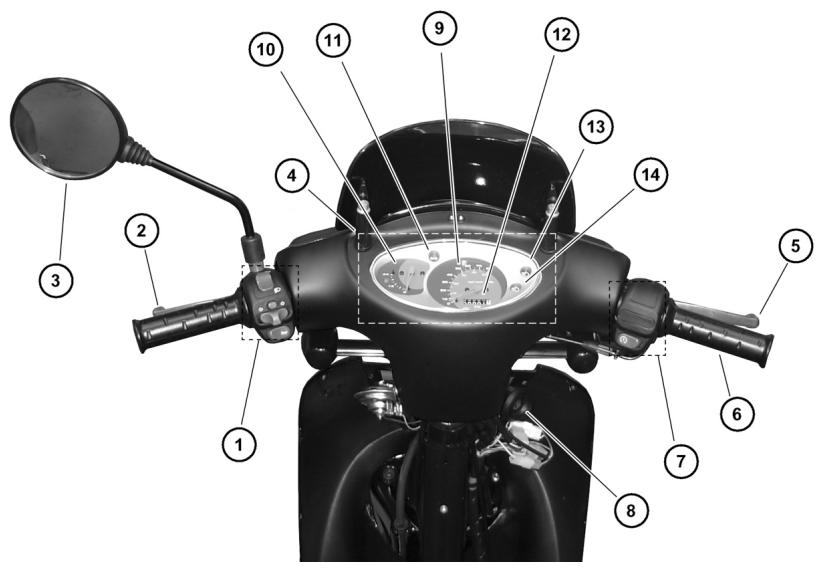

Dashboard (01_03)

KEY

1. Electrical controls on the left-hand side of the handlebars
2. Rear brake lever
3. Left rear-view mirror
4. Instruments and gauges
5. Front brake lever

6. Throttle grip

7. Electrical controls on the right-hand side of the handlebars

8. Ignition switch / steering lock (ON - OFF - LOCK)
9. Speedometer
10. Fuel gauge
11. Green turn indicators warning light
12. Odometer
13. Blue high-beam warning light
14. Green low-beam warning light

INSTRUMENT AND GAUGE DESCRIPTION

Turn indicator warning light «11»

Flashes when in turning mode.

Total odometer «12»

Shows the total number of kilometres covered.

Speedometer «9»

Shows riding speed.

Low-beam warning light «14»

Turns on when the front headlamp is set to low-beam.

High-beam warning light «13»

Turns on when the front headlamp is set to high-beam.

Fuel gauge «10»

Shows the approximate fuel level in the tank.

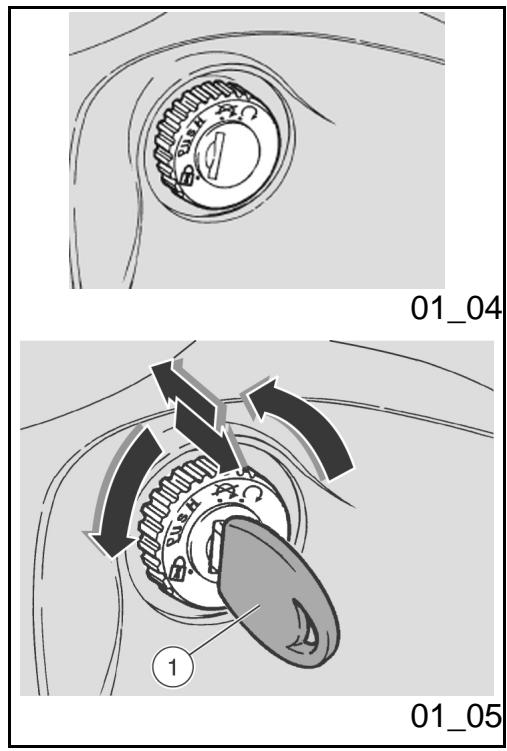

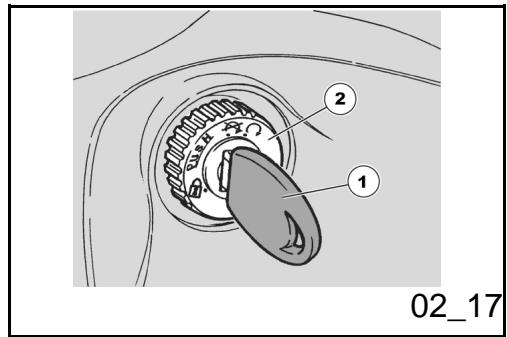

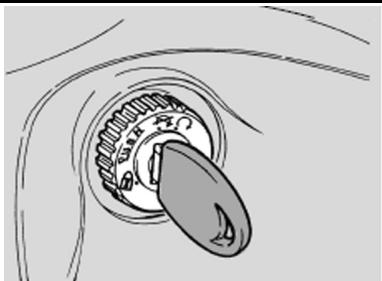

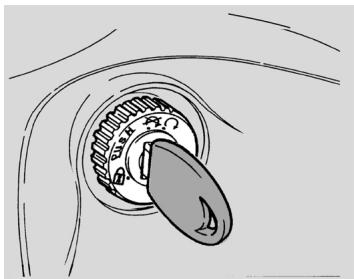

Key switch (01_04)

The ignition switch is found on the right-hand side, near the headstock.

NOTE

THE KEY ACTIVATES THE IGNITION/ STEERING LOCK SWITCH, THE SADDLE LOCK AND THE GLOVEBOX LID.

NOTE

TWO KEYS ARE SUPPLIED WITH THE VEHICLE (A SPARE ONE).

KEEP THE SPARE KEY IN A DIFFERENT PLACE, NOT WITH THE VEHICLE.

OFF: The engine and lights cannot be set to work. It is possible to withdraw the key.

ON: The engine can be set to work. The lights turn on when the engine is running. It is not possible to withdraw the key.

LOCK: The steering is locked. It is not possible to start the engine or turn on the lights. The key can be extracted.

Locking the steering wheel (01_05)

To lock the steering:

• Turn the handlebar completely to the left.
• Turn the key «1» to «OFF», and press it.
• Press and turn the key «1» anticlockwise (to the left), move the handlebar slowly until the key «1» is set to «LOCK».
• Extract the key.

AVOIDING LOSING CONTROL OF THE VEHICLE, NEVER TURN THE KEY TO «LOCK» WHILE RIDING.

NOTE

TURNS THE KEY AND MOVE THE HANDLEBAR AT THE SAME TIME.

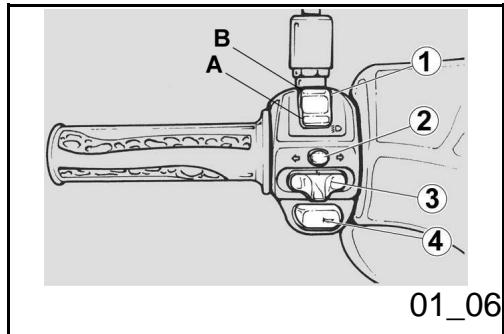

Switch direction indicators (01_06)

Move the switch «3» to the left, to indicate a left turn; move the switch «3» to the right, to indicate a right turn. Pressing the button «2» deactivates the turn indicator.

TURN INDICATOR DEACTIVATION SWITCH

With the turn indicator switch «3» set to the right or left, pressing the button deactivates the turn indicators.

NOTE

ELECTRICAL COMPONENTS FUNCTION ONLY WHEN THE IGNITION KEY IS SET TO «ON»

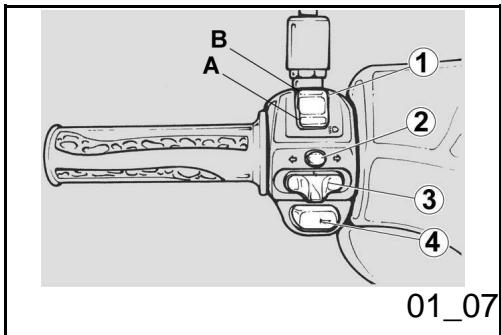

Horn button (01_07)

Pressing the button «4» activates the horn.

NOTE

ELECTRICAL COMPONENTS FUNCTION ONLY WHEN THE IGNITION KEY IS SET TO «ON»

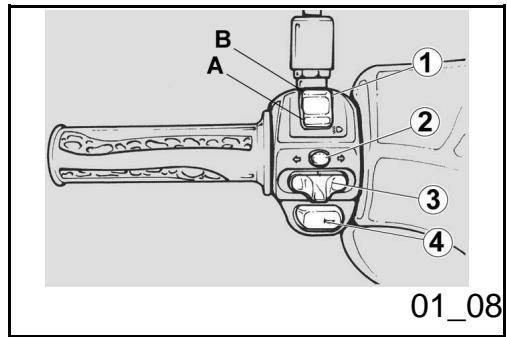

Light switch (01_08)

If the light switch is set to «A», this activates the low-beam light; if it is set to «B», this activates the high-beam light.

NOTE

ELECTRICAL COMPONENTS FUNCTION ONLY WHEN THE IGNITION KEY IS SET TO «ON»

NOTE

THE LIGHTING SYSTEM WORKS ONLY WITH THE ENGINE RUNNING.

ASD LIGHTS AUTOMATIC LIGHTING

This vehicle is equipped with a system for automatic switching of lights upon engine start-up. For this reason the light switch has been replaced with a "high-beam-low-beam" light switch. Light switching on is instructed upon engine start-up.

• Before starting, check that the light switch is set to "low-beam" (front low-beam light).

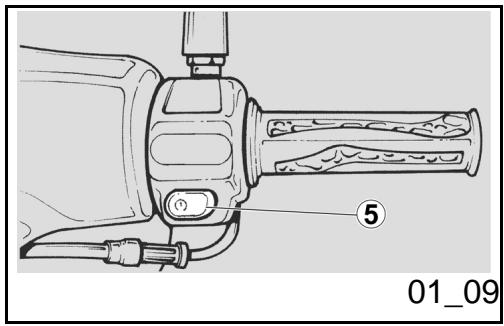

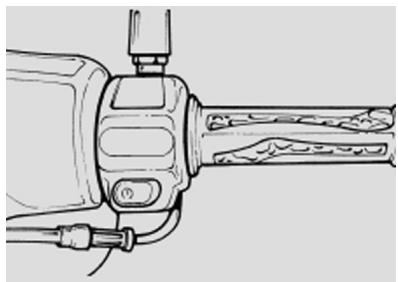

Start-up button (01_09)

Pressing the starter button «5» and operating a break lever (front or rear) at the same time, the starter motor spins the engine.

NOTE

ELECTRICAL COMPONENTS FUNCTION ONLY WHEN THE IGNITION KEY IS SET TO «ON»

NOTE

THE LIGHTING SYSTEM WORKS ONLY WITH THE ENGINE RUNNING.

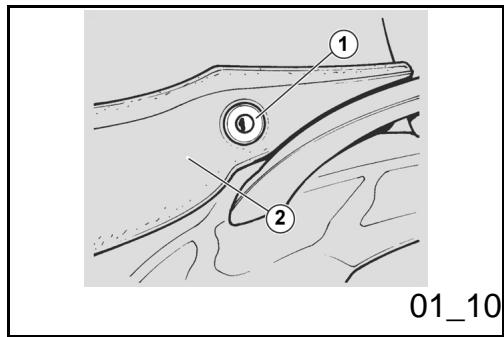

The saddle (01_10)

To unlock and lift the saddle:

• Park the vehicle on its centre stand on safe and level ground.
• Insert the key in the saddle lock «1».
• Turn the key clockwise and lift the saddle «2».
• To lock the saddle, lower it and press it in the centre to trip the lock.

BEFORE RIDING MAKE SURE THAT THE SADDLE IS CORRECTLY LOCKED INTO POSITION.

NOTE

BEFORE LOWERING AND LOCKING THE SADDLE, MAKE SURE THAT THE KEY HAS NOT BEEN LEFT INSIDE THE HELMET COMPARTMENT.

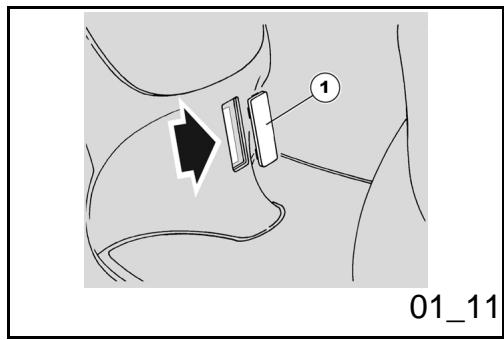

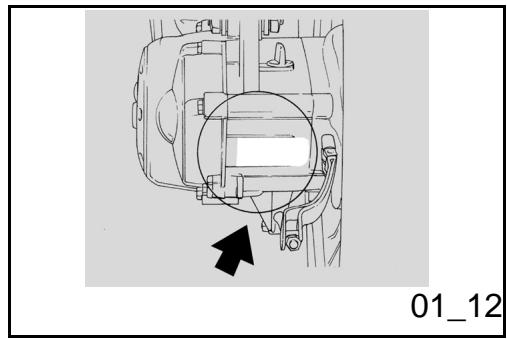

Identification (01_11, 01_12)

Write down the chassis and engine numbers in the specific space in this manual.

The chassis number can used to order spare parts.

NOTE

ALtering IDENTIFICATION NUMBERS CAN BE SERIOUSLY PUNISHED BY LAW, PARTICULARLY MODIFYING THE CHASSIS NUMBER WILL IMMEDIATELY INVALIDATE THE GUARANTEE.

CHASSIS NUMBER

The chassis number is stamped on the central chassis bar. Remove the cover «1» to read it. Chassis No............

ENGINE NUMBER

The engine number is stamped near the rear shock absorber lower support.

Engine No.

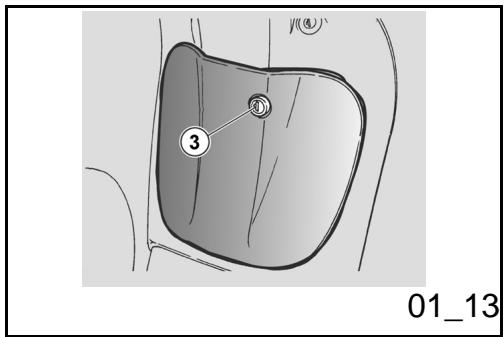

Rear top box opening (01_13)

To open the glovebox:

Park the vehicle on its centre stand on safe and level ground.
- Insert the ignition key in the lock «3» and turn it clockwise.

To close:

• Insert the ignition key, turn it clockwise by pushing it, then turn the key anticlockwise to lock it.
• Extract the key and check that the compartment is closed.

NOTE

DO NOT OVERLOAD THE GLOVEBOX.

Characteristic

Maximum weight allowed:

1.5 kg.

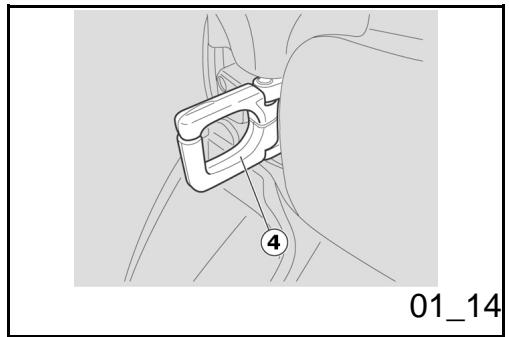

Bag clip (01_14)

The bag hook «4» is under the saddle in the front part.

DO NOT HANG BULKY BAGS OR PACKAGES ON THE HOOK SO AS NO TO SERIOUSLY OBSTRUCTING VEHICLE HANDLING AND FEET MOVEMENT.

Characteristic

Maximum weight allowed:

1.5 kg.

SCARABEO

50 4T

aprilia

Chap. 02

Use

02_01

02_02

Checks (02_01, 02_02)

Checks before starting to ride

BEFORE RIDING, ALWAYS PERFORM A PRELIMINARY CHECK OF THE VEHICLE, FOR CORRECT AND SAFE OPERATION. FAILURE TO CARRY OUT THESE CHECKS MAY RESULT IN SERIOUS PERSONAL INJURY OR DAMAGE TO THE VEHICLE.

DO NOT HESITATE TO CONTACT AN OFFICIAL APRILIA DEALER IF YOU DO NOT UNDERSTAND HOW SOME CONTROLS WORK OR IF MALFUNCTION IS DETECTED OR SUSPECTED.

THE TIME REQUIRED TO CARRY OUT A CHECK IS EXTREMELY SHORT BUT THIS RESULTS IN A SIGNIFICANT ENHANCED SAFETY.

Disc brake

Check its correct operation, the brake fluid level and possible leaks. Check the brake pad wear. If necessary top-up with brake fluid.

Rear drum brake

Check its correct operation, the empty travel and the gear lever conditions. Adjust the clearance if it is not correct.

Throttle grip

Check it functions smoothly and that it can be fully opened and closed in all steering positions. Adjust and/or lubricate if necessary.

Wheels/tyres

Check that tyres are in good conditions, check inflation pressure, tyre wear and possible damage. Remove any possible strange body that might be stuck in the tread design.

Brake levers

Check they function smoothly. Lubricate the joints if necessary.

Steering

Check that the rotation is homogeneous, smooth and there are no signs of clearance or slackness.

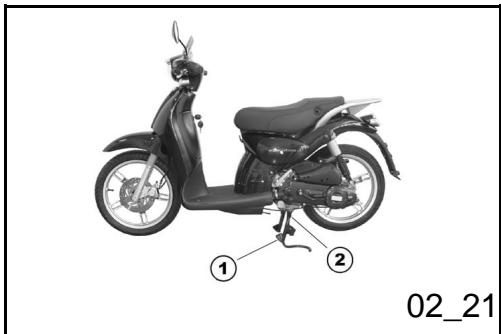

Stand

Check that they work smoothly and they go back to their normal position when the springs are released. Lubricate couplings and joints if necessary.

Clamping elements

Check that he clamping elements are not loose. If necessary, adjust or tighten them.

Fuel tank

Check the coolant level and refill if necessary. Check the circuit for possible leaks or obstructions.

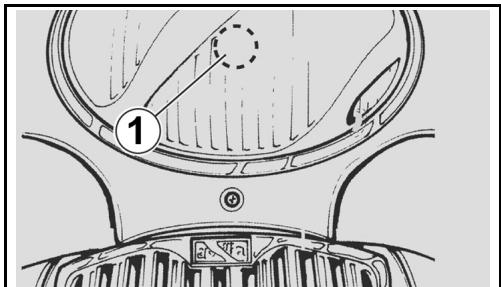

Lights, warning lights, horn and electrical devices

Check the correct operation of the devices. Replace the light bulbs or repair the fault, if necessary.

SWITCH CHECK

There are two switches in the vehicle:

• Stop light switch on the rear brake control lever «3».
• Stop light switch on the front brake control lever «4».

To access the switches:

• Remove the front handlebar cover.

Carry out the following checks regularly:

• Check that there are no deposits of dirt or mud on the switches; the guiding pin should move without interference, going back to its initial position automatically.

02_03

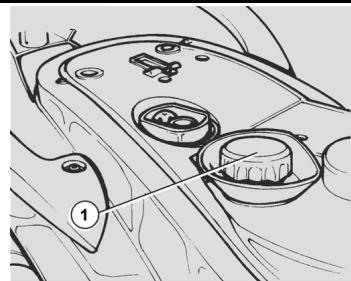

Refuelling (02_03)

FUEL USED TO DRIVE EXPLOSION ENGINES IS HIGHLY FLAMMABLE AND CAN BECOME EXPLOSIVE UNDER SPECIFIC CONDITIONS.

CARRY OUT REFILLING AND MAINTENANCE OPERATIONS IN A WELL VENTILATED PLACE AND WITH THE ENGINE OFF.

DO NOT SMOKE WHILE REFUELLING OR WHEN CLOSE TO FUEL VAPOURS, AVOID CONTACT WITH NAKED FLAMES, SPARKS OR ANY OTHER SOURCE THAT MAY CAUSE FUEL TO CATCH FIRE OR EXPLODE.

AVOID SPILLING FUEL OFF THE FILLER AS IT MAY CATCH FIRE IN CONTACT WITH THE ENGINE HOT SURFACES. IN CASE OF ACCIDENTAL FUEL SPILLS, CHECK THAT THE AREA IS COMPLETELY DRY BEFORE STARTING THE SCOOTER.

FUEL EXPANDS WHEN EXPOSED TO HEAT OR SUN RAYS, THEREFORE BE CAREFUL AND DO NOT REFILL THE TANK UP TO THE TOP.

CLOSE THE CAP ADEQUATELY AFTER REFUELLING. BE CAREFUL THE FUEL DOES NOT GET INTO CONTACT WITH THE SKIN, DO NOT BREATH VAPOURS OR SWALLOW FUEL. DO NOT TRANSFER FUEL FROM ONE CONTAINER TO ANOTHER USING A HOSE.

DO NOT DISPOSE OF FUEL INTO THE ENVIRONMENT.

KEEP OUT OF REACH OF CHILDREN

Use unleaded premium petrol with minimum octane rating of 95 (NORM) and 85 (NOMM)

To refuel:

• Lift the saddle.
• Unscrew and remove fuel tank cap «1».
• Carry out the refuelling.
• Refit the cap «1».

DO NOT ADD ADDITIVES OR ANY OTHER SUBSTANCES TO THE FUEL.

WHEN USING A FUNNEL OR ANY OTHER ELEMENT, MAKE SURE IT IS PERFECTLY CLEAN.

NOTE

AFTER REFUELLING THE TANK, REFIT THE FUEL TANK CAP «1» ADEQUATELY.

Characteristic

Fuel tank capacity (reserve included):

81

Tank reserve:

1

1000 Km (625 mi)

02_04

02_05

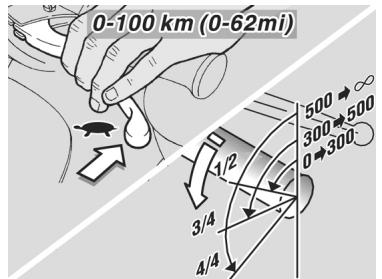

Running in (02_04, 02_05)

Engine run-in is essential to ensure engine long life and correct operation. If possible, ride on roads with lots of bends and/or slopes to test that the engine, suspensions and brakes perform efficiently. For the first 500km (312 miles) travelled, observe the following indications:

• 0-100 km (0-62 miles) During the first 100 km (62 miles) step carefully on the brakes to avoid rough and long braking. That is to permit the adequate adjustment of the pad friction material to the brake disc.
• 0-300 km (0-187 miles) Do not maintain the throttle grip twisted more than half the way during long rides.
• 300-1000 km (187-625 miles) Do not keep the throttle grip twisted more than 3/4 the way during long rides.

AFTER THE FIRST 1000 KM (625 MILES) IN OPERATION, PERFORM THE CHECKS IN THE "RUN-IN END" COLUMN IN THE SCHEDULED MAINTENANCE CHART TO AVOID INJURIES TO YOURSELF, OTHERS AND/OR DAMAGING THE VEHICLE.

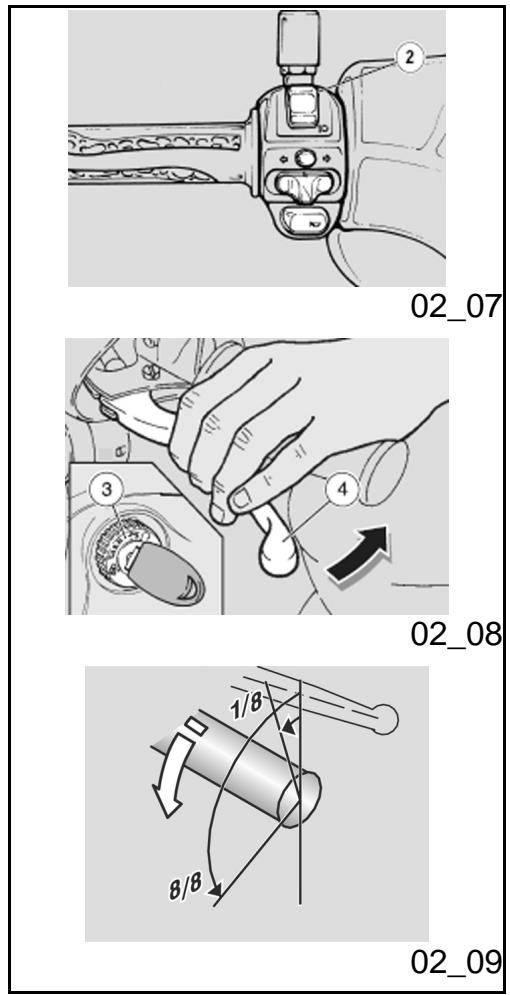

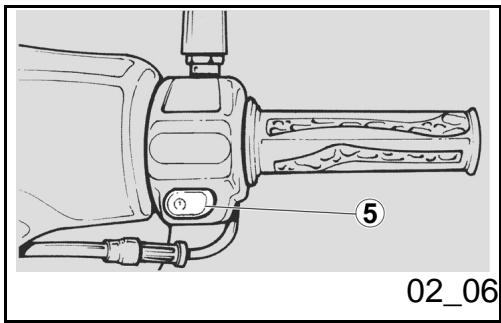

Starting up the engine (02_06, 02_07, 02_08, 02_09, 02_10, 02_11, 02_12, 02_13)

EXHAUST FUMES CONTAIN CARBON MONOXIDE, AN EXTREMELY HARMFUL SUBSTANCE IF INHALED.

NEVER START THE ENGINE IN CLOSED OR NOT WELL-VENTILATED ROOMS. FAILURE TO OBSERVE THIS WARNING COULD LEAD TO UNCONSCIOUSNESS AND EVEN DEATH CAUSED BY SUFFOCATION. DO NOT CLIMB ON THE VEHICLE TO START IT

UP.

ELECTRIC START-UP

• Park the vehicle on its centre stand on safe and level ground.
• Make sure the light switch «2» is set to low-beam.
• Turn the ignition switch «3» to «ON».
• Lock at least one wheel by operating a brake lever «4». If engine fails to start, it means there is no current in the ignition relay and the starter motor does not spin.

NOTE

IF THE SCOOTER IS NOT USED FOR A LONG TIME, FOLLOW THE PROCEDURES INDICATED IN THE SECTION «PROLONGED INACTIVITY».

NOTE

TO AVOID EXCESSIVE BATTERY CONSUMPTION, DO NOT HOLD DOWN THE STARTER BUTTON FOR MORE THAN FIVE SECONDS. IF THE ENGINE FAILS TO START AFTER THIS TIME, WAIT TEN SECONDS AND PRESS THE STARTER BUTTON AGAIN.

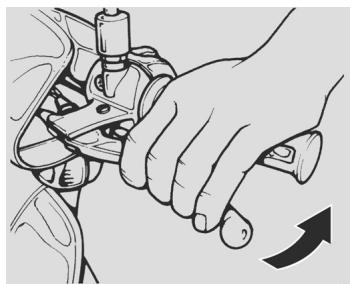

Press the starter button «5», slightly open the throttle 1/8 (see figure) and release it as soon as the engine starts.

KICK START

• Park the vehicle on its centre stand on safe and level ground.
• Stand on the left-hand side of the vehicle.
  Make sure the light switch 2 is set to low-beam.
• Turn the ignition switch «3» to «ON».
• To avoid loss of control of the vehicle at start-up, lock both wheels by operating the break levers «4».

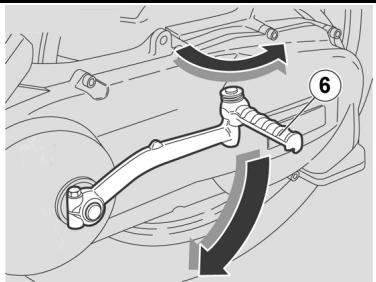

  Pull out the kick starter pedal «6».

02_10

02_11

02_12

DO NOT KICK THE KICKSTARTER PEDAL WHEN THE ENGINE IS RUNNING.

• Kick the pedal «6» with your right foot and release it immediately. If necessary, repeat the operation until the engine starts.
• Fold in the kickstarter pedal «6».

SETTING OFF AND RIDING

REFERENCES TO RIDING WITH PASSENGER INTENDED ONLY FOR COUNTRIES WHERE THIS IS PERMITTED.

WHEN TRAVELLING WITHOUT PASSEYGERS, MAKE SURE THE PASSENGER FOOTRESTS ARE FOLDED.

WHILE RIDING, KEEP YOUR HANDS FIRMLY ON THE HANDGRIPS AND YOUR FEET ON THE FOOTRESTS. DO NOT RIDE THE VEHICLE IN ANY OTHER POSITION.

IF RIDING WITH A PASSENGER, INSTRUCT THE PERSON CARRIED SO AS TO AVOID TROUBLE WHEN MANOEUVRING.

BEFORE RIDING, MAKE SURE THE STAND OR STANDS ARE COMPLETELY RETRACED TO THEIR POSITION.

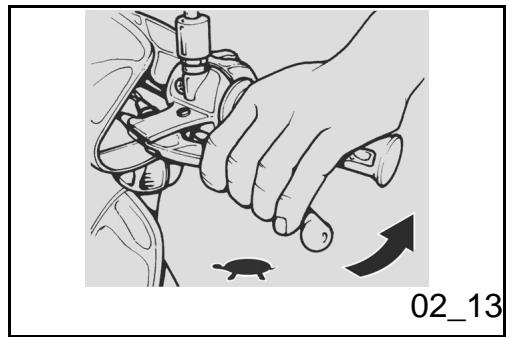

To set off: t

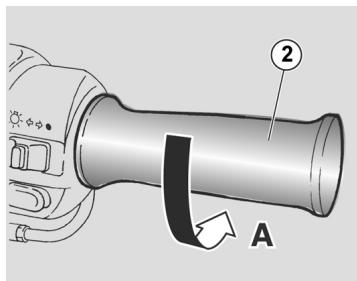

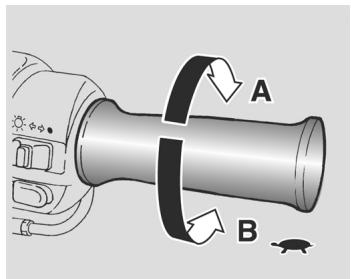

• Release the throttle grip (pos. A), operate the rear brake and move the vehicle down

from the stand.

• Get on the scooter and, for stability reasons, keep at least one foot on the ground.

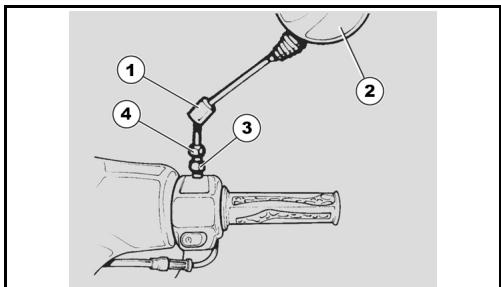

• Adjust the rear-view mirror angle correctly.

WITH THE VEHICLE AT A STAND STILL, PRACTICE USING THE REAR-VIEW MIRRORS.

• To set off, release the brake lever and the vehicle will start moving.

DO NOT SET OFF SUDDENLY WHEN THE ENGINE IS COLD.

TO MINIMISE THE EMISSION OF AIR POLLUTING SUBSTANCES AND FUEL CONSUMPTION, WARM UP THE ENGINE BY RIDING THE FIRST KILOMETRES AT A LIMITED SPEED.

NEVER ACCELERATE AND DECELERATE REPEATEDLY AND CONTINUOUSLY AS YOU MAY INADVERTENTLY LOSE CONTROL OF YOUR VEHICLE.

IF YOU HAVE TO BRAKE, OPERATE BOTH BRAKES TO OBTAIN A UNIFORM BRAKING, CAREFULLY ACTIVATING THE BRAKING PARTS IN AN ADEQUATE MANNER.

OPERATING ONLY EITHER THE FRONT OR THE REAR BRAKE SIGNIFICANTLY DECREASES THE BRAKING POWER AND A WHEEL MAY GET BLOCKED RESULTING IN LACK OF GRIP.

IN CASE OF STOP IN ASCENT, FULLY DECELERATE AND ONLY USE THE BRAKES TO KEEP THE VEHICLE STOPPED. USING THE ENGINE TO KEEP THE SCOOTER STOPPED MAY CAUSE THE VARIATOR TO OVERHEAT.

BEFORE GETTING INTO A BEND, REDUCE SPEED AND BRAKE; WHILE BENDING, RIDE AT THE SAME MODERATE AND CONSTANT SPEED OR SLIGHTLY ACCELERATE; DO NOT BRAKE IN EXCESS: THERE IS VERY HIGH RISK OF SKIDDING.

BRAKING CONTINUOUSLY WHILE GOING DOWNHILL MAY RESULT IN FRICTION GASKET OVERHEATING AND CONSEQUENTLY IN POOR BRAKING.

TAKE ADVANTAGE OF THE ENGINE COMPRESSION USING THE BRAKES ALTERNAT-I-VELY. WHEN GOING DOWNHILL NEVER RIDE WITH THE ENGINE OFF.

WHEN RIDING WITH LOW VISIBILITY CONDITIONS, TURN ON THE LOW-BEAM LIGHTS, EVEN AT DAY TIME, TO MAKE YOURSELF EASILY VISIBLE TO OTHER DRIVER; WHEN RIDING ON WET SURFACES OR WITH POOR GRIP (SNOW, ICE, MUD, ETC.) AT A MODERATE SPEED AVOIDING SUDDEN BRAKING OR MANOEUVRES THAT MAY LEAD TO LACK OF GRIP AND CONSEQUENTLY TO FALLS.

PAY ATTENTION TO OBSTACLES ON OR VARIATIONS IN THE ROAD SURFACE.

UNEVEN ROADS, RUTS, DRAINS, TRAFFIC SIGNS PAINTED ON THE ROADS, PIPEWORK METAL SHEETS MAY BECOME SLIPPERY WHEN IT RAINS. CROSS OVER THEM WITH EXTREME CAUTION, RIDE CAREFULLY AND INCLINE THE SCOOTER THE LEAST POSSIBLE.

ALWAYS SIGNAL CHANGES IN DIRECTION WITH THE APPROPRIATE DEVICES AND WELL IN ADVANCE, AVOID ABRUPT AND DANGEROUS MANOEUVRES.

TURN OFF THE DEVICES IMMEDIATELY AFTER THE CHANGE IN DIRECTION. WHEN OVERTAKING OR BEING OVERTAKEN BY OTHER VEHICLES RIDE WITH EXTREME CAUTION. WHEN IT RAINS, SPRAY CAUSED BY LARGE VEHICLES REDUCES VISIBILITY; AIR SHIFTS MAY CAUSE LOSS OF CONTROL ON YOUR SCOOTER.

02_14

02_15

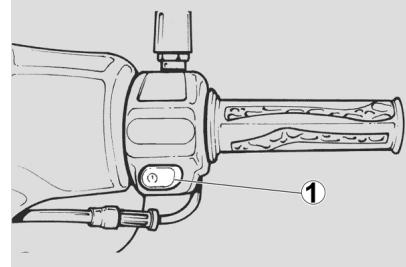

Difficult start up (02_14, 02_15)

START-UP WITH FLOODED ENGINE

If the start-up procedure is not properly carried out or in case of excess of fuel in the inlet ducts, the engine may get flooded.

To clean again a flooded engine:

• Press the starter button «1» for a few seconds (running the empty engine) with the throttle grip «2 » completely twisted (pos. A).

COLD START

If the ambient temperature is low (near or below 0^ ), there may be problems with the first start-up.

In this case:

• Press the starter button «1» and, at the same time, twist the throttle grip «2» slightly.

If the engine starts.

• Release the throttle grip «2».
  If idle speed is not stable, twist the throttle grip «2» slightly and frequently.

If the engine does not start.

Wait a few seconds and carry out the cold start procedure again.

If necessary, remove the spark plug and check that it is not wet.
If it is wet, clean and dry it.
- Before refitting it, press the starter button «1» and run the starter motor for about five seconds, without accelerating.

NOTE

PLACE A CLEAN CLOTH ON THE CYLINDER NEXT TO THE SPARK PLUG SEAT TO PROTECT IT FROM POSSIBLE OIL SPLASHES.

STARTING AFTER PROLONGED INACTIVITY

If the scooter has been inactive for a long time, starting may be delayed as the fuel supply circuit may be partially empty. In this case:

• Press the starter button «1» for about five seconds so that the carburettor float chamber gets filled.

02_16

Stopping the engine (02_16, 02_17)

• Release the throttle grip (pos. A) and gradually operate the brakes to stop the scooter.
  While at a temporary halt, keep at least one brake operated.

WHENEVER POSSIBLE, AVOID ROUGH BRAKING, SUDDEN DECELERATION AND BRAKING IN EXCESS.

PARKING

• Stop the vehicle.

PARK ON SAFE AND LEVEL GROUND TO PREVENT THE SCOOTER FROM FALLING.

DO NOT LEAN THE SCOOTER ON A WALL OR LAY IT ON THE GROUND. MAKE SURE THE SCOOTER AND SPECIALLY ITS HOT PARTS DO NOT POSE ANY RISK TO PEOPLE OR CHILDREN.

DO NOT LEAVE YOUR SCOOTER UNATTENDED WITH THE ENGINE ON OR THE KEY IN THE IGNITION SWITCH. DO NOT SIT ON THE VEHICLE WHEN IT REST ON ITS STAND.

NOTE

WHEN THE ENGINE IS OFF AND THE IGNITION SWITCH IS SET TO «ON» THE BATTERY CAN GET DISCHARGED.

• Turn the key «1» and set the ignition switch «2» to «OFF».
  Rest the scooter on its stand.

NOTE

WITH THE ENGINE OFF, IT IS NOT NECESSARY TO CLOSE THE FUEL VALVE, FOR IT HAS AN AUTOMATIC SEALING SYSTEM.

NOTE

DO NOT LEAVE THE KEY INSERTED IN THE IGNITION SWITCH.

• Lock the steering and take out the key «1».

02_18

02_19

Catalytic silencer (02_18, 02_19)

Scooter owners are warned that the law may prohibit the following:

• The removal of any device or element belonging to a new scooter or any other action by anyone leading to render it non-operating, if not for maintenance, repair or replacement reasons, in order to control noise emission before the sale or delivery of the vehicle to the ultimate buyer or while it is used.
• Using the scooter after that device or element has been removed or rendered non-operating.

Check the muffler/exhaust silencer and the silencer pipes, make sure there are no signs of rust or holes and that the exhaust system works properly.

If exhaust noise increases, take your scooter at once to an Official aprilia Dealer.

DO NOT TAMPER THE NOISE CONTROL SYSTEM.

EXHAUST SILENCER REMOVAL

• Park the vehicle on its centre stand on safe and level ground.

BEFORE CARRYING OUT THE FOLLOWING OPERATIONS AND IN ORDER TO AVOID BURNS, LEAVE THE ENGINE AND SILENCER TO COOL OFF TO AMBIENT TEMPERATURE.

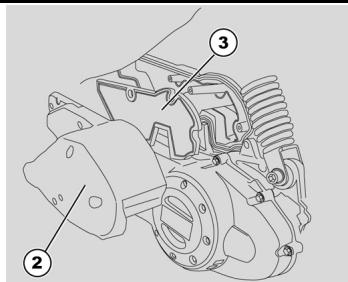

• Remove the inspection cover.

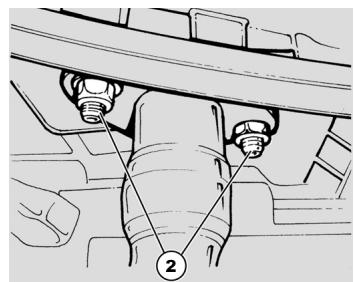

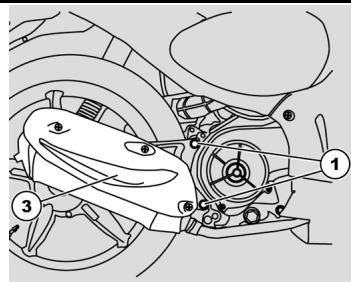

• Unscrew and remove the two screws «1» fixing the silencer to the engine.
  Unscrew and remove the two nuts «2».
• Remove the exhaust silencer «3».

UPON REFITTING, REPLACE THE GASKET BETWEEN THE EXHAUST MANIFOLD AND THE SILENCER WITH A NEW ONE.

Characteristic

Tightening torque for nuts (2):

12 Nm (1.2 kgm).

Tightening torque for screws (1):

25 Nm (2.5 kgm).

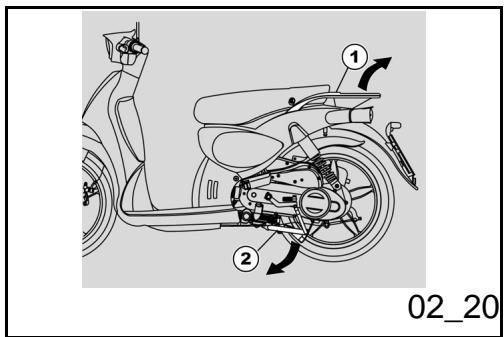

Stand (02_20, 02_21)

RESTING THE SCOOTER ON ITS CENTRE STAND

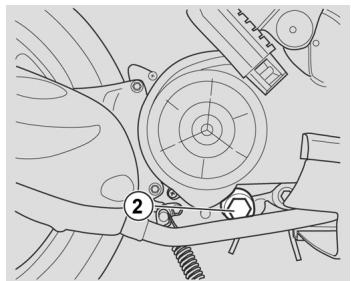

• Hold the left hand grip and the rear handle «1».
• Push the stand lever «2».

MAKE SURE THE SCOOTER IS STABLE.

Stand checking

The rotation of the stand 1 should be free of obstacles.

Carry out the following checks:

• The springs «2» should not be damaged, worn, rusty or slacken.
• The stand should turn freely, grease the joint if necessary.

Suggestions to prevent theft

NEVER leave the ignition key in the lock and always use the steering lock.

Park the scooter in a safe place such as a garage or a place with guards.

Whenever possible, use the aprilia "Body-Guard" armoured cable or an additional antitheft device.

Make sure all scooter documents are in order and the road tax paid.

Write down your personal details and telephone number on this page to help identifying the owner in case of scooter retrieval after a theft.

LAST NAME:

NAME:

ADDRESS:

TELEPHONE No:

IMPORTANT In many cases, stolen vehicles can be identified through data indicated in the use and maintenance manual

NO！

02_22

150m

02_23

02_24

Safe driving (02_22, 02_23, 02_24, 02_25, 02_26, 02_27, 02_28, 02_29, 02_30, 02_31, 02_32, 02_33)

MAIN SAFETY RULES

To ride the scooter it is necessary to comply with all legal requirements (driving license, minimum driving age, psychophysical performance, insurance, taxes and fees, registration, license plate, etc.).

You should practise using the scooter in traffic-free areas and/or private property until you have become thoroughly acquainted with the vehicle.

Driving under the influence of medication, alcohol and narcotic drugs or psychotropic substances dramatically increases the risk of accidents.

Do not ride your scooter if you feel tired or drowsy and always keep safe psychophysical riding conditions.

The main cause of motorcycle accidents is users' inexperience.

NEVER lend the scooter to beginners and always make sure that the rider complies with all necessary requirements for a safe riding.

Strictly obey all national and local traffic signs and rules.

Avoid any abrupt and dangerous swerves for your own as well as others' safety (for example: rearing up on the back wheel, riding over the speed limit, etc.). Besides, always assess and bear in mind the road surface conditions, visibility, etc.

Do not knock obstacles that can damage the scooter or cause loss of control.

Do not ride on the course of the vehicle in front of you just to improve your own speed.

ALWAYS RIDE WITH BOTH HANDS ON THE HANDLEBAR AND FEET ON THE FOOTRESTS (OR THE RIDER'S FOOTRESTS) IN THE ADEQUATE RIDING POSITION.

02_25
02_26

02_27

Never stand on your feet or stretch yourself while riding.

The rider should always be attentive, never get distracted or influenced by people, things or actions (never smoke, eat, drink, read, etc.) while riding.

Always use fuel and lubricants specific for the scooter, of the type recommended in the "LUBRICANTS TABLE". Check fuel, oil and coolant frequently for correct level.

In case of an accident or after the scooter has fallen down or suffered a sudden bump, make sure the control levers, piping, cables, brake circuit and main parts of the scooter have not been damaged.

If necessary, take the scooter to an Official aprilia Dealer to check especially the frame, handlebar, suspensions, safety components and any device the user cannot assess without the aid of a specialist.

Report any malfunction to the engineers and/or mechanics in order to facilitate their work.

Never ride the scooter if the damage jeopardises safety.

Do not modify the position, angle or colour of: license plate, turn indicators, lighting devices and horn.

Any changes to the scooter will void the warranty.

Any change introduced to the scooter and the removal of original parts may jeopardise the scooter performance and therefore reduce safety or even render the scooter inappropriate for legal riding.

Comply with all national and local laws and regulations on scooter equipment.

In particular do not introduce technical changes leading to improve performance and under no circumstances alter the original specifications of the scooter.

Never race with vehicles.

Never ride off-road.

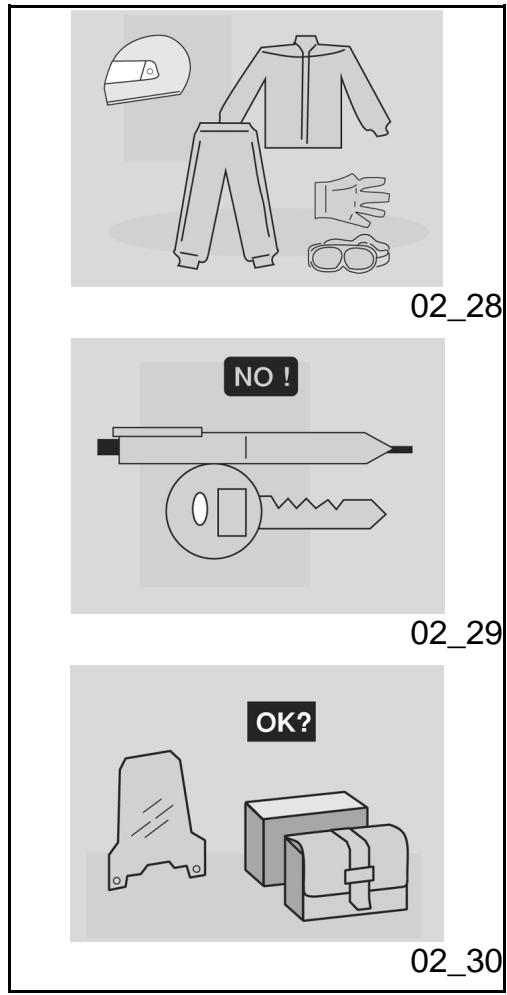

CLOTHING

Before riding off, remember to put on the helmet and fasten it correctly. Make sure it is a homologated model, that it is undamaged, of the right size and that the visor is clean.

Wear appropriate protective clothes, preferably light-coloured and/or in reflective material. In this way you will be easily visible to other drivers, thus reducing the risk to be hit and you will be better protected in case of falling.

Always wear tight-fitting clothes without open cuffs; avoid hanging strings, belts or ties; these or any other objects should not interfere with a safe riding when getting entangled with the riding elements or due to a special movement.

Never carry in your pockets objects that can be potentially dangerous in case of fall, like: pointed objects such as keys, pens, glass containers, etc. (the same rule applies to passengers).

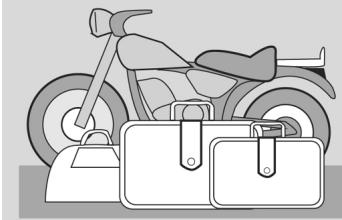

ACCESSORIES

User is personally responsible for the installation and use of the accessories.

While assembling accessories, make sure that they do not cover the sound or light alarm devices or affect their correct functioning, do not limit the suspension travel or the steering angle, do not obstruct control actuation or reduce the ground clearance and inclination angle at corners.

Do not use accessories that hinder access to the controls as they may increase the reaction time in case of an emergency.

Fairings and large windscreens fitted to the scooter may cause aerodynamic forces that affect the scooter stability while riding, mainly at high speeds.

Make sure the accessory is firm and secured to the scooter and that it does not pose any risks while riding the scooter.

Do not add or modify electrical equipment that exceed the vehicle capacity as this may result in a sudden stop or a dangerous lack of power required to keep the sound and light alarm devices operative.

aprilia advises using original accessories (aprilia genuine accessories).

02_31

NO!

02_32

NO!

02_33

LOADING

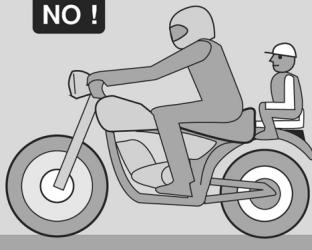

Do not overload your scooter. Keep packages as close as possible to the scooter centre of gravity and distribute load evenly on both sides to minimise imbalance. Check also that the load is firm and secured to the scooter, mainly for long trips.

Do not hang anything from your scooter's handlebars, mudguards or forks, such as protruding, bulky, heavy and/or dangerous objects: this will slow the scooter performance when turning and will upset the handling of your scooter.

Do not carry packages that protrude from vehicle sides as this may hit people or objects and result in loss of control of your scooter.

Never carry packages that are not securely fastened to the scooter.

Do not carry packages that protrude from the luggage rack or which cover any of the sound and light alarm devices.

Never carry animals or small children on the glovebox or the luggage rack.

Never exceed the maximum weight allowed for each luggage rack.

Overloading the scooter may result in lack of stability and poor handling.

SCARABEO

50 4T

aprilia

Chap. 03

Maintenance

03_01

03_02

03_03

Engine oil level

In 4T engines, the engine oil is used to lubricate the distribution elements, the main bearings and the thermal group.

OPERATING THE SCOOTER WITH INSUFFICIENT OIL CAN DAMAGE THE ENGINE.

In all 4T engines, a loss of efficiency in oil performance and some oil consumption should be considered normal. Consumption can particularly reflect the conditions of use (i.e.: when driving at "full speed" all the time, oil consumption increases).

The replacement intervals indicated by the maintenance chart are defined according to the total oil content in the engine and the average consumption levels measured following standardised methods.

IN ORDER TO PREVENT ANY PROBLEMS, WE RECOMMEND CHECKING OIL LEVEL EVERY TIME YOU RIDE YOUR SCOOTER.

Level check (03_01)

• Check the oil level as indicated in the maintenance tables.
  Park the vehicle on its centre stand.

NOTE

EVERY TIME THE SCOOTER IS USED, CHECK ENGINE OIL LEVEL WHEN THE ENGINE IS COLD.

Unscrew and take out the measuring tap-dipstick «1».

• Clean the area in contact with oil with a clean cloth.
• Screw the tap-dipstick «1» completely in its tube «2».
• Remove the tap-dipstick «1» again and read the level the oil reaches on the dipstick.
• The level is correct when it is close to the maximum notch marked on the measuring dipstick.
• Top up if necessary.

The MAX level reference indicates a quantity of about 850 cc of oil in the engine. If the check is carried out after the vehicle has been used, and therefore with a hot engine, the level line will be lower; in order to carry out a correct check, it is necessary to wait for at least 10 minutes after the engine has been stopped so as to get the correct level.

Oil top up

Top up engine oil as indicated in the maintenance tables.

According to the scheduled maintenance tables, take the vehicle to an aprilia Official Dealer regularly to have engine oil checked and topped up if necessary.

ANY TOPPING UP WITH OIL MUST BE CARRIED OUT AFTER CHECKING OIL LEVEL AND BY ADDING OIL BUT NEVER EXCEEDING THE MAX LEVEL.

Oil replacement (03_02, 03_03)

ENGINE OIL AND FILTER REPLACEMENT

Oil change and filter cleaning should be carried out as indicated in the scheduled maintenance tables at an Official aprilia Dealer. The engine should be emptied by draining the oil through the drainage plug «2». To facilitate extracting the mesh filter, incline the engine 10^ to the left. After cleaning and refitting the mesh filter and screwing the plug «2», add about 850 cc of oil through the plug «1».

Then, start the scooter, leave it running for a few seconds and switch it off: after 5 minutes

check the level, and if necessary, top up without exceeding the MAX level. Always use new oil at every top-up or change.

DO NOT RIDE THE SCOOTER WITH INSUFFICIENT OIL OR WITH INADEQUATE LUBRICANTS AS THIS ACCELERATES THE WEAR AND TEAR OF THE MOVING PARTS AND CAN CAUSE SERIOUS DAMAGE.

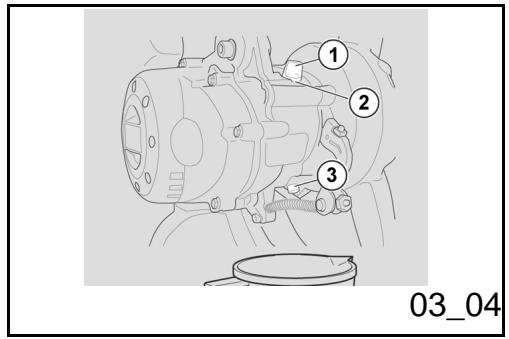

Hub oil level (03_04)

• Ride a few kilometres until the regular working temperature is reached, then stop the engine.
  Park the scooter on its centre stand.
• Unscrew and take out the measuring tap-dipstick «1».
• Clean the area in contact with oil with a clean cloth.
• Screw the tap-dipstick «1» completely in its tube «2».
• Remove the tap-dipstick again and read the level the oil reaches on the dipstick.
• The level is correct when it is close to the dot printed on the measuring dipstick.
• Top up if necessary.

DO NOT DISPOSE OF OIL INTO THE ENVIRONMENT.

SCREW THE FILLING CAP «1» AND DRAINAGE PLUG «3» TIGHTLY AND MAKE SURE THE OIL DOES NOT SEEP THROUGH.

CHECK REGULARLY THAT THERE ARE NO LEAKS IN THE CRANKCASE COVER GASKET.

DO NOT RIDE THE SCOOTER WITH INSUFFICIENT OIL OR WITH CONTAMINATED OR

DIRTY LUBRICANTS AS THIS ACCELERATES THE WEAR AND TEAR OF THE MOVING PARTS AND CAN CAUSE IRRETRIEVABLE DAMAGE. TAKE YOUR SCOOTER TO AN OFFICIAL APRILIA DEALER TO HAVE THE OIL CHECKED AND CHANGED.

GEARBOX OIL CHANGE

Replace the gearbox oil as indicated in the scheduled maintenance tables.

Take your scooter to an Official aprilia Dealer to have the oil controlled and changed.

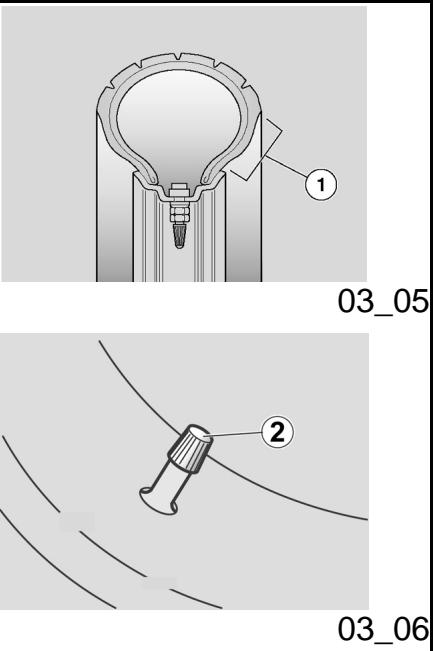

Tyres (03_05, 03_06, 03_07)

This scooter is fitted with Tubeless tyres.

CHECK FREQUENTLY TYRE PRESSURE WITH TYRES AT AMBIENT TEMPERATURE.

THE MEASUREMENT MAY BE INCORRECT IF TYRES ARE WARM. CHECK PRESSURE MAINLY BEFORE AND AFTER LONG TRIPS.

IF TYRE PRESSURE IS TOO HIGH, THE SURFACE UNEVENNESS IS NOT CUSHIONED AND IS SENT TO THE HANDLEBAR, RESULTING IN UNPLEASANT RIDING AND POOR ROAD GRIP SPECIALLY WHEN TURNING.

CONVERSELY, WITH LOW TYRE PRESSURE, TYRE SIDEWALLS «1» BEAR MORE STRESS AND THE TYRE CAN SLIDE ON THE RIM OR EVEN GET DETACHED RESULTING IN LOSS OF CONTROL OVER THE SCOOTER.

IN CASE OF SHARP BRAKING, TYRES CAN EVEN GET OFF THE RIMS. EVENTUALLY WHEN TURNING, THE SCOOTER MAY SWERVE.

CHECK TYRE TREAD FOR WEAR AS INADEQUATE CONDITIONS CAN RESULT IN

LACK OF GRIP AND POOR MANOEUVRABILITY.

SOME TYRE TYPES HOMOLOGATED FOR THIS SCOOTER FEATURE WEAR INDICATORS.

THERE ARE SEVERAL TYPES OF WEAR INDICATORS.

CONSULT YOUR DEALER ON METHODS TO CHECK FOR WEAR.

CARRY OUT A VISUAL INSPECTION FOR TYRE CONSUMPTION, REPLACE THEM IF WORN.

REPLACE TYRES WHEN WORN OR IF THERE IS A PUNCTURE BIGGER THAN 5 mm IN THE TREAD.

AFTER A TYRE IS MENDED, BALANCE THE WHEELS. TYRES SHOULD BE REPLACED WITH OTHERS OF THE TYPE AND MODEL INDICATED BY APRILIA; THE USE OF TYRES OTHERS THAN THE ONES INDICATED RESULTS IN POOR HANDLING.

DO NOT FIT TYRES WITH INNER TUBES ON RIMS FOR TUBELESS TYRES.

CHECK THAT THE INFLATION VALVES «2» HAVE THEIR CAPS FITTED IN ORDER TO AVOID UNEXPECTED FLAT TYRES.

REPLACEMENT, REPAIR, MAINTENANCE AND BALANCING OPERATIONS ARE VERY IMPORTANT; THEY SHOULD BE CARRIED OUT WITH SUITABLE TOOLS BY QUALIFIED PERSONNEL.

IT IS THEREFORE ESSENTIAL TO TAKE YOUR SCOOTER TO AN OFFICIAL APRILIA DEALER OR SPECIALISED TYRE WORKSHOP TO CARRY OUT THE OPERATIONS

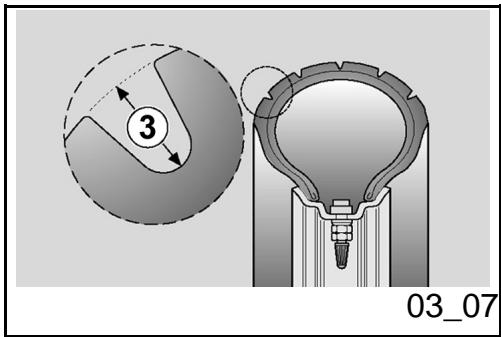

MINIMUM TREAD DEPTHK

Specification	Desc./Quantity
Front:	1.5 mm
Rear	1.5 mm

TYRE WEAR MINIMUM THRESHOLD «3» (USA VERSION)

Specification	Desc./Quantity
Front (USA version)	3 mm
Rear (USA version)	3 mm

03_08

03_09

03_10

Spark plug dismantlement (03_08, 03_09, 03_10)

Check and replace them as indicated in the scheduled maintenance tables.

Remove the spark plug regularly, clean off carbon scales, and replace the spark plug if necessary.

To access the spark plug:

• Park the vehicle on its centre stand on safe and level ground.

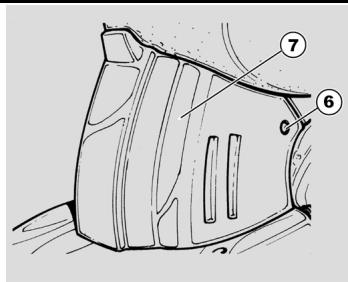

• Unscrew and remove the screw «6».
• Unscrew the inspection cover «7».

HANDLE PAINTED COMPONENTS WITH CARE; DO NOT SCRATCH OR SPOIL THEM.

For removal and cleaning:

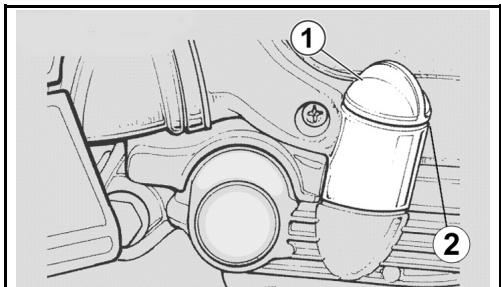

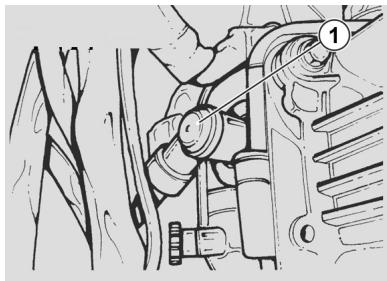

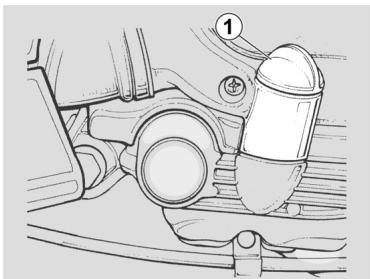

• Remove the spark plug tube «1».
• Clean off any trace of dirt from the spark plug base. Unscrew it using the wrench supplied in the tool kit and remove it from its fitting, being careful not to let dust or any other substance into the cylinder.
• Check that the spark plug electrode and centre porcelain are free of carbon deposits or signs of corrosion. If necessary, clean using suitable spark plug cleaners, a wire and/or metal brush.

• Blow with a strong air blast to avoid removed dirt getting into the engine. Replace the spark plug if there are cracks on the spark plug insulating material, corroded electrodes or several deposits.

• Check the electrode gap with a thickness gauge. This should be 0.5 - 0.6 mm ; adjust if necessary by carefully bending the earth electrode.

• Make sure the washer is in good conditions. Once the washer is fitted, manually screw the spark plug completely to avoid damaging the thread.
• Tighten using the wrench supplied in the tool kit, make the spark plug complete 1/2 a

turn to press the washer.

TIGHTEN THE SPARK PLUG CORRECTLY, OTHERWISE THE ENGINE MAY OVERHEAT AND GET IRRETRIEVABLE DAMAGED.

USE ONLY THE RECOMMENDED TYPE OF SPARK PLUG, OTHERWISE, THE ENGINE DURATION AND PERFORMANCE COULD BE COMPROMISED.

Locking torques (N^*m)

Spark plug tightening torque:

20 Nm (2 kgm)

• Connect the spark plug tube «1».
• Refit the inspection cover.

Removing the air filter (03_11, 03_12)

The air filter should be checked and cleaned monthly or as indicated in the scheduled maintenance tables. This depends on the use conditions.

If the scooter is used on dusty or wet roads, clean or replace the filter more frequently.

To clean the air filter, remove it from the vehicle.

REMOVAL

• Park the vehicle on its centre stand on safe and level ground.

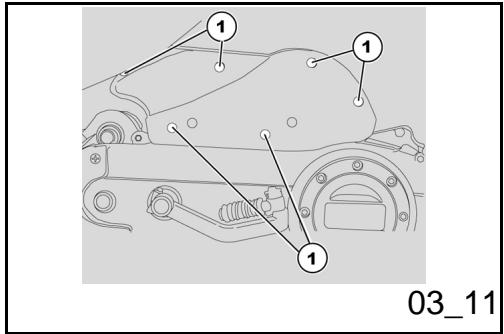

• Unscrew and remove the six screws «1».
• Remove the air filter cover «2».
• Remove the filtering element «3».

03_12

Air filter cleaning

• Wash the filtering element «3» with non flammable or highly volatile clean solvents and leave it dry it properly.
• Apply a specific filter oil over all the surface.

DO NOT USE PETROL OR FLAMMABLE SOLVENTS TO CLEAN THE FILTERING ELEMENT TO AVOID RISK OF FIRE OR EXPLOSION.

03_13

03_14

03_15

Battery (03_13, 03_14, 03_15)

DO NOT INVERT THE CONNXIONS OF THE BATTERY LEADS.

CONNECT AND DISCONNECT THE BATTERY WITH THE IGNITION SWITCH SET TO «OFF», OTHERWISE SOME COMPONENTS MAY BE DAMAGED.

FIRST CONNECT THE POSITIVE TERMINAL (+) AND THEN THE NEGATIVE ONE (-). DISCONNECT IN THE REVERSE ORDER.

FIRE HAZARD. FUEL OR ANY OTHER FLAMMABLE SUBSTANCES MUST NOT BE CLOSE TO ELECTRICAL COMPONENTS.

Check the electrolyte level and the leads tightening according to the indications in the scheduled maintenance tables.

THE BATTERY ELECTROLYTE IS TOXIC, CORROSIVE AND AS IT CONTAINS SULPHURIC ACID, IT CAN CAUSE BURNS WHEN IN CONTACT WITH THE SKIN. WEAR PROTECTION CLOTHES, A FACE MASK AND/OR SAFETY GOGGLES WHEN CARRYING OUT MAINTENANCE OPERATIONS.

IF THE ELECTROLYTIC FLUID GETS INTO CONTACT WITH THE SKIN, WASH WITH ABUNDANT COOL WATER.

IF THE FLUID GETS INTO CONTACT WITH THE EYES, WASH WITH ABUNDANT WATER FOR FIFTEEN MINUTES AND CONSULT AN EYE SPECIALIST IMMEDIATELY.

IF IT IS ACCIDENTALLY SWALLOWED, DRINK LARGE QUANTITIES OF WATER OR MILK, FOLLOWED BY MILK OF MAGNESIA OR VEGETAL OIL, AND SEEK MEDICAL ADVICE IMMEDIATELY.

THE BATTERY RELEASES EXPLOSIVE GASES; KEEP IT AWAY FROM FLAMES, SPARKS, CIGARETTES OR ANY OTHER HEAT SOURCE.

WHEN RECHARGING OR USING THE BATTERY, BE CAREFUL TO HAVE THE ROOM ADEQUATELY AIRED. DO NOT BREATH GASES RELEASED WHEN THE BATTERY IS RECHARGED.

KEEP OUT OF REACH OF CHILDREN

PAY ATTENTION NOT TO TILT THE SCOOTER EXCESSIVELY TO AVOID DANGEROUS SPILLS OF BATTERY FLUID.

BATTERY FLUID IS CORROSIVE.

DO NOT POUR OR SPREAD IT ESPECIALLY ON PLASTIC PARTS.

NOTE

IF YOU NEED ASSISTANCE OR TECHNICAL ADVICE, CONSULT AN OFFICIAL APRILIA DEALER WHO WILL PROVIDE A PRECISE AND PROMPT SERVICE.

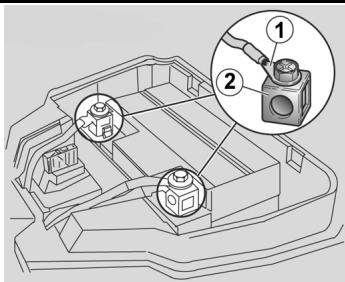

CHECKING AND CLEANING TERMINALS AND LEADS

• Access the battery.
• Check that the battery cables terminals «1» and leads «2» are in good conditions (and not corroded or covered by deposits) and covered with special grease or petroleum jelly.

If necessary:

• Make sure the ignition key is set to «OFF».
• Disconnect first the negative lead (-) and then the positive one (red) (+).
• Brush with a metal bristle brush to remove all signs of corrosion.
• Connect again first the positive lead (red) (+) and then the negative one (-).
  Cover the leads and terminals with special grease or petroleum jelly.
• Refit the battery.

BATTERY REMOVAL

ACCESS TO THE BATTERY

Make sure the ignition switch is set to OFF

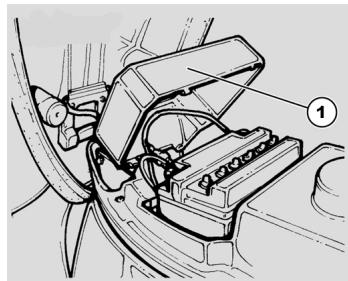

- Lift the saddle.
- Remove the battery cover «1».

THE BATTERY IS CONNECTED TO THE ELECTRIC WIRES. DO NOT FORCE THE WIRES WHEN REMOVIDING THEM.

COMPLETE REMOVAL

• Disconnect first the negative lead (-) and then the positive (red) one (+).
• Disconnect the breather pipe.
• Remove the battery from its housing and put it away on a level surface in a cool and dry place.

ONCE REMOVED THE BATTERY MUST BE PUT AWAY IN A SAFE PLACE AND OUT OF THE REACH OF CHILDREN.

BATTERY RECHARGE .

• Remove the battery.
  Get a suitable battery charger.
• Unscrew and remove the caps of the cells.
• Check the electrolyte level of the battery.
• Connect the battery to a battery charger.

NOTE

IT IS RECOMMENDED TO RECHARGE USING A CURRENT RATING OF 1/10 OF THE BATTERY CAPACITY.

• Switch on the battery charger.
• Once the battery is recharged, control the electrolyte level and top up with distilled water if necessary.
• Shut the cell caps.

REFIT THE BATTERY ONLY 5-10 MINUTES AFTER DISCONNECTING THE CHARGER AS THE BATTERY KEeps PRODUCING GAS FOR A SHORT TIME.

BATTERY INSTALLATION

Make sure the ignition switch is set to OFF
- Place the battery in its housing.
- Connect the battery breather pipe.

ALWAYS CONNECT THE BATTERY BREATHER PIPE TO AVOID THAT SULPHURIC ACID VAPOURS FROM THE BREATHER CORRODE THE ELECTRICAL SYSTEM, PAINTED PARTS, RUBBER COMPONENTS OR GASKETS.

THE BREATHER PIPE SHOULD BE CONNECTED SO THAT IT IS NOT PRESSED, OTHERWISE, THIS MAY CAUSE PRESSURE INCREASE INSIDE THE BATTERY, AND ALSO DAMAGE IT.

• Connect first the positive (red) lead (+) and then the negative one (-)

Cover terminals and leads with special grease or petroleum jelly.

UPON REFITTING, THE ELECTRIC WIRES SHOULD BE LED INTO POSITION SO THAT THEY DO NOT GET CRUSHED.

THE NEGATIVE LEAD (-) SHOULD NOT OVERLAP THE POSITIVE LEAD (+) CLAMP, ON THE CONTRARY, IT SHOULD BE PLACED NEXT TO IT, BETWEEN THE BATTERY AND THE HOUSING.

• Press the battery into the battery housing.
• Close the battery cover «1».
  Lower the saddle.

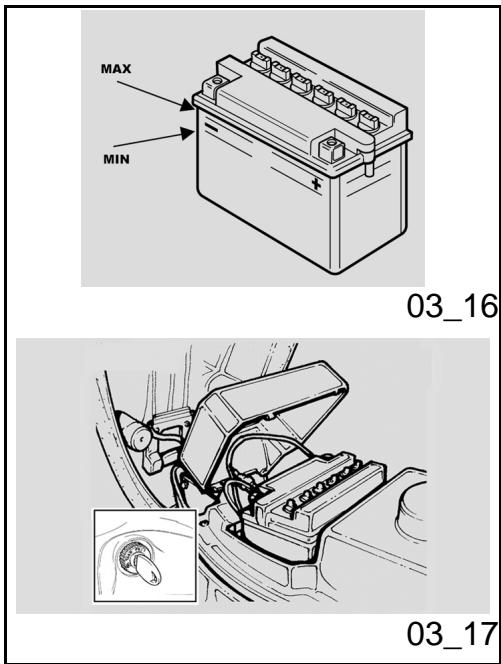

Checking the electrolyte level (03_16, 03_17)

• Remove the battery.
• Check that the fluid level is between the two "MIN" and "MAX" notches printed on the side of the battery.

Otherwise:

• Unscrew and remove the caps of the cells.

NOTE

USE DISTILLED WATER ONLY TO TOP UP ELECTROLYTE FLUID. DO NOT EXCEED THE "MAX" MARK, SINCE THE LEVEL INCREASES DURING RECHARGE.

• Restore the level adding distilled water only.
• Refit the cell caps.

NOTE

AFTER TOPPING UP, REFIT THE CELL CAPS ADEQUATELY.

Long periods of inactivity

If the scooter is inactive longer than fifteen days, it is necessary to recharge the battery to avoid sulphation,

In winter or when the scooter remains stopped, check the charge frequently (about once a month) to avoid deterioration.

Fully recharge with an ordinary charge.

If the battery is still on the scooter, disconnect the cables of the terminals.

03_18

Fuses (03_18, 03_19)

DO NOT REPAIR FAULTY FUSES.

NEVER USE FUSES OTHER THAN THE ONES SPECIFIED.

DAMAGE TO THE ELECTRICAL SYSTEM OR EVEN FIRE MAY BE CAUSED IN CASE OF A SHORT CIRCUIT.

IF A FUSE BLOWS OUT FREQUENTLY, THAT MAY BE DUE TO A SHORT CIRCUIT OR OVERLOAD. IF THIS OCCURS CONSULT AN OFFICIAL APRILIA DEALER.

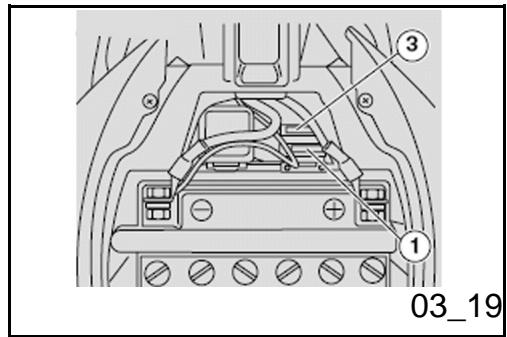

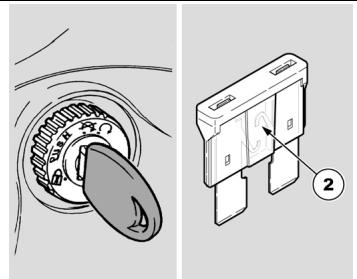

Check fuse «1» in case of failure or irregular functioning of an electrical component or engine starting failure.

To check:

• Set the ignition switch to «OFF» to avoid an accidental short circuit.

• Remove the inspection cover.
  Take out the fuse 1 and check if the filament 2 is interrupted.
• Before replacing the fuse, find and solve, if possible, the problem that caused the problem.
• Then, replace the damaged fuse with the spare fuse «3» supplied or with one with the same current rating.
• Put the inspection cover back.

IF THE SPARE FUSE «3» IS USED, SUPPLY ANOTHER OF THE SAME TYPE IN THE CORRESPONDING FITTING.

FUSE DISTRIBUTION

15A Fuse (1) from battery to: starter motor.

7.5A Fuse from battery to: all the electric loads, except for the light circuit fed with alternating current.

Lamps

FIRE HAZARD. FUEL OR ANY OTHER FLAMMABLE SUBSTANCES MUST NOT BE CLOSE TO ELECTRICAL COMPONENTS.

BEFORE REPLACING A BULB, TURN THE IGNITION SWITCH TO «OFF» AND WAIT A FEW MINUTES FOR THE BULB TO COOL OFF.

WEAR CLEAN GLOVES OR USE A CLEAN DRY CLOTH TO REPLACE THE BULB.

DO NOT LEAVE PRINTS ON THE BULB AS THIS MAY CAUSE IT TO OVERHEAT OR EVEN BLOW OUT. IF YOU TOUCH THE BULB WITHOUT WEARING GLOVES, CLEAN

03_20

03_21

Front light group (03_20, 03_21, 03_22, 03_23)

In the front headlight there are:

• one low-beam / high-beam light bulb «1».

For replacement:

Remove the front handlebar cover as follows:

• Park the vehicle on its centre stand on safe and level ground.

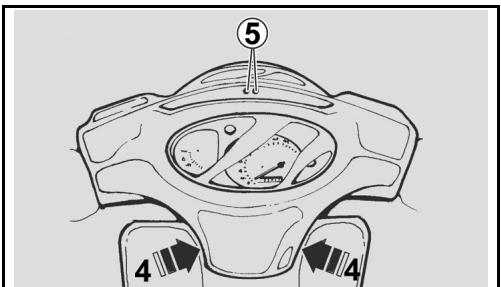

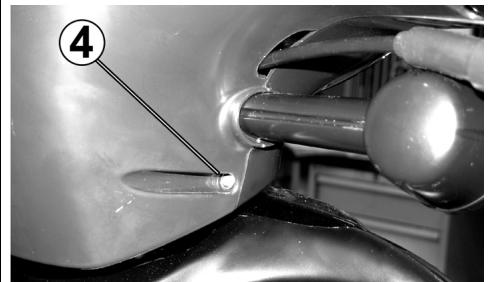

• Unscrew and remove the four screws «4».
• Unscrew and remove the two screws «5».
• Remove the front handlebar cover paying special attention not to break the tabs.
• Remove the front headlamp

NOTE

HANDLE PLASTIC AND PAINTED COMPONENTS WITH CARE; DO NOT SCRAFT OR SPOIL THEM.

NOTE

UPON REFITTING, CHECK THAT THE TABS ARE INSERTED CORRECTLY.

LOW-BEAM/HIGH-BEAM LIGHT BULB

• Turn the bulb holder «3» clockwise and take it out of its fitting.
• Press moderately and turn the low-beam/high-beam light bulb «1» anticlockwise, remove and replace it with one of the same type.

03_22

03_23

03_24

DO NOT PULL THE ELECTRICAL CABLES WHEN TAKING OUT THE BULB HOLDER.

Headlight adjustment (03_24, 03_25)

• For a quick check of the correct direction of the front light beams, place the scooter ten metres from a vertical wall and make sure the ground is level.
• Turn on the low beam light, sit on the scooter and check that the light beam projected to the wall is a little below the headlight horizontal straight line (about 9/10 of the total height).

To adjust the light beam:

• Park the vehicle on its centre stand on safe and level ground.

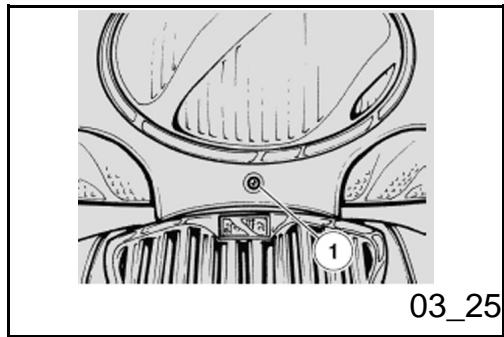

• Operate with a screwdriver on the correct screw «1».

SCREW it (clockwise) to lift the light beam.

UNSCREW it (anticlockwise) to lower the light beam.

NOTE

FOLLOW THE SPECIFIC PROCEDURES TO CHECK THE LIGHT BEAM DIRECTION THAT ARE INDicated BY THE LEGISLATION IN FORCE IN THE COUNTRY WHERE THE SCOOTER IS USED.

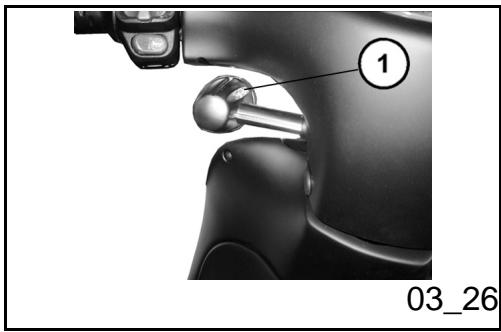

Front direction indicators (03_26)

To replace the bulbs:

Park the vehicle on its centre stand.
- Unscrew and remove the screw
- Remove the glass.
- Press the light bulb moderately and turn it anticlockwise.
- Remove the light bulb from its fitting.
Install a light bulb of the same type correctly.

UPON REFITTING, PLACE THE ELEMENTS ADEQUATELY WHERE THEY CANNOT BE SPOILED.

NOTE

INSERT THE BULB IN THE BULB HOLDER SO THAT THE TWO GUIDING PINS COIN-CIDE WITH THEIR GUIDES ON THE BULB HOLDER.

NOTE

IF THE LAMP HOLDER GETS OFF ITS FITTING, REINSERT IT CORRECTLY MAKING THE LAMP HOLDER OPENING COINCIDE WITH SCREW SEAT.

Rear optical unit

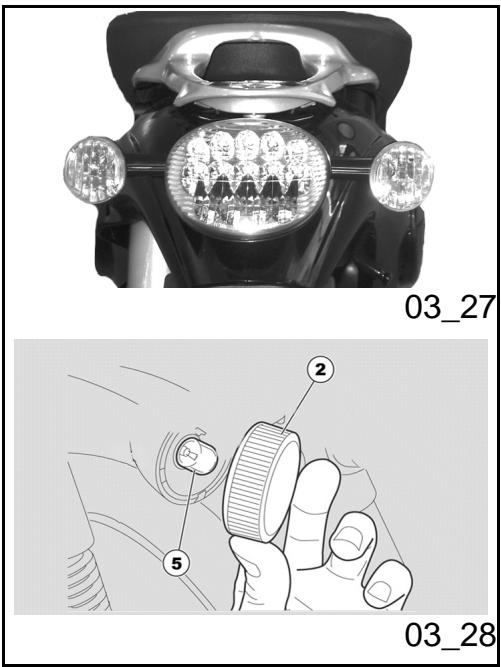

It is not possible to replace the rear headlamp bulb as it is a LED. In this case, it is necessary to replace the whole rear headlamp unit.

Rear turn indicators (03_27, 03_28, 03_29)

The rear turn indicators are integrated with the rear headlamp.

To replace the bulbs:

Rest the scooter on its centre stand.
- Unscrew and remove the three screws fixing the rear headlamp to the rear mudguard.
- Hold the headlamp and turn it so as to operate the screw «1».
- Unscrew the screw «1» and remove the glass «2».
- Press the light bulb «5» moderately and turn it anticlockwise.
- Extract the bulb from its fitting.
Install a bulb of the same type adequately.

UPON REFITTING, PLACE THE ELEMENTS ADEQUATELY WHERE THEY CANNOT BE SPOILED.

NOTE

INSERT THE BULB IN THE BULB HOLDER SO THAT THE TWO GUIDING PINS COIN-CIDE WITH THEIR GUIDES ON THE BULB HOLDER.

NOTE

IF THE LAMP HOLDER GETS OFF ITS FITTING, REINSERT IT CORRECTLY MAKING THE LAMP HOLDER OPENING COINCIDE WITH SCREW SEAT.

03_29

03_30

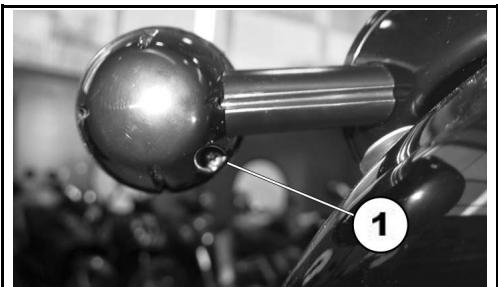

Rear-view mirrors (03_30)

• Park the vehicle on its centre stand on safe and level ground.
• Lift the protection cover «1».
  Locking the screw 3 , loosen the nut 4 completely.
• Unscrew the rear-view mirror «2».

HOLD THE REAR-VIEW MIRROR «2» TO AVOID DROPPING IT BY ACCIDENT.

Idle adjustment (03_31)

Carry out the idle speed adjustment according to the scheduled maintenance tables and every time it is not adjusted.

To carry out this operation:

• Ride a few kilometres, until reaching the regular working temperature, then stop the engine.
• Remove the inspection cover.
• Connect an electronic rpm indicator to the spark plug cable.

BEFORE ANY OPERATION, MAKE SURE THAT THE ROOM WHERE YOU ARE HAS ADEQUATE AIR VENTILATION.

• Start the engine.

The minimum engine idle speed should be of about 1800 ± 100 rpm; in this case, the rear wheel is not turned by the engine.

If necessary:

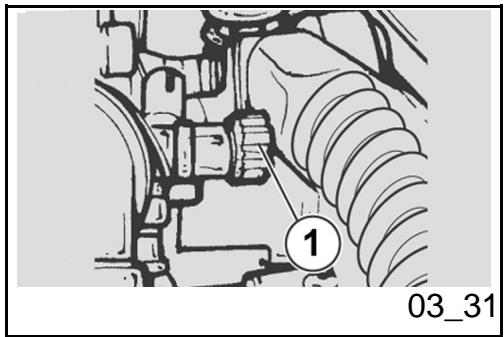

Operate on the setting panel shown in the figure placed on the carburettor.

SCREW it (clockwise) to increase revs.

UNSCREW it (anticlockwise) to reduce revs.

• Twisting the throttle grip, accelerate and decelerate a few times to check the correct operation and if the idle speed is stable.

NOTE

DO NOT TURN THE AIR SET SCREW TO AVOID CHANGING THE CARBURETION ADJUSTMENT.

TAKE YOUR SCOOTER TO AN OFFICIAL APRILIA DEALER IF NECESSARY.

03_32

03_33

Front disc brake (03_32, 03_33, 03_34)

BREAK FLUID -WARNINGS

UNEXPECTED CLEARANCE VARIATIONS OR ELASTIC RESISTANCE IN THE BRAKE LEVER ARE DUE TO FAILURE IN THE HYDRAULIC CIRCUIT.

CONTACT AN APRILIA OFFICIAL DEALER IN CASE OF DOUBTS ON THE CORRECT OPERATION OF THE BRAKING SYSTEM AND WHEN THE ORDINARY CHECKS CAN NOT BE CARRIED OUT.

PAY SPECIAL ATTENTION TO THE BRAKE DISC AND THE FRICTION GASKETS AND CHECK THAT THEY ARE NOT OILY OR GREASY, SPECIALLY AFTER MAINTENANCE OPERATIONS OR CHECKS.

CHECKED THAT THE BRAKE PIPE IS NOT TWISTED OR THREADBARE.

DO NOT DISPOSE OF THE FLUID INTO THE ENVIRONMENT.

KEEP OUT OF REACH OF CHILDREN

DISC BRAKE

BRAKES ARE THE MOST IMPORTANT COMPONENTS TO ENSURE SAFETY AND THEREFORE THEY HAVE TO BE ALWAYS IN PERFECT CONDITIONS; CHECK THEM BEFORE EVERY RIDE.

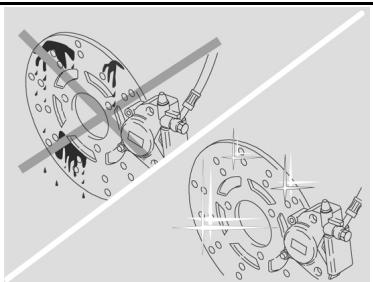

A DIRTY DISC SMEARS THE PADS RESULTING IN POOR BRAKING. REPLACE DIRTY PADS AND CLEAN AGAIN THE DIRTY DISC USING A TOP QUALITY DEGREASING PRODUCT.

THE BRAKE FLUID SHOULD BE REPLACED EVERY TWO YEARS AT AN OFFICIAL APRILIA DEALER.

DO NOT HESITATE TO CONTACT AN OFFICIAL APRILIA DEALER IN CASE OF DOUBTS ON THE CORRECT OPERATION OF THE BRAKING SYSTEM AND WHEN THE ORDINARY CHECKS CAN NOT BE CARRIED OUT.

NOTE

THE FOLLOWING INFORMATION REFERS ONLY TO THE FRONT DISC BRAKING CIRCUIT.

When the friction pads wear out, the fluid level goes down to automatically compensate for that wear. The brake fluid reservoir is placed near the front brake lever attachment. Check frequently the brake fluid level in the reservoir and the brake pad wear.

DO NOT USE YOUR SCOOTER IF A FLUID LEAK IN THE BRAKING CIRCUIT IS DETECTED.

The brake fluid reservoir is placed near the front brake lever attachment. Check frequently the brake fluid level in the reservoir and the brake pad wear.

CHECK

To check level:

• Park the vehicle on its centre stand on safe and level ground.

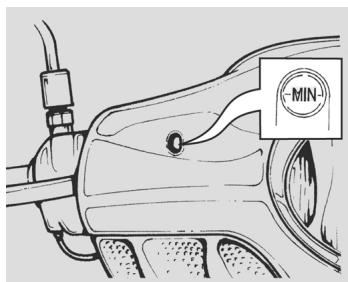

• Turn the handlebar so that the fluid in the brake fluid reservoir is parallel to the «MIN» reference mark indicated on the sight glass.

MIN = minimum level.

• Check that the brake fluid level in the reservoir is over the «MIN» reference mark indicated on the sight glass. If the fluid does not reach at least the «MIN» reference mark.

NOTE

THE FLUID LEVEL GOES DOWN GRADUALLY AS THE PADS WEAR OUT.

• Check brake pads for wear.
  If pads and/or the disc need not to be replaced:
  Take your scooter to an Official aprilia Dealer to carry out the replacement.

CHECK BRAKING EFFICIENCY.

IN CASE OF EXCESSIVE TRAVEL OF THE BRAKE LEVER OR POOR PERFORMANCE OF THE BRAKING CIRCUIT, TAKE YOUR SCOOTER TO AN OFFICIAL APRILIA DEALER AS IT MAY BE NECESSARY TO PURGE AIR IN THE CIRCUIT.

Pads wear check

Check brake pads for wear and replace them as indicated in the scheduled maintenance tables.

Disc brake pad wear depend on the use, the riding style and the roads. Riding your scooter on dirty or wet streets accelerates wear.

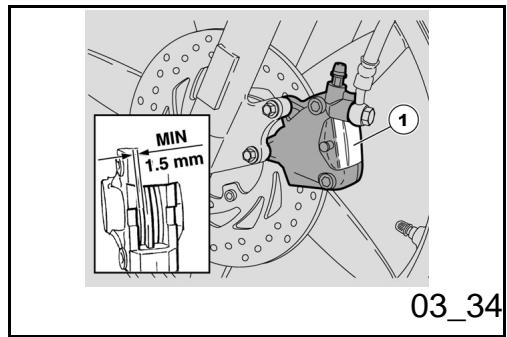

To carry out a quick pad check:

• Park the vehicle on its centre stand on safe and level ground.
• Remove the brake calliper cover «1».
• Carry out a visual check between the brake disc and the pads.
• If the thickness of the friction materials (even if only one pad) is reduced to about 1.5 mm, replace both pads.

CHECK BRAKE PADS FOR WEAR MAINLY BEFORE EACH RIDE.

NOTE

EXCESSIVE WEAR OF THE FRICTION MATERIAL MAKES THE PAD METAL SUPPORT GET INTO CONTACT WITH THE DISC, WHICH RESULTS IN A METAL NOISE AND SPARKS IN THE CALLIPER; THEREFORE, BRAKING EFFICIENCY AND DISC SAFETY AND INTEGRITY ARE AT RISK.

NOTE

TAKE YOUR SCOOTER TO AN OFFICIAL APRILIA DEALER TO CARRY OUT THE REPLACEMENT.

Rear drum brake (03_35, 03_36)

BRAKES ARE THE MOST IMPORTANT COMPONENTS TO ENSURE SAFETY AND THEREFORE THEY HAVE TO BE ALWAYS IN PERFECT CONDITIONS; CHECK THEM BEFORE EVERY RIDE.

DO NOT HESITATE TO CONTACT AN OFFICIAL APRILIA DEALER IN CASE OF DOUBTS ON THE CORRECT OPERATION OF THE BRAKING SYSTEM AND WHEN THE ORDINARY CHECKS CAN NOT BE CARRIED OUT.

BRAKE ADJUSTMENT

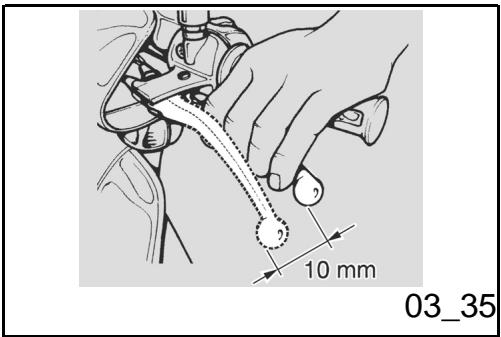

• Measure the distance the lever travels before the brake starts braking. The empty travel at the brake lever end should be of about 10mm .

To adjust clearance:

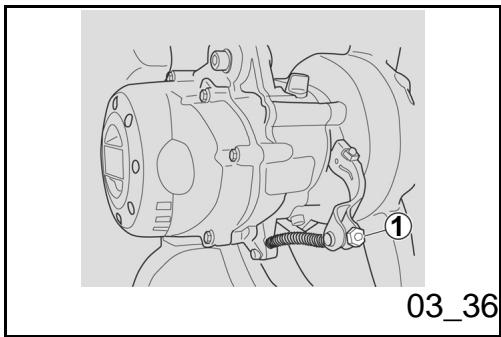

• Operate on the set screw «1».
• Operate the brake repeatedly and check that the wheel rotates freely after releasing the brake.
• Check braking efficiency.

NOTE

A COMPLETELY SCREWED IN SET SCREW «1» INDICATES SHOE WEAR.

BRAKE SHOE HEATING, CAUSED BY BRAKING, MAY MODIFY THE CLEARANCE BETWEEN THE FRICTION MATERIAL AND THE DRUM. FOR THIS REASON, CHECK THE CLEARANCE EVEN WITH SHOES IN WORKING TEMPERATURE.

• Carry out a test ride operating the rear brake twice or three times.

NOTE

CARRY OUT THE CHECK WITH ENGINE OFF.

Park the vehicle.
- Check that the wheel rotates freely.

If necessary:

WITH HOT ENGINE, PAY SPECIAL ATTENTION NOT TO GET BURNT WHEN CARRYING OUT THE FOLLOWING OPERATIONS.

Loosen the set screw «1», checking that the wheel rotates freely.

03_37

03_38

Periods of inactivity (03_37, 03_38)

Take some measures to avoid the side effects of not using the scooter.

Besides, it is necessary to carry out general repairs and checks before garaging the scooter as one can forget to do so afterwards.

Proceed as follows:

• Empty the reservoir and the carburettor completely.
• Remove the spark plug, and pour a spoonful of two-stroke engine oil (5 - 10 cm³) in the cylinder.
• Set the ignition switch to «ON» and press the starter button for a few seconds to distribute the oil on the cylinder surfaces evenly.
• Remove the protection cloth.
• Refit the spark plug.
• Remove the battery.
• Wash and dry the scooter.
  Polish the painted surfaces.
  Inflate tyres.

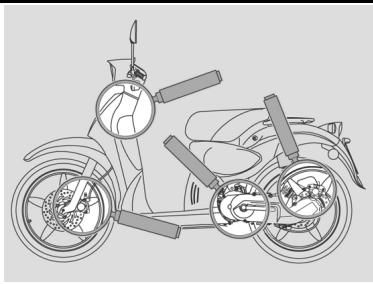

• Place the scooter so that both tyres do not touch the ground using a specific support.
• Set the scooter in a room with no heating or humidity, with minimum temperature variations and not exposed to sun rays.
• Put a plastic bag on the muffler exhaust end and tie it so that humidity cannot get in.
  Cover the scooter but do not use plastic or waterproof materials.

PLACE A CLEAN CLOTH ON THE CYLINDER NEXT TO THE SPARK PLUG SEAT TO PROTECT IT FROM POSSIBLE OIL SPLASHES.

AFTER STORAGE

• Uncover and clean the scooter.
• Check that the battery charge is ok and fit it.
• Check the carburettor drainage screw is fully screwed (drainage closing indication)
• Refill the fuel tank.
• Carry out the preliminary controls.

AS A TEST, RIDE THE SCOOTER FOR A FEW KILOMETRES AT A MODERATE SPEED AWAY FROM TRAFFIC AREAS.

Cleaning the vehicle

Clean the scooter frequently when riding in the following areas or conditions:

Air pollution (cities and industrial areas).
- Atmospheric salinity and humidity (seashore areas, hot and wet weather).
- Special ambient/seasonal conditions (use of salt, anti-icing chemical products on the roads in winter).
- Pay special care that industrial or polluting dust deposits do not form on the body-work and also remove tar stains, dead insects, bird droppings, etc.
- Avoid parking your scooter under trees; during some seasons, actually some

residues, resin, fruits or leaves containing chemical substances which damage the paint fall from trees.

AFTER CLEANING YOUR SCOOTER, BRAKING EFFICIENCY MAY BE TEMPORARILY AFFECTED DUE TO THE PRESENCE OF WATER ON THE FRICTION SURFACES OF THE BRAKING CIRCUIT. CALCULATE A LONGER BRAKING DISTANCE IN ORDER TO AVOID ACCIDENTS. OPERATE THE BRAKES SEVERAL TIMES TO RESTORE NORMAL CONDITIONS.

CARRY OUT THE PRELIMINARY CHECKS.

To remove dirt and mud deposited on the painted surfaces, use a low pressure water jet to soak all dirty parts carefully. Wipe off mud and dirt with a soft sponge for bodywork soaked in a lot of water and shampoo (2 - 4% parts of shampoo in water). Then rinse abundantly with water and dry with a shammy cloth. To clean the engine outer parts, use degreasing detergent, brushes and old cloths.

TO CLEAN THE HEADLAMPS, USE A SPONGE SOAKED IN NEUTRAL DETERGENT AND WATER, SCRUBBING DELICATELY THE SURFACES AND RINSING WITH PLENTY OF WATER FREQUently. REMEMBER TO CLEAN THE SCOOTER CAREFULLY BEFORE ANY POLISHING WITH SILICON WAX. DO NOT POLISH MATT PAINTWORK WITH ABRASIVE PASTES.

THE SCOOTER SHOULD NEVER BE WASHED IN DIRECT SUNLIGHT, ESPECIALLY DURING SUMMER, WITH THE BODYWORK STILL HOT, AS THE SHAMPOO CAN DAMAGE THE PAINTWORK IF IT DRIES BEFORE BEING RINSED OFF.

DO NOT USE LIQUIDS AT TEMPERATURES OVER 40^ WHEN CLEANING PLASTIC

PARTS OF THE SCOOTER.

DO NOT DIRECT HIGH PRESSURE WATER OR AIR OR STEAM JETS TO THE FOLLOWING PARTS: WHEEL HUBS, CONTROLS LOCATED ON THE RIGHT OR LEFT-HAND SIDE OF THE HANDLEBAR, BEARINGS, BRAKE PUMPS, INSTRUMENTS AND GAUGES, MUFFLER EXHAUST, GLOVEBOX / TOOL KIT, IGNITION SWITCH / STEERING, FUEL CAP, HEADLAMPS AND ELECTRICAL CONNECTIONS.

DO NOT USE ALCOHOL, PETROL OR SOLVENTS TO CLEAN RUBBER AND PLASTIC PARTS AND THE SADDLE. USE ONLY WATER AND NEUTRAL SOAP INSTEAD.

DO NOT APPLY PROTECTIVE WAX ON THE SADDLE TO AVOID SLIPPERINESS.

03_39

Transport (03_39)

NOTE

BEFORE TRANSPORTING THE VEHICLE, IT IS NECESSARY TO EMPTY THE FUEL TANK AND THE CARBURETOR ADEQUATELY, CHECKING THAT THEY ARE DRY.

WHILE TRANSPORTING THE SCOOTER, IT SHOULD BE AT ALL TIMES VERTICAL AND WELL ANCHORED IN ORDER TO AVOID FUEL, OIL OR COOLANT LEAKS.

IN CASE OF FAILURE, DO NOT HAVE THE SCOOTER TOWED. ASK FOR AN ADEQUATE ASSISTANCE.

FIRE HAZARD.

WAIT UNTIL THE ENGINE AND THE MUFFLER ARE COLD.

FUEL VAPOURS ARE HARMFUL TO HEALTH.

BEFORE ANY OPERATION, MAKE SURE THAT THE ROOM WHERE YOU ARE HAS ADEQUATE AIR VENTILATION.

DO NOT INHALE FUEL VAPOURS.

DO NOT SMOKE OR USE NAKED FLAMES.

DO NOT DISPOSE OF FUEL INTO THE ENVIRONMENT.

DO NOT DISPOSE OF FUEL INTO THE ENVIRONMENT.

• Park the vehicle on its centre stand on safe and level ground.
• Shut off the engine and wait until it cools off.
• Get a container, with more capacity than the fuel in the tank, and put it on the ground to the left of the vehicle.
• Remove the fuel tank cap.
• Use a manual pump or a similar system to empty the fuel tank.

NOTE

AFTER EMPTYING THE TANK, REFIT THE FUEL TANK CAP ADEQUATELY.

• Refit the fuel tank cap.

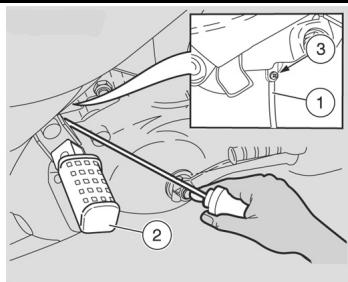

To empty the carburettor completely:

Pull out the left passenger footrest «2»
- Operating on the left-hand side of the vehicle, introduce a screwdriver between the footrest and the engine

NOTE

UPON REFITTING, ALWAYS REPLACE WITH A NEW CLAMP.

• Open the carburettor drainage loosening the draining screw «3» under the float chamber.

When all the fuel in the carburettor is drained:

Loosen the drainage screw «3» completely.

LOOSEN THE DRAINAGE SCREW «3» CORRECTLY TO AVOID FUEL LEAKAGE FROM THE CARBURETTOR WHEN REFILLING IT.

TAKE YOUR SCOOTER TO AN OFFICIAL APRILIA DEALER IF NECESSARY.

SCARABEO

50 4T

aprilia

Chap. 04 Technical data

TECHNICAL DATA

Specification	Desc./Quantity
Max length	1905 mm
Max. width (to the brakes lever)	705 mm
Max. height (to the rear-view mirrors)	1190 mm
Saddle height	700 mm
Centre to centre distance	1245 mm
Minimum ground clearance	140 mm
Kerb weight (in running order)	100 kg
Seats	No. 1 (2 in countries where passenger transport is permitted)
Scooter max load (rider + passenger + luggage)	180 Kg (in countries where passenger transport is permitted)
Chassis type	split double cradle frame
Front suspension	hydraulic telescopic fork
Front suspension travel	89 mm
Rear suspension	single hydraulic shock absorber
Rear suspension travel	74 mm
Front brake	Ø 220 mm disc brake with hydraulic transmission
Rear brake	Ø 140 mm
Rims	alloy
Front wheel	1.60 x 16"
Rear wheel	1.85 x 16"
Front tyre	80 / 80 x 16" SAVA MC 26 CAPRI 46M REINF
Rear tyre	90 / 80 x 16" SAVA MC 26 CAPRI 52M REINF
Front tyre standard inflation pressure	190 kPa (1.9 bar)
Rear tyre standard inflation pressure	220 kPa (2.2 bar)
Front tyre standard inflation pressure with passenger	190 kPa (1.9 bar)
Rear tyre standard inflation pressure with passenger	230 kPa (2.3 bar)
Battery	12V - 9 Ah
Fuse	70 W

Generator (permanent magneto) 13V - 120W

ENGINE TECHNICAL DATA

Specification	Desc./Quantity
Engine model	PA C373M
Cylinder quantity	Horizontal single-cylinder
Overall engine capacity	49.9 cm³
Bore/stroke	39 mm / 40.8 mm
Compression ratio	11.5 ± 12:1
Ignition	electric + kick starter
Clutch	centrifugal
Cooling	with forced air
Variator	continuous, automatic
Main	V-belt
Minimum ratio for continuos transmission	3.07
Maximum ratio for continuos transmission	0.93
Secondary transmission	gear reduction unit
Fuel (reserve included)	7 l
Fuel reserve	1 l
Transmission oil	100 cm3
Engine oil	850 cm3
Standard carburettor	KEIHIN CVK17
Fuel	Premium unleaded premium (4 stars) petrol, DIN 51607, with minimum octane rating of 95 (NORM) and 85 (NOMM)
Ignition type	CDI
Ignition advance	26°
Spark plug	CHAMPION RG4HC - NGK CR9EBNGK CR9E
Spark plug electrode gap	0.6 ± 0.05 mm
Engine revs at idle speed	1800 ± 100 rpm

BULBS AND WARNING LIGHTS

Specification	Desc./Quantity
Low-/high-beam light bulb	12V - 35/35W
Turn indicators bulbs	12V - 10W
Rear tail light /stop light bulb	12V - 5/21W
License plate light bulb	12V - 5W
Instrument panel light bulbs	12V - 1.2W
High-beam warning light	12V - 1.2W
Turn indicator warning light	12V - 3W

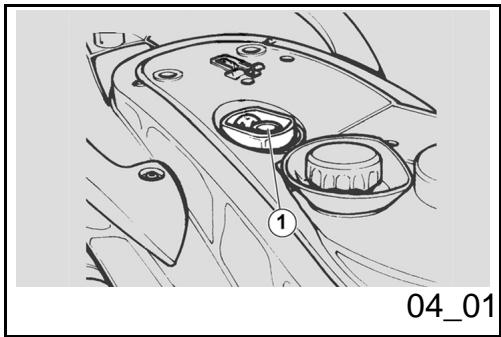

Kit equipment (04_01)

To access the tools kit, unlock and lift the saddle.

The wrenches are placed in their housing «1» in the plastic helmet compartment. The tools kit includes:

One 16 mm box-spanner;
One twin screwdriver;
One 4 mm Allen key

SCARABEO

50 4T

aprilia

Chap. 05

Programmed

maintenance

Scheduled maintenance table

FIRE HAZARD.

FUEL OR ANY OTHER FLammable SUBSTANCES MUST NOT BE CLOSE TO ELECTRICAL COMPONENTS.

BEFORE ANY MAINTENANCE OPERATION OR INSPECTION ON THE SCOOTER, SHUT OFF THE ENGINE AND REMOVE THE KEY. WAIT UNTIL THE ENGINE AND THE EXHAUST SYSTEM ARE COLD, IF POSSIBLE LIFT THE SCOOTER WITH A SPECIFIC TOOL ON A FIRM AND LEVEL GROUND.

BEFORE ANY OPERATION, MAKE SURE THAT THE ROOM WHERE YOU ARE HAS AD-EQUATE AIR VENTILATION.

TO AVOID BURNS PAY SPECIAL CARE WITH HOT ENGINE AND EXHAUST SYSTEM PARTS.

DO NOT HOLD ANY MECHANICAL OR OTHER SCOOTER PARTS WITH YOUR MOUTH: SCOOTER COMPONENT ARE NOT EDIBLE, ON THE CONTRARY SOME OF THEM ARE HARMFUL AND EVEN TOXIC.

NOTE

UNLESS OTHERWISE INDICATED, REFIT THE UNIT FOLLOWING THE REMOVAL STEPS BUT IN REVERSE ORDER.

WHEN CARRYING OUT MAINTENANCE OPERATIONS, IT IS ADVISIBLE TO WEAR LATEX GLOVES.

In general routine maintenance operations can be carried out by the user; in some cases it is necessary to use specific tools and have some technical knowledge.

If you need assistance or technical advice, consult an Official aprilia Dealer who will provide a precise and quick service.

Ask your Official aprilia Dealer to test the scooter on the road after a repair but nonetheless, personally carry out the Preliminary Checks after a maintenance operation.

PERIODIC MAINTENANCE CHART

Adequate maintenance is fundamental to ensuring long-lasting, optimum operation and performance of your scooter.

For this purpose, aprilia offers a set of checks and maintenance services (for payment), which are included in the summary table shown on the following page. Any minor faults should be reported without delay to any Official aprilia Dealer without waiting until the next scheduled service to solve it.

Carrying out scheduled services on time is necessary to ensure your warranty remains valid. For any other information concerning Warranty procedures and Scheduled Maintenance, please refer to the Warranty Booklet.

EVERY 3000 KM

Action

Engine oil - level check/topping-up

EVERY 2 YEARS

Action

Brake fluid - change

EVERY 4 YEARS

Action

Fuel pipes - Replacement

AFTER 1000 KM OR 4 MONTHS

Action

Hub oil - change

Valve clearance - check

Idle speed (^*) - adjustment

Throttle lever - adjustment

Steering - adjustment

Brake control levers - greasing

Brake pads - condition and wear check

Brake fluid level - check

Safety locks - check

Electrical system and battery - check

Tyre pressure - check

Vehicle and brake test - test ride

Brake fluid purge - check

Headstock bearings and steering clearance - check

AFTER 6000 KM OR 12 MONTHS, 18000, 30000, 42000, 54000 AND 66000 KM

Action

Engine oil - change

Hub oil level - control

Spark plug / electrode gap - check

Oil filter (mesh) - cleaning

Variable speed rollers - check or replacement

Brake pads - condition and wear check

Brake fluid level - check

Electrical system and battery - check

Tyre pressure and wear - check up

Vehicle and brake test - test ride

Headstock bearings and steering clearance - check

Stop light switches - check

Wheel bearings - check

Rear brake camshaft grease - check and lubrication if necessary

Driving belt - replacement

AFTER 12000 KM OR 24 MONTHS AND AFTER 60000

KM

Action

Engine oil - change

Hub oil level - control

Spark plug / electrode gap - replacement

Air filter - cleaning

Oil filter (mesh) - cleaning

Idle speed (*) - adjustment

Throttle lever - adjustment

Variable speed rollers - check or replacement

Driving belt - replacement

Odometer gear - grease

Steering - adjustment

Brake control levers - greasing

Brake pads - condition and wear check

Brake fluid level - check

Transmissions - lubrication

Safety locks - check

Suspensions - Check

Electrical system and battery - check

Headlight - adjustment

Tyre pressure and wear - check up

SAS housing (sponge) - cleaning

Vehicle and brake test - test ride

(*) See instructions in the «Idle speed adjustment» section

AFTER 24000 KM AND 48000 Km

Action

Engine oil - change

Hub oil level - replacement

Spark plug / electrode gap - replacement

Air filter - cleaning

Oil filter (mesh) - cleaning

Valve clearance - check

Idle speed/carburetion - Adjustment (*)

Throttle lever - adjustment

Variable speed rollers - check or replacement

Driving belt - replacement

Cylinder ventilation system - check

Odometer gear - grease

Steering - adjustment

Brake control levers - greasing

Brake pads - condition and wear check

Brake fluid level - check

Transmissions - lubrication

Safety locks - check

Suspensions - Check

Electrical system and battery - check

Headlight - adjustment

Tyre pressure and wear - check up

Vehicle and brake test - test ride

AFTER 36000 Km

Action

Engine oil - change

Hub oil level - control

Spark plug / electrode gap - replacement

Air filter - cleaning

Oil filter (mesh) - cleaning

Idle speed (*) - adjustment

Throttle lever - adjustment

Variable speed rollers - check or replacement

Driving belt - replacement

Odometer gear - grease

Steering - adjustment

Brake control levers - greasing

Brake pads - condition and wear check

Brakes flexible hoses - replacement

Brake fluid level - check

Transmissions - lubrication

Safety locks - check

Suspensions - Check

Electrical system and battery - check

Headlight - adjustment

Tyre pressure and wear - check up

SAS housing (sponge) - cleaning

Vehicle and brake test - test ride

(*) See instructions in the «Idle speed adjustment» section

AFTER 72000 Km

Action

Engine oil - change

Hub oil - change

Spark plug / electrode gap - replacement

Air filter - cleaning

Oil filter (mesh) - cleaning

Valve clearance - check

Idle speed (*) - adjustment

Throttle lever - adjustment

Variable speed rollers - check or replacement

Driving belt - replacement

Cylinder ventilation system - check

Odometer gear - grease

Steering - adjustment

Brake control levers - greasing

Brake pads - condition and wear check

Brakes flexible hoses - replacement

Brake fluid level - check

Transmissions - lubrication

Safety locks - check

Suspensions - Check

Electrical system and battery - check

Headlight - adjustment

Tyre pressure and wear - check up

SAS housing (sponge) - cleaning

Vehicle and brake test - test ride

(*) See instructions in the «Idle speed adjustment» section

RECOMMENDED PRODUCTS TABLE

Product	Description	Specifications
AGIP CITY HI TEC 4T	Engine oil	SAE 5W - 40
AGIP GEAR SYNTH SAE 75W-90	Transmission oil	SAE 75W-90
AGIP FORK 5W or FORK 20W	Fork oil	SAE 5W / SAE 20W
AGIP GREASE SM2	Lithium grease with molybdenum for bearings and other points needing lubrication	NLGI 2
AGIP CHAIN GREASE	Chain spray grease
AGIP BRAKE FLUID DOT 4	Brake fluid	SAE J1703, NHTSA 116 DOT 4, ISO 4925 synthetic fluid
AGIP PERMANENT PLUS	Coolant	CUNA NC 956-16

SCARABEO

50 4T

aprilia

Chap. 06 Special fittings

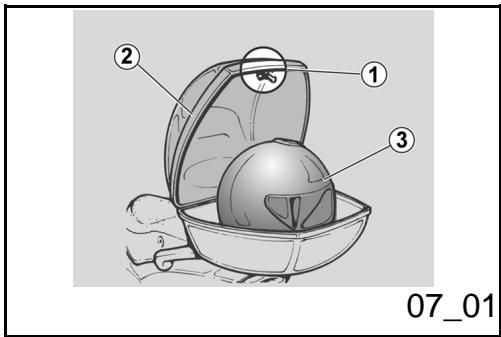

Luggage rack (07_01)

Thanks to its rear case it is not necessary to take the helmet with you when the vehicle is parked.

NEVER RIDE WITH THE REAR CASE OPEN. THIS CAN JEOPARDISE THE SAFETY CONDITIONS WHILE RIDING.

To place the helmet:

Rest the scooter on its centre stand.
Take out the key from the ignition switch and introduce it in the rear case lock «1».
- Turn the key anticlockwise and open the rear case «2».
- Put the helmet «3» in the rear case only as shown in the figure and the sticker on the case.
- Close the rear case «2» until the lock trips and remove the key from the corresponding lock «1».

NOTE

NEVER LEAVE THE KEY INSERTED IN THE LOCK.

THE VALUE OF SERVICE

Thanks to continuous technical updates and specific training programmes on aprilia products, only aprilia Official Networks mechanics know this vehicle fully and have the special tools necessary to carry out maintenance and repair operations correctly.

The reliability of the vehicle also depends on its mechanical conditions. Checking the scooter before riding it, its regular maintenance and the use of Original Spare Parts only are essential factors!

For information about the nearest Official Dealer and/or Service Centre, consult the Yellow Pages or search directly on the inset map in our Official Website:

www.aprilia.com

Only Aprilia Original Spare Parts ensure products already studied and tested during the vehicle design stage. All Aprilia Original Spare Parts undergo quality control procedures to guarantee full reliability and duration.

The descriptions and illustrations given in this publication are not binding; While the basic characteristics as described and illustrated in this manual remain unchanged, Aprilia reserves the right, at any time and without being required to update this publication beforehand, to make any changes to components, parts or accessories, which it considers necessary to improve the product or which are required for manufacturing or construction reasons.

Not all versions shown in this publication are available in all Countries. The availability of individual versions should be confirmed with the official Aprilia sales network.

Copyright 2006- Aprilia. All rights reserved. Reproduction of this publication in whole or in part is prohibited. Aprilia - After sales service.

Aprilia trademark is property of Piaggio & C. S.p.A.
