Type de produit	Synthétiseur intelligent MIDI (GS Standard)
Polyphonie maximale	24 voix
Nombre de parties	16 parties (multitimbral)
Canaux MIDI	16 canaux réception/transmission
Processeur d'effets	Reverb et Chorus intégrés avec macros et paramètres ajustables
Styles d'accompagnement	88 styles en deux variantes (Basic/Advanced)
Banques de sons	128 sons GS + 128 variations
Fonctions de contrôle	Modulation, Pitch Bend, Portamento, LFO, Aftertouch
Connectique	MIDI IN/OUT, prises jack pour pédales (Hold, etc.)
Transposition	-12 à +12 demi-tons
Accordage fin	-100 à +100 cents (maître)
Séquenceur/Arpégiateur	Horloge interne ou externe MIDI, start/stop
Alimentation	Adaptateur secteur (non spécifié dans la notice)
Dimensions (approx.)	Largeur : 1050 mm, profondeur : 400 mm, hauteur : 120 mm (estimation d'après modèles similaires)
Poids (approx.)	12 kg (estimation)
Entretien	Nettoyer avec un chiffon doux et sec. Ne pas utiliser de solvants.
Réparabilité	Faire appel à un technicien agréé Roland. Pièces détachées disponibles auprès du SAV.
Sécurité	Respecter la polarité de l'adaptateur, ne pas exposer à l'humidité.

FOIRE AUX QUESTIONS - E-15 ROLAND

Comment réinitialiser le Roland E-15 aux réglages d'usine ?

Envoyez le message exclusif F0 41 10 42 12 40 00 7F 00 41 F7 pour quitter le mode GS et revenir au mode E-15. Vous pouvez aussi utiliser le paramètre Reset GS (adresse 40 00 7F).

Comment connecter le synthétiseur à un ordinateur ?

Utilisez un câble MIDI standard : reliez la sortie MIDI OUT de l'E-15 à l'entrée MIDI IN de votre interface MIDI, et inversement pour la réception. Réglez le canal MIDI de chaque partie via les paramètres Rx.CHANNEL.

Quels sont les styles d'accompagnement disponibles ?

Le Roland E-15 propose 88 styles répartis en deux catégories : Basic et Advanced. Exemples : Rock, Dance, Funk, Ballade, Reggae, Bossa, etc. Chaque style peut être sélectionné par un message MIDI de changement de programme (voir Table 1).

Comment changer le volume d'une partie spécifique ?

Utilisez le contrôleur MIDI Volume (CC7) sur le canal correspondant à la partie. Vous pouvez aussi ajuster le paramètre PART LEVEL via l'exclusif système (adresse 40 1n 19).

Que signifie l'erreur 'Active Sensing' ?

L'Active Sensing est un message de synchronisation. Si l'intervalle entre deux messages dépasse 400 ms, l'E-15 réinitialise tous les contrôleurs et coupe les notes. Vérifiez que votre câble MIDI est correctement connecté et que l'émetteur envoie des données régulièrement.

Comment utiliser la fonction Legato (LGC) ?

Envoyez le contrôleur LGC (CC 84) avec la note source, puis une note on. La hauteur sera réaccordée progressivement selon le temps de portamento. Exemple : B0 54 3C (LGC de C4) puis 90 40 40 (E4) pour un glissando de C4 à E4.

Quel est le numéro de modèle ID pour les messages exclusifs ?

Le modèle ID est 40H pour le mode E-15 et 42H pour le mode GS. L'ID fabricant est 41H (Roland).

Comment effectuer un bulk dump des patchs ?

Envoyez une requête de données (RQ1) avec l'adresse de base 48 00 00 et la taille 00 1D 00. L'E-15 répondra par paquets de 128 octets. Consultez le tableau 'Bulk Dump' dans la notice pour les adresses détaillées.

Puis-je utiliser un pédalier externe ?

Oui, l'E-15 accepte les messages MIDI de contrôle comme Hold1 (CC64), Portamento (CC65), Sostenuto (CC66) et Soft (CC67). Branchez votre pédale sur un contrôleur MIDI ou utilisez une prise jack dédiée si disponible.

Comment régler l'accordage maître (Master Tune) ?

Utilisez le message exclusif avec l'adresse 40 00 00 et une valeur nibblisée. Par exemple, pour +100 cents : F0 41 10 42 12 40 00 00 00 07 0E 08 xx F7. Vous pouvez aussi le faire via le paramètre Master Tune dans les réglages globaux (adresse 40 00 00).

Questions des utilisateurs sur E-15 ROLAND

0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.

Poser une nouvelle question sur cet appareil

Aucune question pour l'instant. Soyez le premier à en poser une.

Téléchargez la notice de votre Synthétiseur au format PDF gratuitement ! Retrouvez votre notice E-15 - ROLAND et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil E-15 de la marque ROLAND.

MODE D'EMPLOI E-15 ROLAND

MIDI INTELLIGENT SYNTHESIZER

E-15

E-15 INTELLIGENT SYNTHESIZER

1 Receive data

- Channel Voice Message -

Note off

Status	Second	Third
8nH	kkH	vvH
9nH	kkH	00H

n=MIDI channel number :	0H - FH	(0 - 15)	0=ch.1 15=ch.16
kk=Note number :	00H - 7FH	(0 - 127)
vv=Velocity :	00H - 7FH	(0 - 127)

*Velocity is ignored.

Note on

Status	Second	Third
9nH	kkH	vvH

n=	MIDI channel number : 0H - FH (0 - 15)	0=ch.1 15=ch.16
kk=	Note number : 00H - 7FH (0 - 127)
vv=	Velocity : 01H - 7FH (1 - 127)

■ Polyphonic key pressure

Status	Second	Third
AnH	kkH	vvH

n=MIDI channel number :	0H - FH	(0 - 15)	0=ch.1 15=ch.16
kk=Note number :	00H - 7FH	(0 - 127)
vv=Value :	00H - 7FH	(0 - 127)

*Recognized when "Rx.Polyphonic key pressure = ON"

■ Control change

*Recognized when "Rx.Control change = ON"

Bank select

Status	Second	Third
BnH	00H	mmH
BnH	20H	11H

n=MIDI channel number :	0H - FH	(0 - 15)	0=ch.1 15=ch.16
mm=Bank number :	00H,-7FH,	(0 - 127)
ii=Bank number :	00H,-7FH,	(0 - 127)

* see Table 1
* the MSB 7-bit is ignored
* "Bank select" is suspended until receiving "Program change"

Modulation

Status	Second	Third
BnH	01H	vvH

n=MIDI channel number :	0H - FH (0 - 15)	0=ch.1 15=ch.16
vv=Modulation depth :	00H - 7FH (0 - 127)

*Recognized when "Rx.Modulation = ON(default setting)"

Portamento time

Status	Second	Third
BnH	05H	vvH

n=MIDI channel number: 0H - FH (0 - 15) 0=ch.1 15=ch.16

vv=Portamento time: 00H - 7FH (0 - 127)

Data entry

Status	Second	Third
BnH	06H	mmH
BnH	26H	11H

n=MIDI channel number: 0H - FH (0 - 15) 0=ch.1 15=ch.16 mm,ll=Value of the specified parameter with RPN and/or NRPN

Volume

Status	Second	Third
BnH	07H	vvH

n=MIDI channel number:	0H - FH (0 - 15)	0=ch.1 15=ch.16
vv=Volume:	00H - 7FH (0 - 127)

*You can adjust the volume of specified channel(part).

*Recognized when "Rx.Volume = ON(default setting)".

Panpot

Status	Second	Third
BnH	0AH	vvH

n=MIDI channel number :	0H - FH (0 - 15)	0=ch.1 15=ch.16
vv=Panpot :	00H - 40H 7FH	(Left - Center - Right)

*Resolution of panpot is approx. 7-bit (127 steps).

*Recognized when "Rx.Panpot = ON(default setting)".

Expression

Status	Second	Third
BnH	0BH	vvH

n=MIDI channel number:	0H - FH (0 - 15)	0=ch.1 15=ch.16
vv=Expression:	00H - 7FH (0 - 127)

*You can adjust the volume of specified channel(part).

*Recognized when "Rx.Expression = ON(default setting)".

Hold1

Status	Second	Third
BnH	40H	vvH

n=MIDI channel number :	0H - FH (0 - 15)	0=ch.1 15=ch.16
vv=Control Value :	00H - 7FH (0 - 127)	0-63=OFF 64-127=ON

*Recognized when "Rx.Hold1 = ON(default setting)".

Portamento

Status	Second	Third
BnH	41H	vvH

n=MIDI channel number :	0H - FH (0 - 15)	0=ch.1 15=ch.16
vv=Control Value :	00H - 7FH (0 - 127)	0-63=OFF 64-127=ON

*Recognized when “Rx.Portamento = ON(default setting)”.

*In poly mode, you cannot specify the portamento source pitch.

If you wish to specify the source pitch, you may use LGC.

Sostenuto

Status	Second	Third
BnH	42H	vvH

n=MIDI channel number :	0H - FH (0 - 15)	0=ch.1 15=ch.16
vv=Control Value :	00H - 7FH (0 - 127)	0-63=OFF 64-127=ON

*Recognized when "Rx.Sostenuto = ON(default setting)".

Soft

Status	Second	Third
BnH	43H	vvH
n=MIDI channel number :	0H - FH (0 - 15)	0=ch.1 15=ch.16
vv=Control Value :	00H - 7FH (0 - 127)	0-63=OFF 64-127=ON
*Recognized when “Rx.Soft = ON(default setting)”.

LGC (Legato Control)

Status	Second	Third
BnH	54H	kkH

n=MIDI channel number: 0H - FH (0 - 15) 0=ch.1 15=ch.16kk=Legato source key number :00H - 7FH (0 - 127)

Effect1 depth(Reverb send depth)

Status	Second	Third
BnH	5BH	vvH
n=MIDI channel number : 0H - FH (0 - 15) 0=ch.1 15=ch.16 vv=Reverb send depth : 00H - 7FH (0 - 127)

Effect3 depth(Chorus send depth)

Status	Second	Third
BnH	5DH	vvH
n=MIDI channel number : 0H - FH (0 - 15) 0=ch.1 15=ch.16
vv=Chorus send depth : 00H - 7FH (0 - 127)

NRPN MSB/LSB

Status	Second	Third
BnH	63H	mmH
BnH	62H	11H

n	=MIDI channel number :0H - FH (0 - 15)	0=ch.1 15=ch.16
mm	=MSB of the specified parameter by NRPN
II	=LSB of the specified parameter by NRPN

*Recognized when "Rx.NRPN = ON(OFF=default setting)".

**NRPN**

NRPN (Non Registered Parameter Number) is an expanded message of the control change. Each function of NRPN is described by manufacturer.

You can change the value of several GS and E-15 parameters. First, set NRPN MSB/LSB before send data entry.

E-15 can receive parameters as shown below;

NRPN		Data entry	Description
MSB	LSB	MSB
01H	08H	mmH	Vibrato raterelative change on specified channelmm: 0EH-40H-72H (-50 - 0 - +50)
01H	09H	mmH	Vibrato depthrelative change on specified channelmm: 0EH-40H-72H (-50 - 0 - +50)
01H	0AH	mmH	Vibrato delayrelative change on specified channelmm: 0EH-40H-72H (-50 - 0 - +50)
01H	20H	mmH	TVF cutoff frequencyrelative change on specified channelmm: 0EH-40H-72H (-50 - 0 - +50)
01H	21H	mmH	TVF resonancerelative change on specified channelmm: 0EH-40H-72H (-50 - 0 - +50)
01H	63H	mmH	TVF&TVA Env. Attack timerelative change on specified channelmm: 0EH-40H-72H (-50 - 0 - +50)
01H	64H	mmH	TVF&TVA Env. Decay timerelative change on specified channelmm: 0EH-40H-72H (-50 - 0 - +50)
01H	66H	mmH	TVF&TVA Env. Release timerelative change on specified channelmm: 0EH-40H-72H (-50 - 0 - +50)
18H	rr H	mmH	Pitch coarse of drum instrumentabsolute change on specified drum instrumentrr: key number of drum instrumentmm: 00H-40H-7FH (-64 - 0 - +63 semitone)
1AH	rr H	mmH	TVA level of drum instrumentabsolute change on specified drum instrumentrr: key number of drum instrumentmm: 00H-7FH (zero - maximum)
1CH	rr H	mmH	Panpot of drum instrumentabsolute change on specified drum instrumentrr: key number of drum instrumentmm: 00H,01H-40H-7FH (Random, Left-Center-Right)
1DH	rr H	mmH	Reverb send depth of drum instrumentabsolute change on specified drum instrumentrr: key number of drum instrumentmm: 00H-7FH (zero - maximum)

The following part on/off NRPN messages are always received on Basic Midi channel

4FH	10H	mmH	(Upper1)	Part 0 on/off	(mm=00H -> Off; mm=7FH -> On)
4FH	11H	mmH	(Lower)	Part 1 on/off	(mm=00H -> Off; mm=7FH -> On)
4FH	12H	mmH	(M.Bass)	Part 2 on/off	(mm=00H -> Off; mm=7FH -> On)
4FH	14H	mmH	(S.Effect)	Part 4 on/off	(mm=00H -> Off; mm=7FH -> On)
4FH	19H	mmH	(M.Drums)	Part 9 on/off	(mm=00H -> Off; mm=7FH -> On)
4FH	1AH	mmH	(Acc.Drum)	Part 10 on/off	(mm=00H -> Off; mm=7FH -> On)
4FH	1BH	mmH	(Acc.Bass)	Part 11 on/off	(mm=00H -> Off; mm=7FH -> On)
4FH	1CH	mmH	(Acc.1)	Part 12 on/off	(mm=00H -> Off; mm=7FH -> On)
4FH	1DH	mmH	(Acc.2)	Part 13 on/off	(mm=00H -> Off; mm=7FH -> On)
4FH	1EH	mmH	(Acc.3)	Part 14 on/off	(mm=00H -> Off; mm=7FH -> On)

*Data entry LSB is ignored.

RPN MSB/LSB

Status	Second	Third
BnH	65H	mmH
BnH	64H	IIH

n	=MIDI channel number :0H -FH (0 - 15)	0=ch.1 15=ch.16
mm	=MSB of the specified parameter by RPN
II	=MSB of the specified parameter by RPN

*Recognized when "Rx.RPN = ON(default setting)".

**RPN**

RPN (Registered Parameter Number) is the expand message of control change. Each function of RPN is described by MIDI.

You can change the value of RPN parameters. First, set RPN MSB/LSB before send data entry.

E-15 can receive Pitch bend sensitivity(RPN#0), Master fine tuning(RPN#1), Master coarse tuning(RPN#2) and RPN reset(RPN#16383).

RPN	Data entry
MSB LSB	MSB LSB

Description

00H

mmH

----

Pitch bend sensitivitymm: 00H-18H (0 - 24 semitone)II: ignored(Up to 2 octaves, power on default is two semitones)

00H	01H	mmH	IIH	Master fine tuning
				mm, II: 00H,00H-40H,00H-7FH,7FH(-8192100/8192 - 0 - +8191100/8192 cent)

00H	02H	mmH	----	Master coarse tuning
				mm: 28H-40H-58H (-24 - 0 - +24 semitone)
				I I: ignored

7FH

----

RPN resetReturn to no specified parameter of RPN and NRPN.Current setting value is no change.mm,I I: ignored

■ Program change

Status	Second
CnH	ppH

n=MIDI channel number: 0H - FH (0 - 15) 0=ch.1 15=ch.16

pp=Program number: 00H - 7FH (0 - 127)

* see Table 1

*Recognized when "Rx.Program change = ON(default setting)".

■ Channel pressure

Status	Second
DnH	vvH

n=MIDI channel number:	0H - FH (0 - 15)	0=ch.1 15=ch.16
vv=Value:	00H - 7FH (0 - 127)

*Recognized when "Rx.Channel pressure = ON".

■ Pitch bend change

Status	Second	Third
EnH	II H	mmH

n=MIDI channel number: 0H - FH (0 - 15) 0=ch.1 15=ch.16 mm, l l=Value: 00H,00H - 40H,00H - 7FH,7FH (-8192 - 0 - +8191)

*Recognized when "Rx.Pitch bend change = ON(default setting)".

Channel Mode Message

■ All sounds off

Status	Second	Third
BnH	78H	00H

n=MIDI channel number: 0H - FH (0 - 15) 0=ch.1 15=ch.16

*When "All sounds off" is received, all sounds of specified channel turn off immediately. However, the state of channel message is no change.

■ Reset all controllers

Status	Second	Third
BnH	79H	00H

n=MIDI channel number: 0H - FH (0 - 15) 0=ch.1 15=ch.16

*When "reset all controllers" is received, the following controller value of specified channel return to default at power on.

Controller	Value
Polyphonic key pressure	0(off)
Channel pressure	0(off)
Hold1	0(off)
Portamento	0(off)
Sostenuto	0(off)
Soft	0(off)

■ All notes off

Status	Second	Third
BnH	7BH	00H

n=MIDI channel number :

0H - FH (0 - 15)

0=ch.1 15=ch.16

*When "All notes off" is received, all on state notes turn to off in the specified channel. However, sound remains when hold1 and/or sostenuto is on.

■ OMNI OFF

Status	Second	Third
BnH	7CH	00H

n=MIDI channel number :

0H - FH (0 - 15)

0=ch.1 15=ch.16

*OMNI OFF is only recognized as "all notes off". Mode doesn't change.

■ OMNI ON

Status	Second	Third
BnH	7DH	00H

n=MIDI channel number :

0H - FH (0 - 15)

0=ch.1 15=ch.16

*OMNI ON is only recognized as "all notes off". Mode doesn't change.

■ MONO

Status	Second	Third
BnH	7EH	mmH

n=MIDI channel number: 0H - FH (0 - 15) 0=ch.1 15=ch.16 mm=number of mono :00H - 10H (0 - 16)

*MONO is only recognized as "all notes off". Mode doesn't change.

■ POLY

Status	Second	Third
BnH	7FH	00H

n=MIDI channel number : 0H - FH (0 - 15) 0=ch.1 15=ch.16

* POLY is only recognized as "all notes off". Mode doesn't change.

System Real Time Message

■ Active sensing

Status FEH

*Having received "active sensing", E-15 expects the interval of any data up to 300 milli-second. If the interval is over 400 milli-second, E-15 resets all controller and turns off the received notes from MIDI IN.

- Sequencer start

Status FAH

When "Sequencer start" is received the internal sequencer and/or the internal arranger starts.

■ Sequencer stop

Status FCH

When “Sequencer stop” is received the internal sequencer and/or the internal arranger stops.

■ Timing clock

Status F8H

When "Timing clock" is received the internal sequencer or the internal arranger are synchronized with an external clock.

note: if the parameter "Syn" is "Internal" this message is not received.

System Exclusive Message

■ Status Data

F0H iiH,ddH,.....,eeH F7H

F0H : System exclusive ii=ID number :41H (65) or 40H (64) dd,...,ee=data :00H-7FH (0-127)

F7H : EOX (End of Exclusive/System common)

2 Transmit data

- Channel Voice Message -

Note off

Status Second Third 9nH kkH 00H

n=MIDI channel number : 0H - FH (0 - 15) 0=ch.1 15=ch.16 kk=Note number : 0CH - 78H (12 -120)

Note on

Status Second Third 9nH kkH vvH

n=MIDI channel number : 0H - FH (0 - 15) 0=ch.1 15=ch.16 kk=Note number : 0CH - 78H (12 -120) vv=Velocity : 01H - 7FH (1 - 127)

■ Control change

Bank select

Status Second Third BnH 00H mmH BnH 20H II H

n=MIDI channel number : 0H - FH (0 - 15) 0=ch.1 15=ch.16 mm=Bank number : 00H,-7FH, (0 - 127) ii=Bank number : 00H,-7FH, (0 - 127)

* see Table 1 * the MSB 7-bit is ignored

Modulation

Status Second Third BnH 01H vvH

n=MIDI channel number : 0H - FH (0 - 15) 0=ch.1 15=ch.16 vv=Modulation depth : 00H - 7FH (0 - 127)

Data entry

Status Second Third BnH 06H mmH BnH 26H II H

n=MIDI channel number: 0H - FH (0 - 15) 0=ch.1 15=ch.16 mm,ll=Value of the specified parameter with RPN and/or NRPN

Volume

Status Second Third BnH 07H vvH

n=MIDI channel number : 0H - FH (0 - 15) 0=ch.1 15=ch.16 vv=Volume : 00H - 7FH (0 - 127)

Hold1

Status Second Third BnH 40H vvH

n=MIDI channel number : 0H - FH (0 - 15) 0=ch.1 15=ch.16 vv=Control Value : 00H - 7FH (0 - 127) 0-63=OFF 64-127=ON

NRPN MSB/LSB

Status	Second	Third
BnH	63H	mmH
BnH	62H	11H

n	=MIDI channel number :0H - FH (0 - 15)	0=ch.1 15=ch.16
mm	=MSB of the specified parameter by NRPN
II	=LSB of the specified parameter by NRPN

NRPN (Non Registered Parameter Number) is an expanded message of the control change. Each function of NRPN is described by manufacturer.

You can change the value of several GS and E-15 parameters. First, set NRPN MSB/LSB before send data entry.

The following part on/off NRPN messages are always transmitted on Basic Midi Channel:

NRPN	Data entry	Description
MSB LSB	MSB

4FH	10H	mmH	(Upper1)	Part 0 on/off	(mm=00H -> Off; mm=7FH -> On)
4FH	11H	mmH	(Lower)	Part 1 on/off	(mm=00H -> Off; mm=7FH -> On)
4FH	12H	mmH	(M.Bass)	Part 2 on/off	(mm=00H -> Off; mm=7FH -> On)
4FH	14H	mmH	(S.Effect)	Part 4 on/off	(mm=00H -> Off; mm=7FH -> On)
4FH	19H	mmH	(M.Drums)	Part 9 on/off	(mm=00H -> Off; mm=7FH -> On)
4FH	1AH	mmH	(Acc.Drum)	Part 10 on/off	(mm=00H -> Off; mm=7FH -> On)
4FH	1BH	mmH	(Acc.Bass)	Part 11 on/off	(mm=00H -> Off; mm=7FH -> On)
4FH	1CH	mmH	(Acc.1)	Part 12 on/off	(mm=00H -> Off; mm=7FH -> On)
4FH	1DH	mmH	(Acc.2)	Part 13 on/off	(mm=00H -> Off; mm=7FH -> On)
4FH	1EH	mmH	(Acc.3)	Part 14 on/off	(mm=00H -> Off; mm=7FH -> On)

* Data entry LSB is ignored

Program change

Status	Second
CnH	ppH

n=MIDI channel number :	0H - FH (0 - 15)	0=ch.1 15=ch.16
pp=Program number :	00H - 7FH (0 - 127)

* see Table 1
*Transmitted when "Tx.Program change = ON(default setting)".

System Realtime Message
Active sensing

Status

FEH

Active sense is always transmitted every 300 milli-second.

Sequencer start

StatusFAH

"Sequencer start" is transmitted if START/STOP button is pushed and the internal sequencer/arranger is in STOP mode.

Sequencer stop

Status

FCH

"Sequencer stop" is transmitted if START/STOP button is pushed and the internal sequencer/arranger is in START mode.

Timing clock

Status

F8H

"Timing clock" is always transmitted.

System Exclusive Message

Status	Data
F0H	ii H, ddH,...,eeH
F7H

F0H :	System exclusiveii=ID number=41H (65) or 40H (64)dd,...,ee=data :00H-7FH (0-127)
F7H :	EOX (End of Exclusive/System common)

3 Exclusive communications
E-15 can transmit and receive the many parameters using system exclusive message.

One way communication
Request data 1 RQ1 (11H)

Byte	Description
F0H	Exclusive status
41H	Manufacture's ID	(Roland)
10H	Device ID	(UNIT#=17)
40H	Model ID	(E-15)
11H	Command ID	(RQ1)
aaH	Address MSB
bbH :
ccH	Address LSB
ssH	Size MSB
ttH	@:
uuH	Size LSB
sum	Check sum
F7H	EOX	(End of exclusive)

Data set 1 DT1 (12H)

Byte	Description
F0H	Exclusive status
41H	Manufacture's ID	(Roland)
10H	Device ID	(UNIT#=17)
40H 42H	Model ID	(E-15 or GS)
12H	Command ID	(DT1)
aaH	Address MSB
bbH	Address
ccH	Address LSB
ddH	Data
:	@:
ddH	Data
sum	Check sum
F7H	EOX	(End of exclusive)

4 Parameter address map (Model ID=42H)

The address and size are described with 7-bit hexadecimal.

Address	MSB		LSB
Binary	0aaa aaaa	0bbb bbbb	0ccc cccc@
Hexadecimal	AA	BB	CC
Size	MSB		LSB
Binary	0sss ssss	0ttt tttt	0uuu uuuu@
Hexadecimal	SS	TT	UU

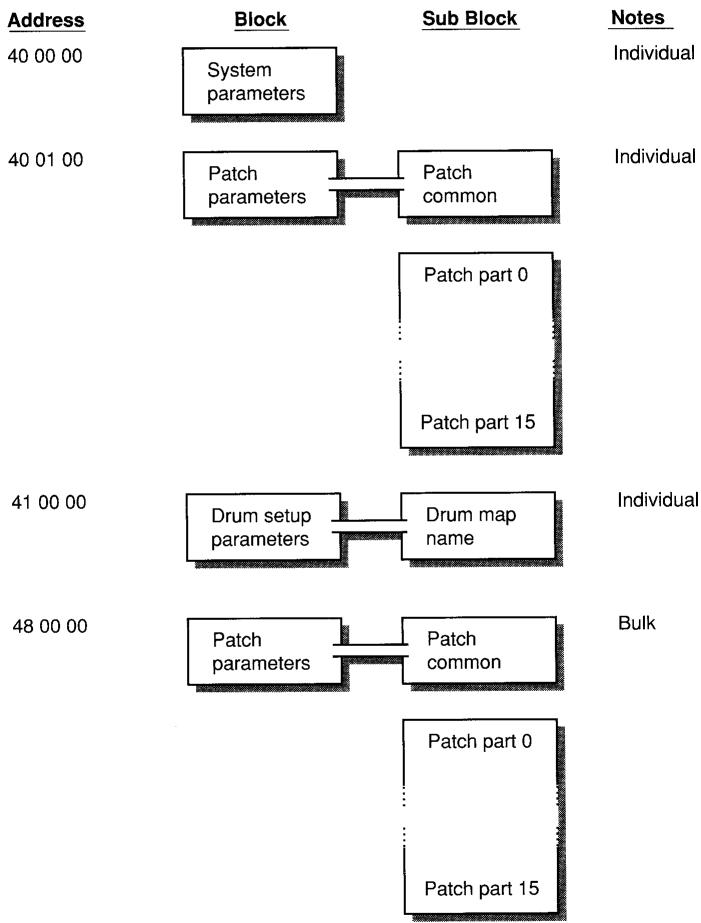

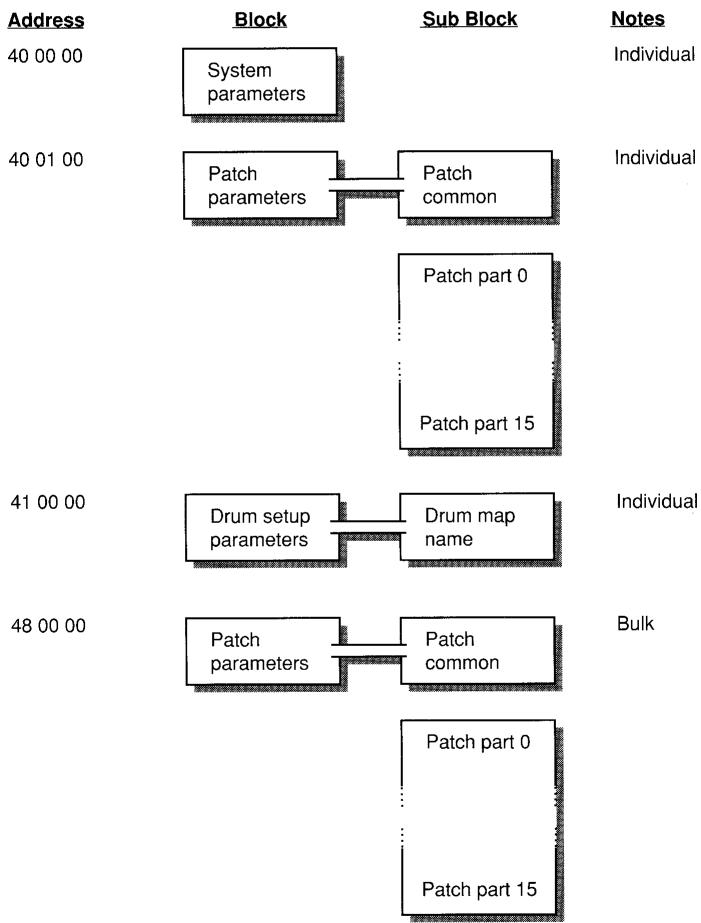

Parameter base address

There are two types of the GS exclusive message. One is an individual parameter communication. Another is a bulk dump.

Coarse address map of the exclusive communication is shown below;

ROLAND E-15 - Parameter base address - 1

Notes: Address map of the individual parameter

One system exclusive message "F0 ..... F7" can only have one parameter. And you cannot use any address having "#" for the top address in a system exclusive message.

E-15 cannot receive a system exclusive data request of the following parameters.

[ SYSTEM PARAMETERS ]

Address(H)	SIZE(H)	Data(H)	Parameter	Description
40 00 00	00 00 04	0018 - 07E8	MASTER TUNE	-100.0 - +100.0 [cent]Use nibblized data.
40 00 01#
40 00 02#
40 00 03#
40 00 04	00 00 01	00 - 7F	MASTER VOLUME	0 - 127
40 00 7F	00 00 01	00,	SW of GS	00H = Reset & GS MODE

For example:

As you set +100.0 cent for master tune, you

must send the message as follow.

F0 41 10 42 12 40 00 00 00 07 0E 08 xx F7

As you set 100 for master volume, you must

send the message as follow.

F0 41 10 42 12 40 00 04 64 xx F7

[ PATCH PARAMETERS ]

Address(H)	SIZE(H)	Data(H)	Parameter	Description
40 01 00\| #40 01 0F#	00 00 10	20 - 7F	PATCH NAME	16 ASCII Characters
40 01 1040 01 11#\| #40 01 1F#	00 00 10	00 - 17	PARTIAL RESERVE PART 0 (Drums)
40 01 1040 01 11#\| #40 01 1F#	00 00 10	00 - 17	PART 15A sum of partial reserves must be up to 17H(24 decimal).
40 01 20	00 00 01	00 - 0F	ASSIGNER SEPARATE WALL	0 - 15 [top part number of the wall]
40 01 30	00 00 01	00 - 07	REVERB MACRO
40 01 31	00 00 01	00 - 07	REVERB CHARACTER
40 01 32	00 00 01	00 - 07	REVERB PRE-LPF
40 01 33	00 00 01	00 - 7F	REVERB LEVEL
40 01 34	00 00 01	00 - 7F	REVERB TIME
40 01 35	00 00 01	00 - 7F	REVERB DELAY FEEDBACK
40 01 36	00 00 01	00 - 7F	REVERB SEND LEVEL TO CHORUS
40 01 38	00 00 01	00 - 07	CHORUS MACRO
40 01 39	00 00 01	00 - 07	CHORUS PRE-LPF
40 01 3A	00 00 01	00 - 7F	CHORUS LEVEL
40 01 3B	00 00 01	00 - 7F	CHORUS FEEDBACK
40 01 3C	00 00 01	00 - 7F	CHORUS DELAY
40 01 3D	00 00 01	00 - 7F	CHORUS RATE
40 01 3E	00 00 01	00 - 7F	CHORUS DEPTH
40 01 3F	00 00 01	00 - 7F	CHORUS SEND LEVEL TO REVERB
—— n...part number (0 - F)
40 1n 00	00 00 02	00 - 7F	TONE NUMBER	CC#00 VALUE
40 1n 01#		00 - 7F P.C.		VALUE
—— n...part number (0 - E)
40 1n 02	00 00 01	00 - 11	Rx. CHANNEL	1 - 16, OFF
—— n...part number (0 - F)
40 1n 03	00 00 01	00 - 01	Rx. PITCH BEND	OFF / ON
40 1n 04	00 00 01	00 - 01	Rx. CH PRESSURE(CAf)	OFF / ON
40 1n 05	00 00 01	00 - 01	Rx. PROGRAM CHANGE	OFF / ON
40 1n 06	00 00 01	00 - 01	Rx. CONTROL CHANGE	OFF / ON
40 1n 07	00 00 01	00 - 01	Rx. POLY PRESSURE(PAf)	OFF / ON
40 1n 08	00 00 01	00 - 01	Rx. NOTE MESSAGE	OFF / ON
40 1n 09	00 00 01	00 - 01	Rx. RPN	OFF / ON
40 1n 0A	00 00 01	00 - 01	Rx. NRPN	OFF / ON
40 1n 0B	00 00 01	00 - 01	Rx. MODULATION	OFF / ON
40 1n 0C	00 00 01	00 - 01	Rx. VOLUME	OFF / ON
40 1n 0D	00 00 01	00 - 01	Rx. PANPOT	OFF / ON
40 1n 0E	00 00 01	00 - 01	Rx. EXPRESSION	OFF / ON
40 1n 0F	00 00 01	00 - 01	Rx. HOLD1	OFF / ON
40 1n 10	00 00 01	00 - 01	Rx. PORTAMENTO	OFF / ON
40 1n 11	00 00 01	00 - 01	Rx. SOSTENUTO	OFF / ON
40 1n 12	00 00 01	00 - 01	Rx. SOFT	OFF / ON
40 1n 13	00 00 01	00 - 01	MONO/POLY MODE	Mono / Poly
40 1n 14	00 00 01	00 - 02	ASSIGN MODE	0 = SINGLE1 = LIMITED-MULTI2 = FULL-MULTI
40 1n 15	00 00 01	00 - 02	USE FOR RHYTHM PART	OFF / MAP1 / MAP2

					40 2n 49	00 00 01	00 - 7F	CC1 LFO2 TVF DEPTH	0 - 2400 [cent], OFF
40 1n 16	00 00 01	10 - 58	PITCH KEY SHIFT	-48 - +24 [semitone]	40 2n 4A	00 00 01	00 - 7F	CC1 LFO2 TVA DEPTH	0 - 100.0 [%], OFF
40 1n 17	00 00 01	08 - F8	PITCH OFFSET FINE	-12.0 - +12.0 [Hz]Use nibbolized data.	40 2n 50	00 00 01	00 - 7F	CC2 PITCH CONTROL	-48 - +24 [semitone], OFF
40 1n 18#					40 2n 51	00 00 01	00 - 7F	CC2 TVF CUTOFF CONTROL	-9600 - +9600 [cent], OFF
					40 2n 52	00 00 01	00 - 7F	CC2 AMPLITUDE CONTROL	-100.0 - +100.0 [%], OFF
40 1n 19	00 00 01	00 - 7F	PART LEVEL	0 - 127	40 2n 53	00 00 01	00 - 7F	CC2 LFO1 RATE CONTROL	-10.0 - +10.0 [Hz], OFF
40 1n 1A	00 00 01	00 - 7F	VELOCITY SENSE DEPTH	0 - 127	40 2n 54	00 00 01	00 - 7F	CC2 LFO1 PITCH DEPTH	0 - 600 [cent], OFF
40 1n 1B	00 00 01	00 - 7F	VELOCITY SENSE OFFSET	0 - 127	40 2n 55	00 00 01	00 - 7F	CC2 LFO1 TVF DEPTH	0 - 2400 [cent], OFF
40 1n 1C	00 00 01	00 - 7F	PART PANNING	Random, -63(LEFT) - +63(RIGHT)	40 2n 56	00 00 01	00 - 7F	CC2 LFO1 TVA DEPTH	0 - 100.0 [%], OFF
40 1n 1D	00 00 01	00 - 7F	KEY RANGE LOW	C-1 - G9	40 2n 57	00 00 01	00 - 7F	CC2 LFO2 RATE CONTROL	-10.0 - +10.0 [Hz], OFF
40 1n 1E	00 00 01	00 - 7F	KEY RANGE HIGH	C-1 - G9	40 2n 58	00 00 01	00 - 7F	CC2 LFO2 PITCH DEPTH	0 - 600 [cent], OFF
40 1n 1F	00 00 01	00 - 7F	CC1 CONTROLLER NUMBER	0 - 127	40 2n 59	00 00 01	00 - 7F	CC2 LFO2 TVF DEPTH	0 - 2400 [cent], OFF
40 1n 20	00 00 01	00 - 7F	CC2 CONTROLLER NUMBER	0 - 127	40 2n 5A	00 00 01	00 - 7F	CC2 LFO2 TVA DEPTH	0 - 100.0 [%], OFF
40 1n 21	00 00 01	00 - 7F	CHORUS SEND DEPTH	0 - 127
40 1n 22	00 00 01	00 - 7F	REVERB SEND DEPTH 0	- 127
40 1n 30	00 00 01	0E - 72	TONE MODIFY 1	-50 - +50
40 1n 31	00 00 01	0E - 72	TONE MODIFY 2	-50 - +50
40 1n 32	00 00 01	0E - 72	TONE MODIFY 3	-50 - +50
40 1n 33	00 00 01	0E - 72	TONE MODIFY 4	-50 - +50
40 1n 34	00 00 01	0E - 72	TONE MODIFY 5	-50 - +50
40 1n 35	00 00 01	0E - 72	TONE MODIFY 6	-50 - +50
40 1n 36	00 00 01	0E - 72	TONE MODIFY 7	-50 - +50
40 1n 37	00 00 01	0E - 72	TONE MODIFY 8	-50 - +50
40 1n 40	0000 OC	00 - 7F	SCALE TUNING C -	-64 - +63 [cent]
40 1n 41#		00 - 7F	SCALE TUNING C#	-64 - +63 [cent]
40 1n 42#		00 - 7F	SCALE TUNING D	-64 - +63 [cent]
40 1n 43#		00 - 7F	SCALE TUNING D#	-64 - +63 [cent]
40 1n 44#		00 - 7F	SCALE TUNING E	-64 - +63 [cent]
40 1n 45#		00 - 7F	SCALE TUNING F	-64 - +63 [cent]
40 1n 46#		00 - 7F	SCALE TUNING F#	-64 - +63 [cent]
40 1n 47#		00 - 7F	SCALE TUNING G	-64 - +63 [cent]
40 1n 48#		00 - 7F	SCALE TUNING G#	-64 - +63 [cent]
40 1n 49#		00 - 7F	SCALE TUNING A	-64 - +63 [cent]
40 1n 4A#		00 - 7F	SCALE TUNING A#	-64 - +63 [cent]
40 1n 4B#		00 - 7F	SCALE TUNING B	-64 - +63 [cent]
40 2n 00	00 00 01	00 - 7F	MOD PITCH CONTROL	-48 - +24 [semitone], OFF
40 2n 01	00 00 01	00 - 7F	MOD TVF CUTOFF CONTROL	-9600 - +9600 [cent], OFF
40 2n 02	00 00 01	00 - 7F	MOD AMPLITUDE CONTROL	-100.0 - +100.0 [%], OFF
40 2n 03	00 00 01	00 - 7F	MOD LFO1 RATE CONTROL	-10.0 - +10.0 [Hz], OFF
40 2n 04	00 00 01	00 - 7F	MOD LFO1 PITCH DEPTH	0 - 600 [cent], OFF
40 2n 05	00 00 01	00 - 7F	MOD LFO1 TVF DEPTH	0 - 2400 [cent], OFF
40 2n 06	00 00 01	00 - 7F	MOD LFO1 TVA DEPTH	0 - 100.0 [%], OFF
40 2n 07	00 00 01	00 - 7F	MOD LFO2 RATE CONTROL	-10.0 - +10.0 [Hz], OFF
40 2n 08	00 00 01	00 - 7F	MOD LFO2 PITCH DEPTH	0 - 600 [cent], OFF
40 2n 09	00 00 01	00 - 7F	MOD LFO2 TVF DEPTH	0 - 2400 [cent], OFF
40 2n 0A	00 00 01	00 - 7F	MOD LFO2 TVA DEPTH	0 - 100.0 [%], OFF
40 2n 10	00 00 01	00 - 7F	BEND PITCH CONTROL	-24 - +24 [semitone], OFF
40 2n 11	00 00 01	00 - 7F	BEND TVF CUTOFF CONTROL	-9600 - +9600 [cent], OFF
40 2n 12	00 00 01	00 - 7F	BEND AMPLITUDE CONTROL	-100.0 - +100.0 [%], OFF
40 2n 13	00 00 01	00 - 7F	BEND LFO1 RATE CONTROL	-10.0 - +10.0 [Hz], OFF
40 2n 14	00 00 01	00 - 7F	BEND LFO1 PITCH DEPTH	0 - 600 [cent], OFF
40 2n 15	00 00 01	00 - 7F	BEND LFO1 TVF DEPTH	0 - 2400 [cent], OFF
40 2n 16	00 00 01	00 - 7F	BEND LFO1 TVA DEPTH	0 - 100.0 [%], OFF
40 2n 17	00 00 01	00 - 7F	BEND LFO2 RATE CONTROL	-10.0 - +10.0 [Hz], OFF
40 2n 18	00 00 01	00 - 7F	BEND LFO2 PITCH DEPTH	0 - 600 [cent], OFF
40 2n 19	00 00 01	00 - 7F	BEND LFO2 TVF DEPTH	0 - 2400 [cent], OFF
40 2n 1A	00 00 01	00 - 7F	BEND LFO2 TVA DEPTH	0 - 100.0 [%], OFF
40 2n 20	00 00 01	00 - 7F	CAI PITCH CONTROL	-48 - +24 [semitone], OFF
40 2n 21	00 00 01	00 - 7F	CAI TVF CUTOFF CONTROL	-9600 - +9600 [cent], OFF
40 2n 22	00 00 01	00 - 7F	CAI AMPLITUDE CONTROL	-100.0 - +100.0 [%], OFF
40 2n 23	00 00 01	00 - 7F	CAI LFO1 RATE CONTROL	-10.0 - +10.0 [Hz], OFF
40 2n 24	00 00 01	00 - 7F	CAI LFO1 PITCH DEPTH	0 - 600 [cent], OFF
40 2n 25	00 00 01	00 - 7F	CAI LFO1 TVF DEPTH	0 - 2400 [cent], OFF
40 2n 26	00 00 01	00 - 7F	CAI LFO1 TVA DEPTH	0 - 100.0 [%], OFF
40 2n 27	00 00 01	00 - 7F	CAI LFO2 RATE CONTROL	-10.0 - +10.0 [Hz], OFF
40 2n 28	00 00 01	00 - 7F	CAI LFO2 PITCH DEPTH	0 - 600 [cent], OFF
40 2n 29	00 00 01	00 - 7F	CAI LFO2 TVF DEPTH	0 - 2400 [cent], OFF
40 2n 2A	00 00 01	00 - 7F	CAI LFO2 TVA DEPTH	0 - 100.0 [%], OFF
40 2n 30	00 00 01	00 - 7F	PAI PITCH CONTROL	-48 - +24 [semitone], OFF
40 2n 31	00 00 01	00 - 7F	PAI TVF CUTOFF CONTROL	-9600 - +9600 [cent], OFF
40 2n 32	00 00 01	00 - 7F	PAI AMPLITUDE CONTROL	-100.0 - +100.0 [%], OFF
40 2n 33	00 00 01	00 - 7F	PAI LFO1 RATE CONTROL	-10.0 - +10.0 [Hz], OFF
40 2n 34	00 00 01	00 - 7F	PAI LFO1 PITCH DEPTH	0 - 600 [cent], OFF
40 2n 35	00 00 01	00 - 7F	PAI LFO1 TVF DEPTH	0 - 2400 [cent], OFF
40 2n 36	00 00 01	00 - 7F	PAI LFO1 TVA DEPTH	0 - 100.0 [%], OFF
40 2n 37	00 00 01	00 - 7F	PAI LFO2 RATE CONTROL	-10.0 - +10.0 [Hz], OFF
40 2n 38	00 00 01	00 - 7F	PAI LFO2 PITCH DEPTH	0 - 600 [cent], OFF
40 2n 39	00 00 01	00 - 7F	PAI LFO2 TVF DEPTH	0 - 2400 [cent], OFF
40 2n 3A	00 00 01	00 - 7F	PAI LFO2 TVA DEPTH	0 - 100.0 [%], OFF
40 2n 40	00 00 01	00 - 7F	CC1 PITCH CONTROL	-48 - +24 [semitone], OFF
40 2n 41	00 00 01	00 - 7F	CC1 TVF CUTOFF CONTROL	-9600 - +9600 [cent], OFF
40 2n 42	00 00 01	00 - 7F	CC1 AMPLITUDE CONTROL	-100.0 - +100.0 [%], OFF
40 2n 43	00 00 01	00 - 7F	CC1 LFO1 RATE CONTROL	-10.0 - +10.0 [Hz], OFF
40 2n 44	00 00 01	00 - 7F	CC1 LFO1 PITCH DEPTH	0 - 600 [cent], OFF
40 2n 45	00 00 01	00 - 7F	CC1 LFO1 TVF DEPTH	0 - 2400 [cent], OFF
40 2n 46	00 00 01	00 - 7F	CC1 LFO1 TVA DEPTH	0 - 100.0 [%], OFF
40 2n 47	00 00 01	00 - 7F	CC1 LFO2 RATE CONTROL	-10.0 - +10.0 [Hz], OFF
40 2n 48	00 00 01	00 - 7F	CC1 LFO2 PITCH DEPTH	-64 - +63 [cent]

[DRUM SETUP PARAMETER]

Address(H)	SIZE(H)	Data(H)	Parameter	Description
41 m0 00\| #41 m0 0B#	00 00 0C	20 - 7F	DRUMS MAP NAME	ASCII Character
41 m1 rr	00 00 01	00 - 7F	PLAY KEY NUMBER
41 m2 rr	00 00 01	00 - 7F	LEVEL
41 m3 rr	00 00 01	00 - 7F	GROUP NUMBER	NON, 1 - 127
41 m4 rr	00 00 01	00 - 7F	PANPOT	Random, -63(LEFT) - +63(RIGHT)
41 m5 rr	00 00 01	00 - 7F	REVERB DEPTH
41 m6 rr	00 00 01	00 - 7F	CHORUS DEPTH
41 m7 rr	00 00 01	00 - 01	Rx. NOTE	OFF OFF / ON
41 m8 rr	00 00 01	00 - 01 Rx.	NOTE ON OFF / ON

*m:Map number (0 - 1)

*rr:rhythm part key number (00 - 7F)

[ Bulk Dump ]

1-packet = 128 byte(MIDI)
— PATCH ALL (64 + (112 * 16) = 0x740 byte ) — 0x740 * 2(nibblize) = 1D 00 (MIDI)
Address(H)	SIZE(H)	Data(H)	Parameter	Description
48 00 00	00 1D 00
\| #		29 packets
48 1C 1F#
— PATCH COMMON (64 = 0x40 byte) — 0x40 * 2(nibblize) = 01 00 (MIDI)
Address(H)	SIZE(H)	Data(H)	Parameter	Description
48 00 00	00 01 00
\| #		1 packet
48 00 7F#
— PATCH PART (112 = 0x70 byte) — 0x70 * 2(nibblize) = 01 60 (MIDI)

Address(H)	SIZE(H)	Data(H)	Parameter	Description
48 01 00\| #48 02 5F#	00 01 60	PART 0	2 packet
48 02 60\| #48 04 3F#	00 01 60	PART 1	2 packet
48 04 40\| #48 06 1F#	00 01 60	PART2	2 packet
48 06 20\| #48 07 FF#	00 01 60	PART3	2 packet
48 08 00\| #48 09 5F#	00 01 60	PART4	2 packet
48 09 60\| #48 0B 5F#	00 01 60	PART5	2 packet
48 0B 60\| #48 0D 3F#	00 01 60	PART6	2 packet
48 0D 40\| #48 0E 1F#	00 01 60	PART7	2 packet
48 0E 20\| #48 0F FF#	00 01 60	PART8	2 packet
48 10 00\| #48 11 5F#	00 01 60	PART9	2 packet
48 11 60\| #48 13 3F#	00 01 60	PART10	2 packet
48 13 40\| #48 15 1F#	00 01 60	PART11	2 packet
48 15 20\| #48 16 FF#	00 01 60	PART12	2 packet
48 17 00\| #48 18 5F#	00 01 60	PART13	2 packet
48 18 60\| #48 1A 3F#	00 01 60	PART14	2 packet
48 1A 40\| #48 1C 1F#	00 01 60	PART15	2 packet

5 Parameter address map (Model ID=40H)

The address and size are described with 7-bit hexadecimal.

Address	MSB		LSB
Binary	0aaa aaaa	0bbb bbbb	0ccc cccc@
Hexadecimal	AA	BB	CC
Size	MSB		LSB
Binary	0sss ssss	0ttt tttt	0uuu uuuu@
Hexadecimal	SS	TT	UU

Address Description

00 40 00 Song

00 78 10 Global parameter (see table 2)

08 00 00 Chord Rx/Tx enable

09 00 00 Chord Rx/Tx data

40 00 7F Exit from GS MODE and return to E-15 MODE

Global parameter area

System exclusive 'Data set' : F0 41 10 40 12 00 78 10 .... CHKSUM F7

System exclusive 'Data request': F0 41 10 40 11 00 78 10 00 00 1C 5C F7

Composer data area

System exclusive 'Data set' : F0 41 10 40 12 00 40 00 .... CHKSUM F7

System exclusive 'Data request': F0 41 10 40 11 00 40 00 00 28 00 18 F7

Chord Tx/Rx Enable

System exclusive 'Data set' : F0 41 10 40 12 08 00 00 7F 79 F7 Rx/Tx Enable

System exclusive 'Data request': F0 41 10 40 12 08 00 00 00 78 F7 Rx/Tx Disable

Chord Tx/Rx data

System exclusive 'Data set' : F0 41 10 40 12 09 00 00 .... CHKSUM F7

Exit from GS MODE and return to E-15 MODE

System exclusive 'Data set' : F0 41 10 40 12 40 00 7F 00 41 F7

System exclusive chord information

F0 41 10 40 12 09 00 00 aa aa bb bb cc dd c1 c2 .... cn CHKSUM F7

09 00 00 Address

aa aa bb bb Chord number in 'C' tonality

cc First note to left

dd Chord root

c1, c2, ..., cn ASCII chord name

Table 1

\* Tone program change \*

A GS tone is selected by the message : BnH 00H mmH BnH 20H iiH CnH ppH

n=MIDI channel number :0H - FH (0 - 15) 0=ch.1 15=ch.16

mmH	iiH	ppH	Sound Name
00H	00H	00H	Piano1
00H	00H	01H	Piano2
00H	00H	02H	Piano3
00H	00H	03H	Honky
00H	00H	04H	ElPiano1
00H	00H	05H	ElPiano2
00H	00H	06H	Harpsi
00H	00H	07H	Clavi
00H	00H	08H	Celesta
00H	00H	09H	Glock
00H	00H	0AH	MusicBox
00H	00H	0BH	Vibe
00H	00H	0CH	Marimba
00H	00H	0DH	Xilphone
00H	00H	0EH	TubeBell
00H	00H	0FH	Santur
00H	00H	10H	ElOrgan1
00H	00H	11H	ElOrgan2
00H	00H	12H	ElOrgan3
00H	00H	13H	ChrcOrg
00H	00H	14H	ReedOrg
00H	00H	15H	Accordn
00H	00H	16H	Harmonic
00H	00H	17H	Bandneon
00H	00H	18H	AcouGtr1
00H	00H	19H	AcouGtr2
00H	00H	1AH	JazzGtr
00H	00H	1BH	CleanGtr
00H	00H	1CH	MutedGtr
00H	00H	1DH	DriveGtr
00H	00H	1EH	LeadGtr
00H	00H	1FH	HarmoGtr
00H	00H	20H	AcouBass
00H	00H	21H	FingBass
00H	00H	22H	PickBass
00H	00H	23H	Fretless
00H	00H	24H	SlapBas1
00H	00H	25H	SlapBas2
00H	00H	26H	SynBass1
00H	00H	27H	SynBass2
00H	00H	28H	Violin
00H	00H	29H	Viola
00H	00H	2AH	Cello
00H	00H	2BH	Contrbas
00H	00H	2CH	TremStr
00H	00H	2DH	PizzStr
00H	00H	2EH	Harp
00H	00H	2FH	Timpani
00H	00H	30H	Strings
00H	00H	31H	SlowStr
00H	00H	32H	SynStr1
00H	00H	33H	SynStr2
00H	00H	34H	ChoirAhs
00H	00H	35H	VoiceOhs
00H	00H	36H	SynVox
00H	00H	37H	OrcheHit
00H	00H	38H	Trumpet
00H	00H	39H	Trombone
00H	00H	3AH	Tuba
00H	00H	3BH	MuteTrmp
00H	00H	3CH	FrHorn
00H	00H	3DH	BrsSect
00H	00H	3EH	SynBrs1
00H	00H	3FH	SynBrs2
00H	00H	40H	SoprSax
00H	00H	41H	AltoSax
00H	00H	42H	TenrSax
00H	00H	43H	BariSax
00H	00H	44H	Oboe
00H	00H	45H	EnglHorn
00H	00H	46H	Bassoon
00H	00H	47H	Clarinet

mmH	iiH	ppH	Sound Name
00H	00H	48H	Piccolo
00H	00H	49H	Flute
00H	00H	4AH	Recorder
00H	00H	4BH	PanFlute
00H	00H	4CH	BottBlow
00H	00H	4DH	Shaku
00H	00H	4EH	Whistle
00H	00H	4FH	Ocarina
00H	00H	50H	Square
00H	00H	51H	Saw
00H	00H	52H	Calliope
00H	00H	53H	Chiffer
00H	00H	54H	Charang
00H	00H	55H	Solo Vox
00H	00H	56H	5th Saw
00H	00H	57H	BassLead
00H	00H	58H	Fantasia
00H	00H	59H	Warm Pad
00H	00H	5AH	Polysynt
00H	00H	5BH	SpaceVox
00H	00H	5CH	BowGlass
00H	00H	5DH	MetalPad
00H	00H	5EH	HaloPad
00H	00H	5FH	SweepPad
00H	00H	60H	Ice Rain
00H	00H	61H	SndTrack
00H	00H	62H	Crystal
00H	00H	63H	Atmosphe
00H	00H	64H	Brightns
00H	00H	65H	Goblin
00H	00H	66H	EchoDrop
00H	00H	67H	StarThem
00H	00H	68H	Sitar
00H	00H	69H	Banjo
00H	00H	6AH	Shamisen
00H	00H	6BH	Koto
00H	00H	6CH	Kalimba
00H	00H	6DH	BagPipe
00H	00H	6EH	Kokyu
00H	00H	6FH	Shanai
00H	00H	70H	TnklBell
00H	00H	71H	Agogo
00H	00H	72H	SteelDrm
00H	00H	73H	WoodBlck
00H	00H	74H	Taiko
00H	00H	75H	MelodTom
00H	00H	76H	SynDrum
00H	00H	77H	RevCymbl
00H	00H	78H	GuitNois
00H	00H	79H	KeyClick
00H	00H	7AH	SeaShore
00H	00H	7BH	Birds
00H	00H	7CH	Telephon
00H	00H	7DH	Elicopt
00H	00H	7EH	Applause
00H	00H	7FH	GunShot

* Style Program Change *

A Style is selected by the message: BnH 00H mmH BnH 20H iiH CnH ppHn=MIDI channel number: 0H-FH (0-15) 0=ch. 1 15=ch.16
01H	05H	ppH	Style	#11	Rock1	Basic
01H	06H	ppH	Style	#12	Rock2	Basic
21H	01H	ppH	Style	#13	Rap	Basic
02H	04H	ppH	Style	#14	Dance	Basic
03H	03H	ppH	Style	#15	Funk1	Basic
03H	04H	ppH	Style	#16	Funk2	Basic
04H	03H	ppH	Style	#17	Ballad1	Basic
05H	03H	ppH	Style	#18	Sl Rock1	Basic
06H	03H	ppH	Style	#21	8beat1	Basic
06H	04H	ppH	Style	#22	8beat2	Basic
07H	04H	ppH	Style	#23	16beat1	Basic
07H	05H	ppH	Style	#24	16beat2	Basic
08H	03H	ppH	Style	#25	Reggae	Basic
09H	02H	ppH	Style	#26	Boogie	Basic
0AH	04H	ppH	Style	#27	Twist	Basic
0BH	01H	ppH	Style	#28	Dixie	Basic
0CH	02H	ppH	Style	#31	Swing	Basic
0EH	01H	ppH	Style	#32	Big Band	Basic
0FH	02H	ppH	Style	#33	Shuffle	Basic
10H	02H	ppH	Style	#34	Country	Basic
12H	02H	ppH	Style	#35	Sl Waltz	Basic
11H	05H	ppH	Style	#36	Waltz	Basic
13H	03H	ppH	Style	#37	Polka	Basic
14H	02H	ppH	Style	#38	March	Basic
15H	01H	ppH	Style	#41	Baroque	Basic
16H	03H	ppH	Style	#42	Bossa	Basic
17H	01H	ppH	Style	#43	Rhumba	Basic
18H	01H	ppH	Style	#44	ChaCha	Basic
19H	01H	ppH	Style	#45	Salsa	Basic
1AH	02H	ppH	Style	#46	Tango	Basic
1BH	03H	ppH	Style	#47	Samba	Basic
16H	04H	ppH	Style	#48	Latin	Basic
01H	05H	ppH	Style	#51	Rock1	Advanced
01H	06H	ppH	Style	#52	Rock2	Advanced
21H	01H	ppH	Style	#53	Rap	Advanced
02H	04H	ppH	Style	#54	Dance	Advanced
03H	03H	ppH	Style	#55	Funk1	Advanced
03H	04H	ppH	Style	#56	Funk2	Advanced
04H	03H	ppH	Style	#57	Ballad1	Advanced
05H	03H	ppH	Style	#58	Sl Rock1	Advanced
06H	03H	ppH	Style	#61	8beat1	Advanced
06H	04H	ppH	Style	#62	8beat2	Advanced
07H	04H	ppH	Style	#63	16beat1	Advanced
07H	05H	ppH	Style	#64	16beat2	Advanced
08H	03H	ppH	Style	#65	Reggae	Advanced
09H	02H	ppH	Style	#66	Boogie	Advanced
0AH	04H	ppH	Style	#67	Twist	Advanced
0BH	01H	ppH	Style	#68	Dixie	Advanced
0CH	02H	ppH	Style	#71	Swing	Advanced
0EH	01H	ppH	Style	#72	Big Band	Advanced
0FH	02H	ppH	Style	#73	Shuffle	Advanced
10H	02H	ppH	Style	#74	Country	Advanced
12H	02H	ppH	Style	#75	Sl Waltz	Advanced
11H	05H	ppH	Style	#76	Waltz	Advanced
13H	03H	ppH	Style	#77	Polka	Advanced
14H	02H	ppH	Style	#78	March	Advanced
15H	01H	ppH	Style	#81	Baroque	Advanced
16H	03H	ppH	Style	#82	Bossa	Advanced
17H	01H	ppH	Style	#83	Rhumba	Advanced
18H	01H	ppH	Style	#84	ChaCha	Advanced
19H	01H	ppH	Style	#85	Salsa	Advanced
1AH	02H	ppH	Style	#86	Tango	Advanced
1BH	03H	ppH	Style	#87	Samba	Advanced
16H	04H	ppH	Style	#88	Latin	Advanced

* Values of ppH *

00H	Original Basic
01H	Original Advanced
		* E-15 User program Area *
08H	Variation Basic
09H	Variation Advanced
		Offset	Description
40H	Intro Basic		** VOLUMES
41H	Intro Advanced		00H	Upper VOLUME	on/off (bit7),volume(bit6-0)	[0-127]
			01H	Lower VOLUME	on/off (bit7),volume(bit6-0)	[0-127]
48H	Ending Basic		02H	Bass VOLUME	on/off (bit7),volume(bit6-0)	[0-127]
49H	Ending Advanced		03H	Accomp VOLUME	on/off (bit7),volume(bit6-0)	[0-127]
			04H	AccDrum VOLUME	on/off (bit7),volume(bit6-0)	[0-127]
58H	Fill in to Original Basic		05H	S. Effect VOLUME	on/off (bit7),volume(bit6-0)	[0-127]
59H	Fill in to Original Advanced
			** VOICES
60H	Fill in to variation Basic		06H	Upper VOICE	free(bit7), group(bit6), bank(bit5-3), number(bit2-0)
61H	Fill in to variation Advanced		07H	Lower VOICE	free(bit7), group(bit6), bank(bit5-3), number(bit2-0)
			08H	ManBass VOICE	free(bit7), group(bit6), bank(bit5-3), number(bit2-0)
70H	Break Mute		09H	Style	free(bit7-6), bank(bit5-3), number(bit2-0)
50H	Fill in to Variation <
51H	Fill in to Original <			** TEMPO
52H	Intro < E-series compatibility		0AH	TEMPO	in B.P.M (bit7-0)	[20-250]
53H	Ending <
54H	Break Mute <

Table 2
* E-15 User program Area *

Offset	Description
	** VOLUMES
00H	Upper VOLUME on/off (bit7),volume(bit6-0)	[0-127]
01H	Lower VOLUME on/off (bit7),volume(bit6-0)	[0-127]
02H	Bass VOLUME on/off (bit7),volume(bit6-0)	[0-127]
03H	Accomp VOLUME on/off (bit7),volume(bit6-0)	[0-127]
04H	AccDrum VOLUME on/off (bit7),volume(bit6-0)	[0-127]
05H	S. Effect VOLUME on/off (bit7),volume(bit6-0)	[0-127]
	** VOICES
06H	Upper VOICE free(bit7), group(bit6), bank(bit5-3), number(bit2-0)
07H	Lower VOICE free(bit7), group(bit6), bank(bit5-3), number(bit2-0)
08H	ManBass VOICE free(bit7), group(bit6), bank(bit5-3), number(bit2-0)
09H	Style free(bit7-6), bank(bit5-3), number(bit2-0)
	** TEMPO
0AH	TEMPO in B.P.M (bit7-0) [20-250]
	** MIDI RX/TX PARTS
0BH	Upper PART on/off (bit7), free (bit6-4), channel (bit3-0)
0CH	Lower PART on/off (bit7), free (bit6-4), channel (bit3-0)
0DH	ManBass PART on/off (bit7), free (bit6-4), channel (bit3-0)
0EH	ManDrum PART on/off (bit7), free (bit6-4), channel (bit3-0)
0FH	Acc1 PART on/off (bit7), free (bit6-4), channel (bit3-0)
10H	Acc2 PART on/off (bit7), free (bit6-4), channel (bit3-0)
11H	Acc3 PART on/off (bit7), free (bit6-4), channel (bit3-0)
12H	AccBass PART on/off (bit7), free (bit6-4), channel (bit3-0)
13H	AccDrum PART on/off (bit7), free (bit6-4), channel (bit3-0)
14H	S.Effect PART on/off (bit7), free (bit6-4), channel (bit3-0)
15H	Rx Only PART on/off (bit7), free (bit6-4), channel (bit3-0)
16H	Note to Arr PART on/off (bit7), free (bit6-4), channel (bit3-0)
17H	Style P.Ch. PART on/off (bit7), free (bit6-4), channel (bit3-0)
18H	Basic MIDI Ch. PART on/off (bit7), free (bit6-4), channel (bit3-0)
	** MIDI PARAMETERS
19H	Internal clock on/off (bit7)
	Auto clock on/off (bit6)
	Midi clock on/off (bit5)
	Sustain Rx/Tx on/off (bit4)
	Modulation Rx/Tx on/off (bit3)
	Pitch Bender Rx/Tx on/off (bit2)
	Program Change Rx/Tx on/off (bit1)
	Volume Rx/Tx on/off (bit0)
	** TUNE
1AH	Master Tune (bit7-0) [-99,+99]
	** TRANSPOSE
1BH	Transpose (bit7-0) [-12,+12]

[-12(\F4), -11(\F5), -10(\F6), -9(\F7), -8(\F8), -7(\F9),

-6(\FA), -5(\FB), -4(\FC), -3(\FD), -2(\FE), -1(\FF), 0(\$00),

+1,+2,+3,+4,+5,+6,+7,+8,+9,+10,+11,+12]

MIDI IMPLEMENTATION CHART

MODEL: ROLAND E-15

Date: April 1991

Version: 1.00

FUNCTION		TRANSMITTED	RECOGNIZED	REMARKS
Basic	Default	1-2-3-4-5-6-7-8-10-11	1-2-3-4-5-6-7-8-9-10-11	1 = Note to arr, Basic midi ch.2 = Man. Bass 3 = Lower4 = Upper 1 5 = Accomp 16 = Accomp 2 7 = Accomp 38 = Acc. Bass 9 = Rx only10 = Man. Drums, Acc. Drums,Style Pg. ch. 11 = Sound Eff.
Channel	Changed	1-16, OFF	1-16, OFF
Mode	Default	X	Mode 3	*2
	Messages	X	X	*2
	Altered	**********	X
Note Number	True voice	12—120	0—127 *1
Note Number	True voice	**********	0—127
Velocity	Note ON	○	○
Velocity	Note OFF	X	X
After Touch	Key's	X	○
After Touch	Ch's	X	○
Pitch Bender		*1	*1
Control Change	0,32	*1	*1 (MSB only)	Bank select
	1	*1	*1	Modulation
	5	X	○	Portamento time
	6,38	X	○	Data entry
	7	*1	*1	Volume
	10	X	○	Panpot
	11	X	○	Expression
	64	*1	*1	Hold 1
	65	X	○	Portamento
	66	X	○	Sostenuto
	67	X	○	Soft
	84	○	○	LGC
	91	X	○ (Reverb)	Effect 1 depth
	93	X	○ (Chorus)	Effect 3 depth
	98,99	○	○	NRPN LSB, MSB
	100,101	X	○	RPN LSB, MSB
	120	X	○	All sounds off
	121	X	○	Reset all controllers
Program Change True #		*1	*1
Program Change True #		**********	0—127
System Exclusive		○	○
System : Song Pos		X	X
Common : Song Sel		X	X
Common : Song Sel		X	X
System : Clock		*1	*1
Real Time : Commands		*1	*1
Aux : Local ON/OFF		X	X
Messages : Active Sense		X	○ (123-127)
Messages : Reset		○	○
Messages : Reset		X	X
Notes		1 ○ X can be selectable2 Recognized as “all note off”

Mode 1: OMNI ON, POLY

Mode 3: OMNI OFF, POLY

Mode 2: OMNI ON, MONO

Mode 4: OMNI OFF, MONO

○: YES

X: NO

"GS Standard"

Multi Timbral Sound Generation

1 Receive data

- Channel Voice Message -

■ Note off

Status	Second	Third
8nH	kkH	vvH
9nH	kkH	00H

n=MIDI channel number :	0H - FH	(0 - 15)	0=ch.1 15=ch.16
kk=Note number :	00H - 7FH	(0 - 127)
vv=Velocity :	00H - 7FH	(0 - 127)

*Velocity is ignored.

Note on

Status	Second	Third
9nH	kkH	vvH

n=MIDI channel number :	0H - FH	(0 - 15)	0=ch.1 15=ch.16
kk=Note number :	00H - 7FH	(0 - 127)
vv=Velocity :	01H - 7FH	(1 - 127)

■ Polyphonic key pressure

Status	Second	Third
AnH	kkH	vvH

n= MIDI channel number : 0H - FH (0 - 15) 0=ch.1 15=ch.16
kk= Note number : 00H - 7FH (0 - 127)
vv= Value : 00H - 7FH (0 - 127)

*Recognized when "Rx.Polyphonic key pressure = ON" and set on "controller function".

■ Control change

*Recognized when "Rx.Control change = ON" and set on "controller function".

Bank select

Status	Second	Third
BnH	00H	mmH
BnH	20H	11H

n=MIDI channel number :	0H - FH	(0 - 15)	0=ch.1	15=ch.16
mm,ll=Bank number :	00H,00H -7FH,7FH	(1 -16384)

* The MSB 7-bit is ignored.
* "Bank select" is suspended until receiving "Program change"

Modulation

Status	Second	Third
BnH	01H	vvH

n=MIDI channel number :	0H - FH (0 - 15)	0=ch.1 15=ch.16
vv=Modulation depth :	00H - 7FH (0 - 127)

*Recognized when "Rx.Modulation = ON(default setting)" and set on "controller function(default setting is pitch modulation)".

Portamento time

Status	Second	Third
BnH	05H	vvH

n=MIDI channel number :	0H - FH (0 - 15)	0=ch.1 15=ch.16
vv=Portamento time :	00H - 7FH (0 - 127)

Data entry

Status	Second	Third
BnH	06H	mmH
BnH	26H	11H

n=MIDI channel number: 0H - FH (0 - 15) 0=ch.1 15=ch.16 mm,II=Value of the specified parameter with RPN and/or NRPN

Volume

Status	Second	Third
BnH	07H	vvH

n=MIDI channel number : 0H - FH (0 - 15) 0=ch.1 15=ch.16 vv=Volume : 00H - 7FH (0 - 127)

*You can adjust the volume of specified channel(part). *Recognized when "Rx.Volume = ON(default setting)".

Panpot

Status	Second	Third
BnH	0AH	vvH

n=MIDI channel number : 0H - FH (0 - 15) 0=ch.1 15=ch.16 vv=Panpot : 00H - 40H 7FH (Left - Center - Right)

*Resolution of panpot is approx. 7-bit (127 steps). *Recognized when "Rx.Panpot = ON(default setting)".

Expression

Status	Second	Third
BnH	0BH	vvH

n=MIDI channel number : 0H - FH (0 - 15) 0=ch.1 15=ch.16 vv=Expression : 00H - 7FH (0 - 127)

*You can adjust the volume of specified channel(part). *Recognized when "Rx.Expression = ON(default setting)".

Hold1

Status	Second	Third
BnH	40H	vvH

n=MIDI channel number : 0H - FH (0 - 15) 0=ch.1 15=ch.16 vv=Control Value : 00H - 7FH (0 - 127) 0-63=OFF 64-127=ON

*Recognized when "Rx.Hold1 = ON(default setting)".

Portamento

Status	Second	Third
BnH	41H	vvH

n=MIDI channel number : 0H - FH (0 - 15) 0=ch.1 15=ch.16 vv=Control Value : 00H - 7FH (0 - 127) 0-63=OFF 64-127=ON

*Recognized when "Rx.Portamento = ON(default setting)".
*In poly mode, you cannot specify the portamento source pitch. If you wish to specify the source pitch, you may use LGC.

Sostenuto

Status	Second	Third
BnH	42H	vvH

n=MIDI channel number : 0H - FH (0 - 15) 0=ch.1 15=ch.16 vv=Control Value : 00H - 7FH (0 - 127) 0-63=OFF 64-127=ON

*Recognized when "Rx.Sostenuto = ON(default setting)".

Soft

Status	Second	Third
BnH	43H	vvH
n=MIDI channel number :		0H - FH (0 - 15)	0=ch.1 15=ch.16
vv=Control Value :		00H - 7FH (0 - 127)	0-63=OFF 64-127=ON

*Recognized when "Rx.Soft = ON(default setting)".

LGC (Legato Control)

Status	Second	Third
BnH	54H	kkH

n=MIDI channel number : 0H - FH (0 - 15) 0=ch.1 15=ch.16 kk=Legato source key number :00H - 7FH (0 - 127)

*When a note on is just come after LGC, the voice is turned re-tuning on from the pitch of legato source key according to the portamento time (no need to use portamento on/off). If a voice turned on before LGC and the key number is equal to the legato source key number of LGC and other note on come after LGC, the pitch of previous voice is re-tuned.

For example:

On MIDI	Description	Result
90 3C 40	Note on C4	C4 on
B0 54 3C	LGC from C4	no change
90 40 40	Note on E4	Re-tuning from C4 to E4
80 3C 40	Note off C4	no change
80 40 40	Note off E4	E4 off

Effect1 depth(Reverb send depth)

Status	Second	Third
BnH	5BH	vvH

n=MIDI channel number : 0H - FH (0 - 15) 0=ch.1 15=ch.16 vv=Reverb send depth : 00H - 7FH (0 - 127)

Effect3 depth(Chorus send depth)

Status	Second	Third
BnH	5DH	vvH

n=MIDI channel number : 0H - FH (0 - 15) 0=ch.1 15=ch.16 vv=Chorus send depth : 00H - 7FH (0 - 127)

NRPN MSB/LSB

Status	Second	Third
BnH	63H	mmH
BnH	62H	11H

n =MIDI channel number :0H - FH (0 - 15) 0=ch.1 15=ch.16 mm =MSB of the specified parameter by NRPN II =LSB of the specified parameter by NRPN

*Recognized when "Rx.NRPN = ON(OFF=default setting)".

**NRPN**

NRPN (Non Registered Parameter Number) is an expanded message of the control change. Each function of NRPN is described by manufacturer.

You can change the value of several GS and E-15 parameters. First, set NRPN MSB/LSB before send data entry.

GS can receive parameters as shown below;

NRPN	Data entry	Description
MSB LSB	MSB LSB

01H	08H	mmH	Vibrato raterelative change on specified channelmm: 0EH-40H-72H (-50 - 0 - +50)
01H	09H	mmH	Vibrato depthrelative change on specified channelmm: 0EH-40H-72H (-50 - 0 - +50)
01H	0AH	mmH	Vibrato delayrelative change on specified channelmm: 0EH-40H-72H (-50 - 0 - +50)
01H	20H	mmH	TVF cutoff frequencyrelative change on specified channelmm: 0EH-40H-72H (-50 - 0 - +50)
01H	21H	mmH	TVF resonancerelative change on specified channelmm: 0EH-40H-72H (-50 - 0 - +50)
01H	63H	mmH	TVF&TVA Env. Attack timerelative change on specified channelmm: 0EH-40H-72H (-50 - 0 - +50)
01H	64H	mmH	TVF&TVA Env. Decay timerelative change on specified channelmm: 0EH-40H-72H (-50 - 0 - +50)
01H	66H	mmH	TVF&TVA Env. Release timerelative change on specified channelmm: 0EH-40H-72H (-50 - 0 - +50)
18H	rrH	mmH	Pitch coarse of drum instrumentabsolute change on specified drum instrumentrr: key number of drum instrumentmm: 00H-40H-7FH (-64 - 0 - +63 semitone)
1AH	rrH	mmH	TVA level of drum instrumentabsolute change on specified drum instrumenrr: key number of drum instrumentmm: 00H-7FH (zero - maximum)
1CH	rrH	mmH	Panpot of drum instrumentabsolute change on specified drum instrumentrr: key number of drum instrumentmm: 00H,01H-40H-7FH (Random, Left-Center-Right)
1DH	rrH	mmH	Reverb send depth of drum instrumentabsolute change on specified drum instrumentrr: key number of drum instrumentmm: 00H-7FH (zero - maximum)

*Data entry LSB is ignored.

RPN MSB/LSB

Status	Second	Third
BnH	65H	mmH
BnH	64H	11H

n =MIDI channel number :0H -FH (0 - 15) 0=ch.1 15=ch.16 mm =MSB of the specified parameter by RPN II =MSB of the specified parameter by RPN

*Recognized when "Rx.RPN = ON(default setting)".

**RPN**

RPN (Registered Parameter Number) is the expand message of control change. Each function of RPN is described by MIDI.

You can change the value of RPN parameters. First, set RPN MSB/LSB before send data entry.

GS can receive Pitch bend sensitivity(RPN#0), Master fine tuning(RPN#1), Master coarse tuning(RPN#2) and RPN reset(RPN#16383).

RPN	Data entry	Description
MSB LSB	MSB LSB

00H

mmH

----

Pitch bend sensitivitymm: 00H-18H (0 - 24 semitone)I I: ignored(Up to 2 octaves, power on default istwo semitones)

00H	01H	mmH	II H	Master fine tuning
				mm, II: 00H,00H-40H,00H-7FH,7FH(-8192100/8192 - 0 - +8191100/8192 cent)

00H	02H	mmH	----	Master coarse tuning
				mm: 28H-40H-58H (-24 - 0 - +24 semitone)
				ll: ignored

7FH

----

RPN resetReturn to no specified parameter of RPN and NRPN.Current setting value is no change.mm, I: ignored

■ Program change

Status	Second
CnH	ppH

n=MIDI channel number: 0H - FH (0 - 15) 0=ch.1 15=ch.16

pp=Program number: 00H - 7FH (0 - 127)

*Recognized when "Rx.Program change = ON(default setting)".

■ Channel pressure

Status	Second
DnH	vvH

n=MIDI channel number:	0H - FH (0 - 15)	0=ch.1 15=ch.16
vv=Value:	00H - 7FH (0 - 127)

*Recognized when "Rx.Channel pressure = ON" and set on "controller function".

■ Pitch bend change

Status	Second	Third
EnH	IIH	mmH

n=MIDI channel number: 0H - FH (0 - 15) 0=ch.1 15=ch.16 mm, l l=Value: 00H,00H - 40H,00H - 7FH,7FH (-8192 - 0 - +8191)

*Recognized when "Rx.Pitch bend change = ON(default setting)" and set on "controller function(default setting is pitch bend)".

Channel Mode Message -

All sounds off

Status	Second	Third
BnH	78H	00H

n=MIDI channel number : 0H - FH (0 - 15) 0=ch.1 15=ch.16

*When "All sounds off" is received, all sounds of specified channel turn off immediately. However, the state of channel message is no change.

■ Reset all controllers

Status	Second	Third
BnH	79H	00H

n=MIDI channel number : 0H - FH (0 - 15) 0=ch.1 15=ch.16

*When "reset all controllers" is received, the following controller value of specified channel return to default at power on.

Controller	Value
Pitch bend change	0(Center)
Polyphonic key pressure	0(off)
Channel pressure	0(off)
Modulation	0(off)
Expression	127(maximum)
Hold1	0(off)
Portamento	0(off)
Sostenuto	0(off)
Soft	0(off)

RPN No specified parametres. NRPN No specified parametres.

■ All notes off

Status	Second	Third
BnH	7BH	00H

n=MIDI channel number : 0H - FH (0 - 15) 0=ch.1 15=ch.16

*When "All notes off" is received, all on state notes turn to off in the specified channel. However, sound remains when hold1 and/or sostenuto is on.

■ OMNI OFF

Status	Second	Third
BnH	7CH	00H

n=MIDI channel number : 0H - FH (0 - 15) 0=ch.1 15=ch.16

*OMNI OFF is only recognized as "all notes off". Mode doesn't change.

■ OMNI ON

Status	Second	Third
BnH	7DH	00H

n=MIDI channel number : 0H - FH (0 - 15) 0=ch.1 15=ch.16

*OMNI ON is only recognized as "all notes off". Mode doesn't change, still OMNI OFF.

■ MONO

Status	Second	Third
BnH	7EH	mmH

n=MIDI channel number : 0H - FH (0 - 15) 0=ch.1 15=ch.16 mm=number of mono :00H - 10H (0 - 16)

*MONO is recognized as "all notes off". And the specified channel turns to Mode4 (m=1), even if mm is not equal to 1 (mm is ignored).

POLY

Status	Second	Third
BnH	7FH	00H

n=MIDI channel number : 0H - FH (0 - 15) 0=ch.1 15=ch.16

*POLY is recognized as "all notes off". And the specified channel turns to Mode3.

System Real Time Message

■ Active sensing

Status

FEH

*Having received "active sensing", GS expects the interval of any data to occur within 300 milli-second. If the interval is over 420 milli-second, GS does "All sounds off", "All sounds off" and "Reset all controllers" and turns on normal operation. (Will not check interval time).

System Exclusive Message

Status

F0H i i H, ddH,.....,eeH

F7H

F0H : System exclusive

ii=ID number=41H (65)

dd,...,ee=data:00H-7FH (0-127)

F7H : EOX (End of Exclusive/System common)

*Refer to section 3,4.

2 Transmit data

System Realtime Message

■ Active sensing

Status

FEH

3 Exclusive communications

GS can transmit and receive the patch parameters using system exclusive message.

One way communication

Data set 1 DT1 (12H)

Byte	Description
F0H	Exclusive status
41H	Manufacture's ID	(Roland)
10H	Device ID	(UNIT#=17)
42H	Model ID	(GS)
12H	Command ID	(DT1)
aaH	Address MSB
bbH	Address
ccH	Address LSB
ddH	Data
:	@:
ddH	Data
sum	Check sum
F7H	EOX	(End of exclusive)

4 Parameter address map (Model ID=42H)

The address and size are described with 7-bit hexadecimal.

Address	MSB		LSB
Binary	0aaa aaaa	0bbb bbbb	0ccc cccc@
Hexadecimal	AA	BB	CC
Size	MSB		LSB
Binary	0sss ssss	0ttt tttt	0uuu uuuu@
Hexadecimal	SS	TT	UU

Parameter base address

There are two types of the GS exclusive message. One is an individual parameter communication. Another is a bulk dump.

Coarse address map of the exclusive communication is shown below;

ROLAND E-15 - Parameter base address - 1

Notes: Address map of the individual parameter

One system exclusive message “F0 ..... F7” can only have one parameter. And you cannot use any address having “#” for the top address in a system exclusive message.

E-15 cannot receive a system exclusive data request of the following parameters.

[ SYSTEM PARAMETERS ]

Address(H)	SIZE(H)	Data(H)	Parameter	Description
40 00 0040 00 01#40 00 02#40 00 03#	00 00 04	0018 - 07E8	MASTER TUNE	-100.0 - +100.0 [cent]Use nibblized data.
40 00 04	00 00 01	00 - 7F	MASTER VOLUME	0 - 127
40 00 7ENUMBER	00 00 01	00 - 7F	LGC CONTROLLER	0 - 127 (default=54H)
40 00 7F	00 00 01	00,		Reset GS

For example:

As you set +100.0 cent for master tune, you

must send the message as follow.

F0 41 10 42 12 40 00 00 00 07 0E 08 xx F7

As you set 100 for master volume, you must

send the message as follow.

F0 41 10 42 12 40 00 04 64 xx F7

[ PATCH PARAMETERS ]

Address(H)	SIZE(H)	Data(H)	Parameter	Description
40 01 00	00 00 10	20 - 7F	PATCH NAME	16 ASCII Characters
40 01 0F#
40 01 10	00 00 10	00 - 17	PARTIAL RESERVE PART 0 (Drums)
40 01 11#
40 01 1F#				PART 15A sum of partial reserves must be up to 17H(24 decimal).
40 01 20	00 00 01	00 - 0F	ASSIGNER	0 - 15 [top part number of the wall]
			SEPARATE WALL
40 01 30	00 00 01	00 - 07	REVERB MACRO
40 01 31	00 00 01	00 - 07	REVERB CHARACTER
40 01 32	00 00 01	00 - 07	REVERB PRE-LPF
40 01 33	00 00 01	00 - 7F	REVERB LEVEL
40 01 34	00 00 01	00 - 7F	REVERB TIME
40 01 35	00 00 01	00 - 7F	REVERB DELAY FEEDBACK
40 01 36	00 00 01	00 - 7F	REVERB SEND LEVEL TO CHORUS
40 01 38	00 00 01	00 - 07	CHORUS MACRO
40 01 39	00 00 01	00 - 07	CHORUS PRE-LPF
40 01 3A	00 00 01	00 - 7F	CHORUS LEVEL
40 01 3B	00 00 01	00 - 7F	CHORUS FEEDBACK
40 01 3C	00 00 01	00 - 7F	CHORUS DELAY
40 01 3D	00 00 01	00 - 7F	CHORUS RATE
40 01 3E	00 00 01	00 - 7F	CHORUS DEPTH
40 01 3F	00 00 01	00 - 7F	CHORUS SEND LEVEL TO REVERB

n...part number (0 - F)
40 1n 00	00 00 02	00 - 7F	TONE NUMBER	CC#00 VALUE
40 1n 01#		00 - 7F P.C.		VALUE
40 1n 02	00 00 01	00 - 11	Rx. CHANNEL1 - 16	OFF
40 1n 03	00 00 01	00 - 01	Rx. PITCH BEND	OFF / ON
40 1n 04	00 00 01	00 - 01	Rx. CH PRESSURE(CAf)	OFF / ON
40 1n 05	00 00 01	00 - 01	Rx. PROGRAM CHANGE	OFF / ON
40 1n 06	00 00 01	00 - 01	Rx. CONTROL CHANGE	OFF / ON
40 1n 07	00 00 01	00 - 01	Rx. POLY PRESSURE(PAf)	OFF / ON
40 1n 08	00 00 01	00 - 01	Rx. NOTE MESSAGE	OFF / ON
40 1n 09	00 00 01	00 - 01	Rx. RPN	OFF / ON
40 1n 0A	00 00 01	00 - 01	Rx. NRPN	OFF / ON
40 1n 0B	00 00 01	00 - 01	Rx. MODULATION	OFF / ON
40 1n 0C	00 00 01	00 - 01	Rx. VOLUME	OFF / ON
40 1n 0D	00 00 01	00 - 01	Rx. PANPOT	OFF / ON
40 1n 0E	00 00 01	00 - 01	Rx. EXPRESSION	OFF / ON
40 1n 0F	00 00 01	00 - 01	Rx. HOLD1	OFF / ON
40 1n 10	00 00 01	00 - 01	Rx. PORTAMENTO	OFF / ON
40 1n 11	00 00 01	00 - 01	Rx. SOSTENUTO	OFF / ON
40 1n 12	00 00 01	00 - 01	Rx. SOFT	OFF / ON
40 1n 13	00 00 01	00 - 01	MONO/POLY MODE	Mono / Poly
40 1n 14	00 00 01	00 - 02	ASSIGN MODE	0 = SINGLE1 = LIMITED-MULTI2 = FULL-MULTI
40 1n 15	00 00 01	00 - 02	USE FOR RHYTHM PART	OFF / MAP1 / MAP2
40 1n 16	00 00 01	10 - 58	PITCH KEY SHIFT	-48 - +24 [semitone]

40 1n 17	00 00 01	08 - F8	PITCH OFFSET FINE	-12.0 - +12.0 [Hz]Use nibblized data.	40 2n 50	00 00 01	00 - 7F	CC2 PITCH CONTROL	-48 - +24 [semitone], OFF
40 1n 18#					40 2n 51	00 00 01	00 - 7F	CC2 TVF CUTOFF CONTROL	-9600 - +9600 [cent], OFF
					40 2n 52	00 00 01	00 - 7F	CC2 AMPLITUDE CONTROL	-100.0 - +100.0 [%], OFF
40 1n 19	00 00 01	00 - 7F	PART LEVEL	0 - 127	40 2n 53	00 00 01	00 - 7F	CC2 LFO1 RATE CONTROL	-10.0 - +10.0 [Hz], OFF
40 1n 1A	00 00 01	00 - 7F	VELOCITY SENSE DEPTH	0 - 127	40 2n 54	00 00 01	00 - 7F	CC2 LFO1 PITCH DEPTH	0 - 600 [cent], OFF
40 1n 1B	00 00 01	00 - 7F	VELOCITY SENSE OFFSET	0 - 127	40 2n 55	00 00 01	00 - 7F	CC2 LFO1 TVF DEPTH	0 - 2400 [cent], OFF
40 1n 1C	00 00 01	00 - 7F	PART PANNING	Random, -63(LEFT) -+63(RIGHT)	40 2n 56	00 00 01	00 - 7F	CC2 LFO1 TVA DEPTH	0 - 100.0 [%], OFF
40 1n 1D	00 00 01	00 - 7F	KEY RANGE LOW	C-1 - G9	40 2n 57	00 00 01	00 - 7F	CC2 LFO2 RATE CONTROL	-10.0 - +10.0 [Hz], OFF
40 1n 1E	00 00 01	00 - 7F	KEY RANGE HIGH	C-1 - G9	40 2n 58	00 00 01	00 - 7F	CC2 LFO2 PITCH DEPTH	0 - 600 [cent], OFF
40 1n 1F	00 00 01	00 - 7F	CC1 CONTROLLER NUMBER	0 - 127	40 2n 59	00 00 01	00 - 7F	CC2 LFO2 TVF DEPTH	0 - 2400 [cent], OFF
40 1n 20	00 00 01	00 - 7F	CC2 CONTROLLER NUMBER	0 - 127	40 2n 5A	00 00 01	00 - 7F	CC2 LFO2 TVA DEPTH	0 - 100.0 [%], OFF
40 1n 21	00 00 01	00 - 7F	CHORUS SEND DEPTH	0 - 127
40 1n 22	00 00 01	00 - 7F	REVERB SEND DEPTH 0	- 127
40 1n 30	00 00 01	0E - 72	TONE MODIFY 1	-50 - +50
40 1n 31	00 00 01	0E - 72	TONE MODIFY 2	-50 - +50
40 1n 32	00 00 01	0E - 72	TONE MODIFY 3	-50 - +50
40 1n 33	00 00 01	0E - 72	TONE MODIFY 4	-50 - +50
40 1n 34	00 00 01	0E - 72	TONE MODIFY 5	-50 - +50
40 1n 35	00 00 01	0E - 72	TONE MODIFY 6	-50 - +50
40 1n 36	00 00 01	0E - 72	TONE MODIFY 7	-50 - +50
40 1n 37	00 00 01	0E - 72	TONE MODIFY 8	-50 - +50
40 1n 40 00	00 0C 00 - 7F	SCALE TUNING C -64 - +63 [cent]
40 1n 41#		00 - 7F	SCALE TUNING C#	-64 - +63 [cent]
40 1n 42#		00 - 7F	SCALE TUNING D	-64 - +63 [cent]
40 1n 43#		00 - 7F	SCALE TUNING D#	-64 - +63 [cent]
40 1n 44#		00 - 7F	SCALE TUNING E	-64 - +63 [cent]
40 1n 45#		00 - 7F	SCALE TUNING F	-64 - +63 [cent]
40 1n 46#		00 - 7F	SCALE TUNING F#	-64 - +63 [cent]
40 1n 47#		00 - 7F	SCALE TUNING G	-64 - +63 [cent]
40 1n 48#		00 - 7F	SCALE TUNING G#	-64 - +63 [cent]
40 1n 49#		00 - 7F	SCALE TUNING A	-64 - +63 [cent]
40 1n 4A#		00 - 7F	SCALE TUNING A#	-64 - +63 [cent]
40 1n 4B#		00 - 7F	SCALE TUNING B	-64 - +63 [cent]
40 2n 00	00 00 01	00 - 7F	MOD PITCH CONTROL	-48 - +24 [semitone], OFF
40 2n 01	00 00 01	00 - 7F	MOD TVF CUTOFF CONTROL	-9600 - +9600 [cent], OFF
40 2n 02	00 00 01	00 - 7F	MOD AMPLITUDE CONTROL	-100.0 - +100.0 [%], OFF
40 2n 03	00 00 01	00 - 7F	MOD LFO1 RATE CONTROL	-10.0 - +10.0 [Hz], OFF
40 2n 04	00 00 01	00 - 7F	MOD LFO1 PITCH DEPTH	0 - 600 [cent], OFF
40 2n 05	00 00 01	00 - 7F	MOD LFO1 TVF DEPTH	0 - 2400 [cent], OFF
40 2n 06	00 00 01	00 - 7F	MOD LFO1 TVA DEPTH	0 - 100.0 [%], OFF
40 2n 07	00 00 01	00 - 7F	MOD LFO2 RATE CONTROL	-10.0 - +10.0 [Hz], OFF
40 2n 08	00 00 01	00 - 7F	MOD LFO2 PITCH DEPTH	0 - 600 [cent], OFF
40 2n 09	00 00 01	00 - 7F	MOD LFO2 TVF DEPTH	0 - 2400 [cent], OFF
40 2n 0A	00 00 01	00 - 7F	MOD LFO2 TVA DEPTH	0 - 100.0 [%], OFF
40 2n 10	00 00 01	00 - 7F	BEND PITCH CONTROL	-24 - +24 [semitone], OFF
40 2n 11	00 00 01	00 - 7F	BEND TVF CUTOFF CONTROL	-9600 - +9600 [cent], OFF
40 2n 12	00 00 01	00 - 7F	BEND AMPLITUDE CONTROL	-100.0 - +100.0 [%], OFF
40 2n 13	00 00 01	00 - 7F	BEND LFO1 RATE CONTROL	-10.0 - +10.0 [Hz], OFF
40 2n 14	00 00 01	00 - 7F	BEND LFO1 PITCH DEPTH	0 - 600 [cent], OFF
40 2n 15	00 00 01	00 - 7F	BEND LFO1 TVF DEPTH	0 - 2400 [cent], OFF
40 2n 16	00 00 01	00 - 7F	BEND LFO1 TVA DEPTH	0 - 100.0 [%], OFF
40 2n 17	00 00 01	00 - 7F	BEND LFO2 RATE CONTROL	-10.0 - +10.0 [Hz], OFF
40 2n 18	00 00 01	00 - 7F	BEND LFO2 PITCH DEPTH	0 - 600 [cent], OFF
40 2n 19	00 00 01	00 - 7F	BEND LFO2 TVF DEPTH	0 - 2400 [cent], OFF
40 2n 1A	00 00 01	00 - 7F	BEND LFO2 TVA DEPTH	0 - 100.0 [%], OFF
40 2n 20	00 00 01	00 - 7F	CAI PITCH CONTROL	-48 - +24 [semitone], OFF
40 2n 21	00 00 01	00 - 7F	CAI TVF CUTOFF CONTROL	-9600 - +9600 [cent], OFF
40 2n 22	00 00 01	00 - 7F	CAI AMPLITUDE CONTROL	-100.0 - +100.0 [%], OFF
40 2n 23	00 00 01	00 - 7F	CAI LFO1 RATE CONTROL	-10.0 - +10.0 [Hz], OFF
40 2n 24	00 00 01	00 - 7F	CAI LFO1 PITCH DEPTH	0 - 600 [cent], OFF
40 2n 25	00 00 01	00 - 7F	CAI LFO1 TVF DEPTH	0 - 2400 [cent], OFF
40 2n 26	00 00 01	00 - 7F	CAI LFO1 TVA DEPTH	0 - 100.0 [%], OFF
40 2n 27	00 00 01	00 - 7F	CAI LFO2 RATE CONTROL	-10.0 - +10.0 [Hz], OFF
40 2n 28	00 00 01	00 - 7F	CAI LFO2 PITCH DEPTH	0 - 600 [cent], OFF
40 2n 29	00 00 01	00 - 7F	CAI LFO2 TVF DEPTH	0 - 2400 [cent], OFF
40 2n 2A	00 00 01	00 - 7F	CAI LFO2 TVA DEPTH	0 - 100.0 [%], OFF
40 2n 30	00 00 01	00 - 7F	PAI PITCH CONTROL	-48 - +24 [semitone], OFF
40 2n 31	00 00 01	00 - 7F	PAI TVF CUTOFF CONTROL	-9600 - +9600 [cent], OFF
40 2n 32	00 00 01	00 - 7F	PAI AMPLITUDE CONTROL	-100.0 - +100.0 [%], OFF
40 2n 33	00 00 01	00 - 7F	PAI LFO1 RATE CONTROL	-10.0 - +10.0 [Hz], OFF
40 2n 34	00 00 01	00 - 7F	PAI LFO1 PITCH DEPTH	0 - 600 [cent], OFF
40 2n 35	00 00 01	00 - 7F	PAI LFO1 TVF DEPTH	0 - 2400 [cent], OFF
40 2n 36	00 00 01	00 - 7F	PAI LFO1 TVA DEPTH	0 - 100.0 [%], OFF
40 2n 37	00 00 01	00 - 7F	PAI LFO2 RATE CONTROL	-10.0 - +10.0 [Hz], OFF
40 2n 38	00 00 01	00 - 7F	PAI LFO2 PITCH DEPTH	0 - 600 [cent], OFF
40 2n 39	00 00 01	00 - 7F	PAI LFO2 TVF DEPTH	0 - 2400 [cent], OFF
40 2n 3A	00 00 01	00 - 7F	PAI LFO2 TVA DEPTH	0 - 100.0 [%], OFF
40 2n 40	00 00 01	00 - 7F	CC1 PITCH CONTROL	-48 - +24 [semitone], OFF
40 2n 41	00 00 01	00 - 7F	CC1 TVF CUTOFF CONTROL	-9600 - +9600 [cent], OFF
40 2n 42	00 00 01	00 - 7F	CC1 AMPLITUDE CONTROL	-100.0 - +100.0 [%], OFF
40 2n 43	00 00 01	00 - 7F	CC1 LFO1 RATE CONTROL	-10.0 - +10.0 [Hz], OFF
40 2n 44	00 00 01	00 - 7F	CC1 LFO1 PITCH DEPTH	0 - 600 [cent], OFF
40 2n 45	00 00 01	00 - 7F	CC1 LFO1 TVF DEPTH	0 - 2400 [cent], OFF
40 2n 46	00 00 01	00 - 7F	CC1 LFO1 TVA DEPTH	0 - 100.0 [%], OFF
40 2n 47	00 00 01	00 - 7F	CC1 LFO2 RATE CONTROL	-10.0 - +10.0 [Hz], OFF
40 2n 48	00 00 01	00 - 7F	CC1 LFO2 PITCH DEPTH	0 - 600 [cent], OFF
40 2n 49	00 00 01	00 - 7F	CC1 LFO2 TVF DEPTH	0 - 2400 [cent], OFF
40 2n 4A	00 00 01	00 - 7F	CC1 LFO2 TVA DEPTH	0 - 100.0 [%], OFF

[ DRUM SETUP PARAMETER ]

Address(H)	SIZE(H)	Data(H)	Parameter	Description
41 m0 00\| #41 m0 0B#	00 00 0C	20 - 7F	DRUMS MAP NAME	ASCII Character
41 m1 rr	00 00 01	00 - 7F	PLAY KEY NUMBER
41 m2 rr	00 00 01	00 - 7F	LEVEL
41 m3 rr	00 00 01	00 - 7F	GROUP NUMBER	NON, 1 - 127
41 m4 rr	00 00 01	00 - 7F	PANPOT	Random, -63(LEFT) - +63(RIGHT)
41 m5 rr	00 00 01	00 - 7F	REVERB DEPTH
41 m6 rr	00 00 01	00 - 7F	CHORUS DEPTH
41 m7 rr	00 00 01	00 - 01	Rx. NOTE	OFF OFF / ON
41 m8 rr	00 00 01	00 - 01 Rx.	NOTE ON OFF / ON

*m:Map number (0 - 1)
*rr:rhythm part key number (00 - 7F)

[ Bulk Dump ]

1-packet = 128 byte(MIDI)
— PATCH ALL (64 + (112 * 16) = 0x740 byte ) — 0x740 * 2(nibblize) = 1D 00 (MIDI)
Address(H)	SIZE(H)	Data(H)	Parameter	Description
48 00 00	00 1D 00
\| #	29 packets
48 1C 1F#
— PATCH COMMON (64 = 0x40 byte) — 0x40 * 2(nibblize) = 01 00 (MIDI)
Address(H)	SIZE(H)	Data(H)	Parameter	Description

48 00 00 00 01 00
| # 1 packet 48 00 7F#
— PATCH PART (112 = 0x70 byte)
— 0x70 * 2(nibblize) = 01 60 (MIDI)

Address(H)	SIZE(H)	Data(H)	Parameter	Description
48 01 00 \| #48 02 5F#	00 01 60	PART 0	2 packet
48 02 60 \| #48 04 3F#	00 01 60	PART 1	2 packet
48 04 40 \| #48 06 1F#	00 01 60	PART2		2 packet
48 06 20 \| #48 07 FF#	00 01 60	PART3		2 packet
48 08 00 \| #48 09 5F#	00 01 60	PART4		2 packet
48 09 60 \| #48 0B 5F#	00 01 60	PART5		2 packet
48 0B 60 \| #48 0D 3F#	00 01 60	PART6		2 packet
48 0D 40 \| #48 0E 1F#	00 01 60	PART7		2 packet
48 0E 20 \| #48 0F FF#	00 01 60	PART8		2 packet
48 10 00 \| #48 11 5F#	00 01 60	PART9		2 packet
48 11 60 \| #48 13 3F#	00 01 60	PART10		2 packet
48 13 40 \| #48 15 1F#	00 01 60	PART11		2 packet
48 15 20 \| #48 16 FF#	00 01 60	PART12		2 packet
48 17 00 \| #48 18-5F#	00 01 60	PART13		2 packet
48 18 60 \| #48 1A 3F#	00 01 60	PART14		2 packet
48 1A 40 \| #48 1C 1F#	00 01 60	PART15		2 packet

MIDI IMPLEMENTATION CHART

(Multi Timbral Sound Generation)

"GS STANDARD"

Date: April 1991

Version: 1.00

FUNCTION		TRANSMITTED	RECOGNIZED	REMARKS
Basic Channel	Default Changed	X X	1-16 1-16 each	Can be memorized
Mode	Default Messages Altered	X X * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *		*2
Note Number	True voice	X * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
Velocity	Note ON Note OFF	X X	○ X
After Touch	Key's Ch's	X X	1 1
Pitch Bender		X	*1	Resolution: 12 bit
Control Change	0,32 1 5 6,38 7 10 11 64 65 66 67 84 91 93 98,99 100, 101 120 121	X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X	3 (MSB only) 1 3 3 1 1 1 1 1 1 1 1 1 1 3 3 (Reverb) 3 (Chorus) 1 1 1 ○ ○	Bank select Modulation Portamento time Data entry Volume Panpot Expression Hold 1 Portamento Sostenuto Soft LGC Effect 1 depth Effect 3 depth NRPN LSB, MSB RPN LSB, MSB All sounds off Reset all controllers
Program Change True #		X * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
System Exclusive		X	○
System Common : Song Pos : Song Sel : Song Sel : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune : Tune :
System Real Time : Commands		X X	X X
Aux Messages : Local ON/OFF : All notes OFF : Active Sense : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset : Reset :
Notes		1 ○ X can be selectable2 Recognized as m = 1 even if m != 1*3 ○ X can be selectable, only using the receive switch of control change (all)

Mode 1: OMNI ON, POLY

Mode 3: OMNI OFF, POLY

Mode 2: OMNI ON, MONO

Mode 4: OMNI OFF, MONO

○: YES

X: NO
