MEDX2KEY

Wireless USB 2.4 Ghz Keyboard

m€D€83R ^TM

INDEX

page 1 General Overview / Charging the keyboard

page 2 Connecting the USB Receiver

page 3 General Operation

page 4 Using the Keyboard

page 5 Warranty

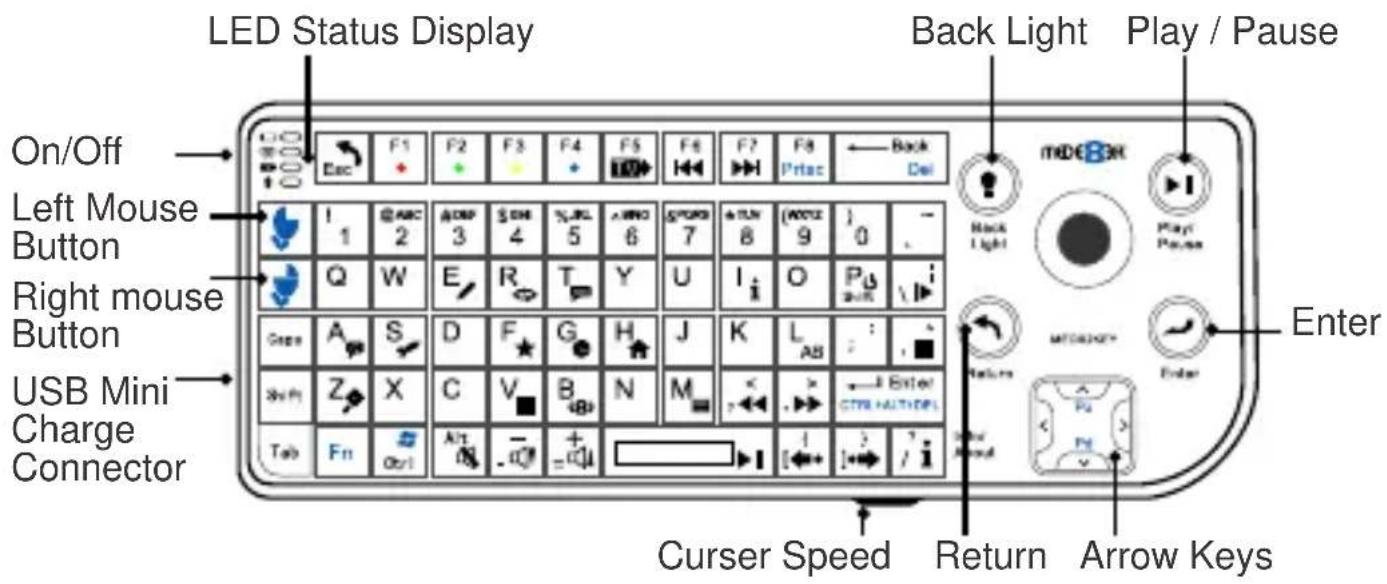

General Overview

LED Status Display Back Light Play / Pause On/Off Left Mouse Button Right mouse Button USB Mini Charge Connector Curser Speed Return Arrow Keys Enter mDE83R Black Light Play Pause Enter MTC5027* Enter

Charging the Battery

Red LED

'off' -- battery ok 'flashing' -- low battery

Yellow LED

'on' -- charging 'off' -- fully charged

Pure electrical circuit lines without any symbols

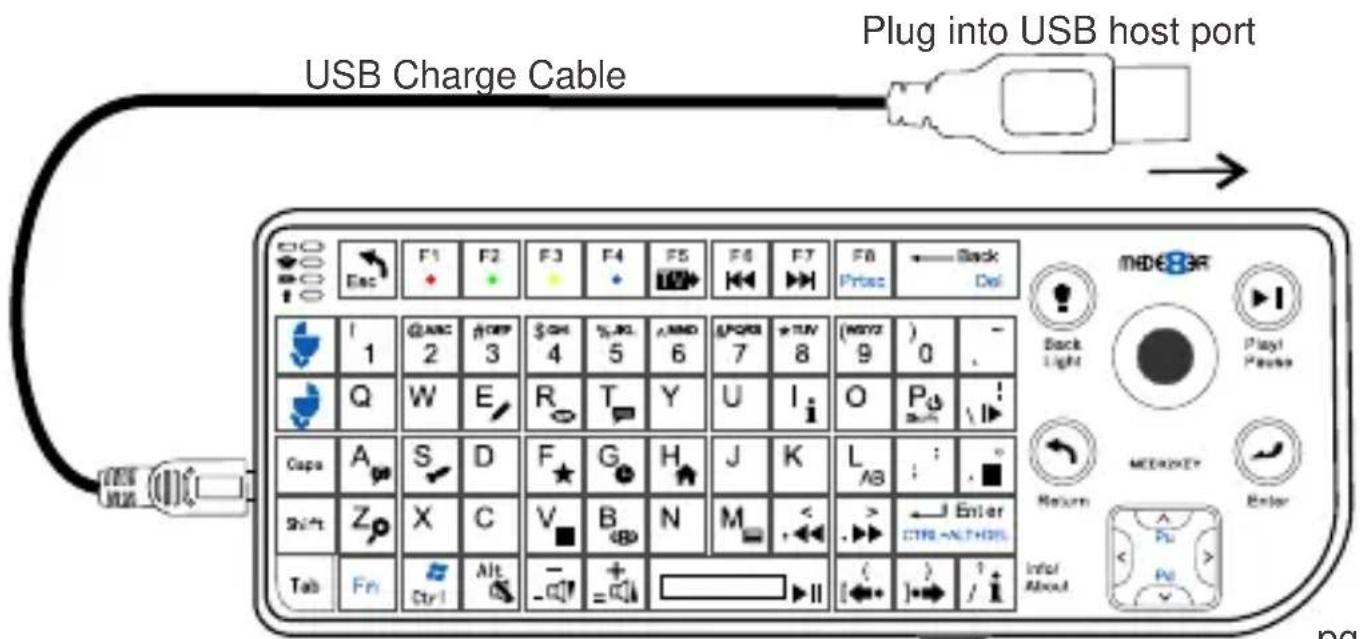

Plug in the supplied USB Mini connector into the side of the keyboard unit and plug the USB male into your Mede8er's USB host port or the USB port on your PC.

Pure electrical circuit lines without any symbols

USB Charge Cable Plug into USB host port Back Light Playt Pause MeDE83R Return MEDRIVEY Enter Ctrl+ANTHOL Info/ About Pin Esc F1 F2 F3 F4 F5 F6 F7 F8 Prior Del I 1 @ABC 2 AOP 3 $OH 4 %JG. 5 AAND 6 UPOB 7 TUV 8 (HSYZ) 9 0 - Q W E R T Y U I O Po Burn Capa A S D F G H J K L AB : Shift Z X C V B N M < Enter Ctrl+ANTHOL Tab Fn Ctrl Alt - = - + - //

MEDX2KEY

Wireless USB 2.4 Ghz Keyboard

www.mede8erforum.com

www.mede8er.com www.mede8er.eu

For more information or support please visit www.mede8er.eu/support/ or call [phone] during business hours.

* Specifications subject to change without notice.

Sanji Electronics (Pty) Ltd 106 16th Road, Midrand, Gauteng, South Africa.

Tel [phone] E Mail: [e-mail]

Connecting the USB Receiver

Red LED

'off' -- good rf connection 'flashing' -- no rf connection

Pure electrical circuit lines without any symbols

The red RF LED should remain ‘off’ when the keyboard has a good connection to the receiver. A flashing red RF LED indicates a loss of signal between the keypad and the receiver.

USB Receiver MEDEB3R® Model: MEOB3R Input: 5V 300mA Wireless RT 2.4GHz CE FC NoHS Made in China

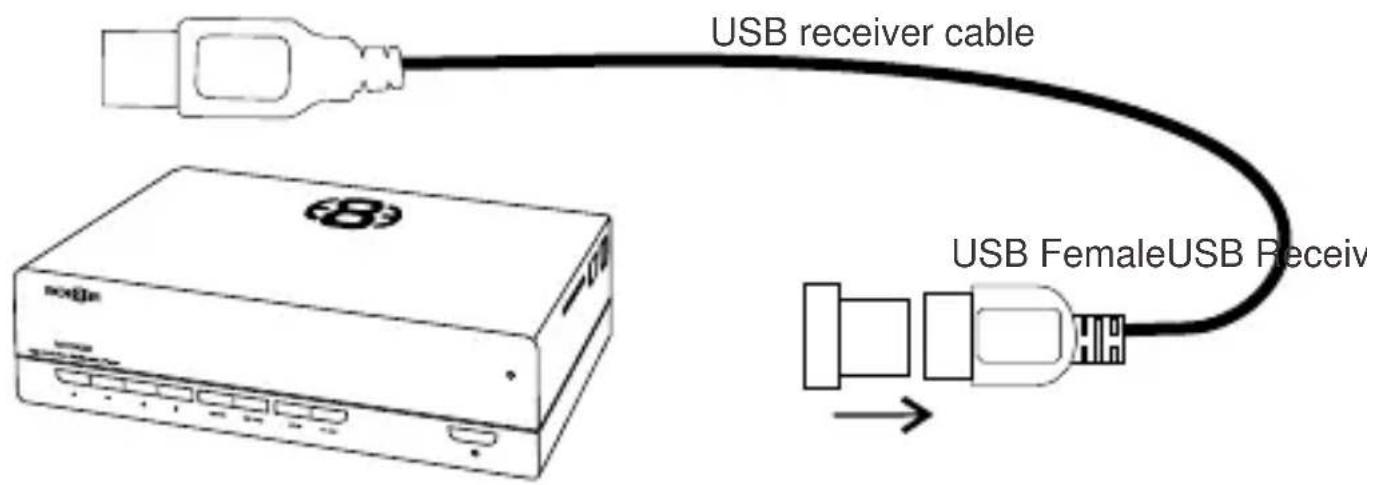

USB receiver cable USB FemaleUSB Receiv

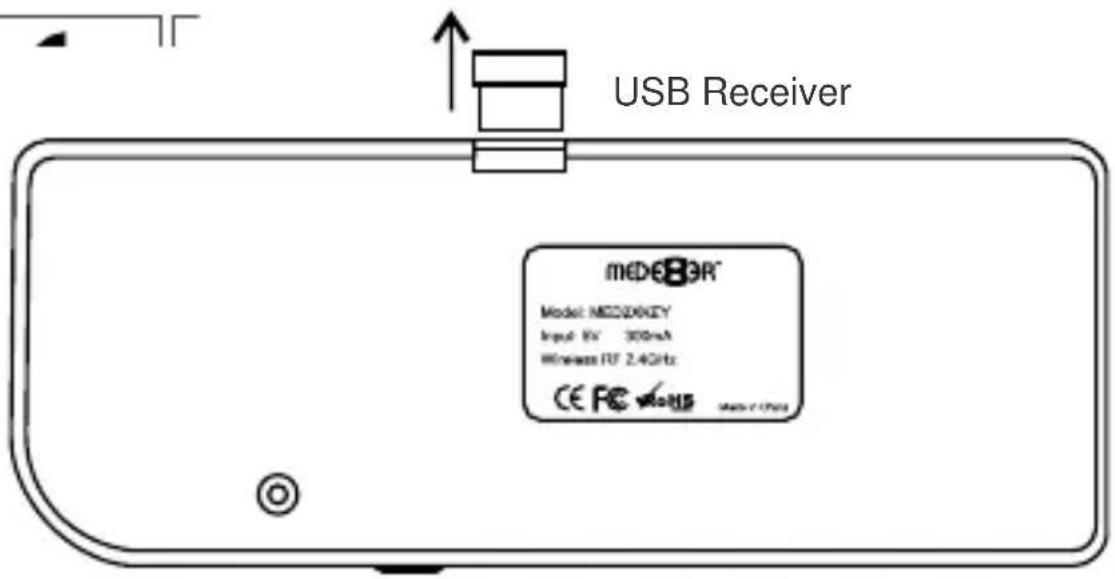

The range of the keyboard can be effected by metal content so we suggest that the USB receiver be placed away from the player or any other metal object. Unclip the USB receiver from the keyboard and plug in into the USB Female connector. Plug the male USB into one of the USB host ports on the Mede8er. Position the USB Receiver as far away from the player as possible with clear sight to the keyboard.

Caps Lock - Red LED Solid

Pure electrical circuit lines without any symbols

The caps lock LED will light solid red when in caps lock mode.

Caps

Auto Shut Down

The keyboard will automatically shut down if no keys are pressed within a 5 minute period.

Back Light Function

Press the Back Light button to light up the keyboard. The Back Light will automatically switch off 30 seconds after the last keyboard stroke. You can also switch it off manually by pressing the Back Light button.

Back Light

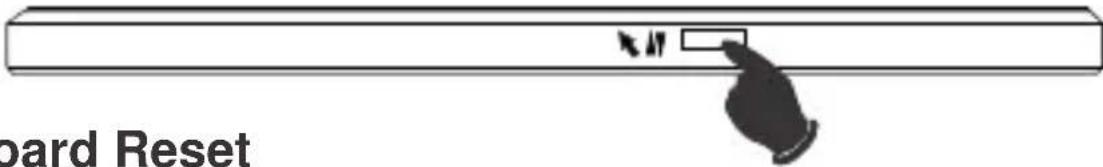

Curser Speed Adjust

Press the Curser Speed adjust button and the curser speed will change to the next speed. Available speeds High - Medium - Low

Board Reset

Keyboard Reset

The Keyboard can be reset to default operation in the event of incorrect system operation. To reset the Keyboard press the reset button for 3 seconds.

MEDE83R Model MFC03KEY Input: 5V 300mA Wireless: IP 2.40Hz CE FC MeHS Made in China

Reset Button

Using the Keyboard

The preferred way of using the MEDX2KEY for Internet Media browsing is to hold the keyboard with both hands. Use your left thumb to control the left/right mouse buttons and your right thumb to control the trackball and the arrow buttons.

OK F1 F2 F3 F4 F5 F6 F7 F8 — Rock Exe + + + + 🎯 🎯 🎯 Prison Del 1 GABC 2 SWEY 3 Save 4 5 6 7 8 9 0 - Q W E R T Y U I O P A S D F G H J K L Z X C V B N M - → Order CTRL/AUTHOR Ab Str All - + Back Light Play Focus Return Enter About

Keyboard Commands

ESC: RETURN

SPACE: PLAY

ENTER: SELECT(ENTER)

'0': 0

'1': 1

'2': 2

'3': 3

'4': 4

'5': 5

'6': 6

'7': 7

'8': 8

'9': 9

'-: VOL DOWN

'+': VOL_UP

'P': SHIFT + 'P' = POWER OFF

'R(r)': REPEAT

'T(t)': SUBTITLE

'l(i)': INFO

'A(a)': AUDIO

'G(g)': GOTO

'H(h)': HOME

'Z(z)': ZOOM - Media Library

'Ctrl': ZOOM - Internet Browser/YouTube

',(<)': FRWD

'.(>)': FFWD

'/(?)': Info / About

'F(f)': Favourite

'E(e)': EDIT

'M(m)': MENU

'S(s)': Setup

'V(v)': View

'L(I)': AB

'(|)\': SLOW

"(''): STOP

'/(?)': Info / About

'[({})' : Back Skip

']()': Forward Skip

'B(b)': Browser - Devices

'Alt': Mute

'FI': Red button

'F2': Green button

'F3': Yellow button

'F4': Blue button

'F5': TV Sys

'F6': Previous Chapter

'F7': Next Chapter

Warranty

Mede8er products carry a 24 month from date of purchase warranty. In the event of warranty service please provide proof of purchase. Return your product to the store that it was purchased from or return it directly to Sanji Electronics (Pty) Ltd 106, 16th Rd Midrand, Gauteng, South Africa.

Warranty does not cover damage by

a) Lightning or over voltage
b) Water damage or liquid spill
c) Misuse or abuse
d) User tampering

Sanji Electronics is not responsible for any loss of data irrespective of the cause.

Important Safety Instructions

• Read these instructions for all components before using this product.
• Do not use this apparatus near water or moisture. Do not use this product near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, near a swimming pool, or anywhere else that water or moisture are present.
  ·Clean only with a soft dry cloth and as directed by the manufacturer.
• Do not use near any heat sources, such as radiators, heat registers, stoves or other apparatus that produce heat.
• Only use attachments or accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time to prevent damage to this product.

Refer all servicing to qualified service personnel
