MODE D'EMPLOI K33117 KENSINGTON

SAFETY AND USAGE GUIDELINES

1. In the absence of proper operation and if customer-initiated troubleshooting is unsuccessful, remove adapter from the AC mains and contact Kensington technical support: www.kensington.com.
2. Do not disassemble product or expose it to liquid, humidity, moisture, or temperatures outside the specified operating ranges of 0^ C ( 32^ F) to 40^ C ( 104^ F).
3. If your product is exposed to out-of-range temperatures, remove adapter from the AC mains and allow temperature to return to the normal operating range.

Kensington and the ACCO name and design are registered trademarks of ACCO Brands. The Kensington Promise is a service mark of ACCO Brands. All other registered and unregistered trademarks are the property of their respective owners. © 2009 Kensington Computer Products Group, a division of ACCO Brands. Any unauthorized copying, duplicating, or other reproduction of the contents hereof is prohibited without written consent from Kensington Computer Products Group. All rights reserved. 10/09

Technical Support

United States 18005354242

International Toll [phone]

TWO YEAR LIMITED WARRIANT SARANTIN IMITE DE DEUX AND For technical support visit Four tour support technique veuillez visited www.kensington.com The Kensington Promise™ Kensington Computer Products Group A division of ACCO Brands 333 Twin Dolphin Drive, 6th Floor Redwood Shores, CA 94065 Made in China www.kensington.com ACCO Australia Level 2, 8 Lord St Botany NSW 2019 PD Box 311 Rosebery NSW 1445 Australia

901-2376-00

MP

Kensington®

International Travel Plug Adapter

Quick Start Guide

KENSINGTON A B C KENSINGTON D WARRANTY E

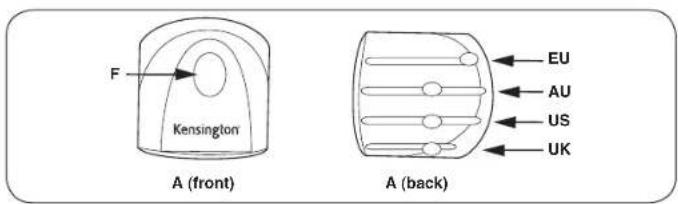

F Kensington A (front) EU AU US UK A (back)

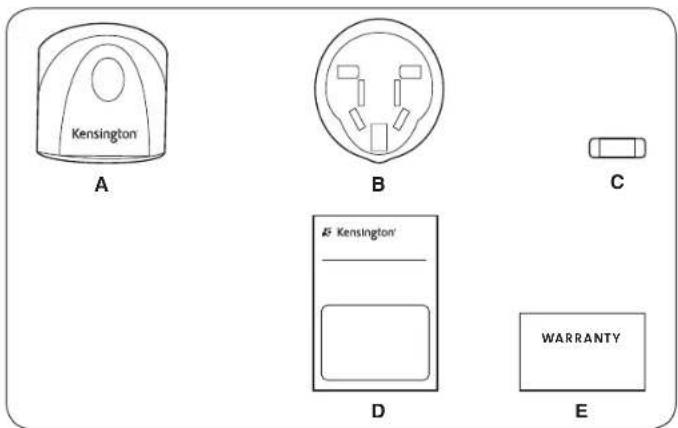

Contents Components

A International Travel Plug Adapter F Release Button
B Wall Adapter Cap G Plug Selectors
C Extra Fuse
D Quick Start Guide
E Warranty

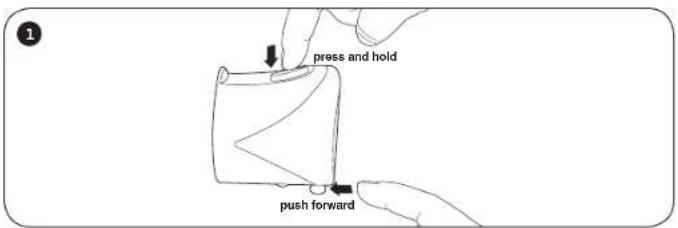

press and hold push forward

Diagram showing the connection between an electrical outlet and a plug, with labeled components and directional arrows.

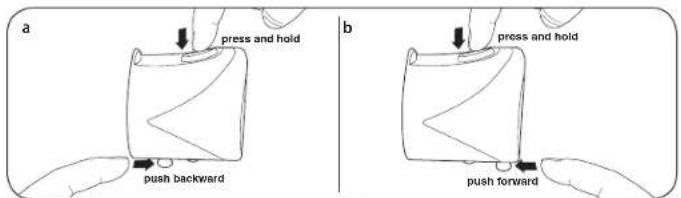

To choose a different plug

a press and hold push backward b press and hold push forward

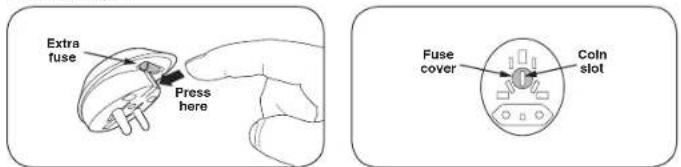

Fuse Information

Extra fuse Press here Fuse cover Coin slot

The International Travel Plug Adapter comes with a fuse installed and an extra fuse located in the adapter cap. Use only T2.5A fuses with the International Travel Plug Adapter.

WARNING: Not for use with hairdryers or similar high powered devices (irons, curlers etc.)
WARNING: Using the Travel Plug Adapter with the AC Cap allows your electronic equipment's plug to fit into electrical outlets worldwide, but does not reduce or convert electrical AC Voltage.

Using the travel plug adapter in a power source with voltage higher or lower than your electronic equipment specifies creates a risk of damaging or destroying the equipment and a risk of other safety hazards.

WARNING: Failure to read and follow the safety instructions in this Quick Start Guide before using your Travel Plug Adapter with AC Cap could result in serious or fatal injury and property damage.

Registering Your Kensington Product

Register your Kensington product online at www.kensington.com.

Usage

The International Travel Plug Adapter can be used with Class II electronic devices up to 2.5A (110V n275W / 220V n 550W). Most consumer electronic devices, such as mobile phones, PDAs, laptop computers, alarm docks, battery chargers, and more, are Class II devices. Any use of this product other than as described in the instructions above will void the warranty. The manufacturer declines any responsibility in case of damage.

Technical Support

Technical support is available to all registered users of Kensington products. Technical Support contact information can be found on the back page of this manual.

Web Support

You may find the answer to your problem in the Frequently Asked Questions (FAQ) section of the Support area on the Kensington Website: www.support.kensington.com.

Telephone Support

There is no charge for technical support except long-distance charges where applicable. Please visit www.kensington.com for telephone support hours.

Please note the following when calling support:

• Call from a phone where you have access to your device
- Be prepared to provide the following information:
- Name, address, and telephone number
- The name of the Kensington product
- Make and model of your computer
- System software and version

Symptoms of the problem and what led to them

CE DECLARATION OF CONFORMITY

Kensington declares that this product is in compliance with the essential requirements and other relevant provisions of applicable EC directives.

For Europe, a copy of the Declaration of Conformity for this product may be obtained by clicking on the "Compliance Documentation" link at www.support.kensington.com.
