BRUKSANVISNING FX-2 KYOCERA

YASHICA

FX-2

ASSEMBLING CHART

KYOCERA FX-2 - ASSEMBLING CHART - 1


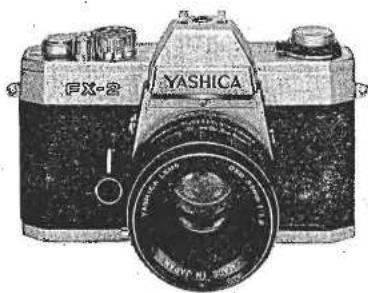

Vintage camera with visible lens and model number PX-2 (no text or symbols on body)

YASHICA CO., LTD.

TOKYO JAPAN

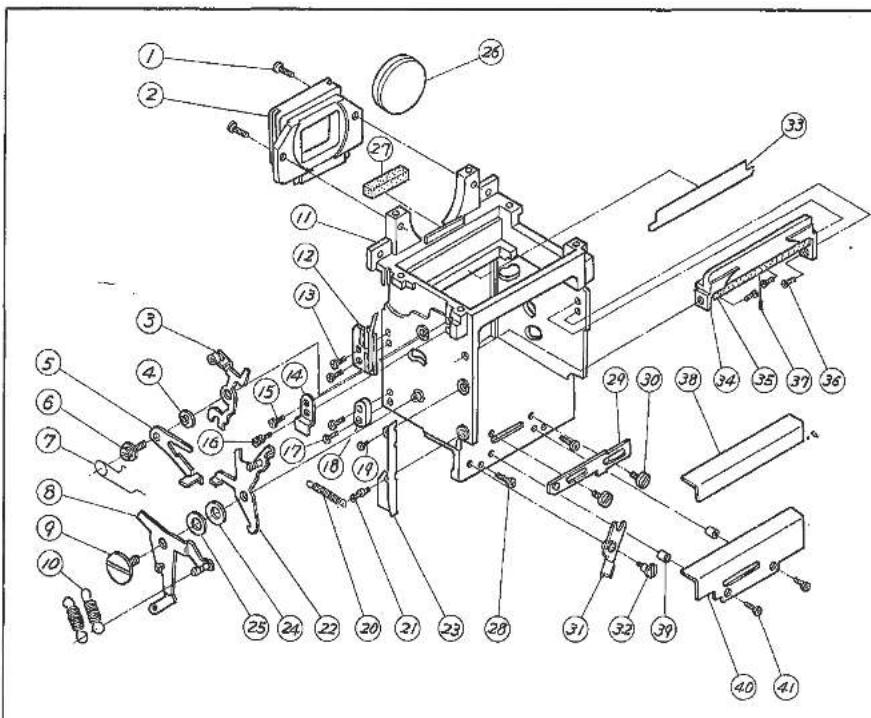

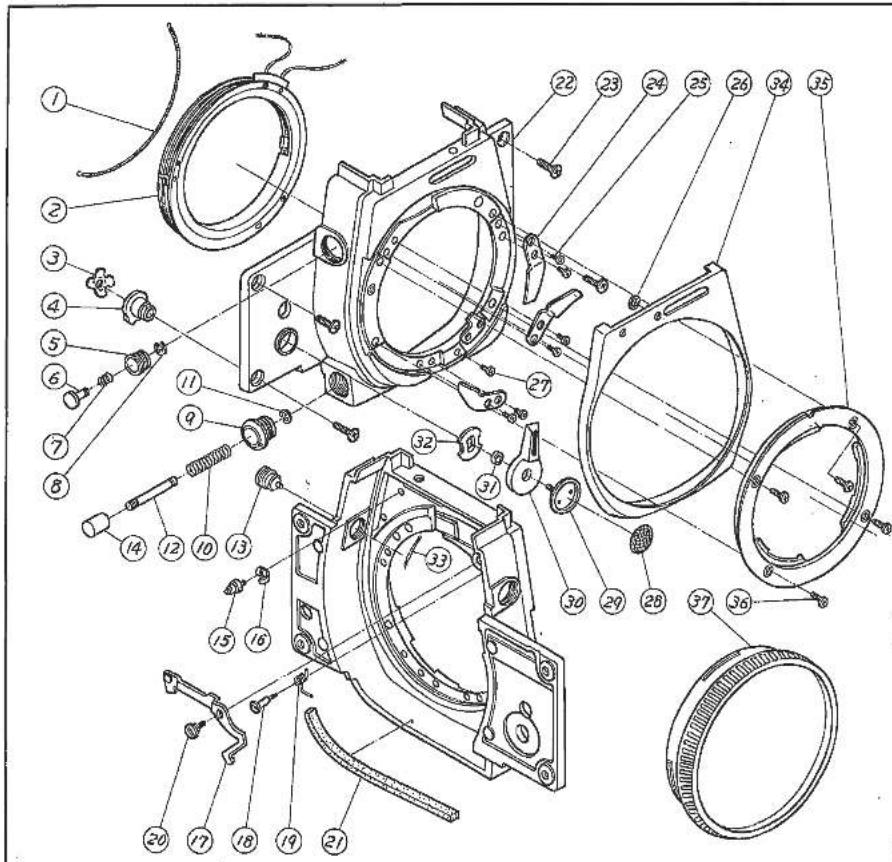

Exploded view diagram of a mechanical assembly with numbered parts for identification

	PARTS NO	DESCRIPTION	QTY
1	133161	Aperture Resistor Ring Spring	1
2	133021	Aperture Resistor Ass'y	1
3	170634	Plate Spring	1
4	121037	Self-timer Driving Plate Ass'y	1
5	128153	Lens Lock Button Holder	1
6	128154	Lens Lock Button	1
7	128155	Lens Lock Button Spring	1
8	66101225	Snap Ring (E-12)	1
9	128146	Diaphragm Button Holder	1
10	131809	Diaphragm Button Spring	1
11	66101524	Snap Ring (E-15)	1
12	128145	Diaphragm Button Shaft	1
13	650083	Synchro Terminal Ass'y	1
14	128147	Diaphragm Button	1
15	133162	Aperture Ring Spring Post (A)	1
16	110928	Lead Wire Holder	1
17	128088	Lock Lever Ass'y	1
18	128198	Lock Lever Spring Shaft	1
19	128160	Lock Lever Spring	1
20	128159	Lock Lever Shaft	1
21	170070	Light-proof Noquette	1
22		Mount Base Sub Aso'y	1
23	128128	Mount Base S.S.	4
24	128149	Mount Spring	3
25	61911824	Mount Spring S.S.	6
26	60132610	Adjusting Washer
27	61912524	Setting Screw	3
28	128182	Self Lever Leather	1
29	128181	Self-timer Lever S.S.	1
30	128180	Self-timer Lever	1
31	121142	Self Lever Collar	1
32	121141	Self Lever Base	1
33	133525	Synchro Lead Wire (C)	1
34	128144	Mount Cover	1
35	128150	Lens Mount	1
36	61923521	Setting Screw	4
37	128118	Body Gap	1

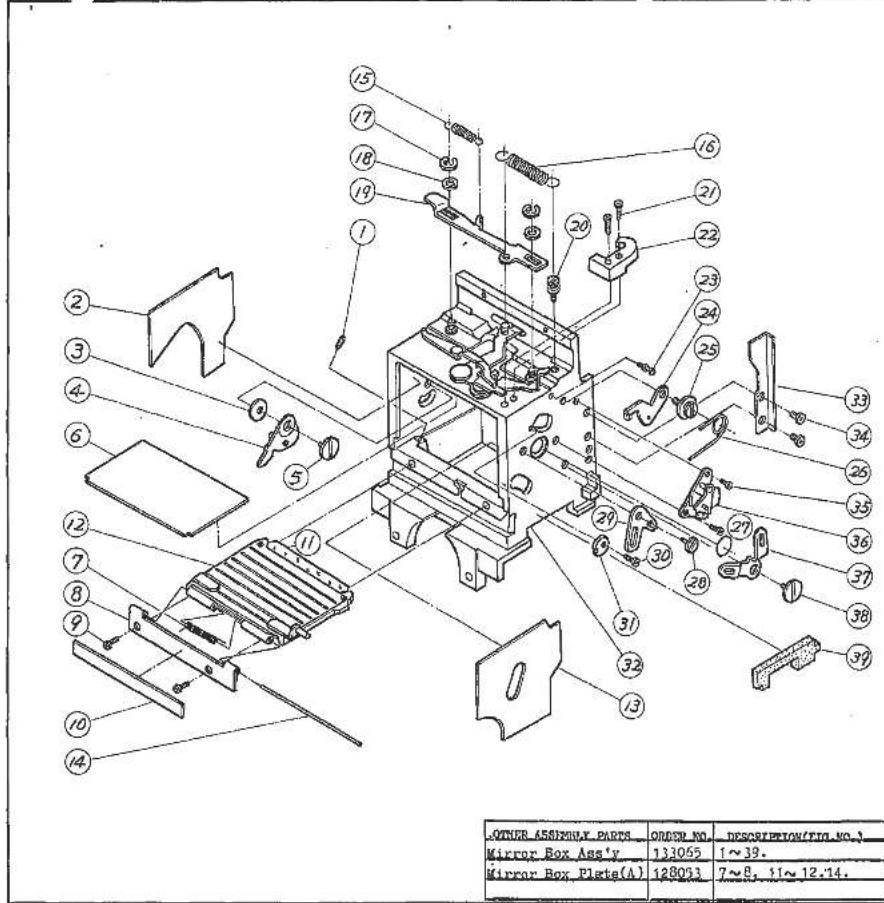

OTHER ASSEMBLY PARTS	ORDER NO.	DESCRIPTION FILE NO.
Mount Base Ass'y	133068	1~36;

KYOCERA FX-2 - ASSEMBLING CHART - 3

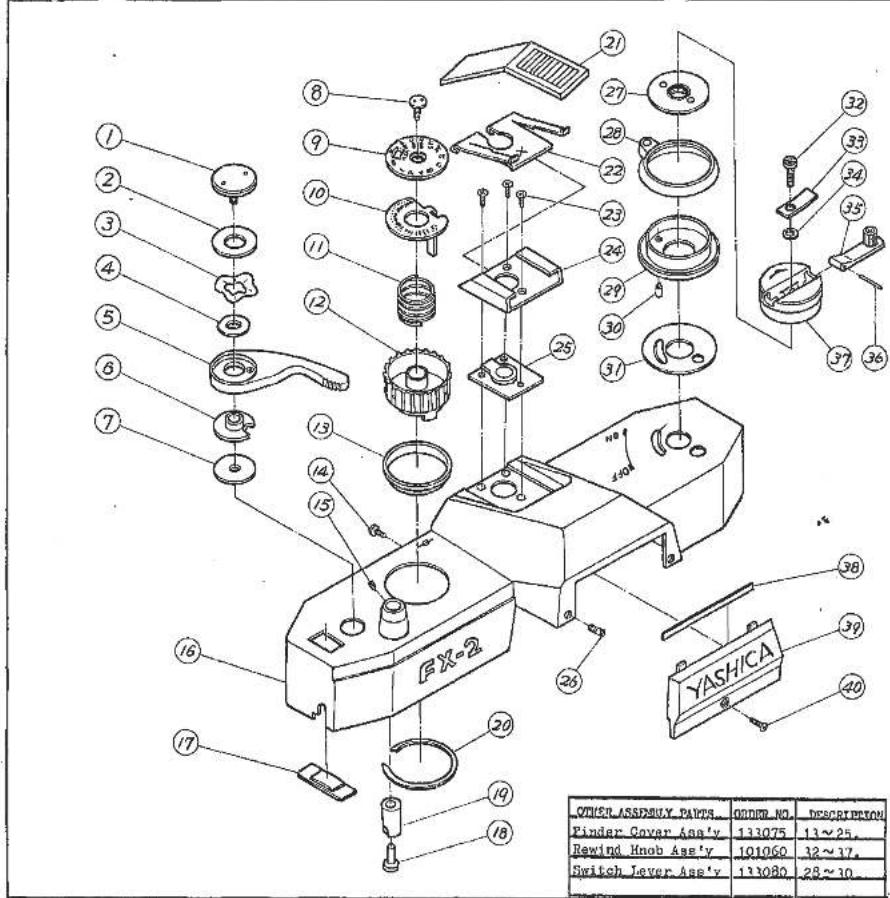

FX-2 YASHICA OTHER ASSDUY PAWS Pinder Cover Ase'y Rewind Hnob Ase'y Switch Lever Ase'y ORDER NO. DESCRIPTION 133075 13~25. 101060 12~17. 133080 28~30.

	PARTS NO	DESCRIPTION		QTY
1	148692	Winding Lever S.S.		1
2	170930	Winding Lever Friction SP Washer		1
3	144559	Winding Lever Friction Spring		1
4	60327124	Adjusting Washer
5	121077	Winding Lever Ass'y	128077	1
6	179225	Winding Lever Base	173686	1
7	121640	Winding Lever Spacer (I)		1
	121641	Winding Lever Spacer (II)
	121642	Winding Lever Spacer (III)
8	133298	Name Plate S.S.		1
9	133297	Shutter Dial Plate		1
10	133295	ASA Name Plate		1
11	133294	ASA Changing Spring		1
12	133296	Shutter Dial		1
13	133193	Shutter Dial Holder		1
14	170004	Finder Cover S.S.		1
15	61902022	Setting Screw		1
16	★	Finder Cover Sub Ass'y		1
17	128553	Counter Window		1
18	104222	Release Button Guide		1
19	104207	Release Button		1
20	133194	Shutter Dial Holder Setting Shaft		1
21	128115	Back Light-proof Plate		1
22	128110	Shoe Dress Plate		1
23	61823022	Setting Screw		3
24	128109	Accessory Shoe		1
25	128113	Contact Ass'y		1
26	128127	Front Plate S.S.		1
27	133493	Switch Lever Ring Stopper		1
28	★	Switch Lever		1
29	★	Switch Lever Ring		1
30	★	Switch Click Pin		1
31	133494	Switch Lever Washer		1
32	121686	Rewind Shaft Plate SP S.S.		1
33	170705	Rewind Shaft Plate Spring		1
34	60113110	Adjusting Washer
	60123110	Adjusting Washer
35	★	Rewind Crank Arm Ass'y		1
36	170710	Rewind Crank Arm Shaft		1
37	170701	Rewind Knob		1
38	128806	Aperture Scale Plate Fixer
39	128156	Front Name Plate		1
40	63713521	Setting Screw		1

NOTE: (Parts with marked "★" are not available.)

133

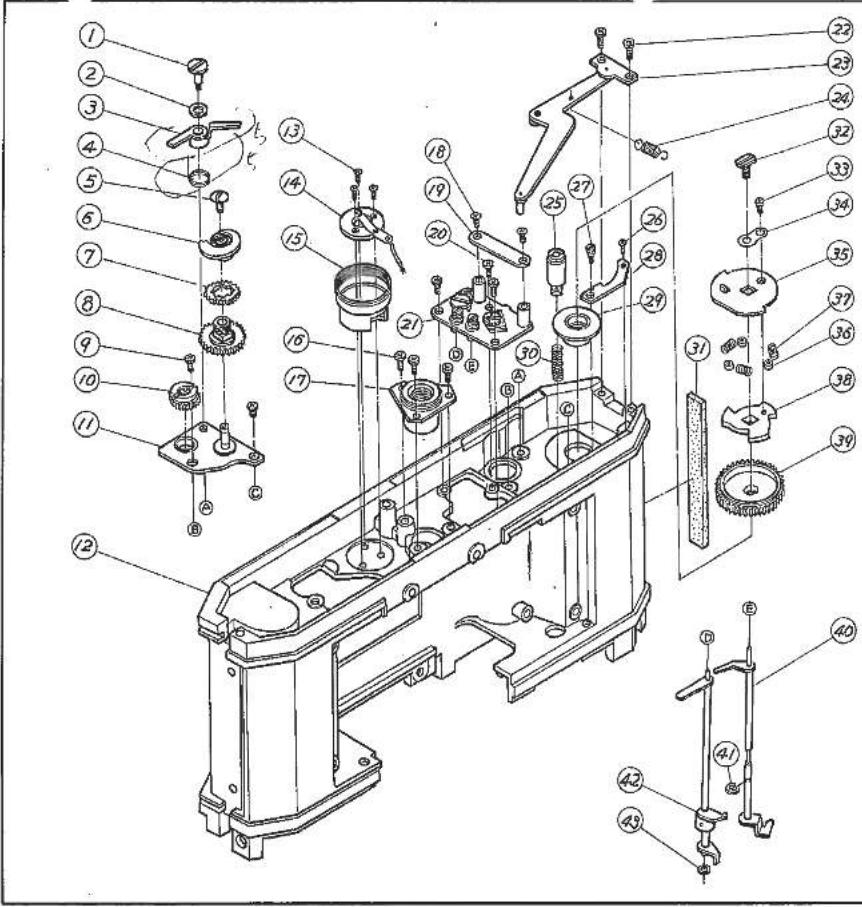

Exploded view diagram of a mechanical assembly with numbered parts for identification

No 3

	PARS NO	DESCRIPTION	QTY
1	121629	Rewind Release Lever Shaft	1
2	60653110	Adjusting Washer	1
	60113110	Adjusting Washer
3	121024	Rewind Release Lever Ass'y	1
4	121628	Rewind Release Lever Spring	1
5	121663	Intermediate Gear S.S.	1
6	128679	Mirror Cooking Cam	1
7	170220	Intermediate Gear (Upper)	1
8	170221	Intermediate Gear (Lower)	1
9	63922824	Setting Screw	2
10	170247	Sprocket Gear (Lower)	1
11	121003	Winding Base Plate Ass'y	1
12	★	Body	1
13	61813028	Setting Screw	3
14	126073	Battery Box Contact Ass'y	1
15	170081	Battery Box	1
16	61924024	Setting Screw	3
17	170006	Tripod Socket	1
18	61813024	Setting Screw	2
19	128672	Mirror Set Slide Plate (B)	1
20	63913024	Setting Screw	3
21	133033	Switch Shaft Holder Bass Ass'y	1
22	61813024	Setting Screw	2
23	133034	Mirror Winding Lever Ass'y	1
24	133676	Mirror Winding Lever Spring	1
25	128210	Shift Shaft Metal	1
26	61813524	Setting Screw	1
27	133616	Winding Control Plate S.S.	1
28	104607	Winding Limit Plate	1
29	121187	Spool Lower Bearing	1
30	121438	Shift Shaft Spring	1
31	121146	Body Light-proof Kolfopren (A)	1
32	121633	Winding Shaft Set S.S.	1
33	61912024	Setting Screw	1
34	170232	Winding Shaft S.S. Washer	1
35	128629	Winding Cam Plate	1
36	170214	Winding Roller	3
37	121618	Roller Holding Spring	3
38	170213	Winding Glutch Plate	1
39	170212	Winding Gear	1
40	121039	Governor Change Shaft Ass'y	1
41	121336	Snap Ring	1
42	121040	Connecting Rod Ass'y	1
43	60111510	Adjusting Washer	(###)
	60121510	Adjusting Washer	(###)

NOTE: (Parts with marked "★" are not available.)

KYOCERA FX-2 - ASSEMBLING CHART - 6

KYOCERA FX-2 - ASSEMBLING CHART - 7

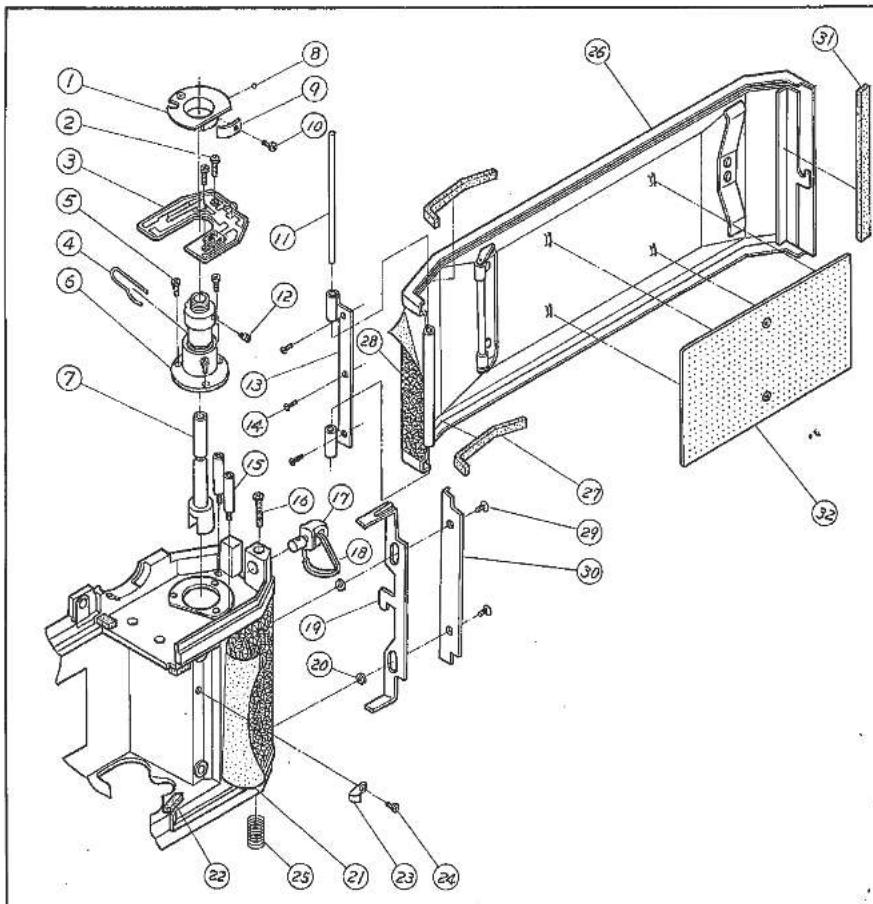

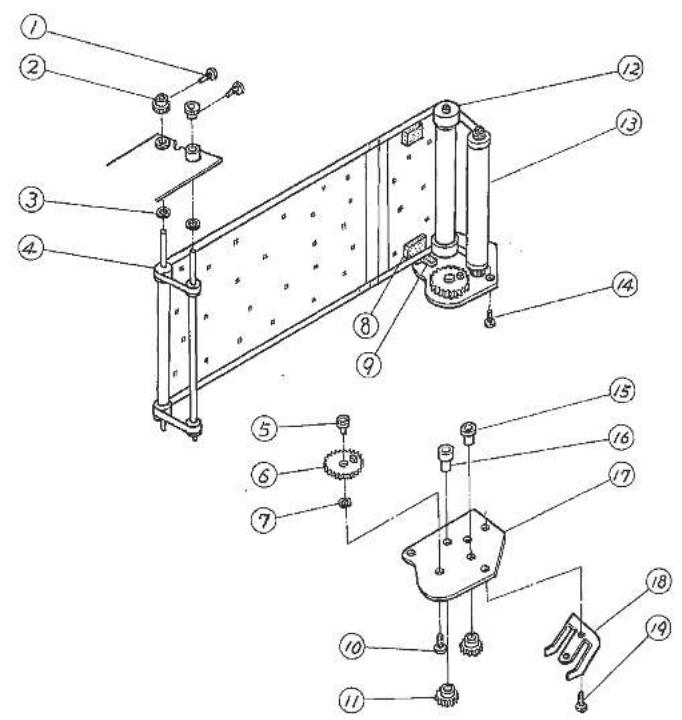

Exploded view diagram of a mechanical assembly with numbered parts for identification

3 13308310 New Type

	PARTS NO	DESCRIPTION	QTY
1	133072	Switch Click Plate Ass'y	1
2	51913024	Setting Screw	2
3	133083	Print Circuit Ass'y	1
4	121683	Rewind Shaft Spring	1
5	63912224	Setting Screw	3
6	★	Rewind Shaft Holder	1
7	★	Rewind Shaft	1
8	66701520	Steel Ball	1
9	133496	Switch Click Spring	1
10	61901424	Setting Screw	1
11	★	Back Cover Hinge Shaft	1
12	121431	Winding Stud	1
13	★	Back Cover Hinge	1
14	61813024	Setting Screw	3
15	133529	Print Circuit Setting Pole	2
16	63928024	Setting Screw	2
17	650051	Strap Holder	2
18	65006100	Strap Holder Ring	2
19	104605	Lock Plate	1
20	170010	Lock Plate Collar	2
21	133190	Front Leather (A)	1
22	110039	Body Front Light-proof Meltopren	6
23	110928	Cord Holder	1
24	61911524	Setting Screw	1
25	121122	Lock Plate Spring	1
26	★	Back Cover Ass'y	1
27	101184	Back Cover Light-proof Stuff (II)	2
28	128142	Back Cover Leather	1
29	61813524	Setting Screw	2
30	104606	Lock Plate Cover	1
31	170032	Back Cover Light-proof Stuff	1
32	101013	Film Pressure Plate Ass'y	1

	13302310	PrintTM Circuit Ass'y (NCW)

OTHER ASSEMBLY PARTS	ORDER NO.	DESCRIPTION/TXTA NO.1
Back Cover Ass'y	133059	11.13~14.26~28.31.
Rewind Shaft Ass'y	133036	4.6~7.

1\~3
No 5

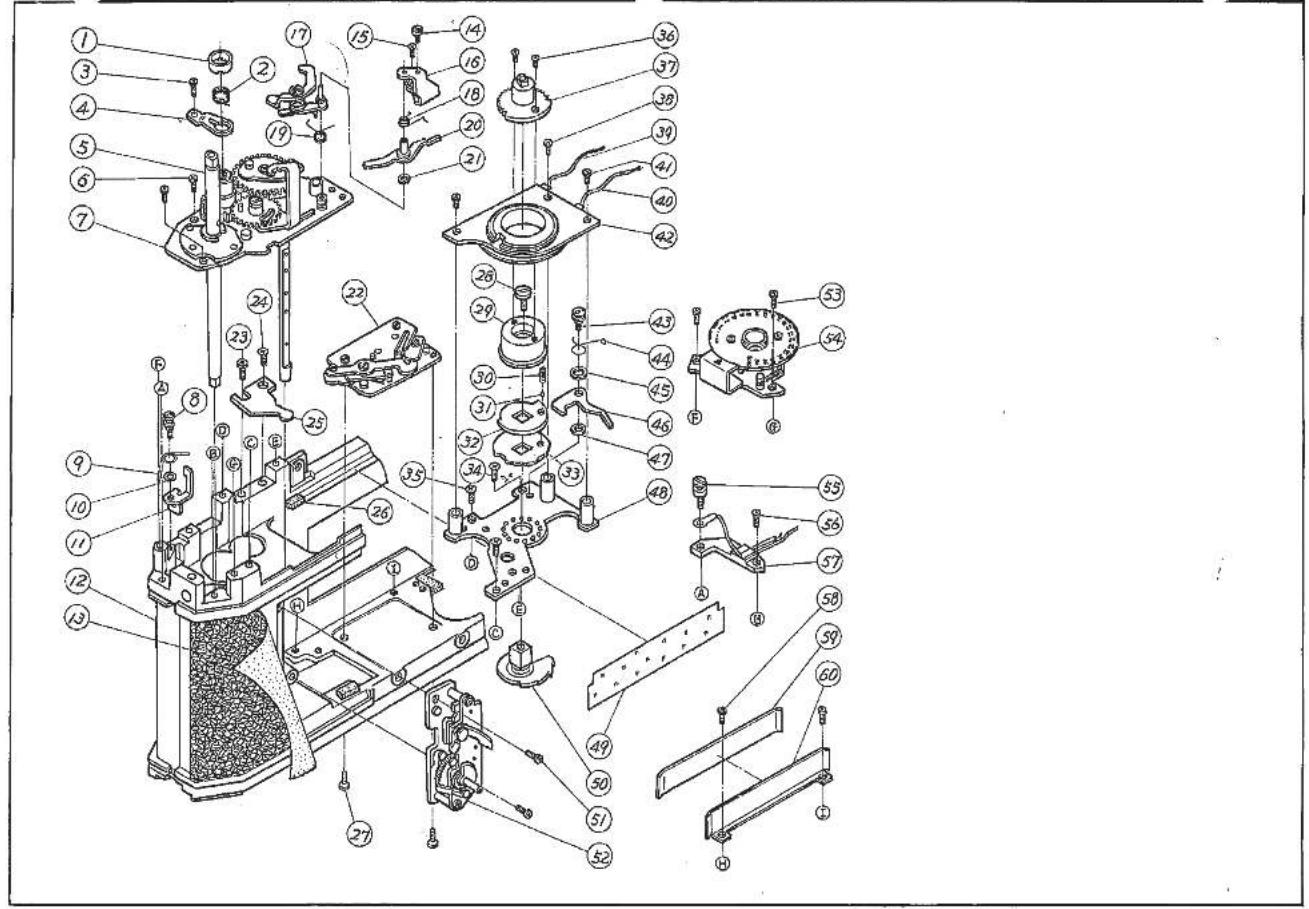

Exploded view diagram of a mechanical assembly with numbered parts for identification

	PARTS NO	DESCRIPTION	QTY
41	61912524	Setting Screw	2
42	133502	Shutter Connecting Resistor	1
43	121326	Connecting Rod Setting Lever S.S.1
44	121333	Setting Lever Pressure Spring	1
45	60722610	Adjusting Washer	1
	60752610	Adjusting Washer	1
46	104202	Connecting Rod Setting Lever	1
47	60321810	Adjusting Washer	1
48	★	Shutter Cam Base Sub Ass'y	1
49	128387	Shutter Light-proof Curtain	1
50	★	High-speed Set Cam	1
51	63914024	Setting Screw	2
52	121038	Self-timor	1
53	★	Counter Base Ass'y	1
54	63913024	Setting Screw	2
55	121433	Synchro Base Plate S.S.	1
56	63914024	Setting Screw'	1
57	133022	Synchro Contact Base Ass'y	1
58	61912024	Setting Screw	2
59	★	Light-proof Paper	41
60	★	Light-proof Plate	1

OTHER ASSPECIFY PATTS...	ORDER NO.	DESCRIPERON(SRD.NO.)
SW Base Plate Ass'y	133015	7,14 21.
Shutter Cam Base(A)	133045	28 48,50.
Light-proof Plate(A)	121035	39, 60.

	PARTS NO	DESCRIPTION	QTY
1	170252	Anti-rewind Collar	1
2	128653	Winding Kick Spring A	1
3	63913024	Setting Screw	1
4	128652	Anti-rewind Base Plate	1
5	121017	Winding Shaft Ass'y	1
6	63924024	Setting Screw	2
7	★	SW Base Plate Ass'y	1
8	121965	Returning Lever Shaft	1
9	121877	Returning Lever Spring	1
10	128666	Regulating Lever Washer (1)	25
	128667	Regulating Lever Washer (2)	10
11	104803	Returning Lever	1
12	★	Body	1
13	133191	Front Leather (B)	1
14	121434	Winding Stud	1
15	61612524	Setting Screw	1
16	★	Fixing Shaft Supporter	1
17	133042	Lower Gear Fixing Hook Ass'y	1
18	121331	Upper Gear Fixing Spring	1
19	121330	Fixing Hook Spring	1
20	133010	Upper Gear Fixing Hook Ass'y	1
21	60111310	Adjusting Washer	1
22	133047	Governor Ass'y	1
23	63924024	Setting Screw	1
24	61824024	Setting Screw	1
25	133216	Rotary Control Disc (B)	退
	133211	Rotary Control Disc (B)	退
26	170270	SW Base Plate Light-provolMallopron	1
27	61912524	Setting Screw	2
28	★	Shutter Dial S.S.	1
29	★	Shutter Connecting Base	1
30	121334	Ball Setting Spring	1
31	66702020	Steel Ball	1
32	★	Slow Speed Change Cam	1
33	★	Slow Speed Set Cam	1
34	63813522	Setting Screw	2
35	61913024	Setting Screw	1
36	61813024	Setting Screw	2
37	★	ASA Change Gear	1
38	63903024	Setting Screw	1
39	★	Lead Wire A	1
40	★	Lead Wire C	1

NOTE: (Parts with marked "★" are not available.)

K 7

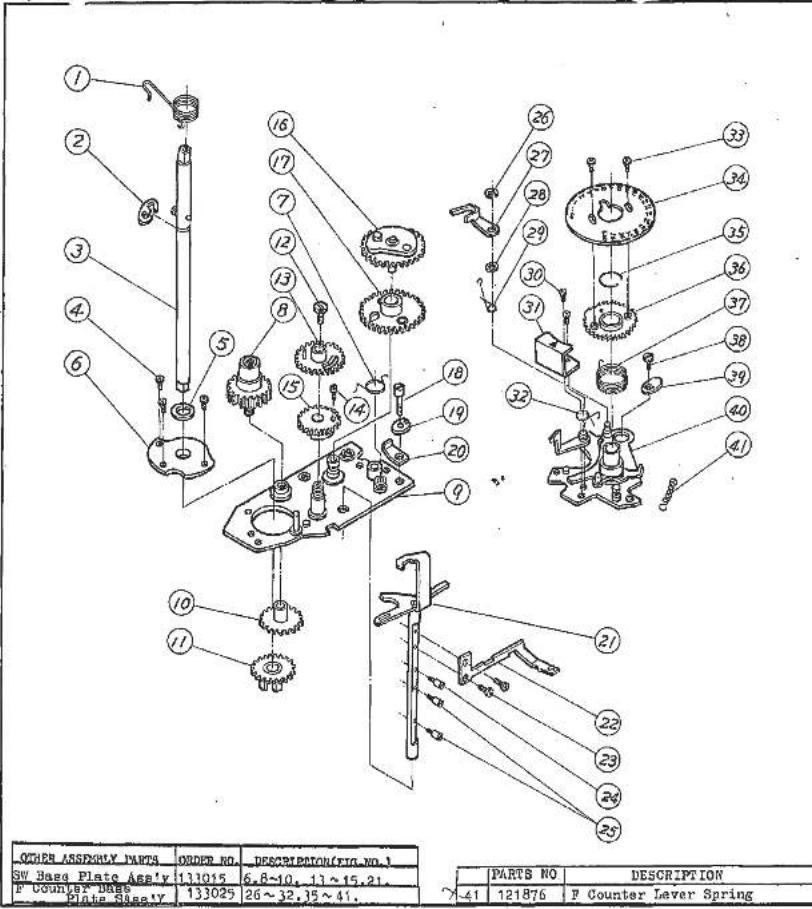

OTHER ASSEMBLY PARTS SW Base Plate Ass'tv F Counter Base Plate Sheat'v ORDER NO. 133015 133025 26~32.15~41. DESCRIPTION(FIG NO.1) 6.8~10. 11~15.21. 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 21 22 23 24 25 PARTS NO DESCRIPTION -41 121876 F Counter Lever Spring

	PARTS NO	DESCRIPTION	QTY
1	121609	Winding Spring	1
2	121658	Winding Shaft Washer	1
3	121017	Winding Shaft Ass'y	1
4	61912224	Setting Screw	3
5	60254110	Adjusting Washer	1
	60214110	Adjusting Washer	2#
	60224110	Adjusting Washer	2#
6	128602	Winding Shaft Metal	1
7	121316	Governor Change Shaft Holder Spring	1
8	170251	Idle Gear (Upper)	1
9	133014	Switch Base Plate Sub Ass'y	1
10	170250	Idle Gear (Lower)	1
11	121188	Spool Gear	1
12	121429	Clutch Shaft S.S.	1
13	128009	Clutch Upper Gear Ass'y	1
14	121434	Winding Stud	1
	121435	Winding Stud	2#
	121436	Winding Stud	2#
15	170402	Clutch Lower Gear	1
16	133013	Upper Gear Ass'y	1
17	133012	Lower Gear Ass'y	1
18	133238	Fixing Hook Stopper	1
19	133239	Slickle Shaped Base Adjusting Holder	1
20	170130	Upper Gear Fixing Hook Regulating Flats	1
21	133091	Shifter Shaft	1
22	133414	Shifter Lever	1
23	63903024	Setting Screw	2
24	121432	Shift Shaft Pin	1
25	121431	Shift Shaft Pin	2
26	121869	Shift Shaft Snap Ring	1
27	170501	Transport Claw	1
28	60112110	Adjusting Washer	1
	60122110	Adjusting Washer	2#
29	121874	Transport Claw Spring	1
30	61901424	Setting Screw	2
31	104802	P Counter Indicator	1
32	121875	Stopper Claw Spring	1
33	63901824	Setting Screw	2
34	104801	P Counter Dial	1
35	121878	Counter Stopper Ring	1
36	★	F Counter Gear	1
37	121873	F Counter Returning Spring	1
38	121866	F Counter Cam S.S.	1
39	170510	F Counter Cam	1
40	★	F Counter Base Plate Sub Ass'y	1

NOTE: (Parts with marked "★" are not available.)

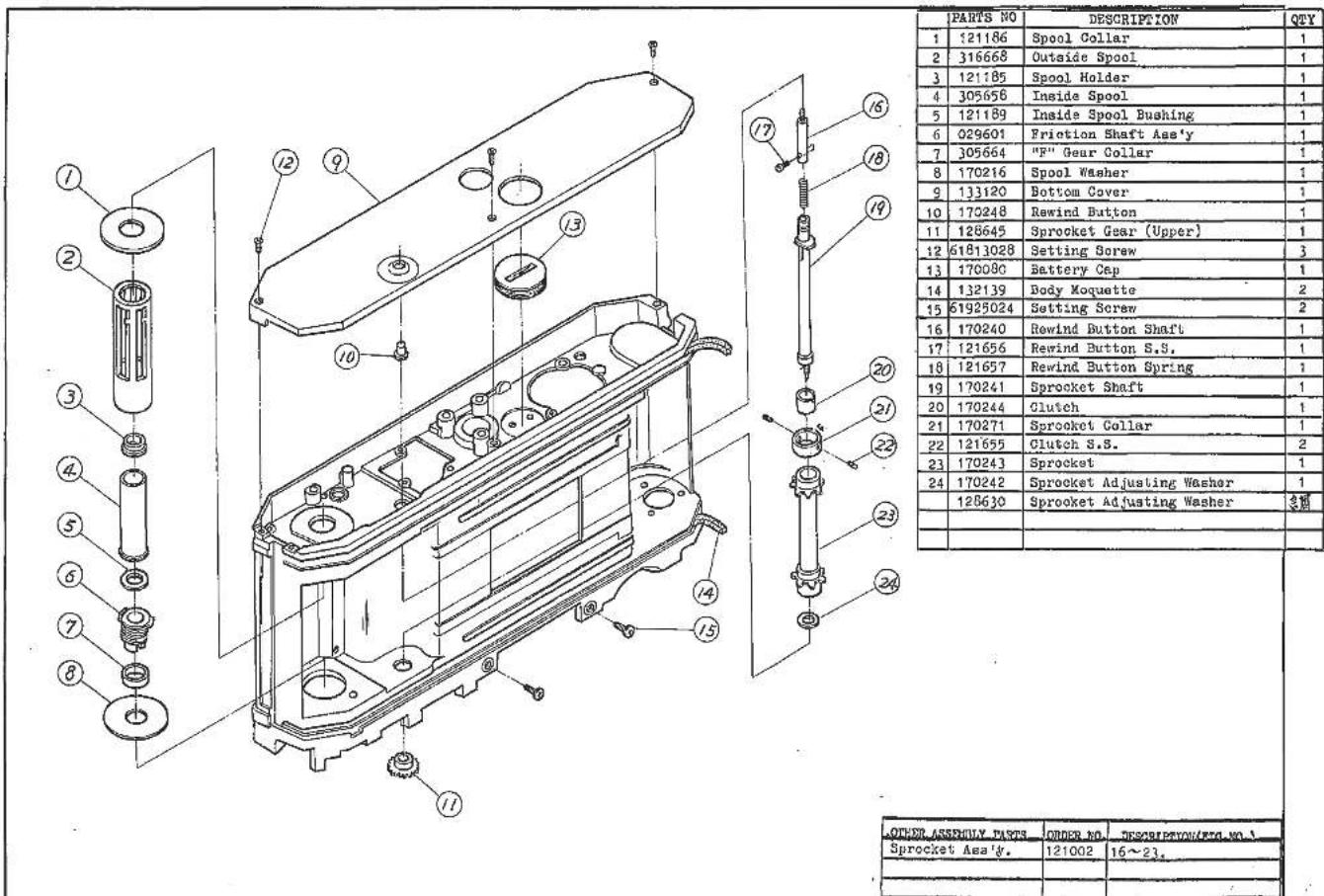

$PARTS NO DESCRIPTION QTY 1 121186 Spool Collar 2 316668 Outside Spool 3 121185 Spool Holder 4 305656 Inside Spool 5 121189 Inside Spool Bushing 6 029601 Friction Shaft Ass'y 7 305664 "F" Gear Collar 8 170216 Spool Washer 9 133120 Bottom Cover 10 170248 Rewind Button 11 128645 Sprocket Gear (Upper) 12 61813028 Setting Screw 13 170080 Battery Cap 14 132139 Body Moquette 15 61925024 Setting Screw 16 170240 Rewind Button Shaft 17 121656 Rewind Button S.S. 18 121657 Rewind Button Spring 19 170241 Sprocket Shaft 20 170244 Clutch 21 170271 Sprocket Collar 22 121655 Clutch S.S. 23 170243 Sprocket 24 170242 Sprocket Adjusting Washer / 128630 Sprocket Adjusting Washer OTHER ASSEMBLY PARTS ORDER NO. DESCRIPTION/TOD.NO.\ Sprocket Ass'y. 121002 16~23. Sprocket As'sy.$

133

in
9

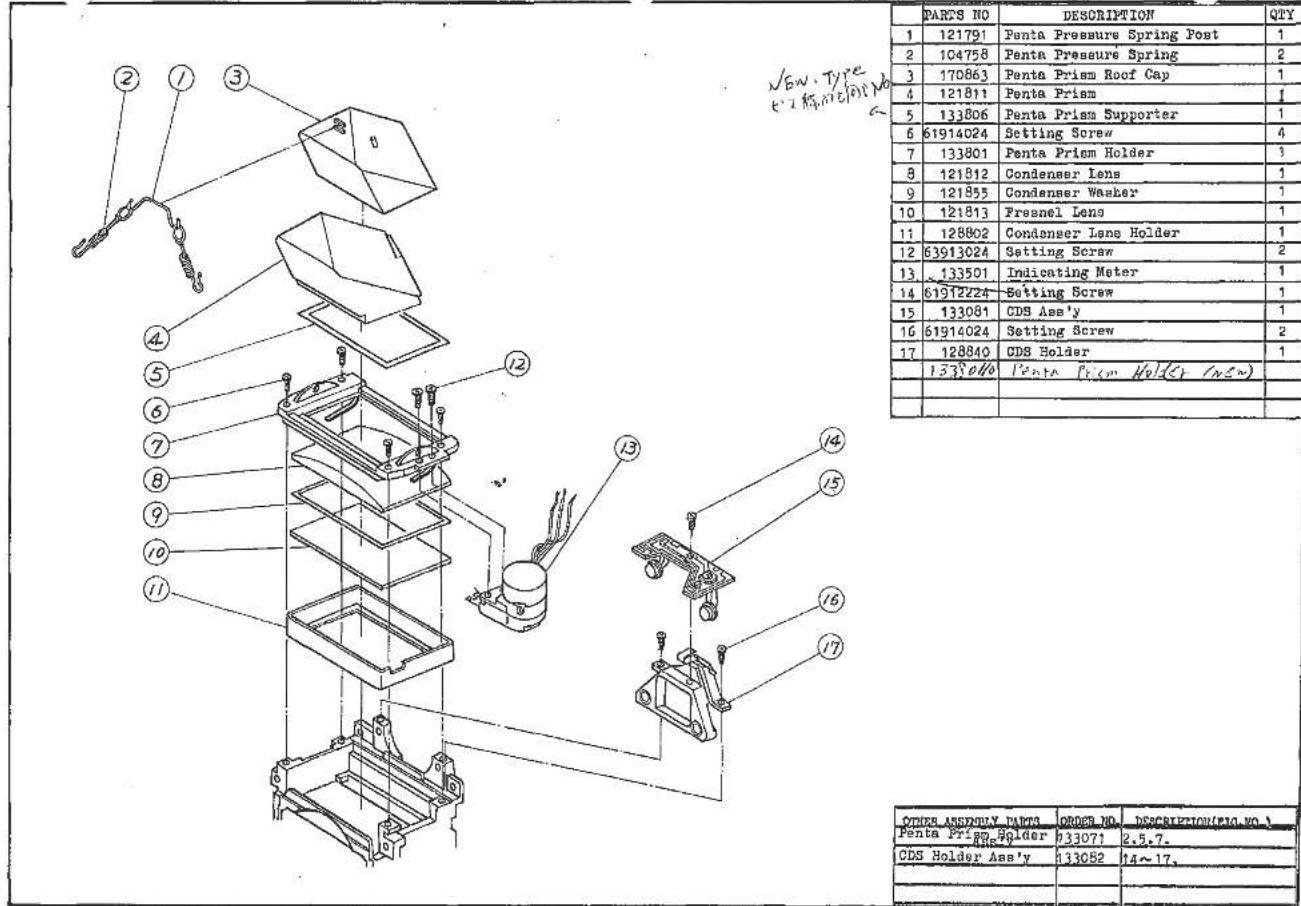

	PARS NO	DESCRIPTION	QTY
1	121791	Penta Pressure Spring Post	1
2	104758	Penta Pressure Spring	2
3	170863	Penta Prism Roof Cap	1
4	121811	Penta Prism	1
5	133806	Penta Prism Supporter	1
6	61914024	Setting Screw	4
7	133801	Penta Prism Holder	3
8	121812	Condenser Lens	1
9	121855	Condenser Washer	1
10	121813	Freesnel Lens	1
11	128802	Condenser Lens Holder	1
12	63913024	Setting Screw	2
13	133501	Indicating Meter	1
14	61972224	Setting Screw	1
15	133081	CDS Ass'y	1
16	61914024	Setting Screw	2
17	128840	CDS Holder	1
	1338040	Penta Prism Holder (msw)

OTHER ASSEMBLY PARTS	ORDER NO.	DESCRIPTION(FIG. NO.)
Penta Pricem Holder	133071	2,5,7,
CDS Holder Ass'y	133052	14~17,

Exploded view diagram of a mechanical assembly with numbered components for identification

ORDER ASSEMBLY PARTS	ORDER NO.	DESCRIPTION(FIG. NO.)
Mirror Box Ass'y	133065	1~41.

	HARTS NO	DESCRIPTION	QTY
1	61813524	Setting Screw	2
2	104765	Eye-piece Frame	1
3	133054	Returning Second Lever Ass'y	1
4	133715	Start Lever Shaft	1
5	133714	Start Lever	1
6	133719	Start Lever S.S.	1
7	133720	Start Lever Spring	1
8	133056	Mirror Set Lever Ass'y	1
9	104705	Mirror Setting Lever Shaft	1
10	133710	Mirror Operating Spring	2
11		Mirror Box Sub Ass'y	1
12	133057	Synchro Switch Ass'y	1
13	61912524	Setting Screw	2
14	133721	Start Lever Fixing Plate	1
15	61912524	Setting Screw	1
16	133722	Start Lever Spring Post	1
17	61913524	Setting Screw	2
18	128711	Set Lever Stopper	1
19	61911824	Setting Screw	1
20	133712	Set Lever Restore Spring	1
21	121825	Mirror Regulating Lever Shaft Holder	1
22	133055	Mirror Operating Lever Ass'y	1
23	133723	Mirror Box Side Cover (B)	1
24	60223310	Adjusting Washer	1
25	60213310	Adjusting Washer
	60723310	Adjusting Washer
	60753310	Adjusting Washer
26	12181493	Eye-piece Lena Ass'y	1
27	170894	Eye-piece Lena Light-Proof Montette	1
28	61923024	Setting Screw	2
29	128059	Diaphragm Lever Ass'y	1
30	128766	Diaphragm Lever Shaft	2
31	128060	Diaphragm Connecting Lever Ass'	1
32	128770	Diaphragm Connecting Lever Bracket	1
33	128760	Mirror Plate Light-proof Outer Gap	1
34	128049	Conaenser Frame Fixing Ass'y	1
35	128777	Mirror Cushion	1
36	61912524	Setting Screw	3
37	121821	Focus Adjusting S.S. (A)	1
38	128776	Inside Light-proof Paper (n)	1
39	128772	Mirror Box Front Cover Collar	2
40	128771	Mirror Box Front Cover	1
41	61914024	M Box Front Cover Screw	2

11
OTHER 450/XYHY PARTS ORDER NO. DESCRIPTION/TIA NO.1 Mirror Box Ass'y 133055 1~39. Mirror Box Plate(A) 128093 7~8, 11~12.14.

	PARTS NO	DESCRIPTION	QTY
1	121822	Focus Adjusting S.S. (B)	2
1	128775	Inside Light-proof Paper (C)	1
3	121753	Winding Lever Adjusting Washer	1
4	104029	Mirror Activating NU,1Layer Aas'y	1
5	121820	Mirror Activating NU,1Layer Shaft	1
6	128773	Inside Light-proof Paper (A)	1
7	★	Mirror Restore Spring	1
8	★	Mirror Plate Hinge	1
9	61914024	Setting Screw	2
10	170867	Mirror Box Light-proof Paper	1
11	★	R.P.-Mirror TE. II C Order	1
12	★	Mirror Plate Sub As's y	1
13	128774	Inside Light-proof Paper (B)	1
14	★	Mirror Plate Hinge Shaft	1
15	128754	Restore Lever Returing Spring	1
16	133733	Aperture Lever Spring	1
17	66101525	Snap Ring (E-15)	2
18	60112110	Adjusting Washer
19	133051	Restore Lever As's y	1
20	133736	Aperture Lever Spring Post (B)	1
21	61915024	Setting Screw	2
22	133737	Aperture Lever Stopper	1
23	121825	Mirror Regulating Lever Spring Holder	1
24	128096	Mirror Regulating Lever As's y	1
25	121824	Mirror Regulating Lever Shaft	1
26	121831	Mirror Regulating Lever Spring	1
27	121808	Tripod Socket Washer	1
28	128884	Governor Driving Lever Shaft	1
29	128023	Governor Driving Lever A As's y	1
30	61112510	Setting Screw	1
31	170841	Mirror Regulating Lever Stopper	1
32	★	Mirror Box Sub As's y	1
33	128815	Mirror Box Side Plate	1
34	61911524	Setting Screw	2
35	61902224	Setting Screw	2
36	131299	Lug Governor	1
37	126883	Governor Driving Lever (B)	1
38	126884	Governor Driving Lever Shaft	1
39	133810	M.B. Dust-proof Moltopren	1

OTHER ASSIMIVY PARTS	ORDER NO.	DESCRIPTION/TRI. NO.)
Mirror Box Ass'y	133055	1~39.
Mirror Box Plate(A)	128051	7~8, 11~12.14.

NOTE: (Parts with marked "★" are not available.)

Technical diagram of a mechanical assembly with numbered components for identification

	PARTS NO	DESCRIPTION	QTY
1	121233	Curtain Shaft Gear S.S.	2
2	107156	Curtain Shaft Gear A
	107166	Curtain Shaft Gear B
3	60122110	Adjusting Washer	2
4	170156	Second Curtain Shaft Roller	2
5	107186	Restore Gear Shaft	1
6	121184	Mirror Restore Gear	1
7	60252610	Adjusting Washer	1
8	107873	Light-proof Moquette	2
9	110031	Light-proof Moquette	1
10	121323	Gear Shaft S.S.	1
11	170181	Ratchet Wheel	2
12	★	Upper Roller	1
13	★	Shutter Curtain Ass'y	1
14	63913024	Setting Screw	3
15	107179	Spring Shaft Holder	1
16	170179	First Curtain SP Shaft Holder	1
17	★	Ratchet Wheel Bass Plate	1
18	170182	Pawl Spring	1
19	61911524	Setting Screw	1

OTHER ASSINELY PARTS.	ORDER NO.	DESCRIPTION(STO NO.)
Shutter Curtain(4)	133031	4,8~19.

Innholdsfortegnelse Klikk på en tittel for å få tilgang til den

YASHICA
FX-2
ASSEMBLING CHART

Veiledningsassistent

Drevet av Anthropic

Venter på meldingen din

Produktinformasjon

Merke : KYOCERA

Modell : FX-2

Kategori : Videokamera
